FrSky GPS ADV User manual

FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.0
Note: All instructions, warranties and other collateral documents are subject to change at the sole
discretion of FrSky Electronic Co., Ltd. For further information, please visit www.frsky-rc.com and
click the support tab for this product.
Thanks for purchase FrSky’s GPS ADV sensor. To maximize your enjoyment, and to ensure proper sensing, please
read this manual thoroughly.
Introduction
Instruction Manual for FrSky GPS ADV Sensor
Set Up
FrSky Smart Port GPS is only compatible with FrSky Smart Port enabled receivers, such as X8R, X6R, X4R, etc..
Here we take the setup together with X8R receiver for example. For more details, please refer to corresponding
receiver instruction manual.
To the FrSky Receivers
To other FrSky FBUS/S.Port
Enabled Sensors
SENSOR
GPS

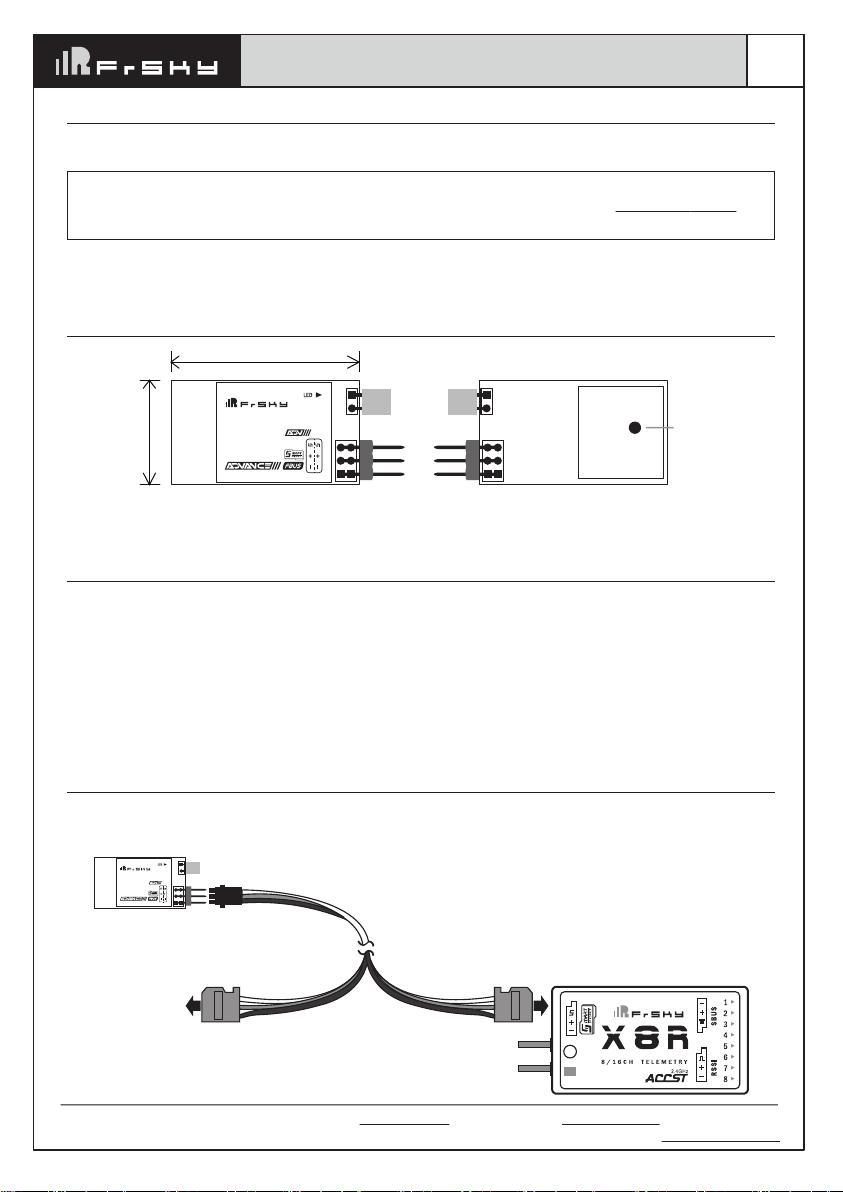

Overview
20 mm
36 mm
SENSOR
GPS UP Antenna
S.Port
VIN
GND
LED
Specifications
• Dimension: 45*20*10.4mm (L*W*H)
• Weight: 11g
•
Operational Voltage: DC 4 -10V
• Current Draw: 40mA @5V
• Operating Temperature: -40℃~85℃
• Data Rate: 10Hz
• Time to fix: 30s cold start
• Speed Accuracy: Approx 0.1m/s
• Sensitivity: -164dBm
• Antenna: Built-in patch
• Position Accuracy: Approx 2.5m CEP
• Operation Limits: Dynamics 4g/Altitude 50,000m/
Velocity 500m/s
• Compatible with FBUS/S.Port protocol

Instruction Manual for FrSky GPS ADV Sensor
FrSky Electronic Co., Ltd. www.frsky-rc.com Contact us: [email protected]
Add: F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
Version
1.0
ID Set Up
Note: All FrSky Smart Port enabled sensors could daisy chain with each other through their Smart Port.
Each type of FrSky Smart Port enabled sensor has its unique physical ID. The ID number could be changed by Free
Link (Windows/android/ios). Please refer to the instruction manual of FrSky Servo Channel Changer for details.
Warning: The GPS should be mounted with Velcro in your model so that the “UP” side is facing toward
the sky.
FrSky GPS ADV Sensor - feeds variable directional information such as:
Altitude, position, speed, and UTC time etc., which is displayed in real time on FrSky
Transmitter.
Other FrSky FBUS/S.Port enabled sensors including new Smart Port enabled Variometer Sensor, Lipo Voltage
Sensor, RPM Sensor, Airspeed Sensor, and so on.
The Battery and ESC should be connected to BAT port and ESC port correspondingly and make sure the polarity is
correct. FrSky is not responsible for any damage caused by wrong polarity connection.
LED Status
FBUS
NO
YES
LED Status
Flash slowly
Flash quickly
S.Port
YES
NO
