FrSky Taranis X-Lite User manual

FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
Meanings of Special Markings
DANGER - procedures which may lead to dangerous conditions and cause death/serious injury if not carried
out properly.
WARNING - Procedures which may lead to a dangerous condition or cause serious injury and even death to
the user if not carried out properly or procedures where the probability of superficial injury or physical damage is
high.
CAUTION - Procedures where the possibility of serious injury to the user is small, but there is a danger of
injury or physical damage, if not carried out properly.
NOTE – Steps, Tips or information
WARNING - Always keep electrical components away from children.
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
Quick select options
Long press the center of Multi-function joystick: there will generate a pop-up where the user can reset timer, reset
telemetry values, reset all above, jump to the tele setup page.
Warnings for Battery
Please connect a battery in the battery compartment before use (18500 Li-ion batteries).
The voltage range should be DC 6.0~8.4V
Be careful not to drop the battery.
Do not remove the battery from the X-Lite transmitter while the voltage warning is blinking as this could cause
internal settings and memories to be destroyed.
Do not use the transmitter if a “Backup Error” warning occurs.
Model Setup for Taranis X-Lite Internal RF Module
Enter the MODEL SETUP menu.
Step 1: Set the Mode for Taranis X-Lite Internal RF.
Refer to the table below and set the Taranis X-Lite to the mode corresponding to your receiver (D8, D16 or LR12).
USB PortHeadset port Smart Port
TF Card Slot
3. Headset jack is for audio output
and Smart Port is for firmware upgrade
and telemetry feedback.
Layout
SA SB
SC SD
Power Switch
Stick Stick
Display Screen
Trim
Multi-function joystick
Shift
Battery Cover Battery Cover
Exit
Power Indicator
S1 S2
Antenna Port
External Module Bay
Switch
SA: 3 positions; Long level
SB: 3 positions; Long level
SC: 2 positions; Short level
SD: 2 positions; Short level
You can choose the Switch and define
its position in the Mixer menu.
Overview of the menu tree
Move the Multi-function Joystick to the left and
hold for one second
Move the Multi-function Joystick to the right and
hold for one second
Move the Multi-function Joystick down and hold
for one second
Move the Multi-function Joystick up and hold for
one second
D8
D16
Note:
Older V8 series receivers are not supported by the internal module of X-Lite
X-Lite EU version only has D16-EU and LR12 mode.
Navigate the Menu
To navigate the menus, Taranis X-Lite has the following elements:
● Multi-function joystick
● Exit Button
● Shift Button
Exit Button
To exit current page or operation widgets.
Where am I in the menu tree
Shift Button
Shift button pressed with Tirm buttons together,Trim for Ail &Ele will shift to Tirm for Rud&Thr.
Multi-function Joystick
To navigate menus or widgets, move the Multi-function joystick to four directions as navigation.
To go to the [System] menu, move the multi-function joystick to the left and hold for one second.
To go to the [Model] menu, move the multi-function joystick to the right and hold for one second.
To go to the [Telemetry] menu, move the Multi-function down and hold for one second.
To check the information, move the Multi-function joystick up and hold for one second.
Specifications
● Model name: Taranis X-Lite
● Weight: 308g/376g(with battery)
● Operating Current: [email protected]
● Backlight LCD resolution: 128*64
● Number of channels: 16 channels
● Operating Voltage Range: 6.0~8.4V
● Operating Temperature: -20℃~60℃
● Model Memories: 60 models (extenable by MicroSD (TF) card)
Features
● Ergonomic and compact design
● M12 Lite Gimbal
* Hall effect high accuracy gimbal
* Mode conversion adjustments accessible without disassembly
* CNC machined gimbal pedestal
● Smart Port, Headset jack, Micro SD card slot and Micro USB Port (*Charging function unsupported)
● 128*64 outdoor readable backlight LCD
● Internal antenna and external antenna connectors
● Easily accessible battery compartment, adaptive with (*Batteries Not Included)
replaceable 18500 Li-ion batteries
(*Battery Information: Flat Top / Height: 50mm / Diameter: 18mm)
● Wireless function (Optional)
* Compatible with FrSky Free Link APP
* Wireless trainer system supported
(*Additional parts needed or specific model ordered)
● High-speed internal and external module digital interfaces
* Internal: 450K, External: 420K
* Super low latency (Total latency < 20ms, lowest to 12ms)
* Compatible with new Lite-typed external modules ( R9M Lite, MPM Lite, etc.)
● Installed open source operating system- OpenTX
● Haptic vibration alerts and voice speech outputs
(Headset jack and inbulit speaker)
Battery Installation
● Hold the battery covers and rotate them to the left
● Put the batteries with the positive pole as head into the transmitter
● Make sure the battery covers match with the battery compartments perfectly and rotate them to right until locked.
Caution: Ensure that the battery polarity is correct when connecting batteries into the battery compartment,
otherwise Taranis X-Lite might not be powered on.
Adjust hole with short screw:
adjusting the damping/
controlling sense.
Adjust hole with Long screw:
disable/enable the centered
function of gimbal.
Adjust hole with Long screw:
disable/enable the centered
function of gimbal.
Adjust hole with short screw:
adjusting the damping/
controlling sense.
Warning: Please distinguish between long screws and short screws when switching the throttle mode.
Make sure the adjust hole is correct, or the device is likely to broken.
Please check how to change the stick mode and damping/controlling sense on FrSky website.
System item Currently selected page
To go to the next page, move
the cursor to the item, then
move the multi-function
joystick to the left or right.
The cursor will firstly stay at
the item which indicates the
current page.
To change the data in other
items, firstly move the
multi-function joystick to
four directions until the
cursor stays at the needed
item.
Secondly, press the center
of the multi-function joystick
and move the joystick to the
left or right.
Adjust sticks of Taranis X-Lite
Taranis X-Lite has 4 CNC machined pedestal and centered stick, which can be self-defined and adjusted.
Introduction
Thank you for purchasing FrSky 2.4GHz ACCST Taranis X-Lite digital telemetry radio system. As a compact and
convenient transmitter, it has a multi-functional joystick and it is ergonomic and compact designed. In order to
make the most of our system and to fly safely, please read this manual carefully. If you have any difficulties while
using your system, please consult the manual, your hobby dealer, or FrSky technical support.
Due to unforeseen changes in production, the information contained in this manual is subject to change without
notice. Pay special attention to safety where indicated by the following marks:

FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
Step 6: Range
Range refers to X-Lite range check mode. A pre-flight range check should be done before each flying session.
Move the cursor to “Range” and press the center of Multi-function Joystick. In range check mode, the effective
distance will be decreased to 1/30. Press the center of Multi-function joystick or EXIT to exit.

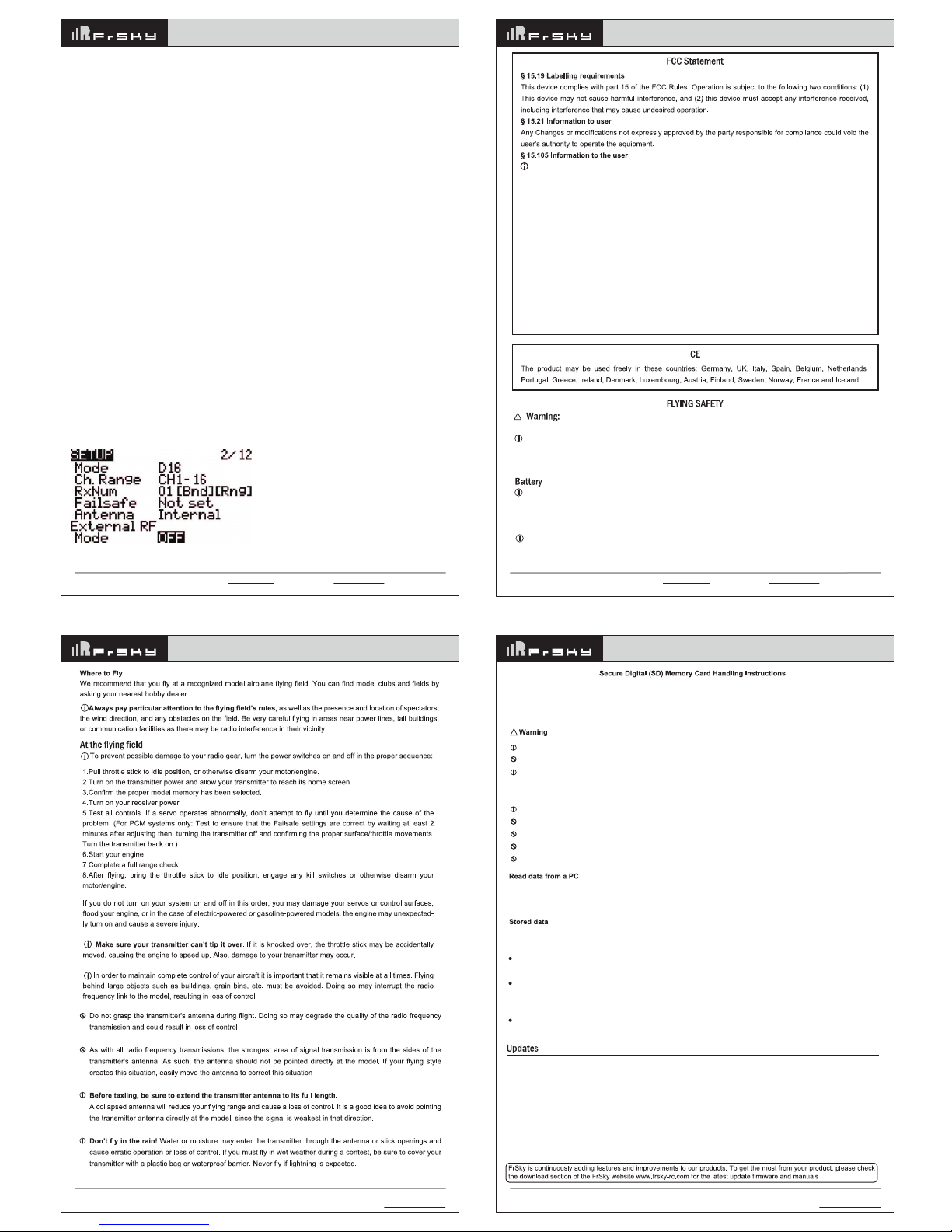

Model Setup for Taranis X-Lite external RF Module – R9M Lite
The external RF module can be powered on or off by software. The setup process is the same as that for the
Internal RF module. If you use other brand RF module than FrSky, please choose the corresponding mode.
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
FrSky Electronic Co., Ltd www.frsky-rc.com Contact us : [email protected]
Add:F-4,Building C, Zhongxiu Technology Park, No.3 Yuanxi Road, Wuxi, 214125, Jiangsu, China Technical Support: [email protected]
FrSky 2.4GHz ACCST Taranis X-Lite Manual
Step 2: Set the Channel Range
The Internal RF module of X-Lite supports up to 16 channels. The channel range is configurable, and needs
double check before use.
Step 3: Set the Receiver Number
When you create a new model, the system will assign you a receiver number automatically, but this can be easily
changed. The range of the receiver number is 00-63, with the default number being 01 (use 00 is not recommend-
ed). Once the receiver is set to desired number and is bound to the X-Lite, the bind procedure will not need to be
repeated unless the receiver number is changed. In this case, either set the receiver number to the previous one
or repeat the bind procedure.
Step 4: Bind
Bind refers to X-Lite binding mode. Move the cursor to “Bind”, press the center of Multi-function joystick, the cursor
will flash and the speaker will beep to remind you that the RF module has entered the bind mode. Then put your
receiver into binding mode and finish the bind procedure (refer to the receiver’s manual for details). Press the
center if the Multi-function Joystick or EXIT to exit.
Step 5: Set Failsafe mode
There are 4 failsafe modes: No pulse, Hold, Custom and receiver (this mode only used above OpenTX V2.0.0
firmware).
No Pulse: on loss of signal the receiver produces no pulses on any channel. To use this type, select it in the menu
and wait 9 seconds for the failsafe to take effect.
Hold: the receiver continues to output the last positions before signal was lost. To use this type, select it in the
menu and wait 9 seconds for the failsafe to take effect.
Custom: pre-set to required positions on lost signal. Move the cursor to “Set” and press the center of Multi-function
joystick, and you can see FAILSAFE SETTING screen below. Move the cursor to the channel you want to set
failsafe on, and press the center of Multi-function joystick. When moving the corresponding sticks or switches, you
will see the channel bar moving. Move the channel bar to the place you want for failsafe and long press the center
of Multi-function joystick to finish the setting. Wait 9 seconds before failsafe takes effect.
Receiver: set the failsafe on the receiver (see receiver instructions) in D16 or LR12 mode, select it in the menu
and wait 9 seconds for the failsafe to take effect.
Notice:
The above instructions do not apply to D-series receivers, which require the internal RF module of X-Lite to be in
D8 mode. For these receivers, failsafe must be set on the receiver side (see receiver instructions).
SBUS port always outputs, No Pulse could not perform properly on it. Set “Hold” or “Custom” for SBUS port.
To ensure the safety of yourself and others, please observe the following precautions.
Have regular maintenance performed. Although your X-Lite protects the model memories with non-volatile
EEPROM memory (which does not require periodic replacement) and of a battery, it still should have regular
check-ups for wear and tear. We recommend sending your system to your FrSky Service Center annually during
your non-flying-season for a complete check-up and service.
Using a fully charged battery (DC 6.0~8.4V). A low battery will soon die, causing loss of control and a crash.
When you begin your flying session, reset your transmitter’s built-in timer, and during the session pay attention
to the duration of usage. Also, if your model used a separate receiver battery, make sure it is fully charged before
each flying session.
Stop flying long before your batteries become over discharged. Do not rely on your radio’s low battery
warning systems, intended only as a precaution, to tell you when to recharge. Always check your
transmitter and receiver batteries prior to each flight.
The MicroSD card (not provided with X-Lite) can store various files, such as model data, music, sound files,
pictures and text. The card is locked when it is pushed in all the way in. To remove the card, push in on the card
again, it will pop out allowing you to remove it.
Be sure to power off the transmitter before inserting or removing a MicroSD card.
As the MicroSD card is a precision device, do not use excessive force when inserting.
If model data generated by a transmitter with a new software version is copied to one with the older software,
the transmitter may not operate correctly. Before copying the model data, update the destination transmitter
to the new software version.
Do not expose the MicroSD card to dirt, moisture, water or fluids of any kind.
Never remove the MicroSD card or turn off power while entering data.
Never store the MicroSD card where it may be subject to strong static electricity or magnetic fields.
Do not expose the MicroSD card to direct sunlight, excessive humidity or corrosive environments.
Be certain to insert the MicroSD card in the correct direction.
Music and image files edited by a PC can be transferred onto the MicroSD card and used on your X-Lite
transmitter. Equipment for reading and writing MicroSD card is available at most electronics stores.
The life of the MicroSD card is limited due to the use of Flash memory. If you have a problem saving or reading
data after a long period of use you may need to purchase a new MicroSD card.
We are not responsible for, and cannot compensate for any failure to the data stored in the memory card for
any reason. Be sure to keep a backup of your models and data on your MicroSD card.
Taranis X-Lite and MicroSD cards use non-volatile memory devices so that the data stored is retained, even
without a backup battery. Nevertheless, it is good practice to backup the data in the transmitter to the MicroSD
card.
The clock for the transmitter does depend on the internal battery, which may need to be replaced occasionally.
FrSky is continuously adding features and improvements to our radio systems. Updating (via USB Port or the
MicroSD card) is easy and free. To get the most from your new transmitter, please check the download section
of the FrSky website for the latest update firmware and guide for adjusting your sticks. (www.frsky-rc.com)
More information about OpenTX can be found on: http://www.open-tx.org.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment dose cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna
-Increase the separation between the equipment and receiver
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
*RF warning for Portable device:
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
