Frymaster FilterQuick Version 2 User manual

FilterQuick™
Controller Version 2 (For push button FilterQuick™fryers)
Operation Manual
This manual is updated as new information and models are released. Visit our website for the latest manual.
Part Number: FRY_IOM_8197206 01/2018

*8197206*
OriginalInstructions

NOTICE
IF, DURING THE WARRANTY PERIOD, THE CUSTOMER USES A PART FOR THIS FRYMASTER
FOOD SERVICE EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR RECYCLED PART
PURCHASED DIRECTLY FROM FRYMASTER, OR ANY OF ITS AUTHORIZED SERVICE
CENTERS, AND/OR THE PART BEING USED IS MODIFIED FROM ITS ORIGINAL
CONFIGURATION, THIS WARRANTY WILL BE VOID. FURTHER, FRYMASTER AND ITS
AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS, DAMAGES OR EXPENSES INCURRED BY
THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO
THE INSTALLATION OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN
UNAUTHORIZED SERVICE CENTER.
NOTICE
This appliance is intended for professional use only and is to be operated by qualified
personnel only. A Frymaster Factory Authorized Servicer (FAS) or other qualified professional
should perform installation, maintenance, and repairs. Installation, maintenance, or repairs by
unqualified personnel may void the manufacturer’s warranty.
NOTICE
This equipment must be installed in accordance with the appropriate national and local codes of
the country and/or region in which the appliance is installed.
NOTICE TO OWNERS OF UNITS EQUIPPED WITH CONTROLLERS
U.S.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: 1) This device may not cause harmful interference, and 2) This device must accept
any interference received, including interference that may cause undesired operation. While
this device is a verified Class A device, it has been shown to meet the Class B limits.
CANADA
This digital apparatus does not exceed the Class A or B limits for radio noise emissions as set
out by the ICES-003 standard of the Canadian Department of Communications.
Cet appareil numerique n’emet pas de bruits radioelectriques depassany les limites de classe A
et B prescrites dans la norme NMB-003 edictee par le Ministre des Communcations du Canada.
DANGER
Prior to movement, testing, maintenance and any repair on your Frymaster fryer, disconnect
ALL electrical power from the fryer.
NOTICE
The instructions in this manual for using a bulk oil system for filling and discarding oil are for a
Frontline or RTI systems. These instructions may not be applicable to other bulk oil systems.
DANGER
Keep all items out of drains. Closing actuators may cause damage or injury.
DANGER
Remove all drops of water from the frypot before filling with oil. Failure to do so will cause
spattering of hot liquid when the oil is heated to cooking temperature.

WARNING
Do not add HOT or USED oil to a JIB.
WARNING
NEVER drain boil out or cleaning solution into a shortening disposal unit (SDU), a built-in filtration unit, a
portable filter unit, or an OQS (Oil Quality Sensor). These units are not intended for this purpose, and will
be damaged by the solution and void the warranty.
DANGER
When draining oil into a disposal unit, do not fill above the maximum fill line located on the container.
DANGER
Allow oil to cool to 100°F (38°C) before draining into an appropriate METAL container for disposal.
DANGER
When draining oil into an appropriate SDU or METAL container, ensure the container will hold at least
FOUR gallons (15 liters) or more for FQE30 or FQG30 fryers, or EIGHT gallons (30 liters) or more for
1814E or 1814G fryers. Otherwise oil could overflow and can cause injury.
DANGER
When draining boil out solution oil into an appropriate METAL container, ensure the container will hold at
least FOUR gallons (15 liters) or more for FQE30 or FQG30 fryers, or EIGHT gallons (30 liters) or more for
1814E or 1814G fryers. Otherwise boil out solution could overflow and can cause injury.
DANGER
Open the filter pan slowly to avoid splashing of hot oil that may cause severe burns, slipping and falling.
DANGER
Ensure that the frypot and filter pan are completely dry and free of water before filling with oil. Failure to
do so will cause splattering of hot liquid when the oil is heated to cooking temperature.
WARNING
The on-site supervisor is responsible for ensuring that operators are made aware of the inherent hazards of
operating a hot oil filtering system, particularly the aspects of oil filtration, draining and cleaning
procedures.
DANGER
Do not drain more than one frypot at a time into the built-in filtration unit to avoid overflow and spillage of
hot oil that may cause severe burns, slipping and falling.
WARNING
Never drain water into the filter pan. Water will damage the filter pump
WARNING
Ensure a filter paper/pad is in place prior to filtering, draining or disposing of oil. Failure to insert a filter
paper/pad may result in clogged lines and/or pumps.

DANGER
DO NOT drain more than one full frypot or two split frypots into the SDU at one time to avoid overflow and
spillage of hot oil that may cause severe burns, slipping and falling.
WARNING
Never operate the filter system without oil in the system.
WARNING
Never use the filter pan to transport old oil to the disposal area.
WARNING
Never leave the fryer unattended during the boil out process. If the solution overflows, press the ON/OFF
switch to the OFF position immediately.
WARNING
This appliance is not intended for use by children under the age of 16 or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision concerning use of the appliance by a person responsible for their safety. Do not allow children
to play with this appliance.

iv
FilterQuick™
Controller Manual
TABLE OF CONTENTS
CHAPTER 1: FilterQuick™Controller Instructions
1.1 Using the FilterQuick ..............................................................................................................1-1
1.2 Menu Trees ..............................................................................................................................1-2
1.2.1 FilterQuick™ Controller Menu Setup Tree.................................................................1-2
1.2.2 FilterQuick™ Filter and Info Mode Menu Tree ..........................................................1-3
1.3 Setup Main Menu.....................................................................................................................1-4
1.4 Vat Setup..................................................................................................................................1-4
1.5 Info Mode.................................................................................................................................1-7
1.6 Product Setup (Single Setpoint).............................................................................................1-10
1.7 Multiple Setpoint Cooking Overview....................................................................................1-11
1.8 Product Setup (Multiple Setpoint) .........................................................................................1-11
1.9 Filter Menu.............................................................................................................................1-13
1.9.1 Filter...........................................................................................................................1-13
1.9.2 Clean and Filter..........................................................................................................1-14
1.9.2.1 OQS............................................................................................................................1-14
1.9.3 Dispose (SDU or Alternate Container/Fill from JIB)................................................1-15
1.9.4 Dispose (Bulk or Front / Fill from JIB) .....................................................................1-15
1.9.5 Dispose (Bulk /Fill from Bulk)..................................................................................1-16
1.9.6 Drain to Pan ...............................................................................................................1-17
1.9.7 Fill Vat from Pan........................................................................................................1-17
1.9.8 Fill Vat from Bulk (Bulk only)..................................................................................1-18
1.9.9 Pan to Waste (Bulk only)...........................................................................................1-18
1.9.10 Clean (Hot [Boil Out] or Cold [Cold Soak] (Dispose SDU or Alternate
Container/Manually Fill Vat from JIB) .................................................................................1-19
1.9.11 Clean (Hot [Boil Out] or Cold [Cold Soak] (Dispose to Bulk or Front / Manually Fill
Vat from JIB).........................................................................................................................1-20
1.9.12 Clean (Hot [Boil Out] or Cold [Cold Soak] (Dispose to Bulk /Fill Vat From Bulk)1-21
1.10 Polishing ................................................................................................................................1-22
1.11 SCAN Mode...........................................................................................................................1-23
CHAPTER 2: Operator Troubleshooting
2.1 Introduction..............................................................................................................................2-1
2.2 Troubleshooting.......................................................................................................................2-2
2.2.1 Error Message and Display Problems...........................................................................2-2
2.2.2 Filtration Problems........................................................................................................2-3
2.2.3 Using Tech Modes.........................................................................................................2-5
2.2.4 Error Log Codes ............................................................................................................2-5
2.2.5 OQS (Oil Quality Sensor) Troubleshooting..................................................................2-7
CHAPTER 3: FilterQuick Oil Quality Sensor (OQS)
3.1 OQS Filter Setup......................................................................................................................3-1
3.2 Info Mode: Viewing OQS Total Polar Material (TPM) Stats..................................................3-2
3.3 OQS Filter Menus....................................................................................................................3-2
3.3.1 Clean and Filter with OQS (Set to Number).................................................................3-2
3.3.2 Clean and Filter with OQS (Set to Text).......................................................................3-3
3.3.3 OQS Filter with OQS (Set to Number).........................................................................3-4
3.3.4 OQS Filter with OQS (Set to Text)...............................................................................3-5

1-1
CHAPTER 1: FILTERQUICK™ CONTROLLER INSTRUCTIONS
1.1 Using the FilterQuick™Controller
ON/OFF
Press ON/OFF button. Fryer begins melt cycle to slowly heat solid shortening to programmed temperature before switching to full
temperature and heating to setpoint or idle temperature and displays: READY.
Exit melt cycle, when using liquid oil, by pressing and releasing the Exit Cool button or any programmed product button. Displays Exit
Melt? on left and YES NO on the right. Press (YES) arrow to exit.
Cooking
COOL displayed: Press product button or Exit Cool; fryer heats to setpoint and displays READY.
READY displayed: Press product button and drop product.
----- displayed: The vat temperature is out of the Ready zone.
DONE displayed: Press blinking product button to cancel alarm and end a cook.
HOLD displayed: Press blinking product button to cancel hold alarm.
Cancel a Cook: Press and hold blinking product button to cancel cook cycle.
Change Cook Temperature: Press and hold a product button with the desired different cooking temperature for 3 seconds. An audible will
confirm that the temperature has changed. Press the product button again to start a cook at the new temperature.
NOTE: When a product button with a setpoint different than a currently cooking product is pressed, a low tone is heard indicating the new
cook won’t start until the cook is finished and the cook temperature is changed.

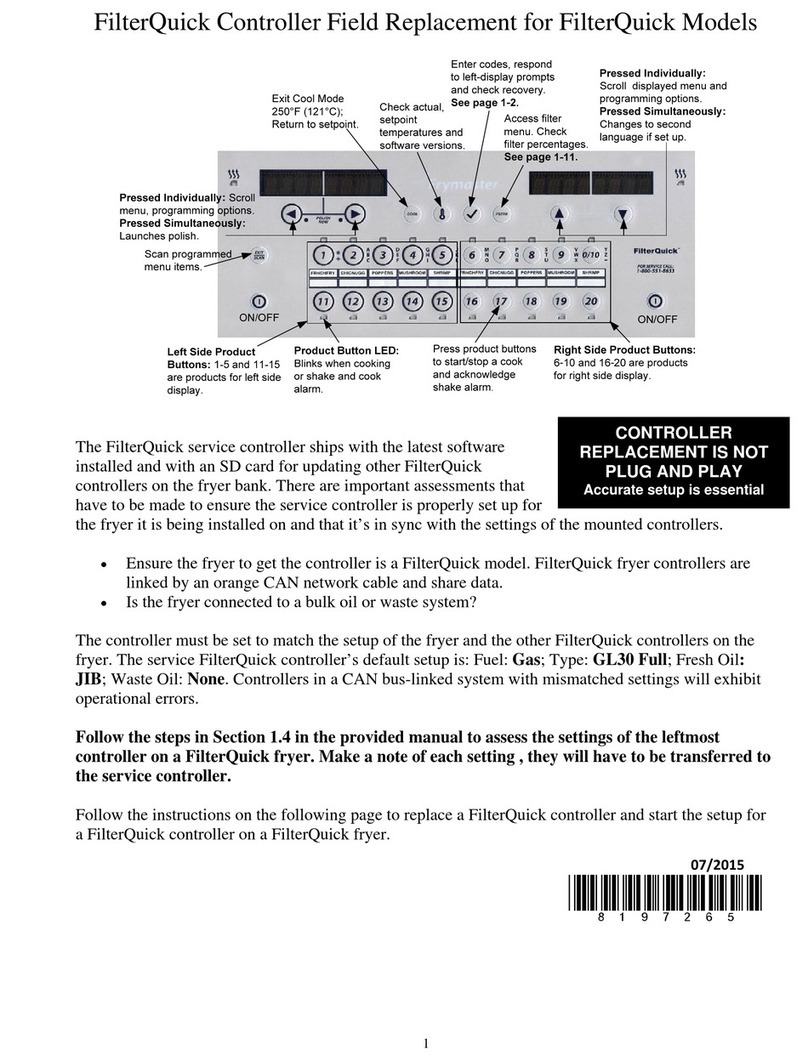

Controller Button Navigation
Product: Press to start a cook cycle. Active when adjacent LED is lit. LED flashes during a cook cycle. Press and hold to cancel a
cook cycle. Press at end of cook cycle to cancel an alarm. Press and hold a product with different setpoint to change setpoint
temperature.
Exit/ Scan: Press once; all product buttons are lit. Select Product displayed. Press product button to view product name. Press to
advance through all product parameters. Press Exit Scan again to repeat. Press Exit Scan twice to escape.
Left/Right Arrows: Navigate options in left display. Press both simultaneously to start a polish cycle.
Up/Down Arrows: Navigate options in right display. Press both simultaneously to change to a second language if one is selected in
setup.
Exit Cool: Exits cool mode, returns fryer to setpoint temperature.
Thermometer: Fryer ON: Press and release for setpoint in left display and vat temperature in right display.
Thermometer: Fryer OFF: Press to display temperature, time, date, system version, controller and circuit board software versions.
Thermometer: Fryer OFF: Press and hold. Will display AIF/ATO Temp
Checkmark: Fryer OFF: Press to check recovery; Press and hold 3 seconds: Scroll filter usage; Press and hold 10 seconds: Product
setup.
Checkmark: Fryer ON: Press to check recovery; Enter Codes and Respond to left display prompts.
Filter: Press and release: Displays total percentage of products cooked and cooks remaining to filter cycle. Press and hold: Filter
options: Filter, Clean and Filter, OQS, Dispose, Drain to Pan, Fill from Pan, Hot or Cold Clean, Fill Vat from Bulk (Bulk only) and Pan
to Waste
(
Bulk onl
y)
.

1-2
1.2 Menu Trees
1.2.1 FilterQuick™ Controller Menu Setup Tree

1-3
1.2.2 FilterQuick™ Filter and Info Mode Menu Tree

1-4
1.3 Setup: Main Menu
Pressing and holding the checkmark key for 10 seconds produces the setup mode, which first displays Product Setup. Turn
the controller off and follow the steps below to navigate the options.
Left Display Right Display Action
OFF OFF Start with the far left controller. Press and hold the (check) button until the controller
scrolls INFO MODE, changing to MAIN MENU and then PRODUCT SETUP.
Product Setup Press to scroll to Product Setup, Vat Setup, Tech Mode, and Exit. With the desired
selection displayed, press .
Product Setup Used to program menu items and cooking parameters.
vat setup Vat set up is described below in section 1.4.
Tech Mode Tech mode is used to enable and disable Cooks and Filters options.
Exit Exit Press Exit/Scan button to return the controller to OFF.
1.4 Vat Setup
Vat Setup mode allows the controller to be set for language displays, vat sizes, and temperature range displays. With the
controller OFF, follow the steps below. *NOTE: Most of the system choices are only available on the far left (Master)
controller. Vat type, Cool Mode Default and Basketlift are only available on other controllers.
Left Display Right Display Action
OFF OFF Start with the far LEFT controller. Press and hold the (check) button until the
controller scrolls Info Mode, changing to MAIN MENU and then PRODUCT
SETUP.
PRODUCT
SETUP Press to scroll to Vat setup and press .
VAT SETUP Enter
code Enter 1656.
SYSTEM Press .
Language English Press  to scroll to choice and press .
2nd
language SPANISH Press  to scroll to choice and press . (This option allows another language to
be toggled from the front panel. (ex. Spanish as a second language.) Default is
Spanish.
Locale Non-CE Press  to scroll to choices: CE (European Conformity standards), or Non-CE
(non-European standards) and press . This option is available only on the far left
controller.
Energy Gas Press  to scroll to choices: Gas or Electric and press . This option is available
only on the far left controller.
Type GL30 Full
Press  to scroll choices: Gas- GL30 Full, GL30 Split, GL30 Full OSP, GL30
Split OSP, 11814 Full Electric- EL30-14 Full, EL30-14 Split, EL30-17 Full, EL30-
17 Split, 11817 Full. With the current fryer vat type displayed, press .
SYSTEM
volume 5 Sets sound level for controller. Enter level, 1-9 (1=Lowest/ 9=Loudest). Press .
Tempr
format F Press  to scroll choices: F for Fahrenheit; C for Celsius. Press .
Exit Melt
Tempr
180º
(82 ºC)
Use numbered keys to change default setting. Press . (This is the temperature for
the fryer to exit the melt cycle.) Range is 100°F (38°C) to 200°F (93°C). Default is
180°F (82°C).
COOL MODE
TEMPR
250F (121
ºC) Use numbered keys to change default setting. Press . (This is the temperature
during setback or idle mode.) Default is 250°F (121°C).
COOL MODE
DEFAULT 0 Use numbered keys to change default setting. (This is the amount of minutes the
fryers sits idle before going to cool mode. The default, 0, disables the feature.) Press
.
FRESH OIL JIB Press  to scroll choices JIB or Bulk. Default is JIB. Press .
WASTE SDU Press  to scroll choices SDU, BULK or FRONT. Default is SDU. Press .

1-5
Left Display Right Display Action
RECOVERY
ALARM DISABLED Press  to scroll choices DISABLED and ENABLED. Press .(This is a
recovery alarm that locks out the fryer if it does not heat properly. Default is disabled.
BASKET
LIFT DISABLED Press  to scroll choices DISABLED and ENABLED. Press .Default is
disabled.
HOLD TIME AUTO Press  to scroll choices AUTO and MANUAL. Press .(This is the hold timer
cancel alarm.) If set to auto, the alarm will auto cancel. Default is auto.
Exit Exit Press button once to return the controller to OFF.
Time/date Programming
OFF OFF Press until the controller scrolls INFO MODE, changing to MAIN and then
PRODUCT SETUP.
PRODUCT
SETUP Press to scroll to Vat setup and press .
VAT SETUP Enter
code Enter 1656.
SYSTEM Press to scroll to TIME/DATE.
TIME/DATE Press .
TIME
ENTRY Time Use numbered keys to change time. Enter the time in 24 hour format. Press .
DATE
FORMAT Mm/dd/yy Press  to scroll choices. With the desired date format displayed, press .
ENTER
DATE date Use numbered keys to change date. Press .
EXIT Exit Press the Exit/Scan button three times to return the controller to OFF.
DST SETUP
This is daylight savings time setup. In the United States, daylight saving time begins at 2:00 A.M. on the
second Sunday in March. Clocks move ahead one hour. Daylight saving time ends at 2:00 A.M. on the
first Sunday in November. Clocks move back one hour. For the two U.S. states and international
locations that do not use DST, set to disabled.
OFF OFF
Press until the controller displays INFO MODE, changing to MAIN and then
PRODUCT SETUP.
PRODUCT
SETUP Press to scroll to Vat setup and press .
VAT SETUP Enter
code Enter 1656.
SYSTEM Press to scroll to DST Setup.
DST SETUP Press 
DST Enabled
Press  to scroll choices DISABLED and ENABLED. Press .(Default is
enabled.) If disabled is chosen, pressing the button, displays exit. Press the exit
scan button three times to exit.
DST START
MONTH 3 Enter the daylight savings time starting month using the 1-10 keys. (Default is US
starting month: 3.) Press .
DST START
SUNDAY 2 Enter the daylight savings time starting Sunday using the 1-10 keys. (Default is US
starting Sunday 2.) Press .
DST END
MONTH 11 Enter the daylight savings time ending month using the 1-10 keys. (Default is US
ending month 11.) Press .
DST END
SUNDAY 1 Enter the daylight savings time ending Sunday using the 1-10 keys. (Default is US
ending Sunday 1.) Press .
EXIT Exit
Press the Exit/Scan button three times to return the controller to OFF.
FILTER
OFF OFF
Press until the controller scrolls INFO MODE, changing to MAIN and then
PRODUCT SETUP.
PRODUCT
SETUP Press to scroll to Vat setup and press .
