FSR DV-HDSS-41-TX User manual

User Manual
DV-HDSS-41-TX
4x1 4K Scaling Presentation Switcher with Dual Outputs
NOTE: See FSR LIT1628 API manual for serial commands.
43153 LIT1627

Important Safety Instructions
.

Table of Contents
Important Safety Instructions
Overview
Features
Package Contents
Panel Description
Dipswitch Setting
Scaler Setting
HDBaseT Cable Distances & Resolutions:
Connection and Installation
Switch and Lamp Connection Diagram
Typical
Functional Block Diagram
Audio Hookup
Dimensions
Operation
Input Select
CEC Display Control
Audio Controls
API Control
Specifications
Limited Warranty
Contact Information:

Introduction
Overview
The FSR DV-HDSS-41-TX is an advanced four-input, multi-format converter,
switcher, scaler and extender with built in 4K UHD scaling, in a compact 1RU
half-rack enclosure. It offers two HDMI inputs, one DisplayPort input and one
VGA input with Stereo Audio; Scaled HDMI with EDID controlled HDBaseT
mirrored output to allow signal extension over CatX cable to reach a remote
display, or additional HDBaseT signal management system. Additionally, one
balanced stereo audio de-embedded output generated from the scaled HDMI
video output.
It supports four control options, two auto switching options, push buttons on
the front panel, contact closures with lamp feedback and API. It also has
built-in CEC control that can automatically turn a CEC enabled display
on/standby by auto-detecting input signal status. The built in 4k@30Hz scaler
on the HDMI output is controlled by a rotary switch that allows seamless
switching without black to enhance presentations by eliminating distractions
during switching.
It simplifies classroom and small office system integration, for installation
beneath conference tables and in lecterns, to provide localized presentation
switching support.
Features
1xVGA+Stereo Audio, 1 x DisplayPort and 2x HDMI inputs, HDMI and
HDBaseT mirrored outputs
HDMI and DP input up to 4k UHD, 2160P (3840x2160) @30Hz and
HDCP 1.4, VGA input up to 1920x1200@60Hz

HDMI out with 4K@30Hz scaler built in and de-embedded balanced
stereo audio out
HDBaseT mirrored out, supports PoH with PSE module to power remote
FSR 100 Meter HDBaseT receiver
HDMI out supports seamless and fast switching within 2-3 seconds, the
last frame frozen without black
Auto-switching to the latest input, when detecting any input connected or
disconnected
CEC controller built in to turn a display on/off by auto-detecting the inputs
status, with delay adjustment
Push buttons and Contact Closures provided to switch sources or turn
display on/standby manually
DIP switch provided to adjust automatic or manual operation mode
Rotary switch provided to adjust auto-scaler or fixed resolutions out
Provides RS232, and front panel buttons to control the device
Provides the complete API commands to the third party control system
for integration
DC 12V 3A adapter universal power supply
Package Contents
1 x DV-HDSS-41-TX Switcher
1 x power adapter (DC 12V 3A)
1 x AC cable with US standard
3 x Phoenix Male Connector (3.81 mm, 3 pins)
3 x Phoenix Male Connector (3.81 mm, 5 pins)
1 x Mounting Brackets (Pair)

Panel Description
Front Panel
No.
Name
Description
1
VGA IN
Connects to VGAsource device
2
AUDIO IN
Stereo audio (embedded with VGA inputs)
3
DP IN
Connects to DisplayPort source device
4
HDMI IN
Connects to HDMI source device.
5
SOURCE Selection
Button and LEDs
Selection button: press the button to select
the desired input.
LED: The selected source LED lights.
6
DISPLAY Selection
Button
On: Turn on the TV via CEC
Off: Turn off the TV via CEC
Note: Used for TV that support CEC
7
4 Pin DIP SET
Dipswitch for setting options
8
SCALER
Switch to desired scaler setting.
Read on power up and hot plug only.

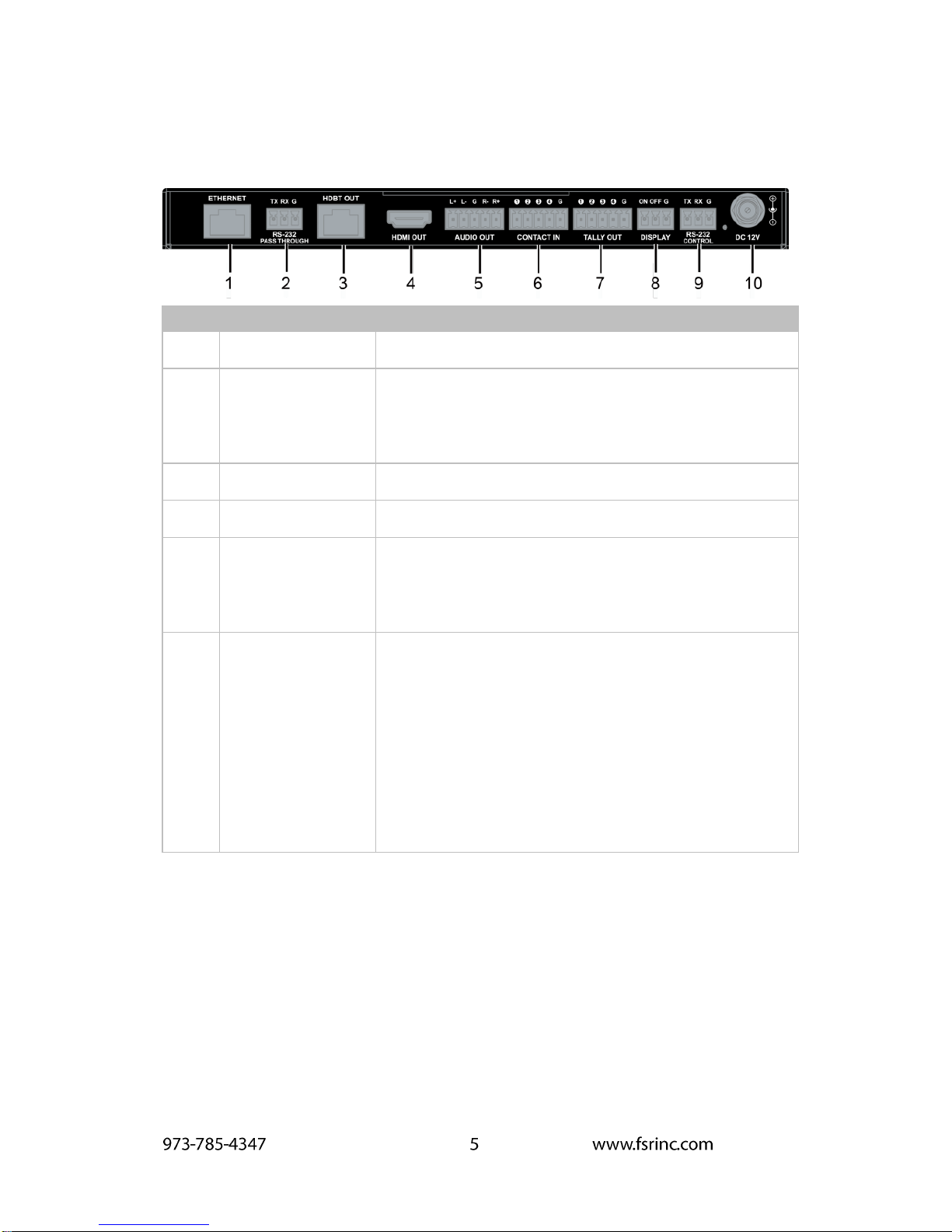

Back Panel
No.
Name
Description
1
ETHERNET
LAN to/from HDBaseT Receiver
2
RS232 Pass
Through
Connects to a RS232 controller or RS232
controllable device to pass through RS232
commands to HDBaseT Receiver
3
HDBT OUT Port
Connects to a HDBaseT Receiver
4
HDMI OUT Port
Connects to HDMI display device
5
AUDIO OUT
Ports
Connects to audio output device such as an
amplifier, powered speakers for HDMI audio
de-embedding output
6
CONTACT IN
Ports
Connects to a push buttons for input source
switching
No.1: Press this button to select VGA IN
No.2: Press this button to select DP IN
No.3: Press this button to select HDMI1 IN
No.4: Press this button to select HDMI2 IN
G: Connects to Ground (>1mA but <5 mA)

No.
Name
Description
7
TALLY OUT
Ports
Connects to LEDs on the keypad to indicate the
selected source
No.1: LED for VGA input
No.2: LED for DP input
No.3: LED for HDMI1 input
No.4: LED for HDMI2 input
G: Connects to Ground (<100 mA)
8
DISPLAY
Connects to keypad to output CEC power
commands
Note: The display devices must support CEC and
must be enabled
9
RS232
CONTROL
Connects to a PC or a third-party control system to
control this device via API commands
10
Power Input
DC 12V 3A power input.

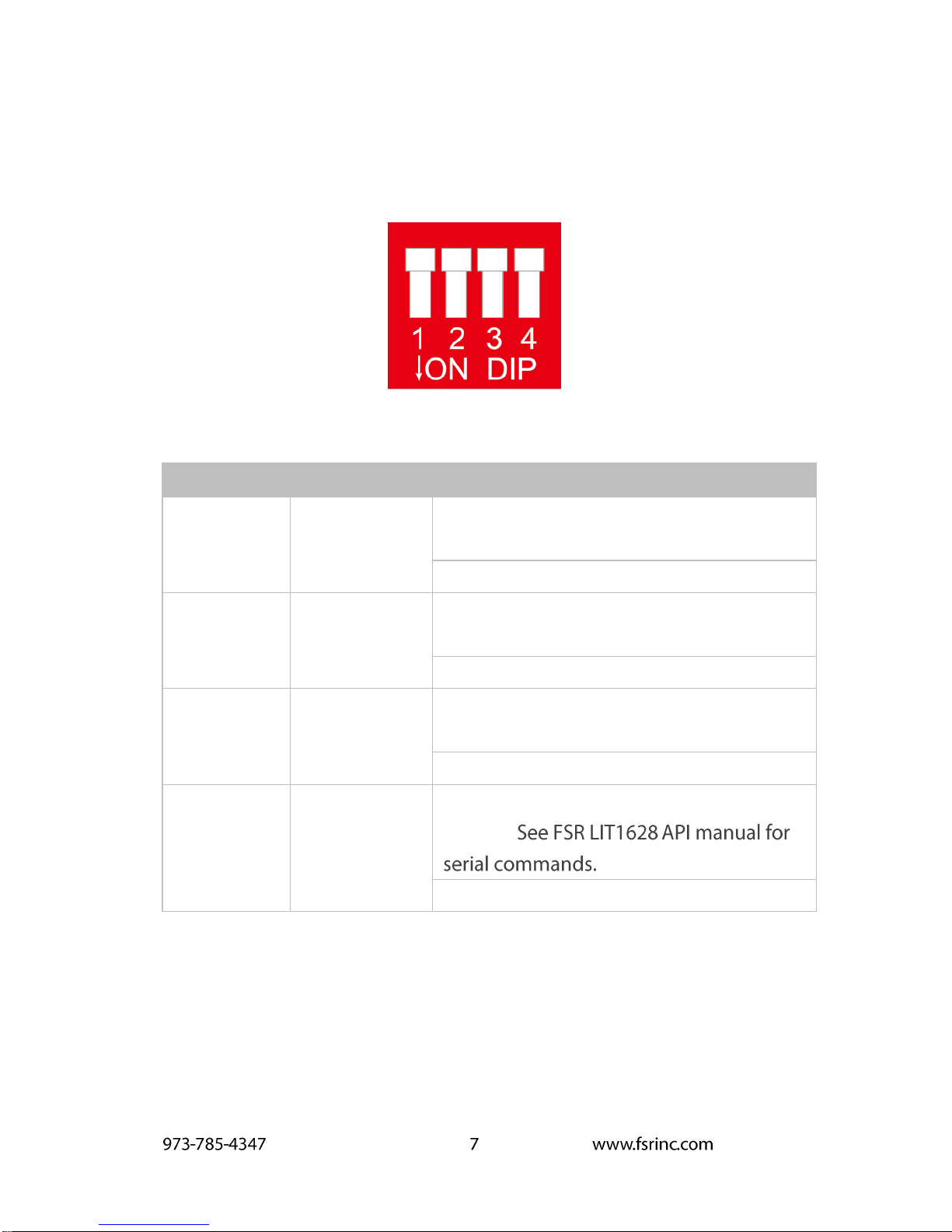

Dipswitch Setting
4 Pin DIP switch
DIP Position
Function
Switch 1
Audio
De-embedded
UP:Audio out de-embedded from HDMI
output (Default)
DOWN: Reserved
Switch 2
Source Switch
Mode
UP:Enable Auto-Switch with Manual
Override Control (Default)
DOWN: Manual Switch only
Switch 3
CEC Control
UP:Enable Auto-CEC Control with Manual
CEC Override Control (Default)
DOWN: Manual CEC Control only
Switch 4
Control Mode
UP:Enable API control and manual control
(Default)
DOWN: Manual Control only

Scaler Setting
HDMI scaler output support. Note
Position
Functions
0
Scaler Set to Automatic Mode (default)
1
Fixed 1024 x 768@60Hz as native video
2
Fixed 1280 x 720@60Hz as native video
3
Fixed 1280 x 800@60Hz as native video
4
Fixed 1366 x 768@60Hz as native video
5
Fixed 1600 x 1200@60Hz as native video
6
Fixed 1920 x 1080@60Hz as native video
7
Fixed 1920 x 1200@60Hz as native video
8
Fixed 3840 x 2160@30Hz as native video
9
API Control
HDBaseT Cable Distances & Resolutions:
CAT-5e / CAT-6:
100 Meters: 1080p @60 Hz (36 BPP [bits per pixel])
70 Meters: 1080p @60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p
3840 x 2160) @ 30Hz. (4:2:0 8-bit)
CAT-6A / CAT-7 (Shielded):
100 Meters: 1080p @60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p
(3840 x 2160) @ 30Hz. (4:2:0 8-bit)

Connection and Installation
1. Using only good quality VGA/DP/HDMI cables firmly connect a 4K or HD
source device to the VGA/DP/HDMI input ports of the switcher.
2. Firmly connect HDMI OUT of the Switcher to HDMI IN of 4K or HD display
devices ensuring both source and display devices are compatible and
correctly configured to output and accept the required signal resolution.
3. Connect a good quality, well-terminated CAT-6A shielded cable between
the HDBaseT OUT of the Transmitter switcher to the HDBT IN Input of an
HDBaseT Receiver.
4. Insert the included power supply, Check the front panel power LED to
indicate the switcher is ready to use.
5. Connect the CONTACT IN, TALLY OUT and SINK via the Male Connector
included.
Note:
External momentary contact closure referenced to GND should
be >1mA but <5 mA.
Open circuit voltage 3.3~12 volts will be acceptable.
Protected against application of external voltages is in the range of
+/- 24V W.R.T. GND.
Minimum contact closure time is 50 ms (It is able to ensure
detection of external closure).
LED output voltage is +12 volts (Nominal, 10~13 volts is acceptable),
maximum output current is 100 mA and when active it should be
short circuit protected.
6. Switch between sources using the switch buttons in front panel, via
CONTACT IN control, or RS232.
7. Switcher can be directly connected to FSR HV-T6 Table Box following
wiring chart below.

Switch and Lamp Connection Diagram
CONTACT IN TALLY OUT DISPLAY
1 2 3 4 G 1 2 3 4 G ON OFF G
Input Select
VGA
DP
HDMI 1
HDMI 2
Ground
ON
OFF
Display
Control
Ground
7 - Orange
Function
Pin / Color
1 - Green
Switch 1 (N.O.)
NC
7 - Orange
Ground
2 - Red
LED 1 - Green +
3 - Black
NC
4 - Yellow
Switch 2 (N.O.)
Switch 3 (N.O.)
2 - Red
LED 3 - Green +
3 - Black
5 - Blue
Ground
HV-T6 Table Box Cable Harness Detail
Left Side Harness
Right Side Harness
NC
4 - Yellow
Switch 4 (N.O.)
5 - Blue
LED 4 - Green +
6 - Brown
NC
LED 2 - Green +
6 - Brown
Pin / Color
Function
1 - Green

Typical
Ethernet
Control
Resolution EDID Managed
(not Scaled)
Scaled Output
(Rotary Switch Set)
API Controlled
Volume and Mute
LENSSHIFT
LENSRELEASE
FLEX
I/O
com
status
AMP
Input Select and CEC Control Options
Automatic - Priority or Last Connected,
Front Panel Push Button,
Remote Switches and Lamps,
or Serial API
INSPIRON
9 A
1394
RS232 and
Ethernet to
Projector
VGA with Audio
DP HDMI
HDMI
Blu-Ray DVD
Camera
Laptop
Laptop
HDMI
RS232
Control
Power Supplied by
the Switcher
Power
CEC Controled
CEC Controled
LENSSHIFT
LENSRELEASE
HDMI
CEC Controled
Scaled Output
(Rotary Switch Set)
API Controlled
Volume and Mute
FLEX
I/O
com
status
AMP
Not Used
Single Scaled Output
Variation
API Controlled
Volume and Mute
FLEX
I/O
com
status
AMP
Not Used
Single EDID Managed Output
Variation
Ethernet
Control
Resolution EDID Managed
(not Scaled)
HDMI
RS232
Control
Power Supplied by
the Switcher
CEC Controled
RS232 and
Ethernet to
Projector

Functional Block Diagram
Ethernet
RS-232 Pass Thru
HDBT Output
w/ CEC Control
HDMI Output
Audio Out
Input Select
Display On, Off
RS-232 Control
Power 12VDC
VGA (1)
VGA Audio
DisplayPort (2)
HDMI (3)
HDMI (4)
Source Select
Display On
Display Off
Function Select
Scaler Setting
Inputs
DV-HDSS-41-Tx Scaling Switcher Functional Block Diagram
Input Select –Auto, Last-In or Priority; Front Panel; Remote Switches / Lamps
HDMI
4x1
Switcher
PC to
HDMI 1x2
DA HDBaseT
Transmitter
HDMI
Scaler
CPU
Scaler and Audio Controls
EDID
Select
DP to
HDMI
In Sel Lamp Out
Hardwired Switch
Lamp Control{
Front Panel Push
Button Controls
}
Dip Switch
Input
Control
Rotary Switch
Resolution Select
w/ CEC Control &
API Volume /Mute
API Volume /Mute
Outputs
Audio Hookup
HDMI OUT AUDIO OUT
L+ L- G R- R+
HDMI OUT AUDIO OUT
L+ L- G R- R-
HI
LO
SH
HI
LO
SH
Right Audio
Channel
Left Audio
Channel
+
SH
+
SH
Right Audio
Channel
Left Audio
Channel
Balanced Diagram
Un-Balanced Diagram

Dimensions

Operation
Input Select
The input source can be selected via 2 different types of Auto Mode, where the
unit detects the connection, disconnection and signal presents or through the
front panel push button, RS232 serial command or momentary contact
closures.
When pressing the front panel switch the unit will step though the active inputs
in the following order: VGA->DP->HDMI1->HDMI2. When direct access to an
input is requested via RS232 or a contact input the unit will switch to that input
only if it as an active signal present. If the requested source is not active the
LED indicator will flash twice to indicate the source is not active and will not
switch.
To enable Auto-Mode Dip Switch Pin 2 should be switch UP. The unit is
programmed with 2 Auto Mode operation options; Priority and Last Connected.
The unit is shipped from the factory in the priority mode. The Auto Mode type
can be changed via a serial API command.
Auto Mode 1 (priority mode): VGA->DP->HDMI1->HDMI2
1. When power is applied to the switcher it will default to the VGA channel
unless there is another active source connected. If multiple sources are
already connected it will auto switch to the active source with the highest
priority.
2. When a new source is connected the switcher will auto switch depending
on the priority of the input signals.
3. When a currently selected source is removed the unit will auto switch to
the next lower priority input.
4. Manual and API switching is also valid in the Priority Mode. The front
panel button will switch through the active sources. Any switch command
via the Contact Closures inputs or API commands will be performed on

inputs with active sources only. If the selected source is not active the
LED indicator will flash twice to indicate the source is not active and will
not switch.
Auto Mode 2 (Last Connected):
1. When power is applied to the switcher it will default to the VGAchannel. If
multiple active sources are present at power up the unit will auto-switch
to the input with the highest priority.
2. When any new active source is connected the unit will auto switch to this
source.
3. When a currently selected source is removed the unit will auto switch to
the active source with highest priority, or remain on the current input if no
any active sources are present.
4. Manual and API switching is also valid in the Last Connected Mode. The
front panel button will switch through the active sources. Any switch
command via the Contact Closures inputs or API commands will be
performed on inputs with active sources only. If the selected source is not
active the LED indicator will flash twice to indicate the source is not active
and will not switch.
CEC Display Control
Consumer Electronics Control (CEC) is an HDMI feature designed to allow the
user to control any CEC-enabled device that is connected via HDMI. CEC
allows for CEC-enabled devices to be controlled without user intervention.
The switcher generates CEC commands to turn on or off the display(s)
connected to the HDMI and HDBT outputs. When the option for CEC is
enabled by setting Dip Switch pin 3 UP the switcher will send out a Power On
command when any device with a valid video signal is detected. The unit will
also send out a Power Off or Standby command when no valid video signals
are present for 2 minutes (default). The Power Off Timer can be changed to
any time between 1 minute and 30 minutes via a serial API command.

CEC commands can also be generated by depressing the Display On, Off
buttons on the front of the unit, by a remote key switch connected to the rear
terminal or by a serial API command to the unit.
Audio Controls
Separate volume and mute audio controls are available for the HDMI and
Analog Audio outputs via serial API commands. There are no audio controls
available on the HDBT output. When controlling the volume setting, serial
commands should be sent 500 ms. apart.
API Control
See FSR LIT1628 API manual for serial commands.
API commands are sent to the unit on the RS232 port marked "Control". The
second RS232 port is used to send serial commands to the HDBT receiver
only. The two serial ports can be jumped for control surfaces originating at the
end of the HDBT output by connecting Tx to Rx and Rx to Tx.
The RS232 port settings are:
1. Baud Rate –57600
2. Data Bits –8 bits
3. Parity –None
4. Stop Bits –1 bit
5. Flow Control –None
Note: The data format is ASCII.
Available Command Categories:
API Control Audio Controls Input Selection
Video Settings CEC Control System Info
HDCP Setup Update Info EDID Setup

Specifications
SMPTE: 720 x 480P (59.94Hz/60Hz.), 720 x 576P(50Hz.), 1280 x 720P (50Hz./59.94Hz/60Hz.),
1920 x 1080P (50Hz./59.94Hz/60Hz.), 3840 x 2160P (24Hz./25Hz./30Hz./50Hz)
VESA: 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 960, 1280 x 1024, 1360 x 768,
1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1200 (all @60hz.)
Maximum Data Rate 10.2 Gbps
Output Resolutions (max.) Supports up to 4K UHD / 2160p (3840 x 2160) @ 30Hz. (4:2:0 8-bit)
Video Impedance
100 Ω
2 x HDMI (1.4) Type A 19-pin, female
1 x DisplayPort (1.2)
1 x HD-15, female
Audio Input 1 x 3.5mm Mini Stereo Jack (embedded with VGA Input)
HDMI Output 1 x HDMI (1.4) Type A 19-pin, female
HDBaseT Output 1 x RJ-45 (Shielded) HDBaseT 1.4
Audio Output 1 x 5-pin captive screw terminal
HDMI Out: PCM 2.0 and Dolby 5.1
HDBaseT Out: Multi-channel digital audio supports up to 7.1 DTS Master HD & Dolby True HD
Audio Out: Balanced Stereo Audio Left/Right PCM 2.0
Ethernet 1 x RJ-45 (Shielded) 100Base-T Ethernet
RS-232 Pass Through 1 x 3-pin captive screw terminal (Tx/Rx/Ground)
RS-232 Control 1 x 3-pin captive screw terminal (Tx/Rx/Ground)
Contact Closure In 1 x 5-pin captive screw terminal (4 Inputs & Ground)
Tally Out (Lamp/LED) 1 x 5-pin captive screw terminal (4 Inputs & Ground)
Display 1 x 3-pin captive screw terminal (On/Off/Ground)
Power Input 12VDC locking screw terminal
Power Supply DC 12V 3A
Power Consumption 22w (max.)
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C)
ESD Protection Human-body Model: ±8kV(Air-gap discharge)/±4kV(Contact discharge)
Dimensions (W x D x H) 8.66"W (220 mm) x 6.46"D (164.4 mm) x 0.83"H (21 mm)
Unit Weight 1.80 lbs. (0.82 kg)
CAT-5e / CAT-6:
100 Meters: 1080p @60 Hz (36 BPP [bits per pixel])
70 Meters: 1080p @60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p (3840 x 2160) @ 30Hz. (4:2:0 8-bit)
CAT-6A / CAT-7 (Shielded):
100 Meters: 1080p @60 Hz (48 BPP [bits per pixel]), 3D, 4K UHD / 2160p (3840 x 2160) @ 30Hz. (4:2:0 8-bit)
For best resolution and ESD performance Shielded CAT-6A cable is recommended
General
Supported Formats
HDMI Resolutions (max.)
Connectors
Video Input
HDBaseT Cable Distances & Resolutions:
VGA Resolutions
Audio Formats

Limited Warranty
The DV-HDSS-41-Tx Switcher is warranted against failures due to defective parts or
faulty workmanship for a period of three years after delivery to the original owner. During
this period, FSR will make any necessary repairs or replace the unit without charge for
parts or labor. Shipping charges to the factory or repair station must be prepaid by the
owner. Return-shipping charges (via UPS Ground) will be paid by FSR.
This warranty applies only to the original owner and is not transferable. In addition, it
does not apply to repairs done by other than the FSR factory or Authorized Repair
Stations.
This warranty shall be cancelable by FSR at its sole discretion if the unit has been
subjected to physical abuse or has been modified in any way without written
authorization from FSR. FSR’s liability under this warranty is limited to repair or
replacement of the defective unit.
FSR will not be responsible for incidental or consequential damages resulting from the
use or misuse of its products. Some states do not allow the exclusion of incidental or
consequential damages, so the above limitations may not apply to you. This warranty
gives you specific legal rights, and you may also have other rights which vary from state
to state.
Warranty claims should be accompanied by a copy of the original purchase invoice
showing the purchase date (if a Warranty Registration Card was mailed in at the time of
purchase, this is not necessary). Before returning any equipment for repair, please read
the important information on service below.
