FTS GB5 User manual

Owner Manual
Grader Blade (GB)
Tipping Transport Box (G-TTB / TTB)
Field Roller (FR)
IMPORTANT: Read all instructions before using this attachment
2
Congratulations on the purchase of your new attachment!
Before you get started, we have provided a helpful space to jot down a
few important details:
This manual should be considered a permanent part of this attachment
and therefore should remain with it even if the attachment is
subsequently sold.
The manufacturer continually seeks advancements in its product design
and quality. Therefore, while this manual contains the most current
product information available at the time of printing, there may be minor
discrepancies between your attachment and this manual.
If you have any questions concerning this manual, please consult your
local dealer.
Model number: GB5 / GB6 / TTB120 / TTB150 / FR5 / FR6
Serial number:
Date of purchase:
Factory reference: GB / G-TTB / TTB / FR

3
Safety Information
Before installation/maintenance, ensure the tractor/ATV and
attachment are stationary with the hydraulic lift system in a neutral
position, and the ignition key removed. Read and understand this
manual fully before operating machinery. Failure to follow all safety
standards can result in severe injury or death.
1. Regularly check condition of both tractor/ATV and attachment.
2. Regularly check/tighten all bolts, nuts and screws.
3. Never consume alcohol/drugs while operating machinery.
4. Grader Blades and Tipping Transport Boxes are for use with compact
tractors only, within the power range specied, and at the
recommended speed at all times.
5. Reduce the speed when working on hillsides/rough terrain.
6. Only use for the indicated purpose. Do not use to transport
personnel or livestock.
7. Always wear protective gloves, ear and eye protection and tie back
long hair. Do not wear loose clothing.
8. Always check the immediate area is clear before operating.
9. Keep spectators at a safe distance.
10. Do not run the engine in an enclosed area.
11. Do not leave the machine unattended while operating.
12. Do not touch moving parts.
13. Stop if excessive noise or vibration occurs.
14. When travelling with the implement installed on a tractor, keep the
PTO turned o and the attachment in a transport position.
15. Ensure the engine on the tractor/ATV is switched o before any
maintenance. Be aware components can be hot after operation.
16. Pay attention to any sharp/pointed parts when servicing.
17. Always repair/replace any defective parts.
18. Do not modify the attachment in any way as this may impair the
operation and overall safety.
19. Ensure all safety guards are in place and in good condition.
20. Keep all safety signs clean and legible. Replace missing/illegible signs.
4
Safety Information (continued)
Attachment Pre-use Checks
Upon receipt of your new attachment and again within the rst 4 hours of
use (the ‘shake in’ period), we recommend the following:
1. Check/tighten all bolts, nuts and screws.
2. Check the tension of any belt(s), and adjust if required.
3. Apply grease to grease points if required.
4. Check gear oil level, top-up if required but do not overll.
Be aware components can be hot after operation.
Tractor Pre-use Checks
1. Check the attachment is properly attached to the tractor. Ensure
secure pins are used on the linkage mounting pins.
2. Add extra weights to the front of the tractor (or wheel weights) if
required.
3. Check the tractor PTO turns freely, and the attachment’s PTO drive
shaft can extend suciently. Apply grease to the PTO drive shaft.
4. Frequently check the condition of the chain on the PTO drive shaft.
Keep all universal joints and protective parts in a good condition.
5. Before installing, the tractor and attachment should be stationary,
remove the key from the ignition.
6. Install and secure all safety guards, doors and covers before
operating.
7. Bystanders should leave the immediate area before connecting the
drive from the tractor.
Post-use Regular Checks
1. Check any wearing parts. Ensure they are not damaged and
components are secure in their mounts. Repair or replace as
required.
2. Clean the attachment, and check for/clear any entangled material
around any moving parts.

5
Safety Information……………………………………………………………………...page 3-4
Grader Blade (GB)……………………………………………………………………….page 6-7
Tipping Transport Box (G-TTB / TTB)……………………………………………page 8-9
Field Roller (FR)…………………………………………………………………………page 10-11
Contents
6
Important information:
The scraper blades (14) are reversable.
The angle of the blade is adjusted through the pin position on the plate (7).
1
2
3
4
5236
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22

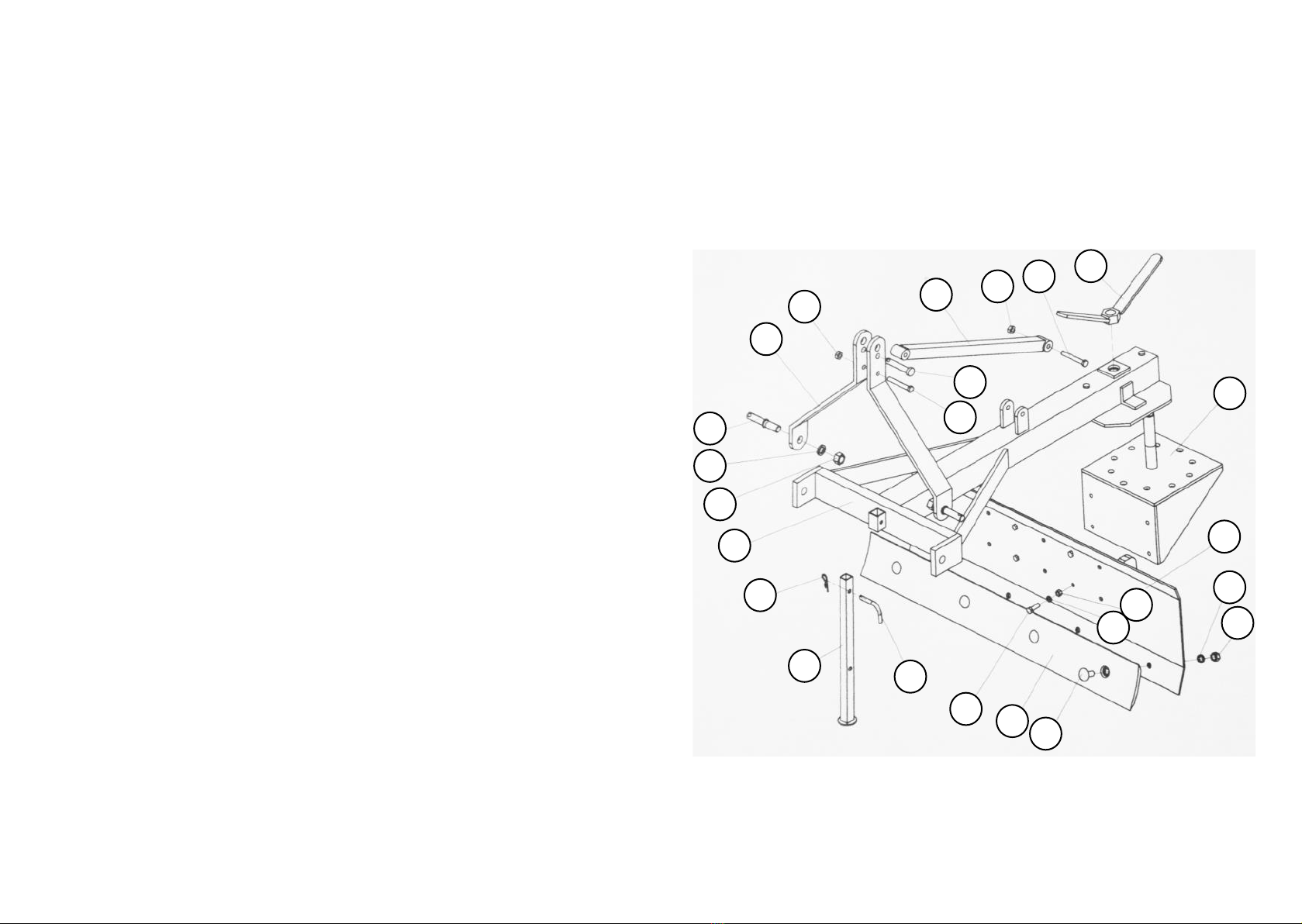

Grader Blade (GB)
Parts Diagram

7
Grader Blade (GB) Parts List
Diag. No Part No Part Name Qty
1JRB4-00.101 Brace 2
2GB889-86 M14 nut 2
3GB5782-86 M14x100 bolt 2
4EF100.00.019 Top link pin 1
5JRB4-00.011 Lift bracket 2
6RB-00.016 Wing nut 1
7JRB4-00.014 Rotary frame weldment 1
8JRB5-00.013 Supporter for 5ft blade 1
JRB6-00.013 Supporter for 6ft blade 1
9GB 93-87 Spring washer 16 5/6
10 GB6170-86 M16 nut 5/6
11 GB6170-86 M12 nut 5/6
12 GB93-87 Spring washer 12 5/6
13 GB/T12-88 M16x45 bolt (scraper blade) 5/6
14 RB5-00.103 5ft scraper blade 1
RB6-00.103 6ft scraper blade 1
15 GB5783-86 M12x40 bolt 1
16 ZL-25.103 Scraper tooth pin 1
17 RB-00.018 Stand 1
18 ZL-25.104 R clip 2
19 JRB4-00.012 Rear stick rake frame 1
20 GB6170-86 M24 nut 2
21 GB93-87 Spring washer 24 1
22 JRB4-00.102 Lower link pin 2
8
Important information:
Activate the tipping release mechanism by pulling the lever. This will
release the box. Lower the box to the oor completely to re-engage the
spring catch.
Always ensure the locking bolt (20) is locked into place before lifting,
moving or loading the box.
The front panel of the attachment can be removed and the box used as a
scoop. We recommend scooping only soft soil, sand or snow, harder
materials may cause damage to the box and panels.

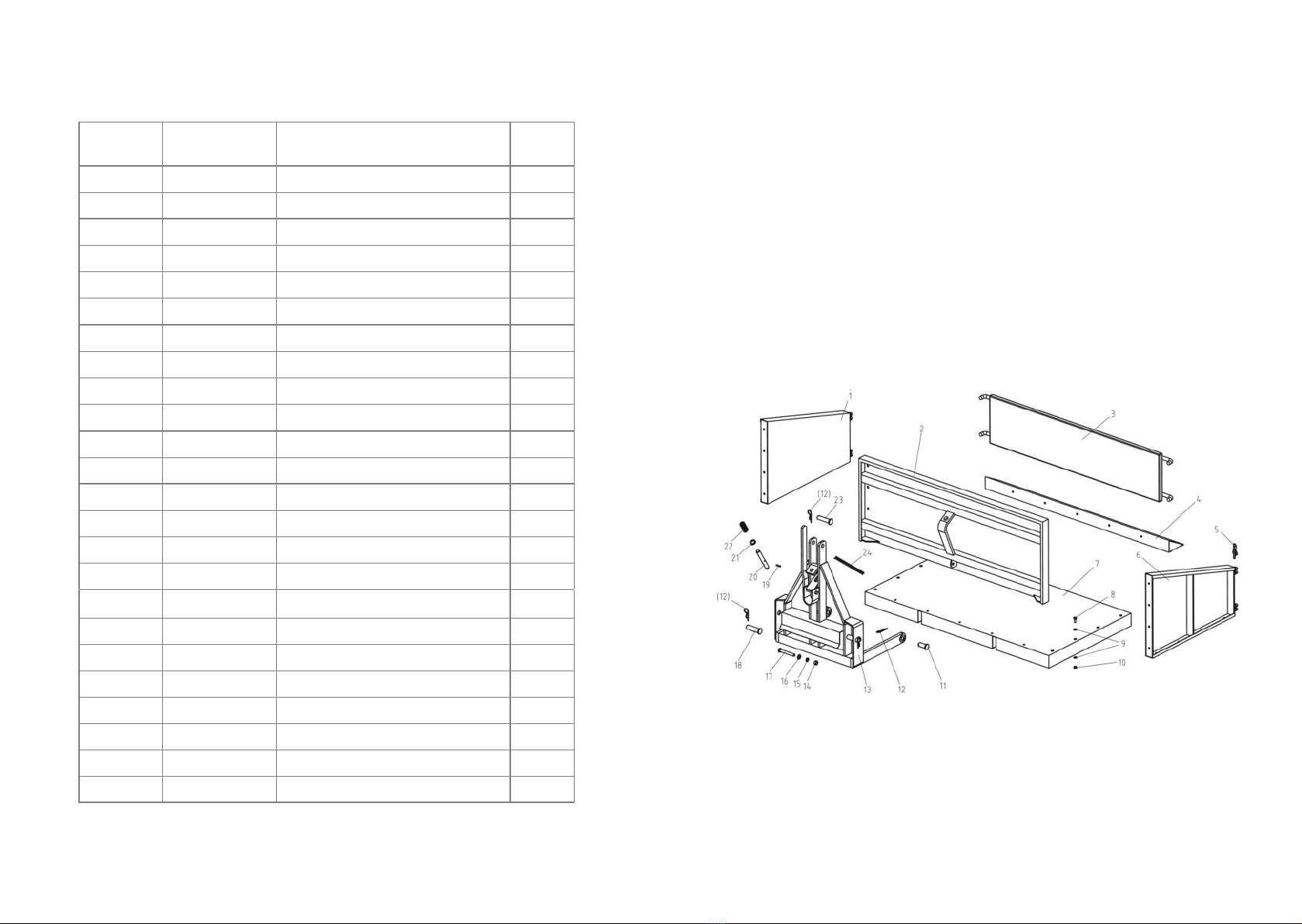

Tipping Transport Box (G-TTB / TTB)
Parts Diagram

9
Tipping Transport Box (G-TTB / TTB) Parts List
Diag. No Part No Part Name Qty
1TB110.00.013 Side board (L) 1
2TB120.00.014 Front board 120 1
TB150.00.014 Front board 150 1
3TB120.00.011 Tail gate 120 1
TB150.00.011 Tail gate 150 1
4TB120.00.016 Slope 120 1
TB150.00.0016 Slope 150 1
5200.56.011 Lock pin 2
6TB110.00.013 Side board (R) 1
7TB120.00.017 Bottom board 120 1
TB150.00.017 Bottom board 150 1
8GB5783-86 Bolt M8x20 26
9GB 96-85 Washer 8 52
10 GB889-86 Locking nut M8 26
11 TB110.00.101 Pin 2
12 R pin clip 5
13 TB110.00.015 Lifting A frame bracket 1
14 GB6170-86 Nut M12 1
15 GB93-87 Spring washer 12 1
16 GB97.1-85 Plain washer 12 1
17 GB 5782-86 Bolt M12x90 1
18 TB110.00.104 Lower link pin 2
19 GB879-86 Elastic cylindrical pin 1
20 TB110.00.102 Pin shaft 1
21 GB97.1-85 Plain washer 18 1
22 TB110.00.103 Spring 1
23 TB110.00.105 Top link pin 1
24 TB110.00.018 Chain 1
10
Important Information:
The roller is designed to be used with either an agricultural tractor or ATV
and should not be used with any other type of vehicle.
The roller is fabricated from mild steel and nished with a protective
painted coat.
The steel drum axle rotates on a pair of greased bearings mounted inside
the supporting frame. Apply grease to the grease points regularly to avoid
the bearings seizing.
Water Filling
The steel drum has a ll/drain plug for the water ballast used to increase
overall roller weight.
During the winter months it is essential to either drain any water
from the roller drum or add anti-freeze solution.
An anti-freeze solution will avoid metal fatigue if the water ballast freezes
and expands. Please follow all directions on the anti-freeze container and
dispose of in the correct manner.
Scraper Bar
To reduce material and debris build up on the roller an adjustable scraper
bar is located at the rear of the roller.
If you nd there is too much debris on the roller adjust the scraper bar to
give a smaller gap between the roller drum. If the scraper is getting
clogged up when the roller is in use increase the scraper bar clearance.
Field Roller (FR)

11

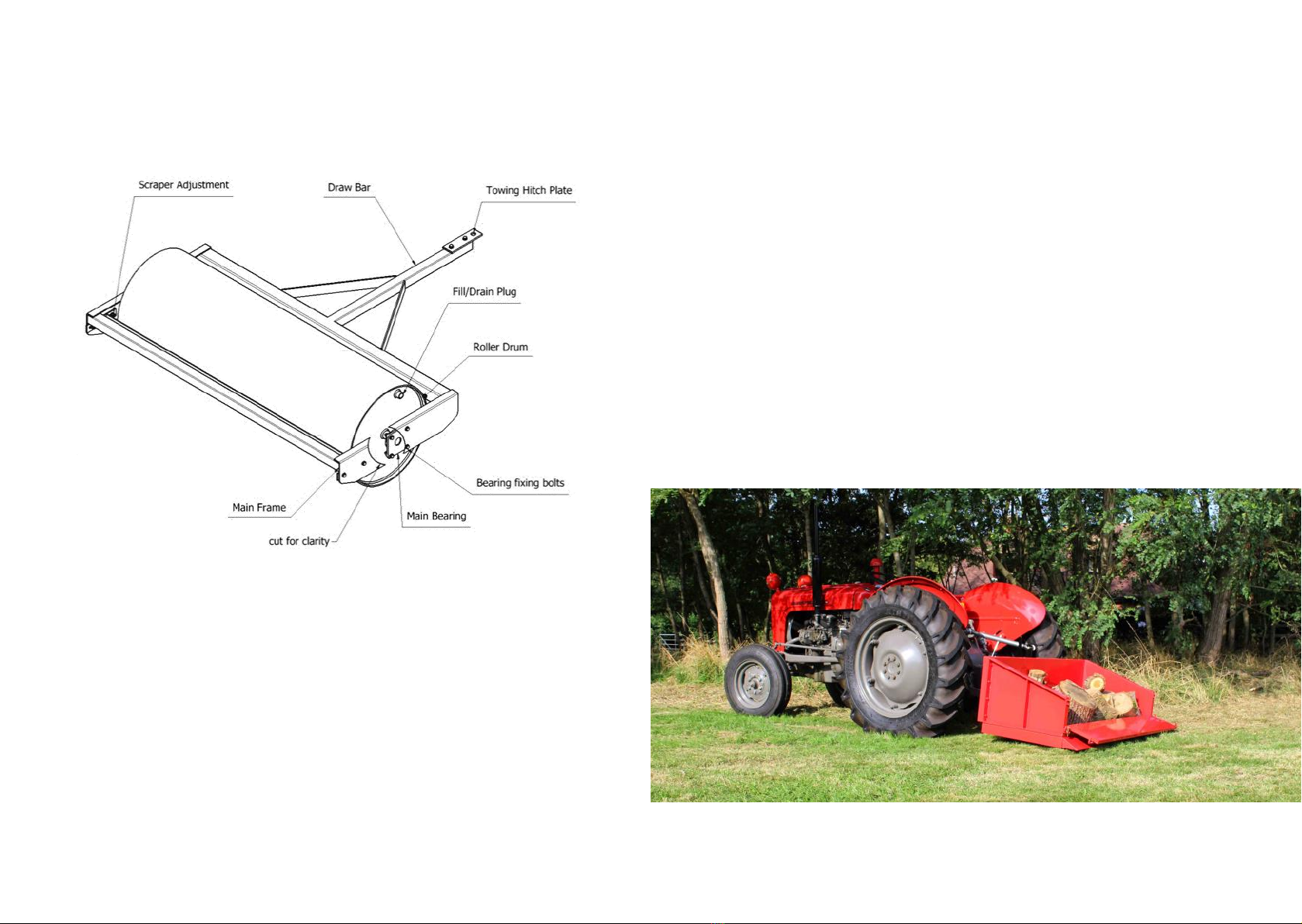

Field Roller (FR)
Parts Diagram
This secon is
Published: May 2021
