FujiFilm Revoria Press E1136 User manual

January 2022 GM1074E2-2 Edition1
FUJIFILM Business Innovation Corp.
Revoria Press
E1136/E1125/E1110/E1100
Reference Guide
Optional Units

Optional Units
2
Contents
1 High Capacity Feeder C1-D2 4
LoadingPaper;PaperJams
2 High Capacity Feeder B1-S/C3-DS 8
LoadingPaper;PaperJams;CleaningMachine
3 Air Suction Feeder 24
LoadingPaper
4 Interface Decurler Module 29
CurlCorrection;PaperJams
5 Inserter 33
LoadingPaper;PaperJams
6 High Capacity Stacker 38
OutputtingPaper;PaperJams
7 Crease / Two-Sided Trimmer 46
WasteContainer;PaperJams
8 Folder Unit 56
PaperJams
9 Finisher D 59
OutputtingPaper;StapleCartridge;PaperJams
10 Square Back Fold Trimmer 74
WasteContainer;PaperJams

Preface 3
Preface
A guide describing the operations for optional units, such as the Finisher.
Refer
• Descriptions for the following optional products are provided in different guides.
-Offset catch tray, Simple catch tray: 'Reference Guide- Main Unit'
-Print / scan function-related products: 'Reference Guide - Operations'
-Print server and related products: Manual included in the product
-IC card reader: Official site of our company
• For details on the 3rd Vendor Finisher and GBC® AdvancedPunch™ Pro, refer to the manual supplied with the
device (note that the their may not be available in some countries or regions).
• This manual may not be edited, modified or copied in whole or in part without the written
consent of the publisher.
• Some parts of this manual are subject to change without prior notice.
• The screen shots and the illustrations in this manual are used as examples. They may differ
from yours depending on the model, the software, or the OS.
Important
In this manual, safety instructions are preceded by the symbol . Always read and follow the
instructions before performing the required procedures.
Conventions
Regarding the notations and trademarks in this document, see the Index Page (HTML).
Description in this manual such as feed capacity assumes 80 g/m2paper.

Optional Units
4
1 High Capacity Feeder C1-D2
Device Components / Caution Labels
1
3
2
4
5
No. Component Function
1 Right Cover Open this cover to clear paper jams.
2 High Capacity Tray (Paper Tray 6) Load paper here.
3 High Capacity Tray (Paper Tray 7) Load paper here.
4
Bypass Tray (Paper Tray 5) Refer
'Reference Guide-Main Unit'
5 Remaining Volume Display You can check the remaining paper volume.
Main Specifications
Item Specification
Paper size A4 , Letter (8.5 x 11") , JIS B5 , 7.25 x 10.5" (184 x 267 mm)
Paper weight (g/m2) 52 to 216
Tray capacity (sheets) 2,000 x 2 trays (Max 4,000)
Dimensions (mm) Width 597 x Depth 661 x Height 930
Weight (kg) 73

High Capacity Feeder C1-D2 5

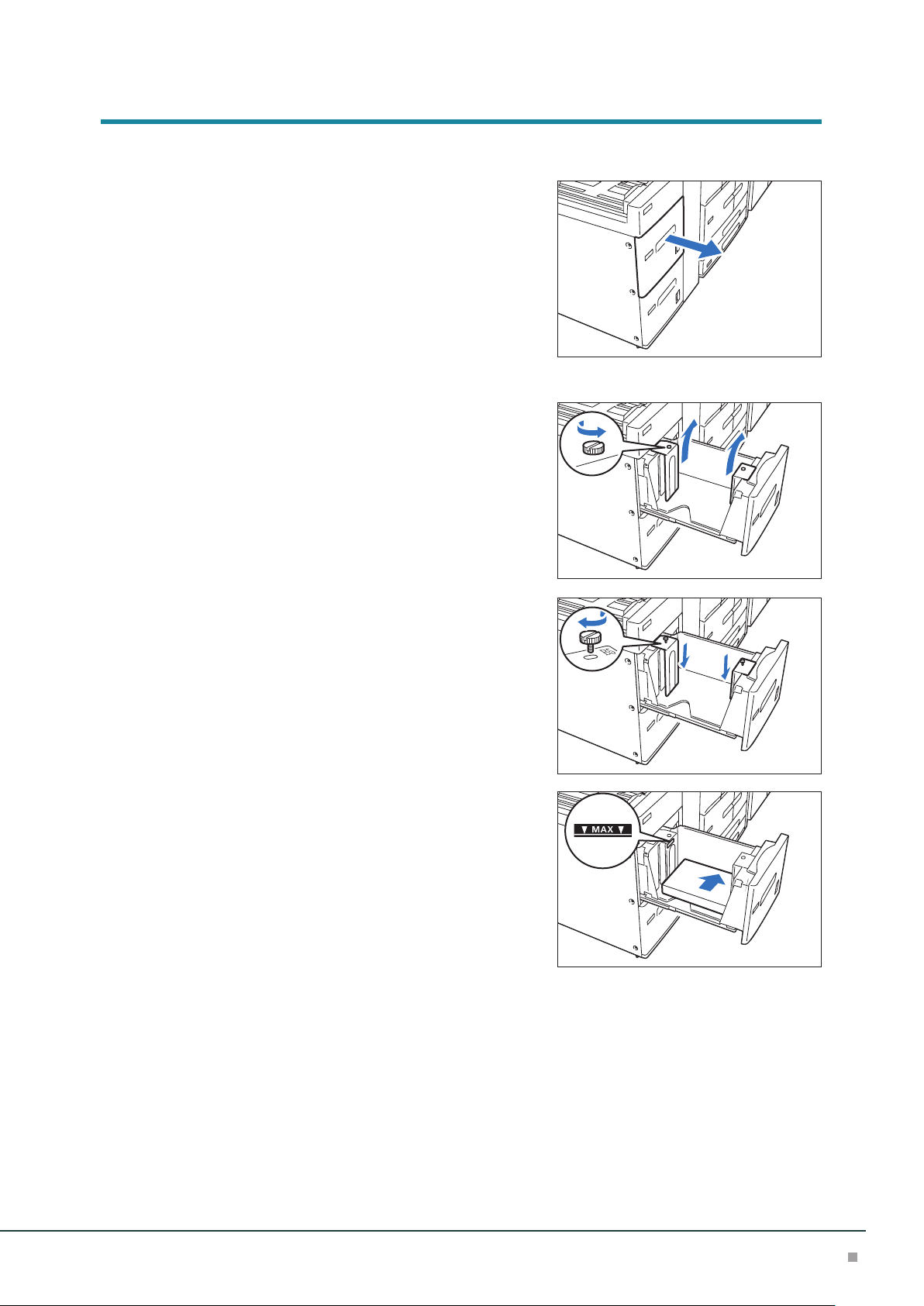

Loading Paper
Images are printed on the face side of the loaded paper.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If changing the Paper Size, adjust the guide position.
(1) Remove the 2 screws for the guide, and remove the guide
from the Paper Tray.
(2) Insert the guide into Paper Size holes and tighten the
screws.
4. Fan the paper well and load sheets with the printed
side facing up, and the paper edges aligned in the di-
rection of the arrow.
5. Push in the Paper Tray.
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.

Optional Units
6
Paper Jams
If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on
the screen to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed
from the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the
paper jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed
from the state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Paper Tray
1. Pull out the Paper Tray toward you until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray.
Inside of the Right Cover
1. Open the Right Cover.
2. Remove the jammed paper.
Paper Jams at [1a] ........................................................................................................................ p.6
Paper Jams at [1b]........................................................................................................................ p.7
Paper Jams at [1d]........................................................................................................................ p.7
■Paper Jams at [1a]
(1) Open lever [1a] to the right (
1
), turn knob [1c] clock-
wise (
2
) and remove the jammed paper (
3
).
(2) Return lever [1a].
2
1
3

High Capacity Feeder C1-D2 7

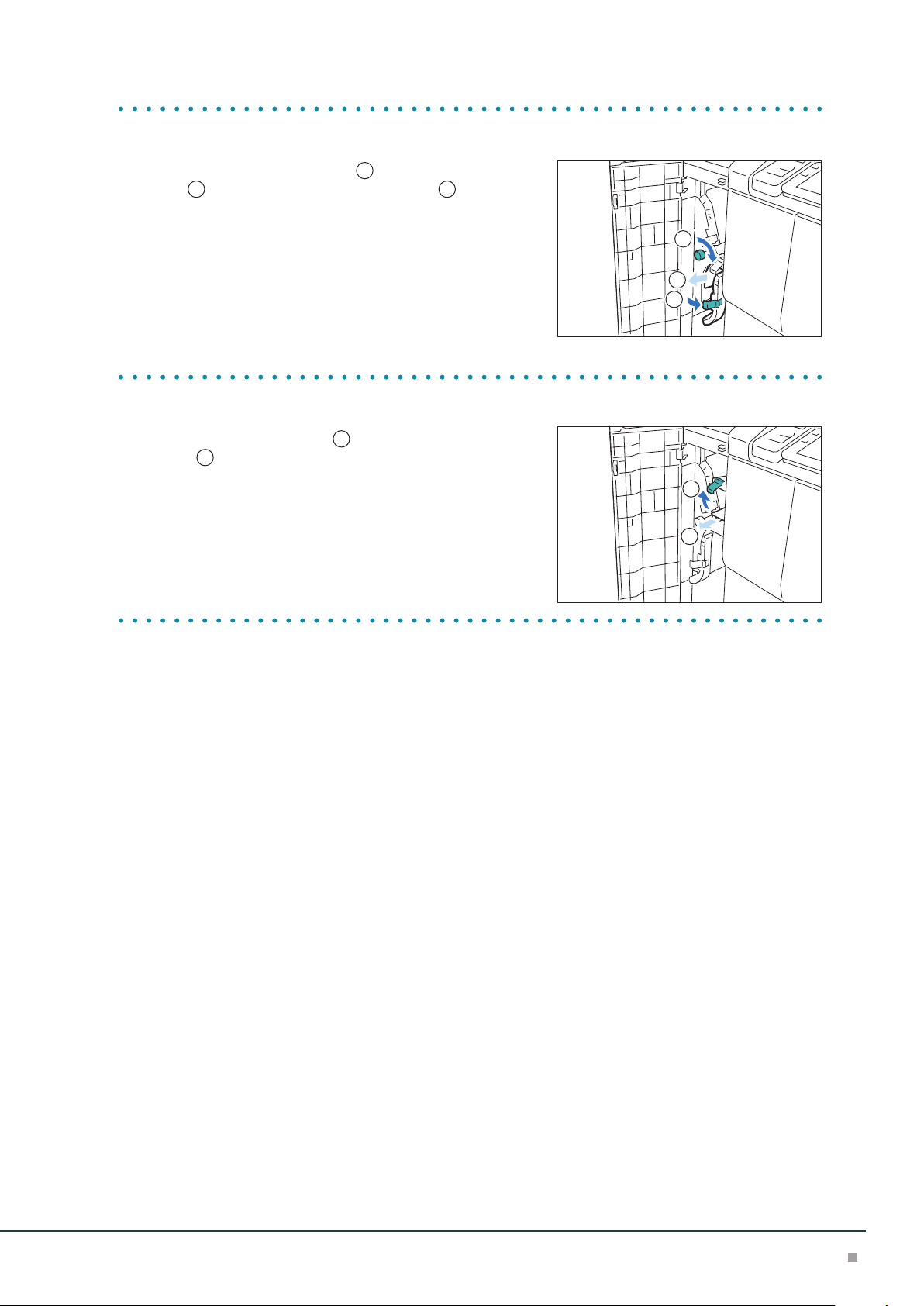

■Paper Jams at [1b]
(1) Open lever [1b] to the right (
1
), turn knob [1c] clock-
wise (
2
) and remove the jammed paper (
3
).
(2) Return lever [1b].
■Paper Jams at [1d]
(1) Open lever [1d] upward (
1
) and remove the jammed
paper (
2
).
(2) Return lever [1d].
3. Close the cover.
2
1
3
1
2

Optional Units
8
2 High Capacity Feeder B1-S/C3-DS
Device Components / Caution Labels
B1-S
7
654 3
1
2
C3-DS
6 5 4 3
1
2
7

High Capacity Feeder B1-S/C3-DS 9
No. Component Function
1 Bypass Tray (Paper Tray 5) Load paper here.
2
Error Indicator When paper jam occurs, the indicator is turned on.
When the priority device indicator (top lamp) blinks, first of all
perform the paper jam operation.
3 Right Cover Open this cover to clear paper jams.
4
Remaining Volume Indicator When the Paper Tray is in operation, the top lamp is turned on.
You can check the remaining volume of paper with the 4 lamps
(each lamp indicates 25%) at the center.
When Paper Replenish Indicator is turned on, paper is empty.
5B1-S Consumables Storage Unit Stores papers and consumables.
C3-DS High Capacity Tray (Paper Tray 6) Load paper here.
6B1-S High Capacity Tray (Paper Tray 6) Load paper here.
C3-DS High Capacity Tray (Paper Tray 7)
7Ground Fault Interrupter A switch to automatically switch the machine off when a current
leakage is detected.
Ground Fault Interrupter
When not using for an extended period or when moving
the unit, set the switch to the lower position to turn the
machine power off.
Note
Do not operate the switch under normal circumstances because it
is turned off when a current leakage is detected.
For the current leakage, refer to 'User's Manual'.
Switch
TEST button

Optional Units
10
Main Specifications
Item Specification
Paper size Standard size Max SRA3 (320 x 450 mm),
12.6 x 19.2" (320 x 488 mm)
Min Postcard (100 x 148 mm)
Custom size (mm) Width 100 to 330
Length 148 to 488
Paper weight (g/m2) B1-S Bypass Tray Uncoated 52 to 253
Coated 64 to 253
High Capacity Tray Uncoated 52 to 300
Coated 64 to 300
C3-DS Bypass Tray Uncoated 52 to 253
Coated 64 to 253
High Capacity Tray Uncoated 52 to 350
Coated 64 to 350
Tray capacity
(sheets)
B1-S 2,000, Bypass Tray: 250
C3-DS 2,000 x 2 trays (Max 4,000), Bypass Tray: 250
Power supply B1-S AC 100 to 120 V ± 10%, 2.5 A, 50/60 Hz common
AC 220 to 240 V ± 10%, 1.5 A, 50/60 Hz common
C3-DS AC 100 to 120 V ± 10%, 6 A, 50/60 Hz common
AC 220 to 240 V ± 10%, 4 A, 50/60 Hz common
Maximum power
consumption
B1-S AC 100 V: 250 W / AC 240 V: 360 W
C3-DS AC 100 V: 600 W / AC 240 V: 880 W
Dimensions (mm) Width 988 x Depth 762 x Height 992
Weight (kg) B1-S 177 (with Bypass Tray)
C3-DS 232 (with Bypass Tray)

High Capacity Feeder B1-S/C3-DS 11

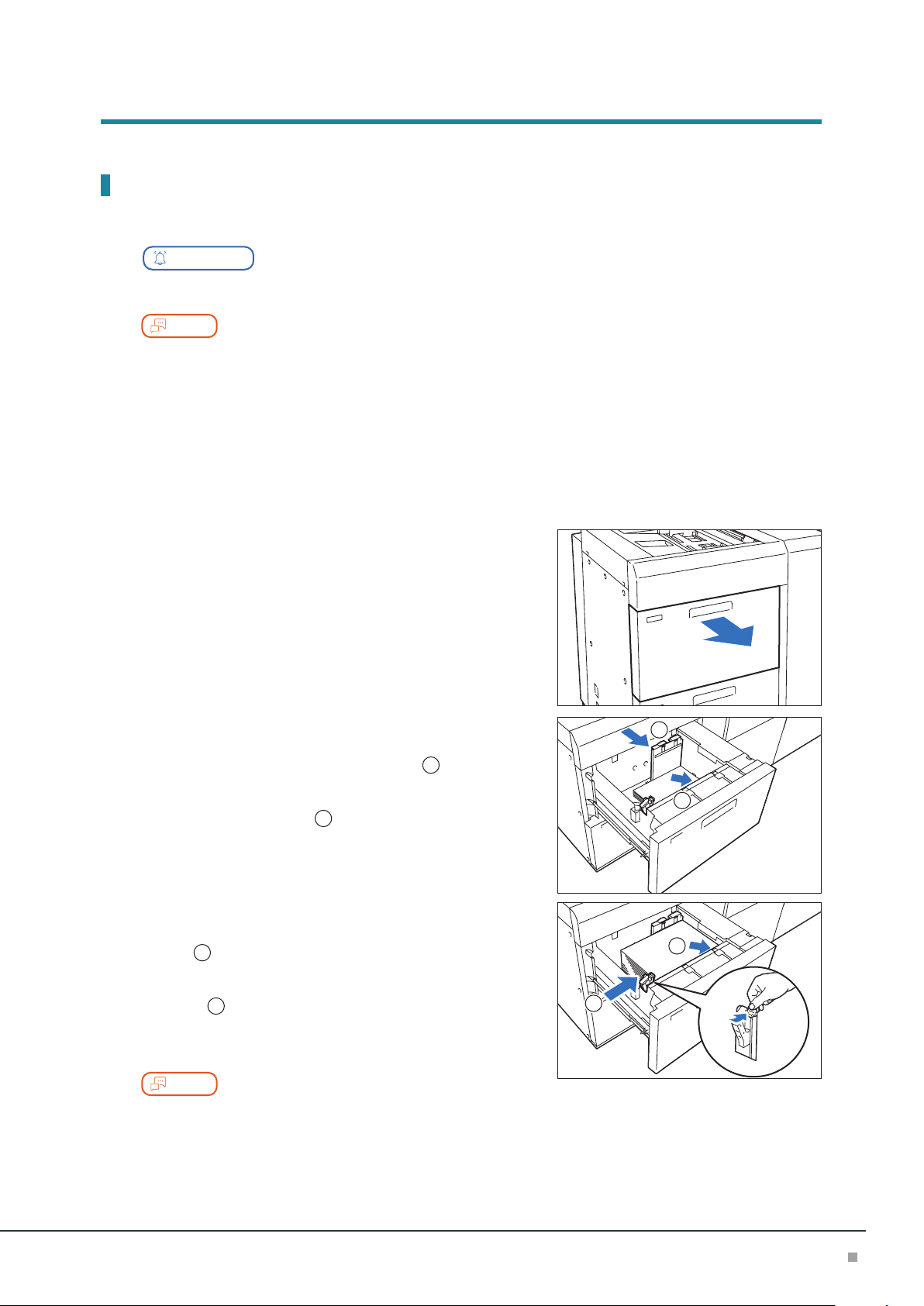

Loading Paper
Loading to High Capacity Tray
Images are printed on the face side of the loaded paper.
Important
Do not load paper above the maximum fill line. It may cause paper jams or machine malfunction.
Note
• If the amount of the loaded paper is 100 sheets or less, the guides apply more pressure to the paper. It may
cause the paper to be distorted, leading to paper jams.
• Position the guides correctly to match the paper size. Incorrectly positioned guides may cause misfeeding and
paper jams.
• In the event power is disconnected while the Paper Tray's bottom plate is rising, the plate may not move up
when the power is recovered. In this case, pull out the Paper Tray, make sure the plate is lowered, and then
push the Paper Tray into the machine slowly and firmly.
• When paper sheets are loaded or fed, the Paper Tray makes a sound of supplying air. This is caused by the Air
Assist function, and not an abnormal noise.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. Fan the paper well and load about 100 to 500 sheets
with the printed side facing up, and the paper edges
aligned in the direction of the arrow (
1
).
4. Pinch the long-side paper guide grip and adjust to
the correct paper size (
2
).
5. Load remaining sheets with the printed side facing
up, and align the paper edges in the direction of the
arrow (
1
).
6. Adjust the short-side paper guide to the correct pa-
per size (
2
).
To leave a space, pinch the paper guide grip to move.
To narrow, push the paper guide to move.
Note
Make sure that Paper Feed Precision Lever is set to the Normal position. If printed image is still skewed (mis-
alignment of image on prints) after you load paper in Paper Tray correctly, enable switching of paper feed preci-
sion.
2
1
1
2

Optional Units
12
Refer
"Changing Paper Feeding Accuracy" (p.14)
7. Push in the Paper Tray.
Postcard Setting
Attach Postcard Kit to the Paper Tray to load paper with the width of 100 to 181 mm.
1. Pull out the Paper Tray toward you until it stops.
2. Remove any paper remaining in the Paper Tray.
3. If the Kit is supplied with the Paper Tray, loosen the
screw (
1
) on the left side of the Paper Tray to re-
move the Kit (
2
).
Note
• The Postcard Kit of C3-DS is placed in the upper Paper Tray.
• The Postcard Kit of B1-S is placed in the lower Paper Tray.
4. Insert the small protrusion of the Kit into the notch
to the right side of the bottom of the Paper Tray
(
1
). Align the hole of the Kit with the front Paper
Tray hole and tighten the screw to fasten the Kit
(
2
).
5. Load about 100 to 500 sheets of paper with the
printed side facing up, and align the paper edges in
the direction of the arrow (
1
).
Note
• Be sure to set them in short edge feed.
• The right side short edge of the set postcard will be the front edge.
6. Pinch the long-side paper guide grip and adjust to
the correct paper size (
2
).
2
1
12
1
2

High Capacity Feeder B1-S/C3-DS 13
7. Load remaining sheets with the printed side facing
up, and align the paper edges in the direction of the
arrow (
1
).
8. Adjust the short-side paper guide to the correct pa-
per size (
2
).
To leave a space, pinch the paper guide grip to move.
To narrow, push the paper guide to move.
9. Push in the Paper Tray.
10. To remove the Kit from the Paper Tray, loosen the screw completely and then remove the
Kit.
11. Store the Kit in place by inserting it from the left side
of the Paper Tray (
1
) and tightening the screw (
2
).
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
■Precut Tab
Orientation: Place the tabs of paper on the left side when you face the front side of machine.
Paper Weight Change Button (B1-S)
Change by this button when using paper of 257 g/m2or
more.
2
1
1
2

Optional Units
14
Changing Paper Feeding Accuracy
Enabling this function may improve print displacement when images are skewed (print position
is displaced) even though plain paper with the paper weight of 220 g/m2or less is correctly load-
ed.
Note
• If this function is enabled when paper other than thick paper and plain paper is used, the machine cannot feed
the paper properly, resulting in paper jams.
• It is not effective when the Postcard Kit is used.
1. Pull out the Paper Tray until it stops.
2. Move the lever at the top of the long-side paper
guide to the rightmost position (<I> position) to en-
able the changing.
Note
To reset the setting, move the lever to the leftmost position.
3. If the accuracy of paper feeding is not improved even
if 2 is performed, move the lever at the right front to
the rearmost position (<I> position) to enable the
changing.
Note
To reset the setting, move the lever to the foremost position.
4. Push in the Paper Tray.
After using the paper in question, return the lever to the
normal position <o>.

High Capacity Feeder B1-S/C3-DS 15

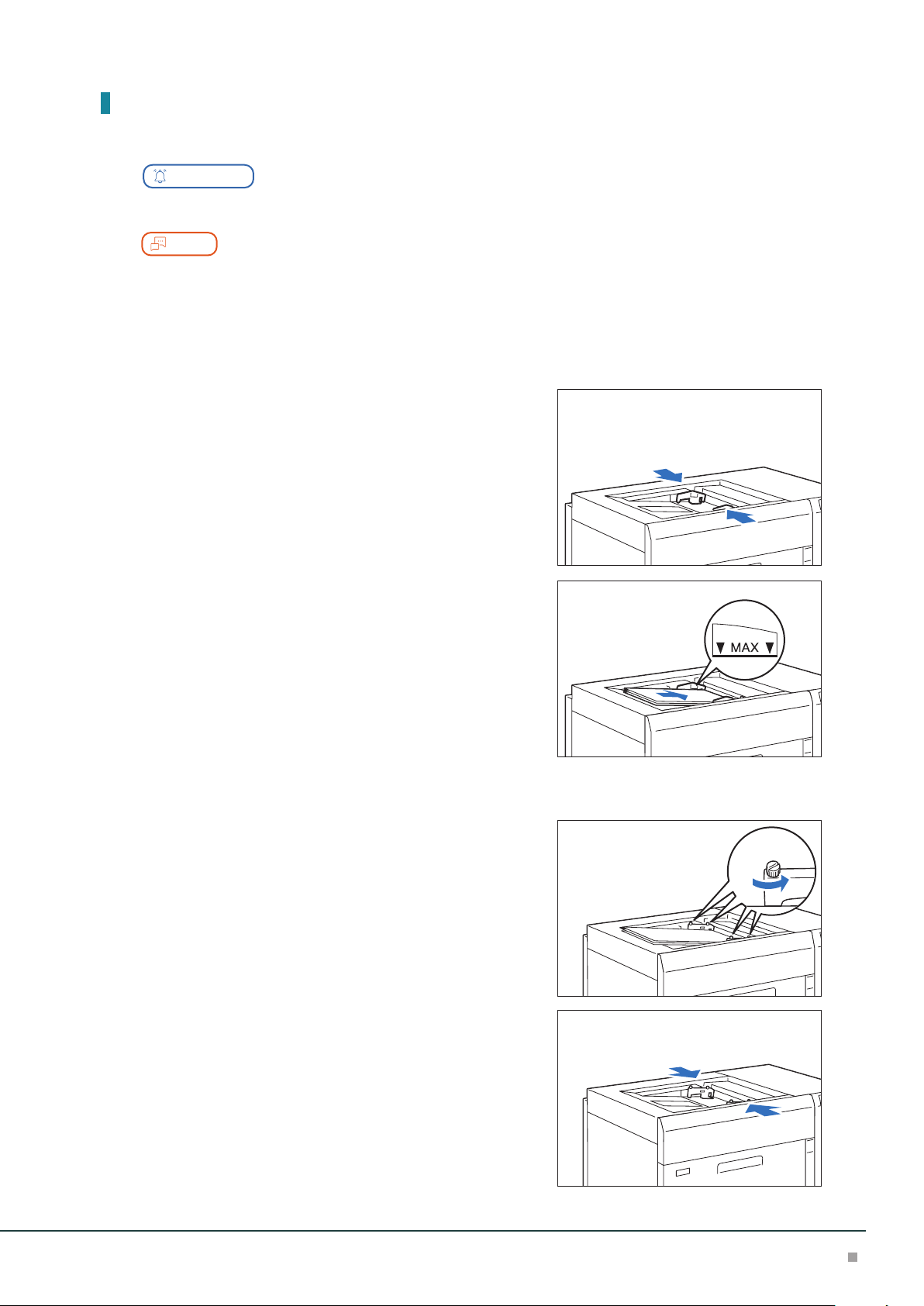

Loading to Bypass Tray
Images are printed on the face side of the loaded paper.
Important
Do not load paper above the maximum fill line. It may cause paper jams or machine malfunction.
Note
• If the paper guide width is narrower or wider than the paper, it may cause paper jams.
• In the case of coated paper, only one sheet can be loaded.
The image quality and paper feeding capability are not guaranteed when more than one sheet is loaded.
Slide Type
1. Adjust the paper guide to the size of loaded paper.
2. Fan the paper well and insert it along the paper
guide all the way until it touches the back, with the
printed side facing up.
3. When custom size paper is loaded, make fine-ad-
justment of the paper guide based on the paper size.
Flexible Type (for Long Paper)
1. Loosen the 4 screws of the paper guide.
2. Hold the center of the paper guide and adjust it to
the size of loaded paper.

Optional Units
16

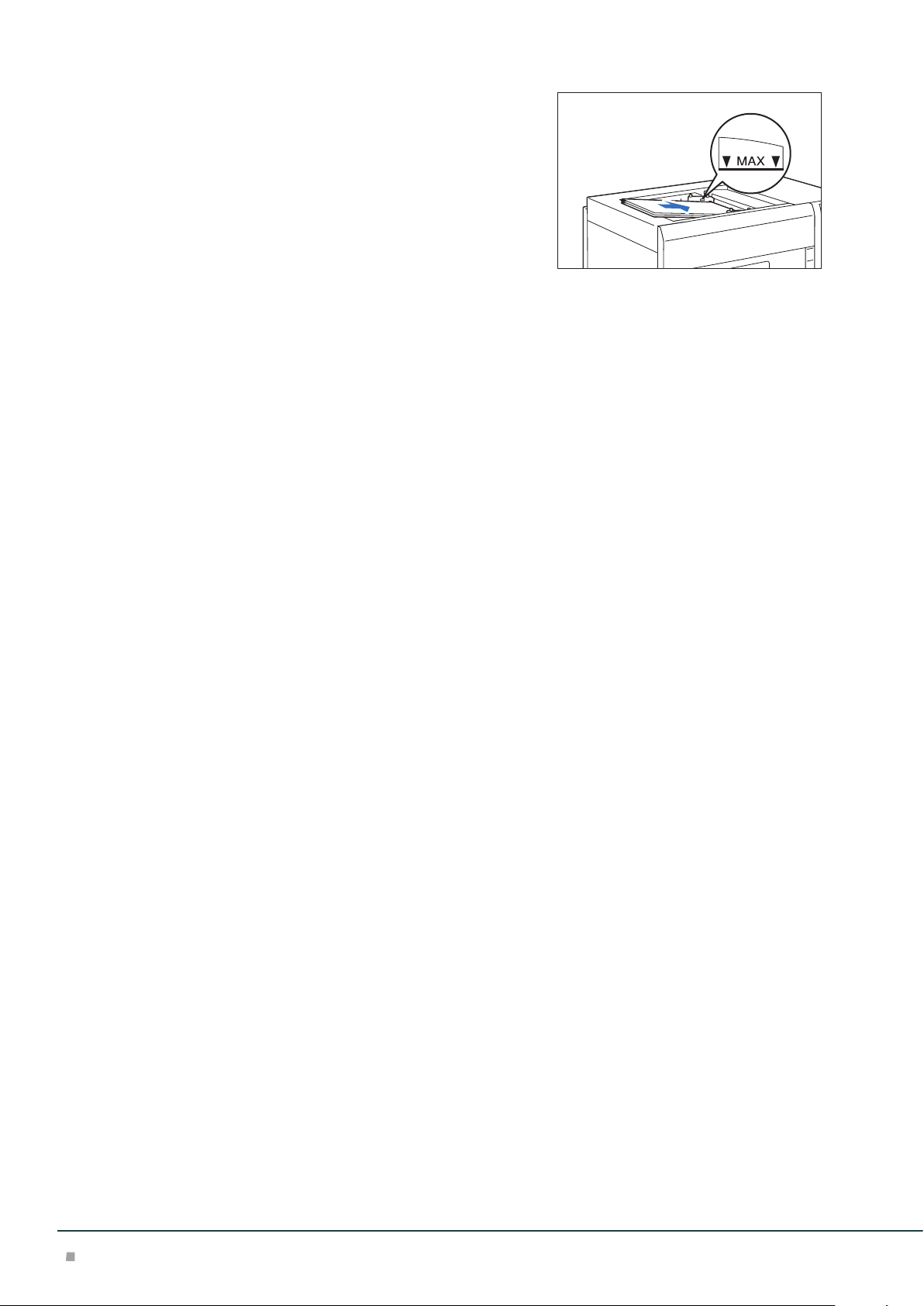

3. Fan the paper well and insert it along the paper
guide all the way until it touches the back, with the
printed side facing up.
4. Secure the 4 screws of the paper guide.
Special Media Setting
■Hole Punched Paper
Orientation: Place the holes of paper on the right side when you face the front side of machine.
■Precut Tab
Orientation: Place the tabs of paper on the left side when you face the front side of machine.
■Postcards
Orientation: SEF

High Capacity Feeder B1-S/C3-DS 17

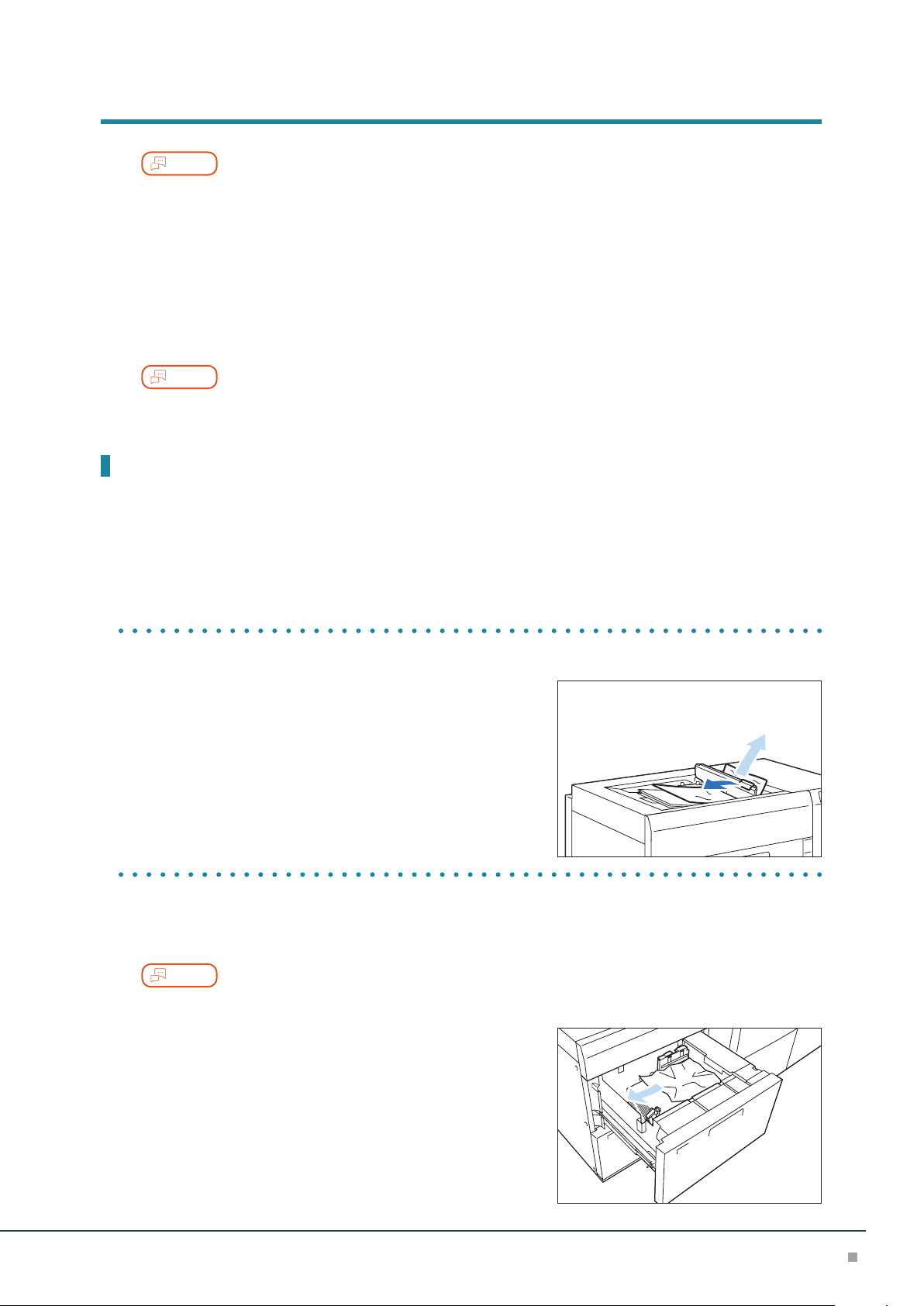

Paper Jams
Note
The error indicator at the top of the machine is turned on. When the priority device indicator (top lamp) blinks,
first of all perform the paper jam operation.
If paper is jammed, the machine stops and an alarm sounds. Follow the instructions displayed on
the screen to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed
from the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the
paper jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed
from the state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Paper Tray
1. Remove the jammed paper.
When Indicator E5 is Turned on.................................................................................................p.17
When Indicator E6 is Turned on (C3-DS)..................................................................................p.17
When Indicator E6 is Turned on (B1-S), when Indicator E7 is Turned on (C3-DS)...............p.18
■When Indicator E5 is Turned on
(1) Open the Upper Cover and remove all the jammed papers
and papers loaded on the tray.
(2) Close the cover.
(3) Align the 4 corners of the removed papers and load them
again.
■When Indicator E6 is Turned on (C3-DS)
(1) Pull out the Paper Tray 6 toward you until it stops.
Note
Confirm that no paper is jammed inside the Right Cover before pulling it out.
(2) Remove the jammed paper.
(3) Confirm the paper guide position and push in the Paper
Tray.

Optional Units
18

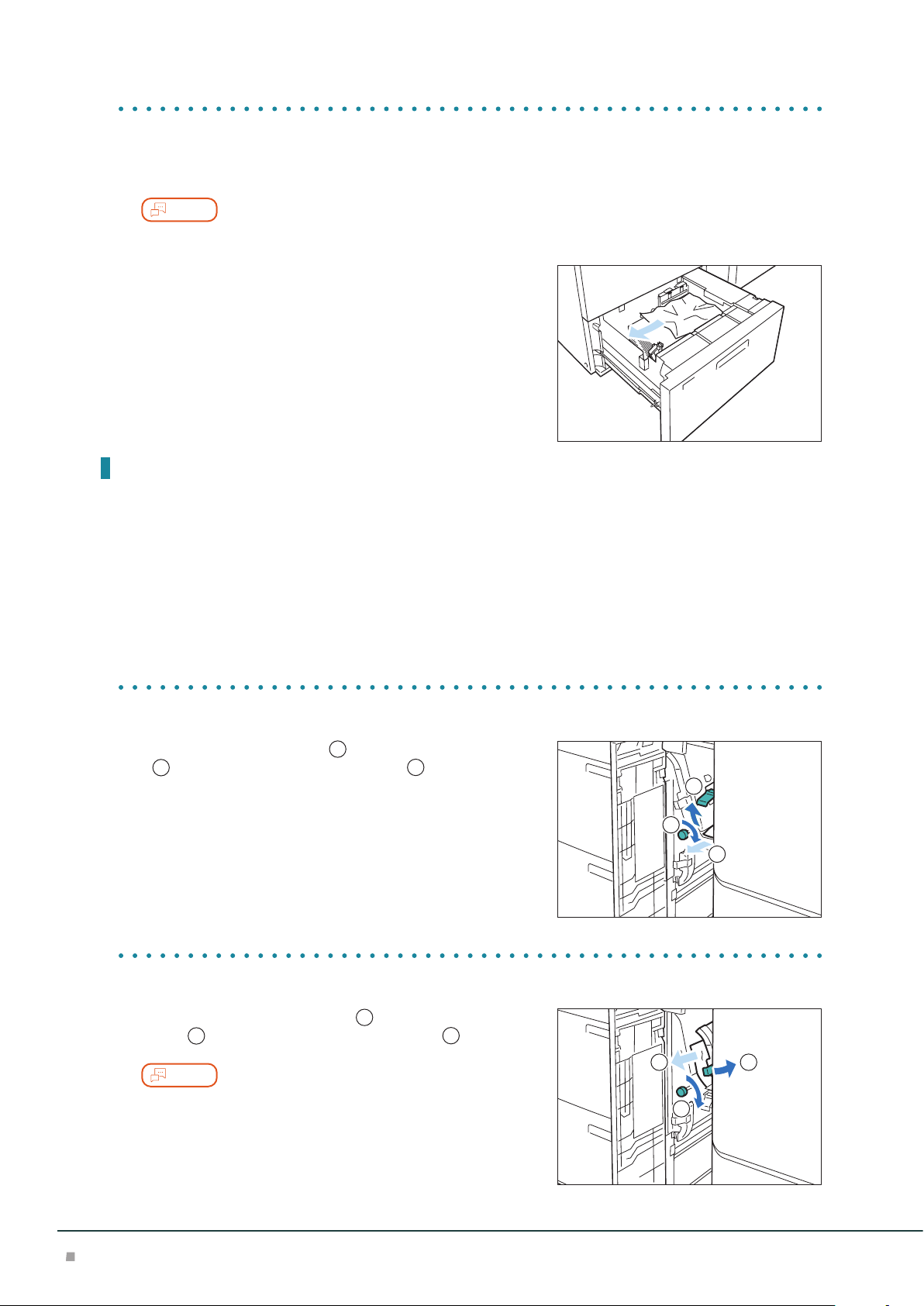

■When Indicator E6 is Turned on (B1-S), when Indicator E7 is Turned on (C3-DS)
(1) Pull out the Paper Tray 6 (or 7) toward you until it stops.
Note
Confirm that no paper is jammed inside the Right Cover before pulling it out.
(2) Remove the jammed paper.
(3) Confirm the paper guide position and push in the Paper
Tray.
Inside of the Right Cover
1. Open the Right Cover.
2. Remove the jammed paper.
When Indicator E1 is Turned on.................................................................................................p.18
When Indicator E2 is Turned on.................................................................................................p.18
When Indicator E3 is Turned on.................................................................................................p.19
When Indicator E4 is Turned on.................................................................................................p.19
■When Indicator E1 is Turned on
(1) Open lever [1d] upward (
1
), turn knob [1c] clockwise
(
2
), and remove the jammed paper (
3
).
(2) Return lever [1d].
■When Indicator E2 is Turned on
(1) Open lever [1a] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
Note
Turn knob [1c] 3 times or more.
(2) Return lever [1a].
3
1
2
31
2

High Capacity Feeder B1-S/C3-DS 19

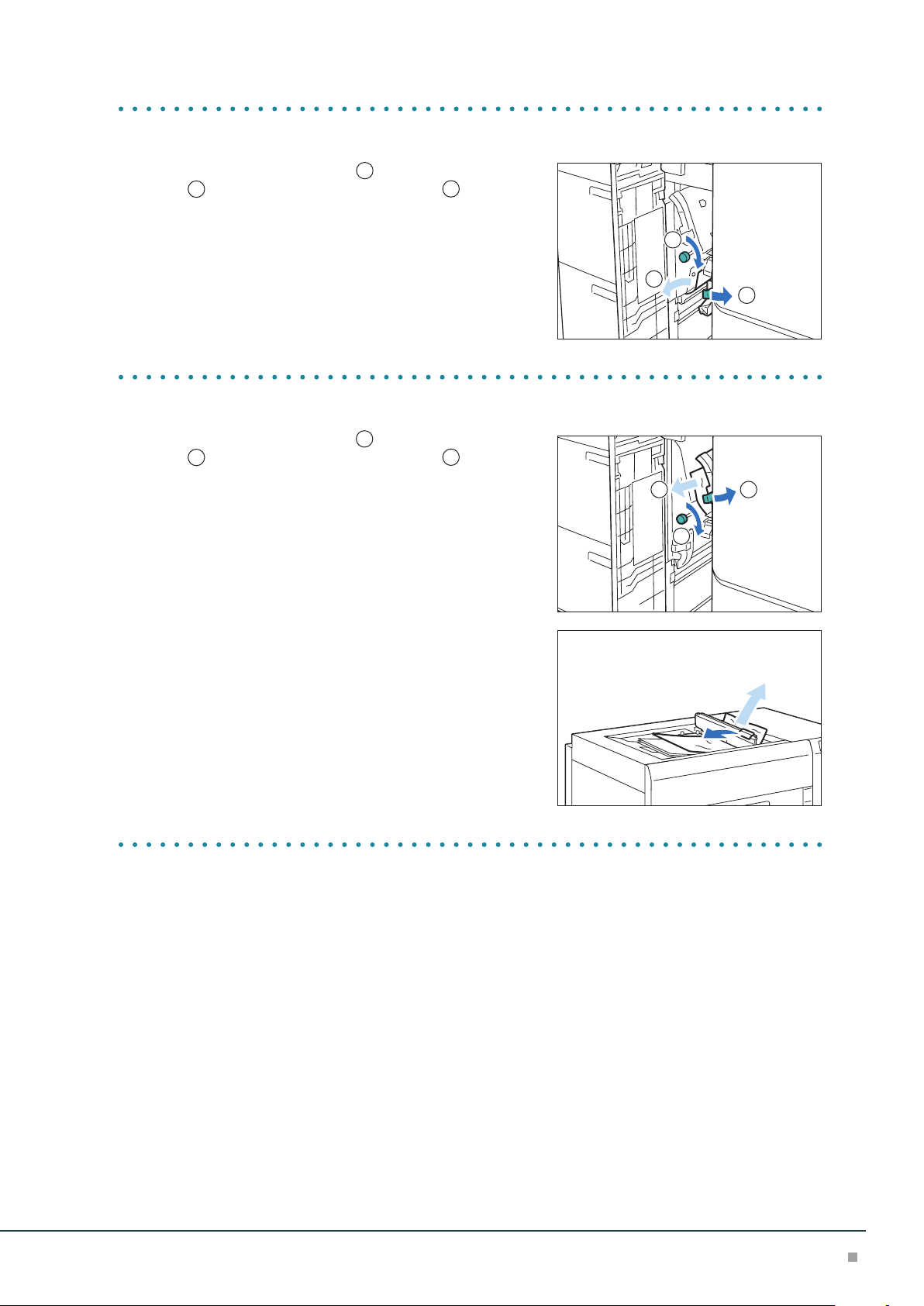

■When Indicator E3 is Turned on
(1) Open lever [1b] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
(2) Return lever [1b].
■When Indicator E4 is Turned on
(1) Open lever [1a] to the right (
1
), turn knob [1c] clock-
wise (
2
), and remove the jammed paper (
3
).
(2) If you have difficulty in removing the papers, open the
Upper Cover and remove the jammed paper.
(3) Return lever [1a].
3. Close the cover.
3
2
1
31
2

Optional Units
20
Cleaning Machine
• When you clean machine products, use the cleaning materials designated in every step.
• To wipe with a wet cloth, use the soft cloth tightly wrung out of water. If the parts are not com-
pletely dry, the machine may malfunction.
• Using commercially available non-woven dry type fabric is effective for cleaning paper dust.
Choose Non-woven fabric with soft and highly adsorptive that can easily wipe dirt and dust
off. Do not use nonwoven fabric containing organic solvents or a polishing agent.
• Do not use benzene, paint thinner, or other organic solvents. Doing so might damage paint or
coating on plastic parts.
Note
After cleaning, be sure to close the cover. Leaving the cover open will not be able to continue to jobs.
Running Paper
Cleaning may temporarily cause a number of white dots to appear on the output. After cleaning,
feed paper through the machine to ensure effectiveness of the cleaning.
1. Create image data consisting K100% for SRA3 or A3 size.
2. Run a 2-sided job to print this image on about 20 sheets of paper.
Cleaning inside the Machine
No. Work Frequency Page
1Cleaning High Capacity Trays Every week (When collected paper dust is found in the paper guide or
roller in the feeder cover)
p.20
2Cleaning the Paper Feeding
Unit in the High Capacity Tray
Every week p.22
Note
When you have finished cleaning, make sure the roller and the surface of paper path are free from foreign ob-
jects.
Cleaning High Capacity Trays
1. Pull out the Paper Tray toward you until it stops.
2. Clean the roller in the feeder cover located on the right side of the Paper Tray.
(1) Press down the roller 1 holder to the direction of the ar-
row, and remove roller 1 by picking up the both ends of
its pin with fingers.
