FujiFilm Apeos C8180 User manual

April 2021 GM1040E1-1 Ver. 1 FUJIFILM Business Innovation Corp.
Apeos™ C8180
Apeos C7580
Apeos C6580
Reference Guide
Optional Units

2Reference Guide Optional Units
1Preface
A guide describing the operations for optional units, such as the Finisher.
Refer
Descriptions for the following optional products are provided in different guides.
Simple catch tray, Offset catch tray: Reference Guide- Main Unit
Wireless kit, print / scan / FAX function-related products: Reference Guide - Operations
Face authentication system, finger vein authentication system, IC card reader: Official site of our
company
In this manual, safety instructions are preceded by the symbol . Always read and follow the
instructions before performing the required procedures.
For trademarks and notations in the manual, refer to the Reference Guide- Main Unit.
This manual may not be edited, modified or copied in whole or in part without the written
consent of the publisher.
Parts of this manual are subject to change without prior notice.
The screen shots and the illustrations in this manual are used as examples. They may differ from
yours depending on the model, the software, or the OS.

3
2 High Capacity Feeder B1
2High Capacity Feeder B1

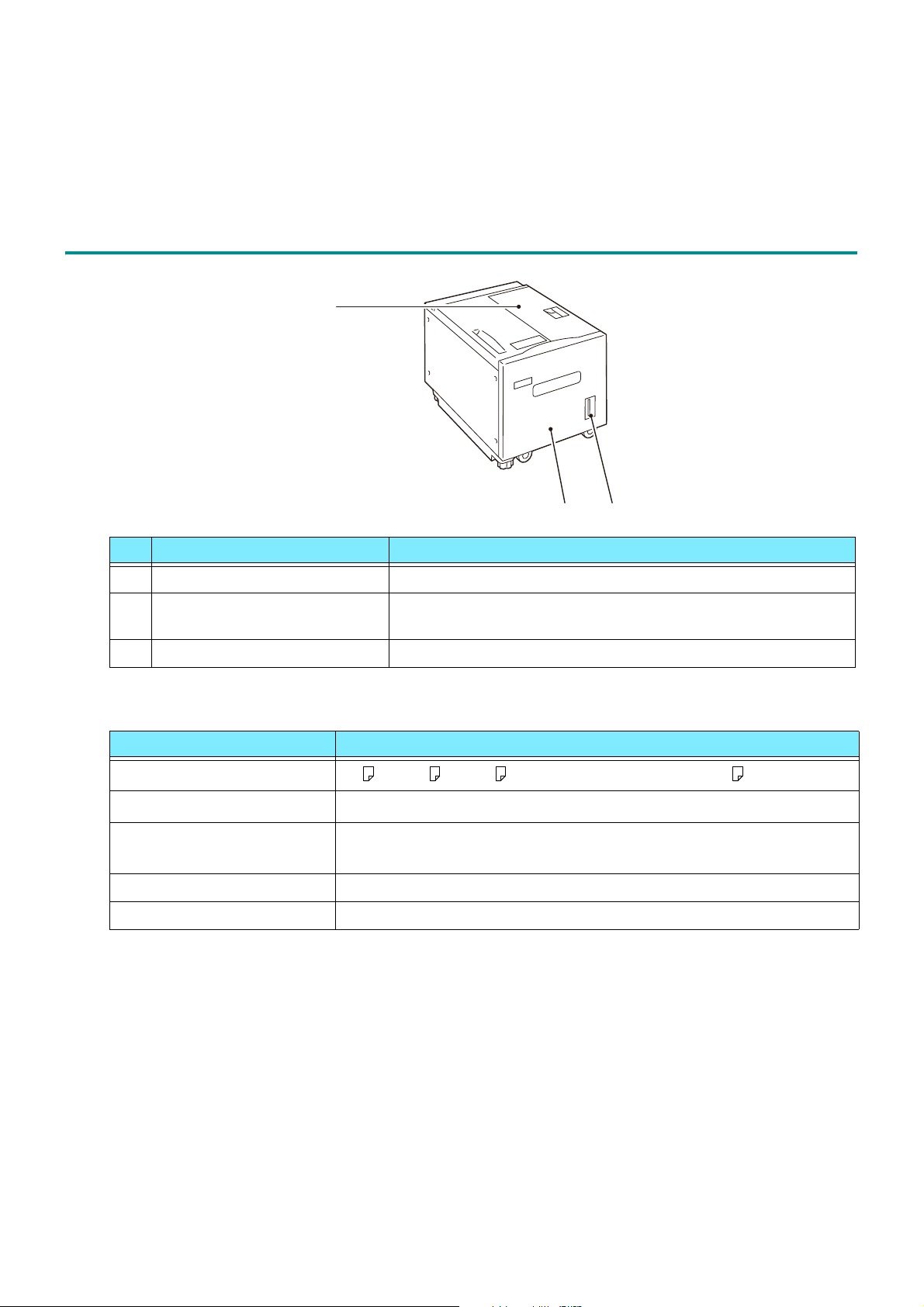

2.1 Device Components
Main specifications
No. Component Function
1 Remaining Volume Display You can check the remaining paper volume.
2 High Capacity Tray (Paper
Tray 6)
Load paper here.
3 Top Cover Open this cover to clear paper jams.
Item Specification
Paper size A4 , Letter , JIS B5 , 7.25 x 10.5" (184 x 267 mm)
Paper weight (g/m2)52 to 220
Maximum number of sheets
(sheets) (C2paper)
2,470
Dimensions (mm) Width 389 x Depth 610 x Height 377
Weight (kg) 29
3
2 1

4Reference Guide Optional Units

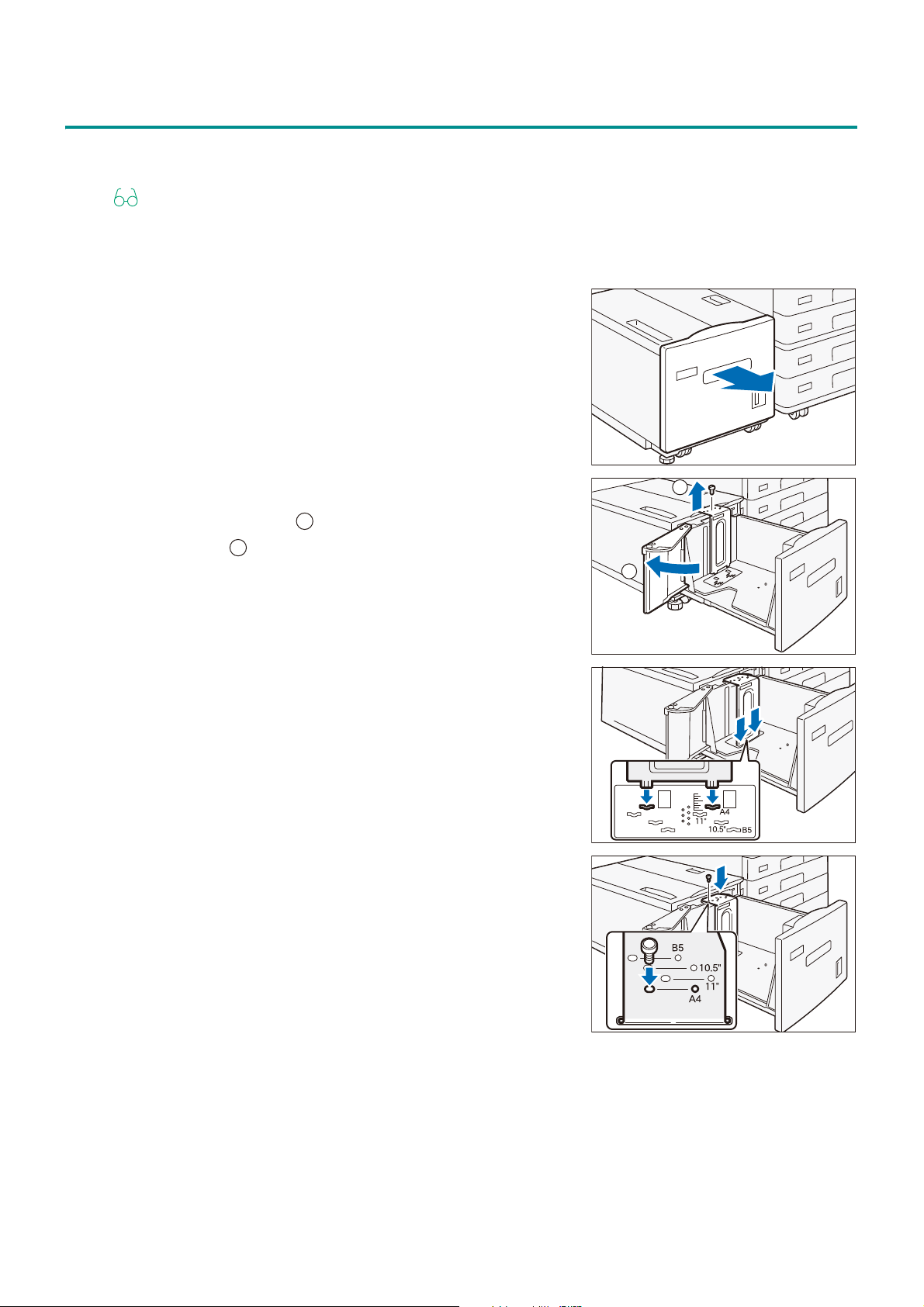

2.2 Paper and Other Media
After loading paper, configure the Paper Tray 6 settings on the Home screen.
Refer
For details, refer to “Setup” in Reference Guide - Operations.
The top face of loaded paper is the surface printed on.

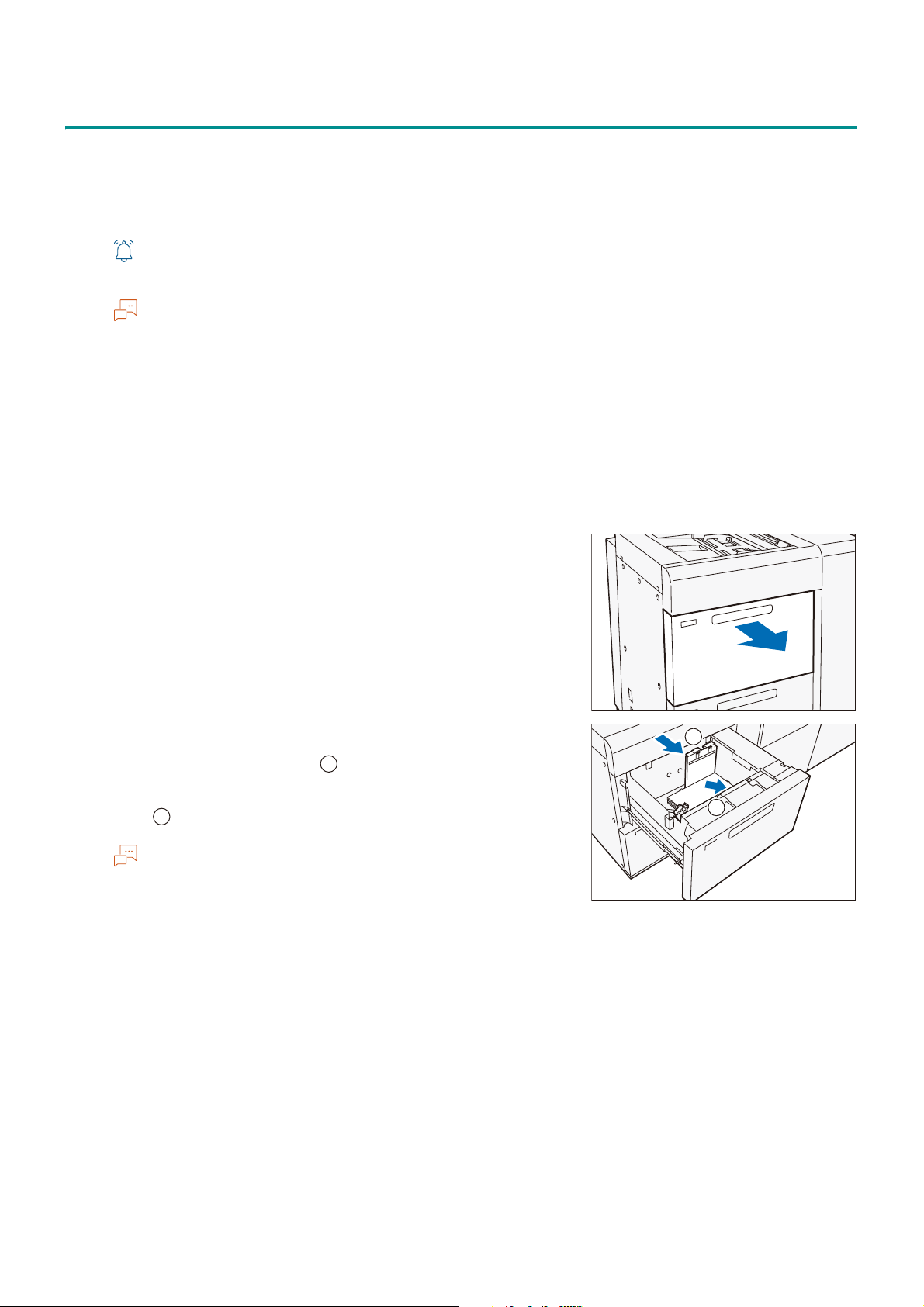

1. Pull out the Paper Tray 6 until it stops.
2. When paper is already loaded in the tray, take out the paper.
3. If changing the Paper Size, adjust the guide position.

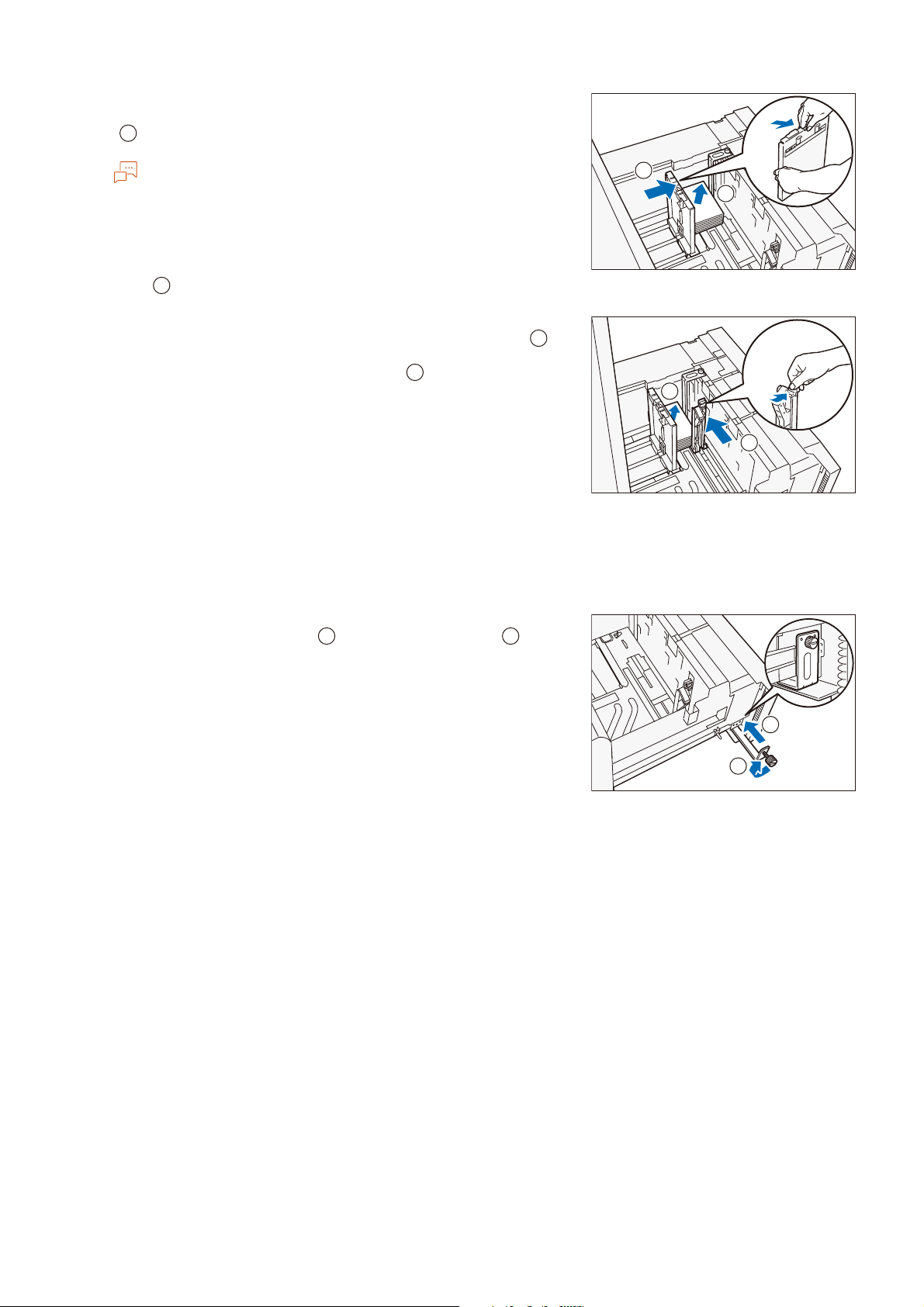

1)Open the end guide ( ), remove the screw for the guide
in the back ( ), and remove the guide from the Paper
Tray 6.
2)Insert the protrusions under the guide into the Paper Size
holes.
3)Insert the Paper Tray 6 protrusions into the Paper Size
holes on top of the guide and tighten the screw.
1
2
1
2

5
2 High Capacity Feeder B1

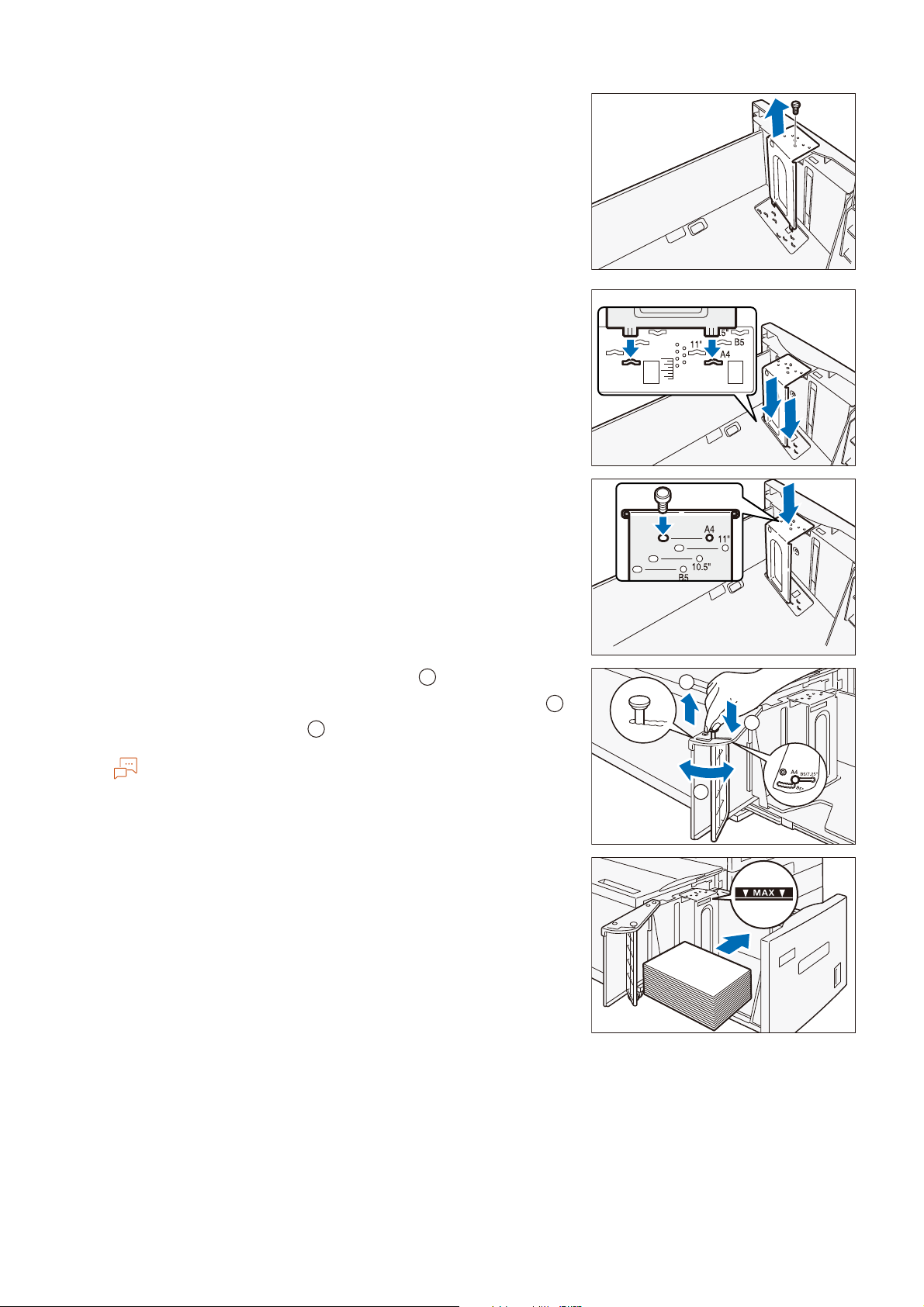

4)Remove the screw for the guide in front and remove the
guide from the Paper Tray 6.
5)Insert the protrusions under the guide into the Paper Size
holes.
6)Insert the Paper Tray 6 protrusions into the Paper Size
holes on top of the guide and tighten the screw.
7)Pull the handle for the end guide up ( ), align with the
Paper Size while moving the handle along the groove ( ),
and lower the handle ( ).
Note
The groove on the left side of the end guide 8.5” is not used.
4. Fan a stack of paper, face the print surface up, and then load
the paper with edges aligned according to the direction of the
arrow.
1
2
3
1
2
3

6Reference Guide Optional Units

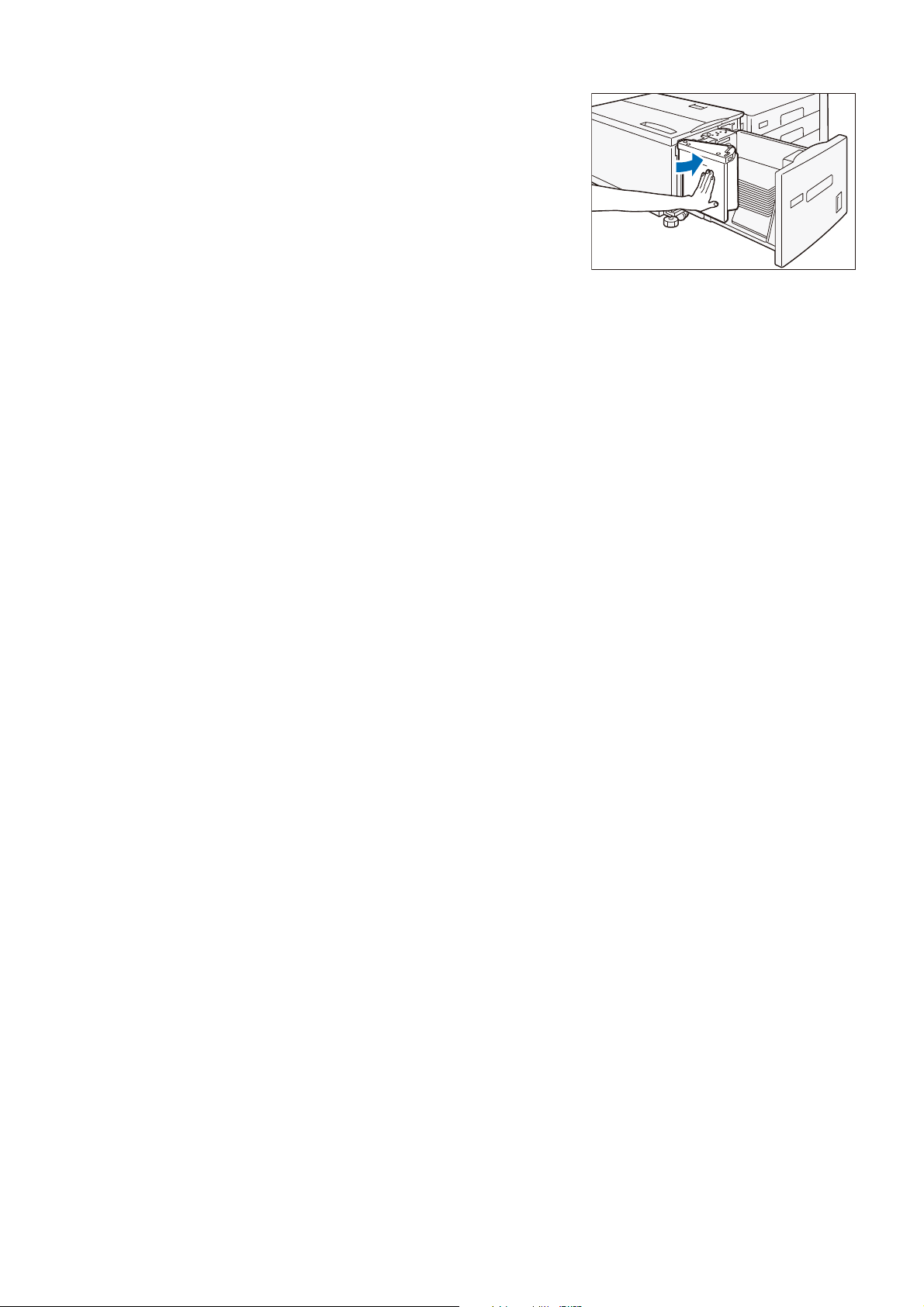

5. Close the end guide completely.
6. Push in the Paper Tray 6.

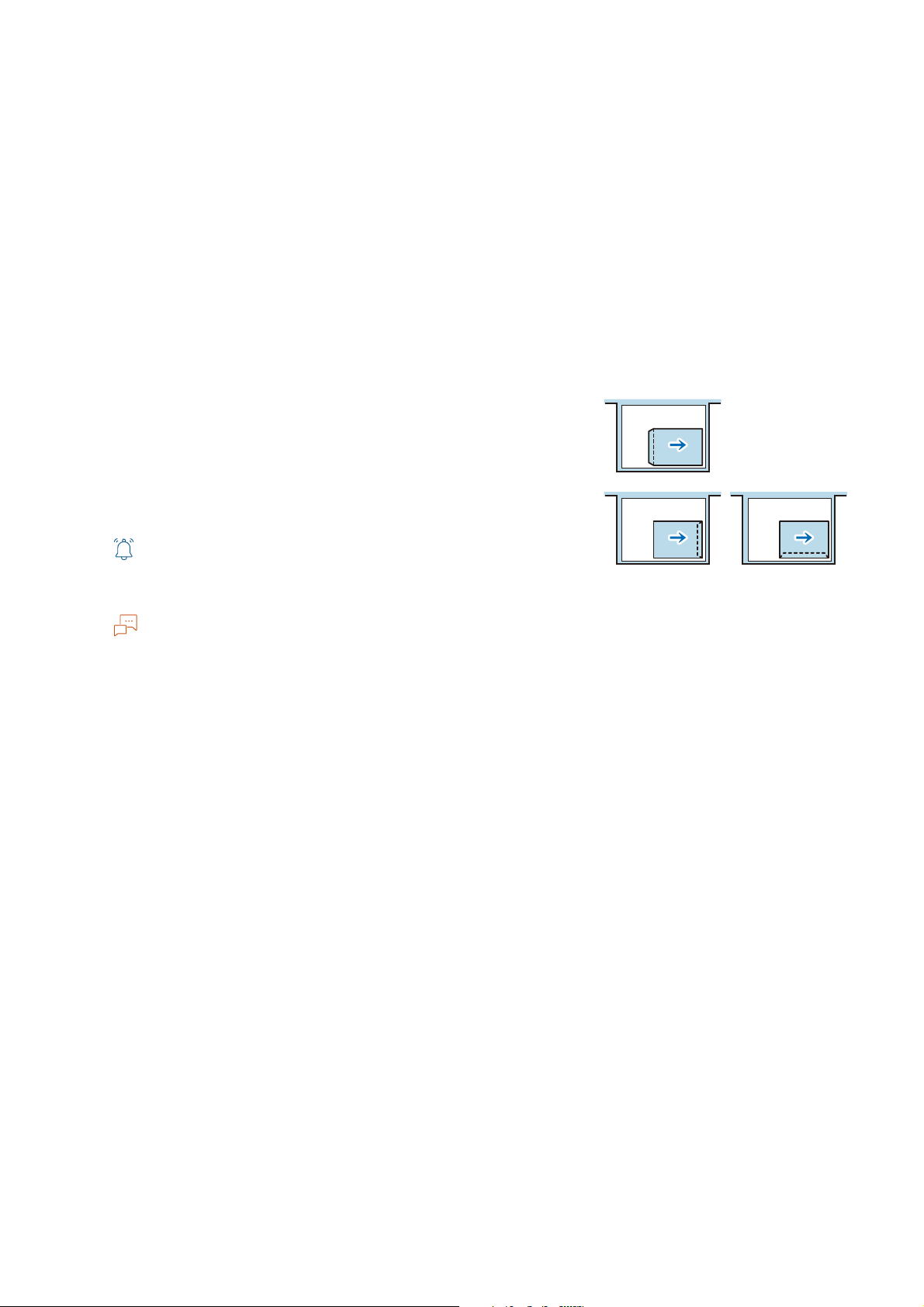

Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the right side when viewed from the front of the
machine

7
2 High Capacity Feeder B1
2.3 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control
panel. Follow the message displayed to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from
the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.

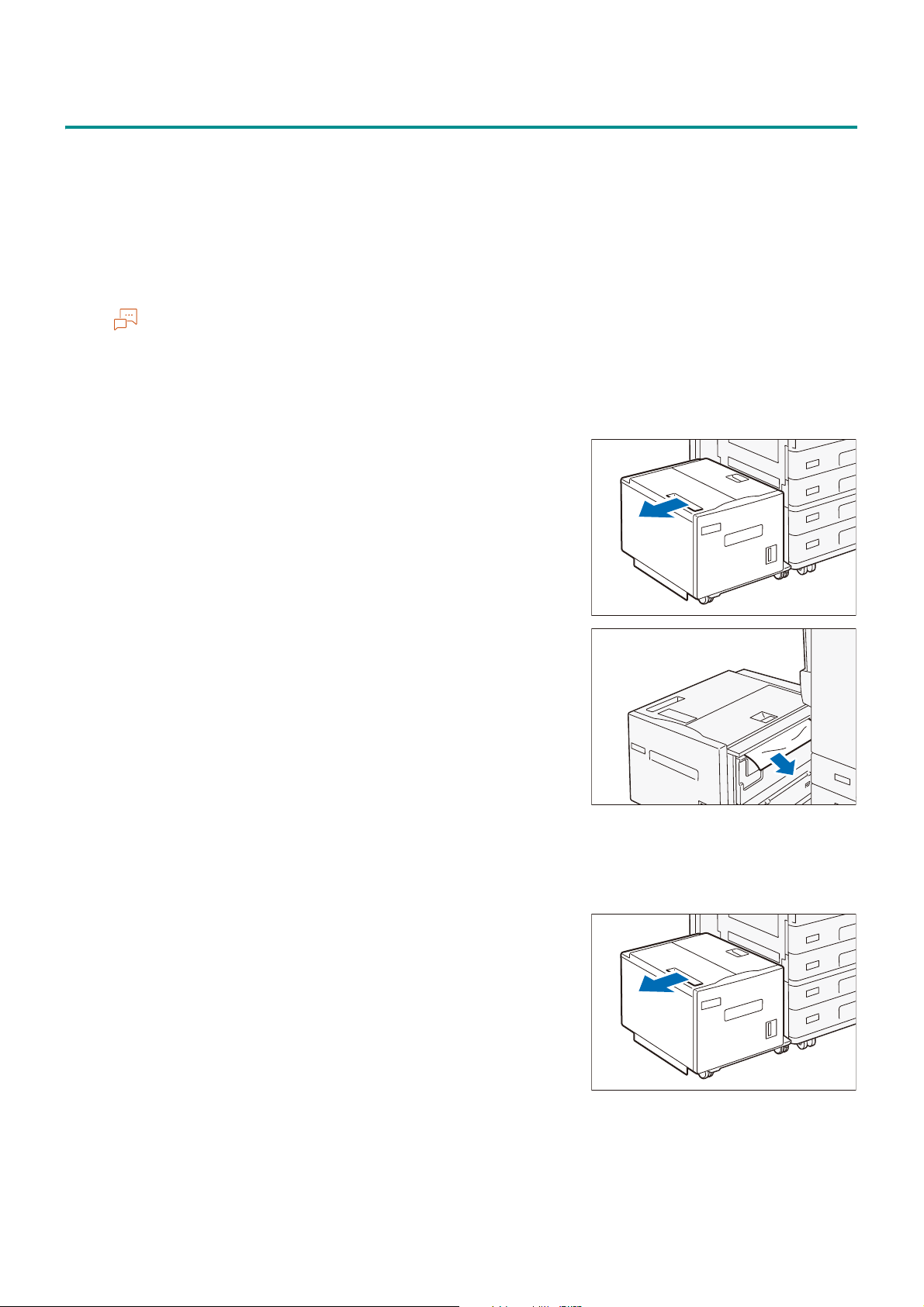

Exit
1. Hold the handle and move the unit all the way to the left.
2. Remove the jammed paper.
3. Move the unit to the right and connect it with the main unit.

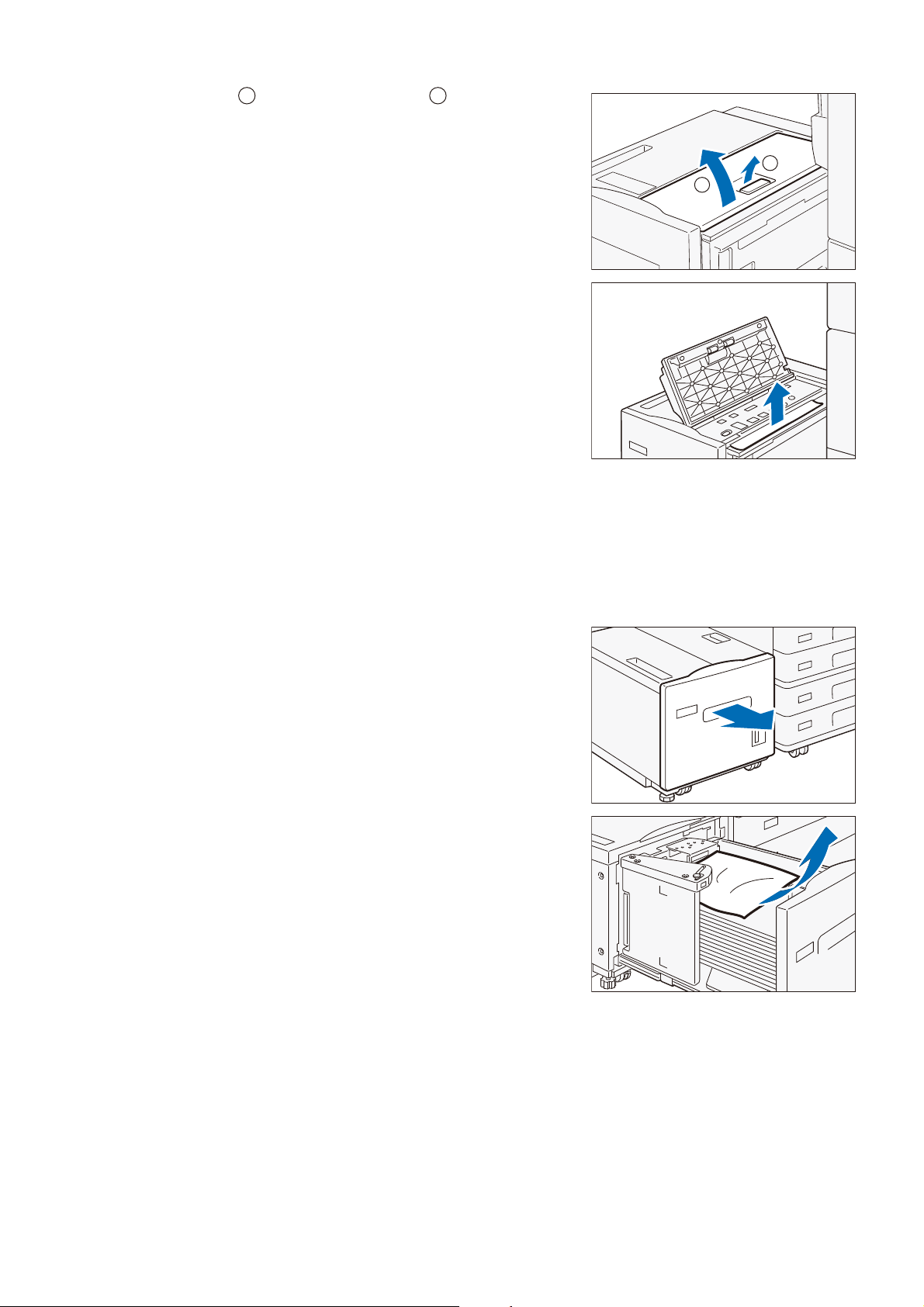

Inside of the Upper Cover
1. Hold the handle and move the unit all the way to the left.

8Reference Guide Optional Units
2. Pull the handle ( ) and open the cover ( ).
3. Remove the jammed paper.
4. Close the cover.
5. Move the unit to the right and connect it with the main unit.
Paper Tray 6
1. Pull out the Paper Tray 6 until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray 6.
2
1
12

9
3 High Capacity Feeder B1-S/C3-DS
3High Capacity Feeder
B1-S/C3-DS
3.1 Device Components
B1-S
C3-DS
1
2
45
3
6
7
8
645
3
21
8
7

10 Reference Guide Optional Units

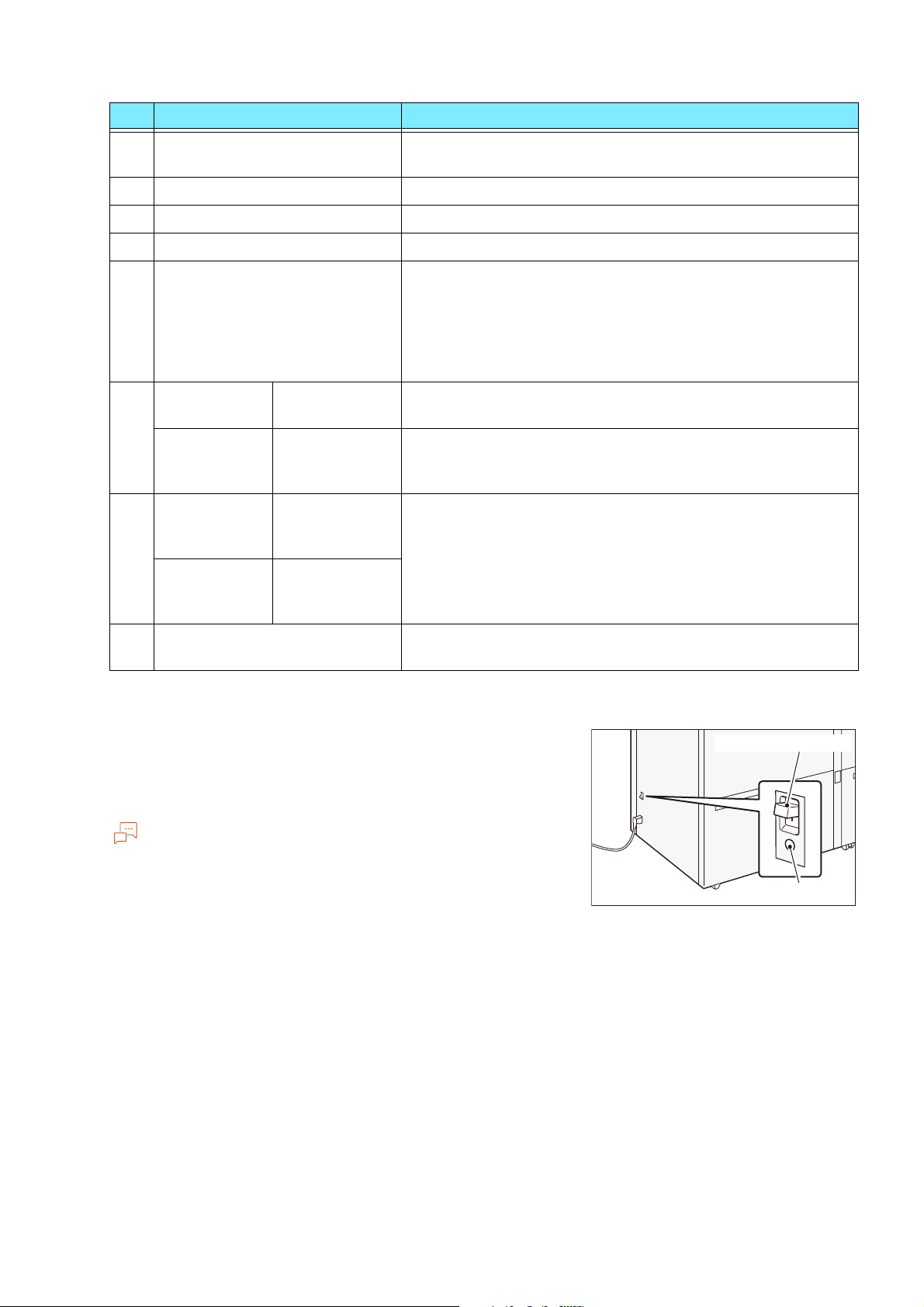

Ground Fault Interrupter
The switch is normally at the top position.
When not using for an extended period or when moving the
unit, set the switch to the lower position to turn the machine
power off.
Note
Do not operate the Ground Fault Interrupter under normal
circumstances because it is turned off when a current leakage is
detected.
For the current leakage, refer to User's Manual.
No. Component Function
1 Bypass Tray (Paper Tray 5) Load paper here.
The top face of loaded paper is the surface printed on.
2 Upper Cover of Bypass Tray Open this cover to clear paper jams.
3 Error Indicator When paper jam occurs, the indicator is turned on.
4 Right Cover Open this cover to clear paper jams.
5 Remaining Volume Indicator When the Paper Tray is in operation, the top lamp is turned
on.
You can check the remaining volume of paper with the 4
lamps (each lamp indicates 25%) at the center.
When Paper Replenish Indicator is turned on, paper is
empty.
6B1-S Consumables
Storage Unit
Stores papers and consumables.
C3-DS Large Capacity
Tray
(Paper Tray 6)
Load paper here.
The top face of loaded paper is the surface printed on.
7B1-S LargeCapacity
Tray
(Paper Tray 6)
Load paper here.
The top face of loaded paper is the surface printed on.
C3-DS Large Capacity
Tray
(Paper Tray 7)
8 Ground Fault Interrupter A switch to automatically switch the machine off when a
current leakage is detected.
Circuit Breaker Switch
TEST button
