Quick Reference Guide
EASY ACCESS TO FREQUENT TASKS
CX 3240
CREATIVE DUPLEX
PRINTER
GETTING
STARTED

FUJIFILM CX 3240
QUICK REFERENCE GUIDE

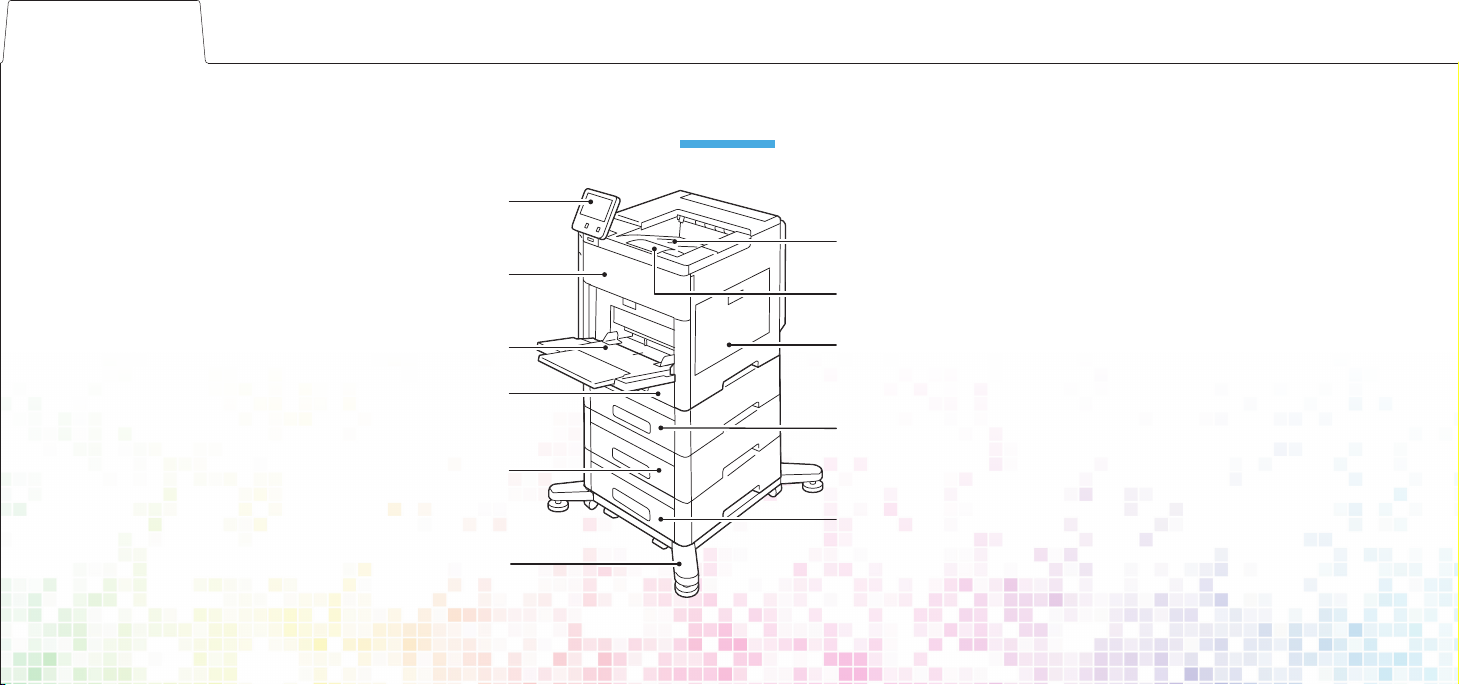

GETTING STARTED
*If using LANDSCAPE
TM
system, operator does not need to navigate via the touch screen.
Bypass Tray
Various paper can be printed here
Tray 1
Heavyweight card stock goes here Tray 2
Heavyweight card stock goes here
Tray 3
Heavyweight card stock goes here
Tray 4
Heavyweight card stock goes here
Caster Stand
Provides stability for the printer
Right-Side Door
Provides access to the waste cartridge and drum cartridges
Output Tray Extension
Extension to keep larger medias from falling o the output tray
Output Tray
This is where print output can be found after it is finished printing
Touch Screen
User directions for output are entered here*
Front Door
Provides access to toner for periodic replacement

BASIC OPERATIONS ON THE TOUCH SCREEN
You can operate the touch screen the same way as a smart
phone or tablet.
To select an item on the screen, touch the screen.
• To scroll the screen or the listed items,
swipe the screen by dragging your finger on the screen.
• To scroll faster, flick the screen.
Note: You cannot swipe or flick on some screens depending
on the screen design and specifications. In this case, operate
by touching the buttons shown on the screen.
MOVING, ADDING OR REMOVING THE TILES
Touch [Customize] to change the tile layout.
To move the tiles
1. Touch and hold the tile you want to move, and drag
it to the desired place.
2. Touch [Done] to save the changes.
To add the tiles
1. Touch [Add] and select the item you want to add.
2. Touch [Done] to save the changes.
To remove the tiles
1. Touch the [X] icon on the tile you want to remove.
2. Touch [Done] to save the changes.
1
2
3
4

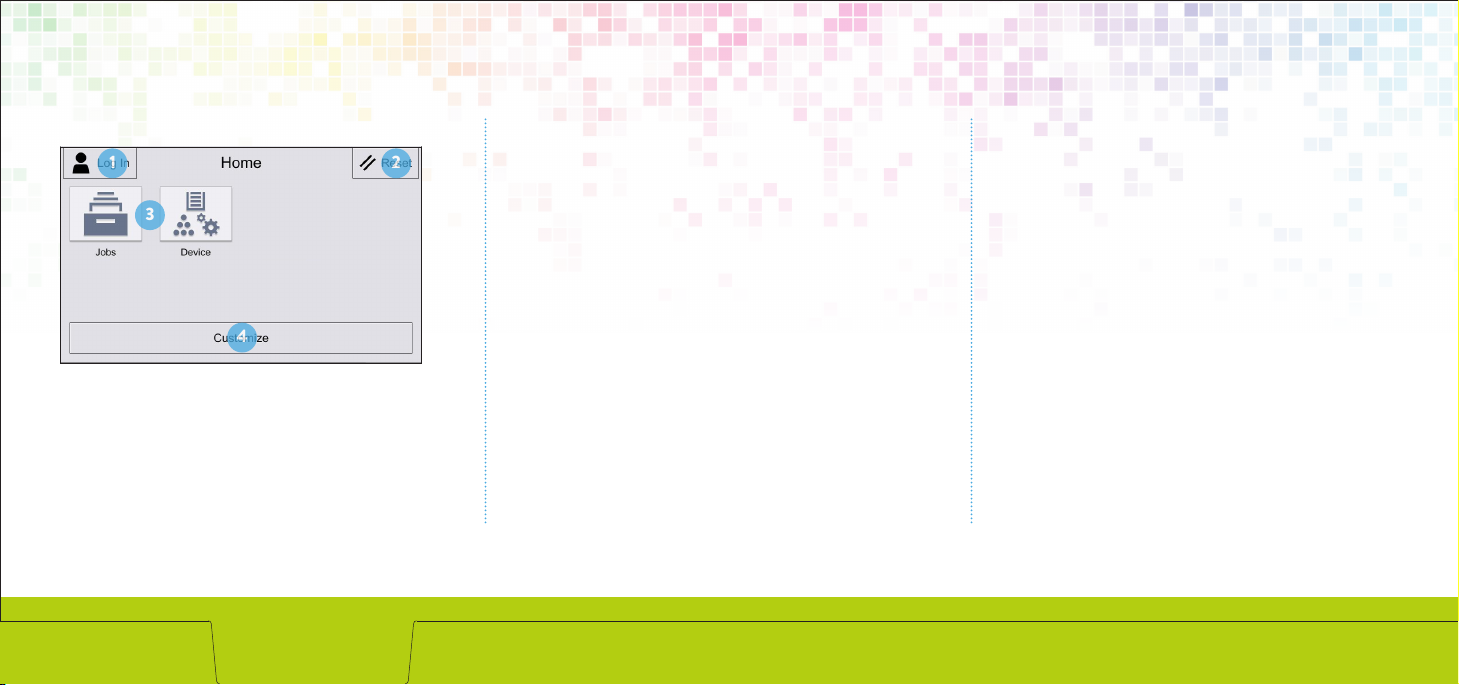

1. Log In:
2. Reset:
3. Tiles:
4. Customize:
Select this button to log in.
Resets the printer.
Displays the tiles of the
functions you can select from.
Select this button to change
the tile layout.
TOUCH SCREEN
LOADING
PAPER

PAPER STORAGE AND CONDITIONING
For optimum conditioning and performance
from the CX 3240, follow these guidelines
for proper paper storage.
1. Do not open paper until you are ready
to use it.
2. Leave paper in its wrapper until you are
ready to load it in the machine.
3. Do not store paper directly on the floor.
Keep it on pallets or shelves or in cabinets.

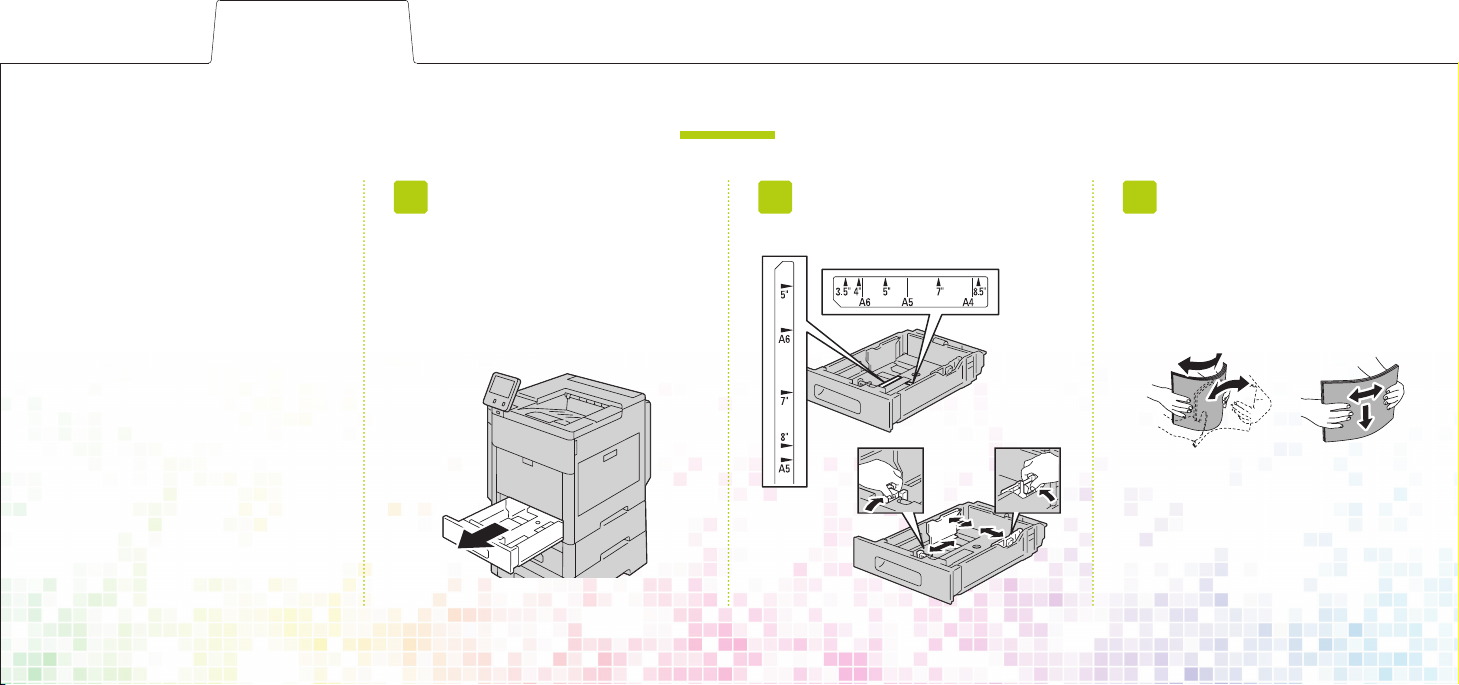

Pull out the tray until it stops,
and then lift the front of the tray
slightly. Now you can remove the tray
from the printer.
Important: Do not pull out multiple trays at
the same time. Otherwise the printer may tip
and cause injuries.
1Adjust the paper guides as illustrated
below.
2Fan the paper well, and align the
edges of the paper stack on a level
surface to avoid paper jams and mis-feeds.
Note: Do not fan the paper over the trays or
prints to prevent paper dust or particles from
entering these areas.
3
FUJIFILM CX 3240
QUICK REFERENCE GUIDE
LOADING PAPER IN TRAYS 1–4

Adjust the paper guides to align the
edges of the paper loaded.
5Insert the tray into the printer. 6If [Tray Mode] is set to
[Fully Adjustable], set the paper
setting after a confirmation screen appears
on the touch screen.
7
Load paper into the tray with the print
side face up. If loading folded card
stock, load with the fold peak facing up.
Note: Do not load paper above the maximum
fill line. It may cause paper jams or machine
malfunction.
4

FUJIFILM CX 3240
QUICK REFERENCE GUIDE

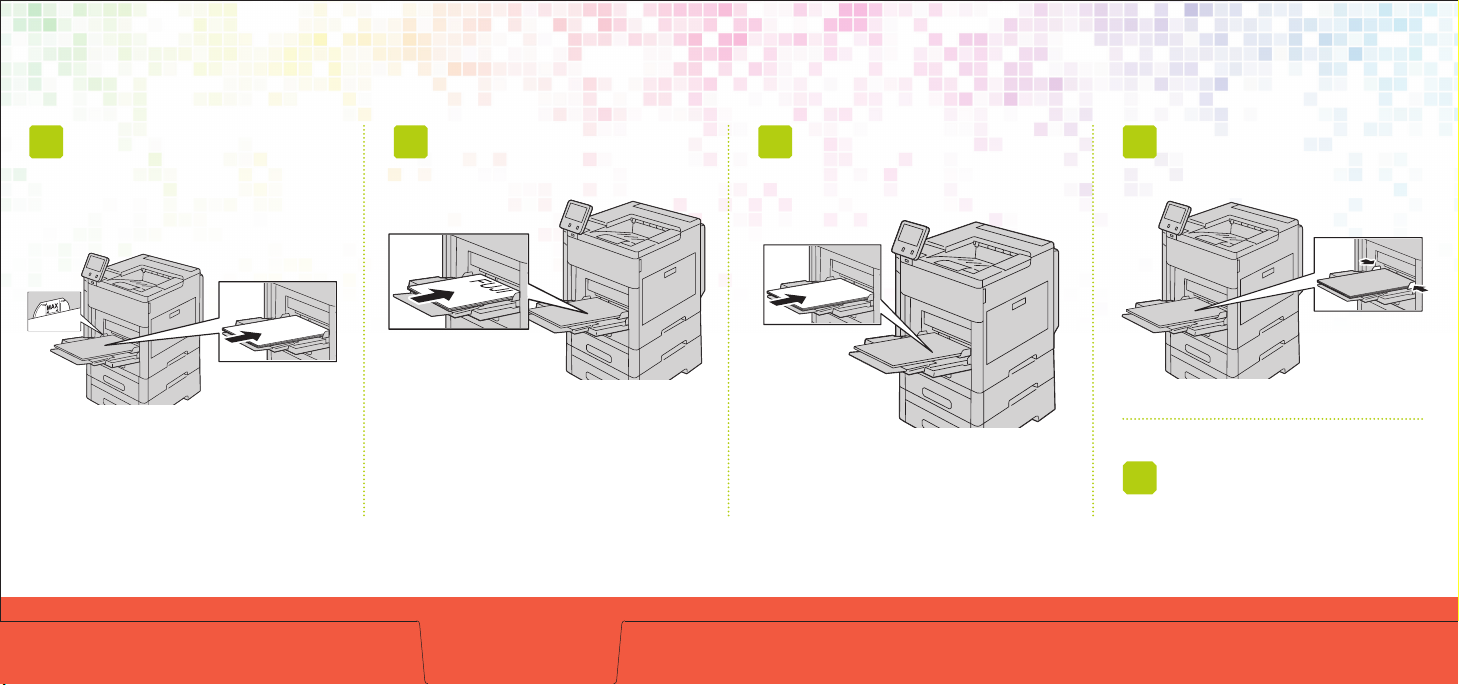

LOADING PAPER IN BYPASS TRAY
SEE PAPER STORAGE AND
CONDITIONING IN PRIOR SECTION.
Pull out the extension tray for larger
sizes.
2Move the paper guides toward the
outside edges of the tray.
3Fan the paper well, and align the
edges of the paper stack on a level
surface to avoid paper jams and mis-feeds.
Note: Do not fan the paper over the trays or
prints to prevent paper dust or particles from
entering these areas.
4
Open the Bypass Tray. If the Bypass
Tray is loaded with paper already,
remove any dierent size or type of paper.
1

For 1-sided printing, load paper face up
with the top edge going into the printer.
6For 2-sided printing, load paper face
down with the top edge going into
the printer.
7Adjust the paper guides to align the
edges of the paper loaded.
8
Load the paper in the tray.
Note: Do not load paper above the
maximum fill line on the paper guides. It
may cause jams or machine malfunction.
5
Set the paper setting after a
confirmation screen appears on the
touch screen.
9
TONER
REPLACEMENT

WARNING
Use a broom or a wet cloth to wipe o spilled
toner. Sweep slowly to minimize generation
of dust during clean up. Avoid using a
vacuum, however, if a vacuum must be used,
the unit should be designed for combustible
dusts (e.g. explosion rated motor or
conductive hose).

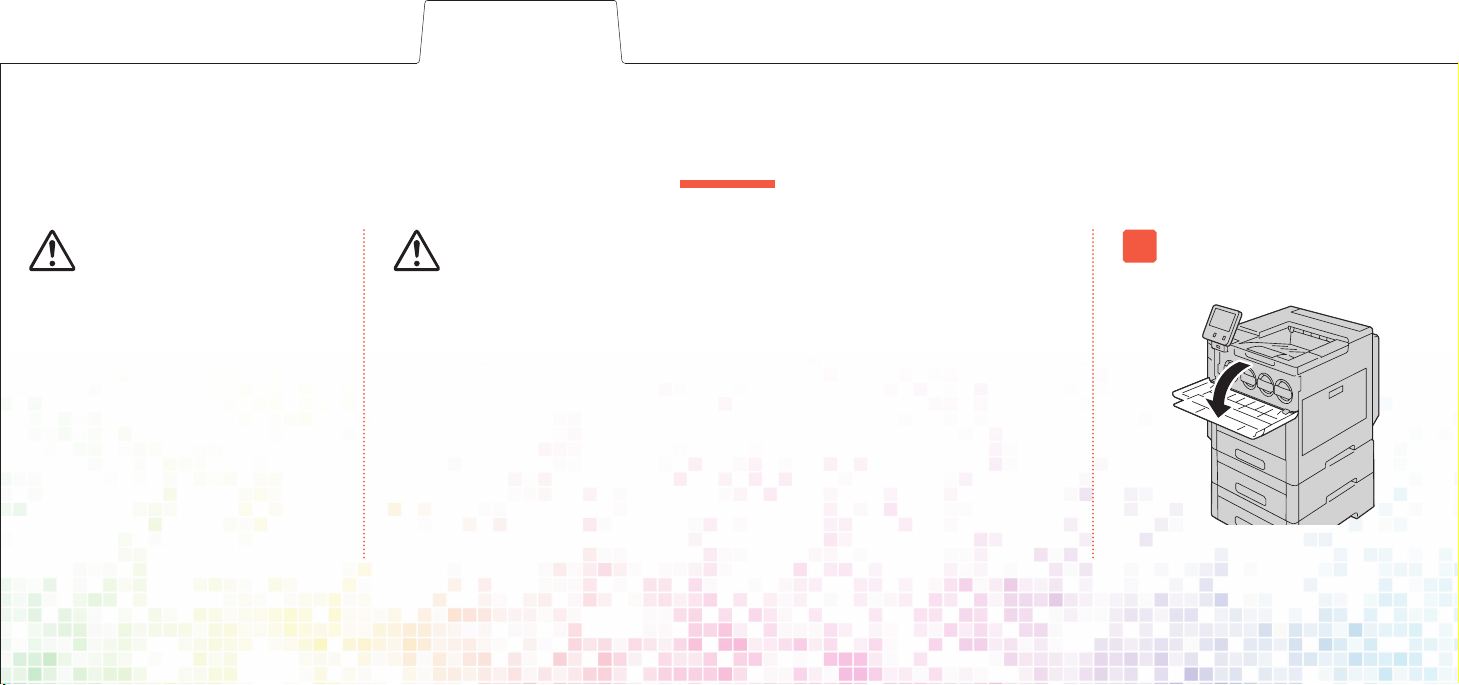

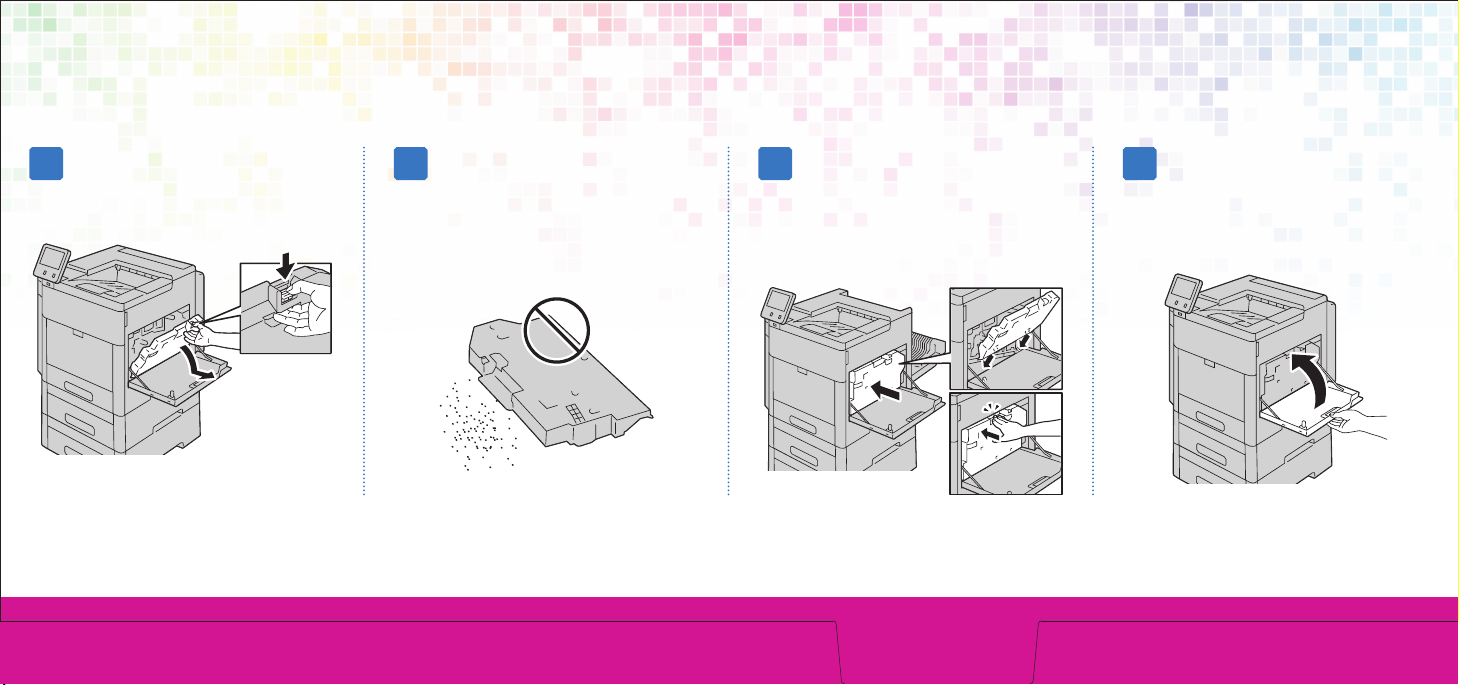

Make sure that the printer is not
operating, and open the front door.
1
FUJIFILM CX 3240
QUICK REFERENCE GUIDE
REPLACING A TONER CARTRIDGE
CAUTION
Keep drum cartridges (or drum if not a
cartridge type) and toner cartridges out of
the reach of children. If a child accidentally
swallows toner, spit it out, rinse mouth with
water, drink water and consult a physician
immediately.
When replacing drum cartridges (or drum if
note a cartridge type) and toner cartridges,
be careful not to spill the toner. In case of
any toner spills, avoid contact with clothes,
skin, eyes and mouth as well as inhalation.
If toner spills onto your skin or clothing,
wash it o with soap and water. If you get
toner particles in the eyes, wash it out with
plenty of water for at least 15 minutes until
the irritation is gone. Consult a physician
if necessary. If you inhale toner particles,
move to a fresh air location and rinse your
mouth with water. If you swallow toner, spit
it out, rinse your mouth with water, drink
plenty of water and consult a physician
immediately.

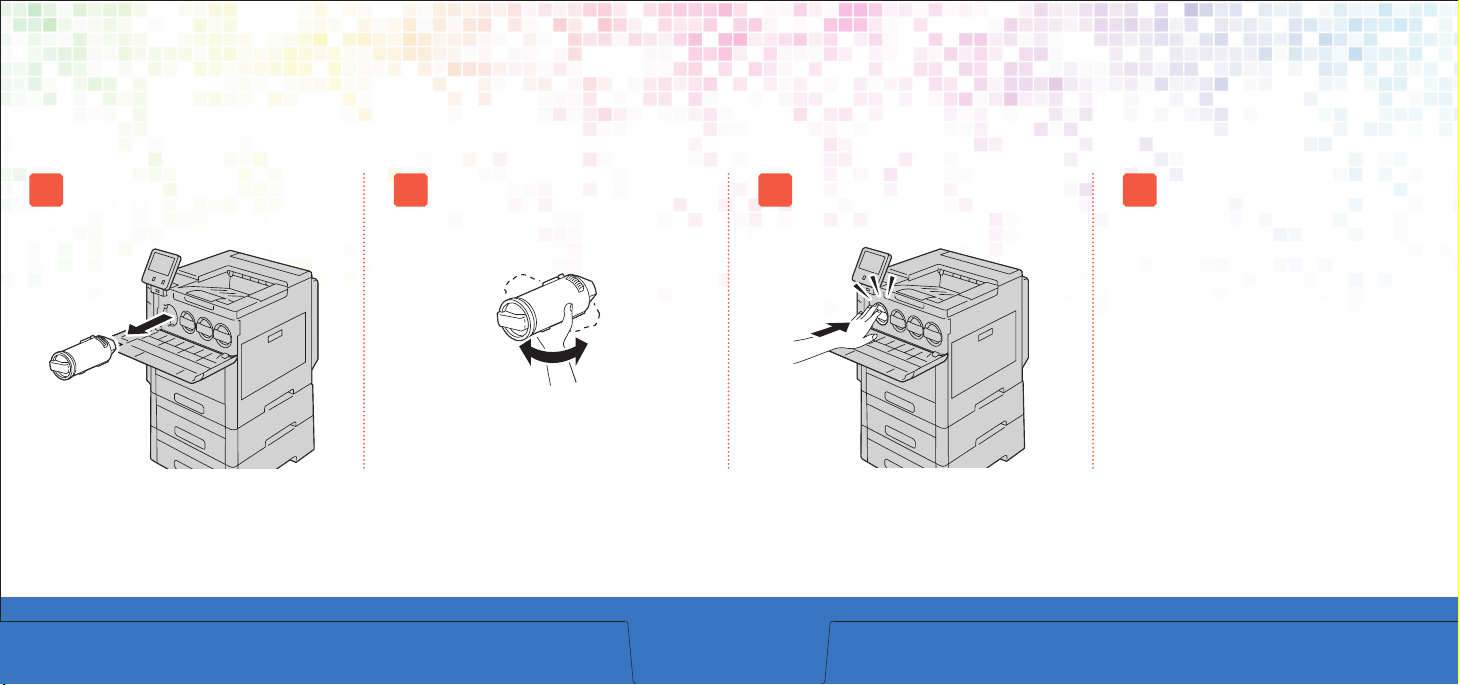

Take the new toner cartridge out of the
box, and shake the cartridge up and
down and left and right five or six times.
3Push the cartridge in
slowly until it stops.
4
Hold the handle and pull out the
toner cartridge slowly.
2Close the front door. 5
WASTE CARTRIDGE
REPLACEMENT

WARNING
Use a broom or a wet cloth to wipe o spilled
toner. Sweep slowly to minimize generation
of dust during clean up. Avoid using a
vacuum, however, if a vacuum must be used,
the unit should be designed for combustible
dusts (e.g. explosion rated motor or
conductive hose).

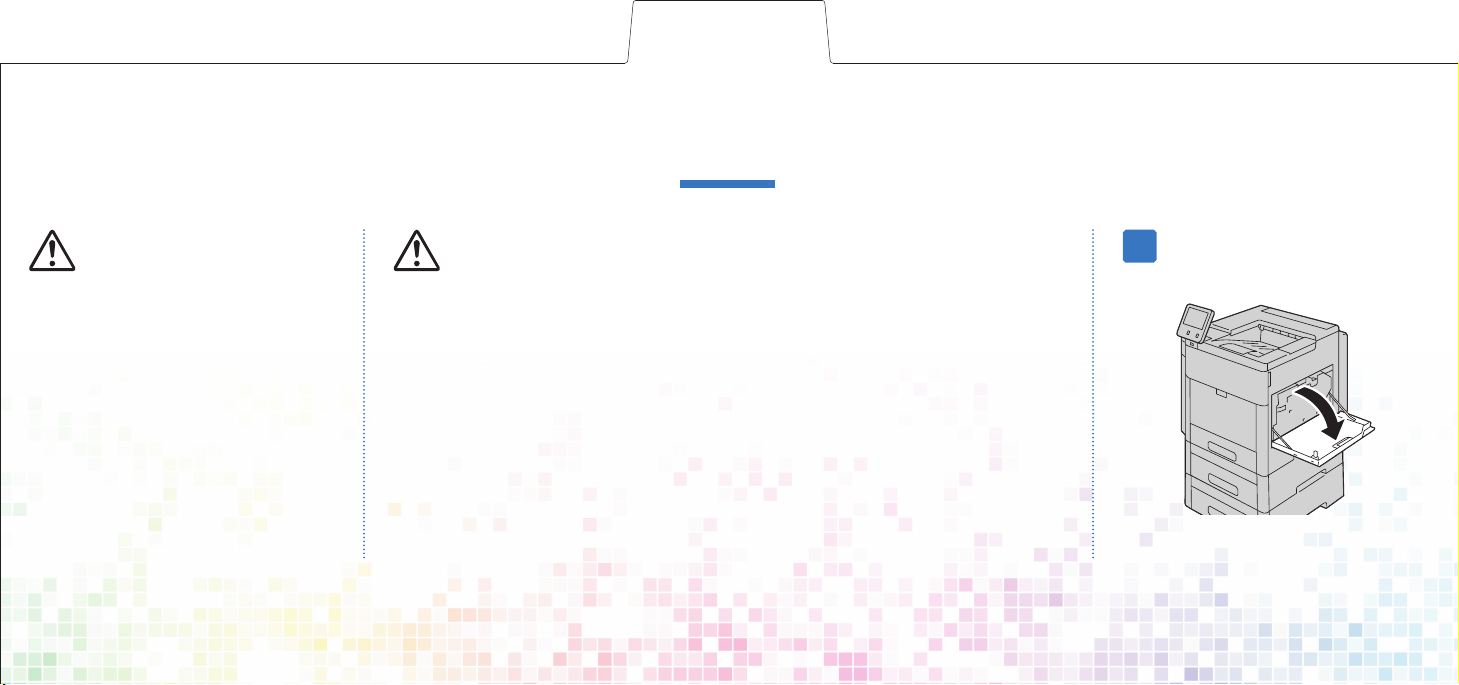

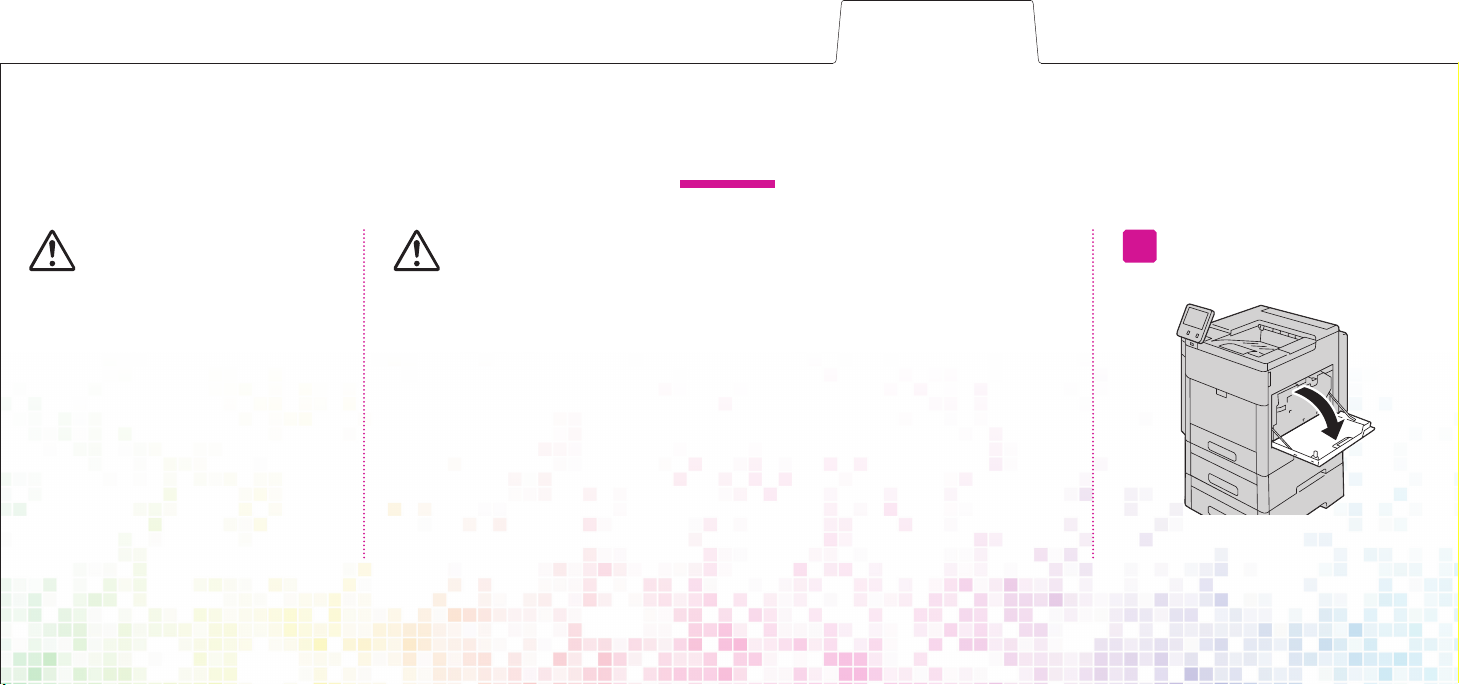

Make sure that the printer is not
operating, and open the right side door.
1
FUJIFILM CX 3240
QUICK REFERENCE GUIDE
REPLACING A WASTE CARTRIDGE
CAUTION
Keep drum cartridges (or drum if not a
cartridge type) and toner cartridges out of
the reach of children. If a child accidentally
swallows toner, spit it out, rinse mouth with
water, drink water and consult a physician
immediately.
When replacing drum cartridges (or drum if
note a cartridge type) and toner cartridges,
be careful not to spill the toner. In case of
any toner spills, avoid contact with clothes,
skin, eyes and mouth as well as inhalation.
If toner spills onto your skin or clothing,
wash it o with soap and water. If you get
toner particles in the eyes, wash it out with
plenty of water for at least 15 minutes until
the irritation is gone. Consult a physician
if necessary. If you inhale toner particles,
move to a fresh air location and rinse your
mouth with water. If you swallow toner, spit
it out, rinse your mouth with water, drink
plenty of water and consult a physician
immediately.

To prevent toner spills, keep the
openings facing up.
Note: To avoid toner spills or malfunction, do
not lay the waste cartridge on its side, or with
the openings facing down.
3To reinsert the new waste cartridge,
lower the bottom of the cartridge
into position. To lock the cartridge into
place, push the top forward until the latch
clicks into place.
4
To remove the waste cartridge, pinch
the latch and then lower the top of the
cartridge and lift it away from the printer.
2Close the right-side door.
Note: If the right-side door is not
closed completely, a message appears and
the printer will remain paused.
5
DRUM
REPLACEMENT

WARNING
Use a broom or a wet cloth to wipe o spilled
toner. Sweep slowly to minimize generation
of dust during clean up. Avoid using a
vacuum, however, if a vacuum must be used,
the unit should be designed for combustible
dusts (e.g. explosion rated motor or
conductive hose).
Make sure that the printer is not
operating, and open the right side door.
1
FUJIFILM CX 3240
QUICK REFERENCE GUIDE
REPLACING A DRUM CARTRIDGE
CAUTION
Keep drum cartridges (or drum if not a
cartridge type) and toner cartridges out of
the reach of children. If a child accidentally
swallows toner, spit it out, rinse mouth with
water, drink water and consult a physician
immediately.
When replacing drum cartridges (or drum if
note a cartridge type) and toner cartridges,
be careful not to spill the toner. In case of
any toner spills, avoid contact with clothes,
skin, eyes and mouth as well as inhalation.
If toner spills onto your skin or clothing,
wash it o with soap and water. If you get
toner particles in the eyes, wash it out with
plenty of water for at least 15 minutes until
the irritation is gone. Consult a physician
if necessary. If you inhale toner particles,
move to a fresh air location and rinse your
mouth with water. If you swallow toner, spit
it out, rinse your mouth with water, drink
plenty of water and consult a physician
immediately.

To prevent toner spills, keep the
openings facing up.
Note: To avoid toner spills or malfunction, do
not lay the waste cartridge on its side, or with
the openings facing down.

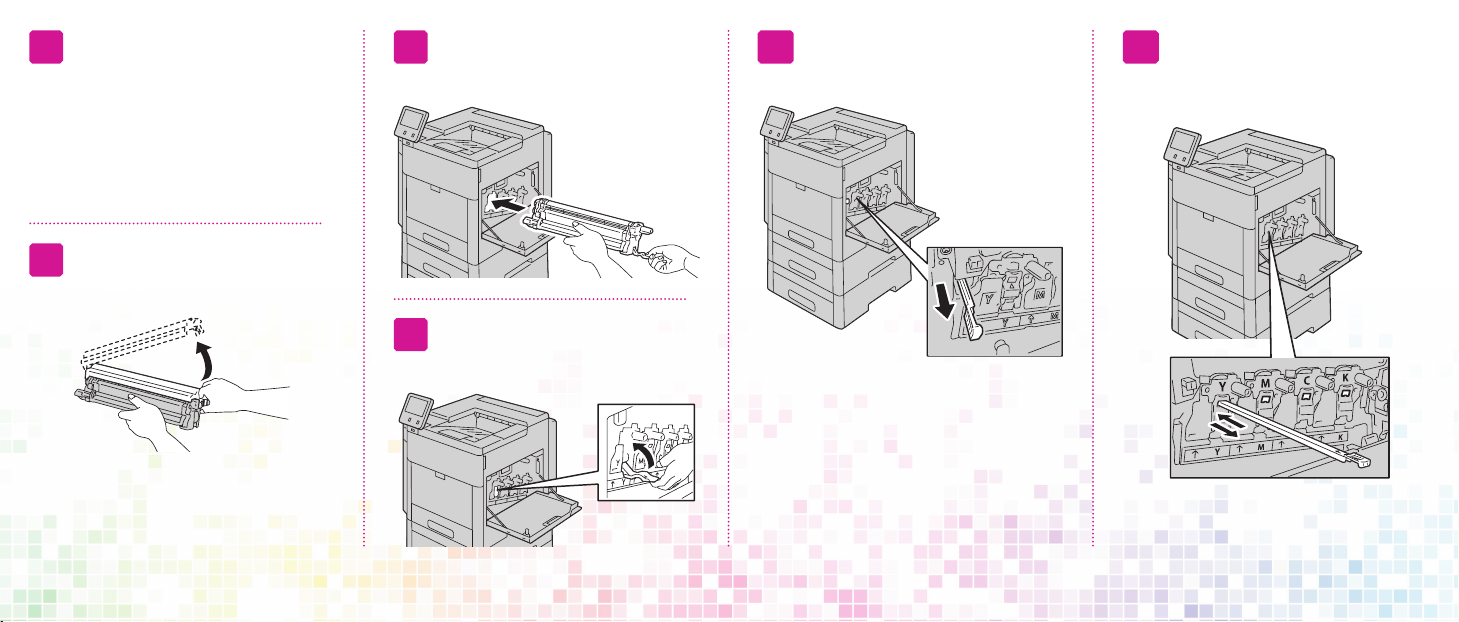

3Pull down the release lever of the
drum cartridge Y, M, C, or K.
4Slide the drum cartridge gently while
holding its bottom, and pull it out
from the printer.
Note: When removing the drum cartridge,
be careful not to drop it on the floor. Be
careful not to touch the toner attached to
the cartridge.
5
First, remove the waste cartridge by
pinching the latch and then lower the
top of the cartridge and lift it away from
the printer.
2
Note: After removing the waste cartridge, do not
touch the area shown in the illustration below.

Insert the new drum cartridge straight
in the housing until it clicks into place.
8Remove the cleaning rod from inside
the printer.
10
Take the new drum cartridge out of
the box, and insert the used drum
cartridge into the supplied plastic bag and
place it into the box.
Important: Do not place the new drum
cartridge in an upright position. If you have
a used cartridge no longer needed, contact
your local dealer for its disposal.
6
Remove the protection cover from
the drum cartridge.
7
Pull up to return the release lever of
the drum cartridge Y, M, C, or K.
9
Insert the cleaning rod into one of the
four cleaning holes until it stops, then
pull out the rod. Repeat this two more times.
11

Repeat the procedure for the holes in
the other three slots.
12
Return the cleaning rod to its original
location.
13
To reinsert the waste cartridge, lower
the bottom of the cartridge into
position. To lock the cartridge into place,
push the top forward until the latch clicks
into place.
14
Close the right-side door.
Note: If the right-side door is not
closed completely, a message appears and
the printer will remain paused.
15
TRANSFER ROLLER
REPLACEMENT

FUJIFILM CX 3240
QUICK REFERENCE GUIDE
REPLACING THE TRANSFER ROLLER
Open the rear door.
2Grasp the Transfer Roller unit at each
end as indicated by the beige dots
and pull straight out of the printer.
Note: To avoid toner spills, do not lay the
transfer roller with opening facing down.
3Clean the area indicated in the
illustration below with the cleaning
cloth included in the package.
4
Power o the printer.
1

FUSER
REPLACEMENT
Slide out the filter and replace it with
the new filter assembly included in
the package.
5Grasp the new transfer Roller Unit at
each end, as indicated by the beige
dots and slide it into place.
Note: Do not touch the main part of the unit
with your hands.
6Close the rear door. 7Power the printer on. 8
Touch [Device] > [Supplies] >
[Transfer Roller] > [Reset] on the
control panel to reset the counter. If the
item is not displayed, login to the system
administration mode.
9

FUJIFILM CX 3240
QUICK REFERENCE GUIDE

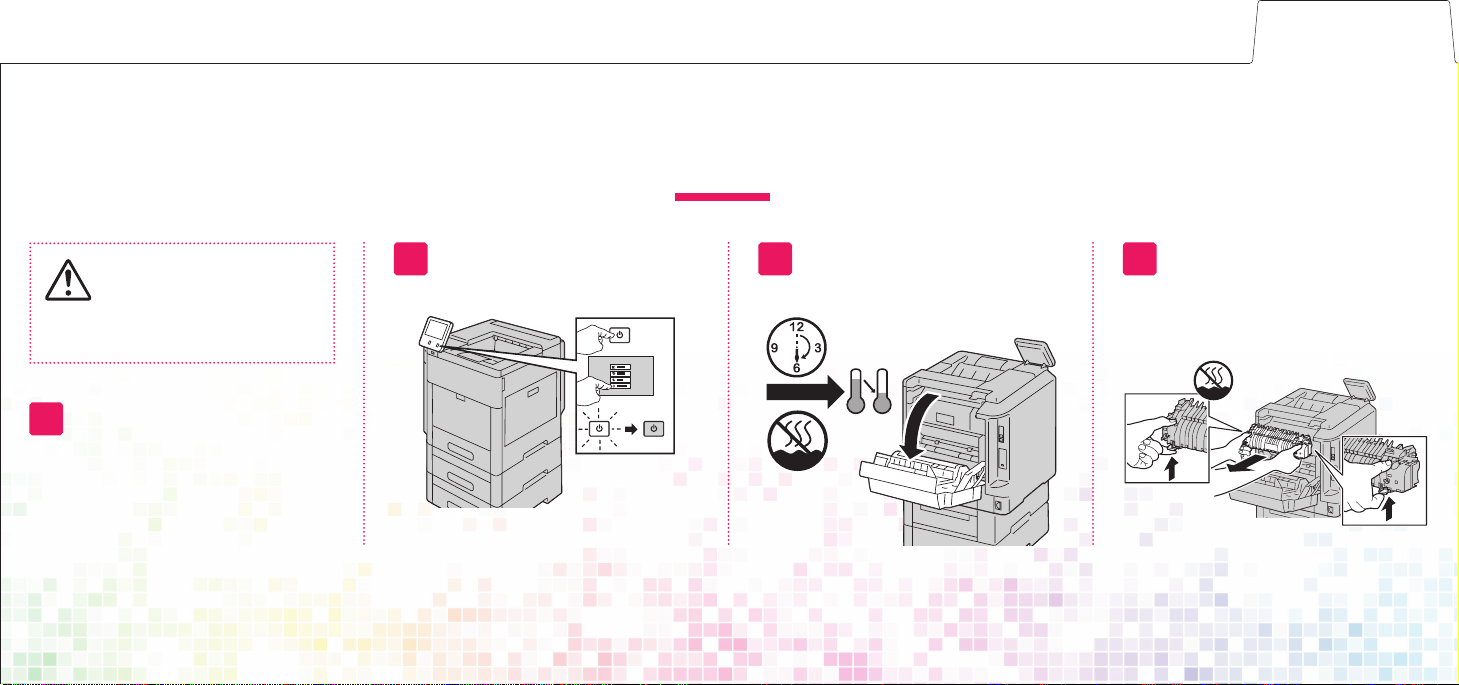

REPLACING THE FUSING UNIT
Power o the printer.
2Open rear door, and wait for 30 minutes
until the Fusing Unit cools down.
3Locate the spring loaded squeeze
latch on each end of the Fusing Unit.
Squeeze the latch and pull the Fusing Unit
straight out of the printer.
4
Touch [Device] > [Support] > [Fusing
Unit Replacement] and then [Start].
1
IF YOU REMOVE THE FUSING
UNIT WITHOUT FOLLOWING
THIS PROCEDURE, YOU
CANNOT SET A NEW FUSING UNIT
INTO THE PRINTER.
00:30:00

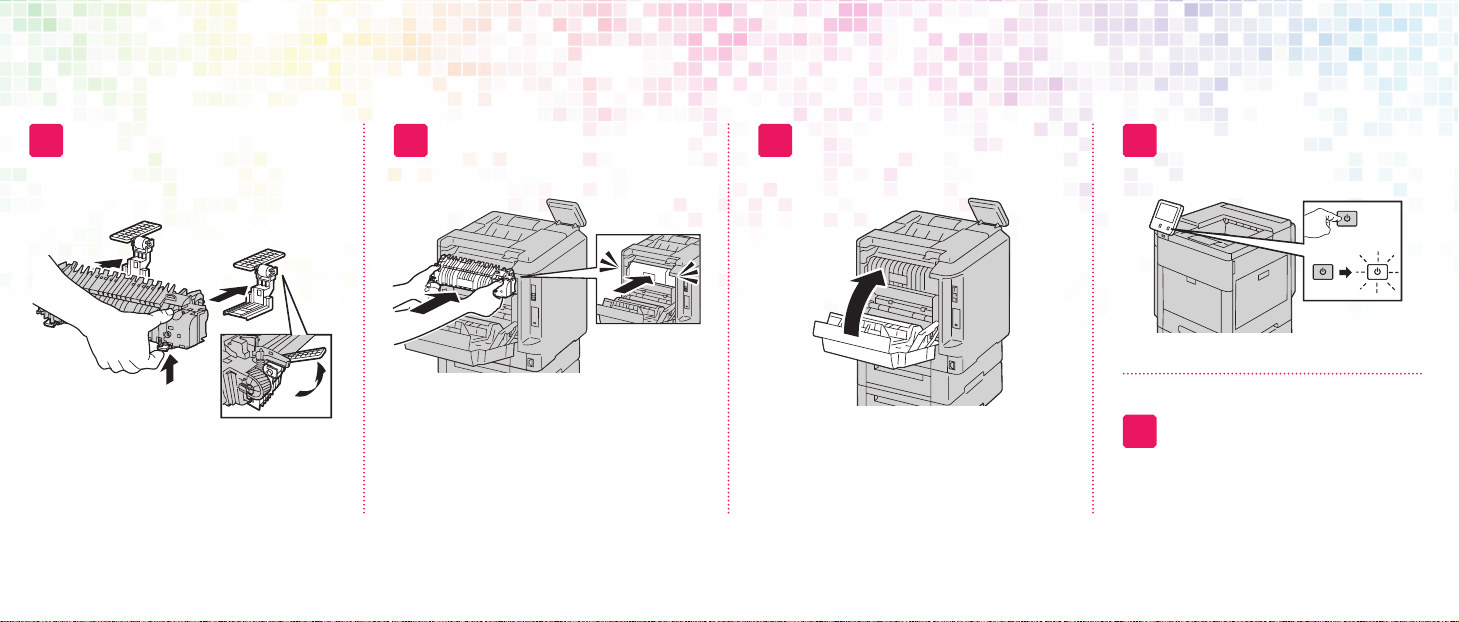

Slide the new Fusing Unit into place,
until it locks into the printer.
6Close the rear door. 7Power the printer on. 8
Before replacing the Fusing Unit,
remove the orange levers fixing the nip
retract shaft from the new Fusing Unit.
5
Touch [Device] > [Supplies] >
[Fusing Unit] > [Reset] on the
control panel to reset the counter. If the
item is not displayed, login to the system
administration mode.
9
FUJIFILM and LANDSCAPE are trademarks of FUJIFILM Corporation and its aliates. © 2019 FUJIFILM North America Corporation and its aliates. All rights reserved.
