Javelin 8300N-E/S Key Features:
Fujifilm Plates and Screening Technologies
• Ideal solution combined with Ecomaxx-T or LH-PJ thermal plates
• Co-Res and TAFFETTA screening options are available
A center load registration system with automatic drum
balancing
• Guarantees registration on press for faster make-readies
• Eliminates plate skewing concerns, regardless if the plate
manufacturer’s plates aren’t cut perfectly square
Automatic calibration every 16 plates
• Guarantees exposure and plate calibration never drift
Laser system redundancy
• Never down with a laser failure
Automation options
• Manual to fully automatic options plus, two loading slots for increased
automation
On-line press punching options
• Reduces manual labor errors and provides faster make-readies
EXTERNAL DRUM
thermal platesetters featuring
quality and consistency.
Why is thermal computer-to-plate technology the system of choice
for so many successful companies? There’s no doubt about thermal
CTP’s reliable high-quality output. It is unrivaled for its superb sharp
dots. Whenever quality is crucial, the natural choice is thermal. Its
consistency for long run lengths and easy daylight handling are also
important for many printers. And the bottom line is always about
keeping the presses running.
The Javelin 8300N-S and Javelin 8300N-E are state-of-the-art
thermal CTP recorders. They deliver the versatility and productivity
you need to keep your presses running.
Both also offer optional inline plate punching for perfect on-press
register and faster makeready times, as well as our acclaimed
autoloader options for unattended plate loading. If you like the idea of
running your pressroom at full capacity, you’ll love the Javelin 8300N
Series.
Javelin 8300N-E/S
Luxel T-9300 CTP N
an entry-level thermal platesetter where
price over productivity is more important.
a faster, more productive thermal 8-up
platesetter
JAVELIN 8300N-E
JAVELIN 8300N-S
FUJIFILM North America Corporation, Graphic Systems Division • Phone: [phone] • Email: [email protected] • Web: www.fujifilmusa.com/graphics

COMMON TO BOTH
JAVELIN 8300N-E & 8300N-S
RECORDING SYSTEM
•Externaldrum
REPEATABILITY
•±5microns(±0.2mil.)*
PLATESIZE*1
•Maximum:4521/32"x37"
 (1160mmx940mm)
•Minimum:12"x149/16"
 (304mmx370mm)
EXPOSURESIZE*2
•Maximum:4521/32"x363/8"
 (1160mmx924mm)
•Minimum:12"x14"
 (304mmx354mm)
MEDIA
•Thermal(infraredsensitive)
plates
MEDIA THICKNESS
•6to12gauge(0.15to0.3mm)
•16gaugeeldoption*6
INTERFACE
•FastPIF
AUTOLOADERS*3
SAL 8800N
•100platecapacity*7
MAL 8800N
•100platecapacity*7
 percassette
•3cassettestandard
 5cassettesmaximum
OPTIONS
•Punching-Heidelberg,Komori,
andothers
•Javelin8300N-Eto8300N-S
 upgrade
ENVIRONMENT
•Recommended:70˚F–77˚F
•40%to70%relativehumidity
 (non-condensing)
DIMENSIONS
•Mainunit:
 96.3"Wx51"Dx54.7"H
 (engineonly)
POWERREQUIREMENTS
•Singlephase200-240V,
 32A,4.0kW
WEIGHT
•2,530lbs.
SPECIFIC TO JAVELIN 8300N-E
RESOLUTIONS
•2400dpi 
•2438dpi
•2540dpi
(1200 dpi with 8300N-S
upgrade)
LIGHT SOURCE
•16-channelinfrared
 laserdiodes
IMAGING TIME
•8platesperhour
 @2400dpi*4
 40.5"x31.4"(LH-PJ)
 (1030mmx800mmplate)
SPECIFIC TO JAVELIN 8300N-S
RESOLUTIONS
•1200dpi
•2000dpi  
•2400dpi
•2438dpi
•2540dpi
•4000dpi*5
LIGHT SOURCE
•32channelinfrared
 laserdiodes
IMAGING TIMES
•14platesperhour
 @2400dpi*4
 40.5"x31.4"(LH-PJ)
 (1030mmx800mmplate)
SpEcIfIcAtIoNS:

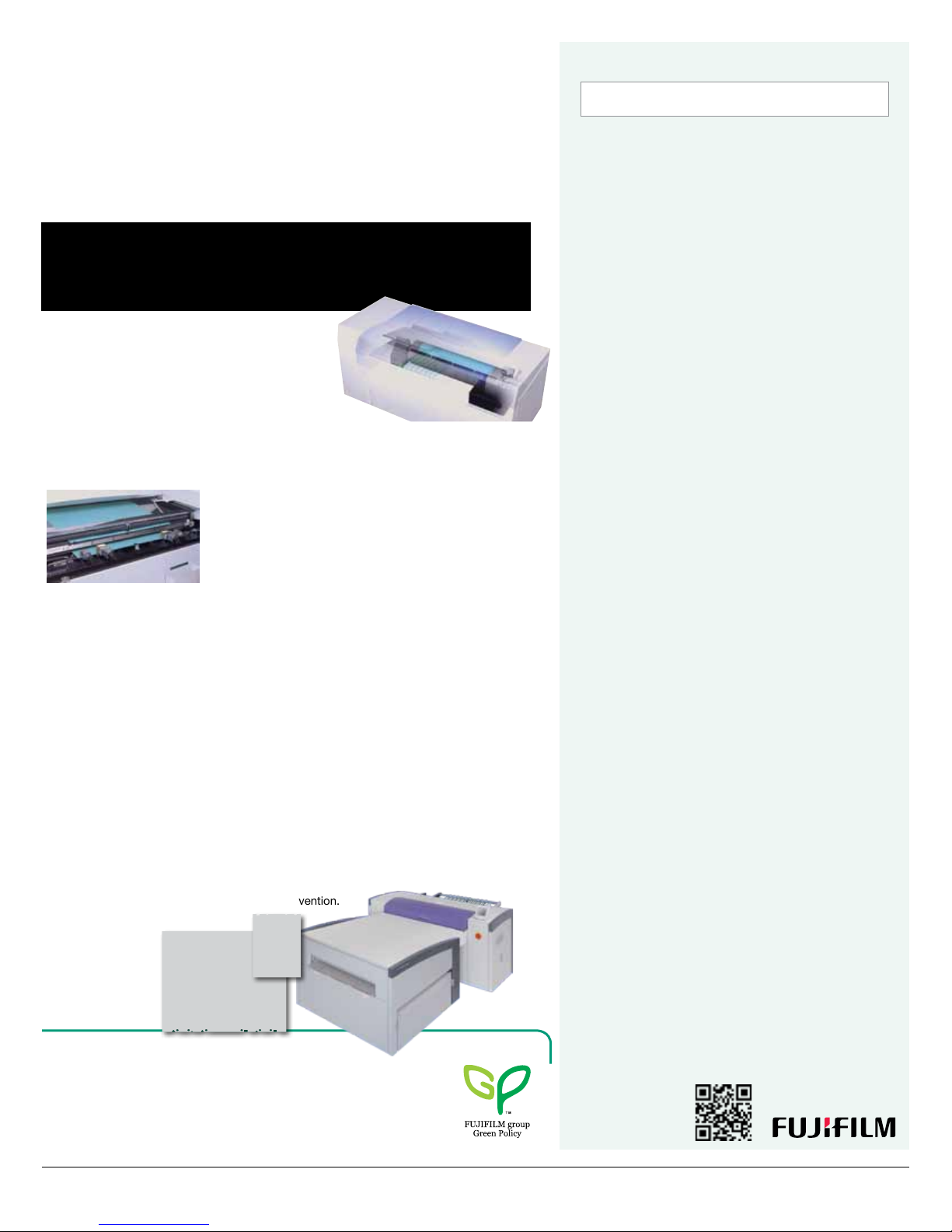

UNRIVALEDPRINTQUALITY
The Javelin 8300N-S features a 32-channel light source, and combined with a high speed
rotating drum, provides output up to 13 plates per hour. For a more economical choice, the
Javelin 8300N-E utilizes a 16-channel light source and is capable of outputting up to 8 plates
per hour.
Experience the exceptional screening reproduction that only thermal plate recorders can deliver.
Fujifilm has developed advanced models to suit any production requirements.
Javelin 8300N-E/S
Luxel T-9300 CTP N
FUJIFILM North America Corporation, Graphic Systems Division • Phone: [phone] • Email: [email protected] • Web: www.fujifilmusa.com/graphics
* Over four consecutive exposures
on one plate at 73.4˚F and 60%
relative humidity.
*1The Registration Punch Option is
required for a plate width (across
the drum) dimension between
237/32" x 24" (590 mm – 610mm)
*2Use of the 8mm clamps results in
a 16mm reduction of exposure size.
Use of the 12m clamps results in a
24mm reduction of exposure size.
Maximum drum speed of 600 rpm
for 8mm clamps or for plates
smaller than 650mm x 550mm
(259/16" x 215/8").
*3Autoloaders (SAL/MAL) support
a minimum plate size of
1711/16" x 149/16" (450 x 370).
The SPK (small plate kit) option for
the SAL/MAL and T-9001 Conveyor
is required to support minimum
plate sizes of 12" x 149/16" –
1711/16" x 149/16" (304 x 370 –
450 x 370).
*4May vary depending on the
sensitivity of the media and
selected plate clamp.
*5When outputting 4000 dpi, confirm
output quality before use.
*635 14/32” x 3011/32” (900 x770) or
larger 16-gauge plate
*76, 8 & 12-gauge only
75 plates for 16-gauge
ADVANCED EXTERNAL DRUM DESIGN
The thermal Javelin 8300N series is constructed with
a reliable external drum design, making it possible
for the drum to spin at high speeds with the imaging
head positioned close to the surface of the plate. Easy
maintenance of the imaging head is another key advantage of
this design and individual laser diodes can be replaced as required.
INLINE PUNCHING SYSTEM INCREASES REGISTRATION ACCURACY
The Javelin 8300N-S and Javelin 8300N-E feature an automatic
inline punching system that enables perfect register on press.
Plates are punched immediately before loading on to the drum.
Holes punched in the plates line up perfectly with registration
pins on the drum, ensuring that the plates are always in the
same position irrespective of plate size and squareness. This
results in extremely high registration accuracy.
By adding optional press punch blocks (up to 8 punch blocks can be mounted and selected
according to plate sizes and press types), imaged plates can be loaded straight on to the press.
This eliminates any further manual steps, ensures high registration accuracy and creates the
foundation for perfect results on press. The whole process shortens press makeready time
dramatically and tremendously improves the efficiency of the whole operation.
PRODUCTIVITY UPGRADE
To meet your expanding production requirements, we have made it easy to upgrade the Javelin
8300N-E to the 8300N-S by simply replacing certain key parts. This can be done on site and
eliminates excess costs and increases operating efficiency.
AUTOLOADER OPTIONS
The SAL 8800N single cassette autoloader can hold up to 100 plates with automatic interleaf
paper removal. The MAL 8800N multi-cassette autoloader comes standard with three cassettes,
each holding 100 plates with automatic interleaf removal. Two additional MAL cassettes are
available as an option, which allows for five cassettes on-line making it possible to image 500
plates of five different sizes without operator intervention.
THE FUJIFILM GREEN POLICY
We at Fujifilm believe that “sustainable development” of the Earth, mankind, and
companies in the 21st century is an issue that must be addressed with the highest
priority. As a socially responsible corporation, we actively undertake corporate
activities with our environmental values in mind. We strive to be a dedicated steward of
the environment and assist our customers and corporate partners in doing the same.
MAX SIZE
4521/32" x 37"
(1160 mm x 940 mm)
MIN SIZE
12" x 149/16"
(304 mm x
370 mm)
