2.1 Emulation
2Appendix
2.1 Emulation
When using the emulation mode, you can get the print results similar to those of other companies'
printers.
Overview of Emulation Feature
This machine is compatible with following emulation mode.
Refer
For details of each mode, please refer to the Reference Manual (sold separately).
Changing the print language
This machine is compatible with multi-emulation. Due to this, you can switch the corresponding print
language.
Changing the command
There are commands to change the corresponding print language.
Automatic change
The machine analyzes the data received by the host interface and automatically identifies the print
language.
Protocol dependence
You can fix the print language for each protocol (USB, IPP, LPD, Port9100, WSD).
Log in to Administrator Mode in Internet Services, and set Print Mode for each protocol in [USB] or
[Protocols] of the [Network] tab.
Available font
User-defined characters (external fonts) can be used with ESC/P and PC-PR201H.
User-defined characters are registered as bitmap fonts and saved even after the power is turned off.
Sharing between print languages is not possible.
Emulation mode Printer to be emulated
ESC/P VP-1000
PC-PR201H PC-PR201H
PCL HP-CLJ5500 (color), HP-LJ4200 (black and white)
HP-GL 7586B or DJ750C Plus
HP-GL/2 DJ750C Plus

42 Appendix
Print function
*1 :In case of no storage, there are up to 64.
N Pages
2 pages are available.
Form
You can register standard forms and print the registered forms by synthesizing them into print data.
Note
If you try to register more forms than the maximum number of forms to be registered or if the form
memory reaches full capacity, new forms cannot be registered.
Barcode
Barcode standards available for ESC/P are JAN code, CODE39, CODABAR, Industrial 2 of 5, Matrix 2
of 5, and Interleaved 2 of 5.
Barcode standards available for PCL are CODE128, Customer barcode, and QR code.
Output of Related List
Refer
For details, refer to “Basic Operations” in Reference Guide - Operations.
Font
Available font can be confirmed by executing [Print] for [Font List] or [PCL Font List] in > [Device
Status] > [Print Reports] > [Printer Reports].
Form
You can confirm the form by execute [Print] in > [Device Status] > [Print Reports] > [Printer
Reports] > [ART IV, ESC/P User Defined List].
Barcode
You can confirm the method to specify commands by execute [Print] in > [Device Status] > [Print
Reports] > [PCL Font List].
Emulation mode N Pages Form Barcode
ART IV - Up to 2048*1 Yes
ESC/P Yes Up to 64 Yes
PC-PR201H Yes Up to 64 Yes
PCL - - Yes
HP-GL, HP-GL/2 - - -

5
2.1 Emulation
Associated Device Menu
Log in to Administrator Mode.
Port Settings
Set in > [Device] > [Network Settings] > [Port Settings].
Enable port (USB/LPD/IPP/Port9100/WSD)
Launch the port to be used in the emulation mode.
Allocate Memory
Set in > [Device] > [App Settings] > [Print Settings] > [Allocate Memory].
Note
If storage is attached, the settings cannot be changed.
[ART IV User Defined Memory]
This sets capacity of memory used for user definition with ART IV. The maximum settable value
varies depending on the amount of free memory.
Refer
For other operations, refer to “Settings” in Reference Guide - Operations.
Delete Form
Set the mode to delete forms in > [Device] > [App Settings] > [Print Settings] > [Delete Form].
Emulation Mode
The unique settings for each emulation modes can be changed in > [Device Status] > [Print
Mode].
Note
[Retrieve Programming], [Store/Delete Programming] and [Default Programming] are displayed on ESC/
P, HP-GL/2 and PC-PR201H.
You can set these items also with Internet Services in the same procedure.
Retrieve Programming
Retrieve settings stored in the memory.
Programming
Enter the Item Number for the function in [Item Number] to display the current setting.
Enter the new value in [New Value] and tap on [Save] to change the setting.
Refer
Refer to "Items" (P.14) for Item Number.
Emulation mode [Port Settings] [Allocate Memory] [Delete Form]
ART IV Yes Yes Yes
ESC/P Yes Yes Yes
PC-PR201H Yes Yes Yes
PCL Yes - -
HP-GL, HP-GL/2 Yes Yes -

62 Appendix
Store/Delete Programming
Store the current Items details in [Custom Settings] and delete stored memory.
Default Programming
Set the default values.
HP-GL, HP-GL/2 Emulation-specific Matters
Printable area
SEF
Paper
size
Paper length
(1/7200″)
Coordinate value (1/7200″)
X
direction
Y
direction
Margin Printable area Top right corner Margin
Length Width Bottom
left X
Bottom
left Y
Long
side
Short
side
Top
right X
Top
right Y
XR YU
A3 119052 84168 1260 1260 116532 81648 117792 82908 1260 1260
A4 84168 59508 1260 1260 81648 56988 82908 58248 1260 1260
A5 59508 41940 1260 1260 56988 39420 58248 40680 1260 1260
JIS B4 103176 72828 1260 1260 100656 70308 101916 71568 1260 1260
JIS B5 72828 51588 1260 1260 70308 49068 71568 50328 1260 1260
Short side
Printable area
Paper size
(0,0)
(Bottom left X, Bottom left Y)
(Top right X, Top right Y)
Long side
Margin YU
Margin XR

7
2.1 Emulation
LEF
Hard Clip
Area determined by coordinates is called Hard Clip area.
Hard Clip area is determined by the printable area or paper size.
Paper
size
Paper length
(1/7200″)
Coordinate value (1/7200″)
X
direction
Y
direction
Margin Printable area Top right corner Margin
Length Width Bottom
left X
Bottom
left Y
Long
side
Short
side
Top
right X
Top
right Y
XR YU
A3 84168 119052 1260 1260 81648 116532 82908 117792 1260 1260
A4 59508 84168 1260 1260 56988 81648 58248 82908 1260 1260
A5 41940 59508 1260 1260 39420 56988 40680 58248 1260 1260
JIS B4 72828 103176 1260 1260 70308 100656 71568 101916 1260 1260
JIS B5 51588 72828 1260 1260 49068 70308 50328 71568 1260 1260
Printable area
Paper size
(Top right X, Top right Y)
(Bottom left X, Bottom left Y)
(0,0)
Long side
Short side
Margin XR
Margin YU

82 Appendix
When the size is A3 and the starting point is the bottom left
Standard
Printable area of this machine is the Hard Clip area.
Paper
Same size as the paper is the Hard Clip area.
Auto Layout
Printed area is automatically determined based on the specified items, such as the document size
and paper size.
[Original Size]
Set to [Auto Detect] when using Auto Layout.
[Auto Layout]
Reduce/enlarge the document data to fit the paper size.
[Zoom]
You can enlarge/reduce the printed area to fit the drawn object area in the paper size.
[Zoom Mode]
[Paper Size] Document size is determined based on the drawn object area. Sizes
to be determined are A sizes (6 types from A0 through A5).
[Coordinate Area] Document size is determined based on the starting point of the
drawn object area.
+Y
Printable area（＝Standard Hard Clip area）
Paper size（＝Paper Hard Clip area）
(0,0) Paper origin
(0,0) Standard origin
(16798,11876)
(16442,11520)
+X
Width
Length

9
2.1 Emulation
[Area Determine Mode]
Note
The object area is determined in [Adapted] without a command.
[Paper Margin]
You can specify the margin.
[Pen Attributes]
You can specify the setting for the pen to draw the boundary lines for the Hard Clip area.
You can set 16 attributes from [Pen Attributes 0] to [Pen Attributes 15].
[Auto] Selected automatically. The priority order is [PS] -> [IW] -> [IP] ->
[Adapted].
[IW] Area specified by the last IW command within the data is the object
area.
[IP] Area specified by all IP commands is the object area.
[Adapted] Object area is determined automatically.
[PS] Area including the area specified by the PS command in the
beginning is the object area.
[Pen Width] If reduced by the combination of [Original Size] and [Paper Size], the
pen width is also reduced.
Line width grows thicker from the center of the line.
If the width is 0.0 mm, nothing will be drawn.
Note
This is disabled for text whose [Kanji Font]/[Alphanumeric Font] is not
[Stroke].
[Line End] You can specify the end shape for the pen.
Note
This is disabled for text whose [Kanji Font]/[Alphanumeric Font] is not
[Stroke].
[Line Intersect] You can specify how pen lines are processed when connected.
Note
[None] has the shortest processing time and is suitable for checking.
If symbols are specified by symbol mode commands, connection
process is not performed. Symbol mode commands refer to HPGL
commands that specify symbols.
These settings are not valid for characters.
[Color] Pen colors are specified with RGB. This setting is available for color
printers.
[Density] You can specify the pen intensity. This setting is available for black
and white printers.

10 2 Appendix

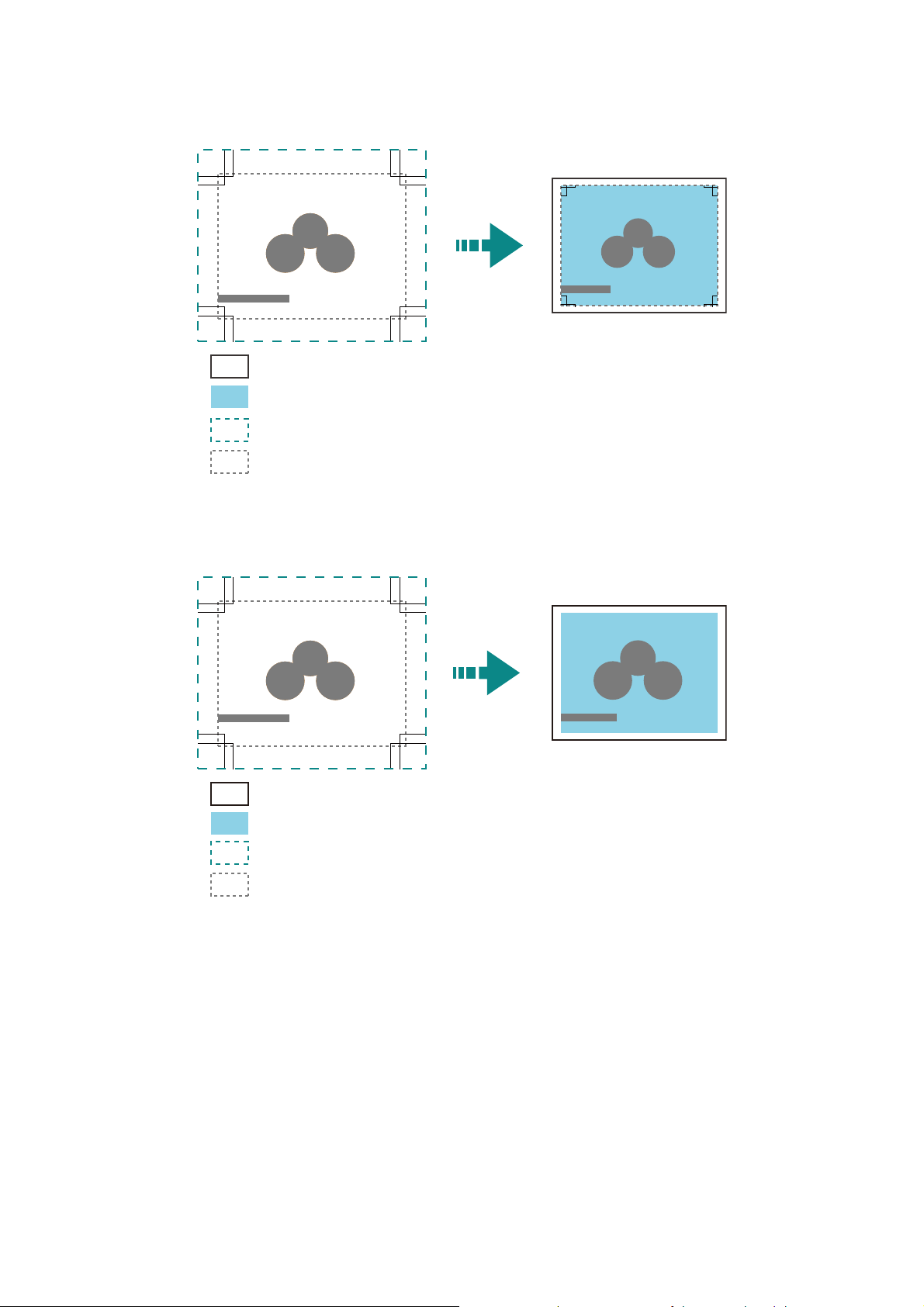

Item combination examples in Auto Layout
[Zoom Mode]: [Paper Size], [Zoom]: ON
Image is reduced/enlarged within the printed area and printed.
[Zoom Mode]: [Paper Size], [Zoom]: OFF
Image is printed in the actual size.
Due to this, areas larger than the paper size are not printed.
Object area determined in “Area Judgement Mode”
Printable area
Paper size
Drawn object area ( = Print area)
Object area determined in “Area Judgement Mode”
Printable area
Paper size
Drawn object area ( = Print area)

11
2.1 Emulation
[Zoom Mode]: [Coordinate Area], [Zoom]: ON
Image is reduced/enlarged within the printed area and printed.
[Zoom Mode]: [Coordinate Area], [Zoom]: OFF
Image is printed in the actual size.
Due to this, areas larger than the paper size are not printed.
How to determine the document size
1. The largest value among the following values is added as the margin to the object area
determined in [Area Determine Mode].
Character size specified within the page
Default character size
Half of specified pen width
2. “Object area determined in the area determination mode” + “added margin” - “specified paper
margin” will be the drawn object area.
Object area determined in “Area Judgement Mode”
Printable area
Paper size
Drawn object area ( = Print area)
Object area determined in “Area Judgement Mode”
Printable area
Paper size
Drawn object area ( = Print area)

12 2 Appendix
3. If [Zoom Mode] is [Paper Size], the document size is determined based on the drawn object area.
If [Zoom Mode] is [Coordinate Area], the document size is determined based on the starting point of
the drawn object area.
Determination method example
If [Auto Layout] = ON, [Original Size] = [Auto Detect], [Zoom Mode] = [Paper Size], [Area Determine
Mode] = [IP] and [Paper Margin] = 10 mm, and [Pen Attributes] of [Pen Width] = 0.1 mm
Note
There is no character size specification command, and area specified by [IP] and [IW] is A3.
Determination method
1. Areas “-8399, -5938, 8399, 5938” specified by IP commands are the object areas.
2. There is no character size specification command, and the pen width is 0.1 mm, so half of the A3
size default character size height (75 plotter unit) is added to the object area.
Object area at this point: -8074,-6013,8474,6013
3. Paper margin (10 mm) is removed from the object area.
Object area at this point: -8474,-5613,8074,5613
4. Since the drawn object area (printed area) is greater than A4 and equal to or smaller than A3, the
document size is A3.
How to determine the paper size
If [Original Size] is [Auto Detect] and [Paper Supply] is [Auto Select]
If [Zoom Mode] is [Paper Size] and the same size paper as the document size is loaded in the tray,
the paper size is the same as the document size.
If [Zoom Mode] is [Coordinate Area], the paper size is the object area determined in the area
determination mode.
Note
If the same paper size is not available, the following size is selected.
- Exceeding the maximum size: Maximum size
- Under the minimum size: Minimum size
- Between the minimum and maximum sizes: Fitting size
IN;
IP-8399,-5938,8399,5938;
IW-8399,-5938,8399,5938;
PU;
SP1;
:
:
SP0;

13
2.1 Emulation

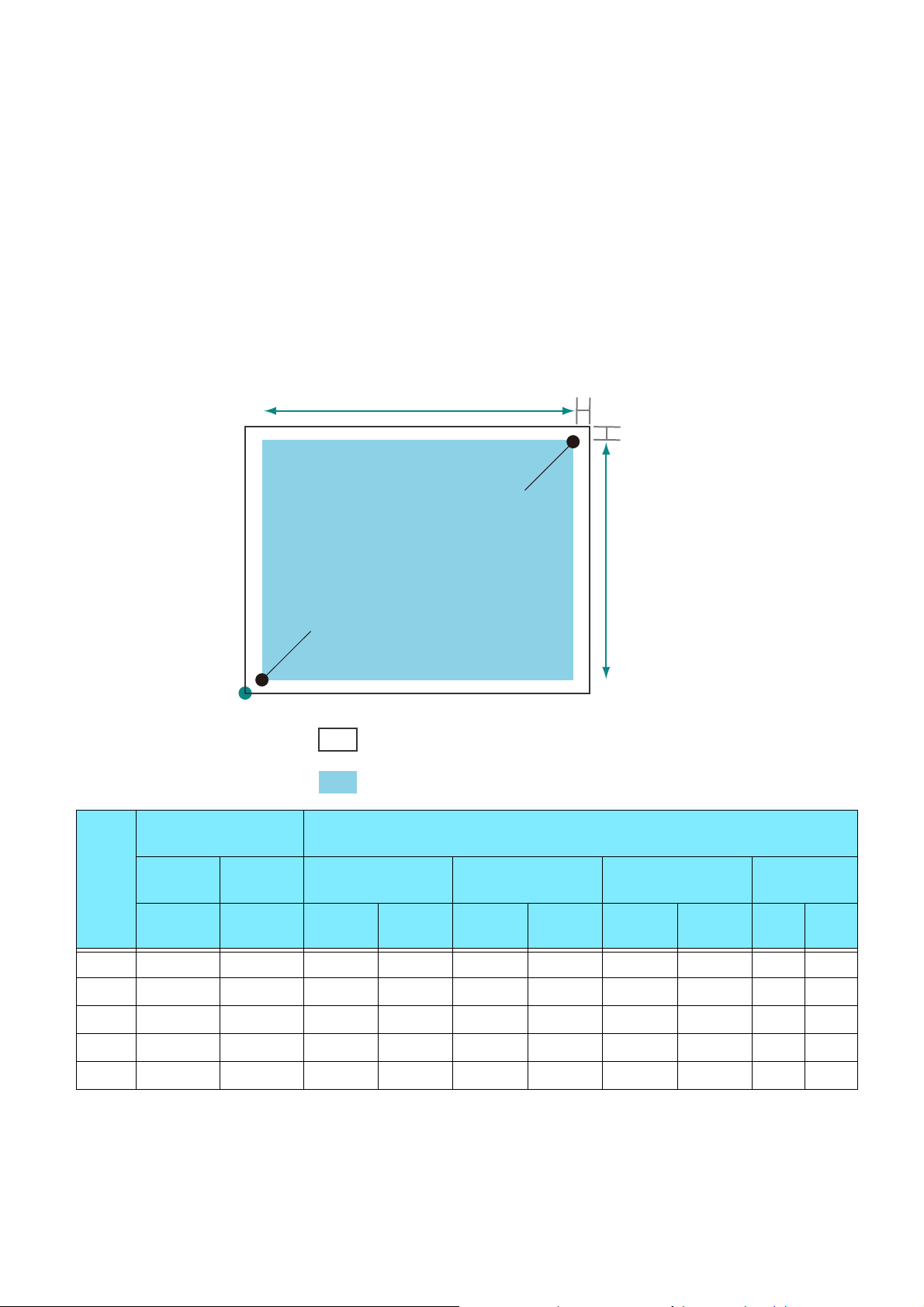

How to determine the reduction rate
If [Original Size] is [Auto Detect] and [Zoom Mode] is [Paper Size]
Reduction rate is determined by the drawn object area and [Paper Size]. Hard Clip area is [Paper].
If Auto Layout is [Auto Layout], the document is placed at the center of the paper.
If the starting point is the bottom left or center, the starting points of the document and paper are
aligned.
If the reduction rate is less than 22.5% (such as A0 -> A5), it will be the actual size.
If [Original Size] is [Auto Detect] and [Zoom Mode] is [Coordinate Area]
Reduction rate is determined by the starting point of the drawn object area and paper size. Hard Clip
area is [Normal].
Maximum scale value is 210.0%, and the minimum scale value is 22.5%.
Unit : Plotter unit
Paper
size
0° 90°
Minimum value Maximum value Minimum value Maximum value
P2x -
P1x
P2y -
P1y
P2x -
P1x
P2y -
P1y
P2x -
P1x
P2y -
P1y
P2x -
P1x
P2y -
P1y
A3 7829 5485 73075 51200 5485 7829 51200 73075
A4 5485 3828 51200 35733 3828 5485 35733 51200
A5 3828 2648 35733 24720 2648 3828 24720 35733
JIS B4 6762 4723 63120 44088 4723 6762 44088 63120
JIS B5 4723 3297 44088 30773 3297 4723 30773 44088

14 2 Appendix
Items
Item descriptions are ESC=ESC/P, PC=PC-PR201H, PCL=PCL, HP=HP-GL, and HP-GL/22.
Note
You can set the items also in Internet Services.
Items Item Number Specification value
ESC PC PCL HP
Document
size
1 301 - - [0] : Postcard
[3] : A3
[4] : A4
[5] : A5
[14] : JIS B4
[15] : JIS B5
[21] : 8.5 x 14"
[22] : 8.5 x 13"
[23] : 8.5 x 11"
[24] : 11 x 17"
[99] : Paper size
[100] : Continuous paper (10 x 12")
[101] : Continuous paper (10 x 11")
[102] : Continuous paper (15 x 12")
[103] : Continuous paper (15 x 11")
Note
If continuous paper is specified, you cannot specify
“paper position”.
With PC-PR201H, the guaranteed number of printing
digits is 80 digits / 72 lines for continuous paper (10 x
12), 80 digits / 66 lines for continuous paper (10 x 11),
136 digits / 72 lines for continuous paper (15 x 12),
and 136 digits / 66 lines for continuous paper (15 x
11).
Document
size
- - - 101 [0] : A0
[1] : A1
[2] : A2
[3] : A3
[4] : A4
[5] : A5
[10] : JIS B0
[11] : JIS B1
[12] : JIS B2
[13] : JIS B3
[14] : JIS B4
[15] : JIS B5
[99] : Auto
[100] : Paper size
Paper size
If “Paper
supply tray”
is “Auto” or
“Tray 5
(bypass)”
2 302 - - [0] : Postcard
[3] : A3
[4] : A4
[5] : A5
[14] : JIS B4
[15] : JIS B5
[21] : 8.5 x 14"
[22] : 8.5 x 13"
[23] : 8.5 x 11"
[24] : 11 x 17"

15
2.1 Emulation
Paper size
If “Paper
supply tray”
is “Auto” or
“Tray 5
(bypass)”
- - - 102 [3] : A3
[4] : A4
[5] : A5
[14] : JIS B4
[15] : JIS B5
[99] : Auto
[101] : A size
Paper size
If “Paper
supply tray”
is “Auto”.
- - 202 - [3] : A3
[4] : A4
[5] : A5
[14] : JIS B4
[15] : JIS B5
[21] : 8.5 x 14"
[22] : 8.5 x 13"
[23] : 8.5 x 11"
[24] : 11 x 17"
[25] : User defined paper
[30] : 8K
Paper size
If “Paper
supply tray”
is “Bypass
tray”.
- - 203 - [3] : A3
[4] : A4
[5] : A5
[14] : JIS B4
[15] : JIS B5
[21] : 8.5 x 14"
[22] : 8.5 x 13"
[23] : 8.5 x 11"
[24] : 11 x 17"
[25] : User defined paper
Paper supply
tray
Note
The
number
of trays
differs
dependin
g on the
model
you use.
3 303 201 103 [0] : Auto
[1] : Tray 1
[2] : Tray 2
[3] : Tray 3
[4] : Tray 4
[5] : Tray 5 (bypass)
[6] : Tray 6
[7] : Tray 7
Note
“Auto” is specified and if the same size paper is loaded
in multiple trays in the same paper direction, the paper
is supplied in the order of Tray 1 > Tray 2 > Tray 3 >
Tray 4 > Tray 6 > Tray 7. If the same size paper is
loaded in multiple trays in different directions, paper
loaded SEF is supplied first.
Coordinate
rotation
- - - 104 [0] : 0 ˚
[1] : 90 ˚
Color mode
Note
This
setting is
valid for
color
printers.
5 304 - - [0] : Color
[1] : Black and white
- - 216 - [0] : Auto
[1] : Color
[2] : Black and white
- - - 105 [0] : Color
[1] : Grey scale
[2] : Black pen
Items Item Number Specification value
ESC PC PCL HP

16 2 Appendix
Depth mode
Note
This
setting is
valid for
black and
white
printers.
- - - 105 [1] : Grey scale
[2] : Black pen
Auto Layout - - - 106 [0] : ON
[1] : OFF
Palette
priority
specification
- - - 107 [0] : Command
[1] : Panel
Number of
outputs
8 305 - 108 [1] to [250] : 1 to 250
Note
If the client computer specifies the number of printed
copies, the value is reflected and printed. After
printing, the setting on the operation panel will also be
this value. However, the number of copies specified by
the lpd port does not change.
- - 212 - [1] to [999] : 1 to 999
Ejected to
Note
The
destinati
on paper
tray you
can set
differs
dependin
g on the
model
you use.
9 306 204 109 [0] : Top output tray/Center tray (lower level)
[1] : Side tray
[2] : Center tray (upper level)
[33] to [42] : Mailbox bin 1 to 10
[68] : Stacker
[69] : High capacity stacker
[80] : Finisher tray
[81] : Finisher ejection tray
2 sided 12 307 - 110 [0] : None
[1] : Opened horizontally
[2] : Opened vertically
- - 206 - [0] : OFF
[1] : ON
Binding
method if 2
sided
- - 217 - [0] : Long side binding
[1] : Short side binding
Paper
direction
19 314 205 - [0] : Vertical
[1] : Horizontal
Items Item Number Specification value
ESC PC PCL HP

17
2.1 Emulation
Paper
position
Note
This
cannotbe
specified
if
“Continu
ous
paper” is
specified
in
“Docume
nt size”.
20 338 - - [0] : No cut sheet feeder (left)
[1] : With cut sheet feeder (center)
Note
If there is no cut sheet feeder, the number of lines
specified by VFU is fed when FF (page break
command) is received. If there is a cut sheet feeder,
there will be a page break.
- 315 - - [0] : Left placement
[1]: Center placement
Scale mode 54 321 - - [0] : Fixed scale
[1] : Arbitrary scale
[2] : Entire cut paper
Note
Fixed scale” refers to the scale automatically
calculated based on the specified “Document size” and
“Paper size”, and the printable area for the document
size is printed to fit within the printable area of the
paper size. Due to this, if the document size and paper
size are the same, it is printed at 100% (scale). If the
specification is two pages, two pages worth of the
document size is printed to fit within the printable area
of one paper size.
Arbitrary scale” refers to the scale specified in “Scale”
> “Arbitrary scale”. The reference value of the scale is
the top left of the printable area. This is the reference
point for all characters, images, and graphics.
The entire cut paper area is printed in the printable
area. “Entire cut paper area” refers to the scale
automatically calculated based on the specified
“Document size” and “Paper size”, and the physical
paper size for the specified document size is printed to
fit within the printable area of the paper size.
If continuous paper is specified in “Document size”,
“Fixed scale” and “Entire cut paper area” produce the
same printing result.
Arbitrary
scale/vertical
scale
17 312 - - [45] to [210] : 45 to 210%
Arbitrary
scale/
horizontal
scale
18 313 - -
Grid 22 317 - - [0] : Image
[1] : Font
Note
You can specify the printing method for 2 byte grid
font.
Items Item Number Specification value
ESC PC PCL HP

18 2 Appendix
Kanji font
Note
This is not
reflected
if
extension
comman
d is sent.
13 308 - - [0] : Mincho
[1] : Gothic
Note
These fonts are also applied to 2-byte half width
characters.
- - - 111 [0] : Stroke
[1] : Mincho
[2] : Gothic
Note
These fonts are also applied to 2-byte half width
characters.
Alphanumeri
c font
14 309 - - [0] : Roman
[1] : Sans-serif
- - - 112 [0] : Stroke
[1] : Roman
[2] : Sans-serif
Default font - - 207 - [0] : CG Times
[1] : CG Times Italic
[2] : CG Times Bold
[3] : CG Times Italic Bold
[4] : Univers Medium
[5] : Univers Medium Italic
[6] : Univers Bold
[7] : Univers Bold Italic
[8] : Univers Medium Condensed
[9] : Univers Medium Condensed Italic
[10] : Univers Bold Condensed
[11] : Univers Bold Condensed Italic
[12] : Antique Olive
[13] : Antique Olive Italic
[14] : Antique Olive Bold
[15] : CG Omega
[16] : CG Omega Italic
[17] : CG Omega Bold
[18] : CG Omega Bold Italic
[19] : Garamond Antiqua
[20] : Garamond Kursiv
[21] : Garamond Halbfett
[22] : Garamond Kursiv Halbfett
[23] : Courier
[24] : Courier Italic
[25] : Courier Bold
[26] : Courier Bold Italic
[27] : Letter Gothic
[28] : Letter Gothic Italic
[29] : Letter Gothic Bold
Items Item Number Specification value
ESC PC PCL HP

19
2.1 Emulation
Default font - - 207 - [30] : Albertus Medium
[31] : Albertus Extra Bold
[32] : Clarendon Condensed
[33] : Coronet
[34] : Marigold
[35] : Arial
[36] : Arial Italic
[37] : Arial Bold
[38] : Arial Bold Italic
[39] : Times New
[40] : Times New Italic
[41] : Times New Bold
[42] : Times New Bold Italic
[43] : Symbol
[44] : Wingdings
[45] : Line Printer
[46] : Times Roman
[47] : Times Italic
[48] : Times Bold
[49] : Times Bold Italic
[50] : Helvetica
[51] : Helvetica Oblique
[52] : Helvetica Bold
[53] : Helvetica Bold Oblique
[54] : CourierPS
[55] : CourierPS Oblique
[56] : CourierPS Bold
[57] : CourierPS Bold Oblique
[58] : SymbolPS
[59] : Palatino Roman
[60] : Palatino Italic
[61] : Palatino Bold
[62] : Palatino Bold Italic
[63] : ITC Bookman Light
[64] : ITC Bookman Light Italic
[65] : ITC Bookman Demi
[66] : ITC Bookman Demi Italic
[67] : Helvetica Narrow
[68] : Helvetica Narrow Oblique
[69] : Helvetica Narrow Bold
[70] : Helvetica Narrow Bold Oblique
[71] : New Century Schoolbook Roman
[72] : New Century Schoolbook Italic
[73] : New Century Schoolbook Bold
[74] : New Century Schoolbook Bold Italic
[75] : ITC Avant Garde Book
[76] : ITC Avant Garde Book Oblique
[77] : ITC Avant Garde Demi
[78] : ITC Avant Garde Demi Oblique
[79] : ITC Zapf Chancery Medium Italic
[80] : ITC Zapf Dingbats
Items Item Number Specification value
ESC PC PCL HP

20 2 Appendix
Default
symbol
- - 208 - [0] : Roman 8
[1] : ISO 8859-1 Latin 1
[2] : ISO 8859-2 Latin 2
[3] : ISO 8859-9 Latin 5
[4] : ISO 8859-10 Latin 6
[5] : PC-8
[6] : PC-8 DN
[7] : PC-775
[8] : PC-850
[9] : PC-852
[10] : PC-1004 (OS/2)
[11] : PC Turkish
[12] : Windows 3.1 Latin 1
[13] : Windows 3.1 Latin 2
[14] : Windows 3.1 Latin 5
[15] : DeskTop
[16] : PS Text
[17] : MC Text
[18] : Microsoft Publishing
[19] : Math 8
[20] : PS Math
[21] : Pi Font
[22] : Legal
[23] : ISO 4 United Kingdom
[24] : ISO 6 ASCII
[25] : ISO 11 Swedish : names
[26] : ISO 15 Italian
[27] : ISO 17 Spanish
[28] : ISO 21 German
[29] : ISO 60 Norwegian v1
[30] : ISO 69 French
[31] : Windows 3.0 Latin 1
[32] : Windows Baltic
[33] : Symbol
[34] : Wingdings
[35] : UCS-2
Font size - - 209 - [400] to [5000] : 4.00 to 50.00 points
Font pitch
size
- - 210 - [600] to [2400] : 6.00 to 24.00 points
Number of
font lines
- - 211 - [5] to [128] : 5 to 128 lines
Vertical
position
calibration
15 310 - 113 [0] : None
[1] to [500] : - 250 to + 250 mm
Note
You can specify the print position (or Hard Clip area).
Horizontal
position
calibration
16 311 - 114
Items Item Number Specification value
ESC PC PCL HP
