2 Before Using the Machine
2Before Using the
Machine
2.1 Device Components
Front
No. Component Function
1 Document Cover Holds a document in place.
2 Document Glass Load a document here.
3 Control Panel Consists of operation buttons, LED indicators, and the
Touch Panel Display.
4TonerCover Openthiscover to replace toner.
5 Front Cover Open this cover to clear paper jams or replace the
consumables.
6 Waste Toner Container Cover Open this cover to replace the Waste Toner Container.
7 Paper Trays 1, 2, 3, 4 Load paper here.
1 3
4
5
6
7
98
10
11
2

4
Reference Guide Main Unit

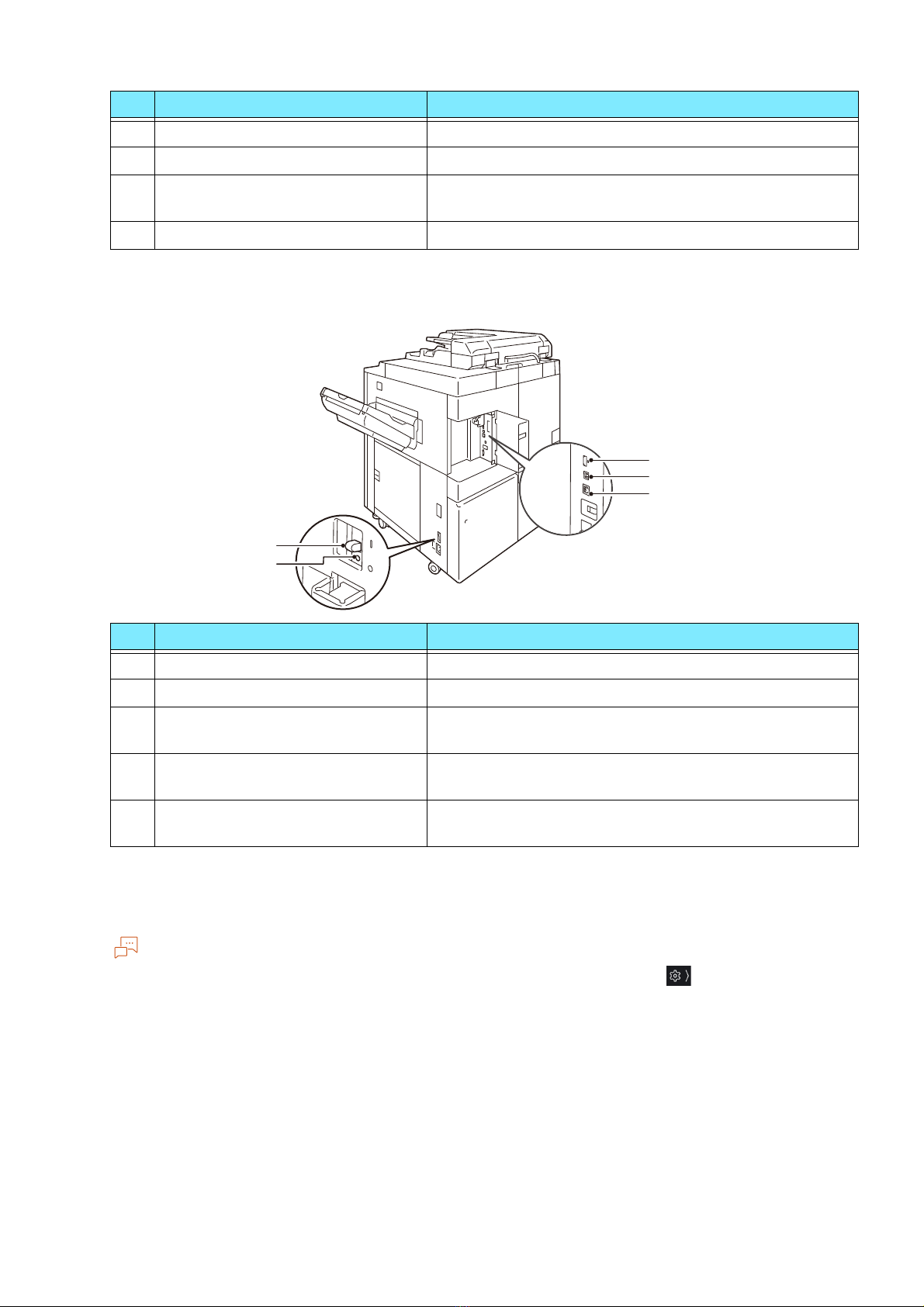

Right Side and Rear
LAN connection
When connecting to the network port, keep the machine power switched off.
Note
When a connection failure occurs, it may be improved by setting [Disabled] in > [Settings] > [Network
Settings] > [Protocol Settings] > [Ethernet Settings]> [Energy Efficient Ethernet] in the System
Administrator mode.
USB connection
When connecting to a USB connector, keep the machine power switched off.
8 Locking casters Used to move this machine.
9 Lower Left Cover Open this cover to clear paper jams.
10 Paper Tray 5 (Bypass) Used for loading non-standard paper that cannot be
loaded in Trays 1, 2, 3, 4.
11 Paper Tray 5 (Bypass) Top Cover Open this cover to clear paper jams.
No. Component Function
1 Network Port (optional) Connects to a network cable.
2 Network Port Connects to a network cable.
3 USB 2.0 interface connector Connects to a memory card reader, an optional
component or a peripheral with a USB cable.
4 TEST button Automatically switches the machine off when a current
leakage is detected.
5 RESET button Automatically switches the machine off when a current
leakage is detected.
No. Component Function
1
2
3
4
5

5
2 Before Using the Machine
Inside
No. Component Function
1 Output Tray Outputs are delivered here.
2 Lower Right Cover Open this cover to clear paper jams.
3 Waste Toner Container Cover Open this cover to replace the Waste Toner Container.
4 Waste Toner Container Collects waste toner.
5 Fusing Unit Fuses toner on paper.
6 Handle Used to pull out the Transfer Unit.
7 Transfer Unit Transfers toner images on the drum to paper.
8 Lock Release Handle Release the lock to replace Toner Cartridges.
9 Toner Cartridge Contains the toner (image forming powder).
1
3
2
4
5
6
9
8
7

6
Reference Guide Main Unit
Control Panel
Refer
For Control Panel, refer to the “Reference Guide - Operations”.
No. Component Function
1 Built-in IC Card
Reader (optional)
Used to authenticate a user using an IC card.
2 Paper Clip Tray Used for placing paper clips and staples.
3 Power Button The power switches on.
Note

When “Please wait...” is displayed, the machine is warming up.
The use of machine is not available during this time.

If the power does not switch on, confirm that the Reset button
is in the reset position (button is pushed in) and the power plug
is connected.
4 Home Button Pressing this button displays the Home screen.
Note
When the Home button is pressed, the settings of all applications
in operation are reset.
5 Touch Panel Display Displays messages required for operation, and buttons for various
features.
6 Status Display
Indicator
The indicator lights up in green at an instant of operation reception.
When an error occurs, the lamp blinks in orange.
7 Data Indicator This indicator blinks while data is being sent from the machine or
data is being received from the client computer.
8 NFC touch area This is an area for you to hold up your NFC-supported mobile devices
over. To communicate interactively, the NFC function of this machine
needs to be enabled.
12345
6789

7
2 Before Using the Machine
2.2 Print Area
In the case of printing

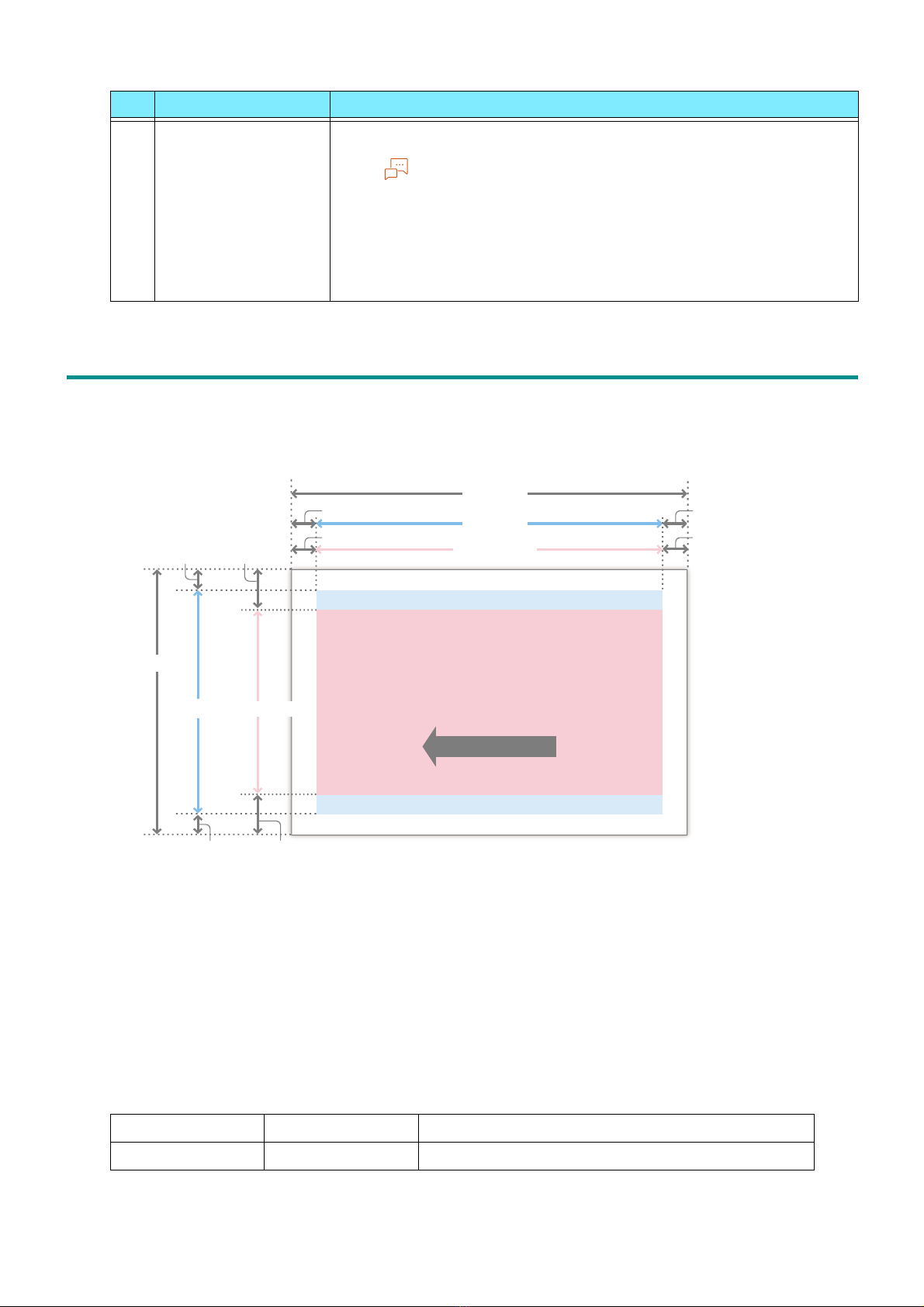

Image Loss Width (mm)
There is an unprintable area (image loss area) along all four edges of the paper.
The image loss widths are 5.0 mm at the lead edge, 5.0 mm at the trail edge, 5.1 mm at the top edge,
and 5.1 mm at the bottom edge.
Guaranteed Print Area (mm)
The following are the areas for which the image quality is guaranteed.
9USBmemoryslot
(optional)
Insert a USB memory device directly here.
Note
A memory card reader or a USB memory device cannot be
connected to the USB memory slot with a USB cable. Note that
the machine will not recognize the memory on a memory card
reader or a memory device connected to a USB interface
connector on the rear side of the machine when a USB memory
device is already inserted in the USB memory slot.
Copying max. 297 x 432
Printing max. 310 x 478
No. Component Function
Extended printable area = Guaranteed print area
Standard Printable Area
Feed direction
488 mm
5.0 mm 478 mm
Lead edge 5.0 mm
478 mm
Trail edge 5.0 mm
5.0 mm
10.1 mmTop edge 5.1 mm
330.2 mm
310 mm
320 mm
10.1 mm
Bottom edge 5.1 mm

8
Reference Guide Main Unit
Standard Printable Area (mm)
Extended Printable Area (mm)
You can extend the printable area.
The machine cannot print on any area within 3.0 mm from all four edges of the paper.

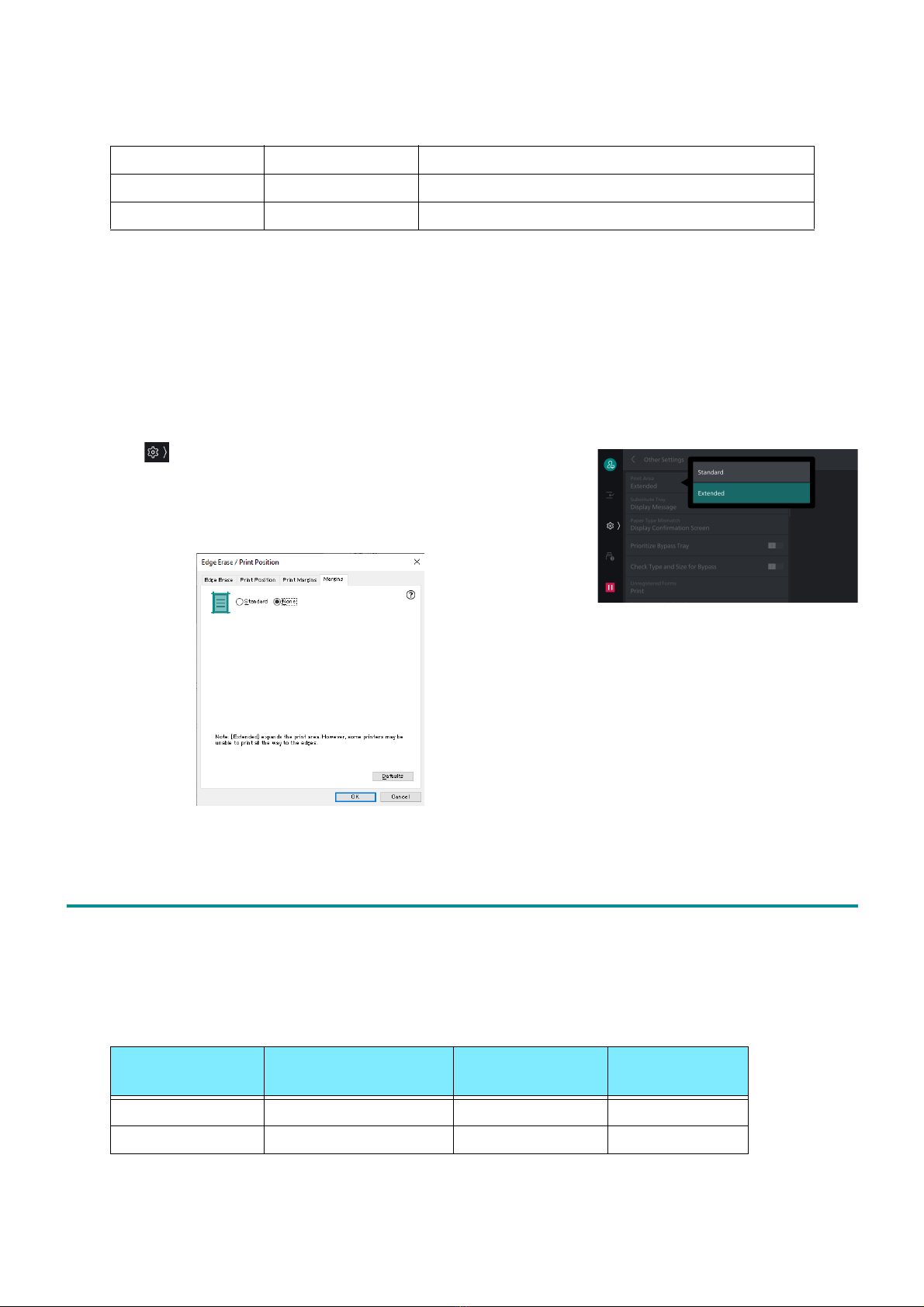

Changing the extended printable area settings
1.
Login to the System Administrator Mode.
2. Tap > [Settings] > [App Settings] > [Print Settings] >
[Other Settings] > [Print Area] > [Extended].
When printing in the extended printable area via driver, change
the settings from [Tray / Output] > [Edge Erase / Print Position] >
[Margins] of the PCL printer driver.
2.3 Paper
Recommended Paper
Standard paper
To use paper other than the above, contact our customer support center or sales agency.
Copying max. 320 x 432
Printing max. 320 x 478
Long paper max. 320 x 650
Paper name Paper type setting for
paper tray
Image quality
guarantee
Paper weight
(g/m
2
)
Business paper Uncoated Monochrome 80
EP paper Uncoated Monochrome 65

9
2 Before Using the Machine
Unusable paper
Avoid using the following paper to prevent machine malfunction.
There are more types of unusable paper other than the above. For details, contact our customer
support center or sales agency.
Storing and Handling Paper
Storing paper
Follow the guidelines below since paper is susceptible to moisture in the air and easily deformed by
impacts.
Store paper in a place of low humidity. Paper that has absorbed moisture can create paper jams or
poor image quality.
Using paper stored in a low-temperature environment may cause fusing failures. Storing paper in
an environment where the temperature is 16°C or higher is recommended.
Coated paper stored in a high-temperature, high-humidity environment may cause misfeeding or
double-feeding.
After opening a package of paper, seal and store the remaining paper in a moisture-proof wrapper
or a reclosable plastic bag.
To prevent bending or warping, store paper flat. Do not store it upright.
Do not store paper under direct sunlight.
Handling paper
Do not use collected pieces of paper.
Do not use wrinkled or folded paper.
Do not load paper of different sizes or types in the same tray.
Before loading paper into the tray, fan a stack of paper well to prevent paper jams and double-
feeding (multiple sheets of paper are being fed simultaneously) of transparency films, films and
coated paper.

Paper using ink that deteriorates with fusing
heat

Damp paper, damp and wavy paper

Ink jet printer paper

Paper with 12 mm or greater curl

Business card size paper

Thermal paper, heat-transfer paper

Wrinkled or folded paper

Envelopes with windows

10
Reference Guide Main Unit
3Basic Operations of the
Machine
3.1 Loading Paper
After loading paper, configure the Paper Tray settings on the Home screen.
Important
Do not place paper or other objects in the reserved space of the tray. It may cause paper jams or machine
malfunction.
Note

While the printer is processing a job, do not remove the Paper Tray used for the job.

Before loading the paper into the Paper Tray, fan a stack of paper well. This will separate the sheets, and
it can prevent paper jamming.

It is recommended to use our recommended papers. Print may not be done correctly according to the use
conditions.
Refer
For details, refer to “Setup” in “Reference Guide - Operations”.
Paper Trays 1, 2
The paper feeding method is the same for Paper Trays 1 (left side) and 2 (right side).
The bottom face of loaded paper is the surface printed on.
Loadable paper
1.
Pull out the Paper Tray until it stops.
2. When paper is already loaded in the tray, take out the paper.
Paper size Standard size Max A4, Letter
Min JIS B5
Paper weight (g/m
2
)Single side printing 52 to 216
Maximum number of sheets (sheets) (80 g/m
2
paper) Tray 1 1,100
Tray 2 1,600

11
3 Basic Operations of the Machine

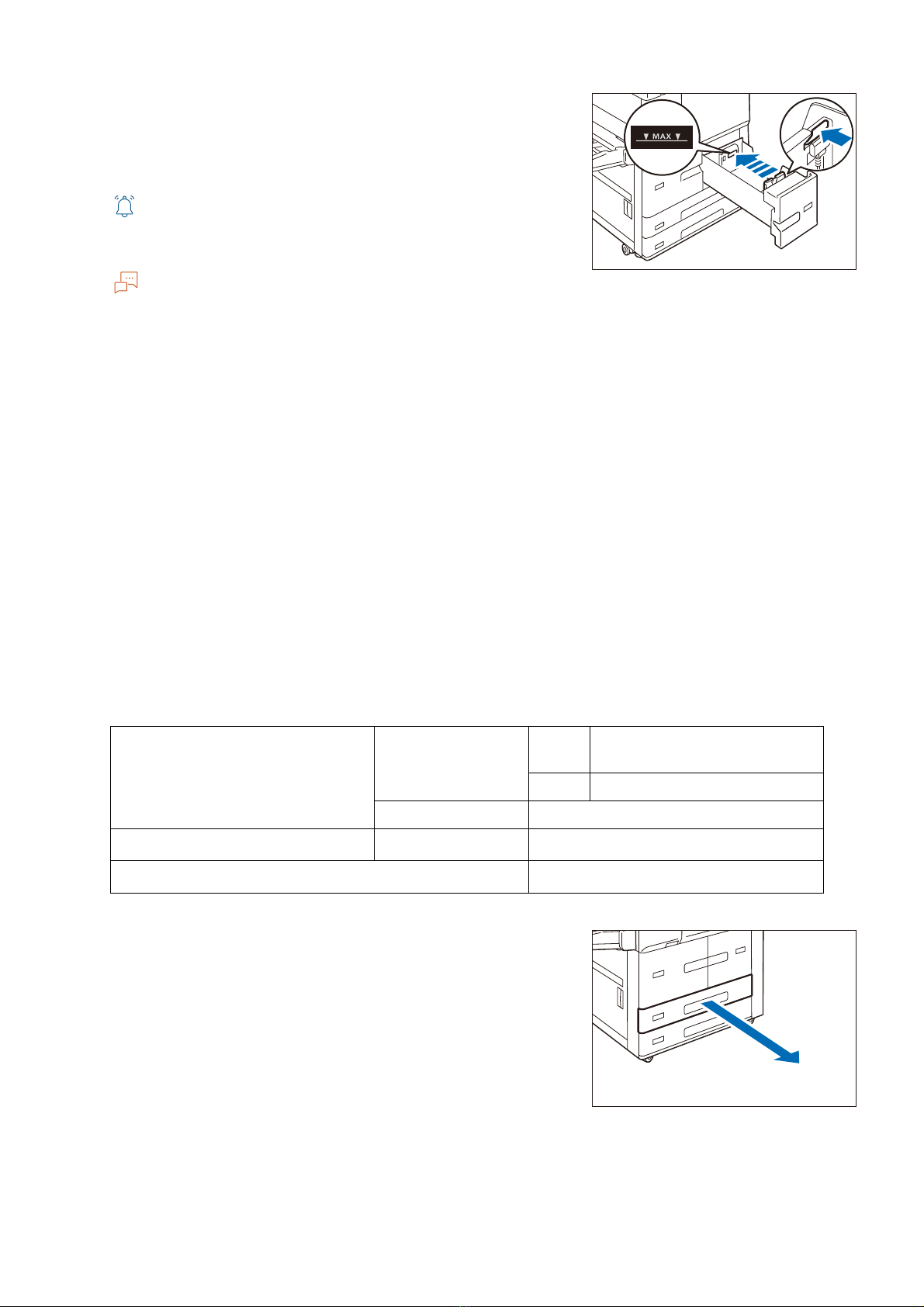

3. Pinch the guide clip, and adjust to the correct paper size.
4. Fan a stack of paper, face the print surface down, and then
load the paper with edges aligned according to the direction
of the arrow.
Important
Do not load paper above the maximum fill line. It may cause
paper jams or machine malfunction.
Note
Adjust the guide correctly to the paper size. If the guide is not adjusted correctly, the machine cannot feed
the paper properly, resulting in paper jams.
5. Push in the Paper Tray.
Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the left side when viewed from the front of the
machine
Paper Trays 3, 4
The paper feeding method is the same for Paper Trays 3 (3rd tray) through 4 (4th tray).
The bottom face of loaded paper is the surface printed on.
Loadable
1.
Pull out the Paper Tray until it stops.
2. When paper is already loaded in the tray, take out the paper.
Paper size Standard size Max SRA3 (320 x 450 mm),
12.6 x 19.2" (320 x 488 mm)
Min A5
Custom size (mm) 140 x 182 to 330 x 488
Paper weight (g/m
2
)Single side printing 52 to 216
Maximum number of sheets (sheets) (80 g/m
2
paper) 550 x 2 Trays

12
Reference Guide Main Unit

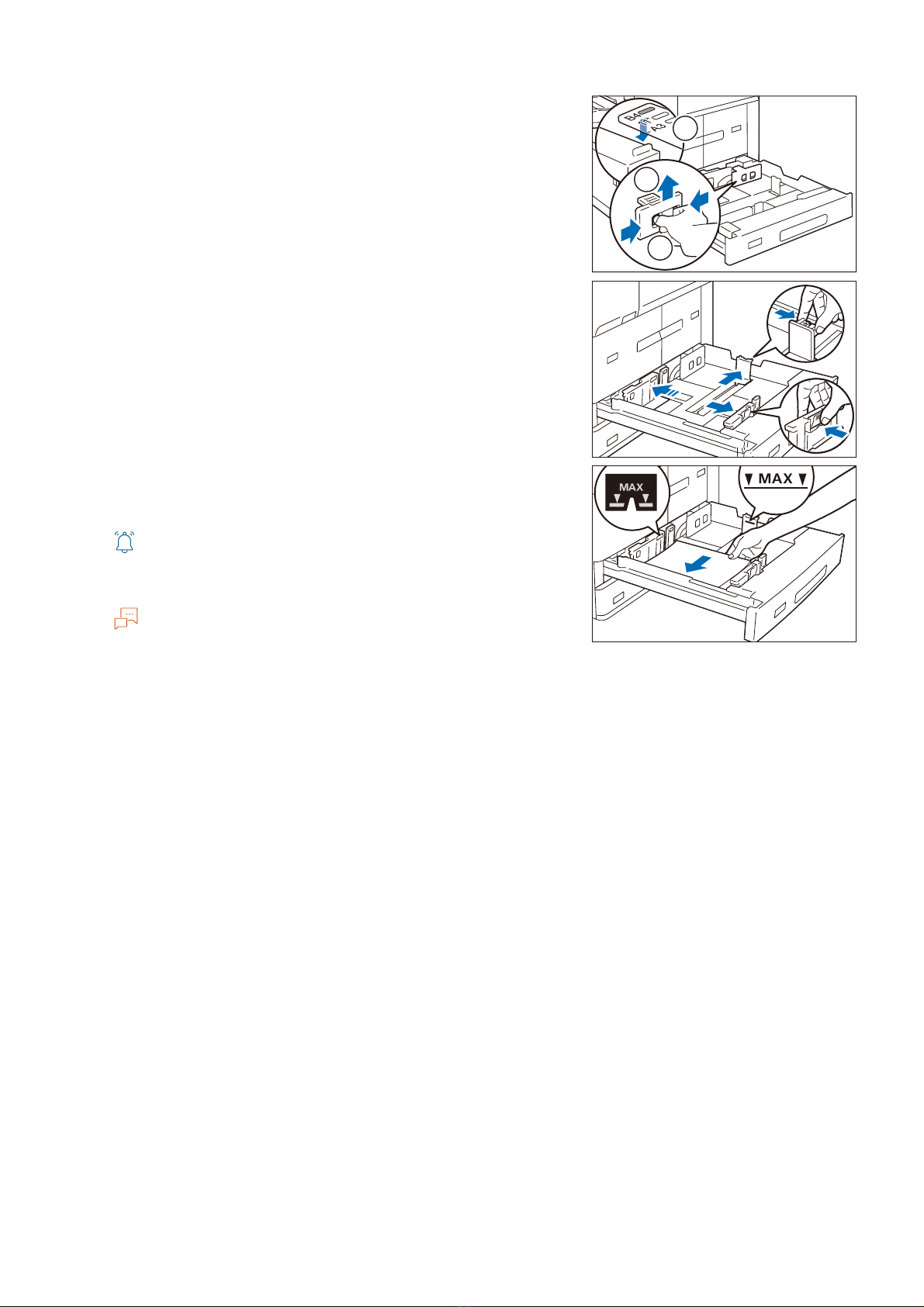

3. When loading paper whose size is JIS B4 or larger, pinch the
knob and lift the paper rear end guide, and set the guide into
the hole for the indicated size.
4. Pinch the two Guide Clips, and adjust to the correct paper
size.
5. Fan a stack of paper, face the print surface down, and then
load the paper with edges aligned according to the direction
of the arrow.
Important
Do not load paper above the maximum fill line. It may cause
paper jams or machine malfunction.
Note
Adjust the guide correctly to the paper size. If the guide is not
adjusted correctly, the machine cannot feed the paper properly,
resulting in paper jams.
6. Push in the Paper Tray.
Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the left side when viewed from the front of the
machine
Precut Tab
Paper Orientation: Load paper with tabs facing the right side when viewed from the front of the
machine.
Paper Trays 5 (Bypass Tray)
The Paper Tray 5 (Bypass) allows you to use a variety of paper sizes and types that cannot be used in
Paper Trays 1 to 4.
The top face of loaded paper is the surface printed on.
1
2
3

13
3 Basic Operations of the Machine
Loadable paper
1.
Open the Paper Tray 5 (Bypass Tray).
Note
Pull out the Extension Tray according to need. The Extension Tray
can be pulled out in two different extended positions. When
pulling out the Extension Tray, pull it out slowly.
2. Fan a stack of paper, face the print surface up, and insert the
paper gently along the Paper Guide until it stops.
Important
Do not set documents above the maximum fill line. It may cause
paper jams or machine malfunction.
3. Pinch the lock to slide the Paper Guide to the correct paper
size.
Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the right side when viewed from the front of the
machine
Postcards
Paper orientation: SEF
Precut Tab
Paper Orientation: Load paper with tabs facing the right side when viewed from the front of the
machine.
Paper size Standard size Max SRA3 (320 x 450 mm),
12.6 x 19.2" (320 x 488 mm)
Min A6
Custom size (mm) 100 x 148 to 330 x 488
Paper weight (g/m
2
)Single side printing 52 to 350
Maximum number of sheets (sheets) (80 g/m
2
paper) 250

14
Reference Guide Main Unit

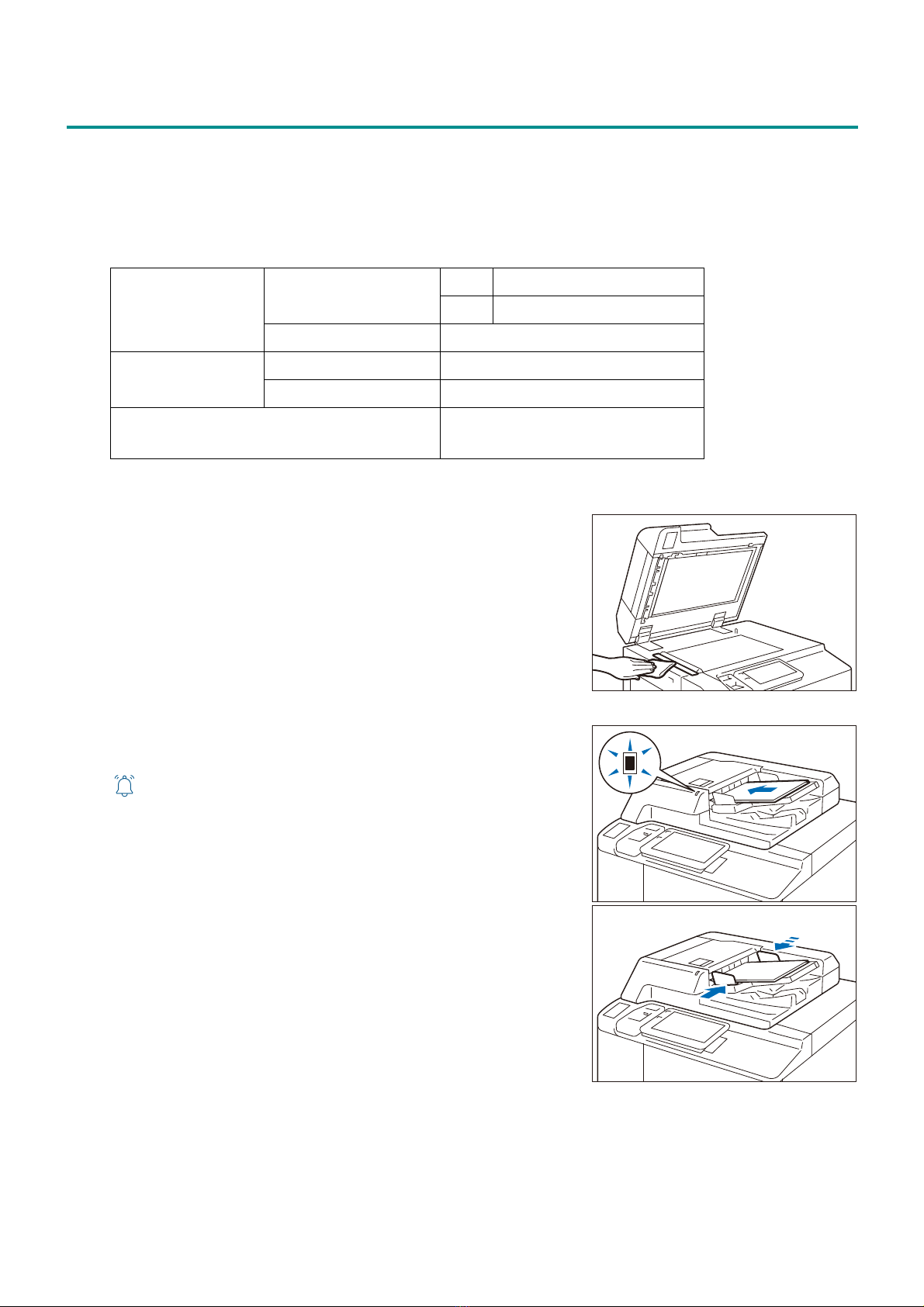

3.2 Loading Documents
Document Feeder
Loadable paper
1.
Open the Document Cover.
2. Wipe off any dirt adhering to the glass strip and white plastic
area located in the left side of the Document Glass.
3. Close the Document Cover.
4. Confirm that the document is free of tag paper, adhesive
tape, staples, and clips, and stretch out the document if it is
wrinkled or folded.
5. Align the upper left corner of the document so that the
original size is correctly detected.
6. Load the document face up (when the document is 2-sided,
place the front side up) in the center of Document Feeder.
Important
Do not set documents above the maximum fill line. It may cause
paper jams or machine malfunction.
7. When the confirmation indicator lights up, move the
document guide to align with both edges of the document.
Paper size (mm) Standard size Max A3, 11 x 17"
Min A6
Custom size (mm) 84 x 140 to 297 x 432
Paper weight
(g/m
2
)
Single side printing 38 to 200
Double side printing 50 to 200
Maximum number of sheets (sheets) (80
g/m
2
paper)
250

15
3 Basic Operations of the Machine
8. Open the Document Stopper.
Note
To prevent a document from being left behind, “Document
Feeder Attention Light” is turned on after the Scan job is
completed and turned off after approx. 3 sec.
Document Glass
Loadable paper
1.
Open the Document Cover, and wipe off any dirt from the
Document Glass.
2. Load the document face down with the document aligned
with the upper left corner of the Document Glass.
3. Close the Document Cover.
3.3 Outputting Paper
Print Surface
The print surface refers to the surface printed on in single-sided printing (the first page in double-
sided printing).
In the case of face down output, paper is output to the Tray with the print surface faced downward,
and in the case of face up output, paper is output to the Tray with the print surface faced upward.
Paper size (mm) Width Up to 297
Length Up to 432

16
Reference Guide Main Unit
Long paper
Tray capacity
Simple Catch Tray
Offset Catch Tray
Note

The tray capacity varies depending on the following conditions.
- Paper size, paper weight
- Paper types (coated paper or uncoated paper, paper curl height, etc.)
- Single-sided prints / double-sided prints
-Imagedensity
Offset
Note
This function is available only for the Offset Catch Tray. Offset cannot be performed on the simple catch
tray.
The paper is output with offset stacking for easy separation.
Use the printer driver to set the offset of outputs.
Single-sided printing/face
down output
Double-sided printing/
face up output
(reverse printing)
Paper size (mm) Width 100 to 330 140 to 330
Length 148 to 488 182 to 488
Paper Weight (g/m
2
)52 to 350 52 to 220
Single-sided printing/face
down output
Double-sided printing/
face up output
(reverse printing)
Paper size (mm) More than 488 to 660 More than 488 to 660
Paper weight (g/m
2
)64 to 216
Paper Size: All paper sizes supported by the machine 200 sheets
Paper Size: Max 297 x 432 mm 500 sheets
Paper size (mm) Width 170 to 297
Length 148 to 488
Paper weight (g/m
2
)52 to 350

17
4 Maintenance
4Maintenance
4.1 Consumables
Consumables recommended by our company are manufactured under the standards suitable for this
machine. Using consumables not recommended by our company may affect print quality or
performance provided by the product. Use consumables that our company recommends for this
machine.
Handling consumables
Do not store boxes of consumables upright.
Do not unpack consumables before use. Avoid storing consumables in the following locations:
- In high temperature and humid locations
- Near heat-generating devices
- Areas exposed to direct sunlight
- Dusty areas
When using consumables, carefully read precautions for use instructed on their bodies or
packages.
We recommend keeping spare consumables in stock.
When calling your local Representative to order consumables, have the product codes ready.
Replacing consumables
To display the consumables progress, tap > [Device Status]
> [Supplies].
When the end of life for a consumable is reached, a message
appears on the Touch Panel Display. Replace the consumable
indicated in the message.
For the replacement method, refer to the steps provided on the
box of the consumable.
Note

When replacing Toner Cartridges, keep the machine power switched on.

When replacing a toner cartridge or Waste Toner Container, toner may spill and soil the floor. We
recommend laying a piece of paper or a sheet on the floor beforehand.

Do not take out or shake the Waste Toner Container before it is filled up.
Accurate detection can become no longer possible, and the toner may be spilled from the Waste Toner
Container.

When replacing the Waste Toner Container, toner may spill and soil the floor. We recommend laying a
piece of paper or a sheet on the floor beforehand.
Consumable types
Toner Cartridge
Waste Toner Container

18
Reference Guide Main Unit
4.2 Cleaning Main Unit
When wiping the main unit with a wet cloth, use a soft, moistened and tightly-squeezed cloth. The
main unit may break down if the moisture remains on it.
Do not use chemicals such as benzine or thinner. Doing so may damage the paint or coating on
plastic parts.
Outside the Main Unit
Exterior
1.
Wipe the exterior with a soft, moistened, and tightly-squeezed cloth.
When stains cannot be removed easily, wipe them lightly with the soft cloth slightly moistened with a
thin neutral detergent solution.
2. Wipe the moisture off with a dry soft cloth.
Touch Panel Display
Wipe lightly with a dry soft cloth.
When wiping the main unit with a wet cloth, wipe it lightly with a soft, moistened and tightly-
squeezed cloth.
Important
Wiping the panel strongly may damage the panel. Wipe lightly.
Scanner
Document cover, Document Glass, film, scanner glass
Wipe off any dirt with the supplied cloth about once a month.
When stains cannot be removed easily, wipe them lightly with
the soft cloth slightly moistened with a thin neutral detergent
solution.
1. Open the Document Cover, and grip the handle to open the
Side 2 scanner.

19
4 Maintenance
2. Wipe off any dirt from the film.
3. Wipe off any dirt from the glass.
4. Close the Side 2 scanner, then close the Document Cover.
Document Feeder rollers
Clean the Document Feeder rollers about once a month.
1. Pull up the front handle of the Top Cover of the Document
Feeder, and open the cover until it stops.
2. While turning the rollers, wipe them with a soft cloth slightly
moistened with water.
3. Close the Top Cover of the Document Feeder and make sure
that there is no gap on the front or rear of the cover.

20
Reference Guide Main Unit
4.3 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control
panel. Follow the instructions displayed to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from
the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note

If a paper jam occurred, check the paper jam position before pulling out a Paper Tray.

Clear the paper jams while the machine is on.

Do not touch components inside the machine. This may cause print defects.
1)Remove the jammed paper.
Note
When the lead edge of the jammed paper protrudes toward the Top Output Tray, pull the paper downward
to remove it.
Lower Left side
1. Open the Lower Left Cover.
Note
When High Capacity Feeder C1-D2/B1-S/C3-DS is installed, open
the front cover of the unit.
2. Remove the jammed paper.
3. Close the Lower Left Cover.
Right side
1. Open the Lower Right Cover.
2. Remove the jammed paper.
