FujiFilm Apeos C7070 User manual

April 2021 GM1048E1-1Ver. 1 FUJIFILM Business Innovation Corp.
Apeos™ C7070 Apeos C6570
Apeos C5570 Apeos C4570
Apeos C3570 Apeos C3070
Apeos C2570
Reference Guide
Optional Units

2Reference Guide Optional Units
1Preface
A guide describing the operations for optional units, such as the Finisher.
Refer
Descriptions for the following optional products are provided in different guides.
Envelope Tray, Extra Center Tray, Left-Side tray, : Reference Guide Main Unit
Wireless kit, print / scan / FAX function-related products: Reference Guide - Operations
Long Paper Inserter: Manual included in the product
Face authentication system, finger vein authentication system, IC card reader: Official site of our
company
In this manual, safety instructions are preceded by the symbol . Always read and follow the
instructions before performing the required procedures.
For trademarks and notations in the manual, refer to the Reference Guide Main Unit.
This manual may not be edited, modified or copied in whole or in part without the written
consent of the publisher.
Parts of this manual are subject to change without prior notice.
The screen shots and the illustrations in this manual are used as examples. They may differ from
yours depending on the model, the software, or the OS.

3
2 High Capacity Feeder B1
2High Capacity Feeder B1
2.1 Device Components
Main specifications
No. Component Function
1 Remaining Volume Display You can check the remaining paper volume.
2 High Capacity Tray (Paper
Tray 6)
Load paper here.
3 Top Cover Open this cover to clear paper jams.
Item Specification
Paper size A4 , Letter , JIS B5
Paper weight (g/m2)55 to 216
Maximum number of sheets
(sheets) (C2paper)
2,470
Dimensions (mm) Width 389 x Depth 610 x Height 377
Weight (kg) 29
3
2 1

4Reference Guide Optional Units
2.2 Paper and Other Media
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in Reference Guide - Operations.
The top face of loaded paper is the surface printed on.
1. Pull out the Paper Tray until it stops.
2. When paper is already loaded in the tray, take out the paper.
3. If changing the Paper Size, adjust the guide position.
1)Open the end guide ( ), remove the screw for the guide
in the back ( ), and remove the guide from the Paper
Tray.
2)Insert the protrusions under the guide into the Paper Size
holes.
3)Insert the Paper Tray protrusions into the Paper Size holes
on top of the guide and tighten the screw.
1
2
1
2

5
2 High Capacity Feeder B1
4)Remove the screw for the guide in front and remove the
guide from the Paper Tray .
5)Insert the protrusions under the guide into the Paper Size
holes.
6)Insert the Paper Tray protrusions into the Paper Size holes
on top of the guide and tighten the screw.
7)Pull the handle for the end guide up ( ), align with the
Paper Size while moving the handle along the groove ( ),
and lower the handle ( ).
Note
The groove on the left side of the end guide 8.5” is not used.
4. Fan a stack of paper, face the print surface down, and then
load the paper with edges aligned according to the direction
of the arrow.
1
2
3
1
2
3

6Reference Guide Optional Units
5. Close the end guide completely.

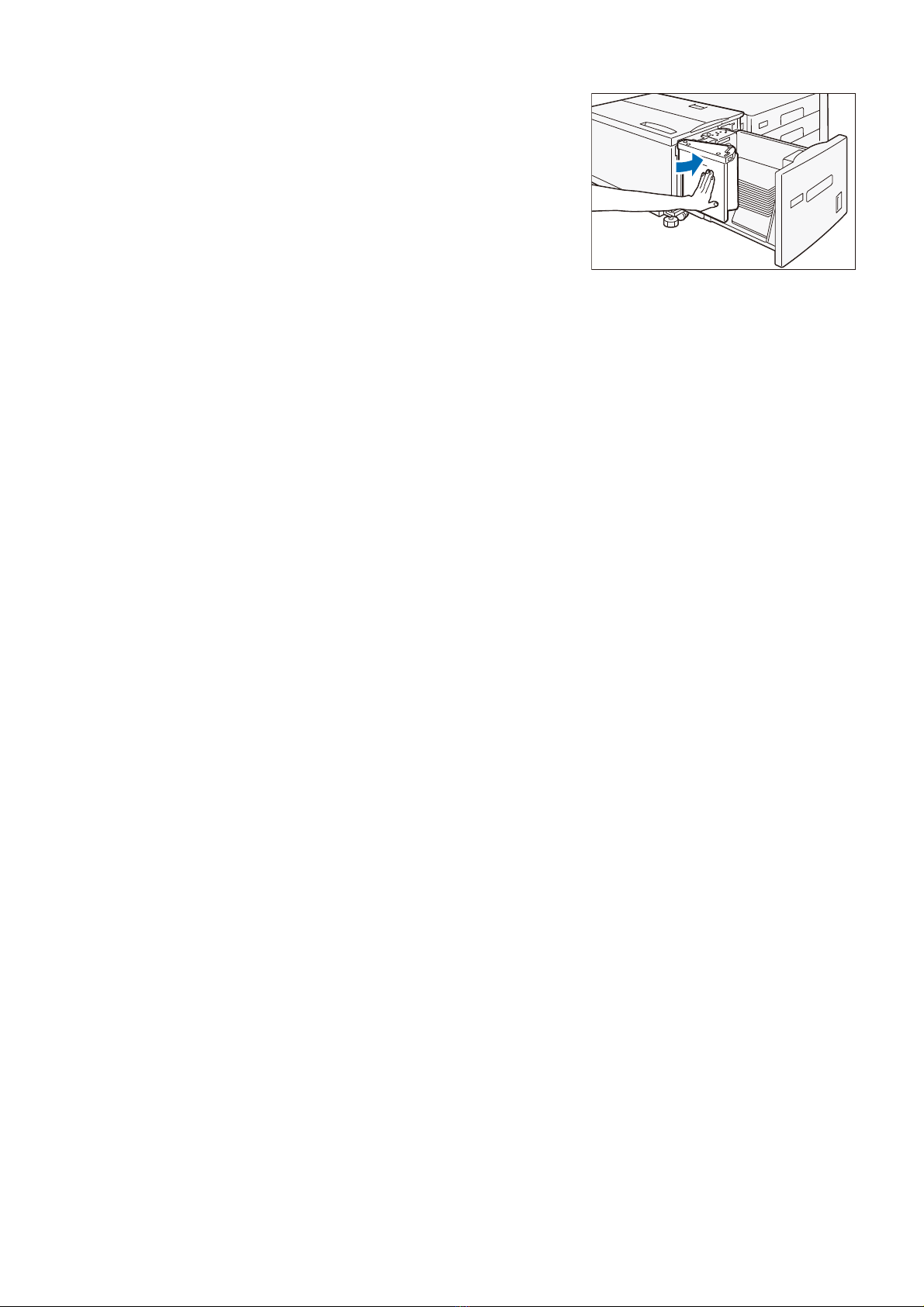

6. Push in the Paper Tray .
Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the right side when viewed from the front of the
machine

7
2 High Capacity Feeder B1
2.3 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control
panel. Follow the message displayed to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from
the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Exit
1. Hold the handle and move the unit all the way to the left.
2. Remove the jammed paper.
3. Move the unit to the right and connect it with the main unit.
Inside of the Upper Cover
1. Hold the handle and move the unit all the way to the left.

8Reference Guide Optional Units

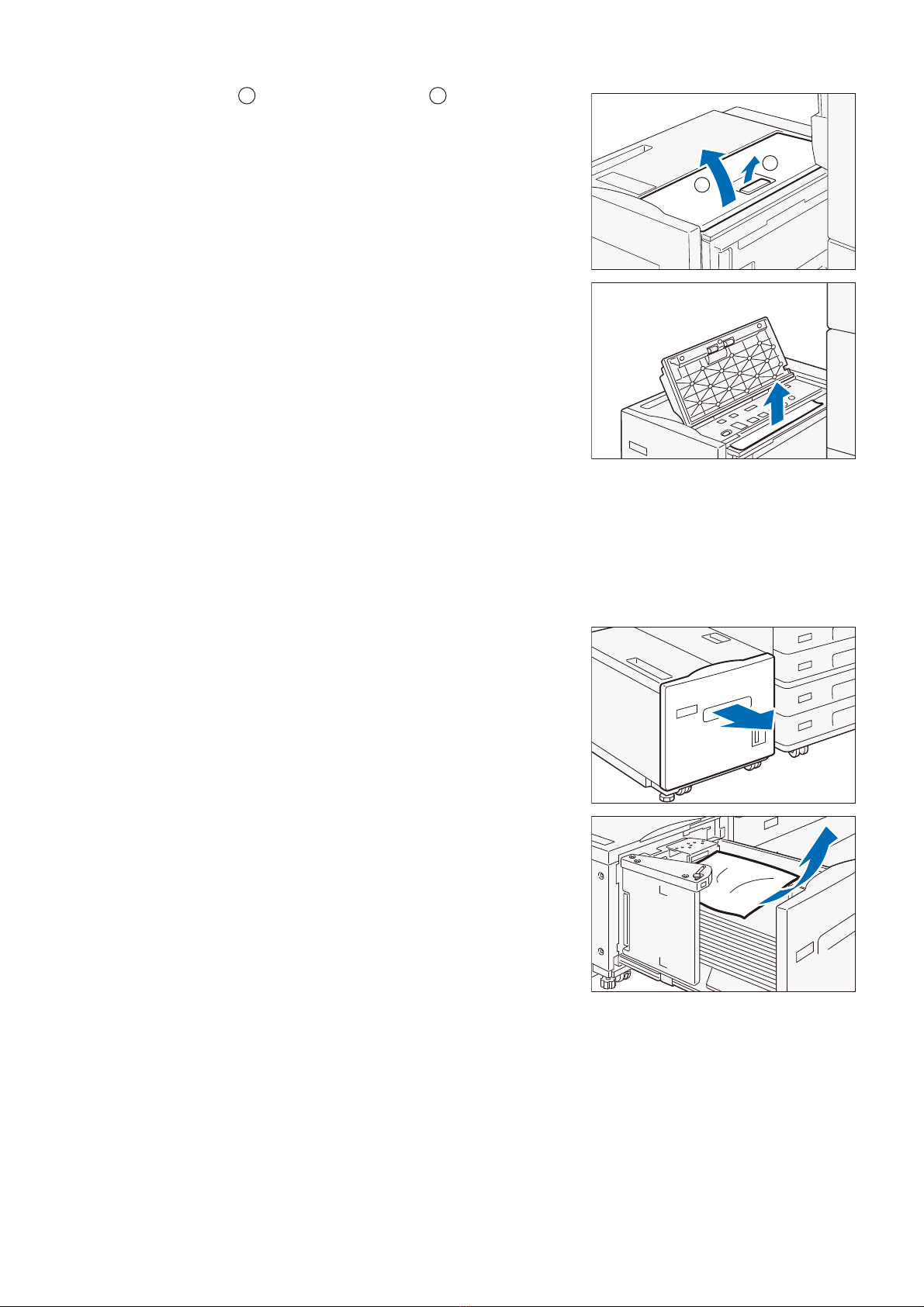

2. Pull the handle ( ) and open the cover ( ).
3. Remove the jammed paper.
4. Close the cover.
5. Move the unit to the right and connect it with the main unit.
Paper Tray
1. Pull out the Paper Tray until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray .
2
1
12

9
3 High Capacity Feeder B2
3High Capacity Feeder B2

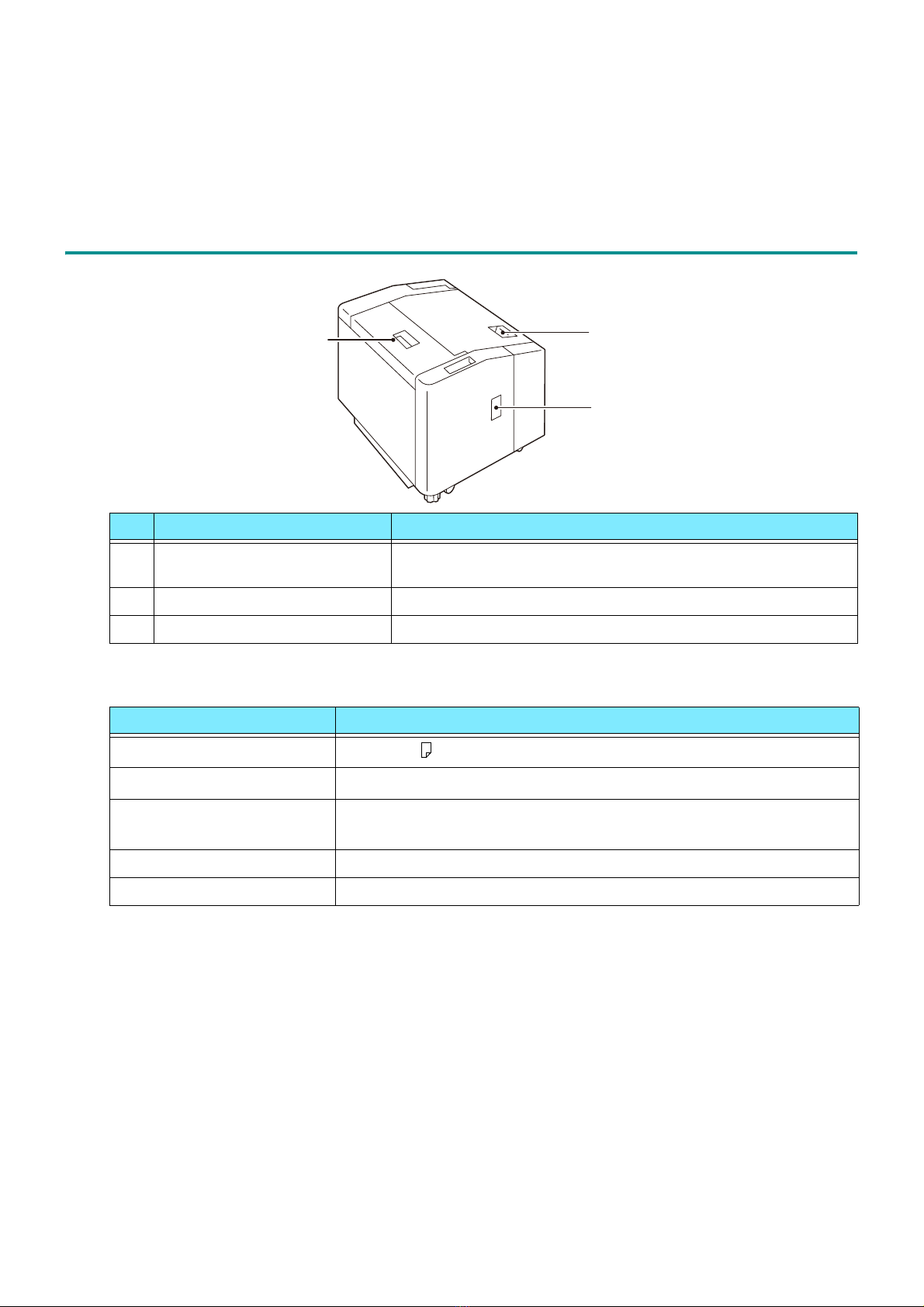

3.1 Device Components
Main specifications
No. Component Function
1 High Capacity Tray (Paper
Tray 6)
Load paper here.
2 Top Cover Open this cover to clear paper jams.
3 Remaining Volume Display You can check the remaining paper volume.
Item Specification
Paper size A4 , Letter , JIS B5
Paper weight (g/m2)55 to 216
Maximum number of sheets
(sheets) (C2paper)
3,370
Dimensions (mm) Width 476 x Depth 618 x Height 433
Weight (kg) 31
3
12

10 Reference Guide Optional Units
3.2 Paper and Other Media
After loading paper, configure the Paper Tray settings on the Home screen.
Refer
For details, refer to “Setup” in Reference Guide - Operations.
The top face of loaded paper is the surface printed on.
1. Pull out the Paper Tray until it stops.
2. When paper is already loaded in the tray, take out the paper.
3. If changing the Paper Size, adjust the guide position.
1)Open the end guide ( ), remove the screw for the guide
in the back ( ), and remove the guide from the Paper
Tray.
2)Insert the protrusions under the guide into the Paper Size
holes.
3)Insert the Paper Tray protrusions into the Paper Size holes
on top of the guide and tighten the screw.
1
2
1
2

11
3 High Capacity Feeder B2
4)Remove the screw for the guide in front and remove the
guide from the Paper Tray.
5)Insert the protrusions under the guide into the Paper Size
holes.
6)Insert the Paper Tray protrusions into the Paper Size holes
on top of the guide and tighten the screw.
7)Pull the handle for the end guide up ( ), align with the
Paper Size while moving the handle along the groove ( ),
and lower the handle ( ).
Note
The groove on the left side of the end guide 8.5” is not used.
4. Fan a stack of paper, face the print surface down, and then
load the paper with edges aligned according to the direction
of the arrow.
5. Close the end guide completely.
6. Push in the Paper Tray.
1
2
3
8.5”
A4B5/
7.25”
1
2
3

12 Reference Guide Optional Units
Setting special paper and other media
Hole punched paper
Paper orientation: Load paper with holes facing the right side when viewed from the front of the
machine

13
3 High Capacity Feeder B2

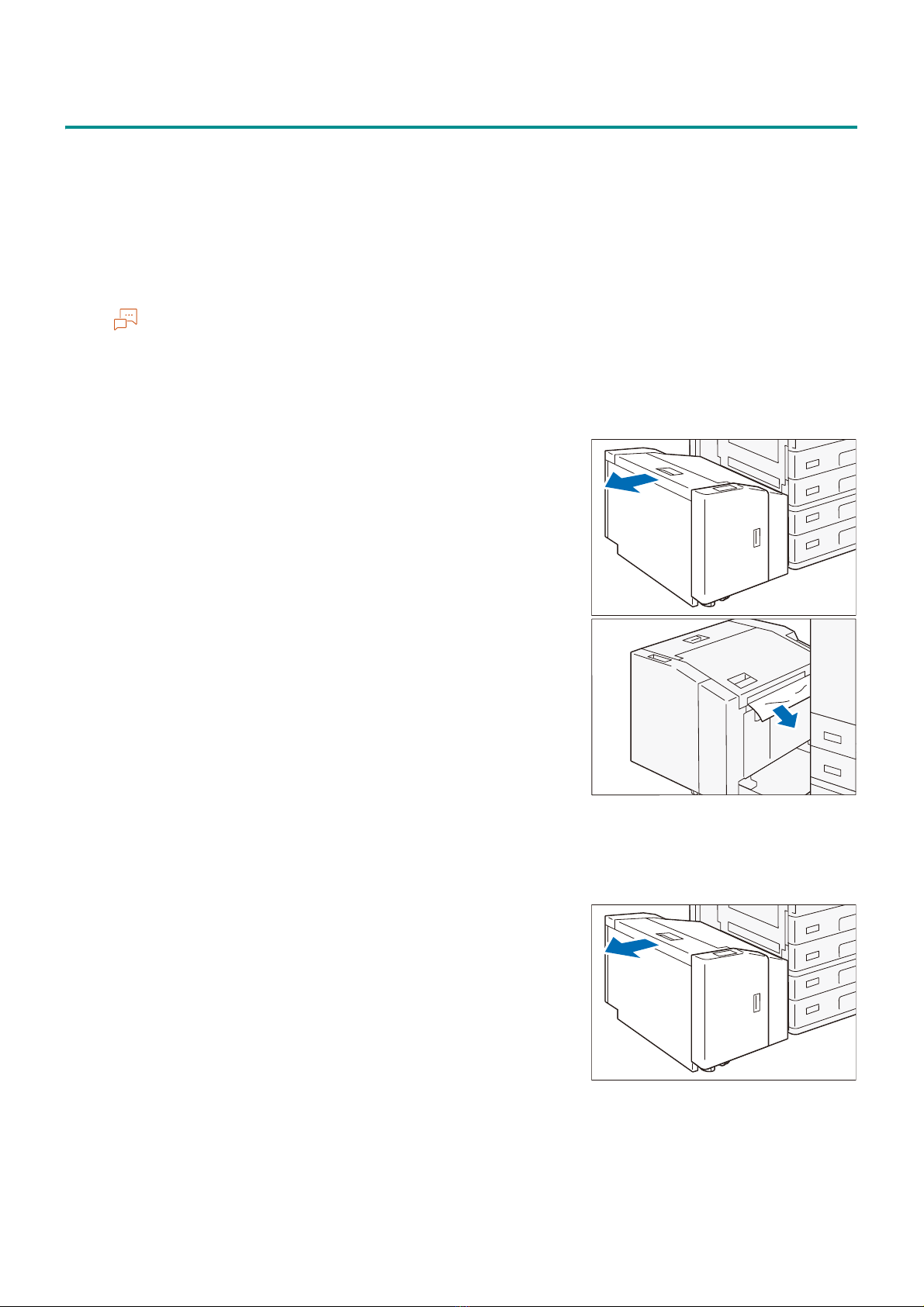

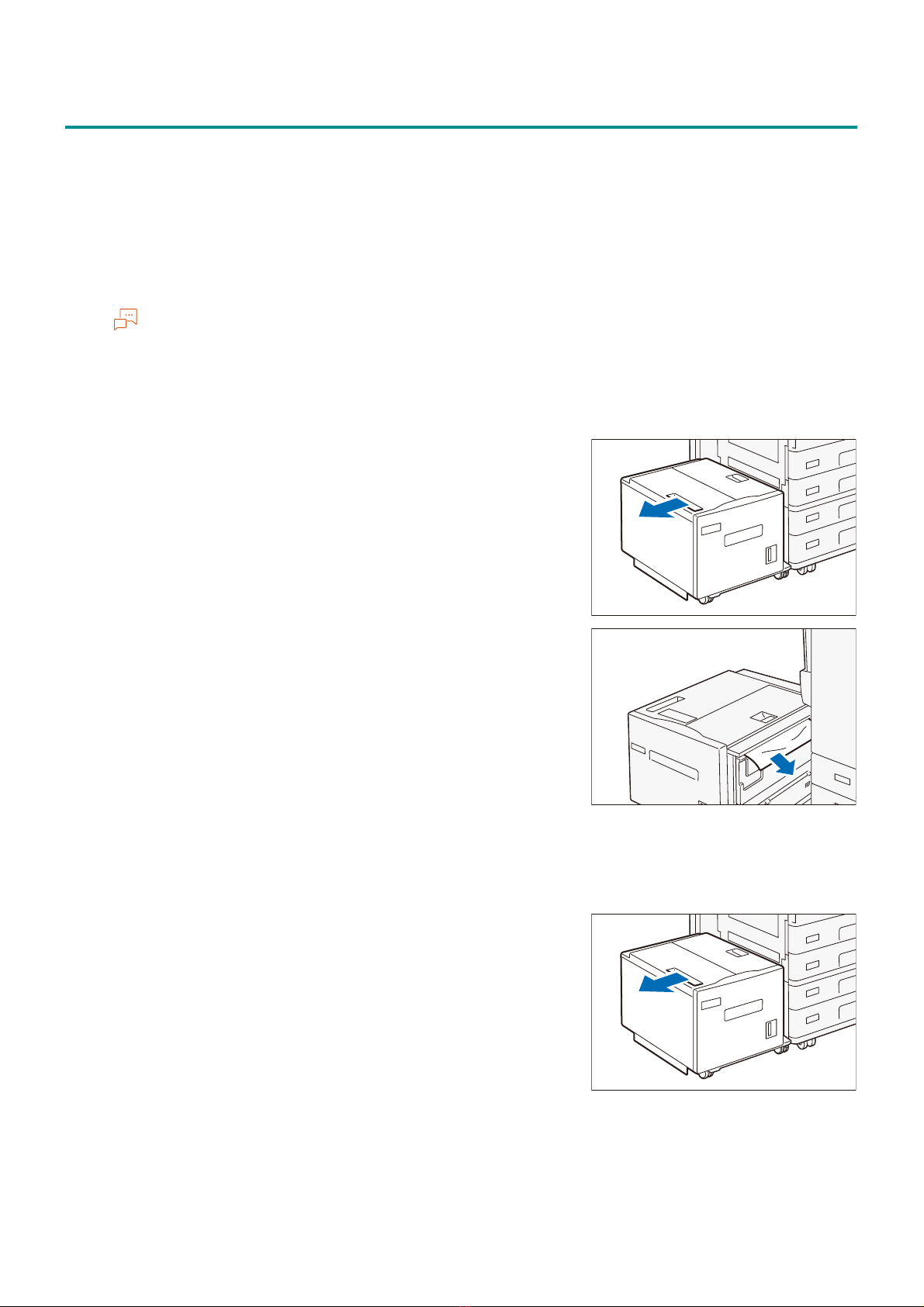

3.3 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control
panel. Follow the instructions displayed to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from
the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Exit
1. Hold the handle and move the unit all the way to the left.
2. Remove the jammed paper.
3. Move the unit to the right and connect it with the main body.
Inside of the Upper Cover
1. Hold the handle and move the unit all the way to the left.

14 Reference Guide Optional Units
2. Pull the handle ( ) and open the cover ( ).
3. Remove the jammed paper.
4. Close the cover.
5. Move the unit to the right and connect it with the main body.
Paper Tray
1. Pull out the Paper Tray until it stops.
2. Remove the jammed paper.
3. Push in the Paper Tray.
2
1
12

15
4 Finisher A2
4Finisher A2

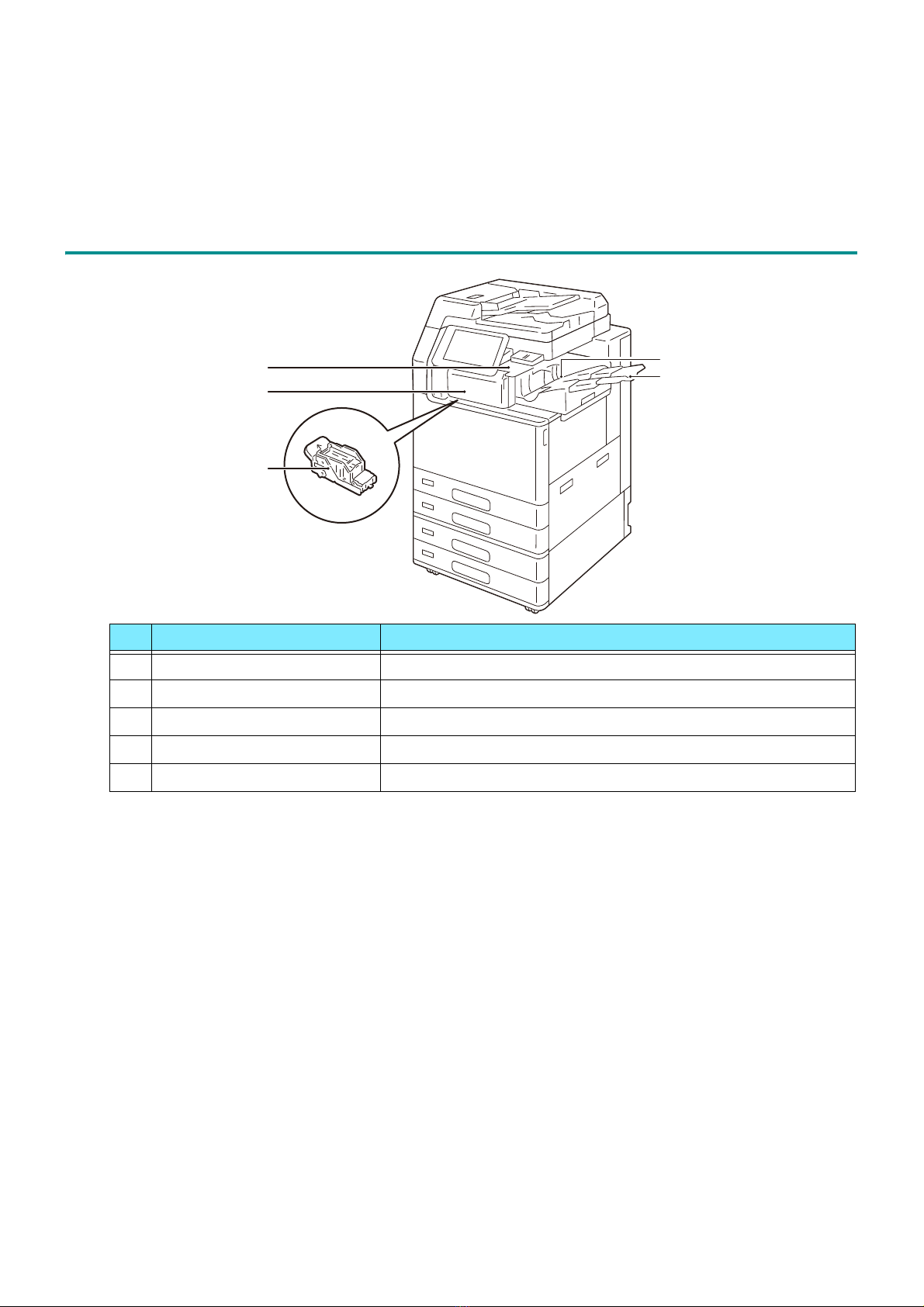

4.1 Device Components
No. Component Function
1 Center Tray Outputs are delivered here.
2 Extension Tray, Guide Wire This prevents the ejected paper from falling out.
3 Top Cover Open this cover to clear paper jams.
4 Front Cover Open this cover to replace staples or remove jammed staples.
5 Staple Cartridge This unit is used to replace staples.
5
2
1
4
3

16 Reference Guide Optional Units
Main specifications
Item Specification
Type Sort (Offset available) / Stack (Offset available)
Paper size Standard size Max A3, 11 x 17"
Min Postcard (by Japan Post)
Paper weight
(g/m2)
52 to 256
Tray capacity A4 No staple
(sheets)
500
With staples 30 copies or 500 sheets
JIS B4 (sheets) 250
A3 or greater
(sheets)
200
Mixed Size
Stacking (sheets)
250
Note
This value applies if our C2paper is used.
Mixed Size Stacking refers to a condition in which larger paper is stacked on top of smaller paper,
such as A4 on top of JIS B5 or JIS B4 on top of A4.
Staple Maximum number
of sheets of paper
(sheets)
A4 50
JIS B4 or
greater
30
Note
This value applies if paper of 90 g/m2or less is used.
Paper size Standard size Max A3, 11 x 17"
Min JIS B5
Paper weight
(g/m2)
52 to 256
Stapled location 1 location, 2 locations
Dimensions (mm) Width 478 x Depth 461 x Height 238
Weight (kg) 11

17
4 Finisher A2
Number of sheets that can be stapled (Approximation: For A4 )
Paper weight (g/m2)Uncoated Coated
52 to 90 50 -
91 to 105 30 -
106 to 128 25 15
129 to 150 20 10
151 to 176 15 7
177 to 220 10 5
221 to 256 3 3
-: Ejection is not available.

18 Reference Guide Optional Units

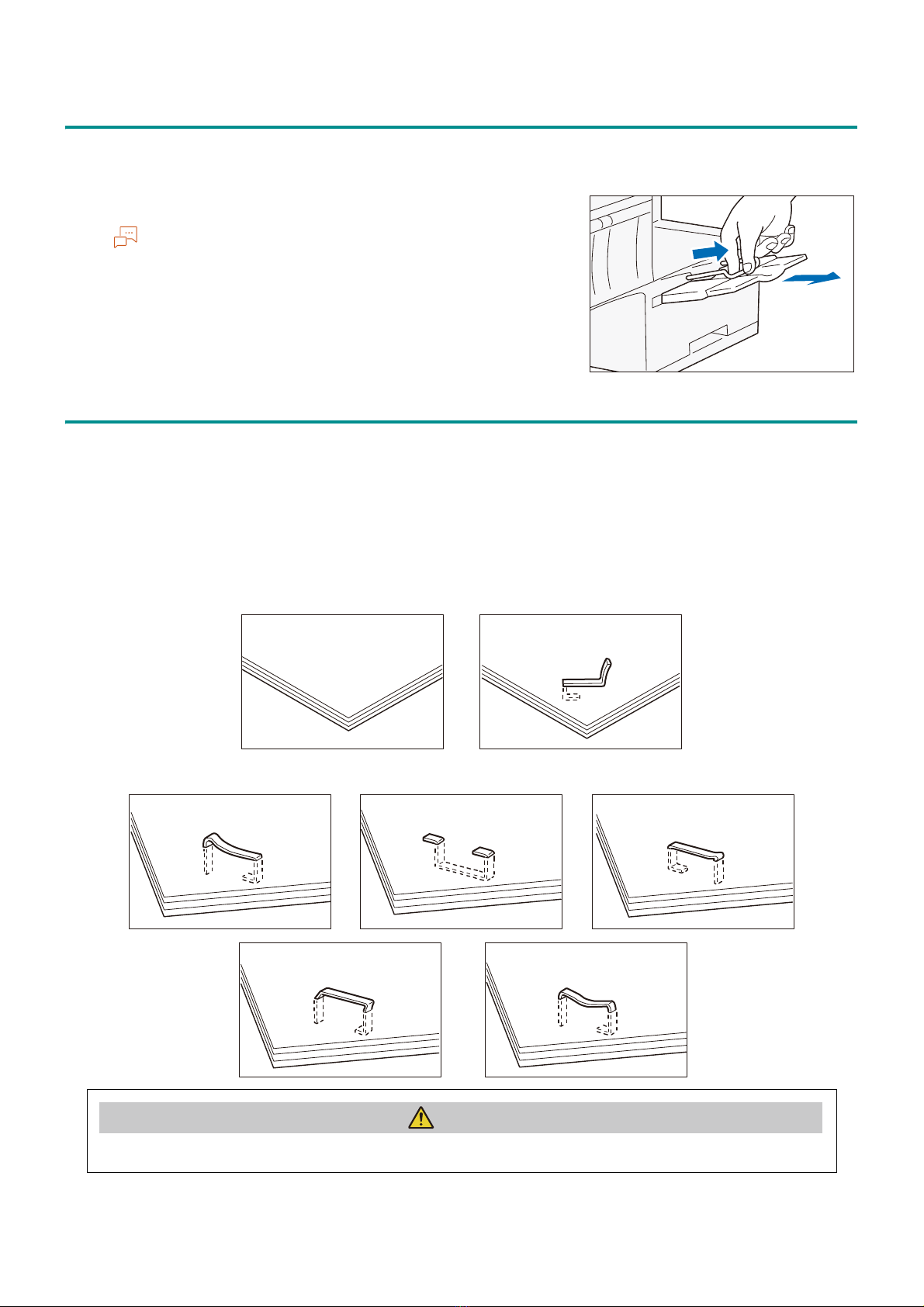

4.2 Outputting Paper
Extension Tray
To eject SEF paper, pull out the Extension Tray and guide wire.
Note
Roller-shaped trace may be left on coated paper.
4.3 Staple Cartridge
For the replacement method, refer to the box of the consumable.
Staple Jams
If paper is not being stapled or if staples are bent, follow the procedures mentioned in the following
pages.
If the issue isn’t resolved even after the procedure, contact our customer support center or sales
agency.
If the staple looks like any of the following images, contact our customer support center or sales
agency.
CautionCaution
Please be very careful not to hurt your fingers, etc. when removing the jammed staple.
Paper is not stapled Staple is bent
One side of the staple is loose Staple is bent in the wrong direction Staple is collapsed
Staple is loose, and the center sinks Staple is loose

19
4 Finisher A2
Note
Depending on the usage condition, such as the paper type, staples may be bent or bent staples may be
caught inside of the unit, causing paper jamming.
If you open the Staple Cartridge cover, be sure to remove all bent staples. Not removing bent staples
may cause staple jamming. Only open the Staple Cartridge cover when you are removing the jammed
staples.

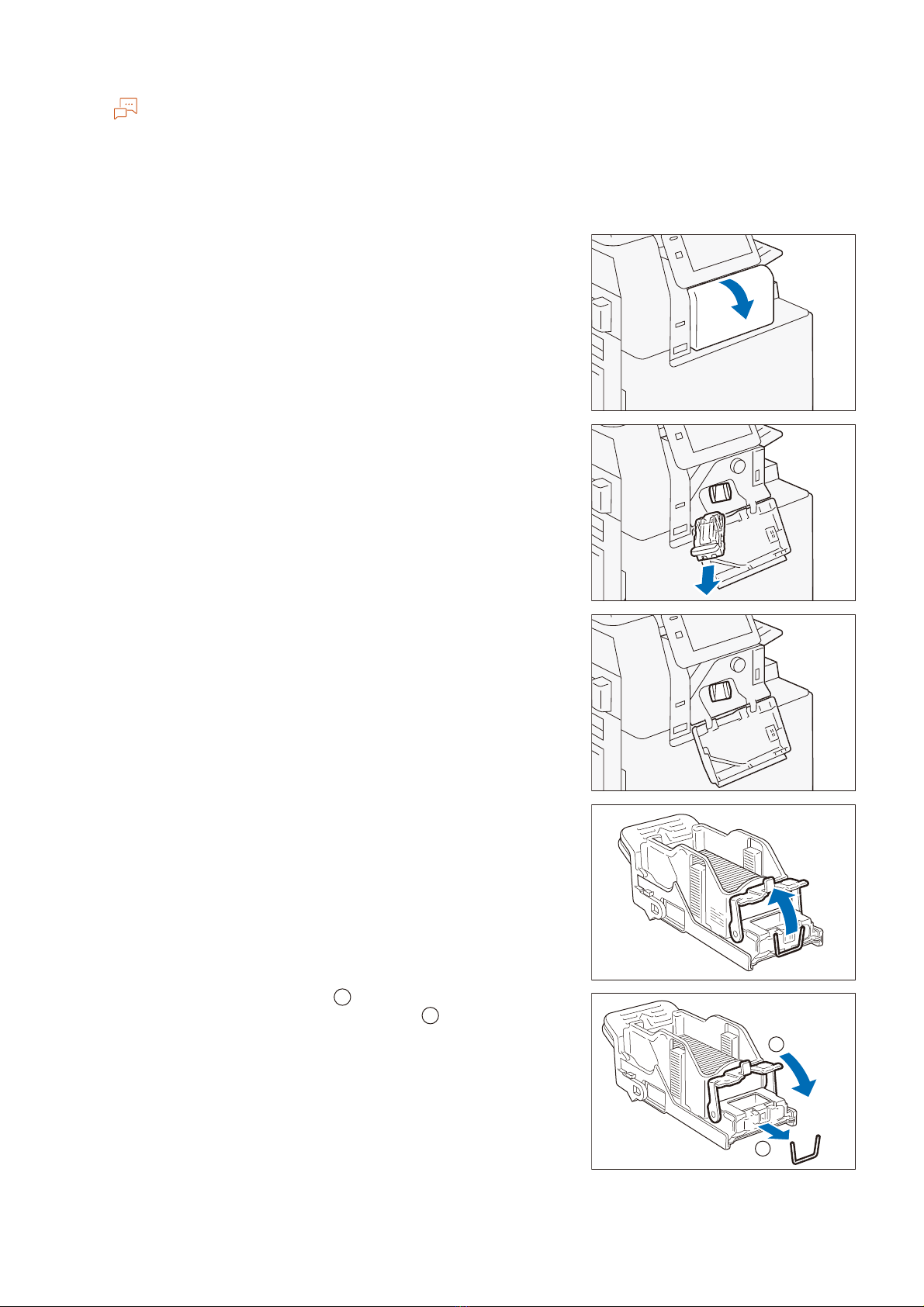

1. Confirm that the machine is not operating, and open the
Front Cover.
2. Remove the cartridge.
3. Check to make sure that there is no staple inside of the
Finisher.
4. Push the metal part of the cartridge up.
5. Remove the jammed staple ( ) and return the pushed up
metal part back to the original position ( ).
6. Insert the cartridge into the original position.
Hold the handle and lightly press it up until you hear a click.
7. Close the Front Cover.
1
2
1
2

20 Reference Guide Optional Units

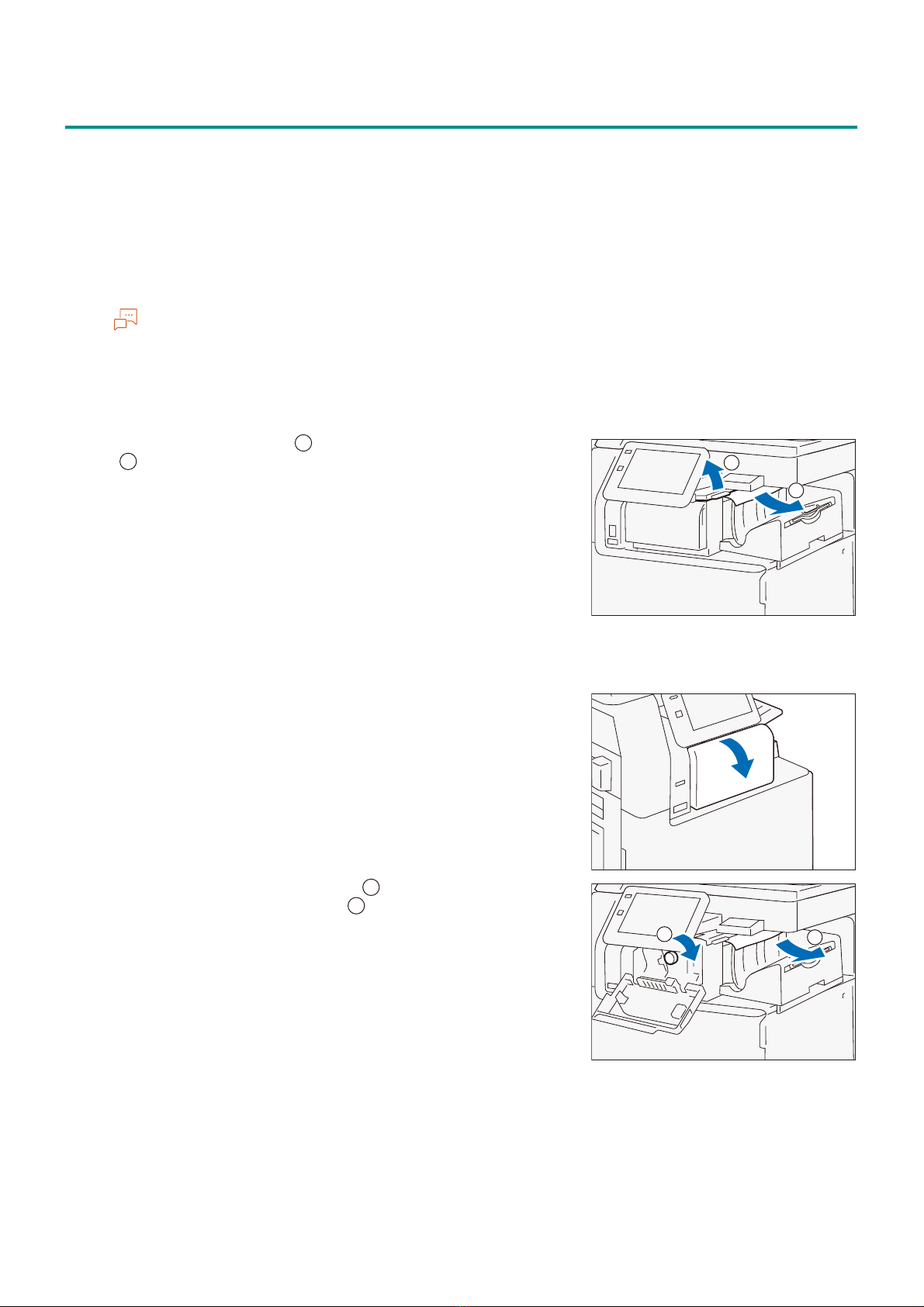

4.4 Paper Jams
If paper is jammed, the machine stops and an alarm sounds. A message also appears on the control
panel. Follow the message displayed to remove the jammed paper.
Gently remove the paper being careful not to tear it. If paper is torn while it is being removed from
the machine, remove all the torn pieces making sure that none remain inside the machine.
When you have finished clearing the paper jam, printing is resumed from the state before the paper
jam occurred. If a paper jam occurred during copying, tap on [Start]. Copying is resumed from the
state before the paper jam occurred.
Note
Clear the paper jams while the machine is on.
Top Cover
1. Open the Upper Cover ( ) and remove the jammed paper
().
2. Close the cover.
Finisher Connection
1. Open the Front Cover.
2. Turn knob in the right direction ( ) and send the jammed
paper to the Center Tray side ( ).
1
2
1
2
12
1
2
