Fujitsu ASYG07LMCE Service manual

AIR CONDITIONER
Wall mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE
OUTDOOR
AOYG07LMCE
AOYG09LMCE
AOYG12LMCE
AOYG14LMCE
DR_AS037EF_01
2016.12.05

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Copyright © 2016 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT....................................................................... 1
1. Specifications............................................................................................2
2. Dimensions................................................................................................4
2-1. Models:ASYG07LMCE, ASYG09LMCE, ASYG12LMCE, and ASYG14LMCE ........... 4
3. Wiring diagrams ........................................................................................6
3-1. Models:ASYG07LMCE, ASYG09LMCE, ASYG12LMCE, and ASYG14LMCE ........... 6
4. Capacity table............................................................................................7
4-1. Cooling capacity.......................................................................................................... 7
4-2. Heating capacity ......................................................................................................... 8
5. Fan performance .......................................................................................9
5-1. Air velocity distributions............................................................................................... 9
5-2. Airflow ....................................................................................................................... 11
6. Operation noise (sound pressure).........................................................13
6-1. Noise level curve....................................................................................................... 13
6-2. Sound level check point ............................................................................................ 15
7. Safety devices .........................................................................................16
8. Remote controller ...................................................................................17
8-1. Wireless remote controller ........................................................................................ 17
9. External input and output.......................................................................19
9-1. External input ............................................................................................................ 19
9-2. External output.......................................................................................................... 21
10. Function settings ....................................................................................23
10-1.Function settings by using remote controller............................................................ 23
10-2.Custom code setting for wireless remote controller.................................................. 28
11. Accessories.............................................................................................29
12. Optional parts..........................................................................................30
12-1.Controllers ............................................................................................................... 30
12-2.Others ...................................................................................................................... 30

Part 2. OUTDOOR UNIT................................................................. 31
1. Specifications..........................................................................................32
2. Dimensions..............................................................................................33
2-1. Models:AOYG07LMCE, AOYG09LMCE, and AOYG12LMCE.................................. 33
2-2. Model:AOYG14LMCE............................................................................................... 34
3. Installation space ....................................................................................35
3-1. Models:AOYG07LMCE, AOYG09LMCE, AOYG12LMCE, and AOYG14LMCE ....... 35
4. Refrigerant circuit ...................................................................................38
4-1. Models:AOYG07LMCE, AOYG09LMCE, AOYG12LMCE, and AOYG14LMCE ....... 38
5. Wiring diagrams ......................................................................................39
5-1. Models:AOYG07LMCE and AOYG09LMCE............................................................. 39
5-2. Model:AOYG12LMCE............................................................................................... 40
5-3. Model:AOYG14LMCE............................................................................................... 41
6. Capacity compensation rate for pipe length and height difference.... 42
6-1. Models:AOYG07LMCE and AOYG09LMCE............................................................. 42
6-2. Model:AOYG12LMCE............................................................................................... 43
6-3. Model:AOYG14LMCE............................................................................................... 44
7. Additional charge calculation ................................................................45
7-1. Models:AOYG07LMCE and AOYG09LMCE............................................................. 45
7-2. Model:AOYG12LMCE............................................................................................... 45
7-3. Model:AOYG14LMCE............................................................................................... 45
8. Airflow......................................................................................................46
8-1. Models:AOYG07LMCE and AOYG09LMCE............................................................. 46
8-2. Model:AOYG12LMCE............................................................................................... 46
8-3. Model:AOYG14LMCE............................................................................................... 46
9. Operation noise (sound pressure).........................................................47
9-1. Noise level curve....................................................................................................... 47
9-2. Sound level check point ............................................................................................ 49
10. Electrical characteristics........................................................................50
11. Safety devices .........................................................................................51
12. Accessories .............................................................................................52
CONTENTS (continued)

Part 1. INDOOR UNIT
WALL MOUNTED TYPE:
ASYG07LMCE
ASYG09LMCE
ASYG12LMCE
ASYG14LMCE

1. Specifications
Type
Wall mounted
Inverter heat pump
Model name ASYG07LMCE ASYG09LMCE ASYG12LMCE ASYG14LMCE
Power supply 230 V ~ 50 Hz
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.00 2.50 3.40 4.00
Btu/h 6,800 8,500 11,600 13,600
Min.—Max. kW 0.5—3.0 0.5—3.2 0.9—3.9 0.9—4.4
Btu/h 1,700—10,200 1,700—10,900 3,100—13,300 3,100—15,000
Heating
Rated kW 3.00 3.20 4.00 5.00
Btu/h 10,200 10,900 13,600 17,000
Min.—Max. kW 0.5—3.4 0.5—4.0 0.9—5.3 0.9—6.0
Btu/h 1,700—11,600 1,700—13,600 3,100—18,000 3,100—20,400
Input power
Cooling Rated
kW
0.465 0.65 0.97 1.135
Min.—Max. 0.25—1.29 0.25—1.29 0.25—1.40 0.25—1.98
Heating Rated 0.685 0.730 1.02 1.365
Min.—Max. 0.25—1.63 0.25—1.63 0.25—1.98 0.25—2.32
Fan
HIGH
W
30 32
MED 20 23
LOW 10 12
QUIET 4 6
Current Cooling Rated A 2.5 3.2 4.6 5.3
Heating 3.3 3.5 4.8 6.3
EER Cooling kW/kW 4.30 3.85 3.50 3.52
COP Heating 4.38 4.38 3.92 3.66
Sensible capacity Cooling kW 1.2 1.6 2.2 3.2
Power factor Cooling %81 88 91 93
Heating 90 90 92 94
Moisture removal L/h (pints/h) 1.0 (1.8) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating current *1 Cooling A6.0 6.0 6.5 9.0
Heating 7.5 7.5 9.0 10.5
Fan
Airflow rate
Cooling
HIGH
m3/h
750 770
MED 640 680
LOW 480 530
QUIET 310 360
Heating
HIGH 750 770
MED 640 680
LOW 520 560
QUIET 330 380
Type × Q'ty Cross flow fan × 1
Motor output W 30
Sound pressure level *2
Cooling
HIGH
dB (A)
43 44
MED 40 40
LOW 32 33
QUIET 21 25
Heating
HIGH 43 44
MED 38 40
LOW 33 35
QUIET 22 27
Heat exchanger type
Dimensions (H × W × D) mm
Main: 320 × 630 × 20
Sub: 84 × 630 × 13.3
Fin pitch Man: 1.1, Sub: 1.4
Rows × Stages Main: 2 × 20, Sub: 1 × 4
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White + Pearl white (painted)
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 270 × 870 × 204
Gross 270 × 925 × 336
Weight Net kg 8.5
Gross 11
Connection pipe Size Liquid mm (in) Ø 6.35 (Ø 1/4)
Gas Ø 9.52 (Ø 3/8) Ø 12.7 (Ø 1/2)
Method Flare
Drain hose Material PP+LLDPE
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless (Wired [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
DESIGN & TECHNICAL MANUAL
- 2 -
WALL MOUNTED ASYG07-14LMCE

Model name ASYG07LMCE ASYG09LMCE ASYG12LMCE ASYG14LMCE
Energy efficiency class Cooling A++ A++ A++ A++
Heating (Average) A+A+A+A+
Pdesign Cooling kW 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C) 4.0 (35 °C)
Heating (Average) 2.3 (-10 °C) 2.4 (-10 °C) 3.5 (-10 °C) 3.9 (-10 °C)
SEER Cooling kWh/kWh 6.80 7.00 7.00 6.90
SCOP Heating (Average) 4.10 4.10 4.00 4.00
Annual energy consumption QCE kWh/a 103 125 170 203
QHE (Average) 786 820 1,225 1,365
Sound power level Cooling HIGH dB (A) 59 59 59 60
Heating 59 59 59 60
- 3 -
WALL MOUNTED ASYG07-14LMCE

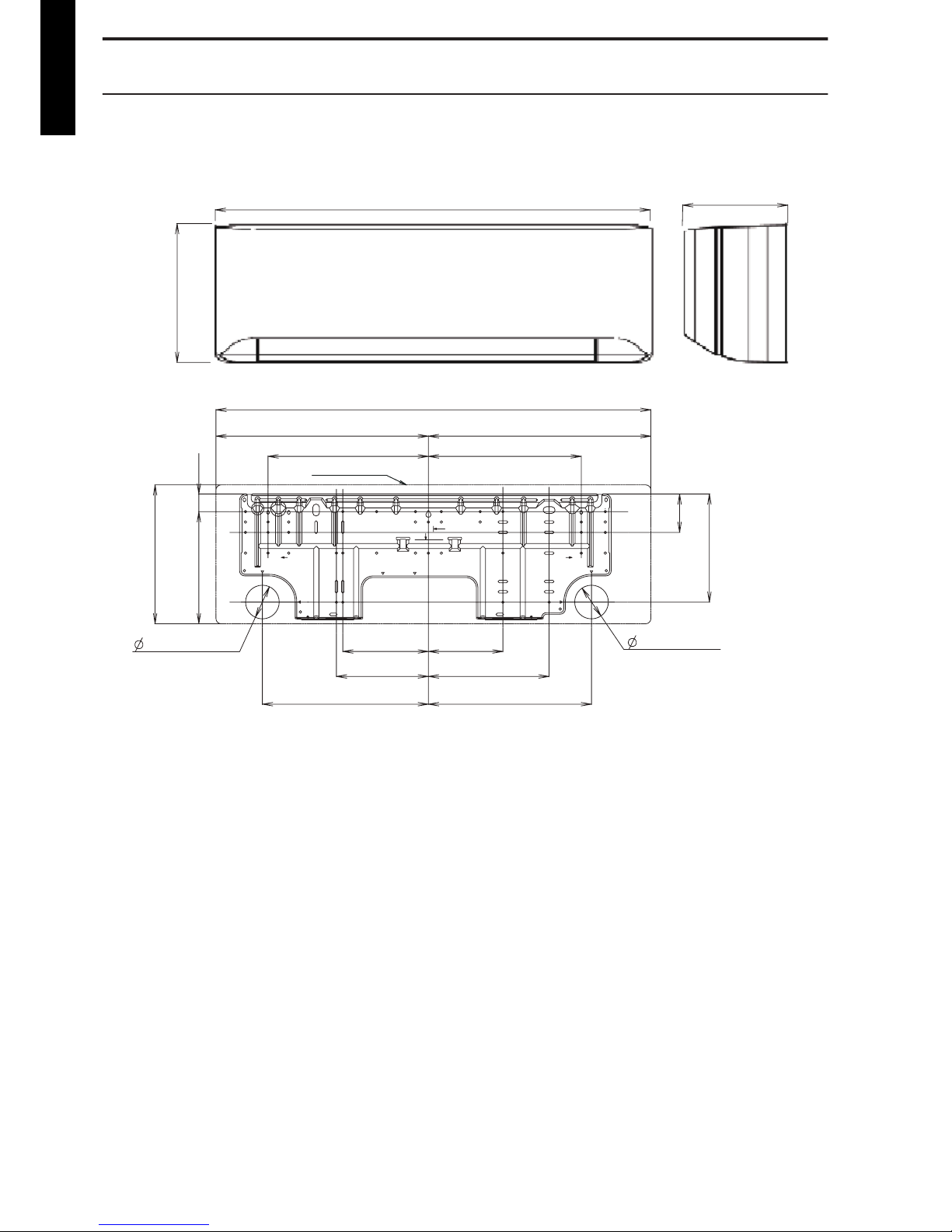

2. Dimensions
2-1. Models:ASYG07LMCE, ASYG09LMCE, ASYG12LMCE,
and ASYG14LMCE
Unit: mm
270
(270)
34218
209
74
870 204
(870)
426
310
444
165 144
178 233
321 315
295
Outline of unit
65 for pipe inlet
65 for pipe inlet
DESIGN & TECHNICAL MANUAL
- 4 -
WALL MOUNTED ASYG07-14LMCE

¢Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
45 or more
1,800 or more
63 or more
Outline of unit
25 or more
52 or more
144 or more
1,500 or more
86 or more
- 5 -
WALL MOUNTED ASYG07-14LMCE

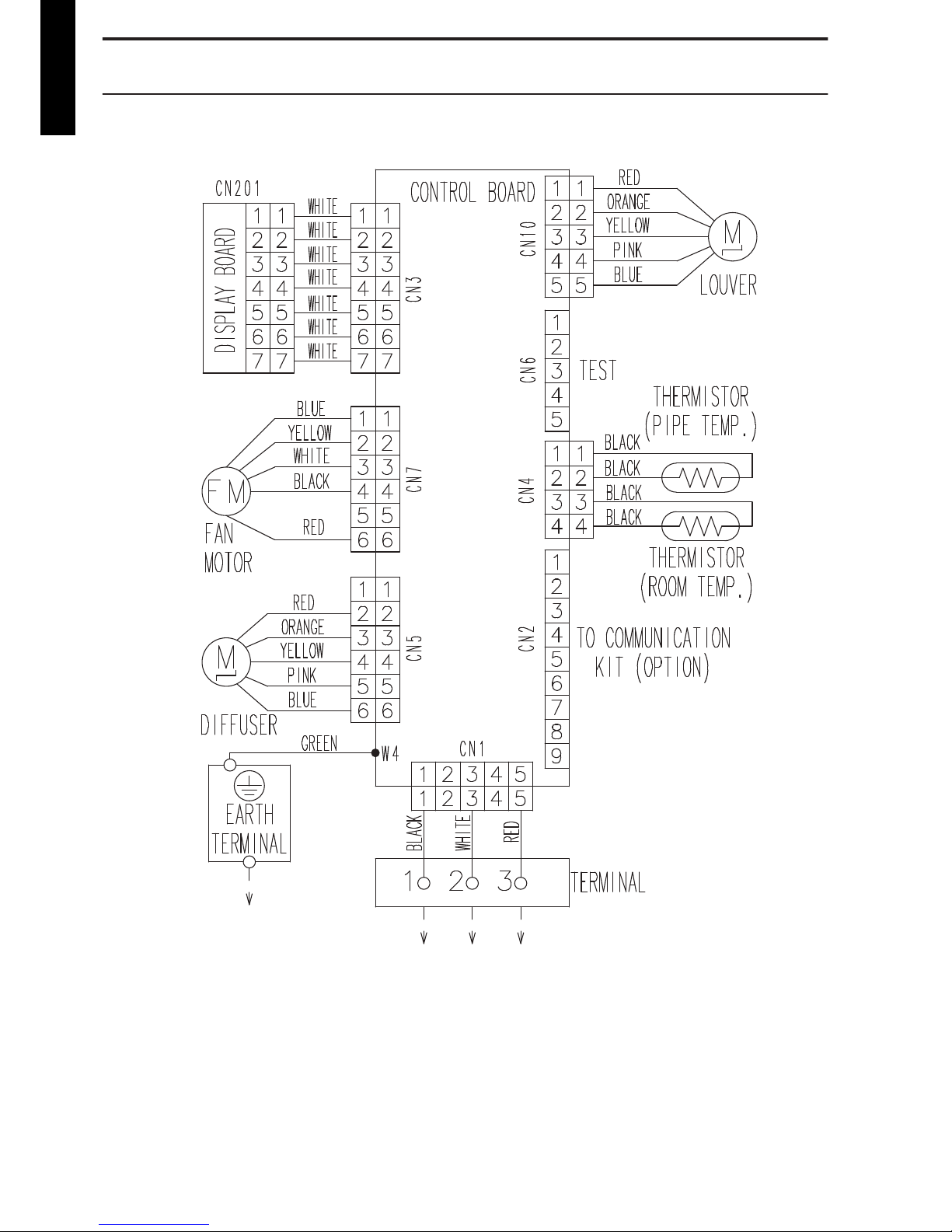

3. Wiring diagrams
3-1. Models:ASYG07LMCE, ASYG09LMCE, ASYG12LMCE,
and ASYG14LMCE
DESIGN & TECHNICAL MANUAL
- 6 -
WALL MOUNTED ASYG07-14LMCE

4. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and
the indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
4-1. Cooling capacity
¢Model:ASYG07LMCE
AFR m3/h 750
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
20 1.87 1.32 0.33 2.09 1.33 0.33 2.16 1.45 0.33 2.30 1.45 0.34 2.37 1.57 0.34 2.51 1.56 0.34 2.65 1.66 0.35
25 1.78 1.26 0.37 1.98 1.26 0.37 2.05 1.37 0.37 2.18 1.38 0.38 2.25 1.49 0.38 2.39 1.48 0.38 2.52 1.58 0.39
30 1.68 1.19 0.41 1.87 1.19 0.41 1.94 1.30 0.42 2.06 1.30 0.42 2.13 1.41 0.42 2.25 1.40 0.43 2.38 1.49 0.43
35 1.58 1.12 0.45 1.76 1.12 0.46 1.82 1.22 0.46 1.94 1.23 0.46 2.00 1.32 0.47 2.12 1.32 0.47 2.24 1.40 0.47
40 1.41 1.00 0.45 1.57 1.00 0.46 1.62 1.09 0.46 1.73 1.09 0.46 1.78 1.18 0.46 1.89 1.17 0.47 2.00 1.25 0.47
43 1.31 0.92 0.45 1.45 0.93 0.45 1.50 1.01 0.46 1.60 1.01 0.46 1.65 1.09 0.46 1.75 1.09 0.47 1.85 1.16 0.47
¢Model:ASYG09LMCE
AFR m3/h 750
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
20 2.34 1.62 0.46 2.61 1.63 0.46 2.70 1.77 0.47 2.87 1.78 0.47 2.96 1.92 0.47 3.14 1.91 0.48 3.32 2.04 0.48
25 2.22 1.54 0.51 2.48 1.55 0.52 2.56 1.68 0.52 2.73 1.69 0.53 2.81 1.82 0.53 2.98 1.82 0.54 3.15 1.93 0.54
30 2.10 1.45 0.57 2.34 1.46 0.58 2.42 1.59 0.58 2.58 1.60 0.59 2.66 1.72 0.59 2.82 1.72 0.60 2.98 1.83 0.60
35 1.98 1.37 0.63 2.20 1.38 0.64 2.28 1.50 0.64 2.43 1.50 0.65 2.50 1.62 0.65 2.65 1.61 0.66 2.80 1.72 0.66
40 1.76 1.22 0.63 1.96 1.23 0.64 2.03 1.33 0.64 2.16 1.34 0.65 2.23 1.44 0.65 2.36 1.44 0.66 2.50 1.53 0.66
43 1.63 1.13 0.62 1.82 1.14 0.63 1.88 1.24 0.64 2.00 1.24 0.64 2.07 1.34 0.65 2.19 1.33 0.65 2.31 1.42 0.66
¢Model:ASYG12LMCE
AFR m3/h 750
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
20 3.18 2.18 0.66 3.55 2.19 0.67 3.67 2.39 0.68 3.91 2.39 0.68 4.03 2.59 0.69 4.27 2.57 0.70 4.51 2.74 0.70
25 3.03 2.07 0.75 3.37 2.08 0.77 3.49 2.27 0.77 3.72 2.27 0.78 3.83 2.45 0.78 4.06 2.44 0.79 4.29 2.60 0.80
30 2.86 1.96 0.84 3.19 1.97 0.86 3.30 2.14 0.86 3.52 2.15 0.87 3.63 2.32 0.87 3.84 2.31 0.88 4.06 2.46 0.89
35 2.69 1.84 0.94 2.99 1.85 0.95 3.09 2.01 0.96 3.30 2.02 0.97 3.40 2.18 0.97 3.60 2.17 0.98 3.81 2.31 0.99
40 2.27 1.64 0.87 2.53 1.65 0.88 2.62 1.79 0.89 2.79 1.80 0.90 2.87 1.94 0.90 3.05 1.94 0.91 3.22 2.06 0.92
43 2.09 1.52 0.87 2.33 1.53 0.89 2.41 1.66 0.89 2.57 1.67 0.90 2.65 1.80 0.90 2.81 1.80 0.91 2.96 1.91 0.92
¢Model:ASYG14LMCE
AFR m3/h 770
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
20 3.72 2.44 0.77 4.15 2.46 0.78 4.29 2.67 0.79 4.57 2.68 0.80 4.71 2.90 0.80 4.99 2.89 0.81 5.28 3.07 0.82
25 3.54 2.34 0.88 3.94 2.36 0.89 4.08 2.56 0.90 4.34 2.57 0.91 4.48 2.78 0.91 4.75 2.77 0.92 5.02 2.95 0.93
30 3.36 2.31 0.99 3.74 2.32 1.00 3.87 2.52 1.01 4.12 2.53 1.02 4.25 2.73 1.02 4.50 2.72 1.03 4.76 2.90 1.04
35 3.16 2.19 1.10 3.52 2.21 1.11 3.64 2.40 1.12 3.88 2.41 1.13 4.00 2.60 1.14 4.24 2.59 1.15 4.48 2.76 1.16
40 2.30 1.87 0.75 2.56 1.88 0.76 2.65 2.04 0.77 2.83 2.05 0.78 2.91 2.21 0.78 3.09 2.20 0.79 3.26 2.35 0.80
43 2.20 1.84 0.80 2.45 1.85 0.81 2.53 2.01 0.81 2.70 2.02 0.82 2.78 2.18 0.83 2.95 2.17 0.83 3.12 2.31 0.84
- 7 -
WALL MOUNTED ASYG07-14LMCE

4-2. Heating capacity
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢Model:ASYG07LMCE
AFR m3/h 750
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 1.72 0.71 1.68 0.73 1.64 0.74 1.60 0.75 1.56 0.77
-10 -11 2.38 0.86 2.33 0.88 2.27 0.90 2.21 0.92 2.16 0.94
-5 -7 2.90 0.97 2.83 0.99 2.76 1.01 2.69 1.03 2.62 1.05
0 -2 3.18 1.02 3.10 1.04 3.03 1.06 2.95 1.08 2.87 1.10
5 3 3.46 1.06 3.38 1.09 3.29 1.11 3.21 1.13 3.13 1.15
7 6 3.57 1.08 3.49 1.10 3.40 1.13 3.32 1.15 3.23 1.17
10 8 3.98 1.19 3.88 1.21 3.79 1.24 3.69 1.26 3.60 1.29
15 10 3.72 1.09 3.63 1.12 3.54 1.14 3.45 1.16 3.36 1.18
¢Model:ASYG09LMCE
AFR m3/h 750
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 1.72 0.71 1.68 0.73 1.64 0.74 1.60 0.75 1.56 0.77
-10 -11 2.38 0.86 2.33 0.88 2.27 0.90 2.21 0.92 2.16 0.94
-5 -7 2.99 0.97 2.91 0.99 2.84 1.01 2.77 1.03 2.70 1.05
0 -2 3.49 1.02 3.41 1.04 3.33 1.06 3.24 1.08 3.16 1.10
5 3 4.00 1.06 3.90 1.09 3.81 1.11 3.71 1.13 3.62 1.15
7 6 4.20 1.08 4.10 1.10 4.00 1.13 3.90 1.15 3.80 1.17
10 8 4.76 1.19 4.65 1.21 4.53 1.24 4.42 1.26 4.31 1.29
15 10 4.53 1.09 4.42 1.12 4.31 1.14 4.20 1.16 4.10 1.18
¢Model:ASYG12LMCE
AFR m3/h 750
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 2.94 1.54 2.87 1.57 2.80 1.60 2.73 1.63 2.66 1.66
-10 -11 3.73 1.60 3.64 1.63 3.55 1.67 3.46 1.70 3.37 1.73
-5 -7 4.40 1.62 4.29 1.65 4.19 1.69 4.08 1.72 3.98 1.75
0 -2 4.88 1.57 4.77 1.60 4.65 1.64 4.53 1.67 4.42 1.70
5 3 5.37 1.52 5.24 1.56 5.11 1.59 4.99 1.62 4.86 1.65
7 6 5.57 1.51 5.43 1.54 5.30 1.57 5.17 1.60 5.04 1.63
10 8 5.85 1.51 5.71 1.54 5.57 1.57 5.43 1.60 5.29 1.63
15 10 5.66 1.39 5.52 1.42 5.39 1.45 5.25 1.48 5.12 1.51
¢Model:ASYG14LMCE
AFR m3/h 770
Indoor temperature
16 18 20 22 24
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 3.65 1.43 3.57 1.46 3.48 1.49 3.39 1.52 3.31 1.55
-10 -11 4.29 1.51 4.19 1.54 4.09 1.57 3.99 1.60 3.89 1.63
-5 -7 4.68 1.58 4.57 1.61 4.46 1.64 4.34 1.68 4.23 1.71
0 -2 5.31 1.69 5.19 1.72 5.06 1.76 4.93 1.79 4.81 1.83
5 3 5.73 1.79 5.59 1.83 5.46 1.86 5.32 1.90 5.18 1.94
7 6 6.30 1.86 6.15 1.89 6.00 1.93 5.85 1.97 5.70 2.01
10 8 6.64 1.90 6.49 1.94 6.33 1.98 6.17 2.02 6.01 2.06
15 10 6.44 1.65 6.28 1.69 6.13 1.72 5.98 1.76 5.82 1.79
DESIGN & TECHNICAL MANUAL
- 8 -
WALL MOUNTED ASYG07-14LMCE

5. Fan performance
5-1. Air velocity distributions
¢Models:ASYG07LMCE, ASYG09LMCE, and ASYG12LMCE
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0
0.5
2
1
0
1
2
Unit: m/s(m)
(m)
0123456789
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
2.0
2.0 1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit: m/s(m)
(m)
0123456789
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0 0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
2.0
1.0
0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
- 9 -
WALL MOUNTED ASYG07-14LMCE

¢Model:ASYG14LMCE
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0 0.5
2
1
0
1
2
Unit: m/s(m)
(m)
0123456789
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
1.0
1.0
0.5
0.5
3
2
1
0
1
2
3
Unit: m/s(m)
(m)
0123456789
2.0
2.0
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
2.0
1.0 0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
2.0
1.0
0.5
3
2
1
0
Unit: m/s(m)
(m)
0123456789
DESIGN & TECHNICAL MANUAL
- 10 -
WALL MOUNTED ASYG07-14LMCE

5-2. Airflow
¢Models:ASYG07LMCE, ASYG09LMCE, and ASYG12LMCE
Cooling
Fan speed Airflow
HIGH
m3/h 750
l/s 208
CFM 441
MED
m3/h 640
l/s 178
CFM 377
LOW
m3/h 480
l/s 133
CFM 283
QUIET
m3/h 310
l/s 86
CFM 182
Heating
Fan speed Airflow
HIGH
m3/h 750
l/s 208
CFM 441
MED
m3/h 640
l/s 178
CFM 377
LOW
m3/h 520
l/s 144
CFM 306
QUIET
m3/h 330
l/s 92
CFM 194
- 11 -
WALL MOUNTED ASYG07-14LMCE

¢Model:ASYG14LMCE
Cooling
Fan speed Airflow
HIGH
m3/h 770
l/s 214
CFM 453
MED
m3/h 680
l/s 189
CFM 400
LOW
m3/h 530
l/s 147
CFM 312
QUIET
m3/h 360
l/s 100
CFM 212
Heating
Fan speed Airflow
HIGH
m3/h 770
l/s 214
CFM 453
MED
m3/h 680
l/s 189
CFM 400
LOW
m3/h 560
l/s 156
CFM 330
QUIET
m3/h 380
l/s 106
CFM 224
DESIGN & TECHNICAL MANUAL
- 12 -
WALL MOUNTED ASYG07-14LMCE

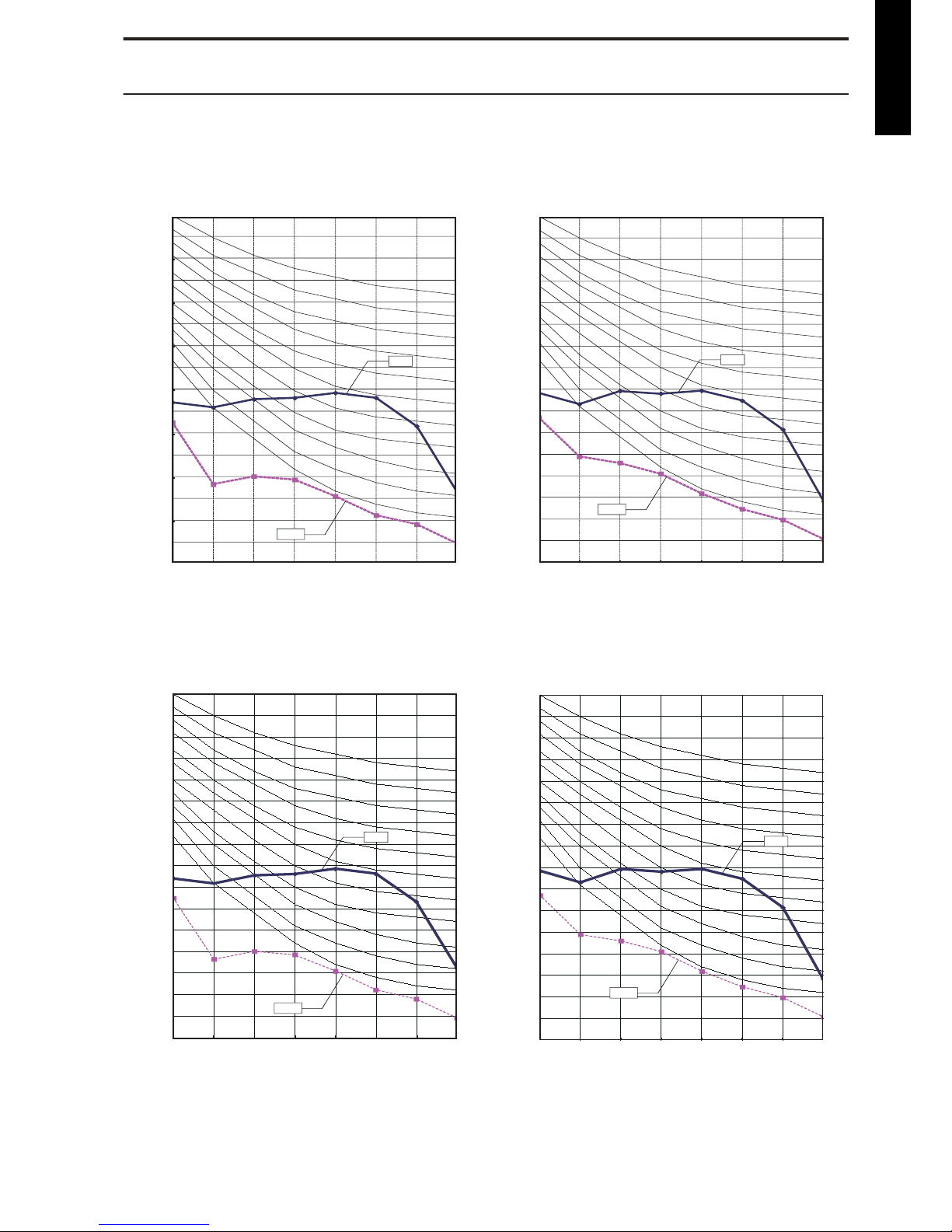

6. Operation noise (sound pressure)
6-1. Noise level curve
¢Model:ASYG07LMCE
Cooling
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢Model:ASYG09LMCE
Cooling
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 13 -
WALL MOUNTED ASYG07-14LMCE

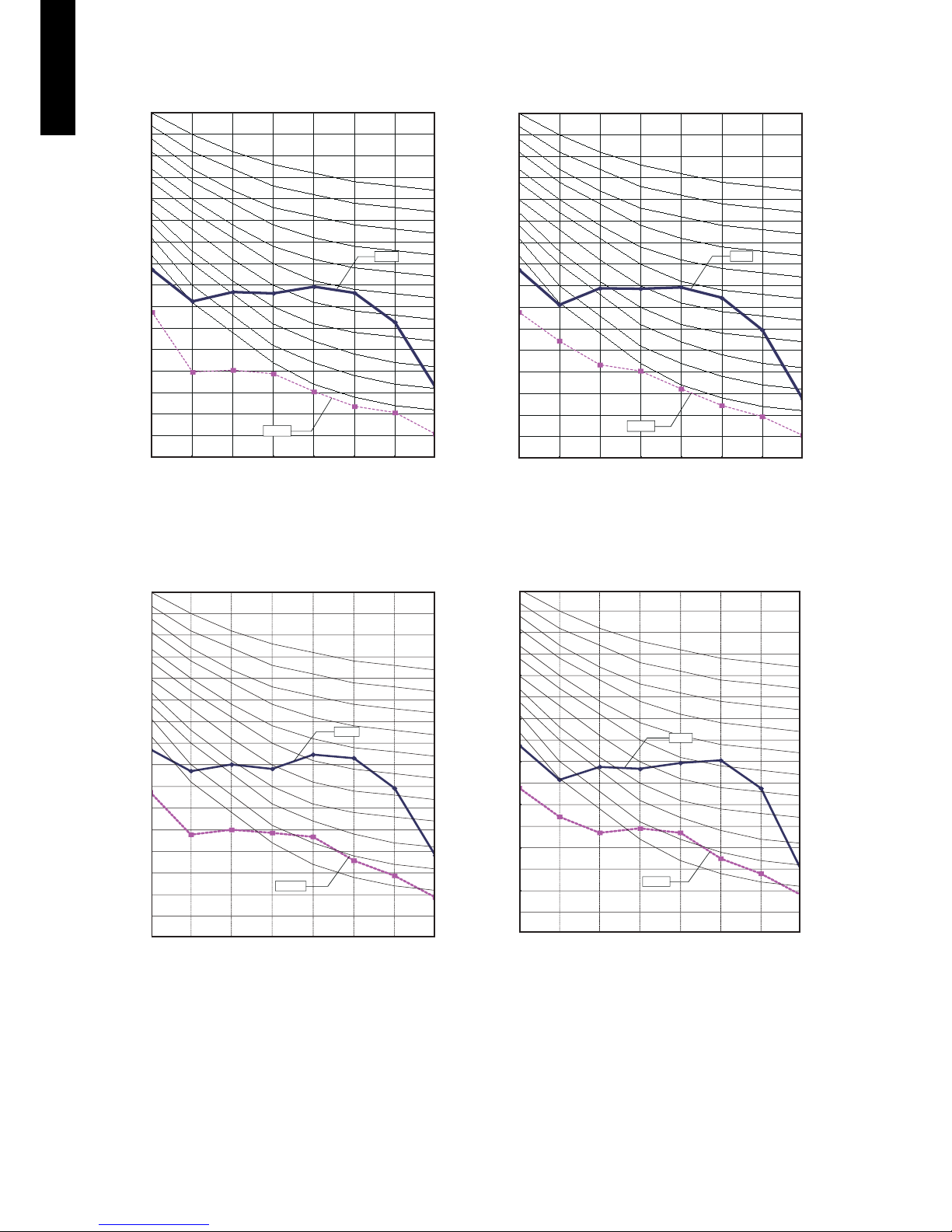

¢Model:ASYG12LMCE
Cooling
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢Model:ASYG14LMCE
Cooling
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Heating
HIGH
QUIET
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
DESIGN & TECHNICAL MANUAL
- 14 -
WALL MOUNTED ASYG07-14LMCE

6-2. Sound level check point
0.8 m
1 m
Microphone Microphone
- 15 -
WALL MOUNTED ASYG07-14LMCE

7. Safety devices
Type of
protection Protection form Model
ASYG07LMCE ASYG09LMCE ASYG12LMCE ASYG14LMCE
Circuit
protection Current fuse (PCB*) 250 V, 3.15 A
Fan motor
protection
Thermal
protector
program
Activate 105±10°C
Fan motor stop
Reset 90±10°C
Fan motor restart
*PCB: Printed Circuit Board
DESIGN & TECHNICAL MANUAL
- 16 -
WALL MOUNTED ASYG07-14LMCE
