Fujitsu General ASHG30KMTA Service manual

AIR CONDITIONER
Wall mounted type
DESIGN & TECHNICAL MANUAL
INDOOR
ASHG30KMTA
ASHG36KMTA
OUTDOOR
AOHG30KMTA
AOHG36KMTA
DR_AS110EG_02
2020.10.30

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
The following term and logo are trademarks of Fujitsu General Limited in the United States, other countries
or both:
FGLair™
Android and Google Play are trademarks of Google Inc.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under
license.
Copyright © 2019, 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
Part 1. INDOOR UNIT...........................................................................1
1. Specifications................................................................................................2
2. Dimensions....................................................................................................4
2-1. Models: ASHG30KMTA and ASHG36KMTA ...................................................................4
3. Wiring diagrams ............................................................................................6
3-1. Models: ASHG30KMTA and ASHG36KMTA ...................................................................6
4. Capacity table................................................................................................7
4-1. Cooling capacity...............................................................................................................7
4-2. Heating capacity ..............................................................................................................8
5. Fan performance ...........................................................................................9
5-1. Air velocity distributions....................................................................................................9
5-2. Airflow ............................................................................................................................10
6. Operation noise (sound pressure).............................................................11
6-1. Noise level curve............................................................................................................11
6-2. Sound level check point .................................................................................................12
7. Safety devices .............................................................................................13
8. External input and output...........................................................................14
8-1. External input.................................................................................................................15
8-2. External output...............................................................................................................16
8-3. Combination of external input and output.......................................................................17
8-4. Details of function ..........................................................................................................18
9. Group connection .......................................................................................23
10. Remote controller .......................................................................................24
10-1.Wireless remote controller ............................................................................................24
11. Function settings .......................................................................................26
11-1.Function settings by using remote controller.................................................................26
11-2.Custom code setting for wireless remote controller.......................................................31
12. Accessories.................................................................................................32
13. Optional parts .............................................................................................33
13-1.Controllers ....................................................................................................................33
13-2.Others ...........................................................................................................................34

Part 2. OUTDOOR UNIT.....................................................................35
1. Specifications..............................................................................................36
2. Dimensions..................................................................................................37
2-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................37
3. Installation space ........................................................................................38
3-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................38
4. Refrigerant circuit .......................................................................................41
4-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................41
5. Wiring diagrams ..........................................................................................42
5-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................42
6. Capacity compensation rate for pipe length and height difference........43
6-1. Model: AOHG30KMTA...................................................................................................43
6-2. Model: AOHG36KMTA...................................................................................................44
7. Additional charge calculation ....................................................................45
7-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................45
8. Airflow..........................................................................................................46
8-1. Models: AOHG30KMTA and AOHG36KMTA ................................................................46
9. Operation noise (sound pressure).............................................................47
9-1. Noise level curve............................................................................................................47
9-2. Sound level check point .................................................................................................48
10. Electrical characteristics............................................................................49
11. Safety devices .............................................................................................50
12. External input and output ..........................................................................51
12-1.External input................................................................................................................51
12-2.External output..............................................................................................................53
13. Function settings .......................................................................................55
13-1.Control PCB and switch buttons location ......................................................................55
13-2.Local setting procedure.................................................................................................57
14. Accessories.................................................................................................59
14-1.Models: AOHG30KMTA and AOHG36KMTA ...............................................................59
15. Optional parts..............................................................................................60
CONTENTS (continued)

Part 1. INDOOR UNIT
WALL MOUNTED TYPE:
ASHG30KMTA
ASHG36KMTA

1. Specifications
Type
Wall mounted
Inverter heat pump
Model name ASHG30KMTA ASHG36KMTA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 8.0 9.4
Btu/h 27,300 32,100
Min.—Max. kW 2.9—9.0 2.9—10.0
Btu/h 9,900—30,700 9,900—34,100
Heating
Rated kW 8.8 10.1
Btu/h 30,000 34,500
Min.—Max. kW 2.2—11.0 2.7—11.2
Btu/h 7,500—37,500 9,200—38,200
Input power
Cooling Rated
kW
2.33 3.16
Min.—Max. 0.54—3.86 0.54—4.30
Heating Rated 2.20 2.73
Min.—Max. 0.48—4.23 0.48—4.30
Fan
HIGH
W
62.0
MED 36.5
LOW 21.0
QUIET 11.5
Current Cooling Rated A 10.2 13.9
Heating 9.7 12.0
EER Cooling kW/kW 3.43 2.97
COP Heating 4.00 3.70
Sensible capacity Cooling kW 6.15 6.70
Power factor Cooling %99
Heating 99
Moisture removal L/h (pints/h) 2.6 (4.6) 3.8 (6.7)
Maximum operating current*1Cooling A21.0 21.5
Heating 21.0 21.5
Fan
Airflow rate
Cooling
HIGH
m3/h
1,330
MED 1,100
LOW 920
QUIET 720
Heating
HIGH 1,330
MED 1,100
LOW 920
QUIET 720
Type × Q'ty Sirocco fan × 1
Motor output W 61
Sound pressure level*2
Cooling
HIGH
dB (A)
50
MED 44
LOW 40
QUIET 33
Heating
HIGH 49
MED 44
LOW 39
QUIET 33
Heat exchanger
Dimensions (H × W × D) mm
Main: 448 × 900 × 30
Sub1: 84 × 900 × 13.3
Sub2: 126 × 900 × 13.3
Fin pitch Main: 1.2, Sub: 1.4
Rows × Stages Main: 3 × 28, Sub1: 1 × 4, Sub2: 1 × 6
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 340 × 1,150 × 280
Gross 405 × 1,270 × 450
Weight Net kg 18.5
Gross 24.5
Connection pipe Size Liquid mm (in) Ø 9.52 (Ø 3/8)
Gas Ø 15.88 (Ø 5/8)
Method Flare
Drain hose Material PVC
Size mm Ø 13.8 (I.D.), Ø 15.8 to Ø 16.7 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller Wireless or Mobile app (FGLair*3) (Wired [option])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5.0 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum operating current is the total current of the indoor unit and the outdoor unit.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play store or on App Store. For details, refer to the setting manual.
- 2 - 1. Specifications
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

Specifications for ErP Lot 10
Model name ASHG30KMTA ASHG36KMTA
Energy efficiency class Cooling A++ A++
Heating (Average) A+ A+
Pdesign Cooling kW 8.00 9.40
Heating (Average) 6.50 7.10
SEER Cooling kWh/kWh 6.67 6.14
SCOP Heating (Average) 4.54 4.52
Annual energy consumption QCE kWh/a 419 535
QHE (Average) 2,001 2,198
Sound power level Cooling HIGH dB (A) 65 65
Heating 65 65
- 3 - 1. Specifications
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

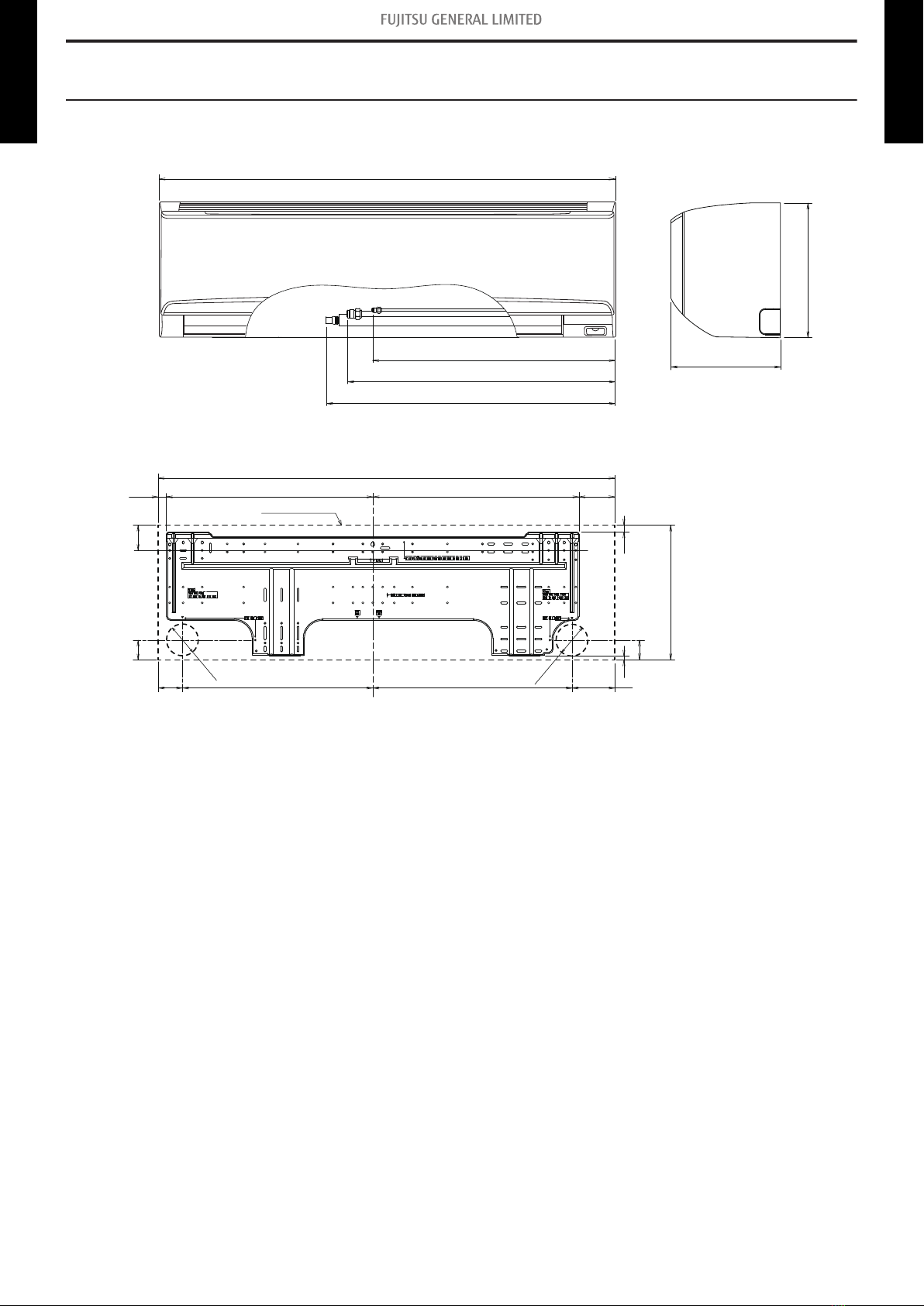

2. Dimensions
2-1. Models: ASHG30KMTA and ASHG36KMTA
Unit: mm
1,150
Outline of unit
520 90
20
64
47961 108502
520
50 50
11
340
ø80
ø80
340
280
16
1,150
609
672
725
- 4 -
2-1. Models: ASHG30KMTA and ASHG36KMTA 2. Dimensions
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

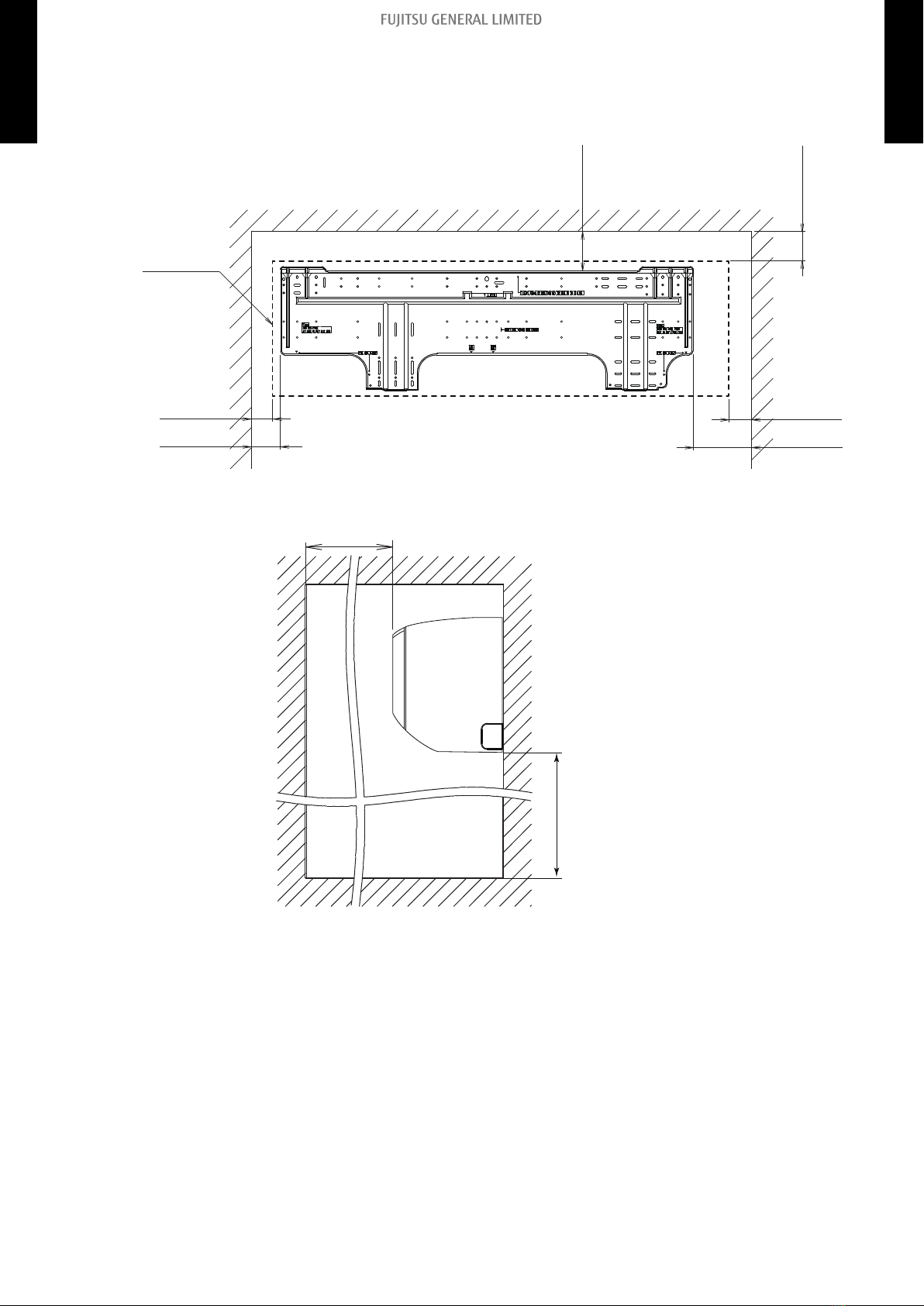

¢Installation space requirement
Provide sufficient installation space for product safety.
63 or more
88 or more
50 or more
50 or more
70 or more
Outline of unit
140 or more
1,500 or more
1,800 or more
Unit: mm
- 5 -
2-1. Models: ASHG30KMTA and ASHG36KMTA 2. Dimensions
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

3. Wiring diagrams
3-1. Models: ASHG30KMTA and ASHG36KMTA
- 6 -
3-1. Models: ASHG30KMTA and ASHG36KMTA 3. Wiring diagrams
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

4. Capacity table
Capacity tables show each of following values calculated based on the outdoor temperature and the
indoor temperature, under given Airflow Rate (AFR):
For cooling capacity: Total Capacity (TC), Sensible Heat Capacity (SHC), and Input Power (IP)
For heating capacity: Total Capacity (TC) and Input Power (IP)
4-1. Cooling capacity
¢Model: ASHG30KMTA
AFR m3/h 1,330
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-15 6.61 6.12 0.78 6.85 6.14 0.80 7.00 6.16 0.81 7.39 6.45 0.82 7.78 6.74 0.84 8.22 6.96 0.85 8.87 7.29 0.87
-10 6.27 5.69 0.95 6.49 5.71 0.97 6.64 5.73 0.98 7.01 6.00 1.00 7.38 6.27 1.02 7.79 6.48 1.03 8.41 6.78 1.05
0 5.59 4.84 1.28 5.78 4.86 1.31 5.91 4.87 1.33 6.24 5.10 1.35 6.57 5.33 1.38 6.94 5.51 1.40 7.49 5.76 1.43
5 5.42 4.65 1.32 5.61 4.67 1.35 5.74 4.68 1.37 6.06 4.91 1.40 6.38 5.13 1.42 6.73 5.29 1.44 7.27 5.54 1.47
10 5.25 4.47 1.36 5.44 4.48 1.39 5.56 4.50 1.41 5.87 4.71 1.44 6.18 4.92 1.46 6.53 5.08 1.48 7.05 5.32 1.51
15 6.52 5.33 1.66 6.75 5.35 1.70 6.91 5.36 1.73 7.29 5.61 1.76 7.67 5.87 1.79 8.10 6.06 1.81 8.75 6.34 1.85
20 7.79 6.19 1.97 8.07 6.21 2.01 8.25 6.22 2.04 8.71 6.52 2.08 9.17 6.81 2.11 9.68 7.04 2.15 10.45 7.37 2.19
25 7.46 5.99 2.03 7.72 6.01 2.08 7.90 6.02 2.11 8.34 6.31 2.15 8.78 6.59 2.19 9.27 6.81 2.22 10.01 7.13 2.27
30 7.13 5.78 2.10 7.38 5.81 2.15 7.55 5.82 2.18 7.97 6.10 2.22 8.39 6.37 2.26 8.86 6.58 2.29 9.57 6.89 2.34
35 6.80 5.58 2.17 7.04 5.60 2.22 7.20 5.62 2.25 7.60 5.88 2.29 8.00 6.15 2.33 8.45 6.35 2.36 9.12 6.65 2.41
40 6.36 5.21 2.27 6.59 5.23 2.32 6.74 5.24 2.35 7.11 5.49 2.39 7.49 5.74 2.43 7.91 5.92 2.47 8.54 6.20 2.52
46 5.84 4.76 2.38 6.04 4.78 2.44 6.18 4.79 2.48 6.52 5.02 2.52 6.87 5.24 2.56 7.25 5.41 2.60 7.83 5.67 2.65
¢Model: ASHG36KMTA
AFR m3/h 1,330
Indoor temperature
°CDB 18 21 23 25 27 29 32
°CWB 12 15 16 18 19 21 23
Outdoor temperature
°CDB TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP TC SHC IP
kW kW kW kW kW kW kW
-15 7.77 6.96 1.06 8.05 6.98 1.08 8.23 7.00 1.10 8.69 7.33 1.12 9.14 7.50 1.14 9.66 7.91 1.15 10.43 8.28 1.18
-10 7.37 6.47 1.28 7.63 6.50 1.31 7.80 6.51 1.33 8.24 6.82 1.36 8.67 6.98 1.38 9.16 7.36 1.40 9.89 7.71 1.43
0 6.56 5.51 1.74 6.79 5.53 1.78 6.95 5.54 1.81 7.34 5.81 1.84 7.72 5.94 1.87 8.16 6.27 1.89 8.81 6.56 1.93
5 6.37 5.30 1.79 6.59 5.32 1.83 6.74 5.33 1.86 7.12 5.58 1.89 7.49 5.71 1.92 7.91 6.03 1.95 8.54 6.31 1.99
10 6.17 5.09 1.84 6.39 5.11 1.89 6.54 5.12 1.92 6.90 5.36 1.95 7.26 5.49 1.98 7.67 5.79 2.01 8.28 6.06 2.05
15 7.66 6.18 2.26 7.93 6.20 2.31 8.11 6.21 2.34 8.57 6.51 2.38 9.02 6.66 2.42 9.52 7.03 2.46 10.28 7.35 2.51
20 9.15 7.26 2.67 9.48 7.29 2.73 9.69 7.31 2.77 10.23 7.66 2.82 10.77 7.83 2.87 11.38 8.26 2.91 12.28 8.65 2.97
25 8.77 6.96 2.76 9.07 6.99 2.82 9.28 7.00 2.87 9.80 7.34 2.92 10.31 7.50 2.97 10.89 7.92 3.01 11.76 8.29 3.07
30 8.38 6.66 2.85 8.67 6.68 2.92 8.87 6.70 2.96 9.36 7.02 3.01 9.86 7.18 3.06 10.41 7.57 3.11 11.24 7.93 3.17
35 7.99 6.21 2.94 8.27 6.24 3.01 8.46 6.25 3.06 8.93 6.55 3.11 9.40 6.70 3.16 9.93 7.07 3.21 10.72 7.40 3.27
40 7.47 6.32 3.07 7.74 6.34 3.15 7.92 6.36 3.19 8.36 6.66 3.25 8.80 6.81 3.30 9.29 7.19 3.35 10.03 7.53 3.42
46 6.86 6.28 3.23 7.10 6.30 3.31 7.26 6.32 3.36 7.67 6.62 3.42 8.07 6.77 3.47 8.52 7.14 3.52 9.20 7.48 3.60
- 7 -
4-1. Cooling capacity 4. Capacity table
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

4-2. Heating capacity
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
¢Model: ASHG30KMTA
AFR m3/h 1,330
Indoor temperature
16 18 20 22 27
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 6.70 2.69 6.67 2.70 6.62 2.70 6.47 2.70 6.04 2.71
-10 -11 7.67 2.91 7.63 2.92 7.58 2.92 7.40 2.92 6.92 2.93
-5 -7 8.63 3.13 8.60 3.13 8.53 3.14 8.34 3.14 7.79 3.15
0 -2 9.60 3.35 9.56 3.35 9.49 3.36 9.27 3.36 8.66 3.37
5 3 10.72 3.40 10.67 3.40 10.59 3.41 10.35 3.41 9.67 3.42
7 6 11.13 3.42 11.08 3.42 11.00 3.43 10.75 3.43 10.04 3.44
10 8 11.51 3.41 11.46 3.42 11.37 3.42 11.11 3.43 10.38 3.44
15 10 11.97 3.41 11.92 3.42 11.83 3.42 11.56 3.43 10.80 3.44
20 15 12.75 3.43 12.69 3.43 12.60 3.43 12.31 3.44 11.50 3.45
24 18 13.37 3.44 13.31 3.44 13.21 3.44 12.91 3.45 12.06 3.46
¢Model: ASHG36KMTA
AFR m3/h 1,330
Indoor temperature
16 18 20 22 27
Outdoor temperature
°CDB °CWB TC IP TC IP TC IP TC IP TC IP
kW kW kW kW kW
-15 -16 6.82 2.75 6.80 2.75 6.74 2.75 6.59 2.76 6.16 2.77
-10 -11 7.81 2.97 7.78 2.97 7.72 2.98 7.54 2.98 7.04 2.99
-5 -7 8.79 3.19 8.76 3.20 8.69 3.20 8.49 3.20 7.93 3.21
0 -2 9.78 3.41 9.74 3.42 9.66 3.42 9.44 3.43 8.82 3.44
5 3 10.92 3.47 10.87 3.47 10.79 3.48 10.54 3.48 9.85 3.49
7 6 11.33 3.49 11.29 3.49 11.20 3.50 10.95 3.50 10.22 3.51
10 8 11.72 3.48 11.67 3.48 11.58 3.49 11.32 3.49 10.57 3.50
15 10 12.19 3.48 12.14 3.48 12.05 3.49 11.78 3.49 11.00 3.50
20 15 12.98 3.49 12.93 3.50 12.83 3.50 12.54 3.51 11.71 3.52
24 18 13.62 3.50 13.56 3.51 13.46 3.51 13.15 3.52 12.28 3.53
- 8 -
4-2. Heating capacity 4. Capacity table
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

5. Fan performance
5-1. Air velocity distributions
¢Models: ASHG30KMTA and ASHG36KMTA
Measuring conditions Fan speed Operation mode
HIGH FAN
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
1
2
3
4
0
1
2
3
4
(m)
(m)
Unit: m/s
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
2.0 1.5 1.0
0.5
Top view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Left & Right
1
2
3
4
0
1
2
3
4
(m)
(m)
Unit: m/s
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
0.5
0.5
1.0
1.0
2.0
1.5
1.5
Side view
Vertical airflow direction louver: Up
Horizontal airflow direction louver: Center
3
2
1
0
(m)
(m)
Unit: m/s
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
2.0 1.5
1.0
0.5
Side view
Vertical airflow direction louver: Down
Horizontal airflow direction louver: Center
3
2
1
0
(m)
(m)
Unit: m/s
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
2.0
1.5 1.0
0.5
- 9 -
5-1. Air velocity distributions 5. Fan performance
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

5-2. Airflow
¢Models: ASHG30KMTA and ASHG36KMTA
Cooling
Fan speed Airflow
HIGH
m3/h 1,330
l/s 369
CFM 783
MED
m3/h 1,100
l/s 306
CFM 647
LOW
m3/h 920
l/s 256
CFM 542
QUIET
m3/h 720
l/s 200
CFM 424
Heating
Fan speed Airflow
HIGH
m3/h 1,330
l/s 369
CFM 783
MED
m3/h 1,100
l/s 306
CFM 647
LOW
m3/h 920
l/s 256
CFM 542
QUIET
m3/h 720
l/s 200
CFM 424
- 10 -
5-2. Airflow 5. Fan performance
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

6. Operation noise (sound pressure)
6-1. Noise level curve
¢Model: ASHG30KMTA
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-20
NC-15
NC-25
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-20
NC-15
NC-25
HIGH
QUIET
¢Model: ASHG36KMTA
Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-20
NC-15
NC-25
HIGH
QUIET
Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency, Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-20
NC-15
NC-25
HIGH
QUIET
- 11 -
6-1. Noise level curve 6. Operation noise (sound pressure)
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

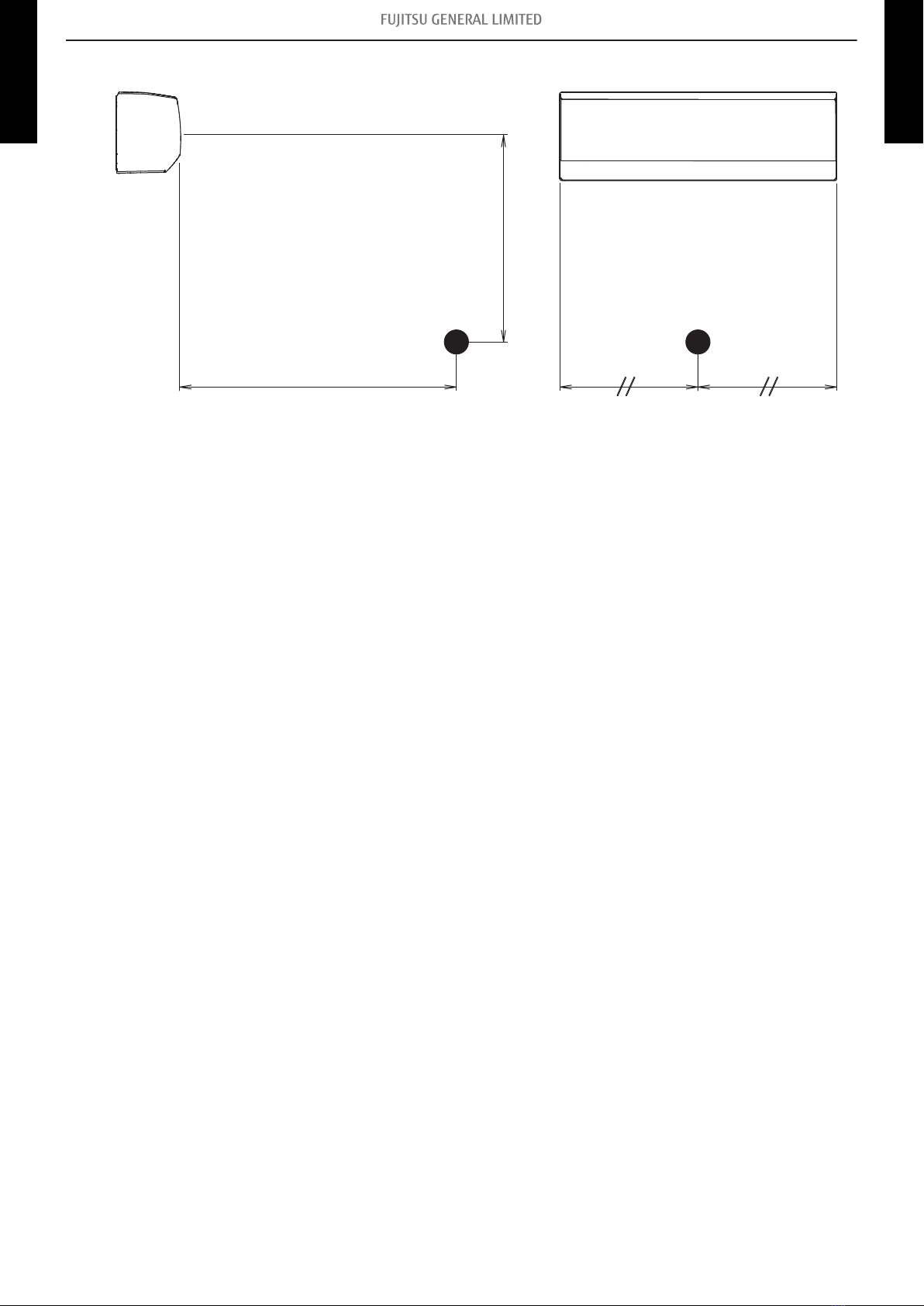

6-2. Sound level check point
0.8 m
1 m
Microphone Microphone
NOTE: Detailed shape of the actual indoor unit might be slightly different from the one illustrated
above.
- 12 -
6-2. Sound level check point 6. Operation noise (sound pressure)
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

7. Safety devices
Type of protection Protection form Model
ASHG30KMTA, ASHG36KMTA
Circuit protection Current fuse (PCB*) 250 V, 3.15 A
Fan motor protection
Thermistor protection
Activate 125±15 °C
Fan motor stop
Reset 100+25-20 °C
Fan motor restart
Power IC thermal shutdown
protection
Activate 150±15 °C
Fan motor stop
Reset Less than 135 °C
Fan motor restart
*PCB: Printed Circuit Board
- 13 - 7. Safety devices
WALL MOUNTED ASHG30-36KMTA
WALL MOUNTED ASHG30-36KMTA

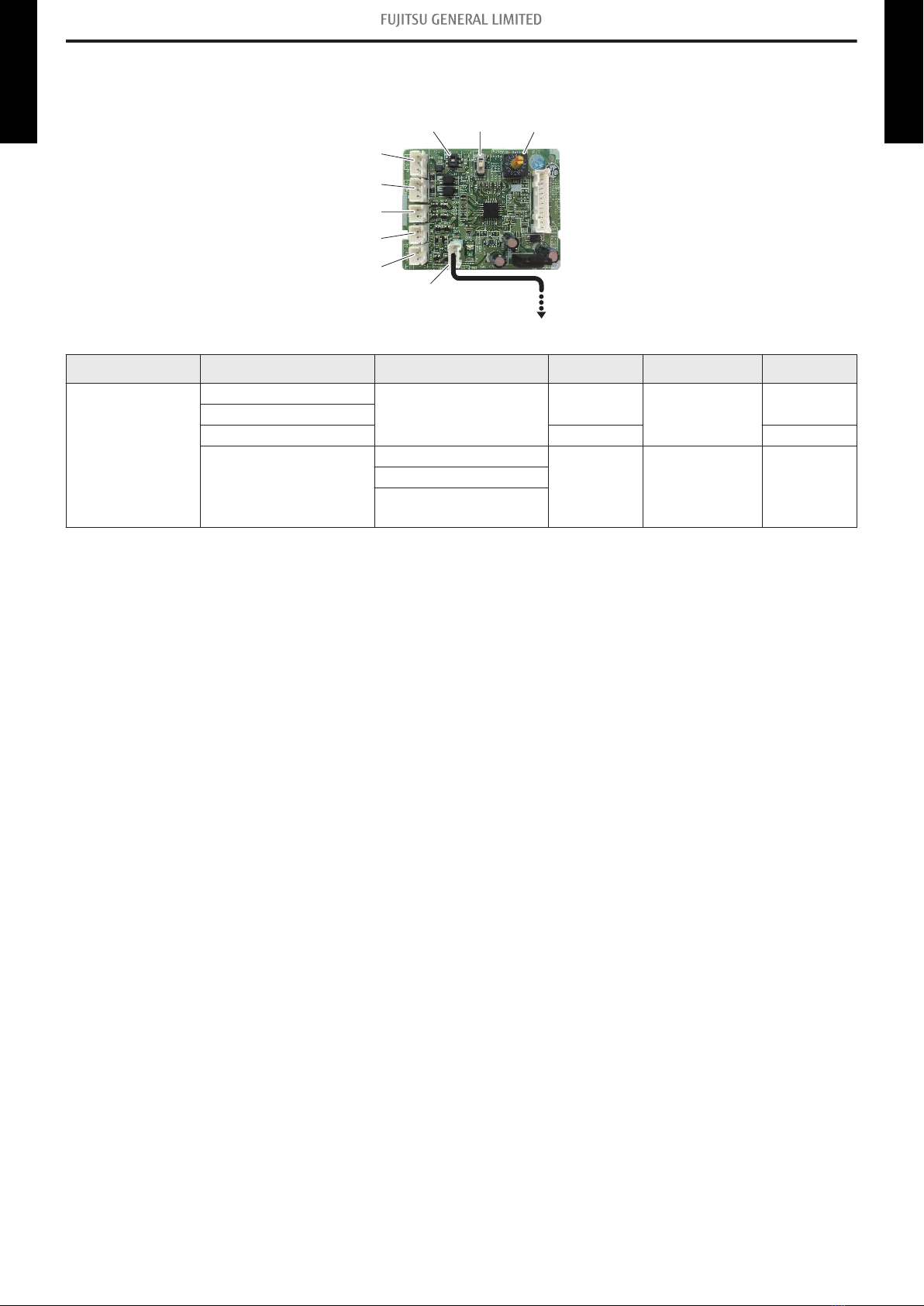

8. External input and output
CN314
CN313
CN312
CN311
CN310
Rotary switchSW302SW301
CN308
External input and output PCB
To CN6 on Indoor unit PCB
PCB External input External output Connector Input select Input signal
External input and
output
(UTY-XCSXZ2)
Operation/Stop
—
CN313/
CN314 Dry contact/
Apply voltage
Edge/Pulse
Forced stop
Forced thermostat off CN313 Edge
—
Operation status CN310
— —
Error status CN311
Indoor unit fan
operation status CN312
NOTE: External input and output PCB cannot be used with Wireless LAN adapter simultaneously.
- 14 - 8. External input and output
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

8-1. External input
With using external input function, some functions on this product can be controlled from an external
device.
• “Operation/Stop” mode or "Forced stop" mode can be selected with function setting of indoor unit.
• A twisted pair cable should be used. Maximum length of cable is 150 m.
• The wire connection should be separate from the power cable line.
¢External input and output PCB
The indoor unit Operation/Stop can be set by using the input connector on the PCB.
•Input select:
Use either one of these types of connectors according to the application. (Both types of connec-
tors cannot be used simultaneously.)
– Dry contact
In case of internal power supply, set the slide switch of SW301 to "NON VOL" side.
1
2
3
Input 1
PCB
Connected unit
*+
-
1
2
3
Input 2
*+
-
Connector
(CN313)
Connector
(CN314)
*1: The switches can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
– Apply voltage
In case of external power supply, set the slide switch of SW301 to "VOL" side.
1
2
3
Input 1 Power supply
PCB
Connected unit
***2 +-
1
2
3
Input 2
Connector
(CN313)
Connector
(CN314)
*1: The switches can be used on the following condition: DC 12 V to 24 V, 1 mA to 15 mA.
*2: Make the power supply DC 12 to 24 V, 10 mA or more.
- 15 -
8-1. External input 8. External input and output
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA

8-2. External output
Use an external output cable with appropriate external dimension, depending on the number of ca-
bles to be installed.
¢External input and output PCB
• A twisted pair cable (22AWG) should be used. Maximum length of cable is 25 m.
• Output voltage: High DC 12 V±2 V, Low 0 V.
• Permissible current: 50 mA
• For details, refer to "Combination of external input and output" on page 17.
•When indicator or other components are connected directly:
Example: Rotary SW on External input and output PCB is set to “1”.
1
2
Connector
(CN310)
LED 1
(Operation status)
PCB
Resistor
Connected unit
+
-
1
2
Connector
(CN311)
LED 2
(Error status)
Resistor +
-
1
2
Connector
(CN312)
LED 3
(Indoor unit fan
operation status)
Resistor +
-
•When connecting with a device equipped with a power supply:
Example: Rotary SW on External input and output PCB is set to “1”.
1
2
Connected device 1 Connector
(CN310)
PCBConnected unit Relay
(Operation status) -
+
1
2
Connected device 2 Connector
(CN311)
(Error status) -
+
1
2
Connected device 3 Connector
(CN312)
(Indoor unit fan
operation status) -
+
- 16 -
8-2. External output 8. External input and output
WALL MOUNTED ASHG30-36KMTA WALL MOUNTED ASHG30-36KMTA
