FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS



FI-7600/FI-7700 CONSUMABLE REPLACEMENT
AND CLEANING INSTRUCTIONS















FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

Consumables and Replacement Cycles
The following table shows the consumables used for the scanner.


Consumables need to be replaced
periodically. It is recommended that you
keep a stock of new consumables for
replacement before it reaches the end of its
life. The scanner records the number of
sheets scanned after replacing the
consumables, which allows you to check the
status of the consumables.
Note that the suggested replacement cycles
are references for using A4 (80 g/m2(20 lb)
wood-free or wood-containing paper, as
these cycles vary depending on the type of
documents scanned and how often the
scanner is used and cleaned.
HINT
Only use the specified consumables.
To purchase the consumables, contact your
FUJITSU scanner dealer or an authorized
FUJITSU scanner service provider.



FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501



ReplacingtheBrakeRoller 
ReplacetheBrakeRollerinthefollowing
procedure.
1. Turnoffthescannerandwaitforatleast
15minutes.
2. Unplugthepowercable
3. RemovealldocumentsfromtheADFpaper
chute(feeder)
4. OpentheADFcover

6 .Removethebrakeroller
Lifttheleftsideoftherollerinthe
directionofthearrow1first,thenpull
outtheshaftfromtheslotontheright
inthedirectionofthearrow2
7 .Removethebrakerollerfromits shaft .

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

8 .Attachanewbrakerollerontheshaft.
Inserttheprotrusionontheshaftintotheslot.


9 .Attachtheshaft.
Inserttherightendoftheshaftintotheholeinaccordancewiththeholeshapeinthe
directionofthearrow1,andthenattachtheleftsideoftheshaftinthedirectionofthearrow
2.





FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

10 .Closethecover
11 .ClosetheADF.

12 .Pluginthepowercableandturnonthescanner.
13 .Resetthebrakerollercounter
Resetthebrakerollercounterbyperformingoneofthefollowingactions:
Resetthecounterin[4:ConsumableCounters]onthe[SettingsMenu]screenofthe
OperatorPanel.
ResetthecounterintheSoftwareOperationPanel.*
*Fordetails,refertotheOperatorsGuide 

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501


ReplacingthePickRoller
ReplacethePickRollerinthefollowing
procedure.

1. Turnoffthescannerandwaitforat
least15minutes.
2. Unplugthepowercable.
3. RemovealldocumentsfromtheADF
paperchute(feeder)
4. OpentheADF


5 .Openthesheetguide.
Slidethesideguidesallthewayoutbypressing
thesideguidebuttons,andpullthesheetguide
openfromthedip.



FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

6 .Removethepickrollerclosertoyou.
a.Rotatethebushing(x2)ontheshaftinthe
directionofthearrow.
b.Slidethebushing(x2)ontheshaftinthe
directionofthearrow.

c.Removethepickroller.

7 .Removetheshaftofthepickroller
awayfromyou.
a.Rotatethebushingontheshaftin
thedirectionofthearrow.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

b.Liftupthebushingindirection1(about5mm),andslidetheshaftindirection2topull
outtheleadingendfromtheslot,thenlifttheshaftindirection3toremoveit.


8 .Removethepickrollers(x2)fromtheshaftoneatatime.
a.Pulloutthepickrollerfromtheshaftasyoulifttheretainingclip.

b.Pullouttheotherpickrollerfromtheshaftasyoulifttheretainingclip.


FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501
TheSoftwareOperationPanelisinstalledtogetherwiththePaperStreamIPdriver.
Thisapplicationallowsyoutoconfigurevarioussettingssuchastheoperationofthescanner
andmanagementoftheconsumables.

1. Confirmthatthescannerisconnectedtothecomputer,thenturnonthescanner.
2. Displaythe[SoftwareOperationPanel]Window

*WindowsVista/Windows7/WindowsServer2008
Click[Start]menu[AllPrograms][SPSeries][SoftwareOperationPanel].

*WindowsServer2012/Windows8
Right‐clicktheStartscreen,andselect[SoftwareOperationPanel]under[SPSeries]

*Windows2012R2/Windows8.1
Click[]onthelowerleftsideofthestartscreenandselect[SoftwareOperationPanel]
under[SPSeries]

*Windows10
Click[Start]menu [AllApps][SPSeries][SoftwareOperationPanel].





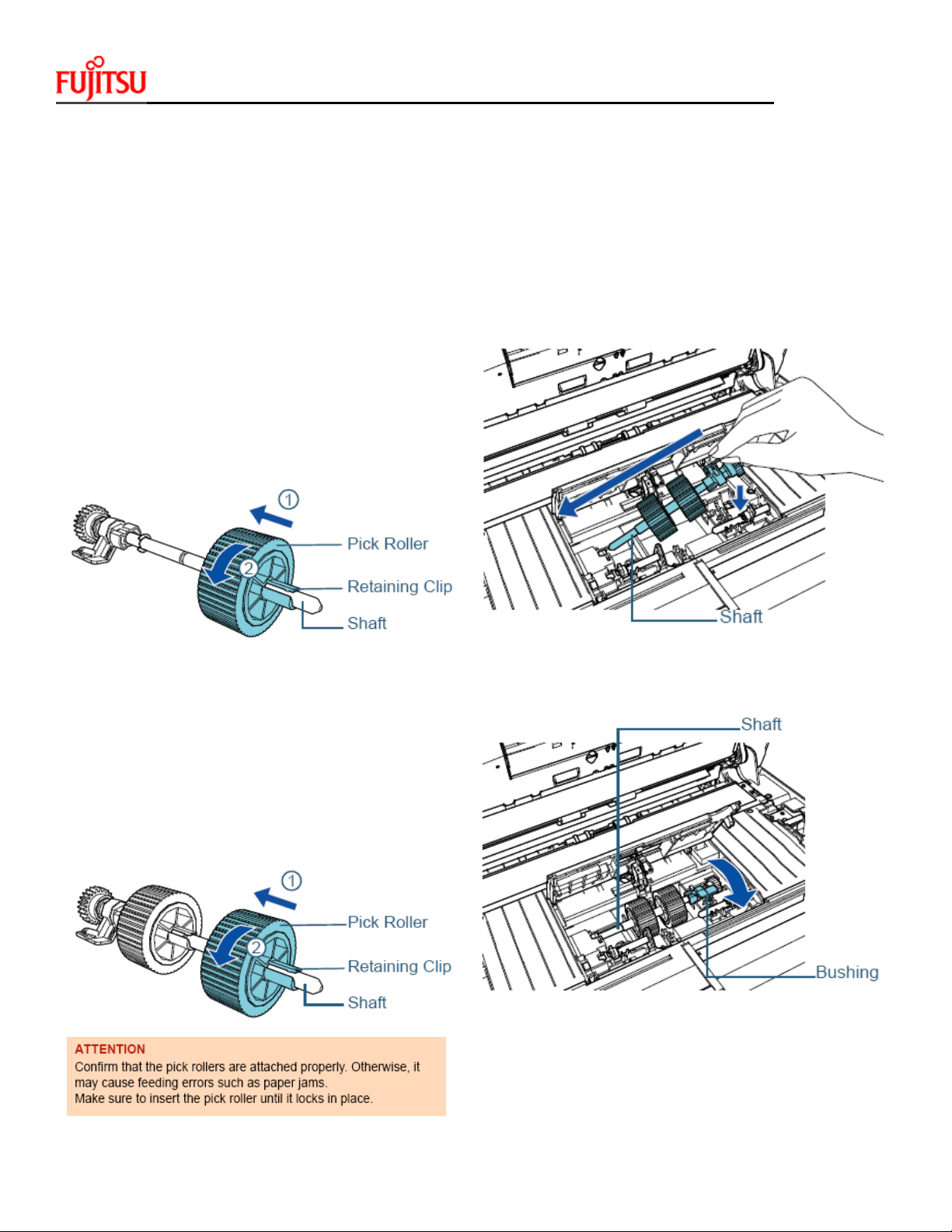

9 .Attachnewpickrollers(x2)ontheshaft,
oneatatime.
a.Holdthebushingoftheshaftinonehand
andthepickrollerwiththeretainingclip
facingtowardyouintheotherhand,and
thenputthepickrollerontheshaftinthe
directionofthearrow1.Ifyourotatethe
pickrollerinthedirectionofthearrow2,
youcanputitontheshaftmoreeasily.

b.Holdthebushingoftheshaftinonehand
andtheotherpickrollerwiththeretaining
clipfacingtowardsyouintheotherhand,
andthenputthepickrollerontheshaftin
thedirectionofthearrow1.Ifyourotate
thepickrollerinthedirectionofthearrow2
,youcanputitontheshaftmoreeasily.


10 .Installtheshaftofthepickrollerinthe
sideawayfromyou.
a.Inserttheleftendoftheshaftintothe
slot,andlowertheotherendgradually.
b.Rotatethebushingontheshaftinthe
directionofthearrow.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501

11 .Installthenewpickrollerintheside
closertoyou.
a.Inserttheprotrusion(x2)onthe
scannerintothehole(x2)onthepick
roller.

b.Slidethebushingontheleftshaftin
thedirectionofthearrow.
c.Fittheprotrusionontherightshaftinto
thenotchonthepickrollerandslidethe
bushingontherightshaftinthedirectionof
thearrow.

d.Rotatethebushing(x2)ontheshaftinthe
directionofthearrow.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501





12 .Closethesheetguide.
Makesurethatbothendsofthesheetguidearelockedfirmly.

13 .ClosetheADF.

14 .Pluginthepowercableandturnonthescanner.
15 .Resetthepickrollercounter.
Resetthepickrollercounterbyperformingoneofthefollowingactions:
Resetthecounterin[4:ConsumableCounters]onthe[SettingsMenu]screen
oftheOperatorPanel.
ResetthecounterintheSoftwareOperationPanel.*
*Fordetails,refertotheOperatorsGuide 

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501


Checkin
g
andresettin
g
sheetcounters
Checkingthesheetcounters
Thestatusofeachconsumablecanbe
viewedtodeterminewhentoreplaceor
cleantheconsumables.
Thecolorofthecountergraduallychanges
whenareplacementforaconsumableis
neededorwhencleaningisneeded.
Thecolorofeachcounterchangesas
follows:
 Brake roller counter/pick roller counter
These counters turn light yellow when the sheet
count after the consumable replacement reaches
95% of the value specified in
"Replacement Cycle of Consumables
[Life Counter Alarm Setting]"
in the Software Operation Panel, and turn yellow
when the sheet count reaches 100%
.

Counter after cleaning
This counter turns yellow when the sheet count
after cleaning reaches the value specified in
"Scanner Cleaning Cycle [Cleaning Cycle]" in the
Software Operation Panel.

Ink counter
This counter turns yellow when the amount of
remaining ink reaches below 33% (only displayed
when the imprinter is installed).



1. StartuptheSoftwareOperationPanel
2. Fromthelistingontheleft,select
[DeviceSetting]

Inthiswindow,youcancheckthefollowing
items:



FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501


Resettingthesheetcounters
Whenyouhavereplacedorcleanedaconsumablepart,resetthecorrespondingcounterby
usingthefollowingprocedure:
1. Ifyouhavereplacedaconsumable,clickthe[Clear]buttonoftheconsumablethat
youreplaced.Ifyouperformedcleaning,clickthe[Clear]buttonfor[Aftercleaning].


Thecounterisresetto0
FortheInkcounter,thevaluewillbesetto100
2. Clickthe[OK]button.
Aconfirmationmessageappears.
3. Clickthe[OK]button.
Thesettingsaresaved



FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501




CleaningMaterialsandLocationsthatRequireCleaning
CleaningMaterials
Attention
Inordertousethecleaningmaterialssafely
andcorrectly,readtheprecautionsoneach
productthoroughly.
Formoreinformationaboutthe
cleaningmaterials,contactyour
FUJITSUscannerdealeroran
authorizedFujitsuscannerservice
provider.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501
LocationandFrequency
Attention
Cleaningcyclesmayvarydependingontheconditionofthedocuments.Also,cleaningmust
beperformedmorefrequentlywhenthefollowingtypesofdocumentsarescanned:
•Smooth–faceddocumentssuchascoatedpaper
•Documentswithprintedtext/graphicsthatalmostcovertheentiresurface
•Documentscontainingalargeamountofcalciumcarbonate
•Documentswritteninleadpencil
•Documentsonwhichthetonerisnotsufficientlyfused

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501






CleaningtheOutside
Theoutsideofthescanner,includingthe ADF paperchute(feeder)andthestacker,shouldbe
cleanedwitheitherapieceofdrycloth,aclothmoistenedwithCleanerF1/milddetergent,ora
sheetofCleaningWipe.
Attention
Toavoiddeformationanddiscoloration,neverusepaintthinneroranyotherorganicsolvents.
Becarefulnottoletmoistureorwaterinsidethescannerduringcleaning.
ItmaytakealongtimetodryifanexcessiveamountofCleanerF1/milddetergentisused.
Useitinsmallquantity.Wipeoffthecleanercompletelytoleavenoresidueonthecleaned
parts.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501
 
CleaningtheInside
CleaningtheADF(withCleaningPaper)
TheADFcanbecleanedwithasheetofCleaningPapermoistenedwithCleanerF1.
Asthescannercontinuestofeedthedocuments,paperdustwillaccumulateinsidetheADF
andmaycausescanningerrors.
Cleaningshouldbeperformedapproximatelyevery10,000sheetsscanned.Notethatthis
guidelinevariesdependingonthetypesofdocumentsyouscanForinstance,itmaybe
necessarytocleanthescannermorefrequentlywhenyouscandocumentsonwhichthetoner
isnotsufficientlyfused.
Attention
•DonotusewaterormilddetergenttocleantheADF.
•ItmaytakealongtimetodryifanexcessiveamountofCleanerF1isused.Useitin
smallquantity.
1. Turnonthescanner.
The[ready]screenisdisplayedontheLCD.
2. Pressthe[Menu]button.
The[SettingsMenu]screenisdisplayedontheLCD.
3. Pressthe[]or[]buttonandselect[2:Cleaning],thenpressthe[Scan/Enter]button
toconfirm.
The[Cleaning]screenisdisplayedontheLCD.
4. Select[1:CleaningPaper]bythe[]or[]button,andpressthe[Scan/Enter]button
toconfirm.
AmessageisdisplayedontheLCD.



FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501






5 .SpraythecleaningpaperwithCleanerF1. 
6 .Pulloutthechuteextensionaccordingtothelengthofthecleaningpaper.
7 .Pulloutthestackerextensionandliftupthestopperaccordingtothelengthofthe
cleaningpaper.
8 .LoadthecleaningpaperintheADFpaperchute(Feeder).

9 .Adjustthesideguidestothewidthofthecleaningpaper.
Movethesideguidesbypressingthesideguidebuttonssothatthereisnospacebetween
thesideguidesandthecleaningpaper.
Otherwisethecleaningpapermaybefedskewed.

10 .Pressthe[Scan/Enter]button.
Thecleaningpaperisfedandejectedontothestacker.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501




CleaningtheADF(withcloth)
TheADFcanbecleanedwithapieceofclothmoistenedwithCleanerF1,orasheetof
CleaningWipe.
Asthescannercontinuestofeedthedocuments,paperdustwillaccumulateinsidetheADF
anditmaycausescanningerrors.
Cleaningshouldbeperformedapproximatelyevery10,000sheetsscanned.Notethatthis
guidelinevariesdependingonthetypesofdocumentsyouscan.Forinstance,itmaybe
necessarytocleanthescannermorefrequentlywhenyouscandocumentsonwhichthetoner
isnotsufficientlyfused.
Attention
•DonotusewaterormilddetergenttocleantheADF.
•ItmaytakealongtimetodryifanexcessiveamountofCleanerF1isused.Useitin
smallquantity.
1. Turnoffthescannerandwaitforatleast15minutes.
2. Unplugthepowercable.
3. OpentheADF.

FI‐7600/FI‐7700 C ONSUMABLE R EPLACEMENTAND C LEANING I NSTRUCTIONS


CG00002‐296501


4 .CleanthefollowinglocationswithaclothmoistenedwithCleanerF1orasheetofCleaning
Wi
pe
.
