FUJITSU Storage
ETERNUS DX
Configuration Guide -Server Connection-
(SAS) for Windows®
P3AM-3442-18ENZ0

This page is intentionally left blank.

Preface
This manual briefly explains the operations that need to be performed by the user in order to connect an
ETERNUS DX to a server running Windows® via a SAS interface.
This manual should be used in conjunction with any other applicable user manuals, such as those for the
ETERNUS DX, server, OS, SAS cards, and drivers.
Refer to "Configuration Guide -Server Connection- Notations" for the notations used in this manual such as
product trademarks and product names. For storage systems that are supported by the OS, refer to the Server
Support Matrix of the ETERNUS DX.
18th Edition
April 2020
The Contents and Structure of this Manual
This manual is composed of the following 11 chapters.
•"Chapter 1 Workflow" (page 6)
This chapter describes the workflow required to connect a server running Windows® to an ETERNUS DX.
•"Chapter 2 Checking the Server Environment" (page 8)
This chapter describes which servers can be connected to ETERNUS DX storage systems.
•"Chapter 3 Notes" (page 9)
This chapter describes issues that should be noted when connecting the ETERNUS DX storage systems and
server.
•"Chapter 4 Setting Up the ETERNUS DX" (page 17)
This chapter describes how to set up the ETERNUS DX storage systems using the ETERNUS Web GUI.
•"Chapter 5 Setting Up the SAS Switches" (page 18)
This chapter describes how to set up the SAS switches.
•"Chapter 6 Installing the OS" (page 20)
This chapter describes how to install an OS when it is not installed on a server.
•"Chapter 7 Installing the Drivers" (page 21)
This chapter describes how to install the SAS cards and drivers.
•"Chapter 8 Checking the Registry Information" (page 25)
This chapter describes how to check the registry information.
•"Chapter 9 Checking the Connected Devices" (page 26)
This chapter describes how to check the connection status between the server and ETERNUS DX.
•"Chapter 10 Creating the Disk Partitions" (page 28)
This chapter describes how to create disk partitions.
•"Chapter 11 Setting Up the Cluster Configuration" (page 29)
This chapter describes issues that should be noted when building a cluster system.
3
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Table of Contents
Chapter 1 Workflow 6
Chapter 2 Checking the Server Environment 8
2.1 Hardware ....................................................................................................................................... 8
2.2 Operating System (OS)................................................................................................................... 8
2.3 SAS Cards........................................................................................................................................ 8
Chapter 3 Notes 9
3.1 Connection Notes for PRIMERGY ..................................................................................................... 9
3.2 Connection Notes for Other Companies' Industry Standard Servers................................................. 9
3.3 SAS Card Driver Notes................................................................................................................... 10
3.4 Notes about Driver for ETERNUS DX Storage Systems ................................................................... 10
3.5 MSCS and WSFC Notes .................................................................................................................. 10
3.6 ETERNUS VDS Hardware Provider Notes........................................................................................ 11
3.7 Notes about Standard Multipath Driver (msdsm) for Windows Server®........................................ 11
3.8 Server Startup Notes..................................................................................................................... 11
3.9 System Design Sheet Notes.......................................................................................................... 11
3.10 Notes about Connections with a Windows Server®...................................................................... 12
3.11 Notes for Formatting a LUN of the ETERNUS DX from a Windows Server®................................... 16
Chapter 4 Setting Up the ETERNUS DX 17
Chapter 5 Setting Up the SAS Switches 18
Chapter 6 Installing the OS 20
Chapter 7 Installing the Drivers 21
7.1 SAS Card Driver Installation and Settings...................................................................................... 21
7.1.1 For PRIMERGY .....................................................................................................................................................21
7.1.2 Other Companies' Industry Standard Servers.......................................................................................................21
7.2 Multipath Environment Configuration.......................................................................................... 21
4
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

7.2.1 ETERNUS Multipath Driver...................................................................................................................................21
7.2.2 Standard Multipath Driver (msdsm) for Windows Server®...................................................................................22
7.3 Single-Path Environment Configuration ....................................................................................... 24
Chapter 8 Checking the Registry Information 25
Chapter 9 Checking the Connected Devices 26
9.1 Turning On the Devices ................................................................................................................ 26
9.2 Checking the LUNs ....................................................................................................................... 26
9.3 Checking the ETERNUS DX Storage Systems' Connection Status.................................................... 27
Chapter 10 Creating the Disk Partitions 28
Chapter 11 Setting Up the Cluster Configuration 29
Table of Contents
5
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 1
Workflow
This chapter describes how to connect the ETERNUS DX storage systems to a server. The workflow is shown
below.
Required Documents
•"Server Support Matrix"
•"Configuration Guide -Server Connection- Storage System Settings" that corresponds to the ETERNUS DX to
be connected
•"ETERNUS Web GUI User's Guide"
Workflow
Setting Up the ETERNUS DX
Set up the ETERNUS DX using ETERNUS Web GUI.
•"Chapter 4 Setting Up the ETERNUS DX" (page 17)
•Checking the setup and maintenance operations
-"ETERNUS Web GUI User's Guide"
•Setting up the ETERNUS DX
-"Configuration Guide -Server Connection- Storage System Settings" that corresponds to the
ETERNUS DX to be connected
Setting Up the SAS Switches
Set up the SAS switch.
•"Chapter 5 Setting Up the SAS Switches" (page 18)
6
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Installing the Driver
Install the appropriate driver for the SAS card and Multipath Driver to be used.
•Installing and setting up the card and driver
-"Chapter 7 Installing the Drivers" (page 21)
•Checking the SAS card driver versions
-"Server Support Matrix"
Checking the Connected Devices
Check the ETERNUS DX LUNs and status of the connection to the server.
•"Chapter 9 Checking the Connected Devices" (page 26)
Preparing for Operation
Create disk partitions and set up the cluster configuration as necessary.
•"Chapter 10 Creating the Disk Partitions" (page 28)
•"Chapter 11 Setting Up the Cluster Configuration" (page 29)
Chapter 1 Workflow
7
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 2
Checking the Server Environment
Connection to servers is possible in the following environments.
Check the "Server Support Matrix" for server environment conditions.
2.1 Hardware
Refer to the "Server Support Matrix".
2.2 Operating System (OS)
Refer to the "Server Support Matrix".
2.3 SAS Cards
Refer to the "Server Support Matrix".
8
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 3
Notes
Note the following issues when connecting the ETERNUS DX to a server.
3.1 Connection Notes for PRIMERGY
•To ensure reliable access to the storage systems, the following methods are recommended:
-Connection via multiple paths
-Use of multipath drivers which support path redundancy control
Configure a multipath environment and select a multipath driver that supports path redundancy control
to increase redundancy and reliability of the connection between the ETERNUS DX storage systems and
the server.
•LUN recognition by the Windows® plug and play function cannot be guaranteed.
•The following cluster configuration is supported for Windows®:
-WSFC (Windows Server Failover Cluster) configuration
-MSCS (Microsoft Cluster Service) configuration
For details on servers which support cluster configuration, consult your FUJITSU sales representative.
3.2 Connection Notes for Other Companies' Industry Standard
Servers
•To build a cluster configuration for Windows®, use Microsoft Cluster Service (MSCS), Windows Server Fail-
over Cluster (WSFC), and MSCS- and WSFC-compatible applications. This cluster configuration must also use
only one type of SAS card. Operation cannot be guaranteed if the cluster is configured using multiple types
of SAS cards.
•LUN recognition by the Windows® plug and play function cannot be guaranteed.
•To ensure reliable access to the storage systems, the following methods are recommended:
-Connection via multiple paths
-Use of drivers for ETERNUS DX storage systems which support path redundancy control
Configure a multipath environment and select a driver for ETERNUS DX storage systems that supports
path redundancy control to increase redundancy and reliability of the connection between the ETERNUS
DX storage systems and the server.
9
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

3.3 SAS Card Driver Notes
•When the same type of chip is used for both the SAS card and the server's onboard RAID or RAID card, the
driver installed for the SAS card may also control the onboard RAID or RAID card.
Contact the server vendor for details of how each onboard RAID or RAID card is affected by the SAS card
driver.
•The ETERNUS Multipath Driver supports path redundancy control (path fail-over).
For product information, refer to the following URL:
http://www.fujitsu.com/global/products/computing/storage/software/eternus-mpd/
3.4 Notes about Driver for ETERNUS DX Storage Systems
When connecting the server to the ETERNUS DX with multipath configuration, using the path redundancy
control (path fail-over) function with a driver for ETERNUS DX storage systems, one of the following drivers is
required by the server:
OS Driver
Windows Server® 2019
Windows Server® 2016
Windows Server® 2012 R2
Windows Server® 2012
Windows Server® 2008 R2
Windows Server® 2008
ETERNUS Multipath Driver
For product information, refer to the following URL:
http://www.fujitsu.com/global/products/computing/storage/software/eternus-mpd/
Even when single-path connection is used between the ETERNUS DX and server, an ETERNUS DX compatible
driver (ETERNUS device driver) is not required.
3.5 MSCS and WSFC Notes
•To use MSCS or WSFC configuration, install either the driver for ETERNUS DX storage systems or the stand-
ard multipath driver (msdsm) for Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2,
Windows Server® 2012, Windows Server® 2008 R2 or Windows Server® 2008 on each node (server), and
then check the connections before MSCS or WSFC installation.
•Check the registry values by following the instructions in "Chapter 8 Checking the Registry Information"
(page 25), after installing MSCS or WSFC.
•When setting up the MSCS, a reset group must be set for the ETERNUS DX. A reset group does not need to
be set for WSFC.
Chapter 3 Notes
3.3 SAS Card Driver Notes
10
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

3.6 ETERNUS VDS Hardware Provider Notes
ETERNUS VDS Hardware Provider is provided for the ETERNUS DX storage systems. The storage management
tool for Windows Server® 2008 R2 or Windows Server® 2008 (Storage Manager for SANs) may be used for vol-
ume creation and host affinity settings after installing this software.
ETERNUS VDS Hardware Provider can be downloaded from the following site. Refer to the ETERNUS VDS Hard-
ware Provider product manual for usage details.
http://www.fujitsu.com/global/support/products/computing/storage/download/vdshp.html
3.7 Notes about Standard Multipath Driver (msdsm) for Win-
dows Server®
Various settings, such as the load balance policy and retry count, can be adjusted by using the standard mul-
tipath drivers (msdsm) for Windows Server® 2019, Windows Server® 2016, Windows Server® 2012 R2, Win-
dows Server® 2012, Windows Server® 2008 R2 or Windows Server® 2008. However the following settings
should not be changed from their default values.
Screen name Parameters that may not be changed
MPIO tab of Multi-Path Disk Device properties Load balance policy, [Details] button, [Edit] button
Details of DSM Timer counter (path checking period, enable path checking,
number of retires, retry interval, PDO deletion period)
Details of MPIO paths Path status
3.8 Server Startup Notes
Before turning the server on, check that the ETERNUS DX storage systems are all "Ready". If the server is
turned on and they are not "Ready", the server will not be able to recognize the ETERNUS DX storage systems.
Also, when the ETERNUS DX power supply is being controlled by a UPS power supply linkage, make sure that
the ETERNUS DX is never turned off before the connected servers. If turned off, data writes from the running
server cannot be saved to the ETERNUS DX storage systems, and already saved data may also be affected.
3.9 System Design Sheet Notes
The system design sheet is a spreadsheet program work sheet that is used to simplify the process of instal-
ling the ETERNUS DX. It is important that the system details be recorded after first installing the system and
also each time the system is subsequently modified, expanded, or has maintenance work performed on it.
Creating a system design sheet makes installation and maintenance of the system easy.
Chapter 3 Notes
3.6 ETERNUS VDS Hardware Provider Notes
11
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

3.10 Notes about Connections with a Windows Server®
When Windows Server® and the ETERNUS DX S4/S3 series are connected and Windows Server® is rebooted
after a firmware is applied to the ETERNUS DX S4/S3 series, the status of the disks on Windows Server® may
become offline.
The status of the disks on Windows Server® can be checked with the following procedure.
Click the [Start] button, select [Computer Management] under [Administrative Tools] and then select [Man-
age Discs] (or [Disk Management]) in the left pane.
Note that the occurrence condition and the workaround differ depending on the path configuration of Win-
dows Server®.
For single-path configurations, change the SAN Policy setting before a firmware is applied to prevent the disk
from becoming offline after the firmware is applied.
For multi-path configurations, there is no workaround. The procedure in "● Measure to take after a problem
occurs" (page 15) must be performed to recover from the offline status.
■Single-path configuration
The offline status can be avoided only when updating the firmware by changing the SAN Policy setting to
"Online All".
If operations are possible with the SAN Policy setting set to "Online All", Step 4 in "● Method for proactively
preventing occurrences" (page 13) is not required.
●Checking the SAN Policy setting
The following shows how to check the SAN Policy setting.
1Execute the "diskpart" command in the command prompt.
The prompt changes to DISKPART.
2Enter "san" and press the [Enter] key.
DISKPART> san
3One of the following SAN Policies appears.
•"Offline Shared"
•"Offline All"
•"Online All"
4Enter "exit" and press the [Enter] key to complete the "diskpart" command.
Chapter 3 Notes
3.10 Notes about Connections with a Windows Server®
12
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

●Method for proactively preventing occurrences
Change the SAN Policy setting by performing the following procedure and then update the firmware.
1Change the SAN Policy setting.
(1) Execute the "diskpart" command in the command prompt.
The prompt changes to DISKPART.
(2) Enter "san policy=onlineall" and press the [Enter] key.
Example:
DISKPART> san policy=onlineall
(3) To apply the SAN Policy setting, reboot Windows Server®.
2Execute the "diskpart" command again in the command prompt and confirm that "Online All" is speci-
fied for the SAN Policy setting.
Example:
DISKPART> san
SANPolicy : Online All
3Update the firmware.
(1) Update the firmware of the ETERNUS DX.
(2) To get OS to recognize the new instance ID, reboot Windows Server®.
4Revert the SAN Policy setting to the previous value.
(1) Execute the following command to revert the SAN Policy setting.
Example:
DISKPART> san policy=Offline Shared
(2) To apply the SAN Policy setting, reboot Windows Server®.
(3) Execute the "diskpart" command again in the command prompt and confirm that the previous val-
ue is specified for the SAN Policy setting.
Example:
DISKPART> san
SANPolicy : Offline Shared
Chapter 3 Notes
3.10 Notes about Connections with a Windows Server®
13
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

●Measure to take after a problem occurs
Manually change the offline disks to online with the following procedure.
1Click the [Start] button, select [Computer Management] under [Administrative Tools] and then select
[Manage Discs] (or [Disk Management]) in the left pane.
2Select each offline disk, then right-click the selected disk to change the status to online.
If a firmware update of the ETERNUS DX is performed in a Hyper-V environment where a pass-through disk is
configured for the guest OS, the disk is recognized as a new disk and the pass-through disk is removed from
the physical hard disk. Therefore, the pass-through disk must be manually reconfigured to be restored.
The procedure for restoring (or reconfiguring) the disk is as follows:
1Start "Hyper-V Manager".
2Select the offline guest OS and click [Settings] in the right pane.
The settings pop-up for the guest OS appears.
3In the settings pop-up under [SCSI Controller], select the hard drive that has the message "Physical
drive not found".
4Select the appropriate disk for the [Physical hard disk] area in the right side of the window.
5Click the [OK] button.
●SAN Policy supported OSs
•Windows Server® 2019
•Windows Server® 2016
•Windows Server® 2012 R2
•Windows Server® 2012
•Windows Server® 2008 R2
•Windows Server® 2008
●SAN Policy default value
OS SAN Policy default value
Windows Server® 2019 (all editions) Offline Shared
Windows Server® 2016 (all editions)
Windows Server® 2012 R2 (all editions)
Windows Server® 2012 (all editions)
Windows Server® 2008 R2 Datacenter
Windows Server® 2008 R2 Enterprise
Windows Server® 2008 Datacenter
Windows Server® 2008 Enterprise
Chapter 3 Notes
3.10 Notes about Connections with a Windows Server®
14
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

OS SAN Policy default value
Windows Server® 2008 R2 Standard Online All
Windows Server® 2008 Standard
■Multipath configuration
The server starts up with the same disk status (online or offline) as when the multipathing was set up re-
gardless of the SAN Policy setting.
•When the multipathing of an online disk is set up during the configuration of the environment
The multipath disk starts up in the online status after the firmware is updated.
•When the multipathing of an offline disk is set up during the configuration of the environment
The multipath disk starts up in the offline status after the firmware is updated.
●Method for proactively preventing occurrences
For multi-path configurations, there are no proactive measures (such as a setting change) to prevent the disk
from becoming offline after the environment is configured. In addition, the disk status when multipathing
was set up cannot be checked after the environment is configured.
Perform the procedure in "● Measure to take after a problem occurs" (page 15) if the disk becomes offline
while the firmware is updated.
●Measure to take after a problem occurs
•When the OS can be started up
Manually change the offline disks to online by following the procedure below.
1Click the [Start] button, select [Computer Management] under [Administrative Tools] and then select
[Manage Discs] (or [Disk Management]) in the left pane.
2Select each offline disk, then right-click the selected disk to change the status to online.
•When the OS cannot be started up
If the Active Directory database is located in a disk other than the OS area, the OS may not be able to start
up because the disk is offline and the OS cannot access the Active Directory database.
In this case, the disk can be recovered by starting the OS in the Directory Services Restore Mode and chang-
ing the disk status to online.
The procedure for restoring (or reconfiguring) the disk is as follows:
1Start the server.
2Press the [F8] key on the server start-up screen.
3The Advanced Boot Options screen appears.
4Select Directory Services Restore Mode.
5Log in as Administrator after the OS starts.
6Select [Computer Management] under [Administrative Tools] and then select [Manage Discs] (or
[Disk Management]) in the left pane.
7Select each offline disk, then right-click the selected disk to change the status to online.
Chapter 3 Notes
3.10 Notes about Connections with a Windows Server®
15
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

8Restart the OS.
If a firmware update of the ETERNUS DX is performed in a Hyper-V environment where a pass-through disk
is configured for the guest OS, the disk is recognized as a new disk and the pass-through disk is removed
from the physical hard disk. Therefore, the pass-through disk must be manually reconfigured to be re-
stored.
The procedure for restoring (or reconfiguring) the disk is as follows:
1Start "Hyper-V Manager".
2Select the offline guest OS and click [Settings] in the right pane.
The settings pop-up for the guest OS appears.
3In the settings pop-up under [SCSI Controller], select the hard drive that has the message "Physical
drive not found".
4Select the appropriate disk for the [Physical hard disk] area in the right side of the window.
5Click the [OK] button.
3.11 Notes for Formatting a LUN of the ETERNUS DX from a Win-
dows Server®
If a LUN of the ETERNUS DX is formatted from a Windows Server®, the following problems may occur.
•The formatting operation takes longer to complete.
•If the formatting operation is canceled, the canceled operation becomes unresponsive.
These are the problems caused by performance degradation due to the command being issued to release the
storage capacity for the entire formatting area.
Performance degradation can be prevented by executing the following command to change the parameter
value to stop the command from releasing the storage capacity of all the volumes.
# fsutil behavior set disabledeletenotify 1
After all formatting operations have been completed, execute the following command to re-enable the com-
mand that releases the storage capacity of all the volumes.
# fsutil behavior set disabledeletenotify 0
Chapter 3 Notes
3.11 Notes for Formatting a LUN of the ETERNUS DX from a Windows Server®
16
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 4
Setting Up the ETERNUS DX
Set up the ETERNUS DX storage systems using ETERNUS Web GUI.
ETERNUS DX setup can be performed independently of server setup. For details on how to perform these set-
tings, refer to the following manuals.
•"Configuration Guide -Server Connection- Storage System Settings" that corresponds to the ETERNUS DX to
be connected
•"ETERNUS Web GUI User's Guide"
17
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 5
Setting Up the SAS Switches
The following describes the required settings when connecting the server and the ETERNUS DX storage sys-
tems using a SAS switch. For details, refer to the SAS switch manual.

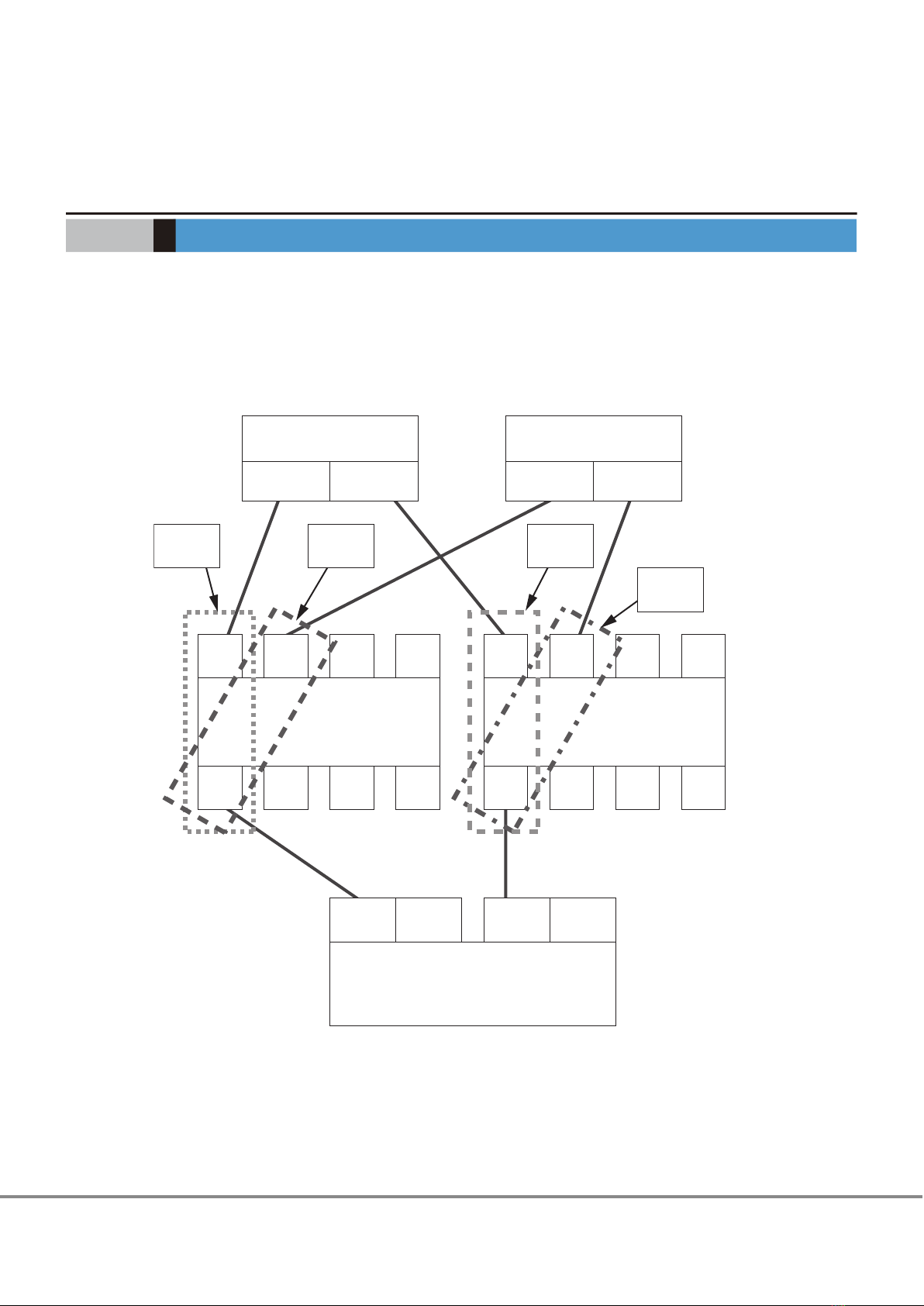

The following examples show configurations in which a server is connected to a SAS switch with zoning.
The following example shows a configuration in which multiple servers are connected to multiple CAs.
Port2Port0 Port6Port4
Port3Port1 Port7Port5
Port2Port0 Port6Port4
Port3Port1 Port7Port5
ZONE1 ZONE2 ZONE3
ZONE4
SAS switch SAS switch
Name : Server#2
Port0 Port1
Name : Server#1
Port0 Port1
CM0 CM1
Name : RAID#1
ETERNUS DX
Port0Port0 Port1Port1
18
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

The following example shows a configuration in which a single server is connected to multiple CAs.
Port2Port0 Port6Port4
Port3Port1 Port7Port5
Port2Port0 Port6Port4
Port3Port1 Port7Port5
CM0 CM1
ZONE1
ZONE2
ZONE3 ZONE4
ETERNUS DX
Server
SAS switch SAS switch
Port0
Port0Port0 Port1Port1
Port1
Chapter 5 Setting Up the SAS Switches
19
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0

Chapter 6
Installing the OS
Install the OS and Service Pack (SP) to the server if the OS has not yet been installed.
Check that the power for the ETERNUS DX storage systems are turned off before installing the OS. If the
power for the ETERNUS DX storage systems are turned on when installing the OS, the server recognizes the
ETERNUS DX storage systems and problems may occur.
20
FUJITSU Storage ETERNUS DX Configuration Guide -Server Connection- (SAS) for Windows®
Copyright 2020 FUJITSU LIMITED
P3AM-3442-18ENZ0
