Read Me First
Read Me First
FUJITSU Storage
ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library
The information in this document is subject to change without notice for improvement and functionality expansion of the LT20
S2/LT40 S2/LT60 S2.
The latest information about the LT20 S2/LT40 S2/LT60 S2 is available at the following website:
https://www.fujitsu.com/global/support/products/computing/storage/tape/
Fujitsu would like to thank you for purchasing our FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library (hereinafter
referred to as "LT20 S2/LT40 S2/LT60 S2").
Read this document and check the shipment package to confirm that no items are missing.
Refer to the LT20 S2/LT40 S2/LT60 S2 manuals that are listed in this document as necessary.
The company names and product names mentioned in this document are either registered trademarks or trademarks of their respective companies.
Read and understand the "Safety Precautions" before use.
"Safety Precautions"
LT20 S2/LT40 S2/LT60 S2 Manuals.................. 2
Package Contents.......................................... 3
Notes Regarding the Handling of
Tape Cartridges.............................................. 6
Related Constitutions .................................... 8
Table of Contents
P3AM-9452-06EN
Copyright 2019 FUJITSU LIMITED
*P 3A M-9452-0 6*
*P3AM-9452-06EN*
*P 3A M-9452-06EN*

2
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
Manual Title Manual Code Description
FUJITSU Storage ETERNUS LT20 S2 LTO Library
Installing, Starting Up and Maintaining
P3AM-5382 Describes the operations that must be performed by the
user in order to use each tape library.
FUJITSU Storage ETERNUS LT40 S2/LT60 S2 LTO
Library Installing, Starting Up and Maintaining
P3AM-5392
ETERNUS LT20 S2/LT40 S2/LT60 S2 User's Guide
-Monitoring Software Setup Procedure-
P3AM-5262 Describes how to configure SNMP for this library, how to
configure "ETERNUS SF Storage Cruiser", and how to confirm
SNMP trap sending with the LT20 S2/LT40 S2/LT60 S2.
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2
Tape Library User's Guide -Server Connection-
P3AM-5322 Describes the conditions, procedures, and operation
methods for installing the LT20 S2/LT40 S2/LT60 S2 in the
system.
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2
Tape Library Read Me First
P3AM-9452 Describes how the manuals are organized, package
contents, and the terms of use for the LT20 S2/LT40 S2/LT60
S2.
A manual booklet is also provided.
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2
Tape Library Safety Precautions
P3AM-9462 Describes the safety precautions that must be taken for the
LT20 S2/LT40 S2/LT60 S2. A manual booklet is also provided.
LT20 S2/LT40 S2/LT60 S2 Manuals
The manuals are available at the following website:
https://www.fujitsu.com/global/support/products/computing/storage/tape/manuals/

3
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN

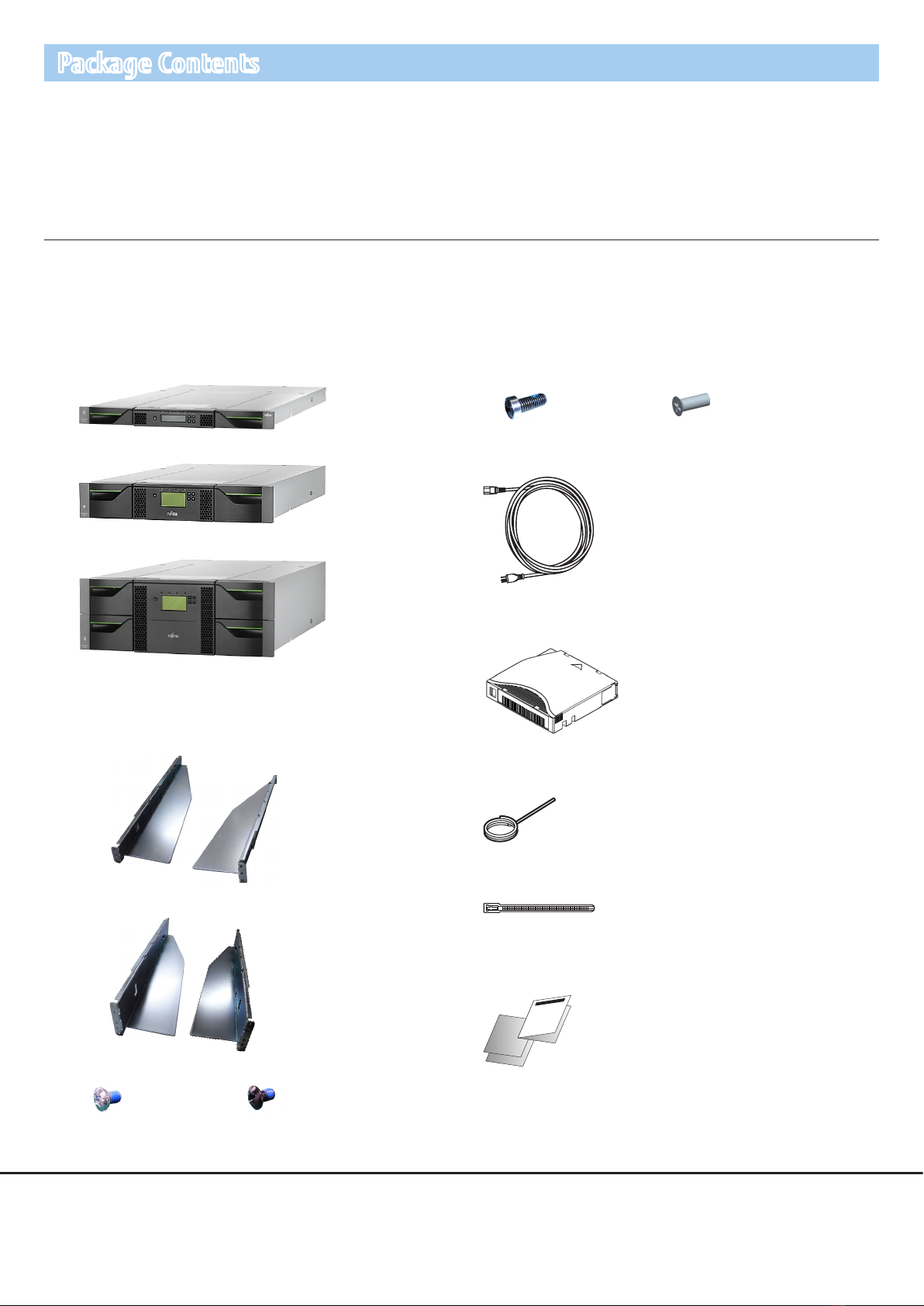

Package Contents
Check the contents in the package contents list to make sure that none of the contents for the purchased product are missing.
Put a check mark in the checkbox for each item confirmed.
If there is a missing item, contact your sales representative.
●Store the package contents in a safe and secure location, as they may be needed again when making changes to the system or
reinstalling the software.
●Note that the package may sometimes also contain an Errata sheet and/or other such unlisted documentation.
ETERNUS LT20 S2 Library, 8 slot, 0 drive (Product ID: LT20S2KNXU)
ETERNUS LT40 S2 Library, 24 slot, 0 drive (Product ID: LT40S2KNXU)
ETERNUS LT60 S2 Library, 48 slot, 0 drive (Product ID: LT60S2KNXU)
□Tape library (x 1)
●LT20 S2
●LT40 S2
●LT60 S2
□Rack rail (x 1 set)
●For the LT20 S2
●For the LT40 S2/LT60 S2
□Rack rail kit (x 1 set)
□Screw (sliver) (x 8) □Screw (black) (x 8)
□Screw to secure the tape library (x2)
●For the LT20 S2 ●For the LT40 S2/LT60 S2
□AC power cable (x 1)
□Cleaning cartridge (x 1)
□Cover eject bar (x 1)
□Repeat tie (x 1)
□Read Me First (this document) (x 1)
□Safety Precautions (x 1)

4
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
Additional magazine, 4 slots (left) for LT20 S2 (Product ID: LT20S2Z01)
Additional magazine, 4 slots (right) for LT20 S2 (Product ID: LT20S2Z02)
Additional magazine, 12 slots (left) for LT40 S2/LT60 S2 (Product ID: LTS2Z01)
Additional magazine, 12 slots (right) for LT40 S2/LT60 S2 (Product ID: LTS2Z02)
□4-cartridge magazine (right) (x 1)
This option is only available for the LT20 S2.
□12-cartridge magazine (left) (x 1)
This option is only available for the LT40 S2 and the LT60 S2.
□12-cartridge magazine (right) (x 1)
This option is only available for the LT40 S2 and the LT60 S2.
□4-cartridge magazine (left) (x 1)
This option is only available for the LT20 S2.

5
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
Additional power supply for LT60 S2 (Product ID: LT60S2Z06E)
□Redundant power supply unit (x 1)
This option is only available for the LT60 S2.
LTFS option for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z31)
□CD (x 1)
Tape drive LTO-6(IBM) Fibre Channel Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z246E)
Tape drive LTO-6(IBM) SAS Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z256E)
Tape drive LTO-7(IBM) Fibre Channel Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z247E)
Tape drive LTO-7(IBM) SAS Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z257E)
Tape drive LTO-8(IBM) Fibre Channel Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z248E)
Tape drive LTO-8(IBM) SAS Half Height for LT20 S2/LT40 S2/LT60 S2 (Product ID: LTS2Z258E)
□Drive module (x 1)
This option is only available for the LT20 S2, the LT40 S2, and the LT60 S2. The module overview varies depending on the selected option.
●For SAS connections ●For FC connections
1x1 miniSAS HD Cable 3m (Product ID : LTCBH113)
□miniSAS HD cable (x 1)
SAS cable 1x SFF 8088-1x SFF 8088 4m (Product ID: LTCBM114)
SAS cable 1x SFF 8088-2x SFF 8088 4m (Product ID: LTCBM124)
□miniSAS cable (x 1)

6
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN

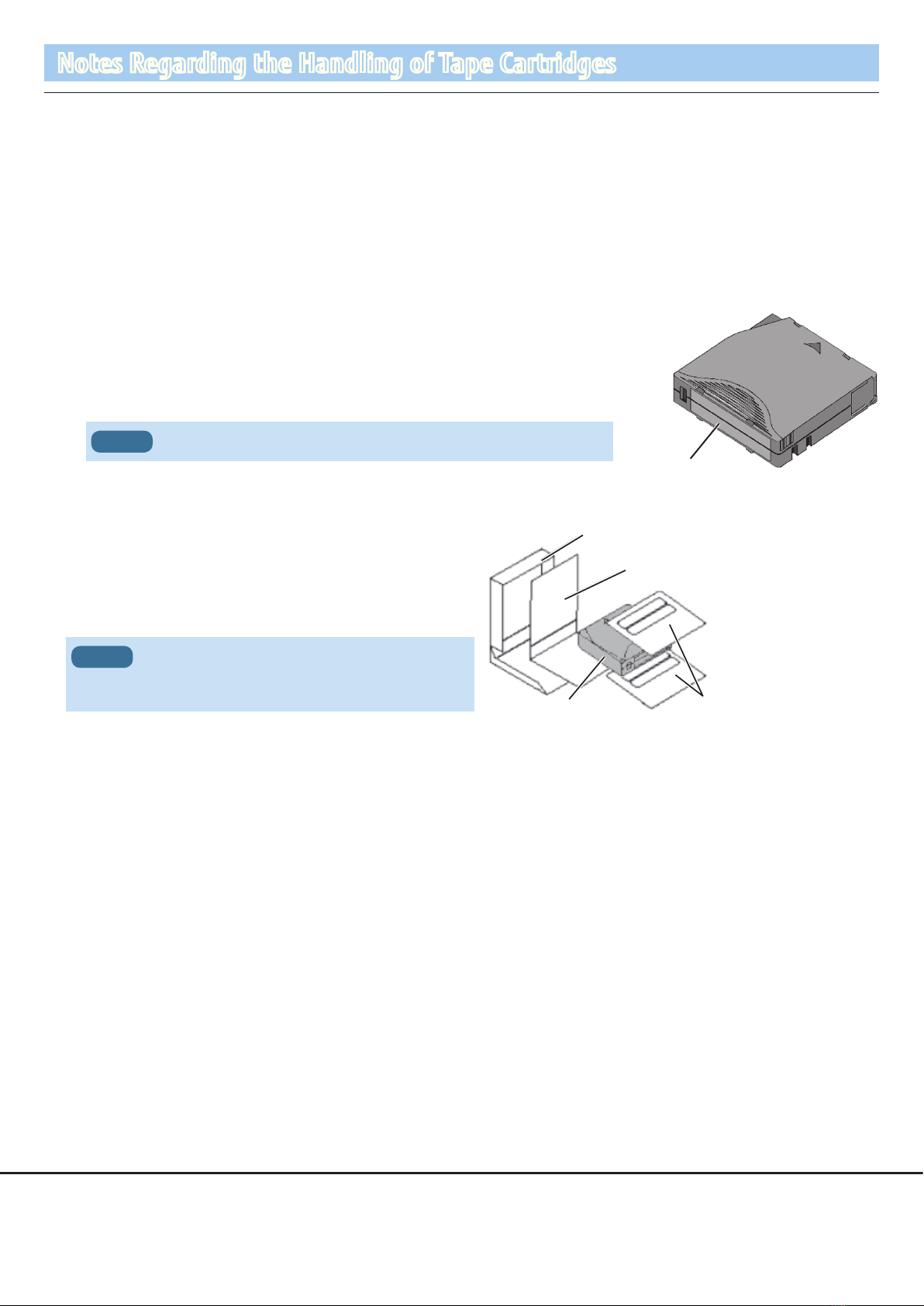

Notes Regarding the Handling of Tape Cartridges
Notes on Affixing Tape Cartridge Labels
Tape cartridge labels that get loose or get into the drive may cause failures such as a backup operation suspension.
To ensure stable system operation, cartridge labels must be handled with care.
●Beware of loose labels
If the label on the tape cartridge gets loose, the label may cause a failure by sticking to the robot mechanisms of the tape
library or to the tape drive.
Note the following points when affixing the labels.
•Make sure to use the blank labels provided with the tape cartridge or barcode labels that are recommended by Fujitsu.
•Keep the surface clean and free of fingerprints or dirt.
•Attach the label firmly on the specified location so that the label is affixed smoothly
without any wrinkles.
•Do not affix a new label over the old one. Make sure to peel off the old label and
clean the surface before affixing the new label.
●Beware of the label sheet getting into the tape drive
The blank label sheet may be on top or below the tape cartridge.
The label sheet may cling to the tape cartridge due to static.
If the tape cartridge is inserted into the library device in this
condition, a failure may occur.
When using a new tape cartridge, make sure that the label
sheet is not clinging to the tape cartridge.
Be careful since the corners of the labels are prone to getting loose.
Important
Note that you may miss the label sheet if it is enclosed
below the tape cartridge.
Important
Label Affixing Position
Plastic case
Index card
Blank label sheet
(The blank label sheet may be enclosed
on or below the tape cartridge.
Make sure not to overlook the blank label sheet
as it may be below the tape cartridge.)
Tape cartridge

7
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
Cleaning the Tape Drives
To maintain stable system operation, the tape drive must be cleaned.
Perform regular cleanings.
Sticky debris generated from magnetic tapes and dust entering the device
may become attached to the magnetic head of the tape drive causing errors
and failures.
To maintain stable system operation, dust and debris must be cleaned on a
regular basis.
In addition, cleaning cartridges can only be used a limited number of times. If the maximum number is reached,
replace the cleaning cartridge.
The following table shows a guideline for the cleaning cycle and the number of cleanings that can be performed.
Standard cleaning cycle Number of times the cleaning cartridge can be used
Whichever of the following occurs first
•Every three months
•Every 1,000 mounts
•When a device cleaning is requested
Approximately 50 times
Managing the service life of tape cartridges
Tape cartridges are consumable goods.
Tape cartridges must be replaced on a regular basis
to maintain stable backup operation.
The lifespan of a tape cartridge varies depending on the usage environment, the number of times used, and the operation of the
media, and it cannot be defined clearly. However, as the usage increases, the surface of the tape cartridge becomes damaged
and the head becomes dirty causing an increase in read and write errors.
Therefore, replacing the tape cartridges on a regular basis as described in the terms below is recommended.
Replacement guideline for tape cartridges Tape cartridge storage environment
If a tape cartridge is used in backup operations
for one year or 1000 times, whichever comes
first.
Temperature: 16 to 32 ºC
Humidity: 20 to 80% RH
Other: keep the tape cartridges free of moisture and condensation by placing
them in the specialized cases, do not leave them in direct sunlight or in dusty
environments, and do not put them near power cables, motors, or power
supplies.
The following condition is assumed that the tape cartridges are used correctly in the proper environment.
Important
Environment
Temperature,
humidity, dust
Media management
Taking out or storing
Usage count
Tape mileage
Pass count
I see! Because tape cartridges
are consumable goods,
they have to be replaced.
Magnetic head
TapeDust
(Reference) Tape Storage Technical Committee

8
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN

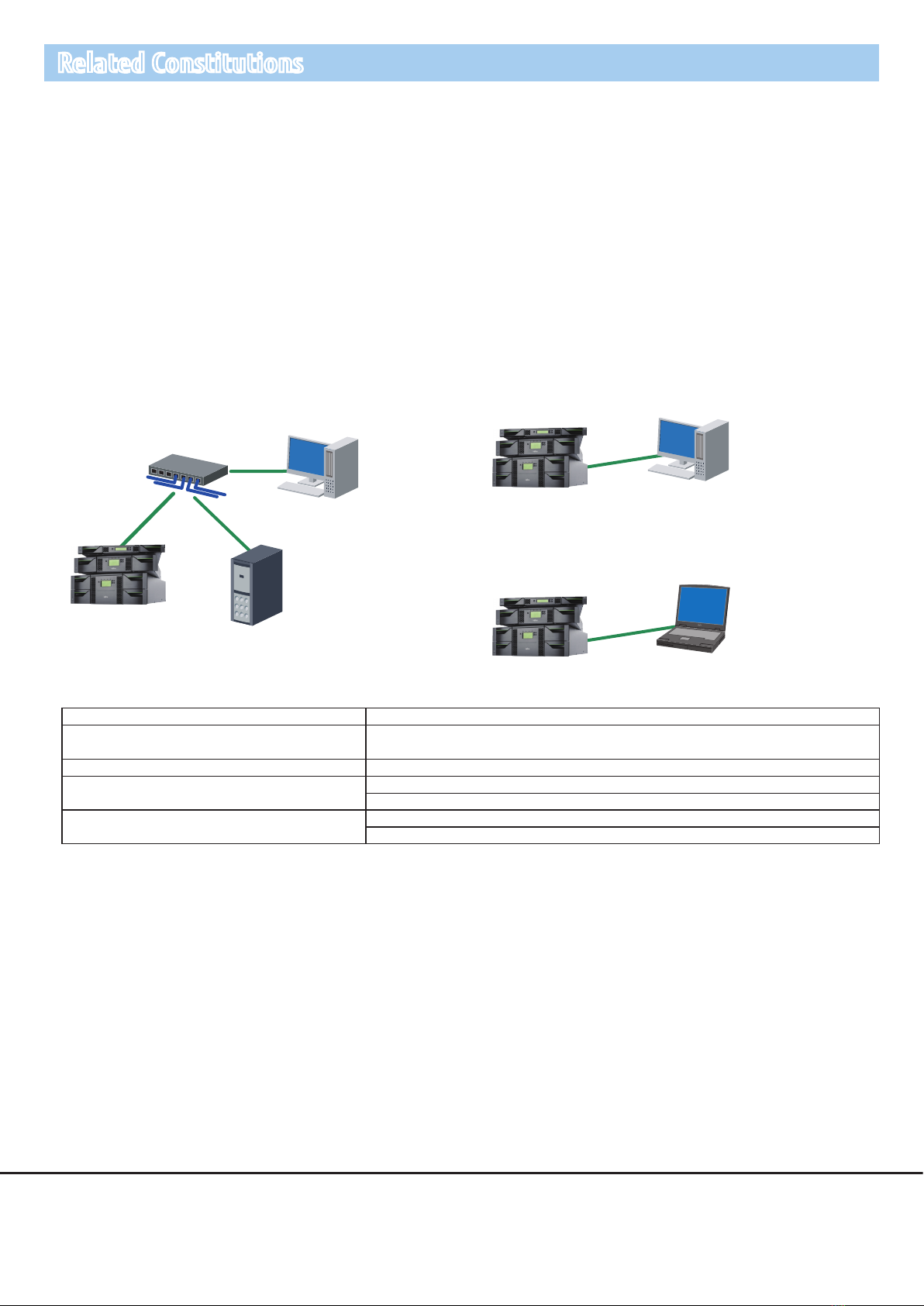

Related Constitutions
●Applicable Environment
The LT20 S2/LT40 S2/LT60 S2 was designed and manufactured for general office use, with user safety in mind. When using the LT20 S2/LT40 S2/LT60 S2, follow the
handling instructions, and the placement and cautionary notes listed in the manuals. If used beyond the limits described, the users may be at risk of personal injury
and/or material damage.
●Using the Manuals
The manuals for the LT20 S2/LT40 S2/LT60 S2 contain important information regarding safe usage.
Please read the manuals carefully before using the LT20 S2/LT40 S2/LT60 S2. Pay special attention to "FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library
Safety Precautions", and understand the contents thoroughly before connecting.
Keep the manuals in a safe place for future reference.
Fujitsu pays careful attention to the safe use of its products to prevent user injury and/or material damage. To use the LT20 S2/LT40 S2/LT60 S2 properly, please follow
the instructions in the manuals.
●Maintenance
Do not attempt to repair the LT20 S2/LT40 S2/LT60 S2 by yourself. Ask Fujitsu to dispatch one of its maintenance engineers or a maintenance engineer authorized by
Fujitsu for maintenance work.
Note that our maintenance engineer may connect maintenance equipment (such as PCs) in order to diagnose the LT20 S2/LT40 S2/LT60 S2.
Maintenance engineers use one of the following connection for maintenance.
ƪDirect connection between an LT20 S2/LT40 S2/LT60 S2 and a customer's PC
ƪDirect connection between an LT20 S2/LT40 S2/LT60 S2 and a management PC
(FST)
ƪConnection between an LT20 S2/LT40 S2/LT60 S2
and a customer's PC via a network
Product safety UL60950-1, CAN/CSA-C22.2 No. 60950-1, EN60950-1, IEC60950-1
Electromagnetic Compatibility CNS13438 (C6357) Class A, FCC CFR47 part 15 Class A, ICES-003 Class A, EN55022 Class A, VCCI Class A,
AS/NZS CISPR22 Class A
Electromagnetic Immunity EN55024
CE certification Electromagnetic Compatibility Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
Environmental compliance RoHS-compliant (Restriction of the use certain hazardous substances) 2011/65/EC
WEEE-compliant (Waste electrical and electronic equipment)
●Compliance Standards

9
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
Laser Standard
The Fibre Channel printed circuit board contains a laser system (GBIC or GLM module). Laser systems are classified as Class I Laser Equipment by the radiation standards
of the Department of Health and Human Services (DHHS) in accordance with Radiation Control for Health and Safety Act of 1968 and also based on the safety
requirements for laser products in EN60825-1 (+All). The certificate of conformance is affixed to the module.
The following notice is for EU users only.
WARNING: This is a product which meets Class A of EN55022. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
The following notice is for USA users only.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
This Product is designed, developed and manufactured as contemplated for general use, including without limitation, general office use, personal use, household use,
and ordinary industrial use, but is not designed, developed and manufactured as contemplated for use accompanying fatal risks or dangers that, unless extremely
high safety is secured, could lead directly to death, personal injury, severe physical damage or other loss (hereinafter "High Safety Required Use"), including without
limitation, nuclear reaction control in nuclear facility, air craft flight control, air traffic control, mass transport control, medical life support system, missile launch control
in weapon system. You shall not use this Product without securing the sufficient safety required for the High Safety Required Use. If you wish to use this Product for High
Safety Required Use, please consult with our sales representatives in charge before such use.

10
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
●Simplified Chinese
●Traditional Chinese
台灣 RoHS
限用物質含有情況標示
單元Ｕnit
限用物質及其化學符號
鉛Lead
(Pb)
汞
Mercury
(Hg)
鎘
Cadmium
(Cd)
六價鉻
Hexavalent
chromium
(Cr+6)
多溴聯苯
Polybrominated
biphenyls
(PBB)
多溴二苯醚
Polybrominated
diphenyl ethers
(PBDE)
外殼 ◯◯◯◯◯◯
印刷電路板 ◯◯◯◯◯◯
電源供應器 ◯◯◯◯◯◯
馬達 ◯◯◯◯◯◯
面板 ◯◯◯◯◯◯
磁帶驅動器 －◯◯◯◯◯
備考1. 〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考2. 〝－〞係指該項限用物質為排除項目。
Restricted substances and its chemical symbols
Note 1
：
“○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.
Note 2：The “−” indicates that the restricted substance corresponds to the exemption.
电子信息产品生产者（生産者）：FUJITSU LIMITED
电子信息产品安全使用期限
有毒有害物质元素名称及其含量及部件
这标记是按照2006年2月28日公布的[电子信息产品污染控制管理办法]以及
SJ/T 11364-2006[电子信息产品污染控制标识要求]在中国销售的电子信息产品
的环保使用期限。如遵守关于这产品的安全或使用上的注意，在这期限内(从生
产日期起算)不会因产品中的有害物质漏到外部、或发生突然变异，而引起环境
污染和对人体或财产的重大影响。
部件名称
有害物质
铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(Ⅵ))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
机箱 底盘 ◯◯◯◯◯◯
印刷线路板 ◯◯◯◯◯◯
电源 ◯◯◯◯◯◯
风扇机、电动机 ◯◯◯◯◯◯
面板 ◯◯◯◯◯◯
磁带驱动器 × ◯◯◯◯◯
本表格依裾SJ/T11364 的规定编制
○：表示该有害物质在该部件所有均质材料中的含量均在GB/T26572 规定的限量要求以下。
×：表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T26572 规定的限量要求。
警告使用者:
這是甲類的資訊產品，在居住的環境中使用時，可能會造成射頻干擾，在這種情況下，
使 用 者 會 被 要 求 採 取 某 些 適 當 的 對 策。

11
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library Read Me First
Copyright 2019 FUJITSU LIMITED P3AM-9452-06EN
●The content of this manual is subject to change without notice.
●This manual was prepared with the utmost attention to detail.
However, Fujitsu shall assume no responsibility for any operational
problems as the result of errors, omissions, or the use of
information in this manual.
●Fujitsu assumes no liability for damages to third party copyrights
or other rights arising from the use of any information in this
manual.
●The content of this manual may not be reproduced or distributed in
part or in its entirety without prior permission from Fujitsu.
FUJITSU Storage ETERNUS LT20 S2/LT40 S2/LT60 S2 Tape Library
Read Me First
P3AM-9452-06EN
Date of issuance: June 2019
Issuance responsibility: FUJITSU LIMITED
