Fukuda Denshi LX-8000 Series User manual

i
Thank you for purchasing our product.
Before using this product, read this operation manual thoroughly for correct
handing and operation.

Safety Precautions
Read the “Safety Precautions” thoroughly before use to ensure correct and
safe use of the product. Make sure to follow the precautions indicated below,
as these are important messages related to safety.

DANGER Failure to follow this message may cause
immediate threat of death or serious injury, or
complete failure of the equipment.

WARNING Failure to follow this message may result in death
or serious injury, or complete failure of the
equipment.

CAUTION Failure to follow this message may cause injury or
failure of the equipment.

NOTE A note is not related to product safety, but provides
information about the correct use and operating
procedures to prevent incorrect operation and
malfunction of the equipment.
Precaution from Fukuda Denshi
Fukuda Denshi is responsible for the safety, reliability, and performance of its
equipment only if;
Maintenance, modifications, and repairs are carried out by authorized
personnel. Components are used in accordance with Fukuda Denshi operating
instructions.
If the equipment is used incorrectly and become unusable, Fukuda Denshi is
not liable for the malfunction. Use the equipment only for the purpose specified
in this manual.

ii
Intended Use of this Equipment
This equipment is designed for the following <Intended Use>.
<Intended Use>
This equipment is intended for measuring parameters of ECG, respiration in surgery
room, ICU, ward, emergency room in the medical facility and transmitting the
measured data by wireless network to the central monitor continuously.
This equipment is intended for monitoring one patient. It is not intended for
monitoring multiple patients.
For specification of this equipment, refer to "Chapter 14 Specification" of this
manual.
This equipment is intended to be used by healthcare professionals. Users should
have a thorough knowledge of the function and operation before using this
equipment. The maintenance of this equipment should be performed by skilled
personnel who received a training of possible hazards and measures to avoid those
hazards. Also, your local regulation must be followed. If this equipment is used for
the purpose other than intended, or if the user does not follow the safety
instructions, the following hazard may result.
ȷHazard to the Life and Health of the Patient or the User
ȷA Problem Related to Medical Practice
ȷDamage to the Equipment

iii
Graphic Symbol
The following symbols are used for this equipment.
LX-8100 Symbols indicated on the main unit
Symbol Description
Warning (indicated in yellow)

Follow operating instructions (Warning); (indicated in blue)
Indicates that the failure to follow operating instructions
could place the patient or operator at risk.

Type CF Applied Part with Defibrillation-Proof
Indicates that the degree of protection against electric
shock is Type CF Applied Part with defibrillation-proof.
Indicates the power ON/OFF status.
Indicates the point to close the battery compartment lid.
Indicates the battery type and direction
Name and Address of Manufacturer
Date of Manufacture
Indicates the name and address of manufacturer, and
date of manufacture.
Non-ionizing electromagnetic radiation
Indicates the radio transmitting device.


iv

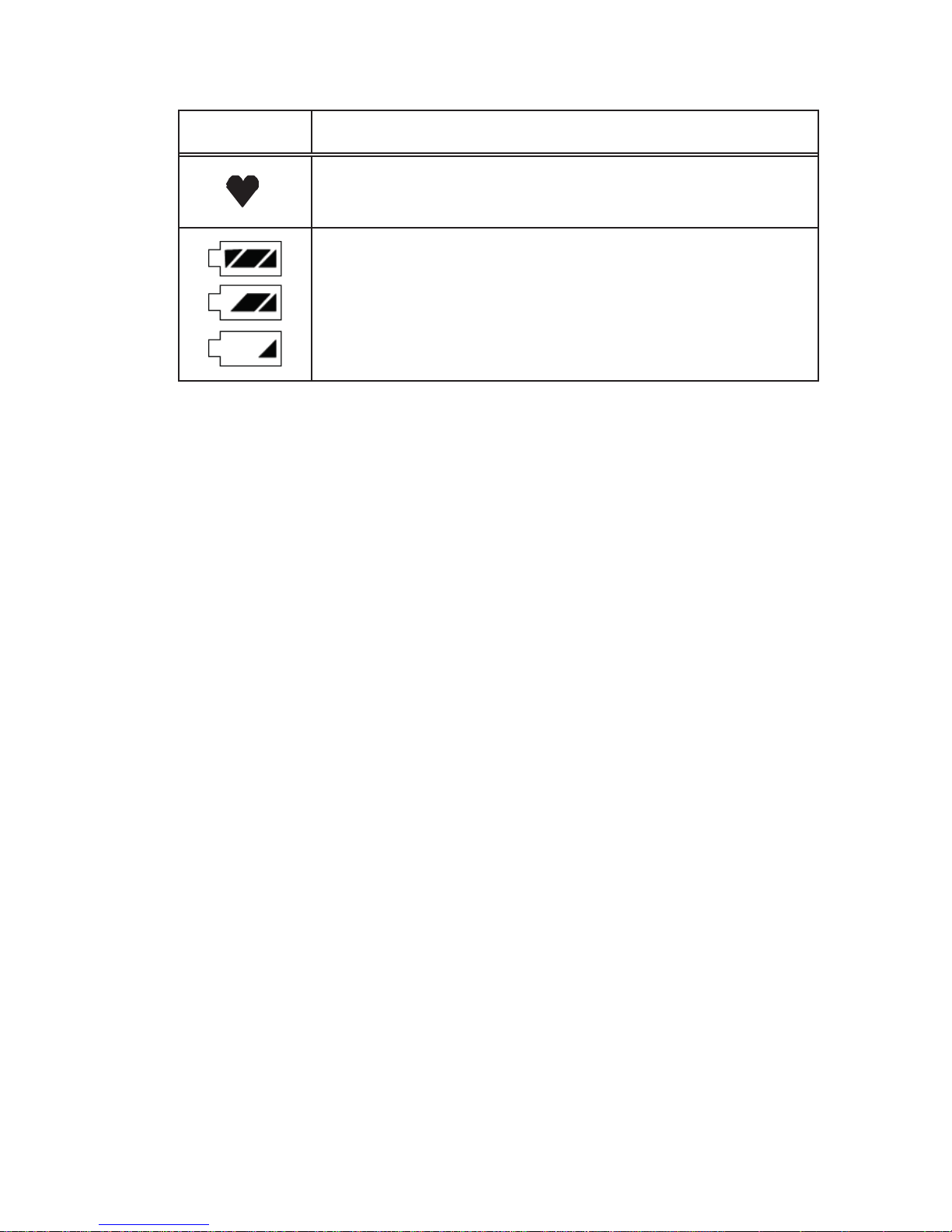

LX-8100 Symbols displayed on the display screen
Symbol Description

Synchronized Mark
This mark flashes synchronizing to the heartbeat.

Indicates the remaining battery level.

v
Precautions for Safe Operation of Medical Electrical Equipment
Cautions described here are regarding the general instructions for safety use
to the patient and the users. As for cautions about the LX-8100, please refer
to the following pages.
CAUTION
1. Users should have a thorough knowledge of the operation before
using this equipment.
2. Pay attention to the following when installing or storing the equipment.
yDo not install or store in a place where the equipment will be subjected to
splashing water.
yDo not install or store in an area where the environmental conditions,
such as atmospheric pressure, temperature, humidity, ventilation,
sunlight, dust, sodium, sulfur, will adversely affect the system.
yPlace the equipment on a stable surface where there is no inclination,
vibration, or shock (including during transportation).
yDo not install or store in an area where chemicals are stored or gas may
generate.
3. Before operating the equipment, verify the following items.
yCheck the cable connection and polarity to ensure proper operation of the
equipment.
yEnsure that all cables are firmly and safely connected. Especially, recheck
the attachment and connection condition of electrodes and transducers.
yPay special attention when the equipment is used in conjunction with other
equipment as it may cause erroneous diagnosis and danger.
yCheck the remaining battery level.
yWhen replacing the battery, make sure that the battery polarity is correct.
Do not charge the battery.
4. During operation of the equipment, verify the following items.
yDo not operate the equipment beyond the time period required for
diagnosis and medical care.
yDo not pick up and/or swing the equipment pulling/grabbing the probe
(sensor) or cable part. It may damage the equipment and lead to
measurement error.
yAlways observe the equipment and patient to ensure safe operation of the
equipment.
yIf any abnormality is found on the equipment or patient, take appropriate
measures such as ceasing operation of the equipment and/or detaching the
probe (sensor) and/or electrode, in the safest way for the patient.
yDo not allow the patient to come in contact with other equipment.

vi
CAUTION
5. After using the equipment, verify the following items.
yReturn all operating switches, knobs etc to the position before using the
equipment, and then switch off the power.
yWhen unplugging the cables, do not apply excessive force on the cable
and pull from its connector.
yClean the accessories and cables, and keep them together in one place.
yKeep the equipment clean to ensure proper operation for the next use.
yMake sure to remove the battery if the equipment is not used for a long
time. The leakage from the battery may damage the equipment or an
explosion from the battery may occur.
6. If the equipment is damaged and in need of repair, ensure patient
safety by immediately turning the equipment off and remove the
electrodes and/or probe from the patient. Users should not attempt
service. Label the unit “OUT OF ORDER” and contact Fukuda Denshi
representative.
7. Do not disassemble or remodel the eqipment.
8. Maintenance
yMake sure to periodically check the equipment and accessories.
yBefore reusing the equipment that has been left unused for a while, make
sure that the equipment works normally and safely.
9. When using electrosurgical knives or defibrillator with this equipment,
take care of the following.
yTo prevent burn injury to the patient, verify proper attachment of the patient
ground plate, the ECG electrode type for the electrosurgical knives, and the
quantity of gel, output energy for the defibrillator. Also, verify that a proper
ground is selected.
ySome types of equipment other than above may cause accidental hazards
to the patient and operator due to the conditions of the equipment. Read
the operation manual attached to each equipment and understand the
precautionary instructions prior to use.

Non-Explosion Proof
DANGER
zNever operate the equipment in the presence of flammable
anesthetics, high concentration of oxygen. It may cause an explosion or
fire.
zNever operate the equipment inside a hyperbaric chamber. It may
cause an explosion or fire.
zNever operate the equipment where flammable gas or fluid such as
anesthetic, oxygen, and hydrogen are used. It may cause an explosion
or fire.

vii
Precautions about Magnetic Resonance Imaging (MRI)
WARNING
zDo not operate this equipment in magnetic resonance imaging (MRI)
environments.
zWhen conducting MRI test, remove the electrodes and sensors
connected to the patient (test subject).
The local heating caused by the induced electromotive force may
cause burn injury to the patient (subject). For details, refer to the
operation manual for the MRI testing device.
Electrosurgery Safety
WARNING
The monitoring system contains protection against interference generated
by electrosurgical instruments. However, depending on the operating
conditions, surgery site with respect to the location of ECG electrodes,
ground plate attachment condition, or the type of instrument used, it may
cause burn injury at the electrode site or noise on the ECG. The noise is
generated at the tip of the electrosurgical knife and is difficult to completely
eliminate because of the frequency components of the ECG. To reduce
electrosurgical interference, take the following precautions:
Location:
Locate the electrosurgical unit as far as possible from this equipment and
the patient cable. This will help reduce interference on the ECG through
the monitor or cables.
Electrode Placement:
The amount of noise interference is considerably different depending on
the electrode position and surgery site. Place the ECG electrodes as far
away as possible from the surgery site and the ground plate. Do not
place electrodes in the path between the surgery site and the ground
plate. If the electrodes are placed in this path, the amount of interference
will be quite large. Position (+) and (–) electrodes as close as possible to
each other.
Ground Plate:
When using electrosurgical instruments, make sure the contact between
the patient and the ground plate is secure. If the connection is
incomplete, the patient may suffer from burn at the electrode site.



viii
Defibrillation Safety
WARNING
zUse only the lead cable specified by Fukuda Denshi when defibrillating.
If used by unspecified lead cable, the equipment may be damaged,
resulting in a safety hazard.
zWhen using the defibrillator, keep away from the electrodes or
medicament applied to the patient chest. If this is not possible, remove
the electrodes or medicament before using it.
If the defibrillator paddles are directly in contact with the electrodes or
medicament, an electrical shock may result from the discharged
energy.
zWhen using the defibrillator, do not touch the patient and the metal part
of the equipment or cables. Electric shock may result from the
discharged energy.
Precautions about the Pacemaker
WARNING
zMinute ventilation rate-adaptive implantable pacemakers can
occasionally interact with certain cardiac monitoring and diagnostic
equipment, causing the pacemakers to pace at their maximum
programmed rate. The cardiac monitoring and diagnostic equipment
may possibly send wrong information.
If such event occurs, disconnect the cardiac monitoring and diagnostic
equipment, or follow the procedures described in the operation manual
of the pacemaker.
(For more details, contact FUKUDA DENSHI personnel, your
institution’s professionals, or your pacemaker distributors.)
zRate meters may continue to count the pacemaker rate during
occurrences of cardiac arrest or some arrhythmias. Do not rely entirely
upon rate meter alarms. Keep pacemaker patients under close
surveillance.
Reference
“Minute Ventilation Rate-Adaptive Pacemakers”
FDA alerts health professionals that minute ventilation rate-adaptive
implantable pacemakers can occasionally interact with certain cardiac
monitoring and diagnostic equipment, causing pacemakers to pace at their
maximum programmed rate.
[October 14, 1998 – FDA]

ix
Precautions about the LX-8100
WARNING
zDo not connect cables not authorized by Fukuda Denshi to any I/O
connector. If done so by mistake, the LX-8100 cannot deliver its
maximum performance and may be damaged, resulting in a safety
hazard.
zDo not use this equipment with multiple patients simultaneously.
zThis equipment itself has no alarm function. Do not use it if an alarm
function is necessary. The alarm function with the receiving monitor,
refer to the operation manual of the receiving monitor.
CAUTION
Do not pick up and/or swing the LX-8100 pulling/grabbing the probe
(sensor) or cord part. The cable could break or get disconnected from the
LX-8100. And it may hit people or damage other equipment around.

Precautions about Waterproof CAUTION
zReplace the “Battery Compartment Lid” of the LX-8100 regularly to
keep the performance of waterproof. If not regularly replaced, the
quality of the lid will deteriorate and cannot keep the waterproof
performance. For details about the regular replacement, contact your
local Fukuda Denshi service representative.
zThe lid may be damaged from high impact. If the LX-8100 is dropped or
is subjected to a high impact, make sure that the lid is not damaged.
zDo not use the LX-8100 wet. Always wipe the LX-8100 with a soft cloth
and dry it thoroughly before use.


x
Precautions about ECG CAUTION
zWhen removing electrodes from the patient, remove them carefully and
slowly. Do not apply excessive force to remove them. Otherwise, it may
damage the skin.
zIf any electrodes get detached from the patient after being connected to
the lead cable and the patient monitor, pay attention that the metal part
of the electrode does not get in touch with any metal parts of the bed or
any conductive parts. Also, the operator should not touch any
conductive parts with bare hands. Otherwise, it may cause electric
shock to the patient and/or operator due to excessive leakage current.
zThe indication for continuous use of the electrode is about one day.
zReplace the electrode if the skin contact gets loosen due to
perspiration, etc.
zWhen an electrode is attached to the same location for a long period,
some patients may develop skin irritation. Check the patient's skin
condition periodically and change the electrode site as required.
zFor stable ECG monitoring, verify proper electrode placement, lead,
and waveform size. If not properly selected, it may cause erroneous
detection.
zThere are some cases when the pacemaker pulse cannot be detected
depending on the pacemaker type, pulse voltage, pulse width,
electrode lead type (unipolar, bipolar), or electrode placement which
causes the pacemaker pulse amplitude to decrease, and disables the
pacemaker pulse detection.
zIf signals similar to a pacemaker pulse are present, such as electric
blanket noise or excessive AC frequency noise, these may be
erroneously detected and displayed as a pacemaker pulse. In this
case, check the condition of the electrodes and ECG lead cable to
resolve the cause or turn off the pacemaker detection setting on the
receiving monitor.
zIf a pacemaker pulse is continuously detected due to AC frequency
interference, QRS detection will be suspended and the heart rate will
be reduced.
Precautions about Output Signal
WARNING
Do not use the output signal of the monitor that receives radio wave signal
from the LX-8100 as the trigger signal for IABP, MRI echocardiographic, or
defibrillator for the following reasons.
It may lead to a delay of operating timing due to the delay time of
waveform transmission.
A trigger signal unrelated to the heart rate may be generated due to
the interfusion of spike noise at weak electric field.

xi
Precautions about Accessories and Optional Accessories
WARNING
Use only the accessories such as disposable electrodes and electrode
codes specified by Fukuda Denshi. Otherwise, this equipment cannot
deliver its maximum performance and may be damaged, resulting in a
safety hazard.
CAUTION
zDo not reuse disposable products.
zStore the disposable products properly as mentioned in their user
manuals.
Precautions about Battery
WARNING
zUse new "AA" size (“LR6” size) alkaline cell.
zInstall the battery with the correct polarity.
zDo not charge the battery. Any attempt to charge the battery may
cause it to leak or break.
zDo not short the (+) and (-) terminals. It may result in exothermic heat
and fire.
zDo not throw the battery into fire. It may explode.
Precautions about Disposing of Equipment, Accessories, or
Components CAUTION
zWhen disposing of equipment, accessories, or components, use an
industrial waste distributor. Do not dispose of as ordinary waste.
zUsed disposal items (ECG electrodes, etc.) shall be discarded as
medical waste.

Precautions about Disposing of Battery
CAUTION
Follow the local municipal rule to dispose the used dry cell batteries.

xii
Precautions for Use of Medical Telemeter
WARNING
zThe LX-8100 transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
zThis equipment complies with FCC/IC radiation exposure limits set forth
for an uncontrolled environment and meets the FCC radio frequency
(RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF energy that
are deemed to comply without testing of specific absorption rate (SAR).
zOperation of LX-8100 requires the prior coordination with a frequency
coordinator designated by the FCC for the Wireless Medical Telemetry
Service.
zThis radio frequency device is susceptible to interference from outside
sources. Interference may prevent the monitoring of patients connected
to this equipment. If a problem exists, contact your local service
representative.
zThe LX-8100 transmits vital signs to the receiving monitor using radio
wave signal. Under unstable radio wave signals, the receiving monitor
will not generate any alarms. This situation may miss sudden change in
the patient's condition and may cause a serious accident. Under
unstable radio wave signals, check the patient status consistently under
this situation. To get stable radio wave signals, make sure to have a
proper telemetry installation.
CAUTION
For installation, make sure of the following.
yThe medical institution (hereinafter referred to as the “Institution”) must
decide the telemetry installation plan for the medical department in order to
prevent interference and interference between transmitters (telemetry
based on destination country’s radio law). When telemetry has already
been installed and been used, radio format, frequency, and antenna power
are required to be examined to prevent interference.
yWhen laying receiver antenna for each transmitter, the Institution has to
examine the installation so that electronic interference does not occur.
yBased on the above examination result, the Institution should install each
receiver antenna as required.


xiii
CAUTION
For management, make sure to follow the precautions below.
yThe Institution should appoint a person (hereinafter referred to as the
“Coordinator”) to manage the wireless channels for the whole Institution.
yThe Coordinator must be selected from people who understand the
characteristics and functionality of telemetry systems, and are skilled in
operating telemetry.
yWhen installing telemetry, the Coordinator has to understand the
precautions for use of telemetry in advance.
yThe Coordinator is responsible for maintenance of wireless channels and
storage and maintenance of telemeter in the overall medical facilities to
give proper instructions to the telemetry users.
yThe Coordinator should create a management log (hereinafter referred to
as the “log”), which contains a list of the management status of the wireless
channels for the whole Institution. When changing a wireless channel,
register it in the log and give proper instructions to the user.
yThe telemetry user verifies operation of the transmitter/receiver before use.
yWhen interference or breakdown occurs in telemetry communication, the
user is required to inform the Coordinator of the problems. The Coordinator
is to deal with the problem properly and/or contact their nearest Fukuda
Denshi representative for service.


xiv
Electromagnetic Compatibility
This equipment complies with IEC 60601-1-2 (2014), safety standard
regarding the electromagnetic distrubances of medical electrical equipment. To
ensure maximum performance against the electromagnetic distrubances,
make sure to follow the precautions for installation and usage described in this
manual.
ŪThis equipment is intended for use in the medical facility (except inside the
shield room of MRI device), and satisfies the immunity level for professional
healthcare facility environment stipulated in IEC 60601-1-2.
ŪAn excessive magnetic disturbance may degrade the HR measurement
accuracy (refer to 14. Specification, ECG, HR measurement detection),
which is the essential performance of this equipment, and may cause delay
in treatment or inaccurate diagnosis.
ŪWhen using this equipment, interference with other medical electrical
equipments or non-medical electrical equipments may oocur. Make sure that
no interference is present before usage.
ŪTo ensure basic safety and essential performance related to
electromagnetic distrubances during the expected service life of this
equipment, “Daily Check” and “Periodic Check” must be performed.
(refer to 12.Maintenance and Inspection)

Precautions for Safe Operation under Electromagnetic Influence
CAUTION
If any sorts of electromagnetic wave, magnetic field, or static electricity
exist around the equipment, noise interference or malfunction of the
equipment may occur. If any unintended malfunction or noise occurs during
monitoring, check the magnetic influence and take appropriate
countermeasures.
The followings are examples of the common cause and countermeasures.
ەMobile Phone
The radio wave may cause malfunction to the equipment.
Mobile phones and radio sets should be turned off in the room
(building) where medical device is located.
ەStatic Electricity
In a dry environment (room), static electricity is likely to occur. Take
the following countermeasures.
yBoth operator and patient should remove any static electricity before
entering the room.
yHumidify the room.


xv
CAUTION
zIf this equipment is installed close to, or stacked with other equipment,
malfunction may occur. Make sure to verify that the equipments
operate properly in a used location.
zUse of accessories, probes, or cables other than specified may cause
increase in electromagnetic emission or decrease in electromagnetic
immunity resulting in malfunction of the equipment.
zThe portable RF communications equipment (including antenna cable
and peripheral equipment such as external antenna) with the specified
cable should be used in a location at least 30 cm apart from any part of
this equipment. Otherwise, it may result in performance degradation of
this equipment.


xvi
EMC Guidance
This equipment complies with IEC 60601-1-2 (2014). However, if portable
transmitter or wireless LAN equipment is used extremely nearby, the
electromagnetic influence may largely exceed the compliance level and may
cause unexpected phenomenon such as noise interference on the waveform,
etc.
Therefore, this equipment should be used in a location specified by each
medical institution. If any unexpected noise interference on the waveform or
failure to the peripheral device occurs, stop using the equipment and follow the
instruction of the technician.
The following is the information relating to EMC (Electromagnetic
Compatibility).
(When using this equipment, verify that it is used within the environment
specified below.)

䖃Compliance to the Electromagnetic Emissions
This equipment complies with the following emission standard.

Emission test Compliance
RF Emission
CISPR 11 Group 1 Class A
CAUTION
The emission performance of this equipment is suitable for use in industrial
environment and hospital environment (CISPR 11 Class A). To use in
home environment (generally, CISPR 11 Class B is required), this
equipment may not be properly protected from wireless frequency
communication service. It may be necessary to take measures such as
changing the installation location or equipment orientation.


xvii

䖃Compliance to the Electromagnetic Immunity
The LX-8100 is intended for use in the electromagnetic environment specified
below. The customer or the user of the LX-8100 should assure that it is used in
such an environment.
Basic EMC standard or
test method Immunity test levels
Electrostatic discharge
IEC 61000-4-2 r8kV contact
r2kV, r4kV, r8kV, r15kV air
Radiated RF EM fields
IEC 61000-4-3 10V/m 80MHz to 2.7GHz
1kHz80%AM
Proximity fields from RF
wireless communications
equipment
IEC 61000-4-3
Refer to the following table.
Conducted disturbances
induced by RF fields
IEC 61000-4-6
3V
0.15MHz to 80MHz
1kHz80%AM
6V
0.15MHz to 80MHz
(in ISM bands between 0.15 MHz and 80MHz)
1kHz 80%AM
Rated power frequency
magnetic fields
IEC 61000-4-8
30A/m
50Hz
Immunity test specifications for RF wireless communications equipment.
Test frequency
(MHz) Modulation Maximum
power
(W) Distance
(m) Immunity test level (V/m)
710, 745, 780 PM, 217Hz 0.2 0.3 9
810, 870, 930 PM, 18Hz 2 0.3 28
1720, 1845, 1970 PM, 217Hz 2 0.3 28
2450 PM, 217Hz 2 0.3 28
5240, 5500, 5785 PM, 217Hz 0.2 0.3 9




xviii
Contact
If you need more information, please contact the following.
(1) Fukuda Denshi Co., Ltd., Head Office
3-39-4 Hongo, Bunkyo-ku, Tokyo, Japan
Tel: [phone] Fax: [phone]
E-mail: [email protected]
Home Page: http://www.fukuda.com
(2) Sales Representative
Write the name, address, phone, fax number of your local sales
representative.
(Name of Sales Representative, Address, Phone/Fax)






