Fulgor Milano SOFIA User manual

PRO-RANGE 30”- 36” - 48” FULL GAS
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATI ON
INSTRUCCIONES PARA LA INS TALACIÓN

Dear Customer,
Thank you for purchasing one of our Sofia ranges. This range was
conceived, designed and handcrafted in Italy.
Your selection of a Sofia range confirms you are among a special group
who share a love and passion for cooking. This unique community shares
in the experience of creating quality dishes; dishes that will satisfy the
palate while bringing the warmth of families and friends together to share
and rejoice. Impress a loved one with your ability to combine flavours and
ingredients or experiment with new foods and different culinary techniques
to create unexpected pleasures.

1
READ AND SAVE THESE INSTRUCTIO NS.
To installer:
Leave these instructions with the appliance.
To customer:
Retain these instructions for future reference.
Anti-Tip Bracket Installation
IMPORTANT: Savetheseinstructionsforthelocalelectrical
inspector use.
INSTALLER: Please leave this manual with owner for future
reference.
OWNER: Please keep this manual for future reference.
GLOSSARY OF TERMS: NG - N atural Gas
LP - Liquid Propane
Pay attention to these symbols present in this
manual:
This is the safety alert symbol. This symbol alerts you to
potential hazards that can kill or hurt you and others. You
can be killed or seriously injured if you don’t follow these
instructions.
WARNING
WARNING
Iftheinformationinthismanualisnotfollowedexactly,afire
orexplosionmayresultinginproductandpropertydamage
and / or personal injury or death.
Donotstoreorusegasolineorotherflammablevapoursand
liquids in the vicinity of this or any other appliance.
You can be killed or seriously injured if you don’t
IMMEDIATELY follow instructions.
DANGER
EN
23
24
24
25
25
25
26
3
5
7
8
12
13
13
14
15
16
16
17
17
18
19
20
21
23
Requirements
Anti-Tip Bracket Installation
3 - Installation Information
4 - Installation Instructions
5 - Gas Requirement
Pressure Testing
PressureTestMethod

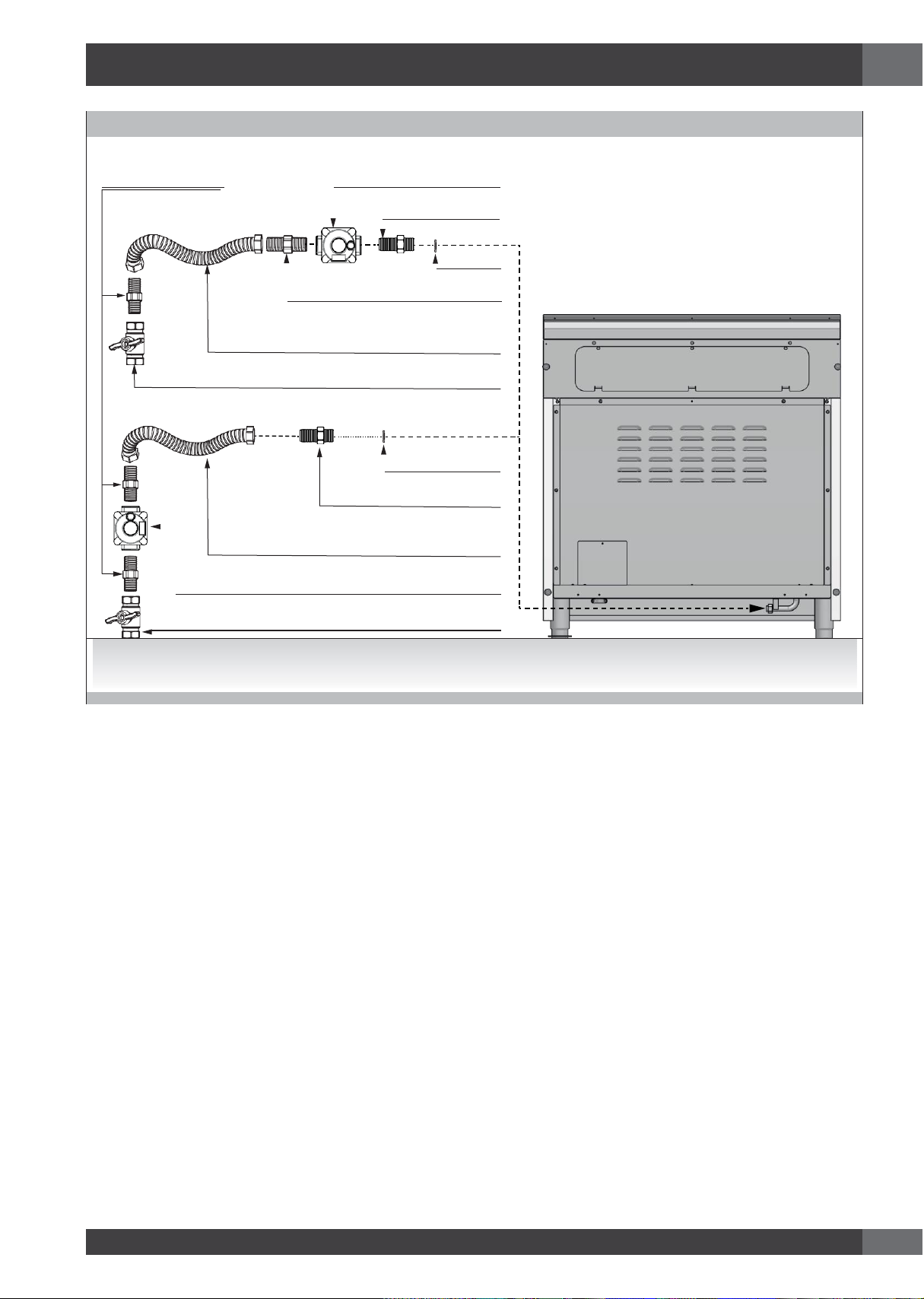

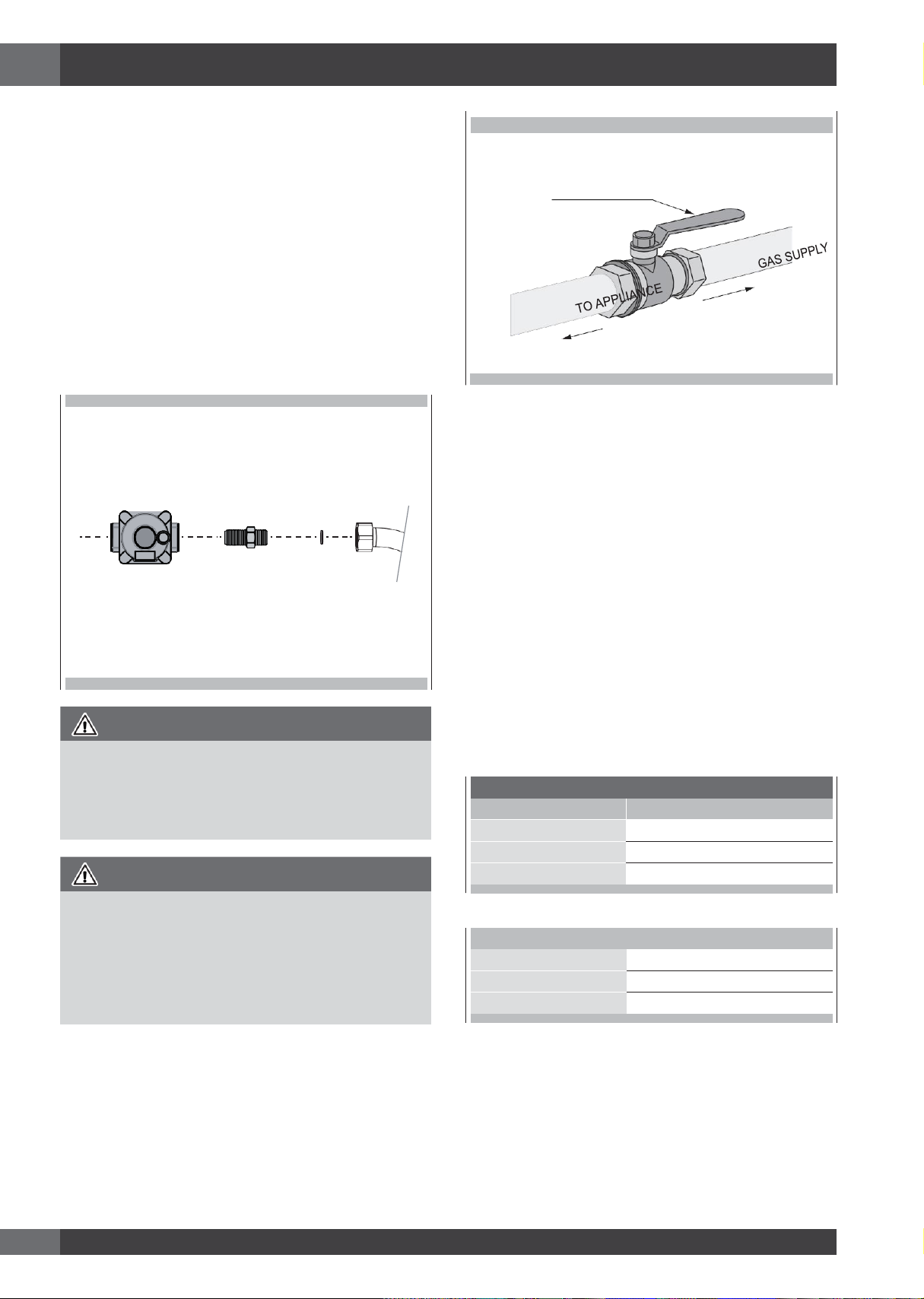

Gas Connection
6 - Conversion for LP or NG Gas
ConvertingApplianceforUsewithLPGas

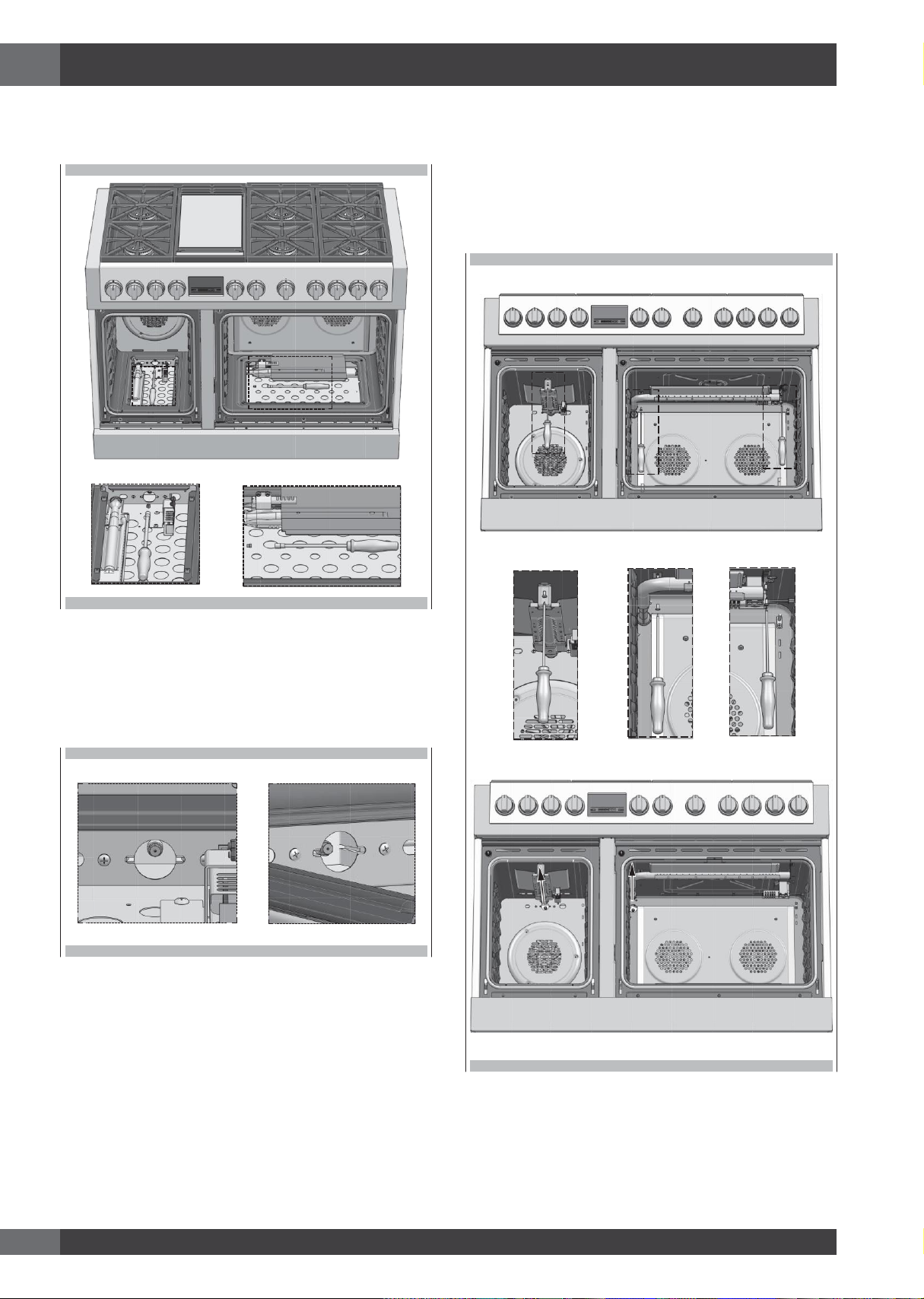

Replace Injectors (two ring flame burner)
Replace Injector (griddle)
Replace injector on (oven lower burner)
Replace injector on (oven grill burner)
ConvertingAppliancesforUsewith NGGas
Pressure regulator conversion
INJECTORS POSITION
Low Flame Adjustment
Adjustment for Burners with one or two flame
rings:
Electric Gas Ignition
The Burner Flames
7 Electrical Requirements
General Information
Electrical Connection
ElectricalRequirements
2 -Product Dimensions and Cutout
2
2
2
2
1 - Special Warnings
Before Starting Installation
Mobile HomeInstallation
Recreational ParkTrailers
PAGE
TABLE OF CO NTENTS
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Ensure the anti-tip bracket is engaged when the range is
moved.Donotoperaterangewithoutanti-tipbracketinstalled
andengaged.Failuretofollowtheseinstructionscanresultin
death or serious burns to children andadults.
To verify the anti-tip bracket is installed and engaged:
• Slide rangeforward.
• Lookfortheanti-tipbracketsecurelyattachedtofloororwall.
• Sliderangebacksorearrangefootisunderanti-tipbracket.
• See installation instructions fordetails.
Anti-Tip Bracket
Range Foot

2
1 - Special Warnings
EN
Proper installation is your responsibility. Have a qualified
technician install this range.
Copies of the standards listed may be obtained from:
** National Fire Protection Association One Batterymarch Park
Quincy, Massachusetts 02269
*** CSA International 8501 East Pleasant Valley Rd. Cleveland,
OH 44131-5575
NOTE: This range is manufactured for use with Naturalgas
or Propane.
Toconvert to LP (propane) or NG(natural gas), see
instructions in the gas conversion kit provided in the
literature package. Proper gas supply connection
mustbe available. Seegassupplyrequirements.
Mobile Home Installation
Before Starting Installation
• Check location where range will be installed. The location
shouldbeawayfromstrongdraftyareas,suchaswindows,
doors and strong heating vents orfans.
• Electrical grounding is required. See “Electrical
Requirements”
• Refer to manufacturer specifications of flexible gas line to
ensuresufficientgas flow is provided to theappliance.
• Assure that electrical installation is adequate and in
conformance with National Electrical Code, ANSI /
NFPA 70 - latest edition**, or Canadian Electrical Code,
part 1 C22.1 (latest edition)*** and all local codes and
ordinances.
• Assurethatgasconnectionconformswith localcodesand
ordinances. In the absence of local codes, installations
mustconformwith American National Standard, National
Fuel Gas Code ANSI Z223.1/NFPA 54 - latest edition**
Canadian CAN / CGA_B 149.1 or CAN / CGA-149.2
latest edition**
The installation of this appliances must conform to the
ManufacturedHomeConstructionandSafetyStandards,Title
24CFR,Part3280(formerlythe FederalStandardforMobile
Home Construction and Safety; Title 24 HUD part 280); or
when such standard is not applicable, the Standard for
ManufacturedHomeInstallations(ManufacturedHomeSites,
Communities and Setups), ANSI A225.1 - latest edition, or
with local codes.
When this range is installed in a mobile home, it must be
securedtothefloorduringtransit.Anymethodofsecuringthe
rangeisadequateaslongasitconformstothestandardslisted
above.
In Canada, the installation of this appliances must conform
withthecurrentstandardsCAN/CSA-Z240-latestedition,or
with local codes.
Recreational Park Trailers
The installation of this appliances designed for Recreational
Park Trailersmust conform with state or othercodesor, in the
absence of such codes, with the Standard for Recreational
Park Trailers, ANSI A119.5.
Before connecting the appliance to the gas
supply line, ensure that its gas setting is
appropriate.
The type of gas adjusted and shipped from the
factory is indicated on the rating plate.
WARNING
- Observe all governing codes and ordinances.
- Writedownthemodelandserialnumbersbeforeinstalling
therange.Bothnumbersareontheserialratingplaterefer
to the illustration below.
IMPORTANT
IMPORTANT INSTRUCTION
Please read all instructions before using this appliance.

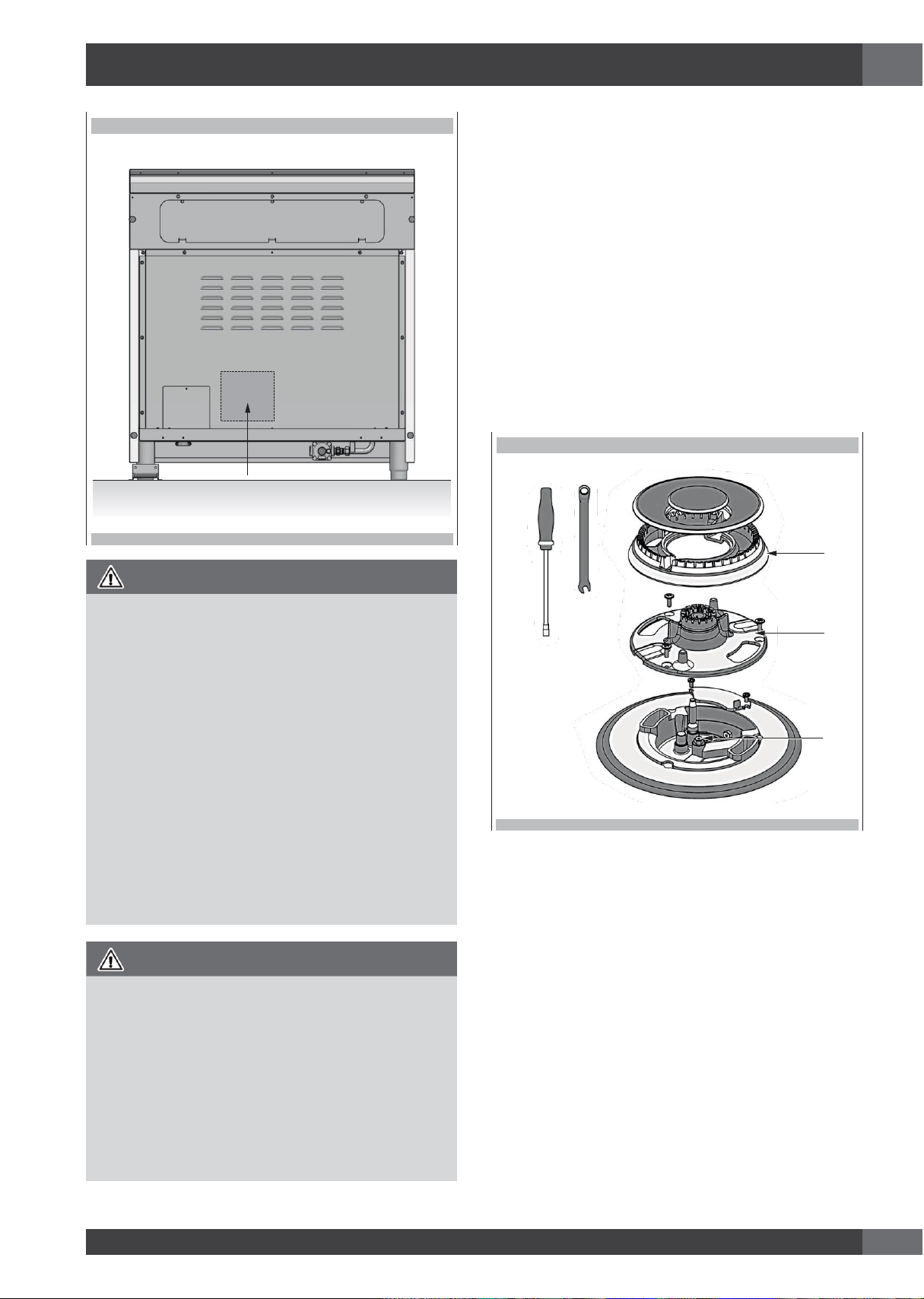

LOCATION OF RATING PLATE

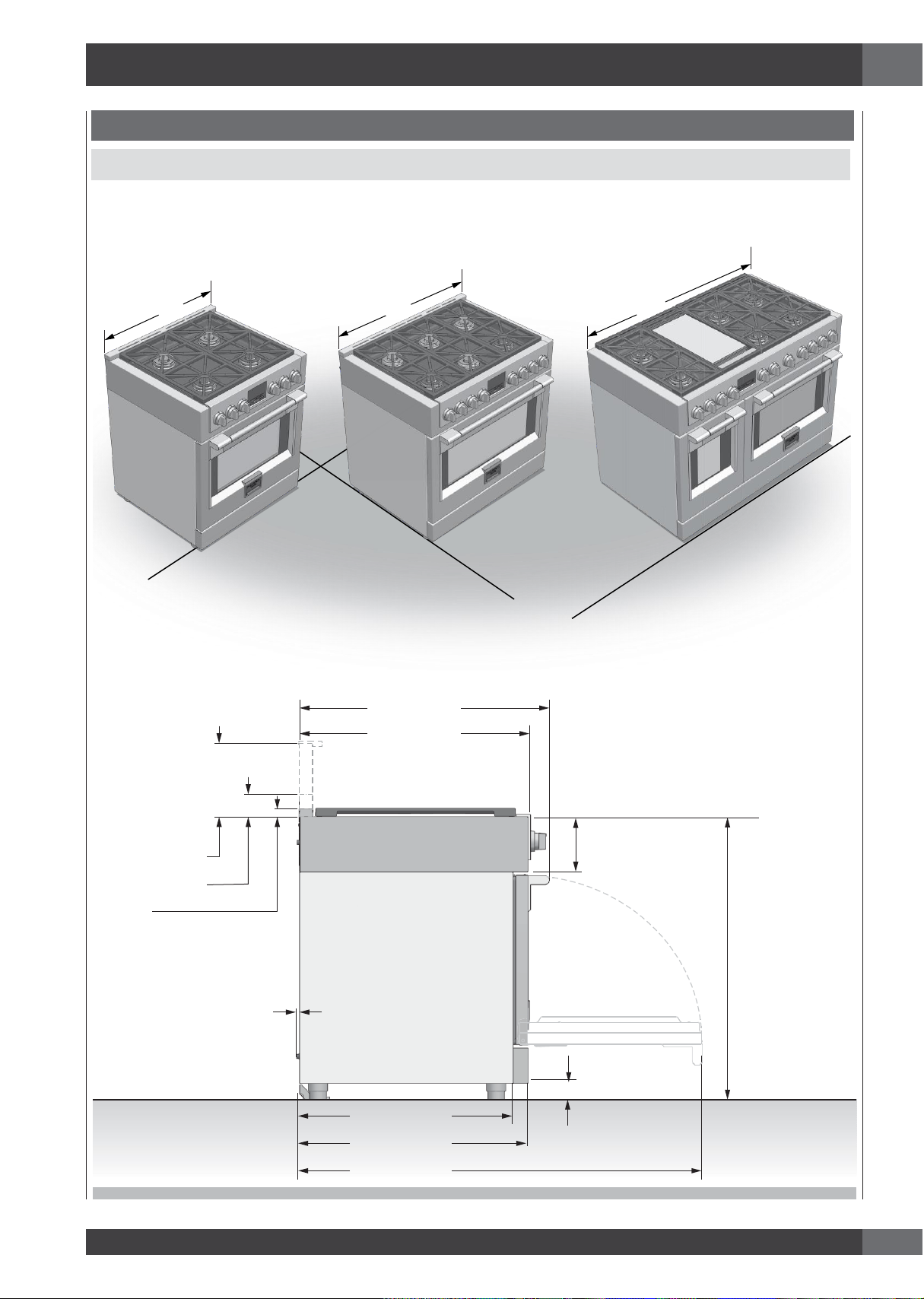

2 - Product Dimensions and Cutout Requirements
EN
3
WIDE RANGE M ODELS
29 3/4” (75.8) 35 3/4” (91.0) 47 7/8” (121.6)
29 3/4”(75.6)
27 1/2”(69.7)
7 ” (17.9)
9" (22.8) [optional]
3" ( 7.6)[optional]
1" ( 2.5)
Max. 37 1/4” (94.7)
Min. 35 3/8” (89.8)
3 / 8 ” (1)
25 3 / 4 ” ( 65.4)
1 3 / 8 ” (3.5)
TO
3 3 / 8 ” (8.5)
27 1 / 4 ” ( 69.1)
47 3/4”(121.4)
PRODUCT DIMENSIO NS

4
2 - Product Dimensions and Cutout Requirements
EN
** NOTE: Ensure your installation also complies with local and national building and fire codes.
If the surface of the entire back wall above the range and below the hood is not composed of a non-combustible material
then the 9” accessory back guard must be used.
*Consult local code for exact location requirements.
• Install with zero clearance between adjacentcombustible
construction below the cooking surface and the back
and sides of the appliance.
Note: Clearances from non-combustiblematerials are not
part of the ANSI Z21.1 scope and not certied.
Clearances to non-combustible materials must
conform with localcodesor,in the absence of local
codes, with the National Fuel Gas Code, ANSI
Z223.1 /NFPA 54.
Minimum clearances:
Above cooking surface (above 36” [91.4 cm])
• Sides - 6” (15.2 cm)
• Within 6” (15.2 cm) side clearance, wall cabinets no
deeper than 13” (33.0 cm) must be minimum 18” (45.7
cm) above cooking surface
• Wallcabinetsdirectlyaboveproductmustbeaminimum
of 48” (122 cm) above cooking surface, no deeper than
13” (33.0 cm).
• Rear - 0” with9 ” backguard;0” withnon-combustible
rear wall.
• Below cooking surface (36” [91.4 cm] and below)
ADDITIO NAL CLEARANCES:
For island installation, maintain 2-½ in. minimum from
cutoutto back edge of countertopand 3 in. minimum from
cutoutto side edges of countertop (seetop view).
For installation in a stepped island, 12” (30.5cm) minimum
clearanceisrequiredfromthebackor sidesoftherangeto
acombustibleriser.Theislandinstallationis notpart ofthe
ANSI Z21.1 scope and not certied.
FLUSH ISLAND INSTALLATION
CUTOUT REQUIREMENTS
C
Min. 30” (76.2)
Tobottom of
ventilation hood
Min. 18” (45.7)
Min. 48” (122)
Minimum to
combustibles when
no ventilation
hood is present**
Max. 13” (33)
Min. 18”
(45.7)
Min. 6”A
(15.2)
Min. 6 ”
(15.2)
3 ” (7.6)
*Suggested location
of utilities
2 ” (5.1) max. protusion from
wall for gas or electrical supply
GAS ELECTRIC
B
B
4 ” 3 / 4 (12.3)
BACK
min 2 1 / 2 ” (6.3)
min 3 ” (7.6)
min 3 ” (7.6)
OPENING WIDTH
A &
C
B
Range 30”
30"
(76.2)
6”
(15.2)
Range 36”
36"
(91.4)
7”
(17.8)
Range 48”
48"
(122 )
7”
(17.8)

5
2 - Product Dimensions and Cutout Requirements
EN

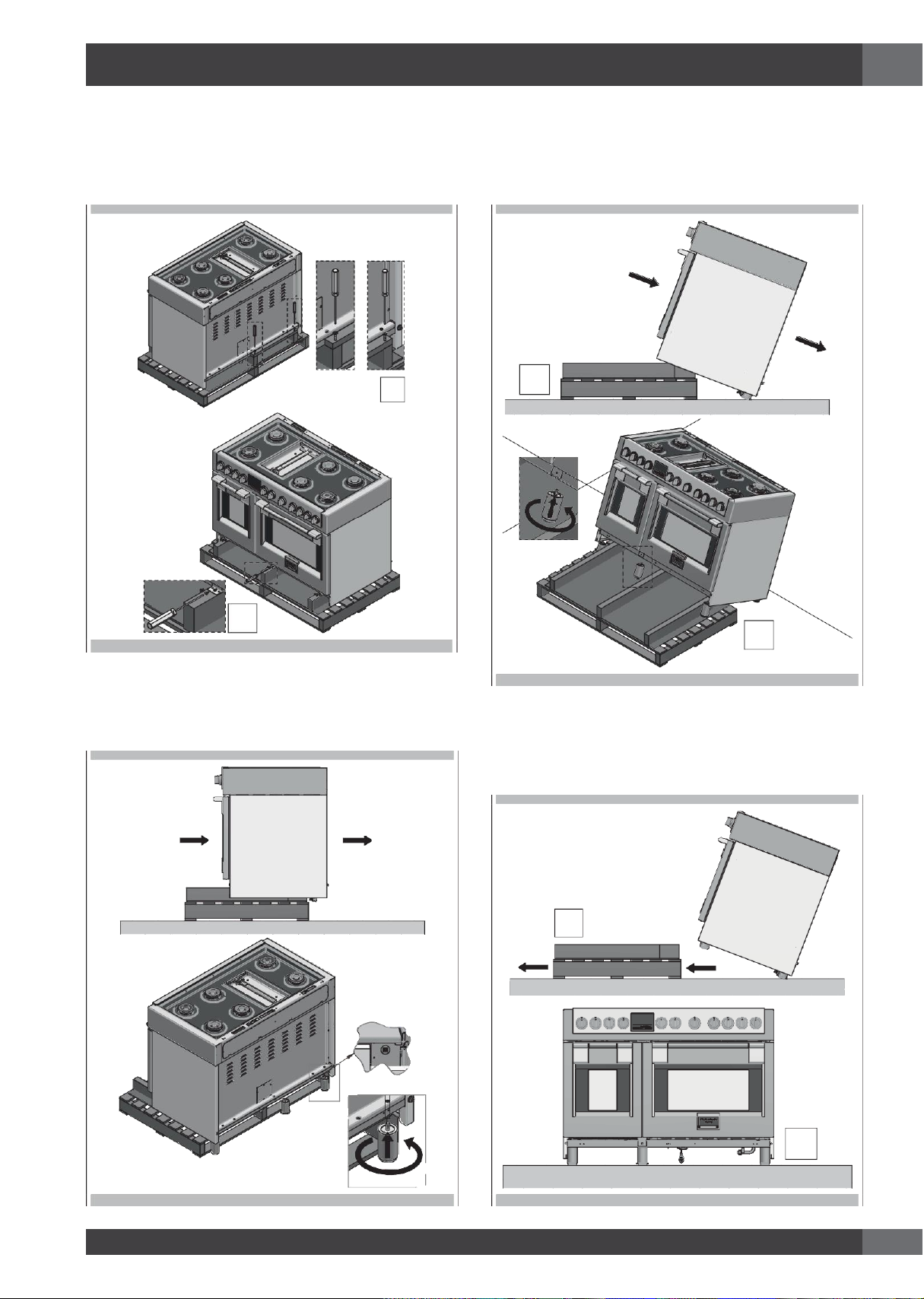

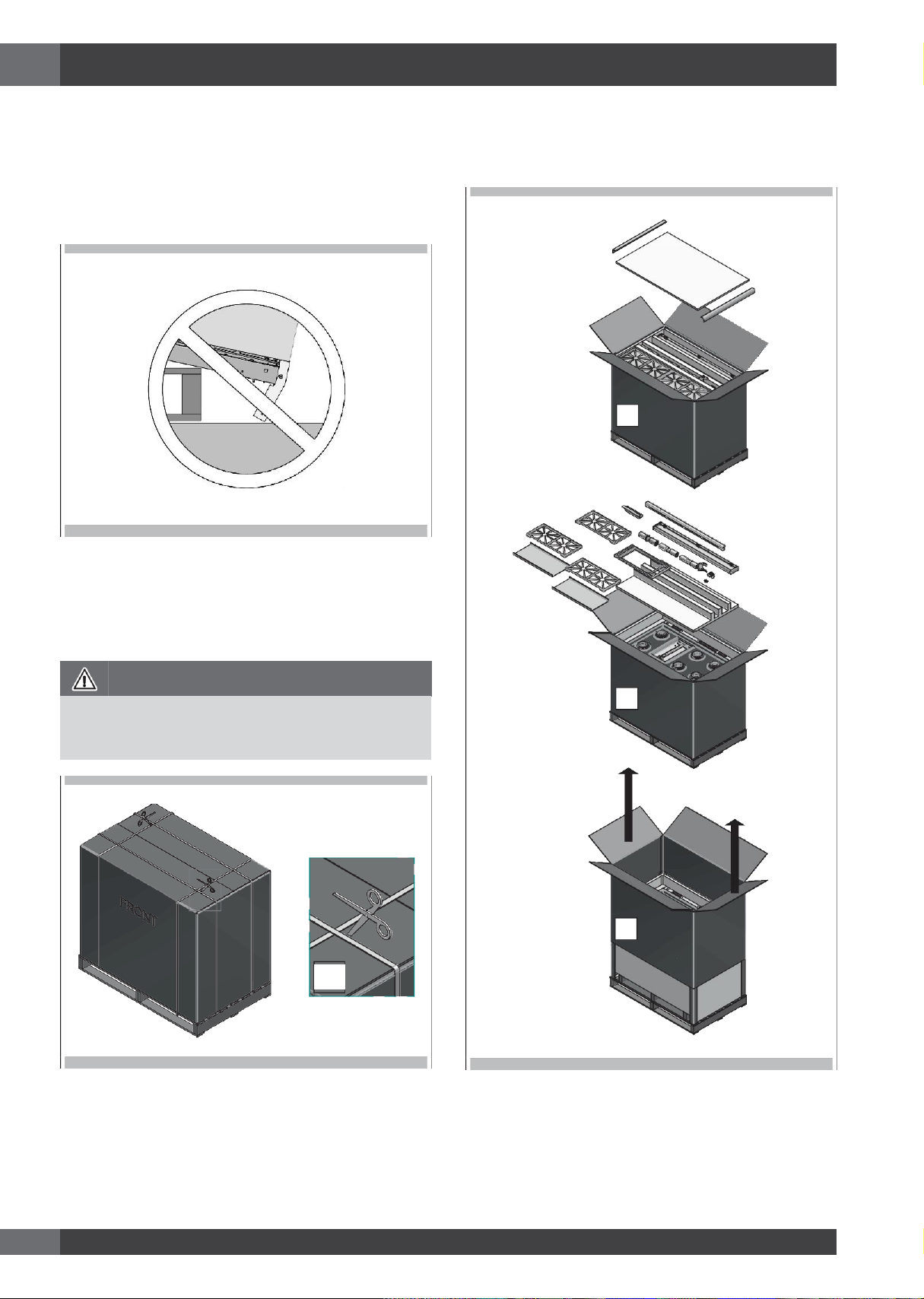

Before moving the range, protect any finished flooring and
secure oven door(s) closed to prevent damage.
Vent hood Combinations:
Itisrecommendedthattheserangesbeinstalledinconjunction
with a suitable overhead vent hood.
Dueto the high heat capacity of this unit, particular attention
shouldbepaidtothehoodandductworkinstallationtoassure
it meets local building codes.
A hood with suitable capture area and capable of at least
450cfmissuggestedtoeffectivelyevacuateodors,steamand
heat. Choosingtoinstallahoodoflowercfmorconfiguredfor
recirculatingmaycompromisetheeffectivenessofeliminating
the aforementioned factors.
Note: some State / Provincial building codes will require
make up air systems be installed for hoods above a
certain cfm threshold (300 cfm is typical).
It is your responsibility to understand and comply with
thelocalrequirementsforgas,electricalandventilation
where these appliances are being installed.

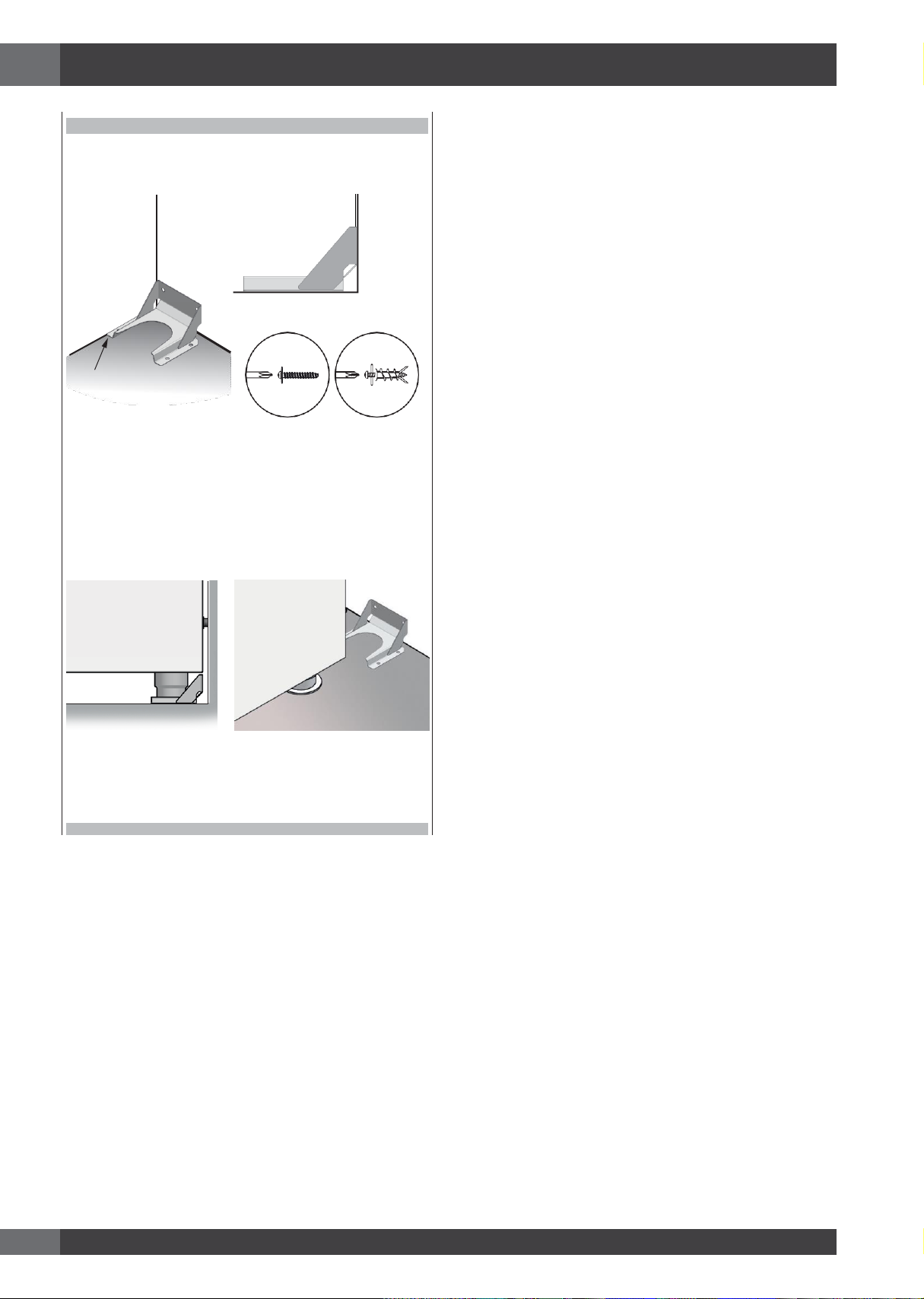

Anti-Tip Bracket Installation
Air curtain or other overhead hoods, which operate by
blowinga downwardairflow on to a range,shall not be used
in conjunction with ranges with gas cooktop other than when
thehoodandrangehave been designed,tested and certified
by an independenttest laboratoryfor use in combination with
each other.
Clearancesto horizontal surfacesabove therange,measured
to the cooking surface are below. Failure to comply may
result in fire hazard.
• Installations without a hood require 48” (122) minimum
to combustibles.
• For other installations with a hood, refer to the hood
installationinstructionsforspecific hood clearances.
WARNING
Theserangesweigh upto400pounds.Somedisassembly
will reduce the weight considerably. Due to the weight and
sizeoftherangeand toreducethe riskofpersonalinjuryor
damage to the product:
TWO PEOPLE ARE REQUIRED FOR PROPER INSTALLATION.
CAUTIO N
WARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Ensure the anti-tip bracket is engaged when the range is
moved.
Do not operate range without anti-tip bracket installed and
engaged.
Failure to follow these instructions can result in death or
serious burns to children and adults.
To verify the anti-tip bracket is installed and engaged:
• Slide range forward.
• Lookfor theanti-tip bracket securely attached to floor or
wall.
• Slide range back so rear range foot is under anti-tip
bracket.
• See installation instructions for details.
Anti-Tip Bracket
Range Foot

6
2 - Product Dimensions and Cutout Requirements
EN
BACKWALL
WALL
ANCHOR
CABINET
SIDEW ALL
FLUSH
ANTI-TIP
BRACKET
ANTI-TIP BRACKET INSTALLATION
For Concrete or Cement Construction:
You must use appropriate fastening hardware (not
provided).
Securethe bracketto thewall and/orfloorwithatleast4
wood screws (provided).
Theanti-tipbracketshouldbeinsertedintotheopeningon
the anti-tip brace on the range.

7
MATERIALS REQUIRED (not provided)
Joint Sealant
Pipe Fittings
Shut-Off Valve
from 3-foot (* reccomended for 36'' and 48'' Full Gas
ranges) to 5-foot maximum lengh, 5/8'' O.D. CSA-approved
flexible metal gas supply.
* If a longer connection line is used it may result in
noticeably reduced performance if using many of the
burners simultaneously.
NOTE: Purchase new flexible line; do not use previously used
flexible gas line.
CHOOSING RANGE LOCATIO N
Carefully select the location where the range will be placed.
Therangeshouldbelocatedforconvenientuseinthekitchen,
but away from strong drafts.
Strongdraftsmaybecausedbyopendoorsorwindows,orby
heating and/or air conditioning vents or fans.
Before moving the range, protect any finished flooring and
secure oven door(s) closed to prevent damage.
Do not lift or carry the range door by the door handle.
To eliminate the risk of burns or fire by reaching over heated
surfaceunits,cabinetstoragespacelocatedabovethesurface
units should be avoided. If cabinet storage is to be provided,
theriskcanbereducedbyinstallingarangehoodthatprojects
horizontally a minimum of inches beyond the bottom of the
cabinets.
All openings in the wall or floor where the range is to be
installed must be sealed.
Removepackagingmaterialsandliteraturepackagefromthe
cooktop before beginning installation.
Remove Installation Instructions from the literature pack and
read them carefully before you begin
TOOLS WILL YOU NEED
When installing against a combustible surface, a minimum
riser is required for a the range, Follow all minimum
clearancestocombustiblesurfacesshownintheillustration
on the previous pages.
IMPORTANT N OTE
MATERIALS PROVIDED
Anti-tip bracket
brace abd screws
Appliance
pressure
regulator
Flare union
adaptor
Gasket
3 - Installation Information EN
• Excessive Weight Hazard
Usetwoormorepeopletomoveandinstallrange.
Failureto do so can resultin back or other injury.
• Cut Hazard
Bewareofsharp edges.Usethepolystyreneendswhen
carryingtheproduct.Failuretousecautioncouldresultin
minor injury or cuts.
Do not obstruct the flo w of combustion air at
the oven vent nor around the base or beneath
the lo w er front panel of the range. Avoid touching
the vent openings or nearby surfaces as they may become
hot while theoven is in operation.Thisrangerequiresfresh
air for proper burner combustion.
NEVER cover any slots, holes or passages in the oven or
cover an entire rack with aluminum foil. Doing so blocks
airflowthroughtheovenand may causecarbon monoxide
poisoning.Aluminumfoilliningsmayalsotrapheat,causing
a fire hazard.
WARNING

8
4 - Installation Instructions
EN
Do not tip the range on its side when installing the legs.The
sidewalls are not designed to bear the weight of the range
and will bend. Any damage as a result of tipping will not
be covered by warranty. Follow the method in the enclosed
installation Manual.
STEP 1
Cut the banding (1) and remove the Installation Instructions
from the top of range and read them carefully before you
begin.
STEP 2
Open the top (2) and remove the accessories (3) then lift off
the cardboard sheath (4).
Stand clear. The ends of the cut banding may snap
tow ard you.
CAUTIO N
1
2
3
4

4 - Installation Instructions
EN
9
STEP 3 (For 48” range only)
Removethe rear woodbrace (5) andthefrontmetalsecuring
brackets (6).
STEP 5
Slide back moreand tilt back (9), putting the rear legs on the
floor and then mount the front legs (10) while in this angled
position supported by the rear legs andthe skid.
STEP 4
Slide the range back just enough to allow the rear feet tobe
installed.
STEP 6
Removethebase whilesupportingthefrontof therange(11)
and lower to the floor in a controlled manner(12).
11
12
5
6
9
10

4 - Installation Instructions
EN
10
STEP 7
Incaseitisnecessarytomovetherange;usingthefoamand/
orcardboardpackaging(13),replacethemaround therange
strategicallyto protect thefinished surfacesof therangefrom
contact with the hand-truck and any straps around the unit
(14).Inthecaseofsmallerranges,youmayusethistechnique
toremovethe rangefromtheskid and installingthelegs(15).
Tilttherangetolowerthehand-truckwheelsofftheskid.Place
appliance runners on the floor at the left and right sides in
frontof the opening whenmoving intofinal position to protect
flooring. The oven door(s) add(s) a great deal to the overall
weight of the range, you may find it helpful to remove the
doors if moving therangea significant distance. Referto the
included instruction manuals for how to remove andreinstall
the doors.
STEP 8
Installtheback guard (if provided) bythethreescrewsonthe
back. In some cases this may be an accessory back guard
that was ordered separately rather than the one which was
includedwiththerange. Refertoinstructionsincludedwithany
accessory for specific installationrequirements.
Models 48’’
13
14
15
9”
3”

4 - Installation Instructions
EN
11
STEP 9
After completing the electrical and gas connections (see
included instructions)measurethefourcornersincutoutarea
toverifyifflooringislevel.Adjustthelevelinglegstothedesired
height and ensure range is level. Turn the bottom section of
each leg counter-clockwise to raise the leg and clockwise to
lower it.
Ensureflooris protected.Slide unit into place making sure to
engage the anti-tip bracket.
STEP 10
Hooktabs on bottomof toekick intoslots on either side of the
frame and rotate up until the magnets at the top of toekick
make contact and hold it in place securely

5 - Gas Requirement
EN
12
QUALIFIED SERVICE MAN OR GAS APPLIANCE
INSTALLER MUST MAKE THE GAS SUPPLY
CONNECTIO N.
Leaktestingoftheapplianceshallbeconductedbytheinstaller
according to the instructions given.
You must install the supplied connection parts seen here in
this configuration to the main gas manifold on the appliance.
Issues arising from a failure to do so will not be covered by
warranty.
Donotinstallthepressureregulatorbackwardsasthegaswill
not flow correctly. Check that the arrow on the backpoints in
the direction of gas flow.
Partsrequiredforconnectionfromgassupplytoregulatorare
the responsibility of the installer / owner
All supply piping, except as noted, should use common
NationalPipeThread(N.P.T.).Forallpipeconnectionsusean
approvedpipejointcompoundresistanttotheactionofLPgas.
ThisapplianceisdesignedforusewithNGgasorLPgas.
Thegaspressureregulatorissuppliedwiththisappliance.
Itmustbeinstalledinthegasaheadofthemanifold entrance.
It is pre-set for use with natural gas. To use it with different
gasitmustbeconverted,asdescribedintheGasConversion
paragraph.
If at any time the appliance is to be used with a different type
of gas, all the conversion adjustments must be made by a
qualified technician before attempting to operate the range
with that gas.
The gas should be supplied to the appliance’s pressure
regulator at line pressure between 6 and 14 inches of water
column for
NG, and between 11 and 14 inches of water column for LP.
Important Notes for Gas Connection
The appliance and its individual gas shutoff valve must be
disconnected from the gas supply piping system during any
pressuretestingofthatsystemattestpressuresinexcessof1/2
psi (3.5 kPa).
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than 1/2 psi (3.5 kPa).
Appliance
Appliance
pressure regulator
Flare union
adaptor
Gasket
Use Teflon tape rated for gas applications at all threaded
connections.
Do not overtighten the connection at the manifold or you
could damage the gasket causing a leak.
ATTENTIO N
If the line pressure supplying the appliance pressure regulator
exceeds 14 inches W.C. (any gas), an external regulator
must be installed in the gas line ahead of the appliance
regulatorto reducethe pressureto no morethan 14 inches
W.C.Failuretodothiscanresultinmalfunctionanddamage
to the appliance.
WARNING
GAS SHUT OFF VALVE
OPENPOSITION
GAS REQUIREMENTS
NATURAL GAS
WC
Manifold Pressure
5" (12.5 mb)
Min Line Pressure
6" (15 mb)
Max Line Pressure
14" (34.9 mb), .5 psi (3.5 kPa)
LP GAS WC
Manifold Pressure
10” (25 mb)
Min Line Pressure
11” (27.4 mb)
Max Line Pressure
14” (34.9 mb), .5 psi (3.5 kPa)

13
Pressure Testing
The appliance must be isolated from the gas supply piping
system by closing its individual manual shut-off valve during
any pressure testing of the gas supply piping system at test
pressuresequal to or lessthan 1/2 PSIG (3.5 kPa).
Thisappliance,aswellasitsindividualshut-offvalve,mustbe
disconnected from the gas supply piping system during any
pressuretestingofthesystemattestpressuresinexcessof1/2
PSIG (3.5 kPa).
When checking appliance regulator function, make certain
pressureof natural gas supplyis between 6 and 14 inchesof
water column or, if converted for LP gas, between 11 and 14
inches.
THE PRESSURE TESTING SHOULD BE PERFORMED BY
MEANS OF THE INJECTOR THREAD ZONE
Pressure Test Method
• Remove grate and burner cap (1).
• Remove aluminum gas spreader (2) .
• Temporarilyremovetheinjectors(A).
• Connect the pressure Testinstrument into injector holder
• Check if the cooktop has the correctpressure.
• Fixtheinjectorremovedfortestingandreplacethepartsin
the right position.
EXPLODED VIEW OFBURNER
1
2
A
thread zone(M6x0,75).
5 - Gas Requirement EN
LOCATION OF GAS RATING PLATE
NEVER REUSE OLD CONNECTORS WHEN
INSTALLIN G THISRANGE.
To reducethe likelihoodof gas leaks,apply teflon tape or a
threadcompoundapprovedforusewithLPorNaturalgases
to all threaded connections.
Apply a non-corrosive leak detection fluid to all joints and
fittingsinthegasconnectionbetweenthesupplylineshut-off
valve and the cooktop inlet.
Check for leaks!
Bubbles appearing around fittings and connections will
indicate a leak. If a leak appears, turn off supply line gas
shut-off valve, tighten connections, turn on the supply line gas
shutoff valve, and retest for leaks. Never test for gasleaks
with an open flame.
NEVER TIGHTEN TO MORE THAN 35 ft lbs OF
TORQUE
IMPORTANT
Donotattemptto attachtheflexibleconnectordirectlytoan
external pipe thread.
Connectionrequiresflareunionadapters.
For MassachusettsInstallations:
1. Shut-off valve must be a “T” handle gasvalve.
2. Flexiblegasconnectormustnotbelongerthan36 inch.
3. Notapprovedforinstallationinabedroomorabathroom
unless unit is direct vent.
CAUTIO N

5 - Gas Requirement
EN
14
Gas Connection
• Thread the appliances pressure regulator with 1/2” male
end connection both supplied with this appliance.
• Join the pressure regulator to the entrance threads
of the Gas Manifold with gasket supplied with this
appliance. The regulator is marked with a directional
arrow indicating correct direction of gas flow. Ensure the
appliance regulator is installed with the arrow pointing
toward the gas manifold entrance.
• Connect a manual shut-off valve to the gas supply in an
accessible location for turning on or shutting off gas to
the appliance.
• Install a coupling between the regulator and the shutoff
valve to complete the connection.
• Assure all pipe joint connections are gas tight.
• Check alignment of valves after connecting the cooktop
to the gas supply to be sure the manifold pipe has not
been moved.
FOR ALTERN ATIVE PIPING METHODS TO CO NNECT
THE APPLIA NCE TO THE GAS SUPPLY, A TRAINED
SERVICETECHNICIAN ORGASAPPLIANCEINSTALLER
MUST MAKE THE GAS SUPPLYCO NNECTIO N.Leak
testing of the appliance shall be conducted by the
Installer according to the Instructions given.
Unless prohibited by local codes or ordinances, a new
A.G.A. - Certified, flexible metal appliance connector may
be used to connect this appliance to its gas supply.
The connector must have an internal diameter not less than
nominal 1/2” NPT pipe, from 3-foot (* reccomended for
36’’ and 48’’ Full Gas ranges) to 5-foot maximum lengh,
5/8’’ O.D. CSA-approved flexible metal gas supply.
*Ifalongerconnectionlineisuseditmayresultinnoticeably
reduced performance if using many of the burners
simultaneously.
A1/2” NPTx1/2” flareunionadapterisrequiredateach
end of the flexible connector.
Ifaflexibleconnector is used assurethatboththe appliance
pressure regulator and manual shut-off valve are joined
solidly to other permanent hard piping (either gas supply
orthe appliance manifold) so as to be physically stationary.
For Massachusetts Installations:
1. Shut-off valve must be a “T” handle gasvalve.
2. Flexiblegas connectormustnotbe longer than 36 inches.
3. Not approved for installation in a bedroom or a bathroom
unless unit is direct vent.
Donotattempttoattachtheflexibleconnectordirectlyto an
external pipe thread.
Connection requires flare union adapters.
CAUTIO N
MAXIMUM GAS PO WER
NATURAL GAS
30”
92,000 Btu / h
36”
48”
133,500 Btu / h
151,000 Btu / h
PROPANE GAS
30”
76,000 Btu / h
36”
111,500 Btu / h
48”
127,000 Btu / h

6 - Conversion for LP or NG Gas
EN
15
GAS CONNECTIO N
FLAREUNIONADAPTOR APPLIANCEPRESSUREREGULATOR
FLARE UNION ADAPTOR
GASKET
FLARE UNIONADAPTOR
FLEXIBLE APPLIANCE CONNECTOR
MANIFOLDSHUTOFFVALVES
GASKET
FLAREUNIONADAPTOR
FLEXIBLE APPLIANCE CONNECTOR
APPLIANCE PRESSURE REGULATOR
MANIFOLDSHUTOFFVALVES

6 - Conversion for LP or NG Gas
EN
16
Converting Appliance for Use with LP Gas
If this appliance is to converted for use with gas LP (propane
or butane), each of the following modifications must be
performed:
Gasconversionlabel(aluminium)tobeplacedonthebackof
theappliance,nearthedata plate, afterconversion has been
carried out;
Replace Injectors (t w o ring flame burner)
1. Remove the grates and burner caps.
2. Remove aluminium gas spreader.
3. Removethethreescrewsfromthesimmergasspreader(1).
4. Remove the two screws of the injector cover(2).
5. Remove injector (A) by using a 9-32” (7 mm) nut driver
counter clockwise.
6. Remove injector (B) by using a 9-32” (7 mm) box wrench
counter clockwise.
7. Install the injectors supplied with this appliance in the
appropriate burner. The injectors have small numbers
stamped on the side, this number corresponds with the
orifice diameter and its correct burner location (refer to
illustrations in the section: “Injectors Position”).
8. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs).
9. Replace all parts following the reverse order.
10.Save the injectors removed from the appliances for future
use.
Conversion is to be performed by an AUTHORIZED
SERVICER (or other qualified agency) in accordance with the
manufacturer’sinstructionsandallcodesandrequirementsof
theauthorityhavingjurisdiction.Failuretofollowinstructions
could result in serious injury or propertydamage.
The qualified agency performing this work assumes
responsibility for this conversion.
WARNING
Before proceeding w ith the conversion, shut
off the gas supply to the appliance prior to
disconnecting the electrical power
CAUTIO N
EXPLODED VIEW OFBURNER
1
2
B
A

6 - Conversion for LP or NG Gas
EN
17
1
A
Replace Injector (griddle)
1.
Remove griddle plate.
2. Remove burner cover.
3. Remove the burner fixing screw (1).
4. Removethesprings(2) fromthermocoupleand ignitorto
shift the burner.
5. Remove injector (A) by using a 9-32” (7mm) nut driver
counter clockwise.
6. Installtheinjectorsuppliedwiththisappliance.Theinjector
has small numbers stamped on the side, this number
corresponds with the orifice diameter.
7. Turn clockwise to tighten (tighten to a torque of 15 to20
inch-lbs.)
8. Replace all parts following the reverseorder.
9. Savetheinjectorsremovedfromtheappliancesforfuture
use.
Replace injector on (oven lo w er burner)
1. Remove the burner covers plate.
2. Removethescrewsecuringtheovenburnerandwithdraw
the burner from the support.
EXPLODED VIEW OFBURNER

6 - Conversion for LP or NG Gas
EN
18
3. Remove the nozzle by turning 9-32” (7 mm) nut driver
counter clockwise. Replace injector on (oven grill burner)
1. Remove the door as described in the paragraph “Door
removal”
2. Removethescrewssecuringthegrillburnerandwithdraw
the burner from the support.
4. Install the injectors supplied with this appliances in the
appropriate burner. The injectors have small number
stamped on the side, this number codes the orifice diameter
anditscorrectburnerlocation(seefigureoftheparagraph
“Injectors position”).
5. Turn clockwise to tighten (tighten to a torque of 15 to 20
inch-lbs)
6. Replace all parts following the reverse order. Save the
injectors removed from the appliances for future use.
