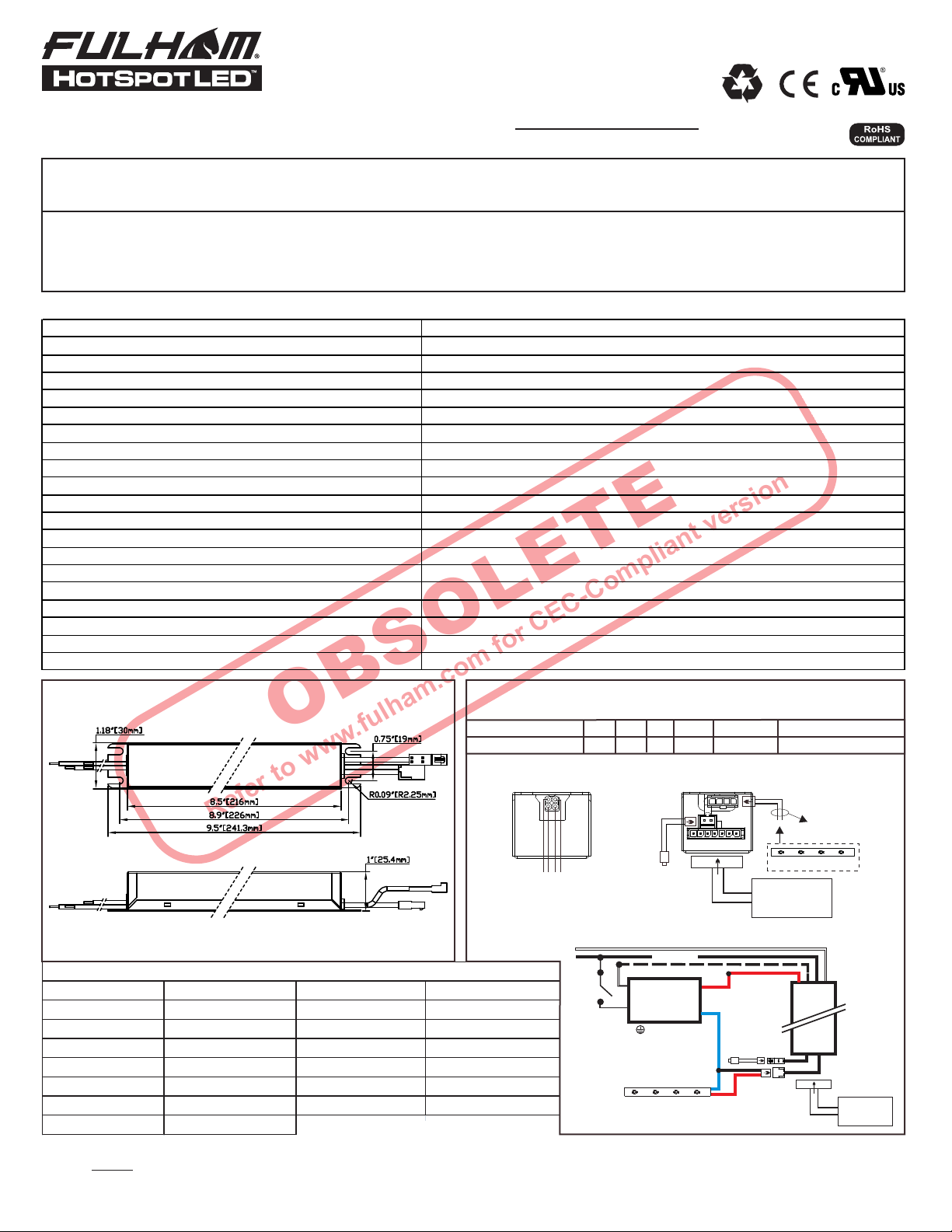

Fulham FHS2-UNV-56S Instruction sheet

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MECHANICAL DATA
FHS2-UNV-56S
SPECIFICATION SHEET:
This Is An Original Product From Fulham Co., Inc
Description: Emergency LED Driver For Back-up Lighting.
This Driver Will Operate Constant Current LED Arrays With a Working Voltage Between
11-56VDC And Not Exceeding 20W.
ELECTRICAL DATA
MECHANICAL DATA WIRING DIAGRAMS
WIRE
LENGTH - INCHES
13±.5” 13±.5” 21±.5” 15±.5” 24 ±1”
BLACK WHITE RED BLK/WHT BATTERY LEAD
Part Number Descripon Part Number Descripon
FHS-HARNESS-100 100 mA LED Harness FHS-HARNESS-150 150 mA LED Harness
FHS-HARNESS-200 200 mA LED Harness FHS-HARNESS-250 250 mA LED Harness
FHS-HARNESS-300 300 mA LED Harness FHS-HARNESS-350 350 mA LED Harness
FHS-HARNESS-400 400 mA LED Harness FHS-HARNESS-450 450 mA LED Harness
FHS-HARNESS-500 500 mA LED Harness FHS-HARNESS-550 550 mA LED Harness
FHS-HARNESS-600 600 mA LED Harness FHS-HARNESS-650 650 mA LED Harness
FHS-HARNESS-700 700 mA LED Harness
Accessory Harness (Need separately purchase)
WIRING DIAGRAM (TYP)
INPUT SIDE OUTPUT SIDE
INPUT/OUTPUT
WIRES (REFER TO WIRING
DIAGRAM BELOW)
RED (+)
BLACK
WHITE(COMMON)
BLACK
WHITE
DRIVER MUST
BE GROUNDED
BLUE (-)
LED DRIVER
RED (+)
WALL
SWITCH
HOT( 100V - 277V)
WHT/BLK
LINE
TEST
SWITCH
BLK
RED
BATTERY
LED ARRAY
FHS2-UNV-56S
LED HARNESS-TEST SWITH
12±.5”
SWITCH TEST
LED ARRAY
100mA - 700mA harness
BATTERY
(Need separately purchase)
Where : L = Length, W = Width, H = Height, Tolerance=±0.02"
NiCd/LiFePO4
E313578
INPUT VOLTAGE 100-277VAC±10%, 50/60Hz
INPUT CURRENT 43mA Max.
INPUT POWER 2.82W Max.
RED LEAD 3A, 60V Max.
WHITE/BLACK LEAD 100W Max.
OUTPUT CURRENT 100mA-700mA (Refer to accessory chart)
OUTPUT WORKING VOLTAGE 11-56VDC
RECHARGE TIME REQUIRED 24-48Hours (Refer to battery chart)
BATTERY TYPE NiCd 9.6VDC or LiFePO4 9.6VDC
BATTERY CAPACITY AVAILABLE .9Ah, 1Ah, 1.2Ah, 1.5Ah, 1.8Ah, 3Ah, 4Ah, 6Ah
ILLUMINATION TIME 90Minutes Min.
TOTAL MAX. LED POWERED 20W
OUTPUT CLASSIFICATION Class 2
SURGE PROTECTION ANSI/IEEE C62.41 CLASS A
INPUT PROTECTION FUSE
OUTPUT SHORT CIRCUIT PROTECTION Self Resetting PTC
OPEN CIRCUIT PROTECTION YES
AMBIENT TEMPERATURE 0°C-50°C NiCd, 10°C-50°C LiFePO4, -20°C-50°C (FHSBATCC3-3)
APPROVALS/CLASS cUR Class 2, Dry and Damp Locations, CE
EMERGENCY LED DRIVER & LiFePO4 BATTERIES RoHS
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.
2015-574-1 REV C

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
2015-574-2 REV C
IMPORTANT SAFE PRACTICES
regulations.
CAUTION: Do not let power supply cords touch hot surfaces.
CAUTION: Do not mount near gas or electric heaters.
·CAUTION: Battery is rechargeable NiCd or LiFePO4 type and must be recycled or disposed of properly.
·Do not use this emergency driver with accessory equipment other than recommended by manufacturer;
failure to follow this may cause an unsafe condition. Servicing should only be performed by qualified service
personnel.
·Do not use this emergency driver for other than intended use.
Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
IMPORTANT: Indicator (LED light) illuminated indicates battery in charge mode when AC power is applied.
It is recommended and required by applicable code to test emergency ballast to ensure proper function of
the system; push the test switch for thirty (30) seconds every 30 days to ensure the emergency driver is
functioning as LED light source illuminated. Conduct a ninety minute (90) discharge test one time (1) per year;
LED light source should be illuminated for a minimum of ninety minutes (90).
ASSEMBLY and FIELD INSTALLATION WIRING: WARNING: AC power must be off before proceeding
with assembly or installation of emergency driver.
TESTING SYSTEM: The emergency battery requires a charge minimum of one (1) hour before testing the
circuit. A full charge requires twenty four (24) or thirty six (36) or forty eight (48) hours, depending upon
battery pack. Please refer to battery chart for charging time.
·IMPORTANT: An un-switched AC power source of 100VAC to 277VAC is required.
·This device is designed for use in fixtures listed for dry and damp locations.
·CAUTION: Make sure all electrical connections conform to the National Electrical Code and all applicable local
GENERAL INSTALLATION GUIDELINES FOR
LED EMERGENCY DRIVER
MODEL: FHS2-UNV-56S
When using electrical equipment and this lighting device basic safety precaution should
be followed at all times including but not limited to the following:
PLEASE READ CAREFULLY AND FOLLOW ALL INSTRUCTIONS FOR YOUR OWN SAFETY
SAVE THESE INSTRUCTIONS
MECHANICAL DATA
NiCd/LiFePO4
E313578
·IMPORTANT: Do not connect battery until fixture is installed.
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
INPUT SIDE
RED
TO LED
(+) INPUT
TO LED
DRIVER (100W MAX.)
BLK/WHT
BLKWHT
INPUT
POWER
NOTE: DRILL ½” DIA. HOLE IN MOUNTING
PLATE TO INSERT TEST SWITCH
WIRING DIAGRAM (EMERGENCY ONLY)
WIRING DIAGRAM (TYP)
RED (+)
BLACK
WHITE(COMMON)
BLACK
WHITE
DRIVER MUST
BE GROUNDED
BLUE (-)
LED DRIVER
RED (+)
WALL
SWITCH
HOT(100 - 277VAC)
WHT/BLK
LINE
TEST
SWITCH
BLK
RED
BATTERY
LED ARRAY
FHS2-UNV-56S
RED (+)
BLACK
WHITE(COMMON)
HOT( 100V - 277V)
WHT/BLK
LINE
TEST
SWITCH
BLK
RED
BATTERY
LED ARRAY
FHS2-UNV-56S
OUTPUT SIDE
SWITCH TEST
LED ARRAY
100mA - 700mA harness
BATTERY
(Need separately purchase)
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-3 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
Baery Model Number Harness Part Number Descripon
FHSBATT8-AA.9 FHS-EXT12L HotSpot 12" Baery Extension
FHSBATT8-C3 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATT8-D4 FHS-EXT12H HotSpot 12" Baery Extension
FHSBATL3-1 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL3-1.5 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL3-3 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL6-1.5 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL6-3 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL6-.6 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL9-.6 FHS-EXT12M HotSpot 12" Baery Extension
Harness Extension
FHSBATL6-1.5L FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL6-3L FHS-EXT12M HotSpot 12" Baery Extension
FHSBATT8-C3L FHS-EXT12M HotSpot 12" Baery Extension
FHSBATCC3-3 FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL6-1.5S FHS-EXT12M HotSpot 12" Baery Extension
FHSBATL3-1.5S FHS-EXT12M HotSpot 12" Baery Extension
Fulham Model No. Chemistry Compliant Pack Capacity Max Load for 90 min. Baery Voltage Recharge Time
FHSBATT8-AA.9 NiCd 900mAh 4W 9.6V 24Hrs
FHSBATT8-C3 NiCd 3000mAh 16W 9.6V 32Hrs
FHSABATT8-D4 NiCd 4000mAh 20W 9.6V 32Hrs
FHSBATL3-1 LiFePO4 1000mAh 4W 9.6V 24Hrs
FHSBATL3-1.5 LiFePO4 1500mAh 8W 9.6V 24Hrs
FHSBATL3-3 LiFePO4 3000mAh 16W 9.6V 32Hrs
FHSBATL6-1.5 LiFePO4 3000mAh 14W 9.6V 32Hrs
FHSBATL6-3 LiFePO4 6000mAh 20W 9.6V 48Hrs
FHSBATL6-.6 LiFePO4 1200mAh 4W 9.6V 24Hrs
FHSBATL9-.6 LiFePO4 1800mAh 8W 9.6V 24Hrs
FHSBATL6-1.5L LiFePO4 3000mAh 14W 9.6V 32Hrs
FHSBATL6-3L LiFePO4 6000mAh 20W 9.6V 48Hrs
FHSBATT8-C3L NiCd 3000mAh 16W 9.6V 32Hrs
RoHS
FHSBATCC3-3 LiFePO4 3000mAh 14W 9.6V 32Hrs
RoHS
FHSBATL6-1.5S LiFePO4 3000mAh 14W 9.6V 32Hrs
FHSBATL3-1.5S LiFePO4 1500mAh 8W 9.6V 24Hrs
RoHS
RoHS
MODEL: FHS2-UNV-56S
Battery Chart
CAUTION: Replace battery only with corresponding part number.
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-4 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
Battery Dimensions
FHSBATT8-AA.9
4W, 900mAh, 9.6V
FHSBATT8-C3
16W, 3000mAh, 9.6V
MECHANICAL DATA
NiCd/LiFePO4
E313578
MODEL: FHS2-UNV-56S
2015-574-5 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATL3-1
4W, 1000mAh, 9.6V
FHSBATL3-1.5
8W, 1500mAh, 9.6V
FHSBATL3-3
16W, 3000mAh, 9.6V
FHSBATL6-1.5
14W, 3000mAh, 9.6V
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-6 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATT8-D4
20W, 4000mAh, 9.6V
FHSBATL6-3
20W, 6000mAh, 9.6V
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-7 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATL6-.6
FHSBATL9-.6
4W, 1200mAh, 9.6V
8W, 1800mAh, 9.6V
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-8 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATL6-1.5L 14W, 3000mAh, 9.6V
Mounting Bracket Dimensions (Optional)
FHSBATSC6-1.5L
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-9 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATL6-3L 20W, 6000mAh, 9.6V
FHSBATSC6-3L
Mounting Bracket Dimensions (Optional)
Do not apply pressure, contains
critical components at this location.
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-10 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
Mounting Bracket Dimensions (Optional)
FHSBATT8-C3L
16W, 3000mAh, 9.6V
FHSBATSC8-C3L
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-11 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.

OBSOLETE
Refer to www.fulham.com for CEC-Compliant version
MODEL: FHS2-UNV-56S
Battery Dimensions
FHSBATCC3-3
14W, 3000mAh, 9.6V
FHSBATL6-1.5S
14W, 3000mAh, 9.6V
FHSBATL3-1.5S
8W, 1500mAh, 9.6V
MECHANICAL DATA
NiCd/LiFePO4
E313578
2015-574-12 REV C
This product does not meet CEC Title 20 Code of Regulations. Fulham extends a limited warranty only to the original purchaser or to the first user for a
period of 5 years from the date of manufacture when properly installed and operated under normal conditions of use. For complete terms and conditions,
please reference the Fulham product catalog (www.fulham.com) Due to a program of continuous improvement, Fulham reserves the right to make
modifications or variations in design or constructionto the equipment described. © Fulham Company Limited, All Rights Reserved.
