Bluetooth QD ID B013281
O
Op pe er ra at ti in ng g M Ma an nu ua al l

1 Table of contents
1Table of contents _______________________________________________________ 2
2Introduction / Foreword __________________________________________________ 3
3Safety instructions ______________________________________________________ 4
4Scope of supply / Packaging contents ________________________________________ 5
5Connection / Assembly ___________________________________________________ 6
6Function test ___________________________________________________________ 6
7Operating instructions ___________________________________________________ 7
7.1 Functions ................................................................................................................................................................ 7
7.1.1 Function overview ................................................................................................................................................... 7
7.2 Symbols ................................................................................................................................................................... 7
7.3 Putting into operation ............................................................................................................................................. 8
7.3.1 About the Bluetooth®technology ........................................................................................................................... 8
7.3.2 Switching on / off .................................................................................................................................................... 9
7.3.3 Pairing ..................................................................................................................................................................... 9
7.3.4 Automatic connection ............................................................................................................................................. 9
7.4 Calls ........................................................................................................................................................................ 10
7.4.1 Incoming call .......................................................................................................................................................... 10
7.4.2 Outgoing call ........................................................................................................................................................... 10
7.5 Volume .................................................................................................................................................................... 10
8Technical specifications __________________________________________________ 12
9Certification ___________________________________________________________ 12
10 Conformity statement ____________________________________________________ 13
11 Hotline _______________________________________________________________ 15
EGO CUP

2 |3
2Introduction / Foreword
Congratulations on your new EGO!
EGO CUP is the clever beginners' solution for using your telephone in your vehicle: easy to operate, noble and compact.
Installing the EGO CUP in the vehicle requires no special knowledge and skills. Simply place the EGO CUP on the
adapter, engage with this while turning clockwise and finally insert into the cupholder while turning clockwise.
Please ensure that your telephone is compatible with the EGO CUP.
Ask your dealer, if necessary. Our Service department would also be happy to provide you with information.
Further information regarding compatibility with various mobile phones can be found on our homepage.

3Safety instructions
1. Improper installation — Improper installation can cause damage to the device or vehicle! Only use EGO CUP
in the cupholder!
2. Risk of injury — Installing the device in inappropriate positions may cause injuries in a road accident or
render safety devices ineffective. Only use EGO CUP in the cupholder!
3. Risk of injury / Material damage — Do not apply any direct pressure on the connection cable!
4. Negative impact on driving safety — Inattentiveness can lead to dangerous traffic situations! Even when
calling in handsfree mode, it is important to always focus your attention on what is happening around you.
When navigating in difficult situations, try to avoid carrying out a phone conversation at all!
5. Damage to the airbag — If an incorrect installation position is chosen, the airbag can be damaged or its
function can be impaired!
6. Insulation damages — Lay the cables in such a way that they do not become crushed or rub against each
other!
7. Interference with the on-board electronics — Observe the notices from the vehicle manufacturer!
8. Proper use — This system is intended exclusively for using mobile phones in motor vehicles!
9. Damages due to incorrect replacement parts — Incorrect replacement or exchange parts can lead to
malfunctions! Repairs can only be performed by our Service department!
10. Negative impact on driving safety — For your own safety, please do not perform a pairing procedure while
driving!
EGO CUP

4 Scope of supply / Packaging contents
[1] EGO CUP
[2] Adapter for use in the cupholder
[3] Microphone
[4] Connection kit for connection to
the vehicle cigarette lighter (12 V)
[5] Quick Guide
[6] Safety instructions
[1]
[2]
[3]
[4]
[5]
[6]
Ill.: Scope of supply
ÂPLEASE ENSURE the completeness of the delivery. If parts are missing, please contact our service hotline:
858.566.2170, Mo. – Th. 7.00 a.m. – 5.00 p.m., Fr. 7.00 a.m. – 4.00 p.m.
4|5
Only the connection kit included in
the scope of supply (Funkwerk Dabendorf,
model: R0002037) is to be used.

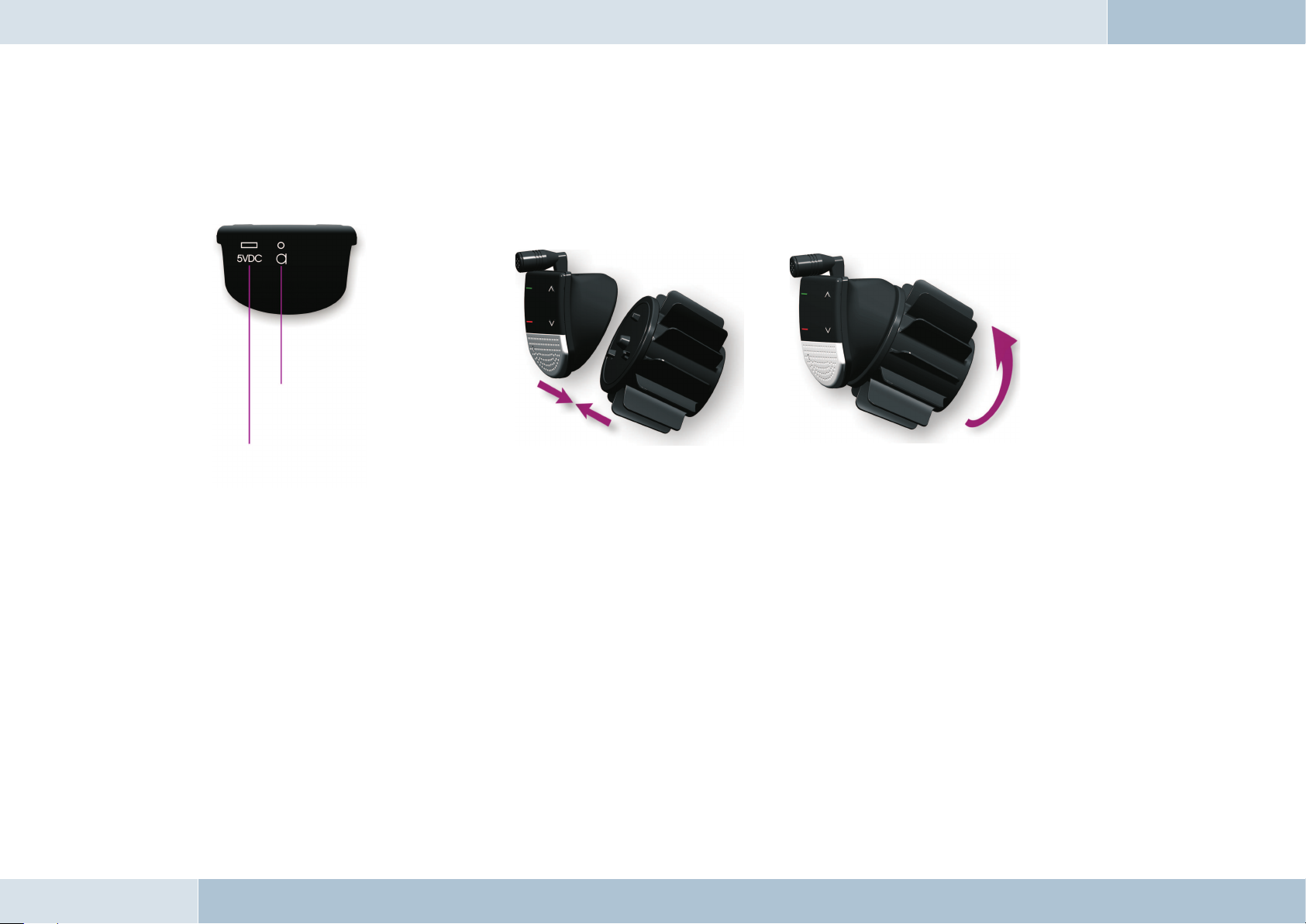

Connection Assembly
Step 1 Step 2
Step 3
The assembled system is to be inserted in the cupholder
of the vehicle by turning in a clockwise direction.
6Funktion test
The function test cannot be carried out until the system has been connected to a compatible Bluetooth®mobile phone.
Please consult the “Putting into operation“ section further back in this instruction manual for details of the procedure.
Microphone
connection
Adapter
connection
for cigarette
lighter
5Connection/Assembly
EGO CUP

7Operating instructions
ÂNEGATIVE IMPACT ON DRIVING SAFETY! Inattentiveness can lead to dangerous traffic situations. Even when calling
in handsfree mode, it is important to always focus your attention on what is happening around you. When navigating
in difficult situations, try to avoid carrying out a phone conversation at all!
7.1 Functions
7.1.1 Function overview
The EGO CUP handsfree system supports the Bluetooth®handsfree profile. This means that the system can be used
to operate telephones which support this profile. EGO CUP is the clever beginners solution for using your telephone
in your vehicle and offers the following range of functions:
ÆCall functions such as accept call, reject call and redial
ÆSupport of the mobile phone voice dialling
ÆRegistration of up to 8 mobile phones
7.2 Symbols
The control unit of the EGO CUP has a total of
4 buttons. The picture to the right gives a brief
overview of the available buttons.
The functions of the individual buttons are
explained next to the picture.
Accept call,
redial
End call, reject
call, begin the
voice dialling of
the mobile phone
Increase
volume
Lower
volume
6|7

EGO CUP
LED – functions
An LED is integrated in the EGO CUP. This is used to display various states. The following states may occur.
LED – state with inactive Bluetooth®-connection
- LED flashes in intervals shortly ÆNo mobile phone connected
LED – state with active Bluetooth®-connection
- LED permanently on ÆMobile phone connected, network reception exists
- LED quickly flashes in intervals ÆActive call
- LED off ÆNo network reception
7.3 Putting into operation
Take the time to familiarise yourself with the operation of the system together with the telephone. Make some initial
calls during which you determine the ideal conditions for the volume and the speaking direction before you use the
system while driving. When putting into operation, the vehicle should be parked in a quite place. Making arrangements
with a contact who can take the time to help you with the test connection is a decided advantage.
7.3.1 About the Bluetooth®technology
Bluetooth®technology is a radio technology and thus enables communication without cables. Data and speech can be
transmitted at the same time. To do so, the devices involved do not have to be within sight of each other. The radio range
in the open is generally 10 m, however interferences through other electrical devices or obstacles can lead to a lower
range. The frequency band in which Bluetooth®functions is approved on a virtually global scale. This coupled with the
fact that every Bluetooth®product is tested and qualified for problem-free cooperation with other Bluetooth®devices
ensures the highest possible compatibility of devices from different manufacturers. The EGO CUP supports the
Bluetooth®handsfree profile. This means that you can use this to operate telephones which support the Bluetooth®
handsfree profile. If necessary, please refer to the operating manual that came with your mobile phone for details of
which profile it supports.

7.3.2 Switching on/off
When the ignition is switched on or the connection kit is plugged in, the handsfree system switches on and the LED slowly
flashes four times. Then the EGO CUP is in standby mode and ready to establish a connection. A compatible Bluetooth®
telephone must be connected to the EGO CUP in order to be able to telephone with the system. You will learn how to do
this in the following sections. If the system does not switch on after the connection kit is plugged in, activate the ignition
of your vehicle. If the ignition is switched off or the connection cable disconnected, the handsfree system switches off. If
the cigarette lighter of your vehicle does not switch off when the ignition key is removed, remove the connection kit from
the cigarette lighter to switch off the system.
7.3.3 Pairing
A mobile phone that is to be operated using the handsfree system must be paired with EGO CUP. As long as no device is
connected, the system is visible to all Bluetooth®devices. In this condition, the LED flashes every few seconds. The
telephone to be used must be registered in the EGO CUP. The Bluetooth®search and pairing occurs in the mobile phone.
The Bluetooth®identifier is „EGO CUP“. The PIN to be entered is „0000“. If the connection/pairing was successful, the
LED lights up permanently. One telephone can be paired per user. If you wish to pair another telephone, please
disconnect the current connection on the telephone. Should problems arise when pairing, please refer to the „Trouble-
shooting“ section and research the device search using Bluetooth®in the operating instructions of your mobile phone.
7.3.4 Automatic connection
If a telephone is already connected to the system, the EGO CUP attempts to pair with this telephone. If the connection was
successful, the LED lights up permanently. The telephone that was connected last is always paired. If this telephone is
outside of the range, the other paired telephones are sought. If the search was successful, the system automatically
connects to this telephone. However, if the search is unsuccessful, the system switches to pairing mode. Manual
connection via the telephone is now possible.
8|9

7.4 Calls
7.4.1 Incoming call
The ringtone can be heard for an incoming call. In addition, the LED flashes periodically.
The call can be accepted using the button. The call is rejected using the button.
7.4.2 Outgoing call
There are multiple options for beginning a call. The telephone's redial is activated using the button, in which the
number last dialled is dialled again. If the call is established, the LED flashes periodically. If the button is
pressed, the voice dialling of the telephone is initiated. Now you can say the number, the name or other commands that
are supported by the telephone. Here the LED also flashes periodically when the call is established.
The third possibility is direct dialling using the mobile phone.
7.5 Volume
The volume can be changed using the and buttons. Pressing the button increases the volume and
pressing the button lowers the volume.
ÂIMPORTANT NOTE: Please observe the legal regulations of your country regarding use of the telephone in a vehicle!
EGO CUP

Troubleshooting:
10 |11
Problem Cause Remedy
The person on the other end of the
line cannot hear you Microphone not connected Connect microphone
The person on the other end
complains of noise interference
Microphone in airstream Decrease ventilation
Telephone very close to EGO CUP
parts or car radio
Increase the distance between the phone and
the EGO CUP or radio
The person on the other end
complains of echo effects Volume too high Lower volume
When pairing the device, the mobile phone
cannot be paired with the EGO CUP EGO CUP is already connected to a device Cancel existing connection
Audio sounds unpurified, scratchy Poor Bluetooth -connection
®Lower volume
After switching on the ignition,
the connection to the paired
telephone is not established
The telephone is out of range Bring the telephone in range of the EGO CUP
The Bluetooth -interface is deactivated
In the phone
®Switch Bluetooth to “ON” in your telephone
(”Automatic” option is insufficient)
®
The telephone requires a confirmation
that the connection was established
Confirm the connection on the phone. Deactivate the security
request (see operating instructions of telephone)
One of the two devices no long has
a valid passkey Perform a new pairing
EGO CUP does not
switch on
Mini - USB not connected Connect mini - USB
Connection kit not connected Connect connection kit
Ignition not switched on Switch on ignition

8 Technical specifications
EGO CUP dimensions 76 mm x 74 mm x 43,5 mm
Length of adapter cable 0,6 m
Operating voltage 12 V
Temperature range -10 °C to +55 °C
Supported Bluetooth®profiles Handsfree
9 Certification
In accordance with R&TTE Directive 1999/5/EC
Model certification according to EU Directive 72/245/EEC (2006/28/EC) „Radio interference (electromagnetic
compatibility) of vehicles“
Bluetooth®is a registered trademark of Bluetooth SIG, Inc.
0681
03 5156
EGO CUP

12 |13
10 Conformity statement
This device works with Bluetooth®radio technology. In certain countries the use of this device may not be allowed or
may be restricted. Please familiarise yourself with these restrictions and do not use the device if you are unsure
whether usage is allowed in a certain country.
Bluetooth®is trademark of Bluetooth SIG, Inc.
The Funkwerk Dabendorf GmbH
Märkische Straße
D-15806 Dabendorf
confirms that the „EGO CUP“ handsfree system
is in compliance with the fundamental requirements and the other relevant
guidelines of the EU Directive 1999/5/EC.
0681

FCC statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
ÂNOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
ÆReorient or relocate the receiving antenna.
ÆIncrease the separation between the equipment and receiver.
ÆConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
ÆConsult the dealer or an experienced radio/TV technician for help.
ÂWARNING: Changes or modifications made to this equipment not expressly approved by FWD may void the FCC
authorization to operate this equipment.
FCC Radiation Exposure statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must
follow the specific operating instructions for satisfying RF exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
EGO CUP

14 |15
11 Hotline
Do you have questions or suggestions? Would you like more information? Do you require on-site consulting and
service? Give us a call!
Our hotline is available to you at the following times:
Monday – Friday from 8.00 AM to 5.00 PM
Please follow the steps below:
ÆCheck whether you can solve the problem using the "Troubleshooting" section.
ÆPlease have the model of the handsfree system at hand.
ÆTry to describe the problem as accurately as possible.
You can reach our hotline at the following numbers:
From Germany: Telephone: 0800 - 0 393 393
Outside Germany: Telephone: [phone] - 316 233
+49 (0) 3377 - 316 234
Fax: [phone] - 316 244
USA Telephone:
(+1) 858.566.2170
eMail: su[email protected]

Raytel Corporation
A partner of Funkwerk Dabendorf GmbH
8820 Kenamar Drive, Ste 506
San Diego, CA 92121
Telephone [phone]
Fax [phone]
eMail [email protected]
Internet www.egohandsfree.com
Funkwerk Dabendorf reserves the right to modifications in the course of technological progress and deviations from the delivery scope! All rights
reserved! Reproduction, in whole or in part, is only permitted with the prior written consent of Funkwerk Dabendorf GmbH!
A Funkwerk AG company.
