Funkwerk EGO LOOK User manual

Operating Manual
130 8001 1.03
US
English

Table of contents
1 TABLE OF CONTENTS 2
2 LIST OF ILLUSTRATIONS 5
3 INTRODUCTION / FOREWORD 6
4 SAFETY NOTES 7
5 SCOPE OF DELIVERY / PACKAGE CONTENTS 8
6 INSTALLATION INSTRUCTIONS 9
6.1 Required configuration 9
6.1.1 Vehicle 9
6.1.2 Mobile phone 9
6.1.3 Muting (radio mute switch) 9
6.1.4 Converting the EGO LOOK into a previously installed Funkwerk hands-free car kit 9
6.1.5 Add-on speakers / Car audio telephone connection 10
6.1.6 Car radio line-in 10
6.2 Installation locations 10
6.2.1 Checking cable lengths 10
6.2.2 Selection of site for installing the electronics box 10
6.2.3 Selection of site for installing the microphone 11
6.2.4 Selection of site for installing the radio controller 12
6.2.5 Selection of site for installing the display 12
6.3 Installation 13
6.3.1 Mounting the electronics box 13
6.3.2 Mounting the microphone 13
6.3.3 Inserting the battery in the radio controller 14
6.3.4 Mounting the radio controller 14
6.3.5 Mounting the display 15
6.4 Connection scheme 16
1
EGO LOOK

2 |3
6.5 Installing the ISO connection cable 17
6.5.1 Checking the mute inputs 17
6.5.2 Checking the installation 19
6.5.3 Additional external speakers 19
6.6 Connecting the components to the electronics box 20
7 OPERATING INSTRUCTIONS 22
7.1 Features 22
7.1.1 Overview of features 22
7.2 Controls 23
7.3 Getting started with the EGO LOOK controller 24
7.4 Symbols 25
7.4.1 Symbols in the status bar 25
7.4.2 Speller symbols 26
7.4.3 Symbols for menu options 27
7.4.4 Contact list number types 27
7.4.5 Music player symbols/buttons 27
7.5 Speller 28
7.6 Getting started 28
7.6.1 About Bluetooth®technology 29
7.6.2 Activating the controller 29
7.6.3 On / Off function 29
7.6.4 Entering the Bluetooth®PIN 30
7.6.5 Hands-free mode 30
7.6.6 Automatic coupling 30
7.7 The menus 31
7.7.1 User management 34
7.7.2 Calling 35
7.7.3 Contacts list 38

7.7.4 Call history 40
7.7.5 Voicemail 40
7.7.6 SMS 40
7.7.7 Music player 41
7.7.8 Dictation function 42
7.7.9 Settings 43
7.8 Voice control 46
8 SOFTWARE UPDATE 53
9 SERVICE 54
10 ACCESSORIES AND SPARE PARTS 56
11 TECHNICAL SPECIFICATIONS 58
12 CERTIFICATION 58
13 CONFORMITY STATEMENT 59
14 HOTLINE 61
EGO LOOK

4 |5
List of illustrations
Fig. 01 Scope of delivery 8
Fig. 02 Signal direction of the Bluetooth®antenna 10
Fig. 03 Installation location of the electronics box 11
Fig. 04 Installation location of the microphone 11
Fig. 05 Installation location of the radio controller 12
Fig. 06 Installation location of the display 12
Fig. 07 Assembly dimensions of the electronics box 13
Fig. 08 Connection for the mini ISO connection cable 16
Fig. 09 Installation procedure 17
Fig. 10 Setting the PIN according to device type 18
Fig. 11 Connector assignments 18
Fig. 12 Connection system 18
Fig. 13 a/b Voltage supply cable – exchange 19
Fig. 14 Connecting external loudspeakers 20
Fig. 15 Connecting electronics box 21
Fig. 16 Status bar 25
2

EGO LOOK
Introduction / foreword
Congratulations on your new EGO!
The EGO LOOK combines functionality with a brilliant visual effect. This is evident in its beautiful design, in the
numerous functions, and primarily in its color display. The high-resolution display is generously sized and provides you
with all the important information such as contact list entries, SMS (text) messages, and more. Intuitive menu prompting
and wireless remote control ensure that you always have an overview.
The installation of your EGO LOOK in your car requires specialized knowledge and skills. We therefore recommend that
the installation be performed by a qualified professional.
Before installation in your car, please make sure that your mobile phone is fully compatible with EGO LOOK. If you are
uncertain, please consult your dealer or a qualified workshop. Our service team will also be happy to help you with any
information you may require. Further information on compatibility between EGO LOOK and various mobile phones can be
found on our website.
3

6 |7
Safety notes
1. Incorrect installation – Incorrect installation may lead to damage to the units and/or your car! Specialized knowledge
and skills are required for installing the system. We strongly recommend that the system be installed by a qualified
professional.
2. Risk of injury – Unsuitable installation locations may become a source of injury in an accident situation, or may inhibit the
correct functioning of essential safety equipment. Please carefully read the notes in the „Installation“ chapter carefully!
3. Risk of injury/material damage – the removal of vehicle lining with sharp or pointed objects may lead to injuries or
material damage.
4. Road safety risk – Diverted attention can lead to dangerous situations in traffic. Even when using hands-free phone
systems, your complete attention must be paid to the current traffic conditions. It is always advisable to avoid
phone calls while driving in difficult traffic situations!
5. Damage to airbags – An incorrect installation location may cause damage to, or inhibit the correct function of, your
airbags. Do not install the components within the deployment area of the airbags!
6. Insulation damage – Damaged insulation can lead to equipment and wiring damage. The cables and leads may not be
under tension when installed. Install the cables and leads in such a way as to avoid pinching or abrasion.
7. Polarity and shorting damage – Cables connected with reversed polarity, or in such a way as to produce a short
circuit, can lead to serious damage to your equipment. Before commencing installation, make sure that the car
battery is disconnected.
8. Damage to essential vehicle components – Essential vehicle components or wiring can be damaged when drilling
mounting holes or screwing in self-threading screws. Please make sure there is always sufficient space behind the
screw holes and drilled holes!
9. Interference with on-board electronics – Despite the extreme protection against interference, incorrect installation can
lead to interference with the vehicle electronic systems. Please read the vehicle manufacturer’s notes to this effect!
10. Appropriate use – The EGO LOOK is intended exclusively for use in vehicles with Bluetooth®mobile phones and A2DP
devices.
11. Damage caused by inappropriate replacement parts – Inappropriate spare or replacement parts may lead to
malfunctions. Please use only the approved parts listed in the section „Spares parts and accessories“!
12. Road safety risk – For your own safety, never initiate the coupling procedure while your vehicle is in motion!
4

Scope of delivery / package content
[1] Electronics box
[2] Display and base
[3] Radio controller including battery (CR2477 type)
[4] Microphone
[5] ISO-cable for connection to the car electrical system
[6] Adhesive pad for the base
[7] Quick Guide
[8] Safety manual
PLEASE MAKE SURE THE CONTENT OF THE PACKAGE is complete. If any parts are missing, please don‘t hesitate to
contact our service hotline team: (+1) 858.566.2170, Mon – Fri, 8 AM to 5 PM (PST)
5
q
EGO LOOK
[1]
Safety Instructions
1. Improper installation –Improper installation may cause damages to the unit or to the v
a
bilities. We therefore strongly recommend to have the installation one by a professional.
2. Personal injury –Inappropriate places for the installation may cause personal injuries in
“Installation”!
3. Personal
injury / Material damage –When you remove coverings or armature parts, sha
Don’t submit the connecting cables to pressure.
4. Negative
eects on road safety –Ta lking whi l t d i i
[6]
[7]
EGO LOOK
QUICK
GUIDE
130 8011 1.02
[4]
Fig. 01:
Scope of Delivery
[5]
[8]
[2] [3]
FWD
F
F
F
F
52
T-Mobile

8 |9
Installation instructions
6.1 Required configuration
Before installation of your EGO LOOK, please note which features and connection options are provided by your car audio
system. It is advantageous when your audio has the following: a muting function, phone input and line-in. You can find out
which of these input options your audio system has in the documentation provided.
6.1.1 Vehicle
The EGO LOOK may only be installed in vehicles with 12 V, with the negative terminal connected to the chassis. If no car
audio is installed, an add-on speaker will be required. For the installation of the optional charging cradle, you will require a
model-specific mounting that may be purchased from a specialist dealer
6.1.2 Mobile phone
Operation of the EGO LOOK requires a Bluetooth®-compatible mobile phone. You can find a list of supported Bluetooth®
telephones online at www.fwd-online.de.
6.1.3 Muting (radio mute switch)
The muting function (Radio Muting) ensures that the audio sound is turned off during telephone calls. The system
supports the muting function. Your car`s audio documentation will show whether your car audio has a mute option. If your
car audio is not equipped with a muting option, you can install the optionally available Stereo Mute Box to facilitate speaker
muting.
6.1.4 Converting the EGO LOOK into a previously installed Funkwerk hands-free car kit
An adapter cable is available for customers who already own a Funkwerk hands-free car kit (including the Audio 2000,
3000, Audio blue, Audio com, and Audio compact) and who would like to easily convert the EGO LOOK. The adapter cable
connects the EGO LOOK with the ISO cable already installed in your car with your Funkwerk hands-free car kit.
NOTE! This simple converting option is only possible when installing the EGO LOOK without a stereo mute box. To install the
EGO LOOK with the stereo mute box, the stereo mute box’s ISO connecting cable should be used to connect to the vehicle.
6
q

6.1.5 Add-on speakers / Car audio telephone connection
The car’s loudspeakers are transferred to the system is by means of switch contacts. These are designed for a peak power
handling of 35 W (Sinus). Loudspeaker power handling exceeding 35 W leads to premature wear on the switching contacts.
For higher outputs, use the telephone connection of the car audio or a 5 W / 4-Ohm satellite speaker. This port is only
designed for voice reproduction.
6.1.6 Car radio line-in
A car audio with a line-in input option is required for music reproduction in stereo. As an alternative to line-in, the car
audio may have a mini-ISO port (block connector C), a 0.14 in jack socket or a RCA input socket. An appropriate adapter
lead is required for the connection between the EGO LOOK line-out and the line-in version of your audio system. If your
car audio system has no line-in option, you can employ the optionally available Stereo Mute Box for stereo reproduction in
combination with your car’s front speakers.
6.2 Installation locations
RISK OF INJURY! Unsuitable installation locations may become a source of injury in an accident (or emergency braking)
situation, or may inhibit the correct functioning of essential safety equipment.
6.2.1 Checking cable lengths
Before you’ve securely installed the components, check that
the installation locations have been selected in such a way
that the cable length is sufficient to connect the individual
components.
6.2.2 Selection of site for installing the electronics box
The Bluetooth®antenna for the connection to the mobile
phone is installed in the electronics box. The antenna
transmits directionally towards the front. For this reason,
q
Fig. 02:
Signal direction
of the Bluetooth®
antenna
EGO LOOK

10 |11
during installation, ensure that the antenna faces into the
passenger cell (see Fig. 02). Vertical mounting is ideal. Metallic
screening between the front panel and the passenger cell, such
as metal or metallised plastic panels, are unsuitable and may
interfere with the Bluetooth®connection. Locations behind
the dashboard or in a metal-lined glove compartment are also
unsuitable.
A covering in plastic, fabric or wood presents no problems
whatsoever.
Suitable locations for the electronics box:
Passenger side, next to the middle console under the paneling,
model-specific installation console (dealer).
Our suggested installation locations are shown in the illustration on the right.
Further unsuitable locations are:
Leg and knee height, potential head impact zone, airbag inflation space, engine compartment
6.2.3 Selection of site for installing the microphone
Suitable for the microphone:
Where voice can reach the microphone unhindered (distance
between the speaker and the microphone should be approx.
13.78 in), on the A-column (between windshield and driver’s side
window), next to the driver‘s sun visor, on the dashboard
Unsuitable for the microphone:
Close to the speakers (less than 31 in), under the dashboard, in
the air stream from open windows or air vents.
Fig. 03:
Installation
location of the
electronics box
Fig. 04:
Installation location
of the microphone
The illustration
shows one of the
potential microphone
mounting locations.
Alternatively, the
microphone may be
attached to the sun
visor with the clip
provided.

6.2.4 Selection of site for installing the radio controller
The following locations are suitable for the radio controller:
In the area above the DIN installation slot, in the vicinity of
the steering wheel (at a location within the driver’s reach)
The following locations are unsuitable for the radio
controller:
Airbag deployment area, possible head impact area, beyond
the reach of the driver
6.2.5 Selection of site for installing the display
The following locations are suitable for the display:
In the space above the DIN installation shaft, close to the
steering wheel (in an easily accessible and visible position),
Note the position of sunlight to avoid reflection on the display
The following locations are unsuitable for the display:
Airbag inflation space, potential head impact zones, out of
reach of driver’s reach
EGO LOOK
Fig. 05:
Installation location
of the radio controller
Fig. 06:
Installation location
of the display

12 |13
q
6.3 Installation
DAMAGE TO ESSENTIAL VEHICLE COMPONENTS! – Essential vehicle components or wiring can be damaged when
drilling mounting holes or screwing in self-threading screws. Please make sure there is always sufficient space behind
the screw holes and drilled holes!
6.3.1 Mounting the electronics box
Installation consoles for a number of
car models are available from your
dealer. These are designed to contain all
the system components, including the
electronics box. When it is not possible
to use an installation console, please
proceed as follows:
Define the mounting points
Making sure that there is at least 2.8 in
space for the plug and socket connectors. Mark the positions for the fixing screws.
Mounting the electronics box
For mounting the electronics box, use four self-threading screws and appropriate washers. We recommend size
“ST 2,9x25 DIN 7981”self-threading screws. These are ideal for the fixing of the electronics box. Pre-drill the holes
with a 0.08 in drill.
6.3.2 Mounting the microphone
Define the mounting location
The microphone holder has a self-adhesive strip on the back. The mounting location should have the same form and area
Fig. 07:
Assembly dimensions
of the electronics box

as the self-adhesive strip on the microphone holder. The location selected must allow the microphone cable to reach the
electronics box! Position the microphone with the head facing towards the direction of speech.
Cleaning and degreasing the mounting location
The mounting location must be clean and free from grease and dirt/dust. Prior to installation, clean the area with a
cleansing product containing ethyl alcohol. Only use products that do not damage plastics or varnished wood finishes
and are themselves free of oils or grease. Unsuitable cleansers are, for example, lighter fluid, acetone, turpentine,
trichloroethylene and similar products.
Attaching the microphone holder
Peel off the protective backing from the self-adhesive strip. Hold the microphone holder at a distance of several
millimetres (about a quarter of an inch) above the desired mounting location. Re-check the positioning. Re-positioning
after mounting is no longer possible. Place the microphone holder on the mounting location and fix by applying short and
light pressure.
Attaching the microphone
Attach the microphone by sliding it into the holder and position the microphone head towards the direction of speech.
6.3.3 Inserting the battery in the radio controller
Rotate the lower portion of the controller clockwise and the upper portion counterclockwise to open the controller. Lift
the upper portion. Insert the supplied battery with the positive terminal downward into the lower portion until it latches.
Now place the upper portion on the bottom so that the contacts from the bottom of the controller touch the contact
surface in the upper portion. Position the latching tabs in the notches and rotate opposite the opening direction.
6.3.4 Mounting the radio controller
Define the mounting location
The control console is mounted on a smooth service by means of the self-adhesive pad provided. Make sure that the user
can easily reach the controller.
EGO LOOK

14 |15
Cleaning and degreasing the mounting location
The mounting location must be clean and free from grease and dirt/dust. Prior to installation, clean the area with
a cleansing product containing ethyl alcohol. Only use cleansing products that do not damage plastics or varnished
wood finishes and are themselves free of oils or grease. Unsuitable cleansers are, for example, lighter fluid, acetone,
turpentine, trichloroethylene and similar products.
Gluing the radio controller in position
Remove the protective foil from the adhesive pad on the underside of the controller. Hold the radio controller a few
millimeters over the desired installation position. Check the position again – when doing so, keep the position of the red
and green buttons in mind. It is not possible to correct the controller after it has been glued in position. Place the radio
controller on the adhesive location and briefly apply moderate pressure.
6.3.5 Mounting the display
Determining the mounting location
The display is mounted to a smooth surface using the supplied adhesive pad. The optimal position for this is facing
directly at the driver. Keep the effect of lights and sunlight in mind in order to minimize possible reflections.
Cleaning and degreasing the mounting location
The mounting location must be clean and free from grease and dirt/dust. Prior to installation, clean the area with
a cleansing product containing ethyl alcohol. Only use cleansing products that do not damage plastics or varnished
wood finishes and are themselves free of oils or grease. Unsuitable cleansers are, for example, lighter fluid, acetone,
turpentine, trichloroethylene and similar products.
Gluing the display in position
Pull the protective foil from the adhesive strips. Hold the display a few millimeters over the desired installation position.
Check the position again. It is not possible to correct the display after it has been glued in place. Place the display on the
adhesive location and briefly apply moderate pressure.
Changing the base position
As supplied, the display base is intended for vertical mounting in the vehicle. To change to the horizontal mounting
position, unlatch the base, rotate 180° and re-latch the base on the underside of the display.

6.4 Connection scheme
Installation for call reception for a car audio system with a mute input but without a phone input
With this connection option, voice playback is is emitted from the front right car speaker. During calls, the mute input
blocks the car audio signal.
NOTE: Please observe the information in section “6.5.1 Checking the mute inputs” on connecting the mute lead of the ISO
connecting cable.
Installation for voice playback with a car audio system with phone and
mute input options
With this connection option, voice playback comes through the car audio
system speakers. During calls, the car radio output is switched to the phone
input by the mute input In order to access the phone input of your car audio
system, the speaker output of your EGO LOOK must be connected to the
phone input of your car audio system. The purple and green leads of the ISO
cable must be connected to the car audio phone input for this option. The
purple and green leads must be disconnected from the ISO connector. The
green lead (pin 14 of the 14-pin plug) should be connected to „Phone Out“,
and the purple lead (pin 7 of the 14-pin plug) to „Phone In +“ of the Mini-ISO
socket.
For information on the phone connection options of your car audio system,
please consult the manufacturer‘s user manual.
NOTE: If your car audio system has different phone connection options from those mentioned here, please consult a
qualified professional for installation of the system. Furthermore, please read the section with information on connecting
the mute lead of the ISO connection cable, “6.5.1 Checking the mute input”.
q
EGO LOOK

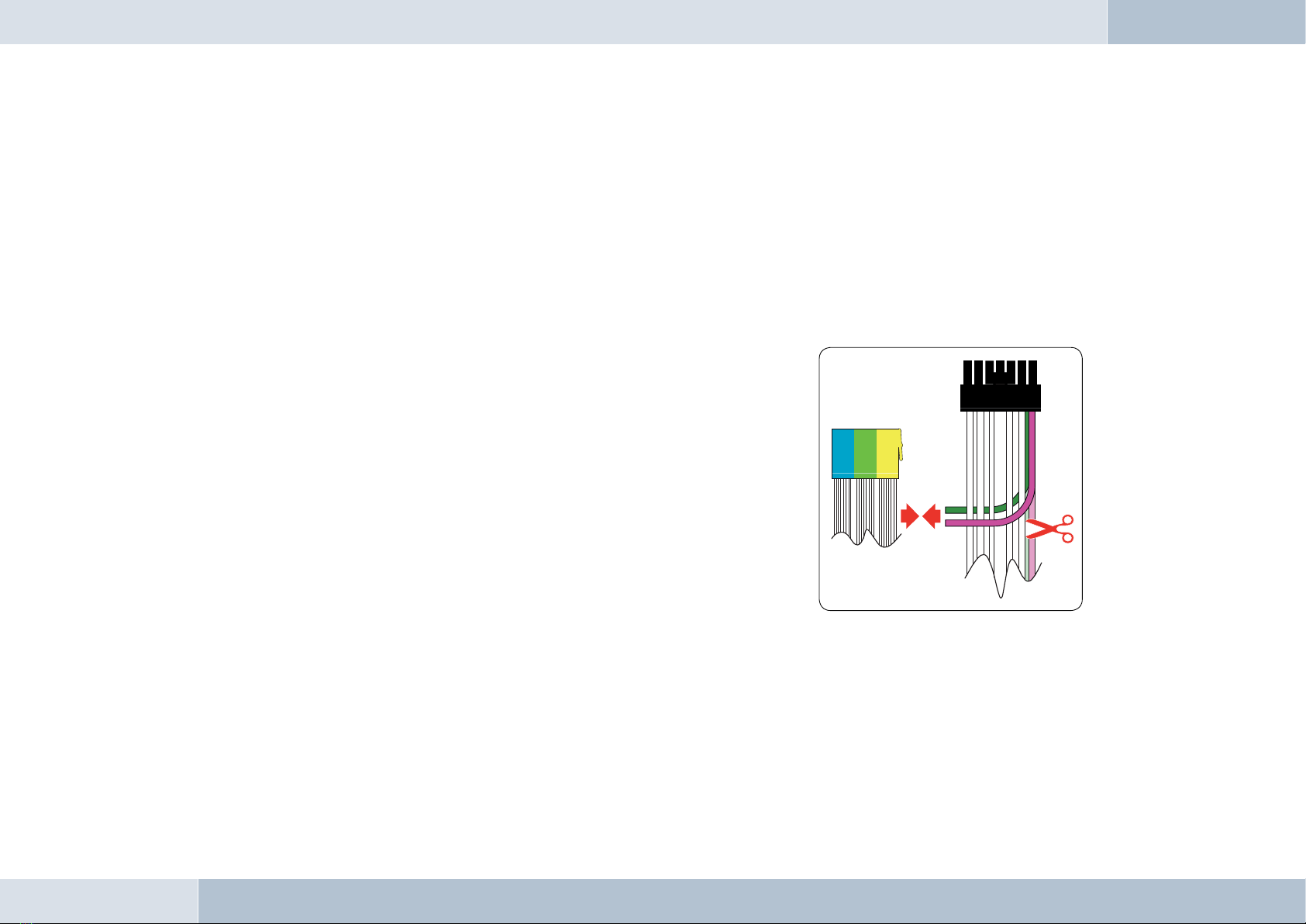

Fig. 08:
Connection for the
mini ISO connection
cable
q

16 |17
6.5 Installing the ISO connection cable
The battery must be disconnected before starting cable installation. Disconnect the grounding cable from the negative pole
of the battery. The cable installation procedure is shown in the illustrations.
When the installation is completed, reconnect the grounding cable to the negative pole of the battery.
6.5.1 Checking the mute inputs
The mute inputs 1-3 can be seen in Fig. 5 of Illustration 09. The yellow mute cable of the hands-free equipment is
connected to one of these inputs. The table below shows which mute input is to be used:
Fig. 09:
Installation
procedure
2
1
3
4
Connect 14-pin ISO
connecting cable to
EGO LOOK
Disconnect car wiring
harness from car radio
Connect EGO LOOK ISO
connector to car radio
Connect EGO LOOK ISO connectors to car
wiring harness ISO connectors
Connect yellow mute lead to
one of the three mute inputs
(see table)
Car audio
Car audio
Electronics box

Fig. 10:
Setting the
PIN according
to device type
Fig. 12:
Connection system
Socket contact housing Wiring of power supply connectors
Radio model Pin Wire colour Function
Audi,
Volkswagen,
Grundig
1
2Mute
3
4blue Ignition (15)
7red Permanent positive (30)
8brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Ford,
Mercedes,
Porsche,
Becker
1
2
3Mute
4red Permanent positive (30)
7blue Ignition (15)
8brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Blaupunkt
1
2Mute
3
4red Permanent positive (30)
7blue Ignition (15)
8brown Ground (31)
Socket contact housing
Radio model Pin Wire colour Function
Philips
1Mute
2
3
4red Permanent positive (30)
7blue Ignition (15)
8brown Ground (31)
Socket wiring from
the rear (see table)
Plug wiring from
the rear
21
43
65
87
12
34
56
78
Autoradio
Elektronikbox
KFZ-Kabelbaum

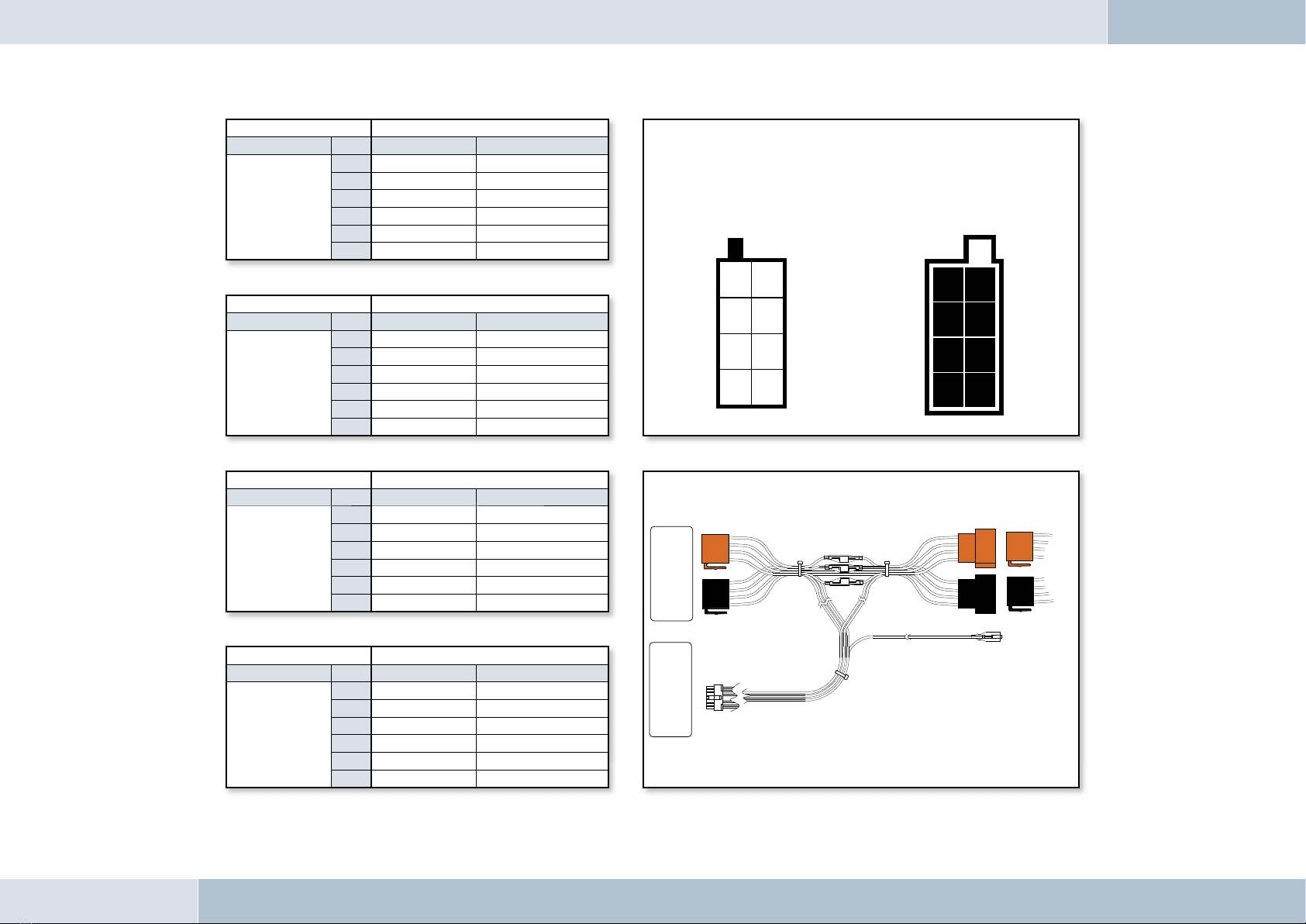

Fig. 11:
Connector assignments
Car audio
Electronics box
Vehicle wiring harness
EGO LOOK

18 |19
6.5.2 Checking the installation
When the ISO connection cable is correctly installed, a call remains active until the call is ended, even if the ignition has
already been turned off beforehand. The system switches off automatically when the call has been ended. If the system
switches to off immediately switches off,then exchange the ignition lead (blue) with the power supply lead (red) as shown in
Fig. 13b.
PLEASE NOTE: the fuses should remain in place when opening the fuse compartment, make sure that they are not
inadvertently exchanged!
6.5.3 Additional external speakers
In the following cases, additional speakers (4 Ω, min. 5 W) must be used:
→ when the car audio system speakers should not be used
→ when the output rating of the speaker channel is greater than 35 W (Sinus) and the car audio
system has no phone connection option
→ when the car audio system is used with active speakers and has no phone connection option
Feedback interferes with the clarity of calls. Mount additional speakers at a distance of at least 31 in from the microphone.
When mounting additional speakers, please observe the manufacturer‘s installation instructions. Speakers can be
connected to the green (pin 14) and the purple (pin 7) leads of the connection cable. First of all, the purple and green leads
must be disconnected from the ISO connector (see Fig. 14).
q

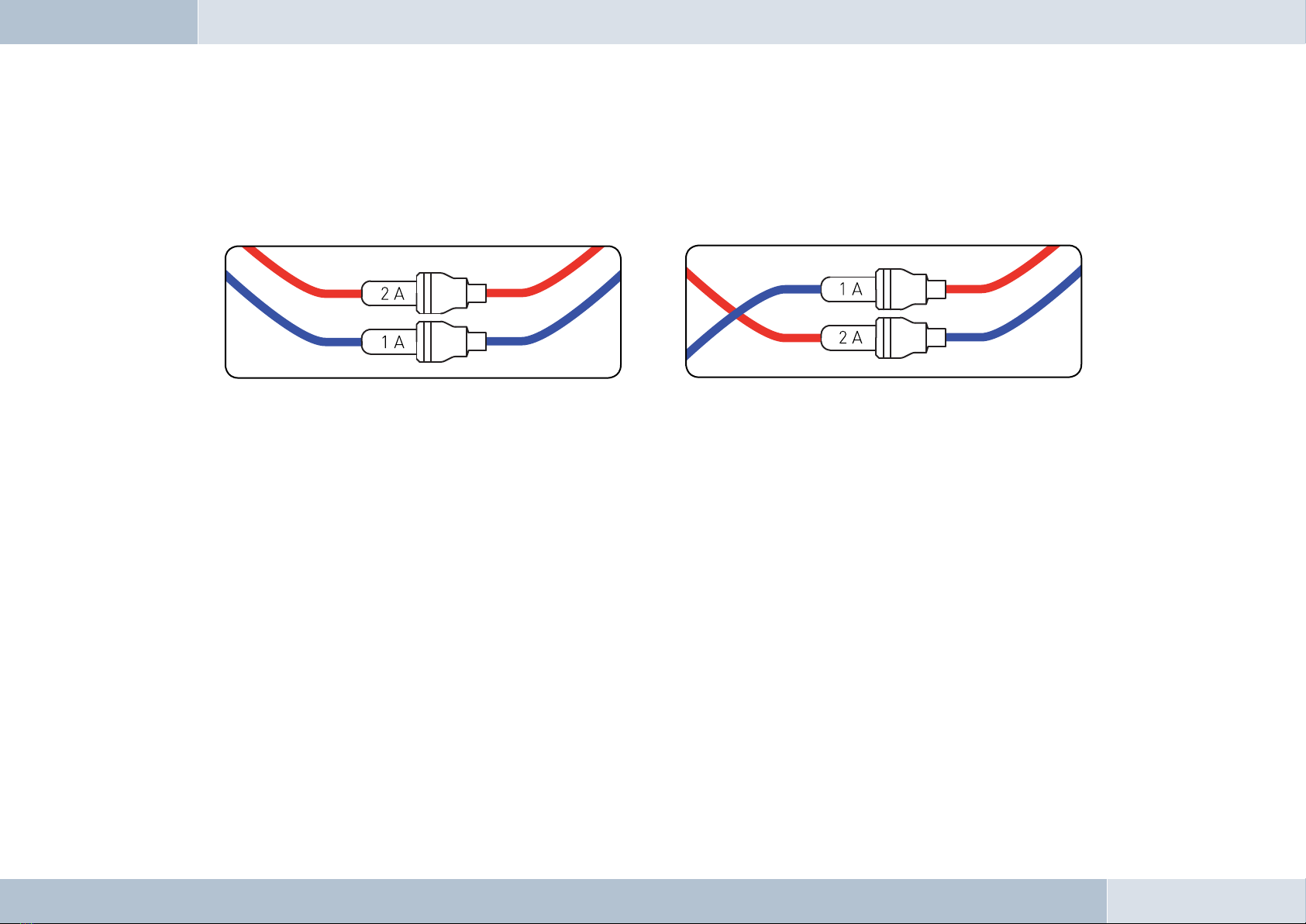

Fig. 13a:
View of original
connection
Fig. 13b:
View after
changing cables

EGO LOOK
6.6 Connecting the components to the electronics box
The individual components are connected to the electronics box as follows:
[1] Plug the microphone jack into the jack socket with the microphone symbol
[2] The electronic box line-in can be used to connect an optional MP3 player with line-out. To do so, a connection
cable 0.14 in stereo jack plug to 0.14 in stereo jack plug (l = 4.92 ft) is required.
IMPORTANT: Only connect the device (MP3 player, iPod™, etc.) to the electronics box line-in with a jack cable when it
is being powered by battery alone (without the recharger), as interfering impulses may otherwise cause damage to the
electronic box line-in.
Pin Colour Function View of the plug side,
from which the wiring is
fed in the plug housing
(with pin allocation)
Connection option for additional speakers on pin 7
(purple lead) and pin 14 (green lead) of the 14-pin plug
1Brown Ground (31)
2Yellow Radio mute
3
4
5
6White
Car audio speaker
output +
(front right)
7Purple Speaker lead +
(front right)
8Red Permanent positive (30)
9Blue Ignition (15)
10
11
12
13 Black
Car audio speaker
output -
(front right)
14 Green Speaker lead -
(front right)

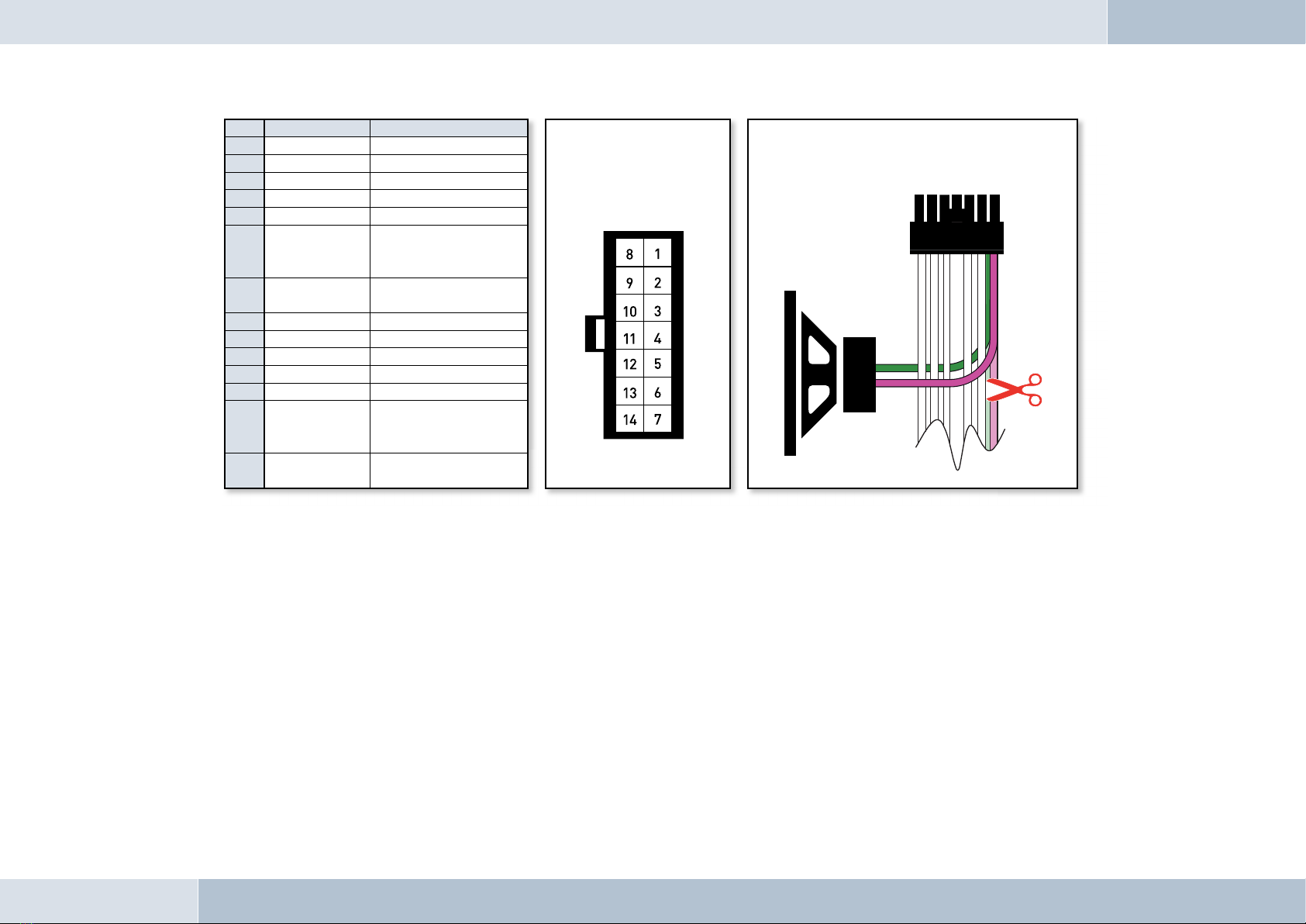

Fig. 14:
Connecting external
loudspeakers
q
