SAFETY INSTRUCTIONS
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment
unless totally familiar with
electrical circuits and
service manual.
Only qualified personnel
should work inside the
equipment.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
CAUTION
Observe the following compass safe
distances to prevent interference to a
magnetic compass:
Use the power cable supplied with the
installation materials.
Use of other power cables may cause fire
or damage the equipment.
Use the proper fuse.
Use of the wrong fuse may damage the
equipment.
Display
unit
Standard Steering
compass compass
0.60 m 0.40 m

iii
SYSTEM CONFIGURATION
Ship’s Mains
12-24 VDC
External Navigation Equipment
(Autopilot, radar, etc.)
Receives GPS signal
from GPS satellites.
: Option
: Standard
: Local Supply
DISPLAY UNIT
GP-3500
Calculates own ship’s
position in latitude
and longitude from
the signal received
from the antenna
unit and displays
it on the screen.
External
Monitor
Remote
Controller
ANTENNA UNIT
GPA-017S or
GPA-019S (option)

i
v
EQUIPMENT LISTS
Standard supply
Name Type Code No. Qty Remarks
Display Unit GP-3500 — 1
Antenna Unit GPA-017S — 1
CP14-06200 000-040-769 With CP20-01111,
CP14-06201,
TNC-PS-3D-15,
MJ-A3SPF0013-035
Installation
Materials*
CP14-06220 000-040-804
1
With CP14-06201,
MJ-A3SPF0013-035
Spare Parts* SP14-03101 004-363-080 1 3A fuse
* See list at back of this manual.
Option
Name Type Code No. Qty
CP20-01700 004-372-110 30 m, antenna cable
extension
Antenna Cable
Set
CP20-01710 004-372-120
50 m, antenna cable
extension
Right Angle
Antenna Base No.13-QA330 000-803-239
L-angle Antenna
Base No.13-QA310 000-803-240
Antenna Base for
Rail Mounting No.13-RC5160 000-806-114
Mast Mounting Kit CP20-01111 004-365-780
For mounting antenna unit
MJ-A6SPF0003-050 000-117-603 For radar, 5 m, with 6P
connector at one end
MJ-A6SPF0012-050 000-134-424 For navigator, video
sounder, 5 m, with
connector at both ends,
cross type
MJ-A6SPF0012-100 000-133-817 For navigator, video
sounder, 10 m, with
connector at both ends,
cross type
Cable Assy.
MJ-A7SPF0007-050 000-144-418 For PC, 5 m, with 7P
connector
Remote Controller RMC-3500 000-040-825 Incl. Inst. Mat. CP14-06231
External Monitor
Connection Kit
OP03-176 008-526-360 For connection of external
monitor, w/D-sub15P
Beacon Receiver
Kit
GR7000A-3500-NN-
019S
000-041-020 See its installation manual
for installation instructions.

1
1. INSTALLATION
1.1 Installation of Display Unit
The display unit may be mounted on a desktop, overhead or flush mounted in a console.
Mounting considerations
Choose a mounting location for the display unit considering the following points:
• Choose a location where the controls be easily operated.
• Leave sufficient space around the unit to facilitate checking and maintenance. See the
outline drawing at the back of this manual for recommended maintenance space.
• Locate the unit out of direct sunlight because of heat that can build up inside the cabinet.
• The operating temperature range is -15°C to 55°C (5°F to 131°F).
• Locate the unit well away from exhaust gases and other active gases.
• The location should be well ventilated.
• Choose a location where shock and vibration are minimal.
• Be sure the mounting location is strong enough to support the weight of the unit,
particularly in overhead mounting. If necessary reinforce the mounting location.
• A magnetic compass will be affected if the display unit is placed too close to the compass.
Observe the following compass safe distances to prevent deviation to the compass.
Standard compass, 0.60 m, Steering compass, 0.40 m.

2
Mounting
Desktop, overhead mounting
1. Fix the hanger to the mounting location with four tapping screws (5X20). See the outline
drawing on page D-1 for mounting dimensions.
2. Loosely screw knob bolts into the display unit.
3. Set the display unit to the hanger and tighten the knob bolts.
Display unit, mounting dimensions for desktop or overhead mounting
4. Insert a rubber cushion in each of the holes at the rear bottom corners (desktop
mounting) or rear top corners (overhead mounting). (This will protect the display unit
from damage if it hits the hanger.)
Rubber
Cushion*
* Location for desktop mounting
Display unit, rear view

3
Flush mounting
If the thickness of the console is 11-14 mm, use the washer head screws (M4X20) supplied
with the installation materials. If it is thicker than those dimensions, the length of the screws
should be the thickness of the console plus 7.3 mm ±1.5 mm. The length of the threaded
portion to be inserted to the display unit should not exceed 7 mm (B≤7).
BA
A:Thickness of console
Screw length and thickness of console
1. Prepare a cutout in the mounting location using the template provided.
2. Fix the display unit with six washer head screws (M4X20).
Mounting dimensions for console mounting

4
1.2 Installation of Antenna Unit
Refer to the antenna unit outline drawing at the back of this manual for mounting
instructions.
When selecting a mounting location consider the following points:
• Select a location out of the radar and Inmarsat beams. Those beams will obstruct or
prevent reception of the GPS satellite signal.
• There should be no interfering object within the line-of-sight to the satellites. Objects
within line-of-sight to a satellite, for example, a mast, may block reception or prolong
acquisition time.
• Locate the antenna well away from the antenna of a VHF radiotelephone to prevent
interference.
• Mount the antenna unit as high as possible. Mounting it this way keeps it free of
interfering objects and water spray, which can interrupt reception of GPS satellite signal if
the water freezes.
Note: If the antenna cable is to be passed through a hole in a bulkhead which is too small
to pass the connector, disassemble the connector with radio pincers and a monkey
wrench. After passing the cable through the hole assemble the connector as below.
Pin (Solder.)
Clamping Nut
Housing
Gasket
Washer
Shield
How to assemble the antenna connector

5
2. WIRING
Display unit, rear view
Power source
The power source is a 12 or 24 VDC battery. Be sure the power cable is tightly fastened to
the power source and the polarity (plus and minus) is correct. Connect the white lead to the
positive terminal(+) and the black lead to the negative terminal(-).

6
Ground
Connect the ground wire to the boat’s grounding bus. If the unit is not grounded noise may
result. If noise is a problem on an FRP vessel, fasten a ground plate of 20 cm X 30 cm to
the outside of the ship’s hull and connect the ground wire there.
Use a closed-type lug ( ) for the connection on the display unit. Do not use an
open-type lug ( ).
Antenna cable
Types of antenna cables
The length of the standard antenna cable is 15 m. If a longer length is required, use the
optional antenna cable extension kit, which is available in 30 and 50 m lengths.
Antenna cable set Code no. Cable length
CP20-01700 004-372-110 30 m
CP20-01710 004-372-120 50 m
Connecting the antenna cable
If you are using the antenna cable set, a coaxial connecter is fitted at one end of the cable
as shown below.
Antenna Unit
GPA-017S/GPA-019S
Antenna Cable
15 m Connect at
rear of
display unit
Connector fitted at factory.
20 cm
Connection of standard antenna cable (TNC-PS3D-15)
Connect at
rear of
display unit
Connector fitted at factory
1 m
Attached during installation
(See page 8.)
Antenna Cable
30 m or 50 m
1m
Conversion Cable
Assy.
Antenna Cable Set
Antenna Unit
GPA-017S/GPA-019S
20cm
Connection of extension cable (CP20-01700, CP20-01710)

7
Waterproofing the connector
After connecting the antenna cable, wrap the connector with self-vulcanizing tape and then
vinyl tape to waterproof it. Bind ends of vinyl tape with cable ties to prevent unraveling.
How to waterproof the connector

8

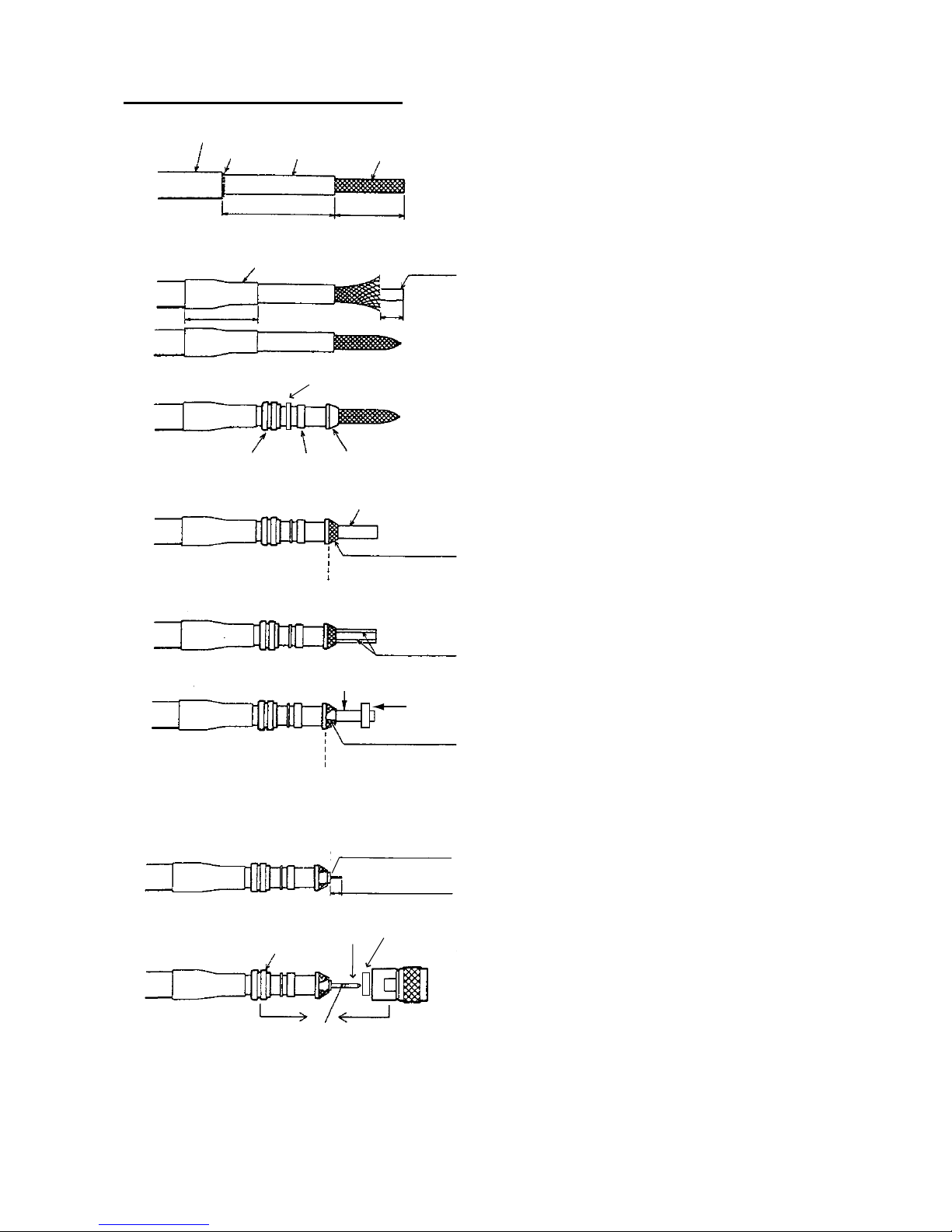

How to attach N-P-8DFB connector
Outer Sheath
Armor
Dimensions in millimeters.
Inner Sheath Shield
Remove outer sheath and armor by the dimensions
shown left.
Expose inner sheath and shield by the dimensions
shown left.
Cut off insulator and core by 10 mm.
Twist shield end.
Slip on clamping nut, flat washer, gasket and clamp
as shown left.
Fold back shield over clamp and trim.
Cut aluminum foil at four places, 90°from one
another.
Fold back aluminum foil onto shield and trim.
Remove insulator up to edge of washer 2.
Expose the core by 5 mm.
Slip the pin onto the conductor. Solder them together
through the hole on the pin.
Insert the spacer and housing. Screw the clamping
nut into the housing.
(Tighten by turning the clamping nut. Do not tighten
by turning the housing.)
Cover with heat-shrink tubing and heat.
30 10
Clamping
Nut Gasket
(reddish
brown)
Clamp
Aluminum Foil
Trim shield here.
Trim aluminum
tape foil here.
Insulator
5
Clamping Nut Pin
Housing
Solder through
the hole.
50 30
Washer 2
Flat Washer
Spacer
How to attach N-P-8DFB connector

9
3. ADJUSTMENTS
3.1 Display Settings
Sensor calibration
1. Press the [MENU] key to open the menu.
MENU
1. WAYPOINTS LIST
2. ROUTES LIST
3. MEMORY CARD OPERATIONS & DATA TRANSFER
4. MARKS/SHIP’S TRACKS SETUP
5. MARKS/SHIP’S TRACKS EDITION
6. ALARM SETUP
7. CHART SETUP
8. PLOTTER SETUP
9.
0. SYSTEM SETUP
TURN KNOB TO SELECT MENU AND PRESS KNOB TO ENTER.
OR PRESS APPROPRIATE NUMERIC KEY TO SELECT MENU.
Menu

10
2. Press the [0] and [1] keys to show the DISPLAY SETUP menu. This menu has two
pages.
0-1. DISPLAY SETUP 1/2
NEXT PAGE
LANGUAGE
KEY BEEP
SPEED SOURCE
NMEA SPEED CALIB
NMEA TEMP CALIB
NMEA DEPTH CALIB
LAT/LON DISPLAY
RANGE & SPEED UNITS
DEPTH UNIT
TEMPERATURE UNIT
TIME DISPLAY
BEARING READOUT
MAGNETIC VARIATION
HEADING MARKER
COURSE VECTOR
WAYPOINT SWITCHING
RNG & BRG MODE
SET GOTO METHOD
RANGE/SCALE
SCALE DISPLAY
GPS STATUS
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
1. ENGLISH
1. ON 2. OFF
1. INT GPS 2. NMEA SOG 3. NMEA STW
+00% (-50-+50%)
+00.0 ° C (-20-+20 ° C)
+000.0m (-15-+100m)
1.DD ° MM.MM’2.DD ° MM.MMM’
3.DD ° MM.MMMM’4.DD ° MM’SS.S
1. nm, kt 2. km, km/h 3. sm, mph
1. m 2. ft 3. fa 4. pb
1. ° C 2. ° F
1. 12 HOURS 2. 24 HOURS
1. TRUE 2. MAGNETIC
1. AUTO 2. MANUAL 07.0 ° W
1. ON 2. OFF
1. LINE 2. VECTOR 3. OFF
1. PERPENDICULAR 2. ARRIVAL CIRCLE
1. RHUMB LINE 2. GREAT CIRCLE
1. 1 POINT 2. 35 POINTS
3. NEAR SERVICE 4. PORT SERVICE
1. RANGE 2. SCALE
1. ON 2. OFF
1. ON 2. OFF
DISPLAY SETUP menu (1/2)
3. Rotate the knob to choose SPEED SOURCE and then use the trackball to choose
appropriate option. Note that choosing a speed source option which is not available will
display nothing at the speed indication.
INT GPS: Use the speed data generated by the internal GPS receiver.
NMEA SOG: Use NMEA sentence VTG, RMC, RMA.
NMEA STW: Use NMEA sentence VHW.
Note: An offset may be applied to correct NMEA speed, water temperature or depth
data error (at steps 4, 5 and 6, respectively) if the offset cannot be applied at the
NMEA device. Enter a minus(-) or plus(+) value if the actual value is lower or
higher than the displayed value, respectively. If offset is not required, go to step 7.

11
4. Rotate the knob to choose NMEA SPEED CALIB and then roll the trackball rightward or
leftward as appropriate to display appropriate offset value. For example, if the actual
speed is 10.0 kt and the displayed value is11.0 kt, enter +10(%).
5. Rotate the knob to choose NMEA TEMP CALIB and then roll the trackball leftward or
rightward as appropriate to display appropriate offset value. For example, if the actual
water temperature is 20° and the displayed value is 17°, enter +3(°)
6. Rotate the knob to choose NMEA DEPTH CALIB and then roll the trackball leftward or
rightward as appropriate to display appropriate offset value.
7. Press the [MENU] key several times to close the menu.

12
Ship and antenna characteristics
1. Display page 1 of the DISPLAY SETUP and then rotate the knob to choose NEXT
PAGE.
PREVIOUS PAGE
WAYPOINT STATUS 1. ON 2. OFF
WAYPOINT INFO 1. ON 2. OFF
MARK STATUS 1. ON 2. OFF
OWN SHIP’S MARK 1. LARGE 2. SMALL 3. SHIP
SHIP’S LENGTH 40.0m (0.1-99.9m)
SHIP’S WIDTH 05.0m (0.1-99.9m)
ANTENNA POSITION Va 05.0m (0.1-99.9m)
ANTENNA POSITION Hb 01.0m (0.1-99.9m)
0-1. DISPLAY SETUP 2/2
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
L
b
a
W
DISPLAY SETUP menu (2/2)
2. Rotate the knob to choose OWN SHIP’S MARK and then roll the trackball leftward or
rightward to choose the size for the own ship mark. For “SHIP,” the mark is scaled to
indicate the length and width of the vessel.
3. Rotate the knob to choose SHIP’S LENGTH and then roll the trackball leftward or
rightward to set ship’s length.
4. Rotate the knob to choose SHIP’S WIDTH and then roll the trackball leftward or
rightward to set ship’s width.
5. Rotate the knob to choose ANTENNA POSITION Va and then roll the trackball leftward
or rightward to set antenna position “a”.
6. Rotate the knob to choose ANTENNA POSITION Hb and then roll the trackball leftward
or rightward to set antenna position “b”.
7. Press the [MENU] key three times to close the menu.

13
3.2 Navigator Settings
Choose source of position data as follows:
1. Press the [MENU] key to display the menu.
2. Press the [0] and [2] keys to shown the NAVIGATOR SETUP menu.
SELECT NAV SOURCE 1 . INT 2. EXT 3. LORAN-C
4. ALL
LOCAL TIME (INT GPS) +00:00
LOCAL TIME (EXT NAV) +00:00
GEODETIC DATUM WGS-84
POSITION SMOOTHING 000
SPEED SMOOTHING 000
SPEED AVERAGING (INT) 060
SPEED AVERAGING (EXT) 060
LATITUDE OFFSET 0.000’N
LONGITUDE OFFSET 0.000’E
DISABLE SATELLITE _ _ _ _ _ _
DEFAULT LATITUDE
45 ° 35.000’N
DEFAULT LONGITUDE 125 ° 00.000’E
ANTENNA HEIGHT 05m
GPS FIX MODE 1. 2D 2. 2D/3D
DGPS/WAAS 1 . DGPS 2. WAAS 3. AUTO 4. OFF
DGPS/WAAS ALARM 1. YES 2. NO
DGPS BEACON STATION 1. AUTO 2. MANUAL
SELECT FREQUENCY 283.5 kHz
DGPS BAUD RATE 1. 50 2. 100 3. 200
WAAS SEARCH
1. AUTO 2. MAN 120
CORRECTIONS DATA SET 02
0-2 NAVIGATOR SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
NAVIGATOR SETUP menu
3. The cursor is selecting SELECT NAV SOURCE; roll the trackball leftward or rightward to
choose position data source.
INT: Internal GPS navigator (default setting)
EXT: External GPS navigator
LORAN C: External Loran C navigator
ALL: Choose this option in case of multiple position-fixing equipment. The
equipment having highest accuracy has priority.
4. Press the [MENU] key several times to close the menu.

14
Antenna height
The default antenna height (above the waterline) is 5 m. If the height of your antenna is
different enter its height as follows:
1. At the NAVIGATOR SETUP menu, rotate the knob to choose ANTENNA HEIGHT.
2. Enter height with the numeric keys.
3. Press the [MENU] key several times to close the menu.

15
3.3 I/O Port Settings
NMEA1 and NMEA2 ports
NMEA 1 and NMEA 2 ports are used to connect external navigation equipment such as an
autopilot and radar. Set up the ports according to equipment connected.
1. Press the [MENU] key to open the menu.
2. Press the [0] and [5] keys to show the I/O SETUP menu.
0-5. I/O PORT SETUP
TURN KNOB TO SELECT MENU.
SELECT THE ITEM OF EACH MENU BY TRACKBALL.
1. NMEA0183 Ver 1.5 2. Ver 2.0
1. ON 2. OFF
1.DD
° MM.MM’2.DD ° MM.MMM’
3.DD
° MM.MMMM’
1. ON 2. OFF
1. ON 2. OFF
1. NMEA0183 Ver 1.5 2. Ver 2.0
1. ON 2. OFF
1.DD
° MM.MM’2.DD ° MM.MMM’
3.DD
° MM.MMMM’
1. ON 2. OFF
1. ON 2. OFF
1. 4800 2. 9600 3. 19200 4. 38400
1. 7BITS 2. 8BITS
1. 1BIT 2. 2BITS
1. EVEN 2. ODD 3. OFF
1. NMEA0183 Ver 1.5 2. Ver 2.0
1.DD
° MM.MM’2.DD ° MM.MMM’
3.DD
° MM.MMMM’
1. ON 2. OFF
1. ON 2. OFF
NMEA I/O PORT 1
NMEA FORMAT
TLL OUTPUT
L/L FORMAT
OUTPUT DESTINATION
SELECT OUTPUT SENTENCE
NMEA I/O PORT 2
NMEA FORMAT
TLL OUTPUT
L/L FORMAT
OUTPUT DESTINATION
SELECT OUTPUT SENTENCE
RS232C FORMAT
BAUD RATE
CHARACTER LENGTH
STOP BIT
PARITY
NMEA FORMAT
L/L FORMAT
OUTPUT DESTINATION
SELECT OUTPUT SENTENCE
I/O PORT SETUP menu
3. Rotate the knob to choose NMEA FORMAT of the NMEA I/O PORT 1 or NMEA I/O
PORT 2 and then roll the trackball rightward or leftward to choose NMEA format of the
equipment connected to that port.
