Furuno CH-300 User manual

DUAL-FREQUENCY SEARCHLIGHT SONAR
CH-300
www.furuno.co.jp

The paper used in this manual
is elemental chlorine free.
・FURUNO Authorized Distributor/Dealer
9-52 Ashihara-cho,
Nishinomiya, 662-8580, JAPAN
Telephone : [phone]
Fax
:
[phone]
A : APR 2005
.
Printed in Japan
All rights reserved.
B : SEP . 07, 2007
Pub. No. IME-13250-B
*00015190211**00015190211*
(YOSH ) CH-300
*
00015190211
*
*
00015190211
*
* 0 0 0 1 5 1 9 0 2 1 1 *

i
WARNING
ELECTRICAL SHOCK HAZARD
Do not open the equipment.
Only qualified personnel
should work inside the
equipment.
Be sure no water leaks in at the transdu-
cer installation site.
Water leakage can sink the vessel.
Also confirm that the transducer will not
loosen by ship's vibration.
The installer of the equipment is solely
responsible for the proper installation of the
equipment. FURUNO will assume no
responsibility for any damage
associated with improper installation.
WARNING
If a steel tank is installed on a wooden
or FRP vessel, take appropriate
measures to prevent electrolytic
corrosion.
Electrolytic corrosion can damage the hull.
Be sure that the power supply is
compatible with the voltage rating of
the equipment.
Connection of an incorrect power supply
can cause fire or damage to the equipment.
The voltage rating of the equipment appears
on the label above the power connector.
Turn off the power at the switchboard
before beginning the installation.
Fire or electrical shock can result if the
power is left on.
Do not install the equipment where it
may get wet from rain or water splash.
Water in the equipment can result in fire,
electrical shock or damage to the
equipment.
Install the specified transducer tank
in accordance with the installation
instructions. If a different tank is to be
installed the shipyard is solely respon-
sible for its installation, and it should
be installed so the tank doesn't strike
an object.
The tank or hull may be damaged if the
tank strikes an object.
SAFETY INSTRUCTIONS

ii
CAUTION
Observe the following compass safe
distances to prevent deviation of a
magnetic compass:
Ground the equipment to
prevent electrical shock and
mutual interference.
CH-302/
MU-100C
CH-303
IF-8000
CH-302
CH-256
Standard Steering
0.80 m 0.55 m
0.55 m 0.30 m
0.95 m 0.65 m
WORKING WITH THE SONAROIL
Precautions
Keep oil away from eyes. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the eyes.
Do not touch the oil. Wear protective
gloves when working with the oil. The oil
can cause inflammation of the skin.
Do not ingest the oil. Diarrhea or vomiting
can result.
Keep the oil out of reach of children.
Emergency
If the oil enters eyes, flush with clean
water about 15 min. Consult a physician.
If the oil contacts skin, wash within soap
and water.
If the oil is ingested, see a physician
immediately.
Disposal of oil and its container
Dispose of oil and its container in
accordance with local regulations.
For further details, contact place of
purchase.
Storage
Seal container to keep out foreign
material. Store in dark place.
CAUTION
Install the monitor unit MU-100C out of
direct sunlight.
It is difficult to see the display in direct
sunlight.
Keep hands away from the raise/lower
shaft of the hull unit when it is working.
Injury to hands may result if they become
caught in the shaft.
Do not exceed 20 knots when operating
the equipment and do not exceed 15
knots when raising or lowering the
transducer.
The transducer shaft may become
damaged.
The hull unit is designed to withstand ship's
speed of 20 knots. For vessel with greater
speed, reinforce the hull unit.
The transducer tank should be mounted at
the place above the waterline. If this is
impossible, make safety provisions (ex.
construction of watertight compartment).
If there is a possibibility of vibration at the
soundome in high-speed cruising, which
creates prssure inside the tank, discuss the
problem with shipyard and hull manufacturer.
0.30 m 0.30 m
0.30 m 0.30 m

iii
TABLE OF CONTENTS
SYSTEM CONFIGURATION ·······················································································iv
EQUIPMENT LISTS ····································································································v
1. MOUNTING ·············································································································1-1
1.1 Monitor Unit/Control Unit ............................................................................................................1-1
1.2 Control Unit .................................................................................................................................1-5
1.3 Transceiver Unit ..........................................................................................................................1-7
1.4 Hull Unit ......................................................................................................................................1-8
1.5 Interface Unit...............................................................................................................................1-22
1.6 Motion Sensor MS-100 (option).................................................................................................1-23
1.7 Clinometer BS-704 (option) .......................................................................................................1-24
2. WIRING ···················································································································2-1
2.1 Wiring Among Units ....................................................................................................................2-1
2.2 Transceiver Unit ..........................................................................................................................2-4
2.3 Hull Unit ......................................................................................................................................2-6
2.4 Interface Unit...............................................................................................................................2-7
2.5 I/O Sentences ............................................................................................................................2-8
3. ADJUSTMENTS ······································································································3-1
3.1 General Checks ..........................................................................................................................3-1
3.2 Checking TX Frequency .............................................................................................................3-2
3.3 Heading Adjustment Setting .......................................................................................................3-4
3.4 Setting for Synchronizing Transmission with other Equipment...................................................3-5
3.5 Setting for Satellite Compass......................................................................................................3-6
3.6 Setting of Motion Sensor/Satellite Compass ..............................................................................3-8
3.7 System Back Up ........................................................................................................................3-9
3.8 Setting of Interface Unit .............................................................................................................3-10
INSTALLATION MATERIALS, ACCESSORIES, SPARE PARTS·······························A-1
OUTLINE DRAWINGS ································································································D-1
INTERCONNECTION DIAGRAMS ·············································································S-1

iv

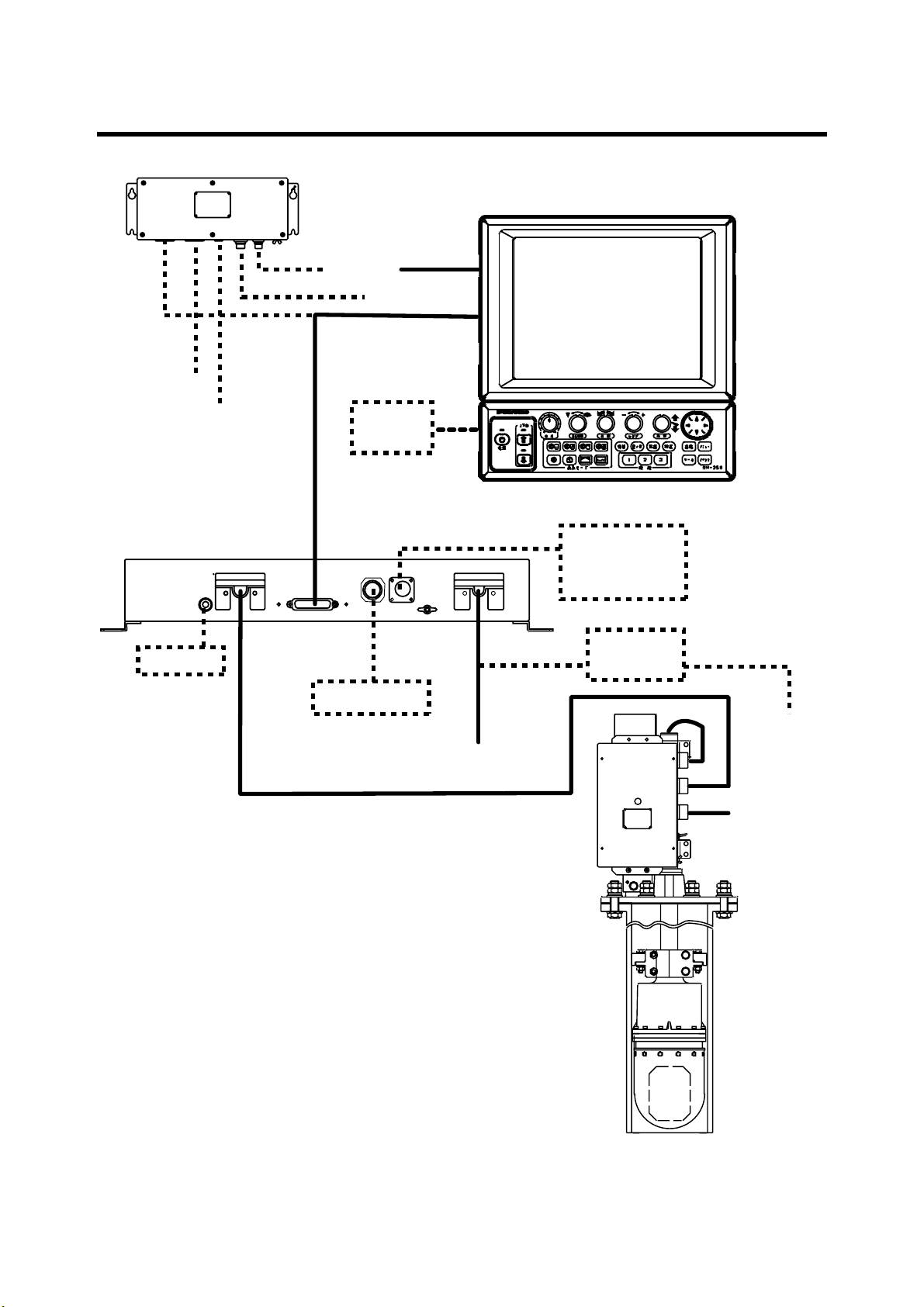

SYSTEM CONFIGURATION
DATA/VIDEOOUT
12-24 VDC
Note 1
Note 2
12-24 VDC
Speaker
Motion Sensor
VGA Ext.
Monitor
Control Unit
Display
Unit
CONTROL UNIT CH-302
Remote
Controller
HULL UNIT
CH-304/305
12/24 VDC
Navigator
Note 2 MONITOR UNIT MU-100C
TRANSCEIVER UNIT
CH-303
INTERFACE UNIT IF-8000
Rectifier
RU-1746B-2
100/110/200/220 VAC
Satellite compass
or
NMEA Input
Note 1: MU-100C is the standard supply
monitor unit. An external monitor
may be connected via the
interface unit (option). The drawing
above shows the system configuration
with the MU-100C.
Note 2: For blackbox type, MU-100C is
not supplied. Connect external
monitor (user supply) and control
unit to the interface unit.

v
EQUIPMENT LISTS
Standard Supply
Name Type Code no. Qty Remarks
Control Unit/
Monitor Unit
CH-302/
MU-100C - 1 Not supplied with blackbox type
Control Unit CH-302 - 1 Not supplied with unibody type
Interface Unit IF-8000 - 1 For blackbox type (not required for MU-151C)
Transceiver Unit CH-303 - 1
CH-304 - 400 stroke
Hull Unit CH-305 - 1 250 stroke
See the following table for
Hull Unit Standard Supply.
SP06-01101 006-556-200 1 For unibody type*
SP06-01102 006-556-210 1 For transceiver unit*
SP06-01103 006-558-990 1 For hull unit*
Spare Parts
SP06-01111 006-556-220 1 For interface unit*
CP06-01200 000-068-496 06S4078 (5 m), 06S4080 (15 m), CP06-01251*
CP06-01201 000-068-497 06S4078 (5 m), 06S4080 (30 m), CP06-01251*
CP06-01202 000-068-498 06S4078 (5 m), 06S4080 (50 m), CP06-01251*
CP06-01203 000-068-499 06S4078 (10 m), 06S4080 (15 m), CP06-01251*
CP06-01204 000-068-500 06S4078 (10 m), 06S4080 (30 m), CP06-01251*
CP06-01205 000-068-502
1 set
06S4078 (10 m), 06S4080 (50 m), CP06-01251*
CP06-01261 006-562-580 1 For transceiver unit*
CP06-01501 006-561-620 1 set For hull unit*
CP02-06600 000-012-486 MJ-A10SPF0002-0015 (0.15 m), for unibody type
CP02-06610 000-012-480 MJ-A10SPF0002-015 (1.5 m ), for blackbox type
Installation
Materials
CP02-06620 000-012-481
1 set
MJ-A10SPF0002-050 (5 m), for blackbox type
FP02-05100 000-012-474 For unibody type, FP02-05101*, hood
Accessories FP06-01410 000-068-630 1 set For control unit, FP06-01120*, hard cover
*: See the lists at the back of this manual.
Hull Unit Standard Supply
Name Type Code no. Qty Remarks
CH-3041 -Raise/lower
Drive Unit CH-3051 -
1 set
Soundome CH-3042 - 1 set
Flange CH-2543 006-557-810 1 set
See the lists at the back of
this manual.
Assembly Kit for
field CH-2544 006-557-820 1 set
See the lists at the back of
this manual.
SHJ-0006 661-000-062 2.2 m, for 3.5/5.2 m cable
Shaft 06-007-1572 600-715-721 1 3.8 m, for 5.2m cable
Sonar Oil 4 lit. 000-824-033 1

vi
Options
Name Type Code no. Qty Remarks
Remote Controller CH-256-E 000-068-492 1 set
Interface Unit IF-8000 - 1 set
Motion Sensor MS-100 - 1 set
Monitor Unit MU-100C - 1 set
Control Unit CH-302-E - 1 set
Clinometer BS-704 - 1 set
Loudspeaker SC-05WR 000-136-156 1
Signal Cable S06-9-5 006-556-270 1 Extension cable for loudspeaker
Rectifier RU-1746B-2 000-030-439 1
MJ-A6SPF0012-050 000-134-424 6pin-6pin, 5m
MJ-A6SPF0012-100 000-133-817 6pin-6pin, 10m
MJ-A6SPF0011-050 000-132-244 6pin-4pin, 5m
Cable assy.
MJ-A6SPF0011-100 000-132-336
1
6pin-4pin, 10m
OP06-15-1.5 NEW 006-559-140 For desktop, with 1.5 m
OP06-15-5 NEW 006-559-150 1 For desktop, with 5 m
OP02-83-1.5 001-413-600 1 For flush mount, with 1.5 m cable
Control Unit
Separate Kit
OP02-83-5 001-413-610 1 For flush mount, with 5m cable
OP06-16 006-556-300 1 For unibody type
Flush mount kit OP06-17 006-556-310 1 For separated display unit
Control unit flush
mount kit OP06-18 006-556-320 1
06-007-1570-2 600-715-702 1 Steel, 1m
SHJ-0001-2 661-000-012 1 Steel, 1.8m
06-007-1571-2 600-715-712 1 Steel, 3.5m
06-021-4024-0 100-295-470 1 FRP, 1m
06-007-1573-0 600-715-730 1 FRP, 1.8m
Tank
OP10-5 000-069-763 1 Aluminum, 1m

1-1
1. MOUNTING
NOTICE
Do not apply paint, anti-corrosive sealant
or contact spray to coating or plastic
parts of the equipment.
Those items contain organic solvents that
can damage coating and plastic parts,
especially plastic connectors.

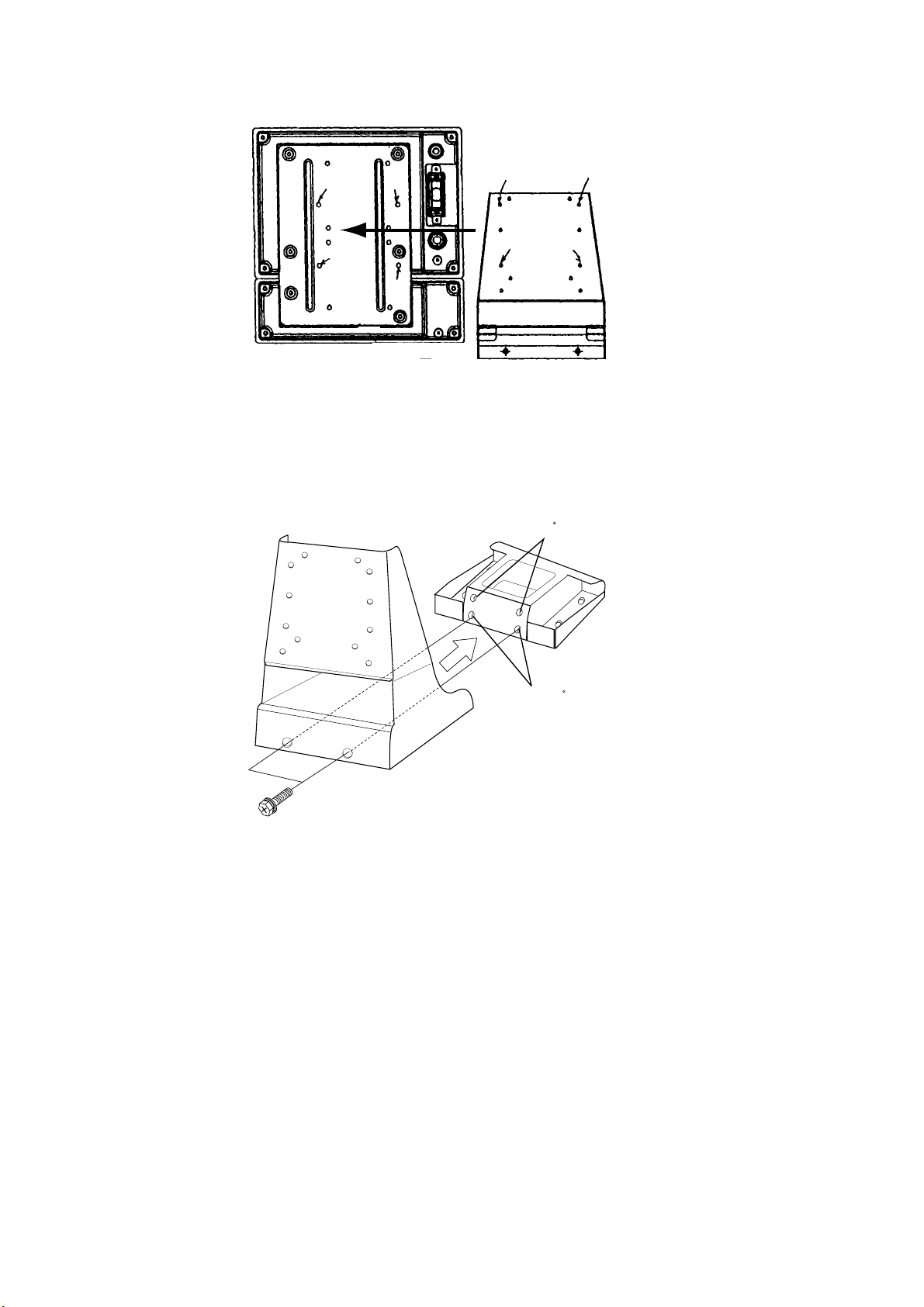

1.1 Monitor Unit/Control Unit
This searchlight sonar has two types of shipments, unibody type which is
shipped with monitor unit, and blackbox type which is shipped without a monitor
unit, but has an interface unit. For blackbox type, see page 1-5.
The control unit can be installed together with the monitor unit, or independently
of the monitor unit. For separate installation, the optional monitor kit is required.
These units can be installed on a tabletop or flush mounted in a console or
panel.
1.1.1 General mounting considerations
• Keep the monitor unit out of direct sunlight.
• Select a location where the unit(s) can easily be operated while observing the
fishing ground or area surrounding the vessel.
• For maintenance and checking purposes, leave sufficient space at the sides
and rear of the unit and leave slack in cable. (Refer to the outline drawing at
the back of this manual.)
1.1.2 Mounting Unibody type
1. Fasten the mounting base to the mounting location with four self-tapping
screws (5X20).
FRONT
Mounting base
2. Fasten the bracket at the rear of monitor/control unit with four binding screws
(M4x10).

1. MOUNTING
1-2
1
12
2
3
34
4
Bracket (rear view)
Bracket, rear view
3. Coat threads of upset screws (M6x16, 2 pcs.) used to fasten bracket to
mounting base.
4. Fasten the bracket to the mounting base with two upset screws. (Use the
upper holes to tilt the monitor unit 20°; lower holes to tilt it 9°.)
Upset Screw
Bracket
Mounting base
For 9 tilt
For 20 tilt
Fastening bracket to mounting base

1. MOUNTING
1-3
Flush mounting
Flush mounting for unibody (Type: OP06-16, Code no.: 006-556-300)
Name Type Code No. Qty Remarks
Fixing metal 06-021-1311-2 100-279-612-10 1
Self-tapping screw 5x20 000-162-609-10 6
Hex. bolt M4x12 000-162-939-10 4
1. Cut out a hole (W287 x H297) in the mounting location.
2. Fasten monitor/control unit with the fixing metal (supplied) and four hex. bolts
(M4x12, supplied).
3. Fasten the fixing metal assembled at step 2 to hole made at step 1 with six
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal
1.1.3 Mounting separated monitor unit
1. Fasten the mounting base to the mounting location with four self-tapping
screws (5x20).
FRONT
Mounting base
2. Dismount the coupling plate to separate monitor unit from control unit.
3. Attach the bracket at rear of the monitor unit with four binding screws
(M4x10).

1. MOUNTING
1-4
12
34
12
34
Bracket (rear view)
Bracket, rear view
4. Coat threads of upset screws (M6x16, 2 pcs.) used to fasten bracket to
mounting base.
5. Fasten the bracket to the mounting base with two upset screws. (Use the
upper holes to tilt the monitor unit 20°; lower holes to tilt it 9°.)

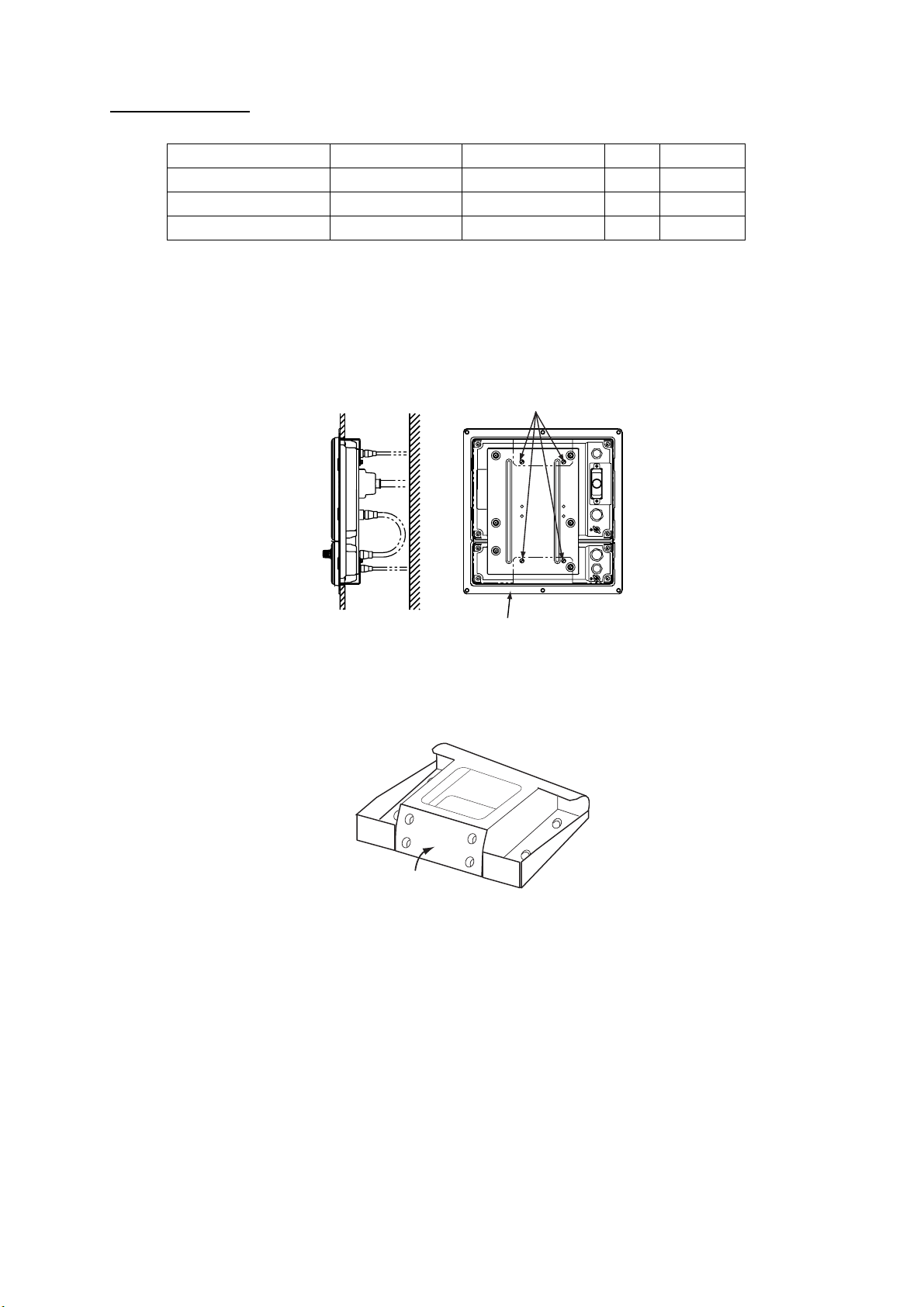

Flush mounting for monitor unit (Type: OP06-17, Code no. 006-556-310)
Name Type Code No. Qty Remarks
Fixing metal 06-021-1321-2 100-279-622-10 1
Self-tapping screw 5x20 000-162-609-10 4
Hex. bolt M4x12 000-162-939-10 4
1. Cut out a hole (W287 x H207) in the mounting location.
2. Fasten the fixing metal (supplied) to the monitor unit with four hex. bolts
(M4x12, supplied).
3. Fasten the fixing metal assembled at step 2 to hole made at step 1 with four
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal

1. MOUNTING
1-5
1.1.4 Blackbox type
The blackbox type requires a VGA monitor, connected via the interface unit
IF-8000. Supply commercial monitor and interconnection cable (Max. length 15
m with Dsub-15P connectors of male, three rows of 15 pins). The monitor used
should satisfy the specifications shown below.
• VGA type
• ANALOG RGB 0.7 Vpp, positive polarity
• TTL level H, V, Negative polarity
Note: The LCD monitor MU-151C does not require the interface unit IF-8000.
For details, see the operator’s manual for MU-151C.
1.2 Control Unit

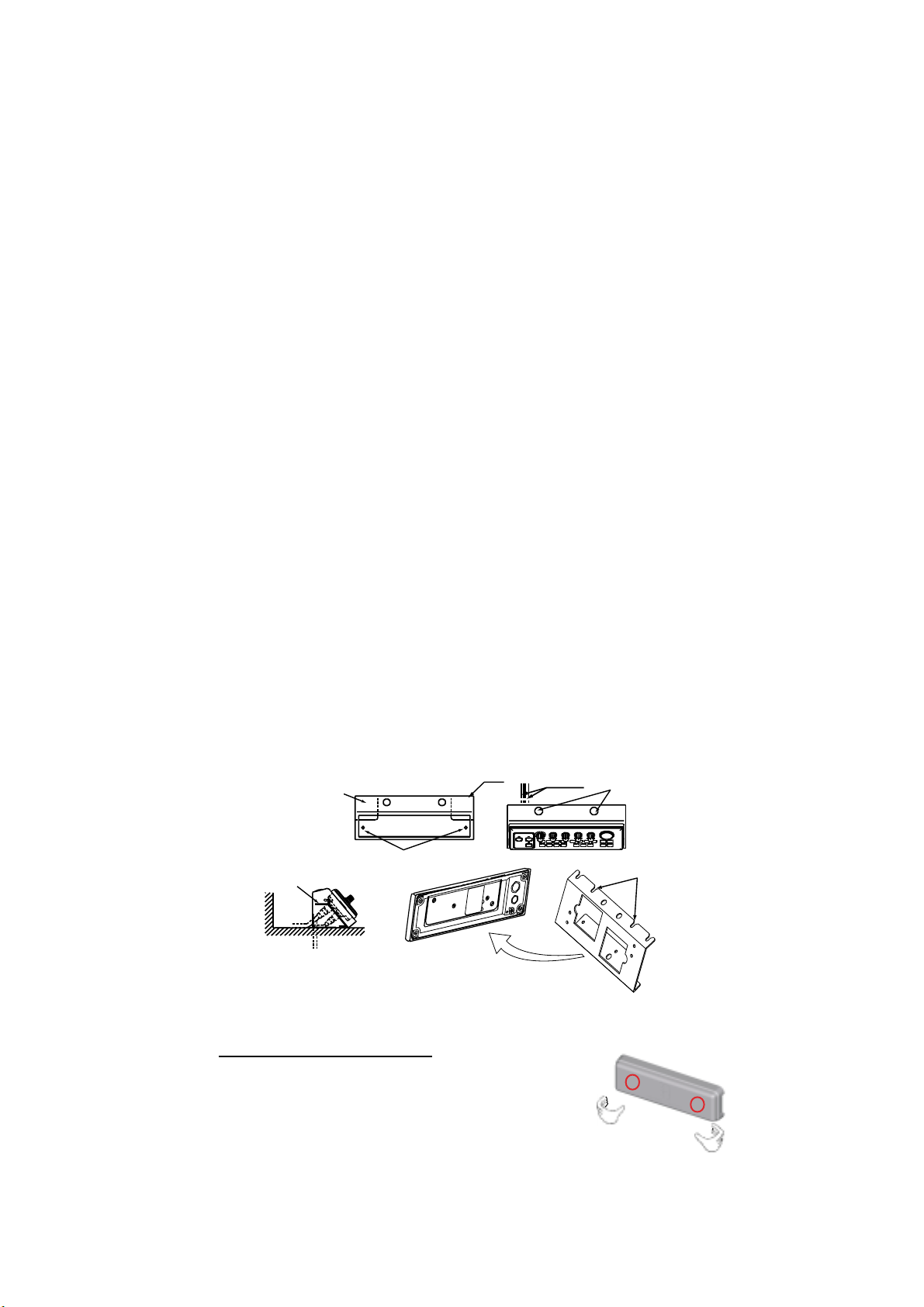

For blackbox type, fix the control unit to the mounting plate (supplied as
accessories).
See the parts list of FP06-01120 and outline drawings at the back of this manual.
1. Fix the mounting plate to the place selected with two self-tapping screws
(5X20, supplied).
2. Fix the bracket to the control unit with two hex. screws (M4X12, supplied).
3. Insert the screwdriver from the top of the mounting plate holes and then
tighten two hex. screws (M4X12) loosely.
4. Attach the control unit to the mounting plate, and fasten two hex. screws
tightly.
5. Attach two cosmetic caps to the holes at the top of the mounting plate.
Cable entrance hole Mounting plate Cable
Tapping screws (5X20)
Fasten the screws to fix
the bracket.
Bracket
Bracket
Insert to the hex.
screws tightened
at step 3.
Cable can be passed this direction.
6. Attach hard cover to protect the control unit.
How to remove the hard cover
Place your thumbs at the locations shown with
circles in the illustration at right, and then lift the
cover while pressing it with your thumbs.

1. MOUNTING
1-6
To mount the control unit separate from the monitor unit, the optional control unit
separate kit is required. Mount the control unit same as the above procedure.
See the outline drawing at the back of this manual to mount.
Type: OP06-15-1.5 NEW Code no.: 006-559-140: with 1.5 m cable
Type: OP06-15-5 NEW Code no.: 006-559-150: with 5 m cable
Name Type Code no. Qty Remarks
MJ-A10SPF0002-015 000-142-878 For 1.5 m cableCable
MJ-A10SPF0002-050 000-131-411
1
For 5 m cable
Bracket 06-021-2112 100-281-880-10 1
Mounting Plate 06-021-2111-1 100-279-741-10 1
Self-tapping Screw 5x20 000-162-608-10 2
Cosmetic Cap DP-687 000-165-997-10 2
Hex. bolt M4x12 000-162-939-10 4
Flush mounting for control unit
Type: OP02-83-1.5, Code no.: 001-413-600 (1.5 m cable)
Type: OP03-83-5, Code no.: 001-413-610 (5m cable)
Name Type Code No. Qty Remarks
Fixing metal 06-021-2101-2 100-279-732-10 1
Self-tapping screw 5x20 000-162-609-10 4
Hex. bolt M4x12 000-162-939-10 2
MJ-A10SPF0002-015 000-142-878 1 1.5 m
Cable assembly
MJ-A10SPF0002-050 000-131-411 1 5 m
Select
one.
1. Cut out a hole (W287 x H87) in the mounting location.
2. Fasten the fixing metal to the control unit with two hex. bolts (M4x12,
supplied).
3. Fasten the fixing metal assembled at step 2 to holes made at step 1 with four
self-tapping screws (5x20, supplied).
Hex. bolts
Fixing metal

1. MOUNTING
1-7
1.3 Transceiver Unit
1.3.1 General mounting considerations
• The mounting location should be well ventilated and dry.
• The unit can be mounted on a bulkhead or the deck.
• The maximum cable length between the transceiver unit and the raise/lower
drive unit is 50 m.
• The maximum cable length between the transceiver unit and the monitor
(interface) unit is 10 m.
• Keep the transceiver unit out of splash.
1.3.2 Mounting method
Fasten the transceiver unit with four self-tapping screws (5X20, local supplied).
For bulkhead mounting, do as follows:
1. Tighten upper self-tapping screws so there is 5 mm clearance between
bottom of screw head and bulkhead.
2. Hook the transceiver unit on the upper screws.
3. Tighten the upper screws followed by the lower screws.
475
428
340
296.5+1
16.5
82
455+1
4- 6
FIXING HOLES
LED
Transceiver unit

1. MOUNTING
1-8
1.4 Hull Unit
1.4.1 General mounting considerations
• Noise and air bubbles will affect performance.
• Do not turn on the equipment with the transducer exposed to air. Exposing the
transducer to air may damage it.

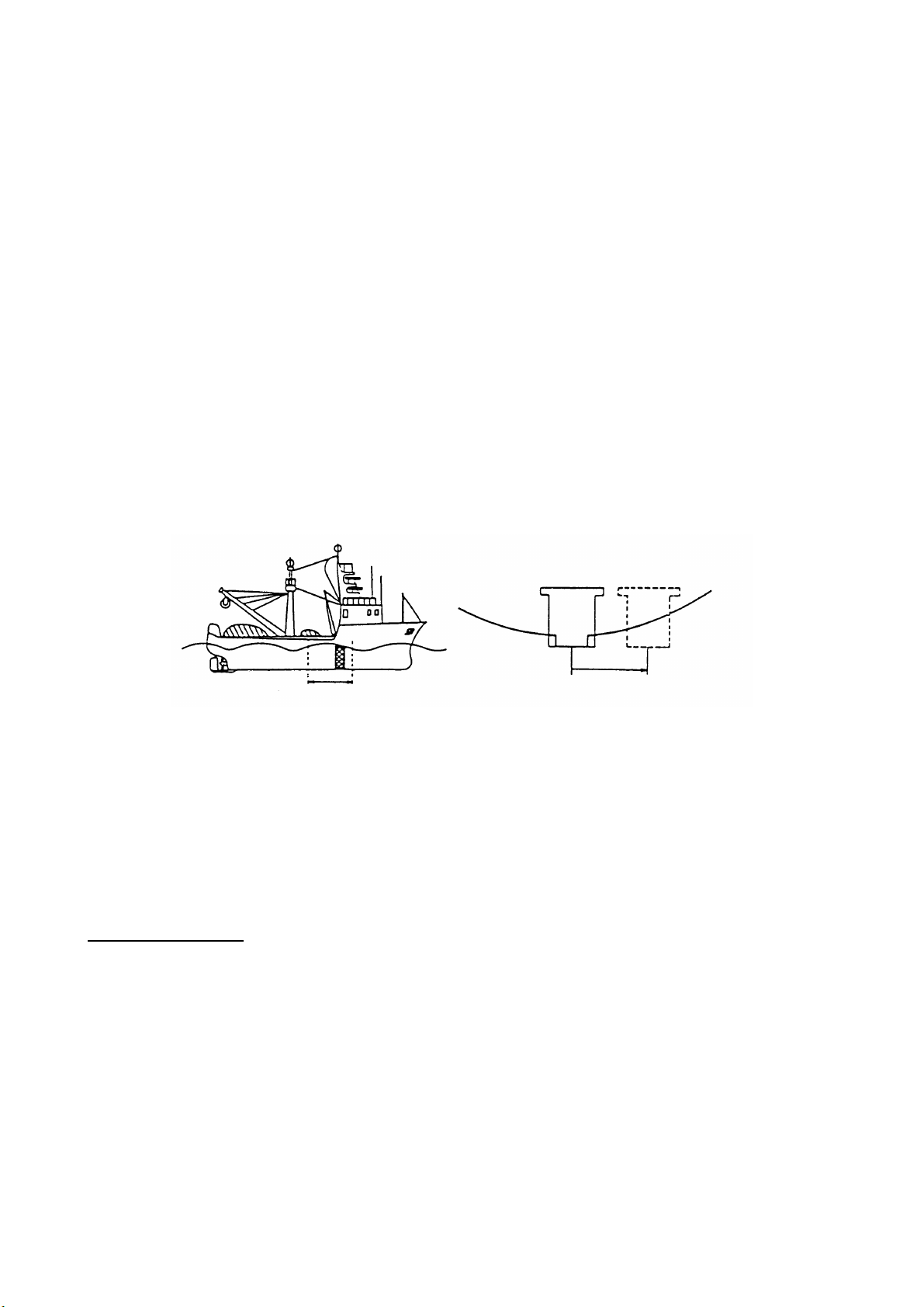

1.4.2 Installation position considerations
Discussion and agreement are required with the dockyard and ship owner in
deciding the location for the hull unit. When deciding the location, take into
account the following points:
• Select an area where propeller noise, cruising noise, bubbles and interference
from turbulence are minimal. Generally, the point at 1/3 to 1/2 of the ship’s
length from the bow or near the keel is the best. On-the-keel installation is
advantageous for minimizing oil consumption in comparison with off-the-keel.
If the hull unit cannot be installed on the keel, the center of the retraction tank
should be within 1 meter of the keel to prevent a rolling effect.
1/2 1/3 Within 1 meter
Installation location for hull unit
• Select a place where interference from the transducers of other sounding
equipment is minimal. The hull unit should be at least 2.5 meters away from
the transducers of other sounding equipment.
• An obstacle in the fore direction not only causes a shadow zone but also
aerated water, resulting in poor sonar performance. Be sure to locate the
transducer well away from any obstacle in the fore direction.
Mounting method
A typical mounting method is shown in the outline drawing at the back of this
manual. Consult ship’s owner, dockyard and user to determine appropriate
mounting method. Pay attention to safety (strength, watertightness) first,
followed by ease of maintenance and inspection.

1. MOUNTING
1-9
Welding bead
Welding bead
1.4.3 Transducer tank
Tank length
Shorten the transducer tank so the transducer is lowered into water as deep as
possible. Pay particular attention to the tank length Lt. Determine the length of
the main shaft.
• Length of main shaft = Lt + 200 mm (for 400
stroke)
• Length of main shaft = Lt + 50 mm (for 250
stroke)
Note: When the retraction tank is constructed
locally, finish it so that welding beads do
not protrude on the inner surface of the
tank. The tank guide will hit the bead,
burning out the raise/lower motor. Also, do
not position the welding bead in the ship’s
fore-aft line.
For small FRP ship
The retraction tank should be mounted in
parallel with the ship’s draft. For a small ship, however, the hull has 2 degrees of
tilt rising toward the bow. This creates high water pressure in the tank because
of the resistance at the rear of the tank well. To solve this problem, attach a fin to
the hull at the location shown in the figure below.
Retraction tank
Fin
Bottom of ship
This fin creates a smooth stream in the retraction dome. Fin specifications:
Height, 1-1.5 cm, Material, FRP.

1. MOUNTING
1-10
Mounting of transducer tank
Install the transducer tank referring to the hull unit outline drawings at the back of
this manual.
Note 1: When making a retraction tank locally, the inside diameter of the
retraction tank should be φ190±0.5 as shown in the outline at the back of this
manual. If larger, the hull unit may be damaged.
Note 2: Locate the retraction tank so that the center of any two bolt holes is
facing the ship’s bow.
Bow
a=b
a
b
1.4.4 Assembling and mounting of hull unit
The hull unit is shipped as the parts shown in the hull unit kit in the Equipment
Lists (page v). Assemble the hull unit as shown in the procedure below.
Note: Confirm the frequency of soundome before mounting by referring to the
table below.
Frequency Specification
60/153 kHz There is NO label attached on the dome.
85/215 kHz There is the label “85/215 kHz” attached
on the dome.
For 85/215 kHz, the label is
attached here.
Necessary tools
Name Specification Remarks
Wrench For M10 (Hex. size 17 mm) Recommended: double offset wrench
Wrench For M20 (Hex. size 30 mm)
Pipe Wrench 55 mm For fixing gland
Ball Wrench Hex size 4 mm For fixing the dome

1. MOUNTING
1-11
1. Calculate necessary length of main shaft from the length of retraction tank Lt
and cut off the unnecessary portion.
Supplied length: 2.2 m or 3.8 m
Lt + 200 mm for 400 mm travel
Lt + 50 mm for 250 mm travel
Take care
not to damage. Chamfer the edge to
protect O-ring from
damage.
2. Remove hex bolt, nut, spring washers, flat washers and trunnion pins from
the main body flange. Then, mount the raise/lower drive unit on the shaft
sleeve by using the hardware removed.
WARNING
WARNING
Hex. bolt
(M10X30)
Spring washer
Flat washer
Flat
washerNut
Trunnion pin
Raise/lower
drive unit
Flange assembly
Shaft sleeve and raise/lower drive unit assembly
3. Pass the transducer cable through the main shaft.

1. MOUNTING
1-12

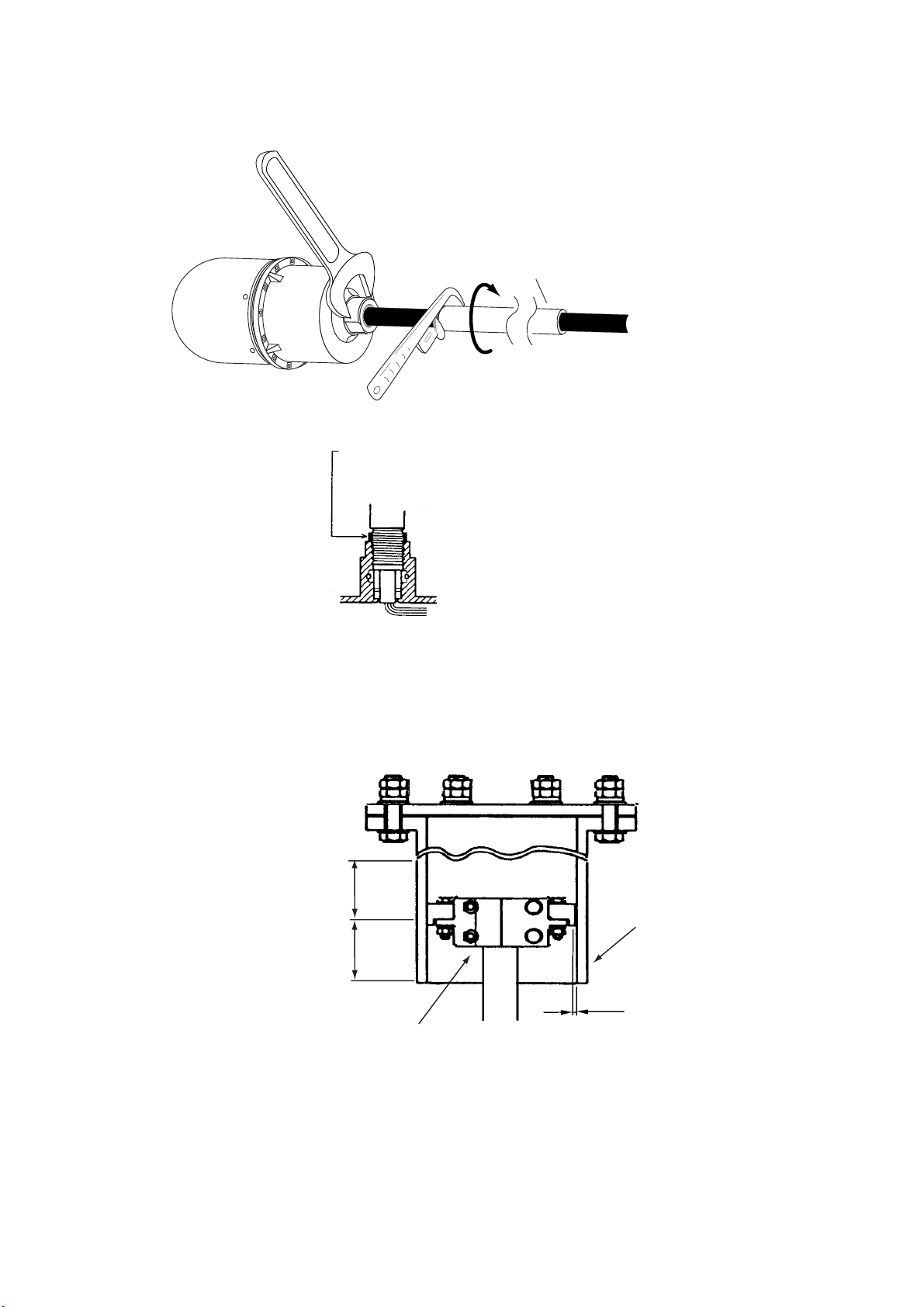

4. Fully screw main shaft into the soundome neck, and then unscrew by four
turns. Coat threads with CEMEDINE HIGH SUPER.
Main Shaft
Grasp the soundome neck with a wrench,
and tighten the shaft with a pipe wrench.
Coat threads with CEMEDYNE
HIGH SUPER.
Applying CEMEDINE HIGH SUPER to main shaft
5. Screw in main shaft completely.
6. As shown in the drawing below, confirm that the narrowest gap between the
tank guide, and retraction tank in the range (20 to 170 mm) is within 0.5 mm.
Tank guide
Retraction tank
less than 0.5mm
20 mm (400 travel) -
170 mm (250 travel)
Adjustment range
(travel) 250 or 400
Tank and tank guide, sectional view
