FUTABA CDR5000 User manual

2
Do not leave the CDR-5000 unattended while using it.
Stop charging/discharging as soon as you notice any abnormality. In addition, stop
charging/discharging when there is a sign of rapid increase in the temperature of bat-
teries.
*Due to the characteristics of NiCd and NiMH batteries, some of them might show no "Delta Peak" that
represents the completion of charging.Although depending on how to set "Auto-cut", CDR-5000 may con-
tinue charging and cause the overcharge that will generate abnormally high temperature and cause some
danger.
*The temperature of a battery, exceeding over 60 degrees Celsius, may cause very dangerous conse-
quences.
• All rights reserved by Futaba Corporation.Do not reprint any or the entire document.
• The content of the document is susceptible to change without notice.
• Although this document is compiled with full care, please inform us if there is anything that is unclear.
• Please be sure that Futaba is not responsible to any consequences that customers have used the products.
Power Source Precautions
Select the power source of large output capacity.
It is recommended to use 12V car batteries with no less than 40Ah or DC power supplies with no less than 15A
at 12 to 16Vdc that have current overload protection circuit (fuse). If you use a power source whose current
output capacity is less than the charging current, you may damage the power source.(The guaranteed operating
range of CDR-5000 is from 11V to 16V.)
Don't use the car battery installed in a car. Prepare a 12V standalone car battery for
charging.
If you use the battery installed in your car, the battery could dry up and become impossible to start your car
engine.And please don't connect CDR-5000 to your car battery while the engine is running in order to avoid the
dry-up of the car battery, because it may cause not only environmental problem and space securing problem, but
also malfunctions of CDR-5000 due to fluctuation of input voltage and vibrations.
Never use 24V batteries.
Never use 24V batteries commonly used in trucks, otherwise CDR-5000 would be damaged.
Thank you very much for purchasing a rapid charging & discharging equipment CDR-5000.
The CDR-5000 features in rapid charging, rapid discharging and cyclic charging/discharging of NiCd
and NiMH batteries used for motors, radio transmitters and receivers for radio control model applica-
tions. And the large LCD screen enables you to monitor various data and charts.
Please read this instruction manual prior to the use of this product so that you would draw the maxi-
mum performance of the CDR-5000 while you keep the safety.

3
TABLE OF CONTENTS
For Your Safety ......................................................................... 4
Meaning of Special Markings .................................................................4
Safety Precautions....................................................................................4
Before Using .............................................................................. 7
Features.....................................................................................................7
Set Contents/Nomenclature.....................................................................8
CDR-5000 Functions .............................................................. 10

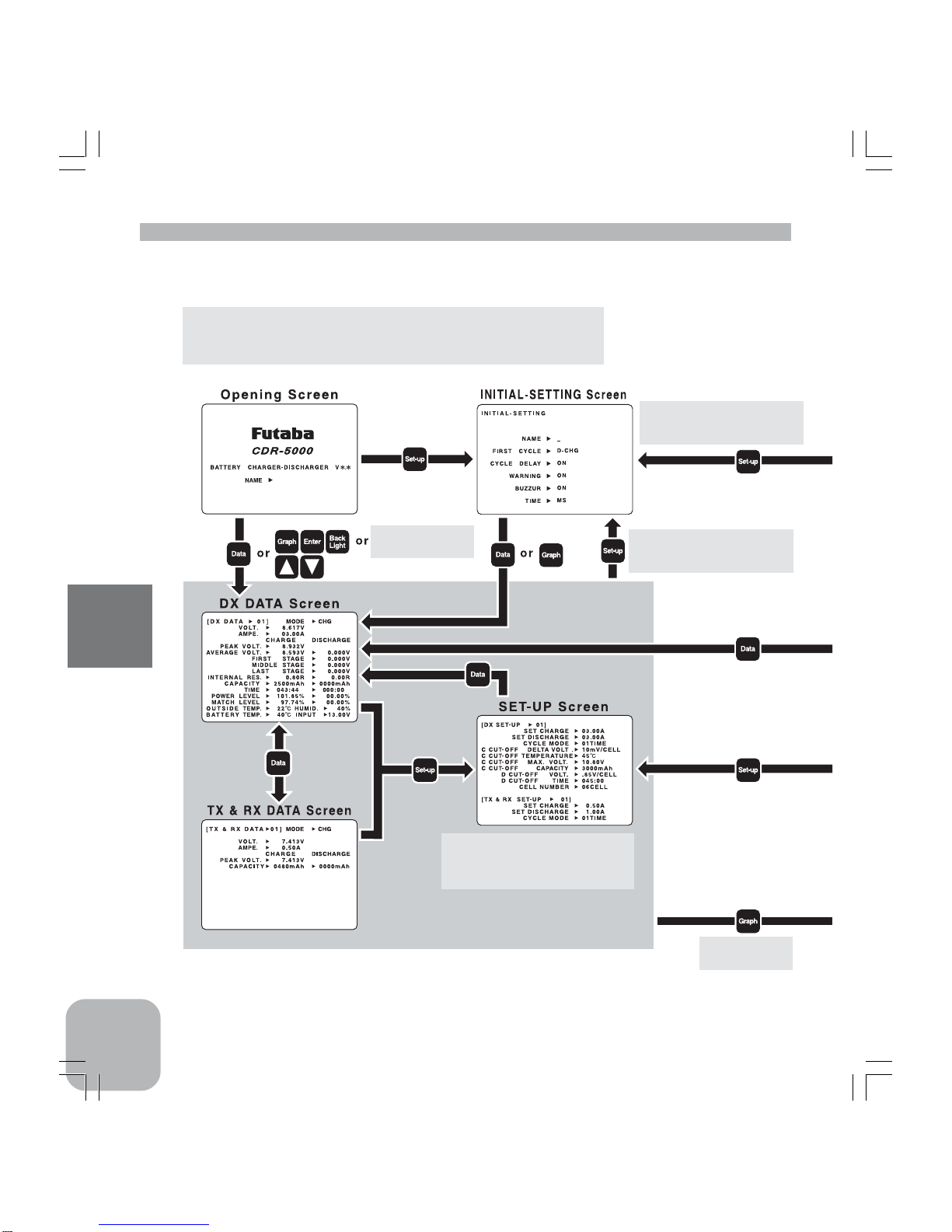

Map of Functions ...................................................................................10
Opening Screen ......................................................................................12
Initial-Setting Screen .............................................................................13
Charging/Discharging............................................................................15
1. Setting Parameters for Charging/Discharging................................15
2. Connecting Battery......................................................................... 19
3. Start of Charging/Discharging .......................................................21
4. End of Charging/Discharging.........................................................22
5. Cycle Charging/Discharging ..........................................................25
6. Compulsively End of Charging/Discharging .................................26
Over Current Protection ....................................................................... 27
Data Screen.............................................................................................28
1. DX DATA Screen ...........................................................................28
2. TX&RX DATA Screen ................................................................... 32
Graph Screen.......................................................................................... 34
Warning Screen ......................................................................................41
Reference ................................................................................. 43
Specifications .......................................................................................... 43
Option Parts ...........................................................................................44
For Your Safety
Before Using
Functions
Reference

4
For Your Safety
For Your Safety
Meaning of Special Markings
Pay special attention to safety where indicated by the following marks:
•Procedures which may lead to dangerous conditions and cause death/serious injury if not car-
ried out properly.
•Procedures which may lead to a dangerous condition or cause death or serious injury to the
user if not carried out properly, or procedures where the probability of superficial injury or physi-
cal damage is high.
•Procedures where the possibility of serious injury to the user is small, but there is a danger of
injury, or physical damage, if not carried out properly.
: Prohibited : Mandatory
Safety Precautions
Never use CDR-5000 in the near range of flammable materials.
*Electric sparks generated by connecting or disconnecting batteries are very dangerous to trigger a fire.
Do not operate CDR-5000 for charging or discharging with wet hands.
*It may expose you to suffer electric shock especially when the voltage for charging or discharging is very
high.
Never charge or discharge any batteries other than NiCd and NiMH batteries.
*Charging or discharging the batteries other than NiCd and NiMH batteries may cause abnormally high heat
generation and fire.
Never connect batteries in the wrong direction.
*Wrong connection may cause the improper work of protection circuit and the excessive heat generation,
and may damage the CDR-5000 internal parts.
Never do an additional charging or discharging after the charging or discharging.
*It is very dangerous to do so because the "Auto-cut" will become unable to function, and the batteries will be
over-charged and overheated. Also, over-discharge may damage the batteries.
Never let the CDR-5000 be wetted by water.And do not use CDR-5000 at places such
as extremely high humidity, rain and snow.
*CDR-5000 contains electronic parts that are susceptible to malfunction by intrusion of water such as rain.If
your CDR-5000 were wetted by water, it is strongly recommended to return it for repair.
Do not use or store CDR-5000 at heavily dusty places.
* Dust, if it enters in CDR-5000, may cause malfunctions or failures since CDR-5000 has a precision elec-
tronic circuit inside.
Do not start charging or discharging while the batteries are still warm.
*If batteries are charged while they are warm, the batteries cannot be charged up to their full capacity and
cannot draw their maximum performance.There is also a possibility of abnormally being heated.So be sure
not to start charging or discharging before the batteries are cooled down.

5
For Your Safety
Do not connect more than one set of battery package to the output terminal of the
CDR-5000.
*It is extremely dangerous to do so because it may cause a short between batteries and a malfunction of
"Auto-cut".
Do not connect more than one set of battery package to the output terminal of the
CDR-5000.
*It is extremely dangerous to do so because it may cause a short between batteries and a malfunction of
"Auto-cut".
Do not charge or discharge batteries putting CDR-5000 and batteries on something
easy to melt such as vinyl and plastics, and on something flammable such as seat in a
car.
*The CDR-5000 generates heat while charging and discharging.NiCd batteries may also generate abnor-
mally high heat due to unknown reasons.
Do not disassemble CDR-5000 including its attached parts.
*Disassembling and remodeling of CDR-5000 and its parts may cause malfunctions and failures.And it may
cause improper operation that leads to failure.
Keep CDR-5000 away from physical vibrations and shocks.
*Physical vibrations and shocks may cause malfunctions or failures since CDR-5000 has a precision elec-
tronic circuit inside.
Keep the CDR-5000 and batteries away from the direct sunlight and keep them under
the temperature in the range between 5 and 40 degrees Celsius while charging or
discharging batteries.
*Violation of this instruction may cause inadequate charging and discharging or may induce abnormal heat
generation.
The "Delta-peak" detection may not work properly when charging such batteries that
are newly acquired or left unused for a long time. Please stop charging when the tem-
perature of the batteries rises abnormally.
*NiCd and NiMH batteries that are newly acquired or left unused for a long time are unlikely to be detected
by "Delta-Peak" that shows a sign of completion of charging.If you continue charging the batteries as they
are, the batteries will be abnormally heated and cause danger.
Be careful so that you won't short electric cords by pinching them.
*A short between electric cords may cause high heat generation or fire to the batteries.
Monitor frequently the level of charging and discharging by data and/or chart shown on
the display while doing it. If the level of charging and discharging is unusually high,
stop it immediately.
*"Auto-cut" may not work correctly due to unknown reasons.
Be sure to check all parameters on the SET-UP screen before charging/discharging
and correct them if necessary.
Be sure to remove the batteries from CDR-5000 immediately after the completion of
charging and discharging.
Keep CDR-5000 away from infants during storage of it.

6
For Your Safety
Be sure to spread the stand of CDR-5000 to lift its body from the ground, table, etc.
*Charging and/or discharging without spreading the stand may significantly reduce the effectiveness of a
cooling fan and cause abnormal heat generation. It is highly recommended to spread the stand and use
CDR-5000 in a good air circulation.
Do not leave the CDR-5000 unattended while using it.
Stop charging/discharging as soon as you notice any abnormality. In addition, stop
charging/discharging when there is a sign of rapid increase in the temperature of bat-
teries.
*Due to the characteristics of NiCd and NiMH batteries, some of them might show no "Delta Peak" that
represents the completion of charging.Although depending on how to set "Auto-cut", CDR-5000 may con-
tinue charging and cause the overcharge that will generate abnormally high temperature and cause some
danger.
*The temperature of a battery, exceeding over 60 degrees Celsius, may cause very dangerous conse-
quences.
[Electrolytic solution in a battery]
If electrolytic solution in a battery scatters into your eyes, you may face a danger of losing your
eyesight due to the strong alkaline characteristics of the electrolytic solution. In such a case,
never scratch but immediately wash your eyes with plenty of clean water and then go to a doctor
for treatment.
[Influences on radio control equipment]
If receivers are located in the vicinity of CDR-5000, the receivers may suffer from malfunctions
due to radio interference. So do not turn on receivers and do not operate radio control equipment
in the vicinity of CDR-5000.
[Temperature of the Thermo Sensor]
The temperature given by CDR-5000 may slightly differ from the actual temperature in the
vicinity of the Thermo Sensor because of its intrinsic tolerance. So it is recommended to use the
battery temperature given by CDR-5000 as a reference for parameter setting and management.

7
Before Using
Before Using
Features
• The linear current charger with advanced peak detector and automatic cutoff circuit with MOSFET
can charge battery up to 100% without overcharging.
• The CDR-5000 can charge, discharge and cyclically charge/discharge batteries such as NiCd and
NiMH for motors, transmitters and receivers.
• DX port (specially for batteries for motors): 1-36 cells, 50-9999mAh
• TX/RX port (specially for batteries for transmitters and receivers): 1-8 cells, 50-2500mAh
• Large reconfigurable LCD display (192 x 128 dots) + Backlight
DX and TX/RX:
Output current, output voltage, set charge current, set discharge current, peak voltage, battery
capacity, unit status (charge/discharge/cycle/no battery is connected/ready/short/reverse connection/
delay) and etc.
DX only:
Average discharge voltage, internal relative resistance, time, power level, matched level, outside
temperature, humidity, battery temperature, input voltage and so on.
• DX port: The maximum voltage to stop charging can be set at: 0.1-62V
• DX port: The function of "Zero delta volt (0DV)" is available.
Setting range: 3mV - 50mV/cell for charging a NiCd battery

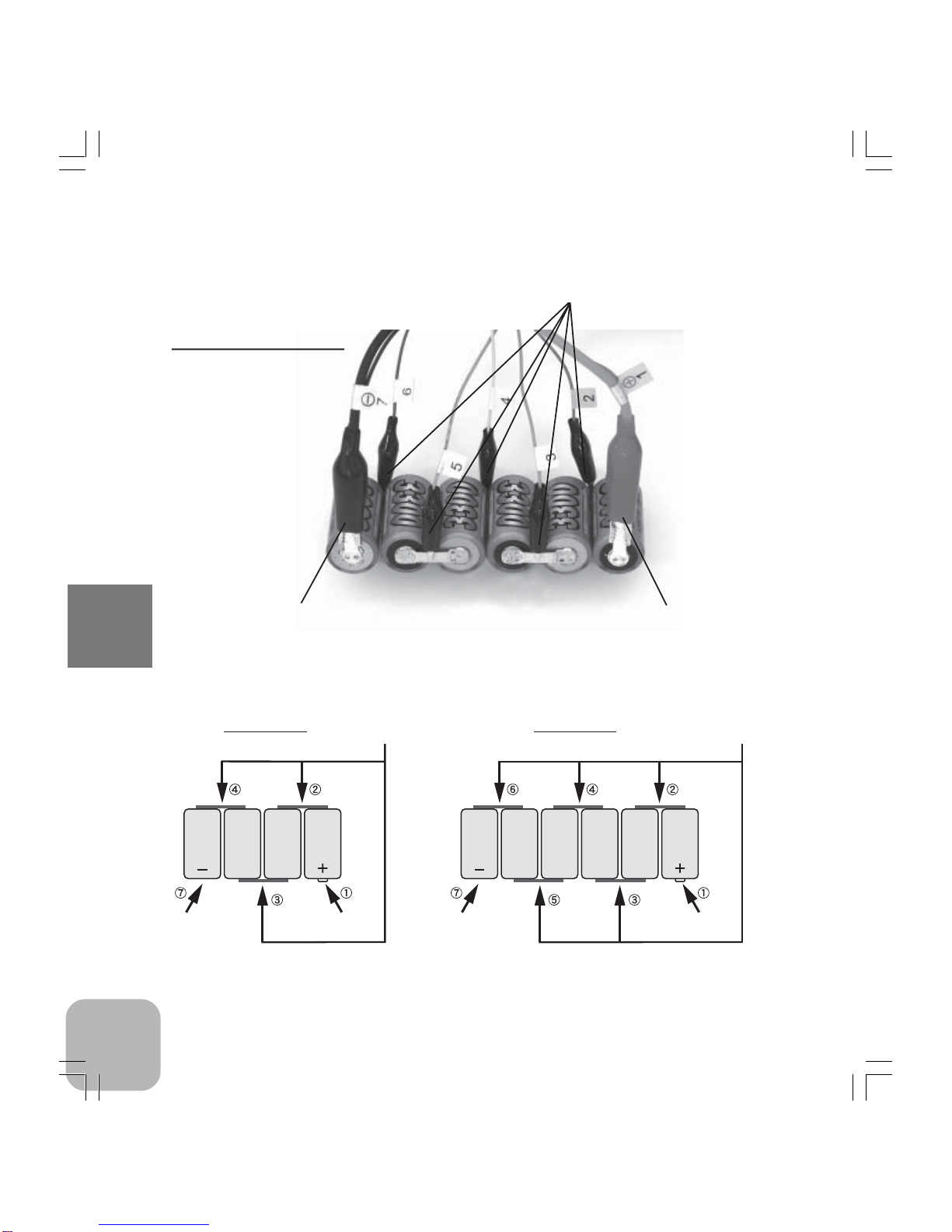

• DX port: Independent terminal (Terminal Harness) will provide accurate voltage, showing the levels
between the serially composed cells by bar graph and numerical percentage on the screen.
• DX port: Temperature sensor to protect batteries. DELAY MODE functions when the temperature
exceeds 40ºC during a cycle charging/discharging.
• Thermo Stand with built-in temperature sensor (option)
• Discharge cut-off timer.
• DX and TX/RX can be operated at the same time.
• 2 blue LEDs and 2 red LEDs indicate the status of charging and discharging.
• Reverse polarity protected.
• Five built-in cooling fans
• Protector to prevent users from touching heat sink

8
Before Using
Set Contents/Nomenclature
Please check the contents of your shipment comparing to the parts shown here.
If you believe that you are missing any of these parts, please contact the distributor from whom you
purchased the system.
CDR-5000
•"TX/RX Charging"
LED
•"TX/RX Discharging"
LED
•LCD display •Heat sink protector
•"DX Charging" LED
•"DX Discharging" LED
•Edit keys
Accessories •TX charge adaptor
*This is used for charging/discharging batteries for
transmitters. Please make sure that polarity is correct
before connecting the adaptor to TX/TR terminal of CDR-
5000.
•RX charge adaptor
*This is used for charging/discharging batteries for
receivers. Please make sure that polarity is correct before
connecting the adaptor to TX/TR terminal of CDR-5000.
•Terminal harness
*This is used for measuring characteristics of each cell in a
serially composed battery (2 - 6 cells). Connect the other
end of a terminal harness to the "Terminal Harness" on
CDR-5000.
•Conversion table sheet between Celsius
and Fahrenheit temperatures

9
Before Using
Cords equipped with
CDR-5000
•Input clips
*Connect these to the power source. Be
sure to connect in the proper polarity.
Red: positive, Black: negative •Thermo sensor
*This is the temperature sensor of a battery that is used for
monitoring a battery characteristics and stopping charging/
discharging at a certain level.
•Output clips
*Connect these to a battery for motors. Be sure to connect in
the proper polarity. Red: positive, Black: negative
View from the left side of CDR-5000
•Stand
*Always spread this stand
while charging/discharging
for cooling
•TX/RX charge adaptor terminal
*Red: positive, Black: negative: Please give full
attention to the polarity.
View from the right side of CDR-5000
•Terminal Harness connector
•Thermo stand connector
(Thermo stand is sold separately.)
•Printer connector
(This is for factory use only.)
•PC connector
(This is for factory use only.)

10
CDR-5000 Functions
CDR-5000 Functions
Map of Functions
Connect the input cords of CDR-5000 to the power source
and switch on the power source, and then CDR-5000 will
automatically turn on and show its opening screen.
When a battery is
connected.
Keep the button pressed until
INITIAL-SETTING screen
shows up.
SET-UP screen will return to Data
screen or Graph screen automati-
cally about one minute after no key
operation is done.
Graph 1 screen
is shown.
Keep the button pressed until
INITIAL-SETTING screen
shows up.

11
CDR-5000 Functions
Use "Graph" or " " key to
advance to the next screen
and use " " key for reverse.

12
CDR-5000 Functions
Opening Screen
Connect the input cord of CDR-5000 to a power source, and then CDR-5000 will be automatically
turned on and show its opening screen with a buzzer (one beep sound).
*It is recommended to use a 12V car battery with a capacity of 40Ah or larger or a DC power supply of 12V to 16V with a
current capacity of 15A or larger as a power source. See page 2 for power source precautions.
*If the BUZZER is set to "OFF" in the INITIAL-SETTING, there will be no sound.
*If the voltage of the power source is over 16 volts (or lower than 12 volts) or the polarity of the input cord is connected in a
wrong way, CDR-5000 will not be turned on. In such a case, check the output voltage of the power source.
*The warning message "RELAY DAMAGE SERVICE 01!!" if it is shown on the screen, means that CDR-5000 is out of order
due to some reason. Please contact to the distributor from whom you purchased the system.
[How to reset the previous data]
While pushing " " and " "keys at the same time, connect the input cord to the power source and
switch on the power source, and then CDR-5000 will be reset to the status as supplied by the
factory.
[How to switch from the opening screen to another screen]
INITIAL-SETTING screen: Push "Set-up" key.
DX DATA screen:Connect a battery to the DX port or TX/RX port, then this screen will automati-
cally appear.Or push any one of "Data", "Graph", "Enter", "Back Light", " " and " " while a battery
is disconnected.
*If the screen does not show DX DATA but the warning message "INPUT POWER SUPPLY VOLTAGE IS TOO LOW!", the
output voltage of the power source is possibly too low. Please check the output voltage of the power supply.
[Backlight for LCD screen]
You can turn on and off the back light of LCD screen by
pushing the key "Back Light".
The backlight will be turned off automatically after a certain
period of time.
To re-light the backlight, push the key "Back Light".
When a battery is
connected.
or

13
CDR-5000 Functions
Initial-Setting Screen
Here you can set the following conditions.After completion of INITIAL-SETTING, change the screen
to DX DATA screen as described hereunder before ending operation of CDR-5000, otherwise all the
data you have set here will be lost.
[How to select an item]
Push "Enter" key to select an item to set pa-
rameter.
[How to save parameters that you
have set here]
Push "Data" key after completion of INITIAL-
SETTING and switch to DX DATA screen, then
all the parameters you have set will be auto-
matically saved.
NAME
Set user's name that will be shown on the opening screen. The maximum number of characters is eight.
<Characters to be used>
ABCDEFGHIJKLMNOPQRSTUVWXYZ[¥]^`abcdefghijklmnopqrstuvwxyz!”#$%&’()*+,-./
0123456789:;<=>?@
<Operation keys>
Move cursor by pushing " " or " " keys (to select the character.)
Set character by pushing " " or " " keys.
FIRST CYCLE
You can select "Discharging" or "Charging" to start the cycle mode that repeats charging and discharg-
ing up to the preset count. The default parameter is set to "D-CHG (discharge)".
<Setting mode>
D-CHG: start from discharging
CHG: start from charging
<Operation key>
Push any one of " ", " ", " " and " " keys to select the mode.
CYCLE DELAY
This parameter sets a waiting condition in a cycle mode while the batteries are at high temperature. The
default parameter is set to "ON". This function is available only at DX.

14
CDR-5000 Functions
<Setting mode>
ON: If the thermo stand detects the temperature over 40 degrees Celsius, the next cycle of
charging/discharging will be suspended. It restarts as soon as the temperature becomes
below 40 degrees Celsius.
OFF: Regardless with the temperature measured by the sensors, cycle mode will continue. But
the "CUT-OFF TEMPERATURE" remains effective if it has been set at SET-UP.
<Operation key>
Push any one of " ", " ", " " and " " keys to select the mode.
"CYCLE DELAY" is strongly recommended to set "ON" to keep the battery tempera-
ture as low as possible because the battery temperature tends to increase very high
during continuous cycles of charging and discharging under "CYCLE MODE".
WARNING
On the SET-UP screen, you can display confirmation messages or not by setting this parameter. The
default parameter is set to "ON".
<Setting mode>
ON: Display confirmation messages
OFF: Do not display confirmation messages
<Operation key>
Push any one of " ", " ", " " and " " keys to select the mode.
BUZZER
Set the buzzer "ON" or "OFF". The default parameter is set to "ON".
<Setting mode>
ON: It buzzers when the power is turned on, when keys are operated, when charging or dis-
charging is finished.
OFF: No buzzer.
<Operation key>
Push any one of " ", " ", " " and " " keys to select the mode.
TIME
This determines the mode of time display. The default parameter is set to "MS".
<Setting mode>
MS: minute and second (00:00)
S: second (0000S)
<Operation key>
Push any one of " ", " ", " " and " " keys to select the mode.

15
CDR-5000 Functions
Charging/Discharging
1. Setting Parameters for Charging/Discharging
Caution: Before connecting a battery to charge/discharge it to CDR-5000, be sure to
check all parameters on the SET-UP screen and correct them if necessary. It is pos-
sible to change each parameter while charging/discharging is being conducted, how-
ever the data will become unreliable.
[How to call SET-UP screen]
While keeping the battery disconnected to the DX port,
push any of the following keys, "Data", "Graph", "Enter",
"" and " " in the opening screen to go to DX DATA screen.
Then push "Set-up" key in the DX DATA screen to SET-
UP screen.
[Confirmation and setting of parameters in the SET-UP screen]
DX SET-UP: This screen is for DX port. (Rapid charge/discharge batteries for motors)
TX&RX SE-UP: This screen is for TX/RX port. (Batteries for transmitters and receivers)
<Operation key>
Push "Set-up" key to switch DX SET-UP andTX&RX SET-UP.The selected memory-number will
blink.
Push "Enter" key to select the parameter in the SET-UP screen.
Move cursor by pushing " " or " " keys (to select the digit.)
Set number by pushing " " or " " keys.

16
CDR-5000 Functions
Items in the SET-UP screen
Caution:The setting should be carried out taking into consideration the types of batter-
ies and the number of battery cells. Parameters used in this description are rough
targets that are mainly intended to avoid damages to batteries.These targets are not
necessarily optimal to the batteries that are used for competitions.
The term of "1C" in this manual is defined by the charging/discharging capacity of a
battery cell.For example, when "2400mAh" is shown on a battery cell, then "1C" for the
battery is 2.4A.When "3300mAh" is shown on a battery cell, then "1C" for the battery
is 3.3A.
[DX SET-UP]
It is possible to memorize 10 types of charging/discharging data for DX. For example, if you memorize
two types such as 4 NiMH cells with 3300mAh and 6 NiMH cells with 3300mAh, you can select one
out of two types by selecting memory number.
<Operation key>
Push " " or " " key to select the memory number.
SET CHARGE
This is to set the charging current for DX. 0.1-12A (0.01A step)
However, the maximum charging current varies according to the charging voltage. (See page 27)
* If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CHARGE AMPERE IS TOO
HIGH!" will be shown on the screen when the current is set between 5A and 12A. If there is no error, continue setting. The
message will be shown no more than twice. Please be aware that charging at a high current may damage batteries.
* It is recommended to set the charging current somewhere between 1C and 1.5C. Here 1C is the typical capacity specified by its
manufacture. In case of charging a large number of cells, it is recommended to set the charge current within the maximum
current shown in page 27.
(Example) When charging a NiCd battery of 2400mAh typical, the target charging current will be derived from the following
calculation: 2400mAh x 1.0=2.4A, 2400mAh x 1.5=3.6A
Therefore set the charging current in this case between 2.4A and 3.6A. However, in case of NiMH batteries, it is recommended
to charge at 4.0A for 3000mAh battery and 4.5A for 3300mAH battery.
When charging a large number of battery cells at a time, CDR-5000 might automatically limit the charging current or stop
charging before detecting correct delta-peak by its current overload protection circuit. Please set appropriate parameters within
the range listed in page 27 by estimating the maximum voltage and charging current.
SET DISCHARGE
This is to set the discharging current for DX. 0.1-40A (0.01A step)
However, the maximum discharging current varies according to the discharging voltage. (See page 27)
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "DISCHARGE AMPERE IS TOO
HIGH!" will be shown on the screen when the current is set between 10A and 40A. If there is no error, continue setting. The
message will be shown no more than twice. Please be aware that discharging at a high current may damage batteries. It is
strongly recommended to cool the battery by cooling fans when discharging over 10A.
*It is recommended to set the discharging current somewhere between 1C and 4C. Here 1C is the typical capacity specified by its
manufacture.
(Example)When discharging a battery of 3000mAh typical, the target charging current will be derived from the following
calculation: 3000mAh x 1.0=3.0A, 3000mAh x 1.5=12.0A
Therefore set the discharging current in this case between 3.0A and 12.0A.

17
CDR-5000 Functions
CYCLE MODE
This is to set the number of cycles of charging/discharging at DX. 1 TIME means one cycle of a
charging and a discharging. The setting range is from 1 through 99.
C CUT-OFF DELTA VOLT
This is to set the voltage for "Delta Peak" detection level to stop charging at DX port. 0DV or 3 - 5mV/
CELL (1mV/CELL step)
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CUT-OFF DELTA VOLT IS TOO
HIGH!" will be shown on the screen when the voltage is set between 20mV/cell and 50mV/cell. If there is no error, continue
setting. The message will be shown no more than twice. It is recommended to set "C CUT-OFF DELTA VOLT" at 10-20mV/cell
for NiCd battery and 0DV for NiMH battery.
C CUT-OFFTEMPERATURE
This is to set the maximum temperature of the battery to stop charging at DX port. Setting range is from
25 through 75 degrees Celsius. (1 degree step)
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CUT-OFF BATTERY TEMPERA-
TURE IS TOO HIGH!" will be shown on the screen when the temperature is set between 50 and 75 degrees Celsius. If there is
no error, continue setting. The message will be shown no more than twice. Please be aware that batteries may be damaged if its
temperature becomes very high. It is recommended to set this parameter below 45 degrees Celsius.
*The temperature shown on the screen may slightly differ from actual temperature around the CDR-5000. Please take this
temperature as a reference for setting CDR-5000.
C CUT-OFF MAXVOLT
This is to set the maximum voltage of the battery to stop charging at DX port. Setting range is from 0.1
through 62V. (0.001V step)
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CUT-OFF MAX VOLT IS TOO
HIGH!" will be shown on the screen when the voltage is set over 13V. If there is no error, continue setting. The message will be
shown no more than twice. It is recommended to set the maximum voltage below the 1.5 times of the maximum voltage
specified by its manufacture in light of not detecting delta-peak.
(Example) When using a battery of 6 cells (1.2V/cell), set the parameter at 10.8V. (1.2V/cell x 6 cells x 1.5= 10.8V)
C CUT-OFF CAPACITY
This is to set the maximum capacity to stop charging at DX port. Setting range is from 50 through
9999mAh. (1mAh step)
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CAPACITY IS TOO HIGH!" will be
shown on the screen when the capacity is set over 4000mAh. If there is no error, continue setting. The message will be shown no
more than twice. It is recommended to set the maximum voltage below the 1.3 times (1.3C) of the maximum capacity specified
by its manufacture in light of not detecting delta-peak.
D CUT-OFF VOLT
This is to set the voltage of the battery to stop discharging at DX port. Setting range is from 0.1 through
62V. (0.001V step) Or it can be set by 0.8V/cell, 0.85V/cell or 0.9V/cell.
*The voltage to stop discharging is recommended to be set at 0.8V/cell or the total voltage, 0.8V x number of cells.
(Example) In case of 6 cells: 0.8V x 6= 4.8V
D CUT-OFFTIME
This is to set the time to stop discharging at DX port. Setting range is from 10sec through 999m00sec
(=59,940sec). (1 second step) Or set the timer off.

18
CDR-5000 Functions
CELL NUMBER
This is to set the number of battery cells that are connected to DX. Set "AUTO" or any number between
1 and 36 cells. (1 cell step)
*Select "AUTO" when used in a battery pack, and set the number when the number of cells in a battery pack is known.
*If the "WARNING" is set to "ON" on the INITIAL-SETTING", the confirmation message "CHECKYOUR CELLS NUM-
BER!" will be shown on the screen when you change the setting number of cells. If there is no error, continue setting. The
message will be shown no more than twice. If the wrong number is used, reset the correct number.
[TX&RX SET-UP]
It is possible to memorize 10 types of charging/discharging data for TX&RX. For example, if you
memorize two types such as 5 NiCd cells with 600mAh and 5 NiCd cells with 1500mAh for receivers,
you can select one out of two types by selecting memory number.
<Operation key>
Push " " or " " key to select the memory number.
SET CHARGE
This is to set the charging current at TX/RX. The setting range is from 0.05 to 2A. (0.01A step)
*Be sure that you don't charge a battery over its typical current (1C) specified by its manufacture.
(Example) When charging a battery of 1000mAh typical, the target charging current should be lower than 1A (1000mAh x
1.0=1.0A).
*Charging a battery at over 1C may cause abnormal heat generation or deterioration of the battery. Never charge a battery at over
1C especially when the battery is connected to a transmitter.
SET DISCHARGE
This is to set the discharging current at TX/RX. The setting range is from 0.1 to 5A. (0.01A step)
However, the maximum discharging current varies according to the discharging voltage. (See page 27)
*It is recommended that discharging current is in the range between 1C and 2C. Here 1C is the typical capacity specified by its
manufacture.
(Example) When discharging a battery of 1000mAh typical, the target discharging current should be between 1.0A and 2.0A
(1000mAh x 1.0=1.0A, 1000mAH x 2.0=2.0A).
*Discharging a battery at very high current may cause abnormal heat generation or deterioration of the battery. Before discharg-
ing the battery of a transmitter, be sure to disconnect the battery from the transmitter. The CDR 5000 is not applicable for
discharging those batteries with protection circuit. (Examples: NT-8A, NT8S1100 for T9Z and so on.)
CYCLE MODE
This is to set the number of cycle times of charging/discharging at TX/RX. 1 TIME means one cycle of
a charging and a discharging. The setting range is from 1 through 99.

19
CDR-5000 Functions
2. Connecting Battery
Caution:Never charge or discharge any batteries other than NiCd and NiMH batteries.
Charging or discharging the batteries other than NiCd and NiMH batteries may cause
abnormally high heat generation and fire.
Preparation: After selection of memory numbers, settings of all parameters and final
confirmation on the SET-UP screen push "Data" key to get DX-DATA screen. Pushing
"Data" key from DX DATA screen can accessTX&RX DATA screen.
1)Set DX DATA number or TX&RX DATA number to "01"
by using " " and " " keys.
*Make the Thermo Sensor contact to the battery when charging at DX
terminal. If you have Thermo Stand (option), lay the battery on the Thermo
Stand (not applicable for batteries with 7cells and more and straight packs)
instead of using Thermo Sensor. Thermo Sensor and Thermo Stand are not
applicable to batteries at TX/RX.
2)Connect a battery to the output port that should be well
matched to the battery type.Make sure that the polarity is
correct.
Caution: In case of discharging a battery of a
transmitter, do not try to discharge the battery
while it is connected to the transmitter. A pro-
tection circuit in a transmitter will prevent it.The
CDR 5000 is not applicable for discharging those
batteries with protection circuit. (Examples: NT-
8A, NT8S1100 for T9Z and so on.)
*DX port: This port is for the batteries for motors that require rapid charging
and discharging.
*TX/RX port: This port is for batteries for transmitters and receivers.
*DX and TX/RX ports of CDR-5000 can be used simultaneously
3)MODE indication changes from "NO BAT." to "READY".
*If "SHORT" is displayed in MODE, please check the possibility of reversal connection of a battery, electrical short and over-
discharge. If the "WARNING" is set to "ON" on the INITIAL-SETTING", the warning message "SHORT OR REVERCE!" will
be shown on the screen.
4)Use Terminal Harness for obtaining the each cell data of a battery connected to DX terminal.
Be sure to connect DX terminal first before connecting Terminal Harness.
*In case of using Terminal Harness, it is necessary to input the exact number of cells in the "CELL NUMBER" on the SET-UP
screen.

20
CDR-5000 Functions
•Terminal Harness
*Connect Terminal Harness as shown here.
DX Terminal
/Terminal Harness
•DXTerminal (-)
*Black: negative •DXTerminal (+)
*Red: positive
(4 cells) (6 cells)
•Terminal
Harness •Terminal Harness
•DXTerminal (-) •DXTerminal (-)•DXTerminal (+) •DXTerminal (+)

21
CDR-5000 Functions
3. Start of Charging/Discharging
[Charging at DX]
1)Push "DX CHG" key.
2)The red LED of "DX Charging" turns on. MODE indicator changes from "READY" to "CHG".
And charging will start.
[Discharging at DX]
1)Push "DX D-CHG" key.
2)The blue LED of "DX Discharge" turns on. MODE indicator changes from "READY" to "D-
CHG". And discharging will start.
*It is strongly recommended to cool the battery by cooling fans when discharging over 10A.
[Charging at TX/RX]
1)Push "TX/RX CHG" key.
2)The red LED of "TX&RX Charging" turns on.MODE indicator changes from "READY" to "CHG".
And charging will start.
[Discharging at TX/RX]
1)Push "TX/RX D-CHG" key.
2)The blue LED of "TX/RX Discharge" turns on. MODE indicator changes from "READY" to "D-
CHG". And discharging will start.
Caution for discharging:Sensing the voltage of the battery while discharging atTX&RX,
CDR-5000 automatically calculates the voltage level that stops discharging. It sug-
gests that if you discharge a battery that has been already discharged or a battery
whose voltage is already very low, the battery will be over-discharged. Never do an
additional discharging
If the voltage of a battery under discharging declines in the early stage and becomes
lower than 0.8V/cell, stop discharging.
It is recommended to use a cooling fan to keep the temperature of a battery low while
discharging in Cycle Mode, because the temperature of the battery under Cycle Mode
generate a large amount of heat due to continuous operation. And it is also recom-
mended that "CYCLE DELAY" in the "INITIAL SETTING" be set "ON" during the us-
age.
