Gaggenau AW 25 User manual

Instructions for installation and use
Instrucciones de uso y montaje
Instruções de utilização e montagem
Οδηγίες χρήσης και συναρμολόγησης
AW 25.
AW 27.
Extractor hood
Campana extractora
Exaustor
Απορροφητήρας

2
Table of contents 3
Índice 24
Índice 45
Πίνακας περιεχομένων 66

3
en
Table of contents
Instructions for installation and use
INSTRUCTION MANUAL 3
8 Intended use 4
( Important safety information 4
7 Environmental protection 7
Saving energy 7
Environmentally-friendly disposal 7
Ç Operating modes 7
Exhaust air mode 7
Circulating-air mode 7
1 Operating the appliance 8
Control panel 8
Intensive setting 8
Intermediate position for the glass front 8
Interval ventilation 8
Automatic mode 8
Sensor control 9
Saturation display 9
Indirect LED lighting 9
Lighting 9
Audible signal 9
e Connecting to a hob 10
Setting up a connection 10

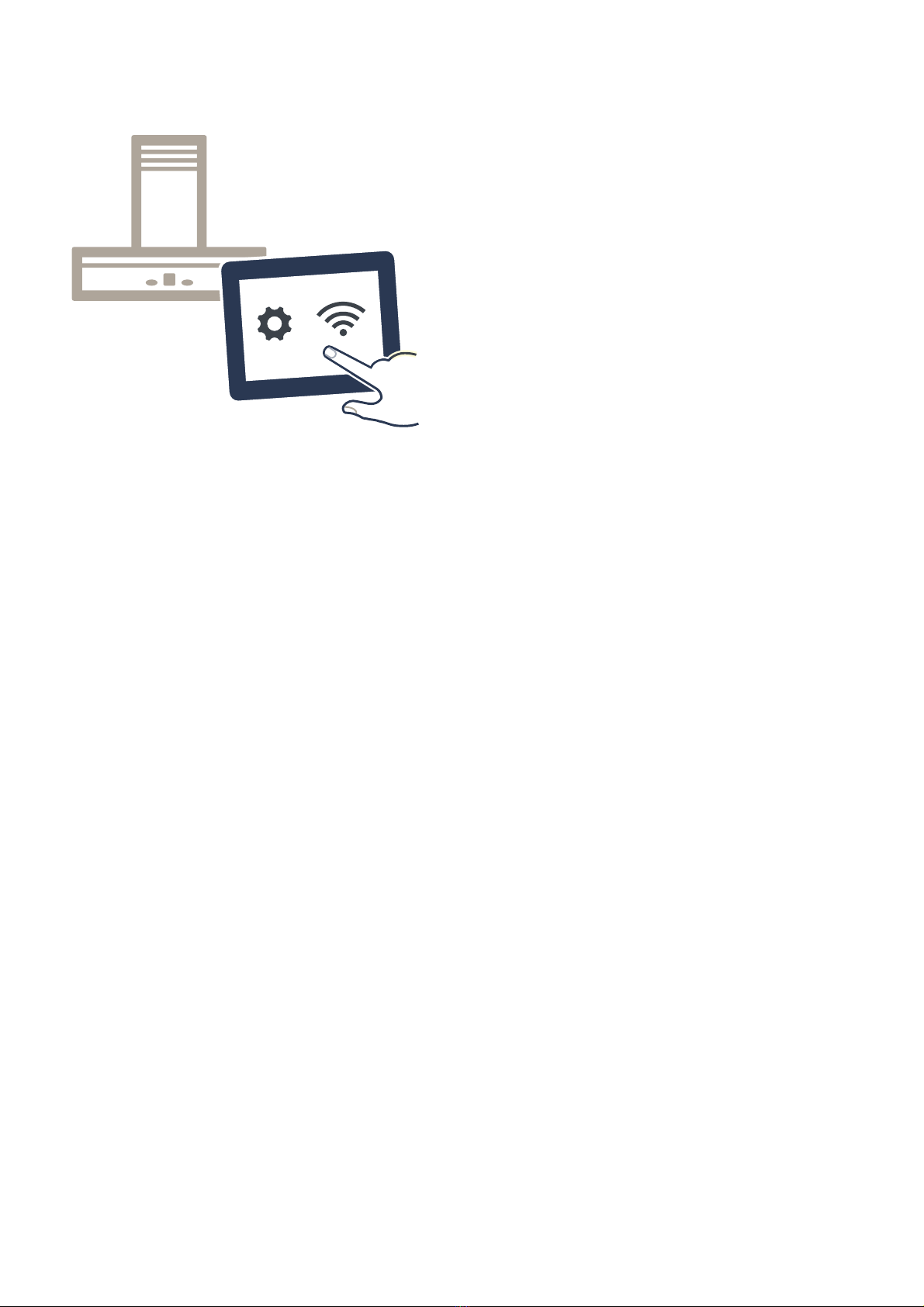

o Home Connect 11
Setting up 11
Software update 12
Resetting the connection 12
About data protection 12
Declaration of Conformity 13
2 Cleaning and maintenance 13
3 Trouble shooting 15
4 Customer service 16
Accessories 16
INSTALLATION INSTRUCTIONS 16
Circulating-air mode 17
Air extraction accessories 17
Safety clearances 18
( Important safety information 18
K General information 21
Checking the wall 21
Electrical connection 21
5 Installation 21
Preparing for installation 21
Installation 22
Attaching the flue duct 23
Instruction manual
Additional information on products, accessories,
replacement parts and services can be found at
www.gaggenau.com and in the online shop
www.gaggenau.com/zz/store

4
en Intended use
8 Intended use
Intendeduse Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental capacity
or by persons with a lack of experience or
knowledge if they are supervised by someone
who is responsible for their safety, or have
been instructed in how to use the appliance
safely and have understood the risks involved
in not using it properly.
Children must not play with the
appliance.Cleaning and user maintenance
must not be performed by children unless they
are over 15 years of age and are supervised.
Keep children below the age of 8 years old at a
safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote control.
m ( Important safety
information
Important safetyinformati on mWarning – Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
mWarning – Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room if
the appliance is being operated in exhaust air
mode at the same time as room air-dependent
heat-producing appliance is being operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-operated
heaters, continuous flow heaters or water
heaters) obtain combustion air from the room
in which they are installed and discharge the
exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
▯Adequate incoming air must therefore
always be ensured.
▯An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the partial
vacuum in the place where the heat-producing
appliance is installed does not exceed 4 Pa
(0.04 mbar). This can be achieved when the air

5
Important safety information en
needed for combustion is able to enter through
openings that cannot be sealed, for example in
doors, windows, incoming/exhaust air wall
boxes or by other technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
mWarning – Risk of fire!
▯Fatty deposits in the grease filter may catch
fire. Regularly clean the grease filter. Never
operate the appliance without a grease
filter.
Risk of fire!
▯Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must be
no flying sparks.
Risk of fire!
▯Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch
off the hotplate. Extinguish flames carefully
using a lid, fire blanket or something
similar.
Risk of fire!
▯When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
▯Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner
of more than 5 kW (wok) is equivalent to
the power of two gas burners.
mWarning – Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
mWarning – Risk of injury!
▯Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
▯Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
▯The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than 100
seconds.
mWarning – Risk of injury!
Risk of trapping body parts when opening and
closing the glass front. Do not reach into the
area behind the glass panel, and keep your
fingers away from the hinges.
mWarning – Hazard due to magnetism!
Permanent magnets are inserted in the
appliance front. They may affect electronic
implants, e.g. heart pacemakers or insulin
pumps. Wearers of electronic implants must
stay at least 10 cm away from the appliance
front.

6
en Important safety information
mWarning – Risk of electric shock!
▯A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
▯Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the
appliance from the mains or switch off the
circuit breaker in the fuse box. Contact the
after-sales service.
Risk of electric shock!
▯Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless steel
cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and abrasive
cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly (1°
slope).
Risk of damage as a result of incorrect loading
of design elements. Do not pull design
elements.Do not place objects on the design
elements or hang objects from them.

7
Environmental protection en
7 Environmental protection
Environmentalprotection Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy when
using the appliance, and how to dispose of your
appliance properly.
Saving energy
▯During cooking, ensure that there is a sufficient
supply of air so that the extractor hood can work
efficiently and with a low level of operating noise.
▯Adjust the fan speed to the intensity of the cooking
fumes. Only use intensive mode where this is
required. A lower fan speed means that less energy
is consumed.
▯If there are intensive cooking fumes, select a higher
fan speed in good time. If cooking fumes have
already spread in the kitchen, the extractor hood
must be operated for longer.
▯Switch off the extractor hood if you no longer
require it.
▯Switch off the lighting if you no longer require it.
▯Clean and, if required, replace the filter at regular
intervals in order to increase the effectiveness of
the ventilation system and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.
Ç Operating modes
Operati ngmodes Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
▯Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
▯If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Circulating-air mode
Note: To bind odours in circulating-air mode, you must
install an activated carbon filter. The different options
for operating the appliance in circulating-air mode can
be found in the brochure. Alternatively, ask your dealer.
The required accessories are available from specialist
retailers, from customer service or from the Online
Shop.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter and conveyed back into
the kitchen.

8
en Operating the appliance
1 Operating the appliance
Operatingtheappliance These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel
Setting the fan
Switching on
Touch the #symbol.
The fan will start at fan setting 2.
Selecting a fan setting
Select the fan setting.
Switching off
Touch the #symbol.
Intensive setting
You can use the intensive setting if there is a large build-
up of odours and fumes/vapours.
Switching on
Touch the Òsymbol.
Note: After approx. 6 minutes, the extractor hood
automatically switches back to fan setting 3.
Switching off
If you want to end intensive mode before the preset time
expires, touch the symbol for the required fan setting.
Intermediate position for the glass
front
On some appliances, the glass front can be adjusted to
an intermediate position. The intermediate position can
be used for eliminating particularly strong cooking
smells and large amounts of steam.
Take hold of the glass front in the centre and open it
carefully.
Interval ventilation
Switching on
Touch the μsymbol.
The μindicator lights up. The fan will run for
approximately 6 minutes per hour at fan setting 1.
Switching off
Touch the μsymbol.
The fan will switch to fan setting 2.
Automatic mode
Switching on
1Touch the #symbol.
The fan starts at setting 2.
2Touch the rsymbol.
The optimum fan setting 1, 2, 3 or Òis set
automatically using a sensor.
Switching off
Touch any fan setting or #to switch off automatic
mode.
The fan switches off automatically if the air quality in the
room falls below a certain level.
Automatic mode can run for a maximum of 4 hours.
Symbol Explanation
#Fan on/off
1-3 Fan settings
ÒIntensive mode
μIntermittent ventilation
rAutomatic mode
œMetal grease filter/activated charcoal filter satu-
ration indicator
·Hob-based ventilation control
jIndirect LED lighting
žLight on/off/dimming

9
Operating the appliance en
Sensor control
In automatic mode, the sensor in the extractor hood
detects the intensity of the cooking and roasting
odours. Depending on the sensor setting, the fan
automatically switches itself to another fan setting.
Possible sensor settings:
Default sensitivity setting: 3 (fan setting 3)
Lowest sensitivity setting: 1 (fan setting 1)
Highest sensitivity setting: 4 (fan setting Ò)
If the sensor controller responds too strongly or not
enough, it can be changed accordingly:
1Touch and hold the rsymbol when the fan is
switched off. The setting is displayed.
2The sensor controller setting can be changed by
touching symbols 1, 2, 3, or Ò.
3Touch and hold the rsymbol to confirm.
Saturation display
If the metal grease filters or activated charcoal filter
are/is saturated, the corresponding symbols will flash
once the appliance has been switched off:
▯Metal grease filters:œand 1
▯Activated charcoal filter:œand 2
▯Regenerative activated charcoal filter: œand 3
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced. ~"Cleaning and maintenance" on page 13
The saturation indicators can be reset while they are
flashing. To do this, press and hold the œsymbol.
If the œsymbol lights up while the appliance is
switched off, you can query which filter is saturated. To
do this, touch the œsymbol. The corresponding
symbols (1, 2, 3) will flash.
Switching over the display for air recirculation mode
For air recirculation mode, the electronic controller
must be switched over accordingly:
▯The extractor hood must be connected and
switched off.
▯Touch and hold the œsymbol. Touch the
"2" symbol.Touch and hold the œsymbol to
confirm. This will switch the electronic controller
over to air recirculation mode (filters that cannot be
regenerated).
▯Touch and hold the œsymbol. Touch the
"3" symbol.Touch and hold the œsymbol to
confirm. This will switch the electronic controller
over to air recirculation mode (filters that can be
regenerated).
▯Touch and hold the œsymbol again. Touch the
"1" symbol. This will switch the electronic controller
back to air extraction mode.
▯Press and hold the œsymbol to save.
Indirect LED lighting
The indirect LED lighting can be switched on and off
independently of the fan.
Touch the jsymbol.
Setting the brightness
Press and hold the jsymbol until the required
brightness is reached.
Lighting
The lighting can be switched on and off independently
of the fan.
Touch the žsymbol.
Setting the brightness
Press and hold the žsymbol until the required
brightness is reached.
Audible signal
Switching on
To go to the settings mode for the signal tone, touch
and hold the #and Òsymbols at the same time for
approximately 3 seconds when the fan is switched off.
Touch the "1" symbol. Touching and holding the #and
Òsymbols again will save the setting. An audible
signal will sound as an acknowledgement.
Switching off
To go to the settings mode for the signal tone, touch
and hold the #and Òsymbols at the same time for
approximately 3 seconds when the fan is switched off.
Touch the "2" symbol. Touching and holding the #and
Òsymbols again will save the setting.

10
en Connecting to a hob
e Connecting to a hob
Connectingtoahob You can connect this appliance to a hob (if the hob
supports connection to the appliance) and then control
the functions of the hood via your hob.
Appliances can be connected to each other in different
ways:
Home Connect
Two appliances can be connected using the Home
Connect app provided that both of them are Home
Connect compatible.
Refer to the Home Connect documents supplied for
more information.
Connecting appliances directly
If the appliance is connected directly to a hob, it cannot
be connected to your home network as well. The
appliance will function as an extractor hood that is not
connected to the network and you can continue to
operate it via the control panel.
Connecting appliances via your home network
If the appliances are connected to each other via your
home network, both the hood controls on the hob and
Home Connect can be used to operate the appliance.
Notes
– Make sure you follow the safety instructions in the
instruction manual for your extractor hood and that
these are complied with even when operating the
appliance via the hood controls on the hob.
– If the extractor hood is being operated by means of
the controls on the hood itself, this mode of
operation always has priority. It is not possible to
use the hood controls on the hob during this time.
Setting up a connection
The hood must be switched off before you can connect
the hob and extractor hood.
Connecting directly
Make sure that the hob is switched on and is in search
mode.
To do this, refer to the section entitled "Connecting to
the extractor hood" in the instruction manual for your
hob.
Notes
– If your extractor hood is connected directly to the
hob, it cannot be connected to your home network
as well and you will not be able to use Home
Connect.
– The hob must not be connected to your home
network. To break a connection, follow the
instructions in the section entitled "Resetting Home
Connect".
Press and hold the ·symbol until it starts to flash.
The extractor hood has been connected to the hob when
the ·stops flashing and remains continuously lit.
Connecting via your home network
Follow the instructions in the section entitled
"Automatic login to your home network" or "Manually
logging into your home network" ~"Home Connect"
on page 11
Once the extractor hood is connected to your home
network, you can connect to the hob via the Home
Connect app. To do this. follow the instructions on your
mobile device.
2
1
