Gaggenau RW 464 User manual

Gaggenau
en Instruction for Use
RW 414
RW 464
RW 464AU
Wine storage compartment

2
en Table of Contents enInstructi onforUse
Safety and warning information 3
Information concerning disposal 5
Scope of delivery 5
Installing the appliance 5
Ambient temperature and ventilation 6
Connecting the appliance 6
Getting to know your appliance 7
Switching the appliance on 9
Set the language 9
Setting the temperature unit 9

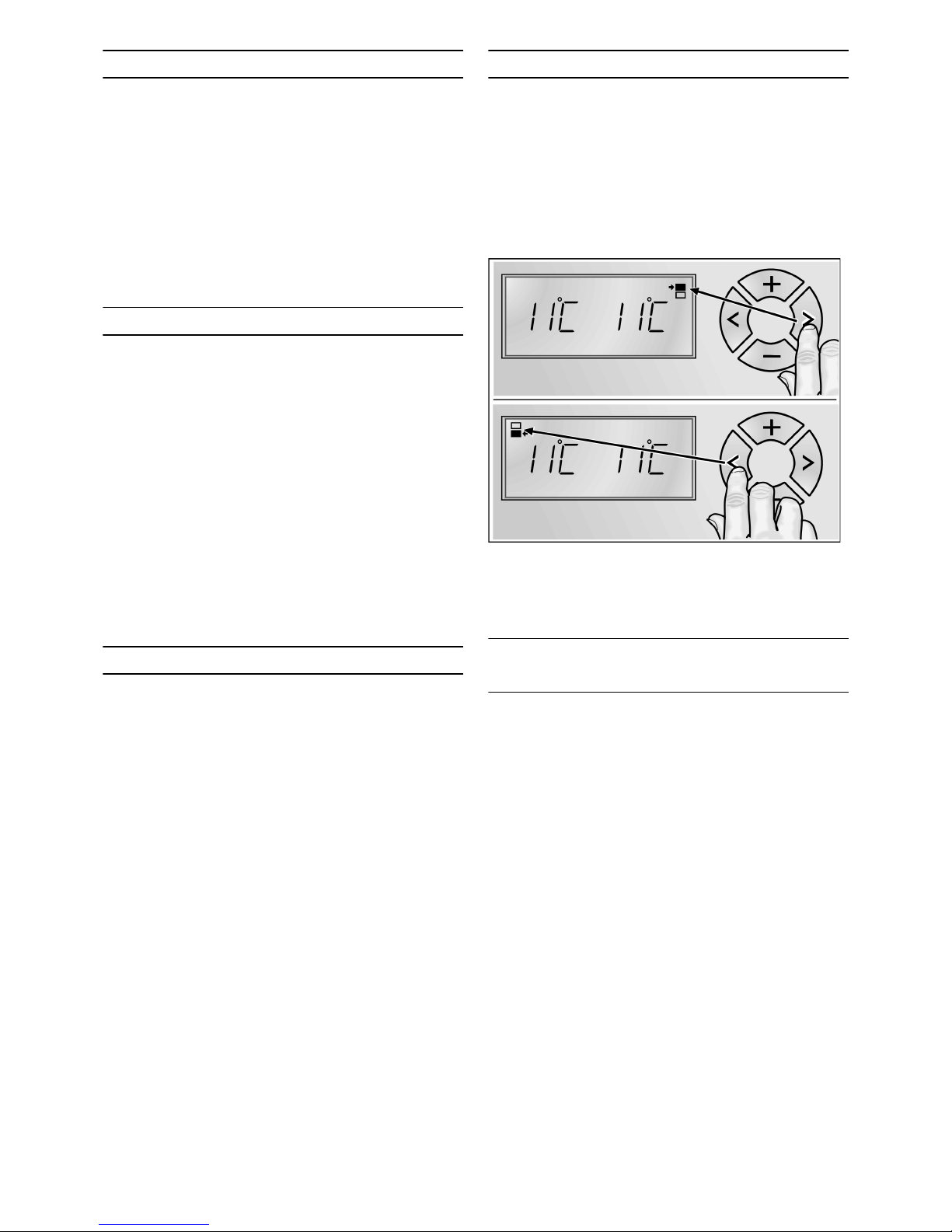

Setting the temperature 9
Setting up the brightness of the display 9
Special functions 10
Alarm function 11

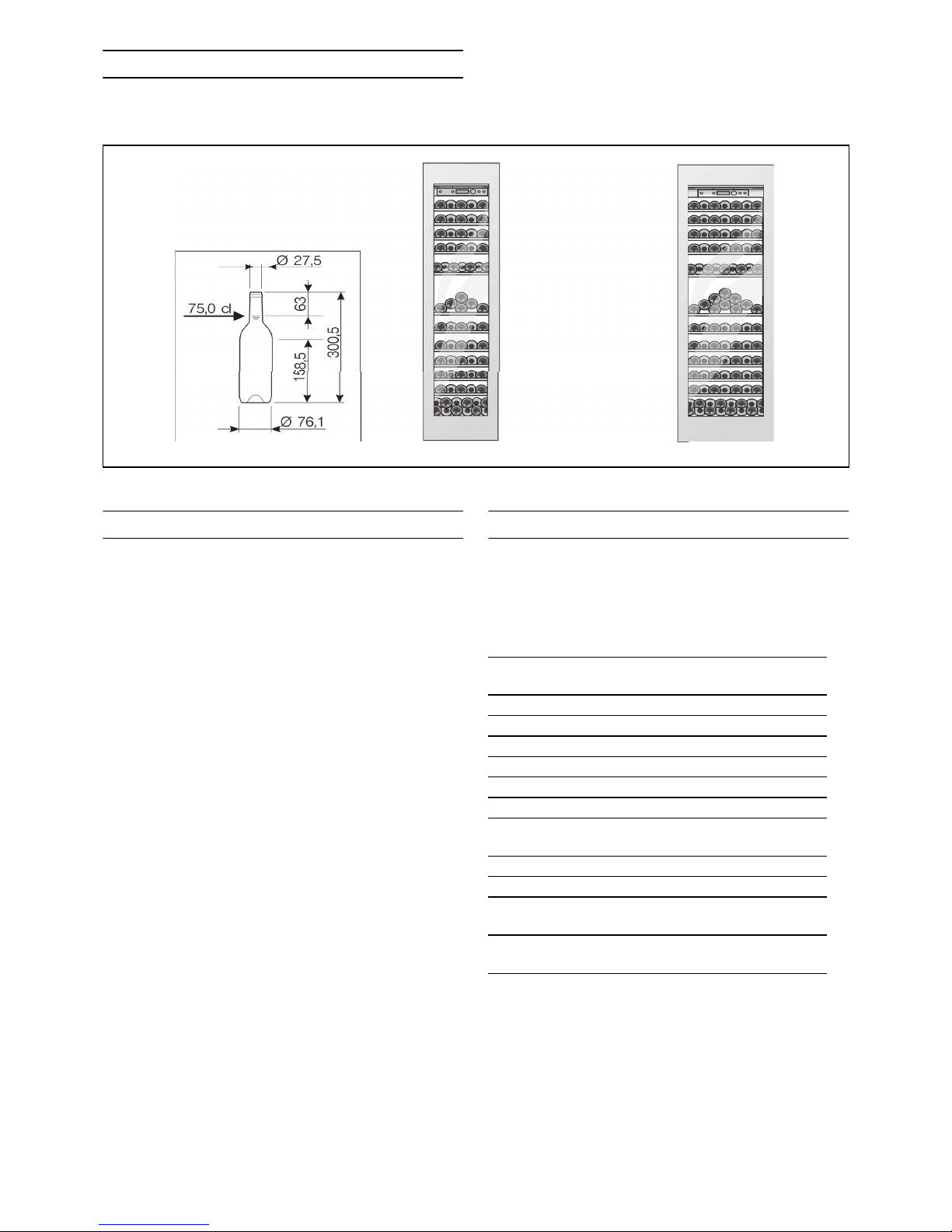

Usable capacity 11
Placing bottles in the refrigerator 12
Practical tips for storing wine 12
Drinking temperatures 12

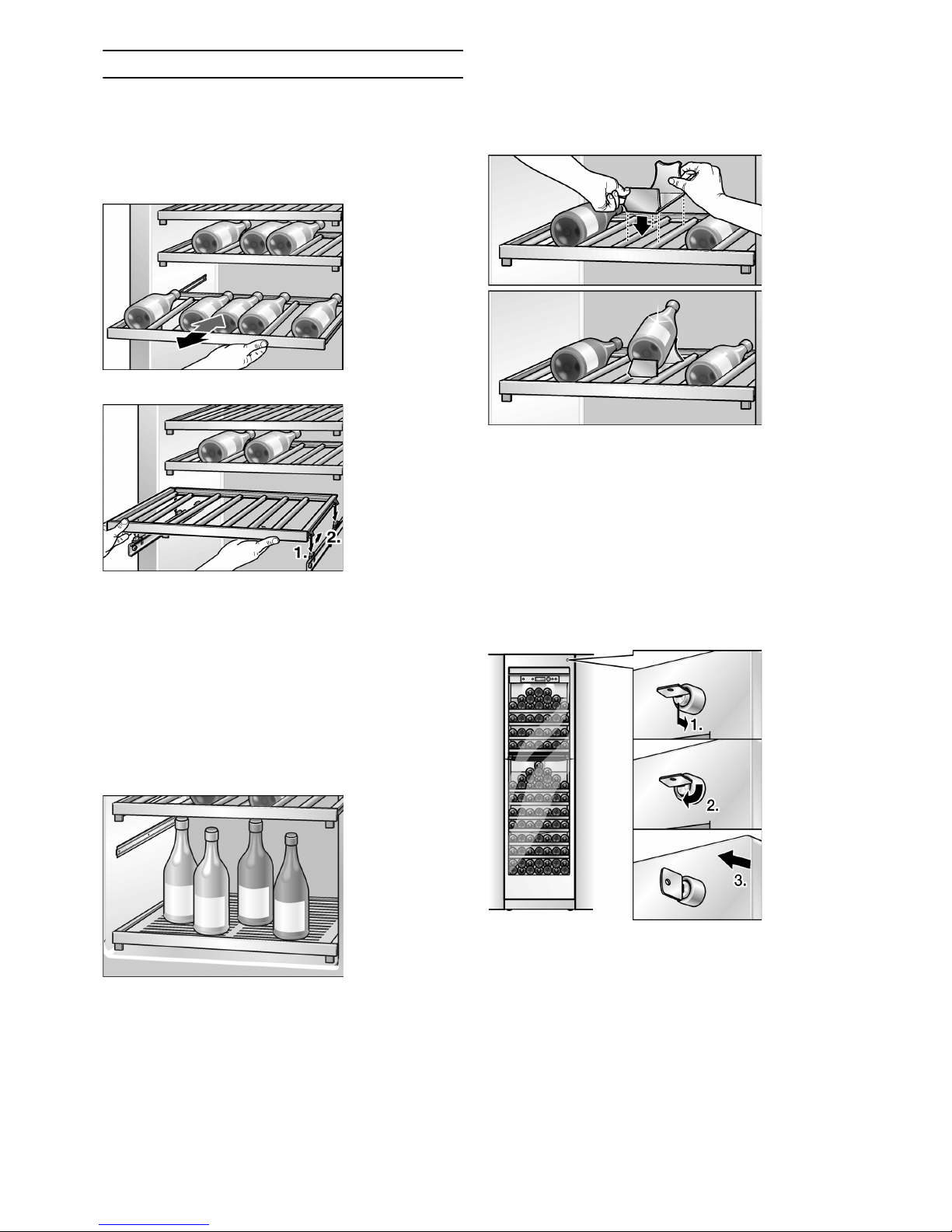

Interior fittings 13
Switching off and disconnecting
the appliance 14
Defrosting 14
Cleaning the appliance 14
Odours 14
Light (LED) 15
Tips for saving energy 15
Operating noises 15
Eliminating minor faults yourself 16
Customer service 17

3
m Safety and warning information
Before you switch ON the appliance
Please read the operating and installation
instructions carefully! They contain important
information on how to install, use and
maintain the appliance.
The manufacturer is not liable if you fail to
comply with the instructions and warnings.
Retain all documents for subsequent use or
for the next owner.
Technical safety
The tubes of the refrigeration circuit convey a
small quantity of an environmentally friendly
but flammable refrigerant (R600a). It does
not damage the ozone layer and does not
increase the greenhouse effect. If refrigerant
escapes, it may injure your eyes or ignite.
If damage has occurred
▯Keep naked flames and/or ignition
sources away from the appliance,
▯thoroughly ventilate the room for several
minutes,
▯switch off the appliance and pull out the
mains plug,
▯inform customer service.
The more refrigerant an appliance contains,
the larger the room must be in which the
appliance is situated. Leaking refrigerant can
form a flammable gas-air mixture in rooms
which are too small.
The room must be at least 1 m³ per 8 g
of refrigerant. The amount of refrigerant in
your appliance is indicated on the rating
plate inside the appliance.
If the power cord of this appliance is
damaged, it must be replaced by the
manufacturer, customer service or a similarly
qualified person. Improper installations
and repairs may put the user at considerable
risk.
Repairs may be performed by the
manufacturer, customer service or a similarly
qualified person only.
Only original parts supplied by the
manufacturer may be used. The manufacturer
guarantees that only these parts satisfy the
safety requirements.
Do not use multiple sockets, extension leads
or adapters.
Important information when using
the appliance
▯Never use electrical appliances inside
the appliance (e.g. heater, electric ice
maker, etc.). Explosion hazard!
▯Never defrost or clean the appliance with
a steam cleaner! The steam may
penetrate electrical parts and cause
a short-circuit. Risk of electric shock!
▯Do not use pointed or sharp-edged
implements to remove frost or layers of
ice. You could damage the refrigerant
tubes. Leaking refrigerant may cause eye
injuries or ignite.
▯Do not store products which contain
flammable propellants (e.g. spray cans)
or explosive substances in the appliance.
Explosion hazard!
▯Do not stand on or lean heavily against
base of appliance, drawers or doors, etc
▯For defrosting and cleaning, pull the
mains plug out or switch off the fuse. Do
not pull out the mains plug by tugging
on the power cord.
▯Store high-percentage alcohol tightly
closed and standing up.
▯Keep plastic parts and the door seal free
of oil and grease. Otherwise, parts and
door seal will become porous.
▯Never cover or block the ventilation
openings of the appliance!

4
▯Avoiding placing children and
vulnerable people at risk:
At risk are children, people who have
limited physical, mental or sensory
abilities, as well as people who have
inadequate knowledge concerning safe
operation of the appliance.
Ensure that children and vulnerable
people have understood the hazards.
A person responsible for safety must
supervise or instruct children and
vulnerable people who are using the
appliance.
Only children from 8 years and above may
use the appliance.
Supervise children who are cleaning and
maintaining the appliance.
Never allow children to play with the
appliance.
Children in the household
▯Keep children away from packaging and
its parts.
Danger of suffocation from folding
cartons and plastic film!
▯Do not allow children to play with the
appliance!
▯If the appliance features a lock:
keep the key out of the reach of children!
General regulations
This appliance is designed exclusively for
the storage of wine.
This appliance is intended for use
in the home and the home environment.
The appliance is suppressed according
to EU Directive 2004/108/EC.
The refrigeration circuit has been checked
for leaks.
This product complies with the relevant
safety regulations for electrical appliances
(EN 60335-2-24).
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.

5
Information concerning disposal
*Disposal of packaging
The packaging protects your appliance from damage
during transit. All utilised materials are
environmentally safe and recyclable. Please help us by
disposing of the packaging in an environmentally
friendly manner.
Please ask your dealer or inquire at your local
authority about current means of disposal.
*Disposal of your old appliance
Old appliances are not worthless rubbish! Valuable
raw materials can be reclaimed by recycling old
appliances.
mWarning
Redundant appliances
1. Pull out the mains plug.
2. Cut off the power cord and discard with
the mains plug.
3. Do not take out the trays and receptacles:
children are therefore prevented from climbing in!
4. Do not allow children to play with the appliance
once it has spent its useful life. Danger
of suffocation!
Refrigerators contain refrigerant and gases
in the insulation. Refrigerant and gases must be
disposed of professionally. Ensure that tubing
of the refrigerant circuit is not damaged prior
to proper disposal.
Scope of delivery
After unpacking all parts, check for any damage in
transit.
If you have any complaints, please contact the dealer
from whom you purchased the appliance or our
customer service.
The delivery consists of the following parts:
▯Built-in appliance
▯Interior fittings (depending on model)
▯Bag containing installation materials
▯Operating instructions
▯Installation manual
▯Customer service booklet
▯Warranty enclosure
▯Information on the energy consumption and
noises
Installing the appliance
Have a technician install and connect the appliance
according to the enclosed installation instructions.
Transporting
The appliance is heavy. Secure in position during
transportation and installation.
Due to the weight/dimensions of the appliance and to
minimise the risk of injury and damage to the
appliance at least two persons are necessary to set-up
the appliance safely.
Installation location
A dry, well ventilated room is suitable as an
installation location. The installation location should
not be exposed to direct sunlight and not placed near
a heat source, e.g. a cooker, radiator, etc. If
installation next to a heat source is unavoidable, use
a suitable insulating plate or observe the following
minimum distances from the heat source:
▯3 cm to electric or gas cookers.
▯30 cm to an oil or coal-fired cooker.
The floor of the installation location must not give
way; if required, reinforce floor.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances (waste
electrical and electronic equipment - WEEE).
The guideline determines the framework for the
return and recycling of used appliances as
applicable throughout the EU.


6
Ambient temperature and ventilation
Ambient temperature
The climate class can be found on the rating plate.
The climate class indicates within which ambient
temperatures the appliance can be operated.
Note
The appliance is fully functional within the room
temperature limits of the indicated climatic class. If
an appliance of climatic class SN is operated
at colder room temperatures, the appliance will not
be damaged up to a temperature of +5 °C.
Ventilation
Conduction of the heated air must not be obstructed.
Otherwise, the refrigeration unit must work harder.
This increases power consumption. Therefore: Never
cover or block the ventilation opening!
Connecting the appliance
Have a technician install and connect the appliance
according to the enclosed installation instructions.
Do not remove the transportation protection devices
from the shelves and storage compartments until
the appliance has been installed.
In addition to the statutory national regulations,
observe the connection conditions of the local power
supply companies.
After installing the appliance, wait at least 1 hour until
the appliance starts up. During transportation the oil
in the compressor may have flowed into
the refrigeration system.
Before switching on the appliance for the first time,
clean the interior of the appliance (see chapter
“Cleaning the appliance”).
Electrical connection
The socket must be near the appliance and also freely
accessible following installation of the appliance.
mWarning
Risk of electric shock!
If the length of the mains cable is inadequate, never
use multiple sockets or extension leads. Instead,
please contact Customer Service for alternatives.
The appliance complies with protection class I.
Connect the appliance to 220–240 V/50 Hz
alternating current via a correctly installed socket with
protective conductor. The socket must be protected by
a (10–16 A) fuse.
For appliances operated in non-European countries,
check whether the indicated voltage and current type
match the values of your electricity supply. This
information can be found on the rating plate (see
chapter entitled Customer Service).
mWarning
Never connect the appliance to electronic energy
saver plugs.
Our appliances can be used with mains and sine-
controlled inverters. Mains-controlled inverters
are used for photovoltaic systems which
are connected directly to the national grid. Sine-
controlled inverters must be used for isolated
applications (e.g. on ships or in mountain lodges)
which are not connected directly to the national grid.
Climate
class
Permitted ambient
temperature
SN +10 °C to 32 °C
N+16 °C to 32 °C
ST +16 °C to 38 °C
T+16 °C to 43 °C

7
Getting to know your appliance
These operating instructions refer to several models. The diagrams may differ.
* Not all models.
A Upper climatic zone
B Lower climatic zone
1 Light switch

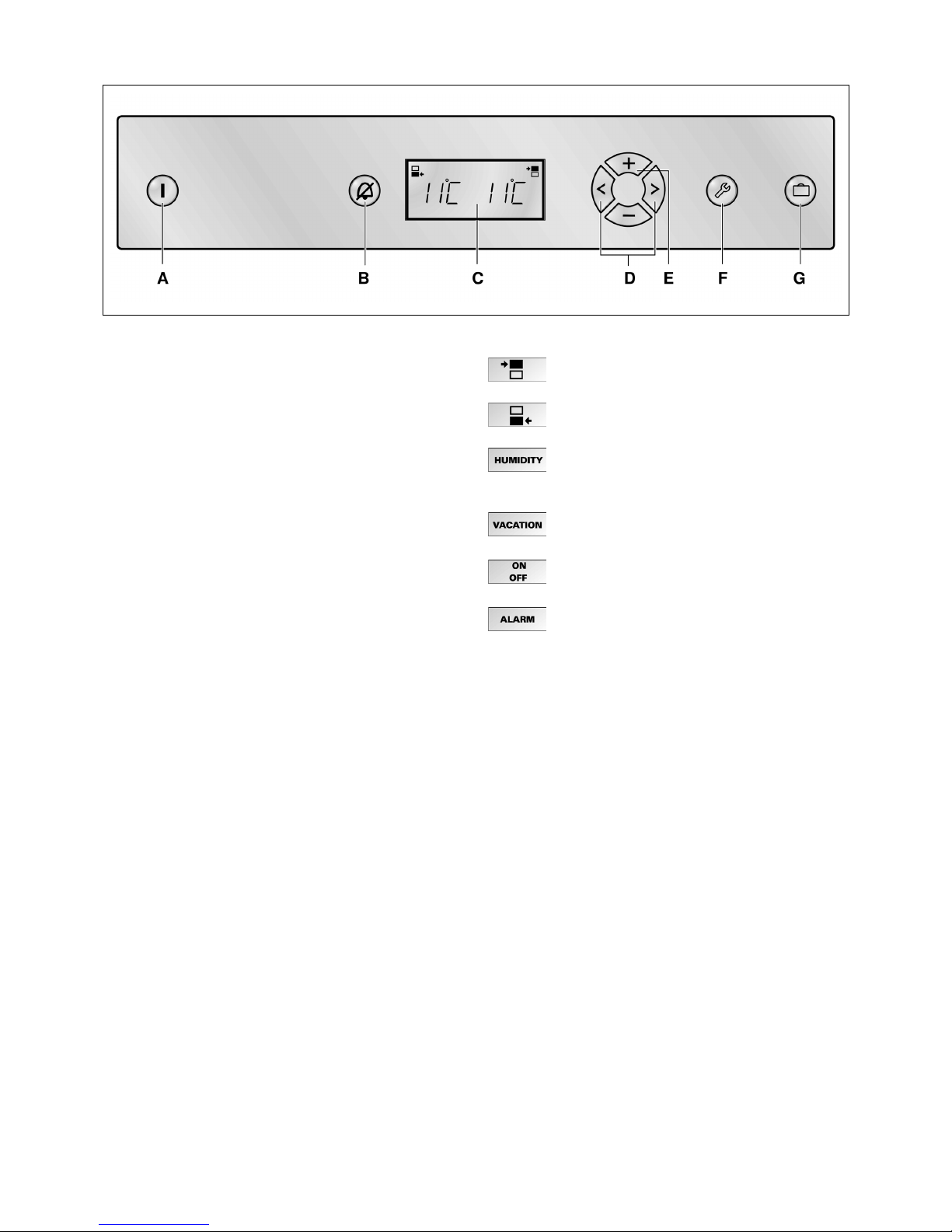

2 Controls

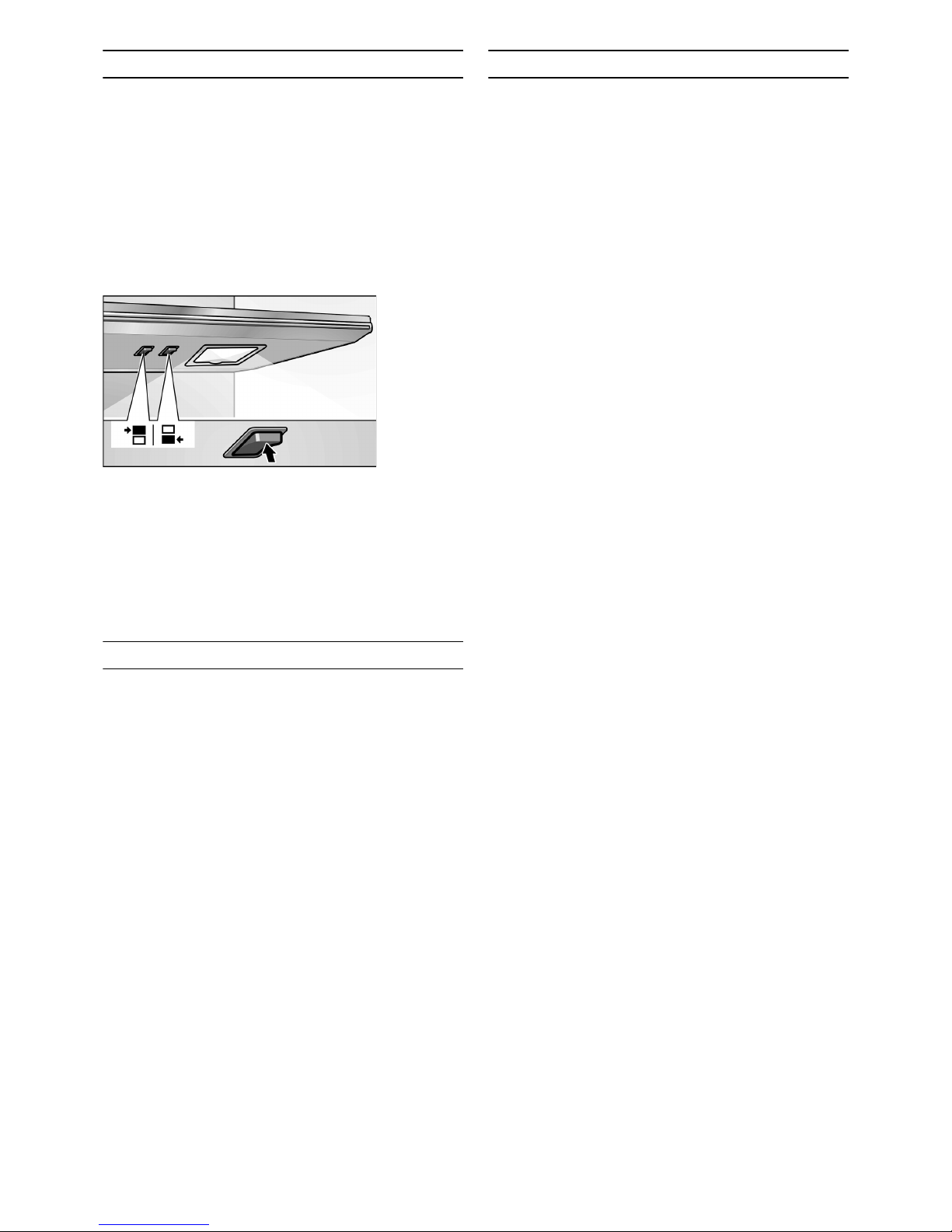

3 Light (LED) with switches for presentation
lights
4 Shelf for wine bottles
5 Partition
6 Light (presentation light)
7 * Presentation attachment
8 Glass door
9 * Extendable shelf
10 Ventilation

8
Controls
Note
A sound can be heard every time a button is actuated
if this function is activated in the sound menu during
the setup mode.
Symbols in the display field
AOn/Off buttonÿ
Serves to switch the whole appliance on and off.
BAlarm button ±
Used to switch off the warning signal, (see
chapter Alarm function).
CDisplay panel
The temperatures in both climatic zones
of the refrigerator compartment are shown
in the display panel. Activated special functions
are shown via “symbol”.
The menus and setting options which are
available are represented on the display panel
in the setup mode, see chapter “Special
functions”.
DSelection buttons¾¿
The temperature setting is activated using
the selection buttons (see chapter Setting
the temperature).
For selecting a menu in the setup mode (see
chapter Special functions).
ESetting buttons +/–
The temperature can be changed using
the setting buttons (see chapter “Setting
the temperature”).
More settings can be selected in the setup
mode, (see chapter “Special functions”).
F“setup” buttonμ
This button starts and ends the setup mode. If
the setup mode is ended using the setup button,
the changes which have been made are stored.
GHoliday button¶
Is used to switch holiday mode on and off, (see
chapter Special functions, section Holiday
mode).
Display for the upper climatic zone.
Display for the lower climatic zone
“Humidity” function is activated (see
chapter “Special functions”, section
“Humidity function”).
Holiday mode is activated, see chapter
Special functions.
For the setting options in the set up mode,
see chapter Special functions.
A warning message is displayed, see
chapter Alarm function.

9
Switching the appliance on
Switch on the appliance with the On/Off button ÿ.
The appliance begins to cool. Light is switched on
when the door is open.
Operating tip
After the appliance has been switched on, it may take
several hours until the set temperature has been
reached.
Set the language
The display languages can be changed according
to the table in the chapter “Special functions”, “Setup
mode”.
In order to change the display language:
1. Press setup button μ.
2. Press the ¾or ¿setting button, until the set
language is displayed.
3. Press the @or Asetting button, until the desired
language is displayed.
4. Press the setup button μ, in order to store
the settings. The set temperature is displayed
again in the fascia.
Setting the temperature unit
The temperature can be displayed in degrees Celsius
(°C) or degrees Fahrenheit (°F).
1. Press setup button μ.
The first menu (temperature unit) is displayed.
2. Press the @or Asetting button in order to switch
between degrees Fahrenheit (°F) and degrees
Celsius (°C).
3. Press the setup button μ, in order to store
the settings.
The set temperature is displayed again in
the fascia.
Setting the temperature
The temperatures in both climatic zones can be set
independently of each other from +5 °C to +20 °C.
We recommend a setting of +11 °C.
1. Activate the setup mode with the selection
button ¿.
2. Select the required climatic zone.
3. Set the desired temperature with the @(warmer)
or A(cooler) setting buttons.
Setting up the brightness of the
display
You can specify how bright the display should appear
when the door is closed.
1. Open the door.
2. Press the light switch 1 and keep it pressed.
3. Use the +/– buttons to adjust the brightness.
4. Release the light switch 1.
5. Close the door.
The display will have the specified brightness.

10
Special functions
The following special functions can be selected
or displayed:
Setup mode
In Setup mode you can make your personal settings.
Switching on
Press setup button μ.
The first menu (temperature unit) is displayed in
the fascia.
Making settings
1. Switch on setup mode.
2. Press the selection button ¾or ¿.
The next menu is displayed and its current setting
(mostly ON or OFF).
3. Press the setting button @or A.
The setting is saved, if the next menu is selected
using ¾or ¿.
Switching off
Press setup button μ.
All of the changed settings are stored.
Note
If no button is selected within 20 seconds, the setup
mode ends automatically. All of the changed settings
are stored. The set temperature is displayed again in
the fascia.
Menus in the setup mode
The following settings can be made.
x
Holiday mode
If leaving the appliance for a long period of time, you
can switch the appliance over to the energy-saving
holiday mode.
When holiday mode is switched on:
▯both climate zones are set to a temperature of
+12 °C,
▯humidity function is switched off,
▯light is switched off.
Menu Possible setting
Temperature unit °C (degrees Celsius)
°F (degrees Fahrenheit)
Language Deutsch
English
French
Danish
Finnish
Greek
Dutch
Italian
Polish
Portuguese
Norwegian
Russian
Swedish
Spanish
Turkish
Czech
Sound On
Off
Humidity (lower climatic
zone)
On
Off
Humidity (upper climatic
zone)
On
Off

11
Vacation mode
If absent for a prolonged period, you can switch the
appliance to energy-saving vacation mode.
When vacation mode is switched on:
▯both climatic zones are set to a temperature
of 12 °C,
▯the humidity function is switched off,
▯the light is switched off.
Switching on
Press Holiday button ¶.
VACATION is displayed in the display panel.
Switching off
Press Holiday button ¶.
The previous settings and temperature values are
once again activated.
Rest mode
When Rest mode is switched on, the following
settings are switched off:
▯Acoustic signal
▯Interior light
▯Messages on the display panel
▯The background illumination of the display panel
is reduced
▯Buttons are locked
Switching on
1. Press and hold down the setting button @.
2. Press Holiday button ¶.
3. Press the setting button @and hold down for
3 seconds longer.
The symbol VACATION flashes on the display
panel and RESTMODE is displayed.
Switching off
Press Holiday button ¶.
The previous settings and temperature values are
once again activated.
Humidity function
Independent from one another, the air humidity
in the two climatic zones can be increased.
Switching on
1. Press setup button μ.
2. Press selection button ¿until HUMIDITY and
the current setting (ON/OFF) are displayed for
the particular climatic zone.
3. Press the setting button @, in order to reset
the setting.
4. Press the setup button μ, in order to save
the setting.
HUMIDITYis displayed in the display panel.
Switching off
1. Press setup button μ.
2. Press selection button ¿until HUMIDITY and
the current setting (ON/OFF) are displayed for
the particular climatic zone.
3. Press the setting button A, in order to reset
the setting.
4. Press the setup button μ, in order to save
the setting.
HUMIDITY goes out on the display panel.
Alarm function
Switching off the warning signal
Press the alarm button ±to switch off the warning
signal.
Door alarm
The door alarm switches on if an appliance door is left
open for longer than three minutes. Close the door
to switch off the warning signal.
Usable capacity
Information on the usable capacity can be found
inside your appliance on the rating plate (see diagram
at chapter “Customer service”).

12
Placing bottles in the refrigerator
Storage examples
Practical tips for storing wine
▯Unpack bottles of wine – do not leave in crates
or cardboard boxes – before storing
in the refrigerator compartment.
▯Place old bottles so that the cork is always wet.
There should never be an air gap between
the wine and the cork.
▯The open bottle shelves are especially suitable
because they do not interrupt the air circulation.
As a result, the atmospheric humidity which
condenses on the bottles quickly dries again.
▯Before the wine is drunk, it should be “warmed
up” (chambré): Place e.g. rosé wine on the table
approx. 2–5 hours before drinking, red wine 4–
5 hours before drinking. The wine will then be at
the correct drinking temperature. Sparkling wine
and Champagne should be cooled
in the refrigerator shortly before drinking.
▯Remember that wine should always be cooled
slightly lower than the ideal serving temperature,
as its temperature increases as soon as it is
poured into a glass!
Drinking temperatures
The correct serving temperature is crucial
for the taste and therefore your enjoyment of the wine.
We recommend serving wine at the following drinking
temperatures:
0D[VWRUDJHFDSDFLW\
âERWWOHV
0D[VWRUDJHFDSDFLW\
âERWWOHV
âFPZLQHIULGJHâFPZLQHIULGJH
Type of wine Drinking
temperature
Bordeaux red 18 °C
Côtes du Rhône red/Barolo 17 °C
Burgundy red/ Bordeaux red 16 °C
Port 15 °C
Young Burgundy red 14 °C
Young red wine 12 °C
Young Beaujolais/all white wines
with little residual sugar
11 °C
Old white wines/ Chardonnay 10 °C
Sherry 9 °C
Young white wines from late
vintage
8 °C
White wines Loire/Entre-deux-
Mers
7 °C

13
Interior fittings
Taking out the shelves
You can take out or vary the shelves inside
the appliance as required.
Extendable shelf
* Not all models.
for the storage of wine bottles standing up:
1. Remove the two lower shelves from the lower
climatic zone.
2. Insert the extendable shelf (optional accessory)
into the bottom rails.
Presentation attachment
* Not all models.
You can take out or vary the attachment as required.
Door lock
* Not all models.
A door lock, available as an accessory, can be used to
lock the wine fridge.
The door lock can be purchased from customer
service (see chapter entitled Customer service) or
from a GAGGENAU dealer.

14
Switching off and disconnecting the
appliance
Switching the appliance off
Press the On/Off button ÿ.
Refrigeration unit and light switch off.
Disconnecting the appliance
If you do not use the appliance for a prolonged
period:
1. Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance.
4. Leave the appliance door open.
Defrosting
Defrosting is actuated automatically.
Cleaning the appliance
mCaution
▯Do not use abrasive, chloride or acidic cleaning
agents or solvents.
▯Do not use scouring or abrasive sponges.
The metallic surfaces could corrode.
▯Never clean shelves and containers
in the dishwasher. The parts may become
deformed!
Proceed as follows:
1. Before cleaning: Switch off the appliance.
2. Pull out mains plug or switch off fuse.
3. Clean the appliance with a soft cloth, lukewarm
water and a little pH neutral washing-up liquid.
The rinsing water must not run into the light.
4. Wipe the door seal with clear water only and then
wipe dry thoroughly.
5. After cleaning reconnect and switch
the appliance back on.
Interior fittings
All variable parts of the appliance can be taken out
for cleaning (see chapter “Interior fittings”).
Odours
If you experience unpleasant odours:
1. Switch the appliance off.
2. Take all food out of the appliance.
3. Clean interior (see chapter “Cleaning
the appliance”).
4. Clean all packages.
5. Switch the appliance on again.
6. Check whether the formation of odours is still
occuring after 24 hours.
7. Change odour filter (see chapter “Changing
activated-carbon filter”).
Changing activated-carbon filter
Spare filters are available from your dealer.
1. Open the filter holder.
2. Take out used filter and replace with new one.
3. Close the filter holder.

15
Light (LED)
Your appliance features a maintenance-free LED light.
These lights may be repaired by customer service
or authorised technicians only.
Presentation light
For presentation purposes the interior light can be
switched on separately and permanently for the upper
and lower climatic zones.
If the presentation light is switched on, it also lights
up when the door is closed. This way wine bottles
are presented on the presentation part to full effect
through the glass door.
If the presentation light is switched off, it only lights
up when the door is closed.
Tips for saving energy
▯Install the appliance in a dry, well ventilated room!
The appliance should not be installed in direct
sunlight or near a heat source (e.g. radiator,
cooker).
If required, use an insulating plate.
▯Do not block the ventilation openings in
the appliance.
▯Allow warm drinks to cool down before placing
in the appliance.
▯Open the appliance as briefly as possible.
▯The arrangement of the fittings does not affect
the energy rating of the appliance.
Operating noises
Quite normal noises
Droning
Motors are running (e.g. refrigerating units, fan).
Bubbling, humming or gurgling noises
Refrigerant is flowing through the tubing.
Clicking
Motor, switches or solenoid valves are switching on/
off.
Preventing noises
The appliance is not level
Please align the appliance with a spirit level. Use
the height-adjustable feet or place packing
underneath them.
The appliance is not free-standing
Please move the appliance away from adjacent units
or appliances.
Containers or storage areas wobble or stick
Please check the removable parts and re-insert them
correctly if required.
Bottles or receptacles are touching each other
Move the bottles or receptacles slightly away
from each other.

16
Eliminating minor faults yourself
Before you call customer service:
Please check whether you can eliminate the fault yourself based on the following information.
Customer service will charge you for advice – even if the appliance is still under guarantee!
Appliance
x
Fault Possible cause Remedial action
Appliance has no refrigeration
capacity.
The light does not work.
The display does not illuminate.
Appliance has been switched off. Press the On/Off button.
Power failure. Check whether the power is on.
The fuse has been switched off. Check the fuse.
The mains plug has not been inserted
properly.
Check whether the mains plug is secure.
The refrigerating unit
is switching on more frequently
and for longer.
Appliance opened frequently. Do not open the appliance unnecessarily.
The ventilation openings have been
covered.
Remove obstacles.
The light (LED) does not work. The LED lamp is defective. Call customer service.
Light switch is jammed. Check whether it can be moved.
Display indicates “E..”. Electronics have detected a fault. Call customer service.
Display indicates
“LOWPOWER”.
The mains voltage falls below
the permitted limiting value.
When the mains voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer, inform
the energy supply company.
Display indicates “HIGHVOLT”. The mains voltage exceeds
the permitted limiting value.
When the mains voltage reaches the stipulated
value again, the warning message goes out.
If the warning message lasts for longer, inform
the energy supply company.

17
Customer service
Your local customer service can be found
in the telephone directory or in the customer-service
index. Please provide customer service with
the appliance product number (E-Nr.) and production
number (FD-Nr.).
These specifications can be found on the rating plate.
To prevent unnecessary call-outs, please assist
customer service by quoting the product
and production numbers. This will save you additional
costs.
Repair order and advice on faults
Contact information for all countries can be found
on the enclosed customer service list.
GB 0344 892 8988 Calls charged at
local or mobile
rate.
IE 01450 2655 0.03 € per
minute at peak.
Off peak 0.0088
€ per minute.
US 877 442 4436 toll-free

Gaggenau Hausgeräte GmbH
Carl-Wery-Straße 34
D-81739 München
www.gaggenau.com
en (9705) 8001049902
*8001049902*
