Gaggia Milano CONCETTO EVO SELF Installation guide

Automatic Machine for Espresso Coffee
UK
WARNING: This instruction manual is intended exclusively for personnel with adequate expertise.
OPERATION AND MAINTENANCE

English
60
MAIN PARTS
Mod. SELF / Mod. CAPPUCCINO
1Left panel 15 Door
2Cup shield 16 Coffee grounds drawer
3Rear panel 17 Steam wand (except for SELF set-up)
4Cup warming surface 18 Power button
5Pre-ground coffee door “I” Electrical functions enabled - Machine on - Indicator light on.
6Right coffee bean hopper “O” Electrical functions disabled - Machine off - “I” button indicator
light off.
7Right panel 19 Right grinder adjustment knob
8Control panel 20 Right coffee grinder group
9Rubber grip 21 Mechanical pulse counter
10 Hose clamp (CAPPUCCINO set-up) It displays the number of beverages brewed by the machine.
11 Hot water wand (except for SELF set-up) 22 Brew group
12 Steam dispensing knob (except for SELF set-up) 23 Brew group cover
Clockwise:
Steam jet open
24 Milk froth adjustment (CAPPUCCINO set-up)
Counter-clockwise:
Steam jet closed
25 Temperature adjustment (CAPPUCCINO set-up)
13 Drip tray 26 Milk dispensing spout (CAPPUCCINO set-up)
14 Anti-scald steam wand rubber 27 Brew group

English
61
Mod. DUO

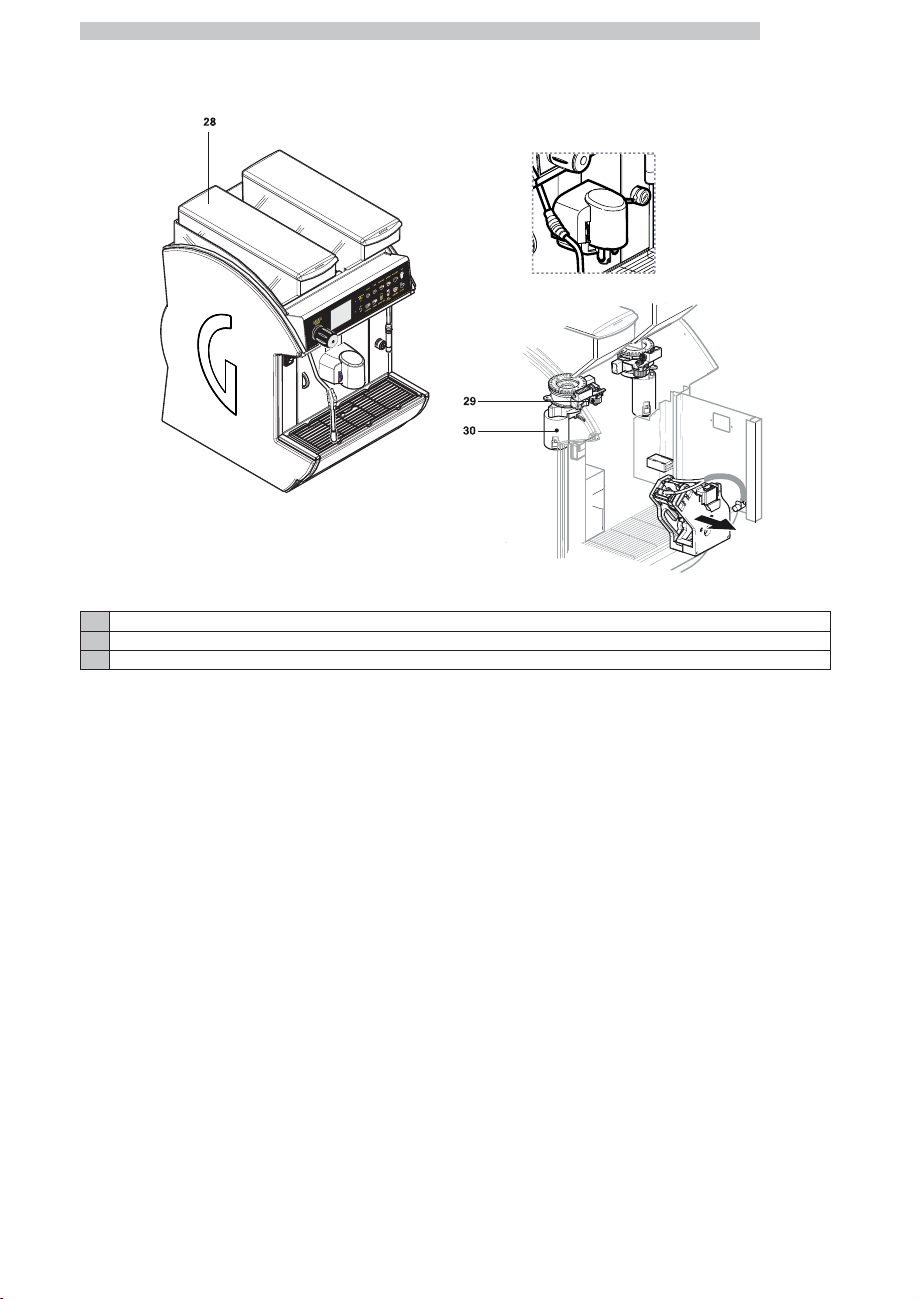

28 Left coffee bean hopper
29 Left grinder adjustment knob
30 Left coffee grinder group

English
62
SAFETY INSTRUCTIONS
For professional use only.
The professional appliance
cannot be installed
outdoors. Do not place it
in areas where the
temperature is lower than
2°C or higher than 32°C
and in particularly humid or
dusty places.
Do not install the appliance
in a location where water
jets may be used.
Make sure the appliance is
installed on a flat surface
capable of bearing its
weight (see section
“Technical Specifications”)
and make sure to leave a
clear area of at least 30 cm
around the machine.
It is forbidden to: use jets of
water for cleaning operations.
Only install the appliance in
places where it can be
supervised by qualified
personnel.
The use by children older
than 8 years or by persons
with reduced physical,
mental or sensory abilities
or with lack of experience
and skills is allowed,
provided that they are
supervised or instructed on
how to use the appliance
correctly and that they
understand the hazards
involved.
Children must not play
with the appliance.
Children must not carry
out any cleaning and
maintenance operations
without being monitored.

English
63
Before connecting the
appliance to the water
network, please read and
follow the applicable
regulations in force in your
country.
If the power cord is
damaged, it must be
replaced by the
manufacturer, its service
centre or by adequately
qualified personnel in
order to avoid any risks.
It is recommended to
install a residual current
device (RCD) with a rated
residual current not
exceeding 30 mA.
Connect the appliance to a
drinking water mains with
pressure between 0.15
MPA and 0.8 MPA (1.5
and 8 bar); see data on the
data plate.
In case of filling tube
replacement, use the new
set of tubes supplied with
the appliance, not the old
one.
Access to the internal area
is restricted to persons
having knowledge and
practical experience of the
appliance, in particular as
far as safety and hygiene
are concerned.
Never clean the internal area of
the machine with power supply
on or with the plug connected.
In any event do not use water
jets or detergents.

English
64
CONTENTS
MAIN PARTS 60
1 INTRODUCTION TO THE MANUAL 65
1.1 PREAMBLE 65
1.2 ICONS USED 67
2 INFORMATION ABOUT THE MACHINE 68
2.1 INFORMATION FOR THE USER 68
2.2 INTENDED USE OF THE APPLIANCE 68
2.3 APPLIANCE IDENTIFICATION 69
2.4 TECHNICAL SPECIFICATIONS 70
3 SAFETY 71
3.1 PREAMBLE 71
3.2 GENERAL SAFETY INSTRUCTIONS 71
3.3 OPERATOR REQUIREMENTS 72
3.4 SAFETY DEVICES 73
3.5 RESIDUAL RISKS 73
4 HANDLING AND STORAGE 74
4.1 UNLOADING AND HANDLING 74
4.2 STORAGE 74
5 INSTALLATION 75
5.1 CAUTIONS 75
5.2 UNPACKING AND POSITIONING 76
5.3 CONNECTION TO THE WATER NETWORK 77
5.4 CONNECTION TO THE ELECTRIC NETWORK 78
6 DESCRIPTION OF CONTROLS 81
6.1 CONTROLS 81
7 SUPPLY AND START UP 83
7.1 COFFEE BEAN SUPPLY 83
7.2 REFILLING WITH PRE-GROUND COFFEE 83
7.3 CREMA ADJUSTMENT 83
7.4 TEMPERATURE ADJUSTMENT 84
7.5 COFFEE GRIND ADJUSTMENT 84
7.6 FIRST APPLIANCE START-UP 85
7.7 WASHING THE PARTS COMING INTO CONTACT
WITH FOOD
85
7.8 USING THE APPLIANCE 85
8 PROGRAMMING AND MAINTENANCE MENU 86
8.1 DESCRIPTION OF BUTTONS FOR PROGRAMMING
PHASES
86
8.2 PROGRAMMING MENU 87
9 OPERATION AND USE 97
9.1 MACHINE STATUSES 97
9.2 MANUAL START-UP 97
9.3 PROGRAMMED AUTOMATIC START-UP 98
9.4 STAND-BY TEMPORARY START-UP 98
9.5 BEVERAGE SELECTION 98
9.6 STEAM 101
9.7 BREW BUTTONS PROGRAMMING 102
9.8 DISPLAY MESSAGES 102
9.9 SWITCHING OFF THE MACHINE 103
10 CLEANING AND MAINTENANCE 104
10.1 GENERAL NOTES FOR CORRECT OPERATION 104
10.2 CLEANING AND SCHEDULED MAINTENANCE 105
10.3 UNSCHEDULED MAINTENANCE 109
11 TROUBLESHOOTING 112
12 STORAGE - DISPOSAL 113
12.1 LOCATION CHANGE 113
12.2 INACTIVITY AND STORAGE 113
13 INSTRUCTIONS FOR END OF
OPERATIONAL LIFE DISPOSAL
114

English
1
65
1 INTRODUCTION TO THE MANUAL
1.1 Preamble
This manual is an integral
part of this machine and it
must be kept in a known
and easily accessible place,
in good conditions,
throughout the whole
service life of the machine
(including any transfer of
ownership). Its purpose is
to provide all the necessary
information for a correct
and safe use of the
machine.
In case of loss or
deterioration of this
manual, contact the
Authorised Service Centre
for a copy, specifying the
model and the
construction year of the
machine.
The Authorised Service
Centres are also available
for any technical
explanation, information
on its operation, technical
assistance and spare parts
supply.
The content of the manual
is exclusively meant to
guarantee the use of the
machine in the safest way
for the users, the machine
and the environment. It
allows an easy
troubleshooting of its faults
and anomalous operating
conditions by performing
simple checks and servicing
in compliance with the
instructions given in the
following pages and with
the Health and Safety
instructions in force.

English
1
66
Carefully read this manual
and make sure to have
clearly understood its
content before performing
any operation.
Each single user of the
machine must carefully
read the instruction
manual.
The Manufacturer reserves
the right to modify and
improve the described
models, without any prior
notice.
For any particular needs,
contact the Distributor,
your Country Importer (if
any) or the Manufacturer.
All the rights of this manual
are reserved to Saga
Coffee S.p.A. Any copy or
even partial disclosure, not
expressively authorised in
writing, are absolutely
forbidden.
Always refer to this manual
before carrying out any
operation.
Manufacturer: SaGa Coffee S.p.A.
Località Casona, 1066 - 40041 Gaggio Montano
Bologna, Italy
This product has been manufactured by SaGa Coffee S.p.A.
and sold under its own responsibility. SaGa Coffee S.p.A. is
the guarantor of the product. Gaggia is a registered
trademark of Gaggia S.p.A. and its use is licensed by Gaggia
S.p.A.

English
1
67
1.2 Icons Used
Various kinds of warnings are contained in this manual to
highlight the different hazard or competence levels.
Each icon is followed by a message describing the
procedure and providing useful information.
Warning
Information about user safety and machine integrity.
Prohibition
It is used to highlight actions/operations not to be
performed.
Important
It draws attention on a particularly important subject.
Machine off
Operations to be done with power supply off.
User
Operations to be carried out by the machine user.
Maintenance technician
Operations to be carried out exclusively by the personnel
responsible for unscheduled maintenance and repairs.

English
2
68
2 INFORMATION ABOUT THE MACHINE
2.1 Information for the User
The appliance must be
installed in a well-lit,
sheltered and dry place
and on a counter able to
bear its weight.
To ensure its correct operation and reliability over time,
comply with the following recommendations:
• ambient temperature: from +2°C to +32°C;
• maximum humidity allowed: 80% (non-condensed).
For special installations, not covered by this manual, please
contact the dealer or the local importer. If this is not
possible, please contact the Manufacturer.
For any particular need contact the Distributor or your
Country Importer. If this is not possible, contact the
Manufacturer.
The Manufacturer customer service is available to clarify
any doubts concerning the correct operation of the
appliance.
If the power cord is damaged, it must be replaced by the
Manufacturer or by its Service Centre, or alternatively, by
a person with similar qualifications.
The AUTHORISED SERVICE CENTRE is available for any
explanation or information regarding the correct
operation of the appliance and to satisfy any request for
spare parts supply or technical assistance.
The Manufacturer reserves the right to make any
modifications to the appliance without prior notice.
All rights of reproduction of this manual are reserved to
the Manufacturer.
The Maintenance Technician must carefully read and
observe the safety warnings contained in this manual to
ensure that installation, start-up, use and maintenance
operations are performed in complete safety.
2.2 Intended Use of the Appliance
The machines described in this manual have been designed,
manufactured and protected to automatically brew (in a
programmable way) the following beverages:
• instantly-ground coffee bean-based;
• pre-ground coffee-based (except for DUO and AMERICA
set-up);
• milk and instantly-ground coffee bean-based
(CAPPUCCINO and CAPPUCCINO USA set-up).
• hot water and steam (except for SELF set-up) for
beverage preparation and heating.
• hot milk (CAPPUCCINO and CAPPUCCINO USA
set-up).
Using the machine for any other purpose is considered
dangerous and as a misuse.
Do not place inside the
appliance any product that
may become dangerous as
a result of unsuitable
temperatures.
Misuse voids all forms of
warranty, releasing the
Manufacturer from any
responsibility for damage
to property and/or
personal injury.

English
2
69
The following are also
considered misuse:
• any use other than the intended use and/or employing
methods other than those described in this manual;
• any operation on the appliance in breach of the
instructions provided in this manual;
• any tampering with parts and/or safety devices not
previously authorised by the Manufacturer and performed
by unauthorised personnel;
• placing the appliance in any locations other than those
indicated in this manual.
2.3 Appliance Identification
The appliance is identified by the model name and serial
number shown on the special plate.
The plate contains the following data:
• name of the Manufacturer;
• marks of conformity;
• model;
• serial number;
• year and month of manufacture;
• supply voltage (V);
• supply frequency (Hz);
• electrical power consumption (W);
• number of phases of the power supply (PH);
• pressure allowed in the water network (MPa);
• appliance code.
It is strictly forbidden to
tamper with or modify the
data plate.
When contacting the
technical service, always
refer to this plate by
indicating the technical
data shown on it.
When getting in touch
with the authorised service
centres, please indicate the
model and serial number.

English
2
70
2.4 Technical Specifications
Size (w x h x d) 410 x 695 x 550 mm
Supply Voltage 230 V/400 V 2 N
Power cord length 1,500 mm
Power
consumption
Mod. SELF See the data plate
Mod.
CAPPUCCINO
See the data plate
Mod. DUO See the data plate
Water network pressure See the pressure data plate
A-weighted sound pressure level less than 70 dB
Weight Mod. SELF 54 kg
Mod.
CAPPUCCINO
54 kg
Mod. DUO 58,5 kg
Coffee bean hopper capacity 2 kg
NOTE
The machines can be pre-set for every single type of
brewing. Most electric parts are powered by 24 V DC.
Brew group
22 Brew group
The position of this group can be adjusted according to
the height of the container used.
It is possible to move the dispensing spout in the high or
low position.
Thus, many brewing heights can be obtained.
Cappuccinatore Group
The Cappuccinatore group is made up of:
10 hose clamp
24 crema quality adjustment
25 Temperature Adjustment
26 milk dispensing spout
29 Cappuccinatore
30 milk suction tube

English
3
71
3 SAFETY
3.1 Preamble
In accordance with the applicable standards and
regulations, SaGa Coffee has prepared a technical file
relating to the Concetto EVO appliance at its premises,
acknowledging the following standards in the design stage:
- EN 55014 - EN 61000-4-4
- EN 6100-3-2 - EN 61000-4-5
- EN 61000-3-3 - EN 61000-4-11
- EN 61000-4-2 - EN 60335-2-75
- EN 61000-4-3 - EN 60335-1
3.2 General Safety Instructions
It is forbidden to:
• disable the safety devices installed on the appliance;
• perform maintenance operations on the appliance, before
unplugging the power cord;
• install the appliance outdoors. It is advisable to place it in a
dry place where the temperature does not drop below
2°C, in order to prevent any possible freezing.
• use the appliance for purposes other than those indicated
in the sale contract and in this manual;
• electrically connect the appliance using multi-sockets or
adapters;
• use jets of water for cleaning operations.
It is mandatory to:
• check conformity of the power supply;
• use original spare parts;
• carefully read the instructions contained in this manual and
in the attached documents;
• use personal protective equipment when performing
installation, testing and maintenance operations.
• Use a new gasket kit each time you disconnect and
connect the machine again to the water system.
Precautionary measures to prevent
human errors:
• make the operator aware of safety issues;
• handle the appliance, either packaged or unpackaged, in
complete safety;
• deeply know the installation procedures, its correct
operation and its limits;
• dismantle the appliance in complete safety, in accordance
with the workers' health and environmental protection
regulations in force.
To prevent machining
residues from coming into
contact with the beverages,
dispense about 0.5 l of
water for each dispensing
path before definitely
starting the machine. The
dispensed beverages can
be drunk only after
performing this operation.

English
3
72
Do not install the appliance
in a location where water
jets may be used.
Only install the appliance in
places where it can be
supervised by qualified
personnel.
In case of failure or
malfunctioning, please refer
only to the qualified
personnel of the technical
service.
The manufacturer is not
liable for damage to
persons or property
resulting from failure to
follow the safety
instructions provided in
this section.
3.3 Operator Requirements
Two operators with different skills are required in order
to guarantee the appliance’s safety:
User
Person in charge of using and attending the appliance. The
user is allowed to: start the appliance, adjust the operating
parameters, stop the appliance, refill the appliance, empty
the trays and clean the outside of the appliance. On
detection of appliance malfunctions, the user must request
the assistance of the Maintenance Technician.
The user is not allowed to
carry out operations
indicated in this manual as
competence of the
Maintenance Technician.
Maintenance technician
Person in charge of installation, adjustment, set-up and, in
general, maintenance operations on the appliance.
Access to the internal area
is restricted to persons
having knowledge and
practical experience of the
appliance, in particular as
far as safety and hygiene
are concerned.

English
3
73
3.4 Safety devices
The machines described in
this manual have been
manufactured in compliance
with the relevant European
Regulations in force and all
its potentially dangerous
parts can be thus
considered safe.
• Any overpressure in the water system that produces
steam and hot water is detected by 3 safety valves.
• A thermostat avoids boilers overheating.
• The position of the coffee grounds drawer and of the
door (see section “Main Parts”), is controlled by two
microswitches that stop the machine if one component is
not properly placed (the display will show the component
out of place).
• An electrical pulse counter and a mechanical one store
the number of beverages brewed and allow programming
the scheduled maintenance.
Hot water and steam dispensing spouts
• Hot water and steam dispensing spouts are equipped with
special rubber grips so that they can be grabbed and
adjusted even when hot (see section “Main Parts”).
3.5 Residual Risks
Only use containers made
of materials that are
suitable “for food”.
The structural
characteristics of the
machines described in this
brochure, do not protect
the user from the direct
steam or hot water spouts.
Danger of burning.
When dispensing hot
water and steam, do not
turn the jets towards other
people or yourselves.
Hold the wand using only
the relevant anti-burn
protections.
If the cup warming surface
is activated, its surface may
be hot.

English
4
74
4 HANDLING AND STORAGE
4.1 Unloading and Handling
Unloading from the transport vehicle and handling
operations of the appliance must be carried out by
qualified personnel only and using suitable equipment.
The appliance must always
be kept in upright position.
Do not:
• drag the appliance;
• overturn or lay down the appliance during transport and
handling;
• shake the appliance;
• leave the appliance exposed to bad weather, in humid
areas or close to heat sources.
4.2 Storage
If the appliance is not installed within a short time, but is
to be stored for a long time, it shall be kept in a sheltered
place according to the following instructions:
• the packaged appliance shall be stored in a closed, dry
area at a temperature between 1°C and 40°C;
• do not put other appliances or boxes on the appliance;
• in any case, it is good practice to protect the appliance
from possible deposits of dust or other substances.

English
5
75
5 INSTALLATION
5.1 Cautions
The appliance cannot be
installed in external areas.
Avoid installing it in areas
where the temperature is
lower than +2°C or higher
than 32°C and in
particularly humid or dusty
places. It should neither be
installed in places where
water jets are used for
cleaning operations nor
where there is a risk of fire
or explosion.
Make sure that the installation place is compatible with the
following specifications, before unpacking the appliance:
• the electric socket or the all-pole switch which the
appliance is connected to must be easily accessible for the
user, so that the user will easily disconnect the machine
from the electric mains when necessary;
• the socket voltage must correspond to that indicated on
the appliance data plate.
• the gradient of the supporting surface should NOT
exceed 2°;
Check that the size and
strength of the surface
where the machine is
installed are appropriate to
safely bear it.
For a correct and
ergonomic use of the
machine, it is
recommended to install it
onto a surface which is at
least 1 m high.
The appliance must be
installed on a horizontal
surface.
The appliance must only be installed in places where it can
be used and serviced by qualified staff only.

English
5
76

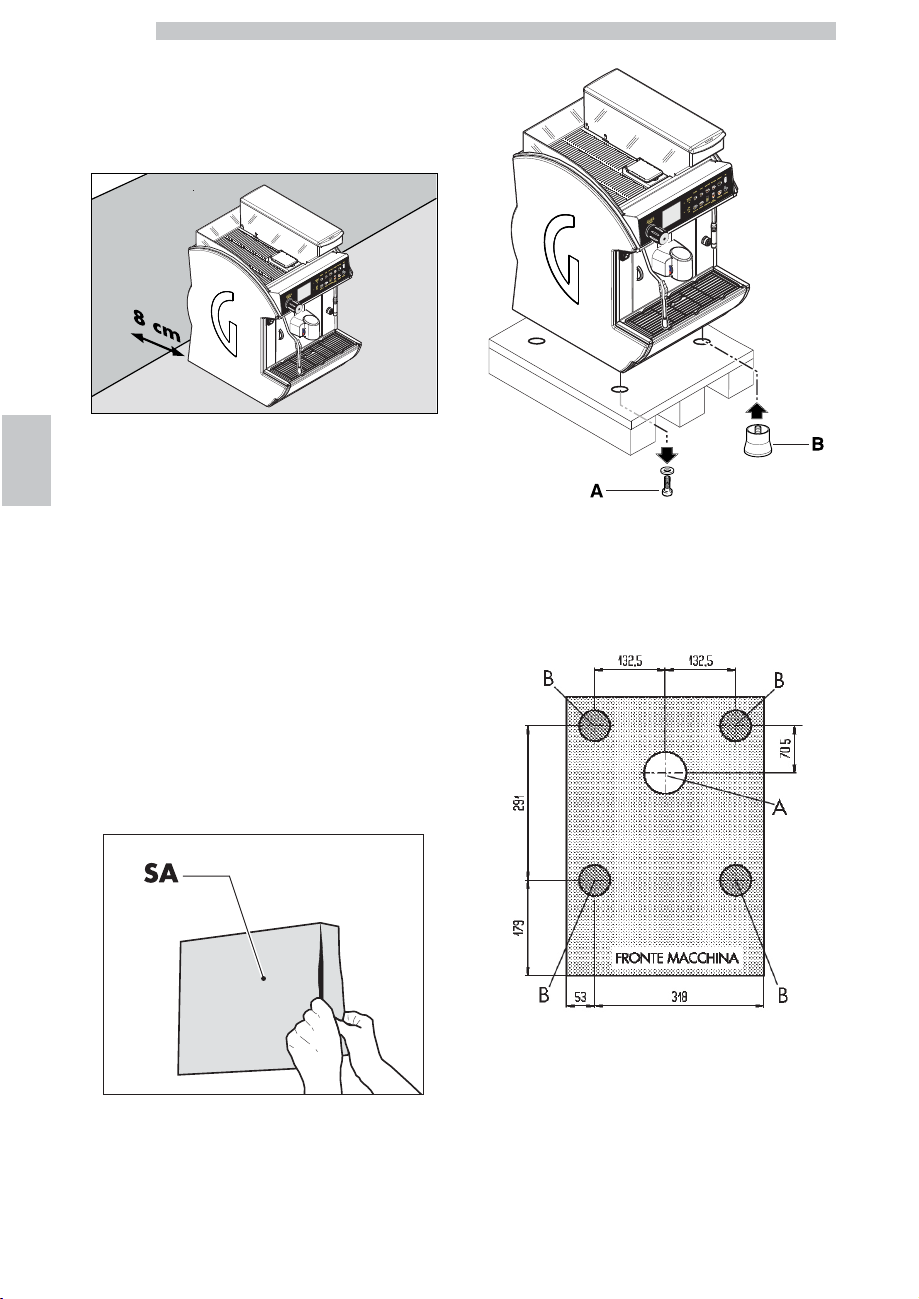

If the appliance needs to be positioned close to a wall, it is
necessary to leave a space of at least 8 cm between the
appliance’s back and the wall, in order to make sure that
the air outlet grill at the back of the appliance is
unobstructed.
5.2 Unpacking and Positioning
On receipt of the appliance, make sure that it has not
suffered any damage during transport or that the packaging
has not been unduly opened with consequent stealing of
the components contained in it.
If damage of any kind is found, the courier must be
informed and notice must be immediately given to the
importer or to the seller.
If these are not in the purchaser’s country, please contact
the manufacturing company directly.
A bag called “ACCESSORY BOX” is supplied with the
appliance. It contains the following items:
• Instruction manual.
• Screws and plates.
SA Accessory box
Lift the pallet in order to remove the fixing screws. Screw
the 4 supporting feet.
AFixing screws
Bsupporting feet
Check that the surface where the appliance shall be
positioned is steady.
Drill a hole with a 100 mm Ø on the surface.
A100 mm Ø hole
BIdeal position of the adjustable feet
Definitely place the machine on the supporting surface.
Install the appliance on the surface and level it by adjusting
the height of the feet.

English
5
77
5.3 Connection to the Water
Network
Before connecting the
appliance to the water
network, please read and
follow the applicable
regulations in force in your
country.
Make sure the water
network provides drinking
water, with pressure
ranging between 0.15 MPA
and 0.8 MPA (1.5 and 8
bars).
Water hardness should not
be lower than 8°F.
The machine should be
supplied with water
treated with a descaling
device, particularly in case
of water with high content
of calcium and magnesium
salts (hard water).
Before connecting the
water filter to the machine,
perform a wash cycle until
the water is clear. Then
connect the water filter to
the machine.
The water network hose
must be certified according
to the IEC 61770 standard.
In case you need to move
the machine to a different
place, the old fitting unit
must be replaced with a
new one (water network
connecting hose).

English
5
78
• Connect the filter to the water network.
CWater Filter
DWater Net
EDrain pipe
• Connect a drain pipe to the fitting and fix it with a
serrated clamp.
• Connect the machine to the drinking water network
through the fitting (using tube and fitting made of materials
suitable for food).
HDrain fitting
IDispensing fitting
Gelectric power cord
Fsupporting feet
• Insert the drain and filling pipes into the proper hole (see
chapter “Unpacking and Positioning”).
5.4 Connection to the Electric
Network
The Maintenance
Technician, who is in
charge of the appliance's
installation, shall make sure
that:
• the power supply system complies with the safety
instructions in force;
• the voltage corresponds to that indicated on the appliance
data plate.
In case of doubt, do not
proceed with the
installation and ask qualified
and authorised personnel
to accurately check the
system.
Also make sure that the
electrical system the
appliance is connected to
has the capacity to bear
the max load required, as
indicated on the data plate.
