Ganz PixelPro GXi Series User manual

09-2014-A 2
Precaution
Please read this manual carefully before installing the unit.
Never disassemble the blade. Unauthorized disassembly may cause equipment failure
or damage to the unit.
Please do not install the blade and the rack in a place exposed to an excessive heat
source.
Do not operate the unit in environments beyond the specified temperature.
Refer to “Environment Condition”on “APPENDIX (A): SPECIFICATIONS”in this manual.
Before mounting the blade, check the power source to ensure that it is within the
specifications. Refer to “Electrical Characteristics”on “APPENDIX (A) : SPECIFICATIONS”

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 3
Table of Contents
Precaution................................................................................................................ 2
1. FEATURES............................................................................................................. 4
2. PACKAGE CONTENTS............................................................................................. 5
3. PART NAMES ........................................................................................................ 6
3.1. Blade................................................................................................................................... 6
3.2. Sub-rack.............................................................................................................................. 7
4. INSTALLATION ...................................................................................................... 8
4.1.Connectors .......................................................................................................................... 8
4.2.Ejecting and inserting blades ............................................................................................ 11
4.2.1. Ejecting a blade ......................................................................................................... 11
4.2.2. Inserting a blade........................................................................................................ 11
5. CONFIGURATION ................................................................................................ 12
5.1. Set up network environment ........................................................................................... 12
5.1.1. Generic IP Environment ............................................................................................ 12
5.1.2. Custom IP Environment............................................................................................. 13
5.2. View video on web page .................................................................................................. 14
5.2.1. Access through IPAdmin Tool.................................................................................... 15
5.3. Reset................................................................................................................................. 16
5.4. Factory Default................................................................................................................. 16
APPENDIX (A): SPECIFICATIONS .............................................................................. 17
Summary ................................................................................................................................. 17
Electrical Characteristics ......................................................................................................... 17
Environment Condition ........................................................................................................... 18
Mechanical Condition ............................................................................................................. 18
APPENDIX (B): DIMENSIONS ................................................................................... 19
APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE ................................. 20
REVISION HISTORY ................................................................................................. 20

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 4
1. FEATURES
Main Feature
Compatible with 19’’/4U Aluminum Sub-Rack chassis, which supports up to 10 units of
4 channel encoder blades
Identification of each sub-rack, each blade card, and each module unit (for easy and
quick maintenance)
Streaming
Dual streaming mode (such as different codec/resolution/bit rate and so on.)
De-interlacing on DSP
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Video compression: H.264/MJPEG, 25/30FPS@D1(PAL/NTSC)
Audio compression: G.711(µLaw)
Video Motion Detection supported
Audio Input/output supported (4/1ch)
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
RS-485 supported
Digital input/output supported
Built-in Video Content Analysis (For each module)
SDK (Software Development Kit) provided
VCA (Video Content Analysis)
VCA Surveillance (Optional)

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 5
2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Encoder Blade
8 Pin terminal block
10 Pin terminal block
12 Pin terminal block
Jumper Cap x 4ea
The above contents are subject to change without prior notice.
Note
i

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 6
3. PART NAMES
3.1. Blade
①Screw
This is used to fasten the blade to the rack chassis.
②System Status LEDs
The LEDs indicate certain system information.
-Status: The LED turns on in orange when the encoder is powered on.
-Data: The LED turns on in green when the video signal comes in with a proper
connection.
③12 pin terminal blocks for D/I, D/O, audio
Refer to the section “4.1. Connectors”for more specific information.
④Video Input Configuration Switch
This switch enables video input and output to be turned on or off. No video comes in or out
with this switch off and only some test patterns will be displayed on the Webpage. You can
change the video standard format of the device by moving the switch to NTSC side or PAL side
as required. The device needs to be rebooted after moving the switch in order to apply the
change.
①
②
③
* Models herein and their appearance
are subject to change without any prior
notice.
○
4
○
5
○
6

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 7
⑤Reset
Reboot the device system or reset the device to its Factory default settings. Refer to the
section “5.3 Reset”and ”5.4 Factory Default”for more specific information.
⑥Inject/Eject Handle
This is used for removing the blade from the rack.

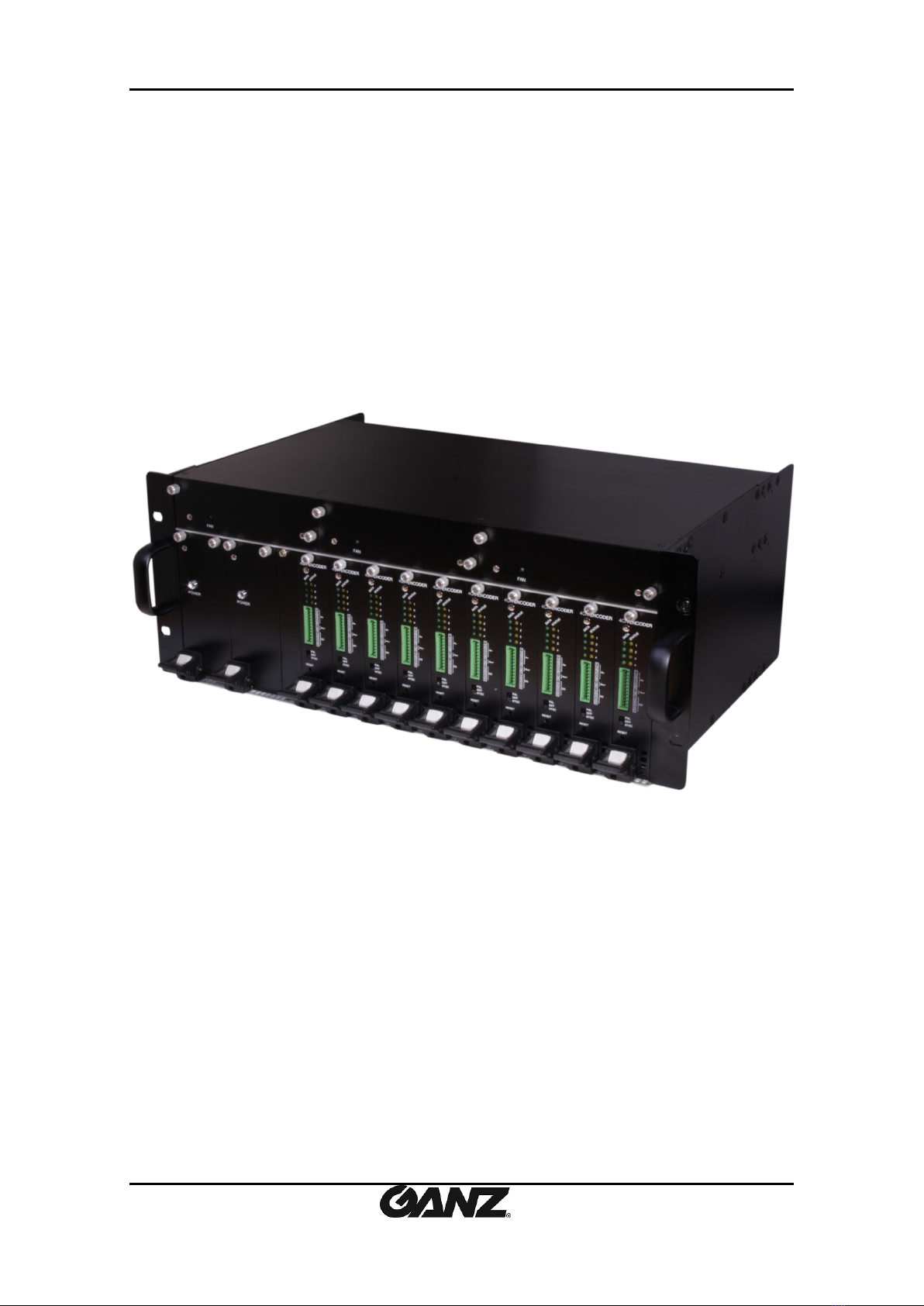

3.2. Sub-rack
The blade is designed for mounting in the sub rack chassis, which provides power and network
connectivity. This blade cannot be used apart from the sub-rack.
Specifications of 19”/4U Sub-Rack Chassis
19” / 4U Aluminum Sub-Rack
Support up to 10 units of 4CH encoder blades (Total 40 channels @ D1)
Hot-swappable encoder blade
Identification of each Sub-Rack and each blade unit ( for easy and quick maintenance)
Temperature Sensor included
Detect power supplier unit operation (Self-diagnosing)
Detect fan unit operation (Self-diagnosing)
Applied device: 4CH encoder blades for H.264 (10 slot expansion supported model)
19’’/4U Sub-Rack Chassis

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 8
4. INSTALLATION
4.1.Connectors
Video connection
Connect the camera to the video input connectors on the back panel using 75 ohm video
coaxial cables with a BNC connector. Each of the connected video input channel can be looped
to other equipments (e.g. CRT monitor) through external video output connector.
Audio connection
Connect to the audio input device such as a microphone.
Sensor Input (D/I)
There are two sensor interface types –Voltage Type and Relay Type. The interface type can be
controlled by the software. Before connecting sensors, check driving voltage and output signal
type of the sensor. Since the connection is different according to sensor type, be careful to
connect the sensor.
Mic
Ain
Speaker
Aout
Relay Type
Voltage Type
DI 1
DI 2
COM
+
-
+5VDC
+
-
+
-
Output of
Sensor 1
Output of
Sensor 2
Internal
+
-
+
-
DI 3
DI 4
Output of
Sensor 3
Output of
Sensor 4
DI 1
DI 2
COM
+
-
+
-
Output of
Sensor 1
Output of
Sensor 2
Internal
+
-
+
-
DI 3
DI 4
Output of
Sensor 3
Output of
Sensor 4
+3.3V
+3.3V
+3.3V
+3.3V
1
st
Module
2
ND
Module
3
rd
Module
4
st
Module
1
st
Module
2
ND
Module
3
rd
Module
4
st
Module

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 9
Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA
Signal
Description
COM
Connect (-) cable of electronic power source for sensors to this port as shown
in the circuit above.
D1~D4
Connect output of sensors for each port as shown in the circuit above.
Do not exceed the maximum input voltage or relay rate.
Do not use voltage and relay type sensor together.
Alarm Output (D/O)
Only the relay type is supported.
Relay Rating: Max 24VDC 50mA
Do not exceed the maximum relay rating.
Caution
!
Caution
!

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 10
Relay Type
DO 1
DO 4
COM
Device
Device
Internal
DO 2
Device
Device
DO 3
1st
Module
2ND
Module
3rd
Module
4st
Module

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 11

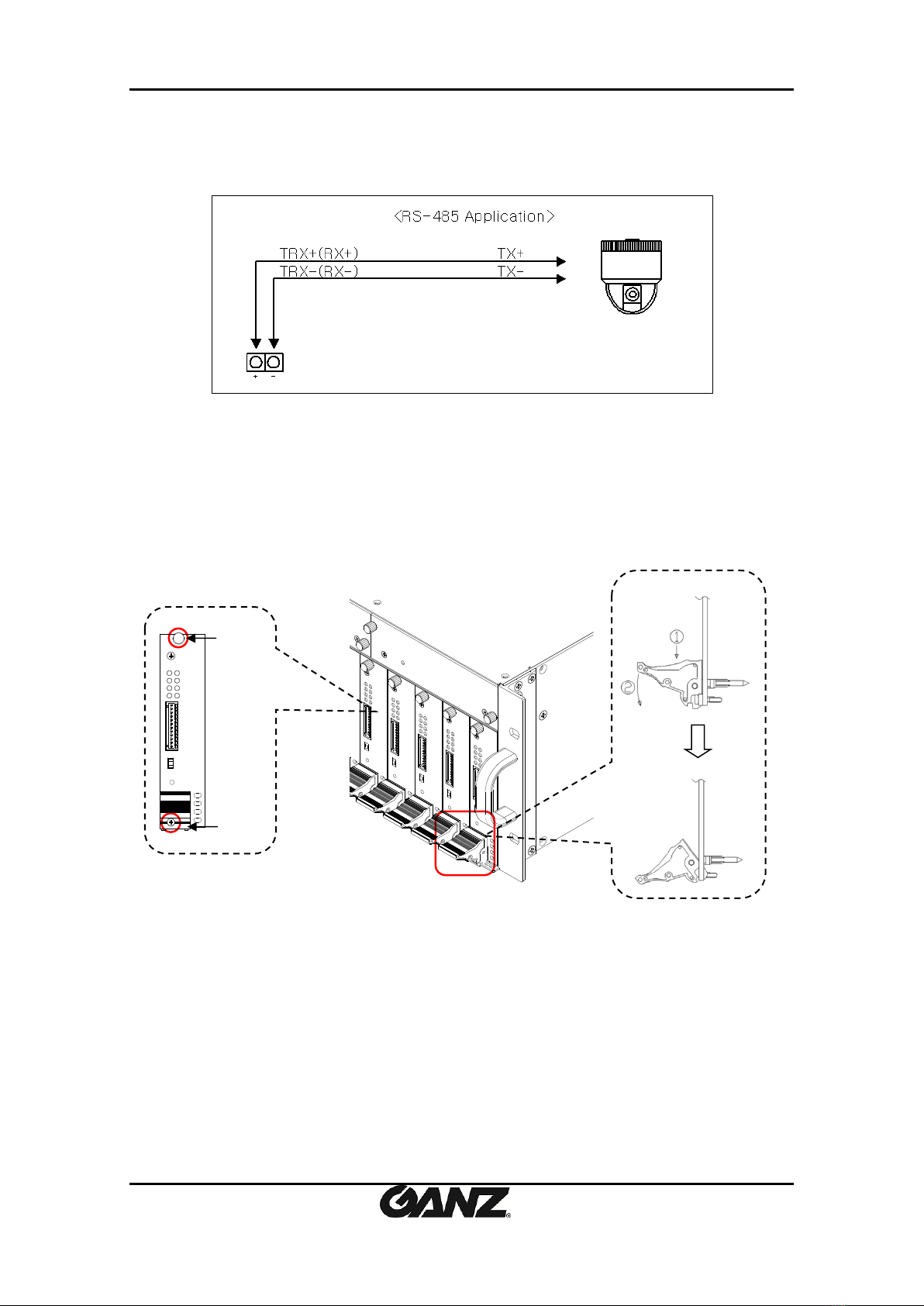

RS-485
The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image.
RS-485 Connection
4.2.Ejecting and inserting blades
4.2.1. Ejecting a blade
1. Unscrew the screws.
2. Grasp the inject/eject handle of the blade and push it down as shown in above figure.
3. Remove the blade from the rack chassis.
4.2.2. Inserting a blade
1. Make sure that the inject handle is in the outward position.
2. Insert the blade into the rack chassis.
3. Grasp the inject handle of the blade and pull it up.
4. Fasten the screws.
485 Device
screw
screw

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 12
5. CONFIGURATION
5.1. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the
device from converting the MAC address’s hexadecimal numbers, which is attached to the
device. Be sure that the device and PC are on a same area network before running the
installation.
IP address : 192.168.xxx.xxx
Subnet mask: 255.255.0.0
5.1.1. Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX are used,
users may view the live streaming images on a web page using the device’s default IP address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal
Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the device.)
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device.
3. Web streaming and device configurations are supported through ActiveX program. When the
ActiveX installation window appears, authorize and install the ActiveX.
MAC address = 00-1C-B8-01-23-45 →IP address = 192.168.35.69
Convert the last two sets of hexadecimal numbers to decimal numbers.

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 13

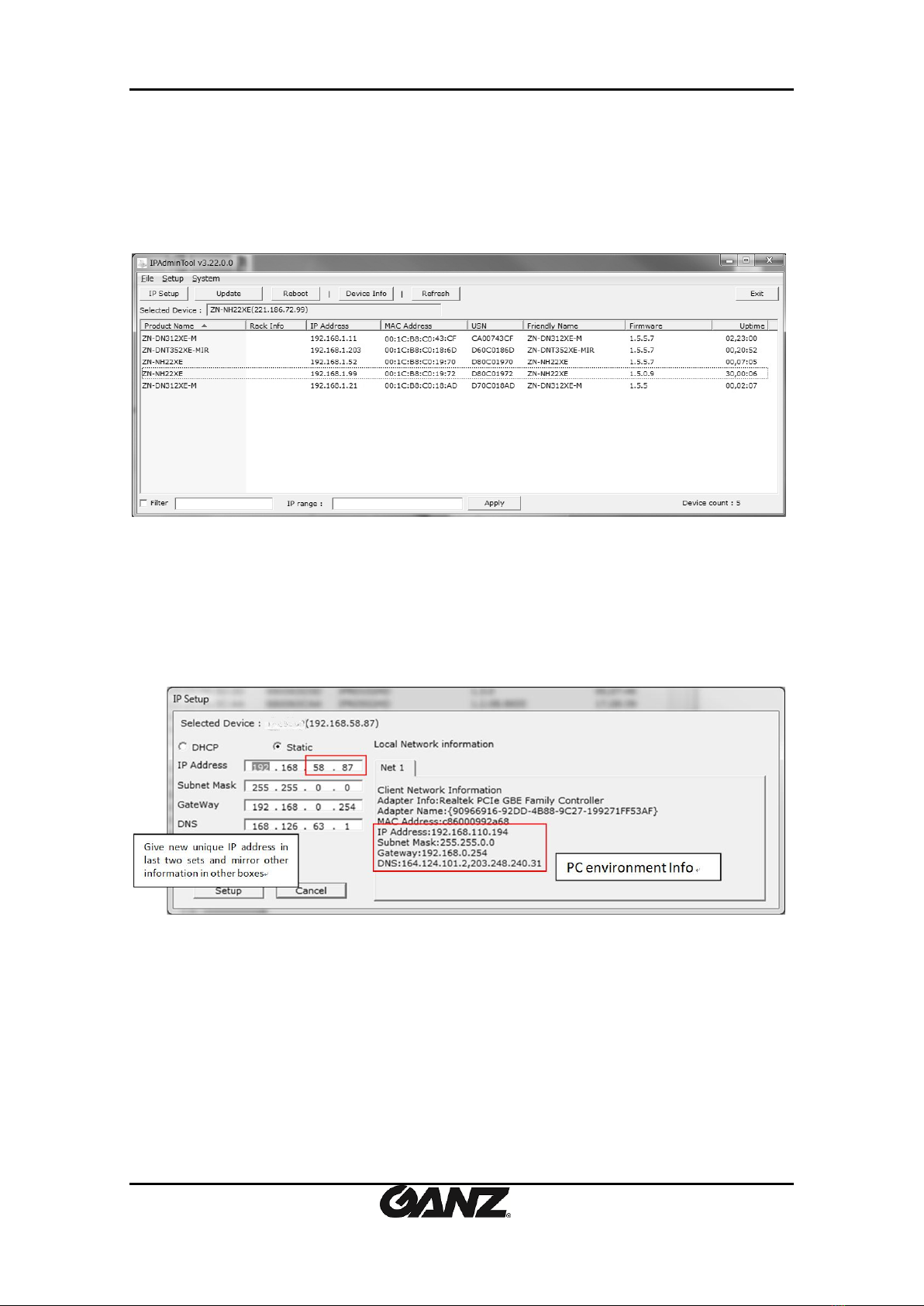

5.1.2. Custom IP Environment
IPAdminTool is a management tool, which automatically scans all of the network products for
users to perform administrative tasks, which includes network configurations, firmware update,
device reboot, and device organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
3. In the IP Setup’s window, information under ‘Local Network information’ displays the
user/PC’s network area information. Those information need to be incorporated to the IP
Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which
are to be the unique numbers for the device. Refer to the image above for the setting
4. Click ‘Setup’ to complete the modification.

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 14
5.2. View video on web page
Once the device’s proper IP address has been identified, type the URL in a web browser to
access the camera. At first time access, installation window may pop up.
1. When the browser asks to install the AxUMF software, click Install to proceed.
2. When Setup installation pop-up window appears, click install to proceed with rest of
installations.
Depends on system OS and Internet Explorer version, Installation experience may
differ from one another. Figures described above are from Windows 7, Internet
Explorer 9 environment.
Note
i

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 15
Caution
!
5.2.1. Access through IPAdmin Tool
IPAdminTool automatically searches all activated network encoders and IP cameras and shows
the product name, IP address, MAC address and etc.
1. From the IPAdminTool’s product list, select the device by highlighting it.
2. Right-click the mouse and select web-view
3. The system’s default web browser opens the device’s address.
Whether directly accessing the streaming video through typing IP address on a
web page or taking steps through IPAdminTool, the ActiveX is needed to be
installed for the Microsoft® Internet Explorer to have the complete
configuration privileges.

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 16
5.3. Reset
1. While the device is in use, press the Reset button.
2. Wait for the system to reboot.
5.4. Factory Default
1. Press reset button and hold.
2. Release the Reset button after 5 seconds until LED blinks.
3. Wait for the system to reboot.
The factory default settings can be inferred as follows:
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 17
APPENDIX (A): SPECIFICATIONS
Summary
Video
Input
4 channel
Output
-
Compression Format
H.264, MJPEG Selectable per Stream
Number of Streams
Dual Stream for each channel, Configurable
Resolution
D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA
Compression FPS
25/30 fps@D1 (PAL/NTSC)
Deinterlacing
Support (DSP)
Motion Detection
Support (DSP)
Burnt-in Text (Digital)
Support (DSP)
Audio
Input/output
4 channel / 1 channel(Mixed out)
Compression Format
G.711(uLow)
Function
Digital Input/output
4 channel / 4 channel
RS-485
4 channel
RS-232
-
Network
10/100 Base-T
Power Over Ethernet
-
Protocol
QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP,
RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS,
DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP, SSLv2/v3,
TLSv1
SD/SDHC Memory slot
-
Electrical Characteristics
Video Input
1Vp-p, 75Ω
Video Output
1Vp-p, 75Ω
Audio Input
Mic-in, 0.178Vp-p, 10KΩ
Audio Output
Lineout, 2.26Vp-p , 10KΩ
Sensor(D/I)
Max 50mA@5VDC
Alarm(D/O)
Max 50mA@24VDC
On-state resistance: 50 Ω (max continuous)
Power Source
12VDC
Power Consumption
9W

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 18
Environment Condition
Operating Temperature
0 ºC ~ 50 ºC ( 32ºF ~ 122 ºF)
Operating Humidity
Up to 85% RH
Mechanical Condition
Dimension
268(W) x 128(H) mm
Weight (Approx)
240g

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 19
APPENDIX (B): DIMENSIONS
(Unit: mm)

PixelPro GXi Series ZS1-4DB2 Installation Guide
09-2014-A 20
APPENDIX (D): HEXADECIMAL-DECIMAL
CONVERSION TABLE
Refer to the following table when you convert the MAC address of your device to IP address.
Hex
Dec
00
0
01
1
02
2
03
3
04
4
05
5
06
6
07
7
08
8
09
9
0A
10
0B
11
0C
12
0D
13
0E
14
0F
15
10
16
11
17
12
18
13
19
14
20
15
21
16
22
17
23
18
24
19
25
1A
26
1B
27
1C
28
1D
29
1E
30
1F
31
20
32
21
33
22
34
23
35
24
36
Hex
Dec
25
37
26
38
27
39
28
40
29
41
2A
42
2B
43
2C
44
2D
45
2E
46
2F
47
30
48
31
49
32
50
33
51
34
52
35
53
36
54
37
55
38
56
39
57
3A
58
3B
59
3C
60
3D
61
3E
62
3F
63
40
64
41
65
42
66
43
67
44
68
45
69
46
70
47
71
48
72
49
73
Hex
Dec
4A
74
4B
75
4C
76
4D
77
4E
78
4F
79
50
80
51
81
52
82
53
83
54
84
55
85
56
86
57
87
58
88
59
89
5A
90
5B
91
5C
92
5D
93
5E
94
5F
95
60
96
61
97
62
98
63
99
64
100
65
101
66
102
67
103
68
104
69
105
6A
106
6B
107
6C
108
6D
109
6E
110
Hex
Dec
6F
111
70
112
71
113
72
114
73
115
74
116
75
117
76
118
77
119
78
120
79
121
7A
122
7B
123
7C
124
7D
125
7E
126
7F
127
80
128
81
129
82
130
83
131
84
132
85
133
86
134
87
135
88
136
89
137
8A
138
8B
139
8C
140
8D
141
8E
142
8F
143
90
144
91
145
92
146
93
147
Hex
Dec
94
148
95
149
96
150
97
151
98
152
99
153
9A
154
9B
155
9C
156
9D
157
9E
158
9F
159
A0
160
A1
161
A2
162
A3
163
A4
164
A5
165
A6
166
A7
167
A8
168
A9
169
AA
170
AB
171
AC
172
AD
173
AE
174
AF
175
B0
176
B1
177
B2
178
B3
179
B4
180
B5
181
B6
182
B7
183
B8
184
Hex
Dec
DE
222
DF
223
E0
224
E1
225
E2
226
E3
227
E4
228
E5
229
E6
230
E7
231
E8
232
E9
233
EA
234
EB
235
EC
236
ED
237
EE
238
EF
239
F0
240
F1
241
F2
242
F3
243
F4
244
F5
245
F6
246
F7
247
F8
248
F9
249
FA
250
FB
251
FC
252
FD
253
FE
254
FF
255
Hex
Dec
B9
185
BA
186
BB
187
BC
188
BD
189
BE
190
BF
191
C0
192
C1
193
C2
194
C3
195
C4
196
C5
197
C6
198
C7
199
C8
200
C9
201
CA
202
CB
203
CC
204
CD
205
CE
206
CF
207
D0
208
D1
209
D2
210
D3
211
D4
212
D5
213
D6
214
D7
215
D8
216
D9
217
DA
218
DB
219
DC
220
DD
221
