Ganz PixelPro ZS1-4DS User manual

09-2014-A 2
Precaution
Please read this manual carefully before installing the unit.
Never disassemble the camera. Unauthorized disassembly may cause equipment
failure or damage to the unit.
Please do not install the camera in a place exposed to direct sunlight.
Do not operate the camera in environments beyond the specified temperature.
Refer to “Environment Condition”on “APPENDIX (A) : SPECIFICATIONS”in this manual.
Before applying power to the camera, check the power source to ensure that it is
within the specifications. Refer to “Electrical Characteristics”on “APPENDIX (A) :
SPECIFICATIONS”

09-2014-A 3
Table of Contents
Precaution................................................................................................................ 2
1. FEATURES............................................................................................................. 4
2. PACKAGE CONTENTS............................................................................................. 5
3. PART NAMES ........................................................................................................ 6
3.1. Front Panel ......................................................................................................................... 6
3.2. Back Panel .......................................................................................................................... 7
4. CONNECTIONS...................................................................................................... 8
4.1.Connectors .......................................................................................................................... 8
5. CONFIGURATION ................................................................................................ 12
5.1. Set up network environment ........................................................................................... 12
5.1.1. Generic IP Environment ............................................................................................ 12
5.1.2. Custom IP Environment............................................................................................. 13
5.2. View video on web page .................................................................................................. 14
5.2.1. Access through IPAdmin Tool.................................................................................... 15
5.3. Reset................................................................................................................................. 16
5.4. Factory Default................................................................................................................. 16
6. WALL-MOUNTING .............................................................................................. 17
APPENDIX (A): SPECIFICATIONS .............................................................................. 18
Summary ................................................................................................................................. 18
Electrical Characteristics ......................................................................................................... 18
Environment Condition ........................................................................................................... 19
Mechanical Condition ............................................................................................................. 19
APPENDIX (B): DIMENSIONS ................................................................................... 20
APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE.................................. 21
REVISION HISTORY ................................................................................................. 22

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 4
1. FEATURES
Streaming
Dual streaming mode (such as different codec/resolution/bit rate and so on.)
De-interlacing on DSP
Burnt-in text supported
Unicast/Multicast supported
Video/Audio
Video compression: H.264/MJPEG, 25/30FPS@D1(PAL/NTSC)
Audio compression: G.711(µLaw)
Analog video out for external monitors
Video Motion Detection supported
Audio input/output supported (4/1ch)
Network
RTSP/ HTTP protocol supported
10/100 Base-T Ethernet
Additional Features
RS-485 supported
SD memory card supported
On board, pre-installation required by CBC local branches or
authorized installer.
Digital input/output supported
Built-in Video Content Analysis (For each module)
SDK (Software Development Kit) provided
VCA (Video Content Analysis)
VCA Surveillance (Optional)
Note
i

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 5

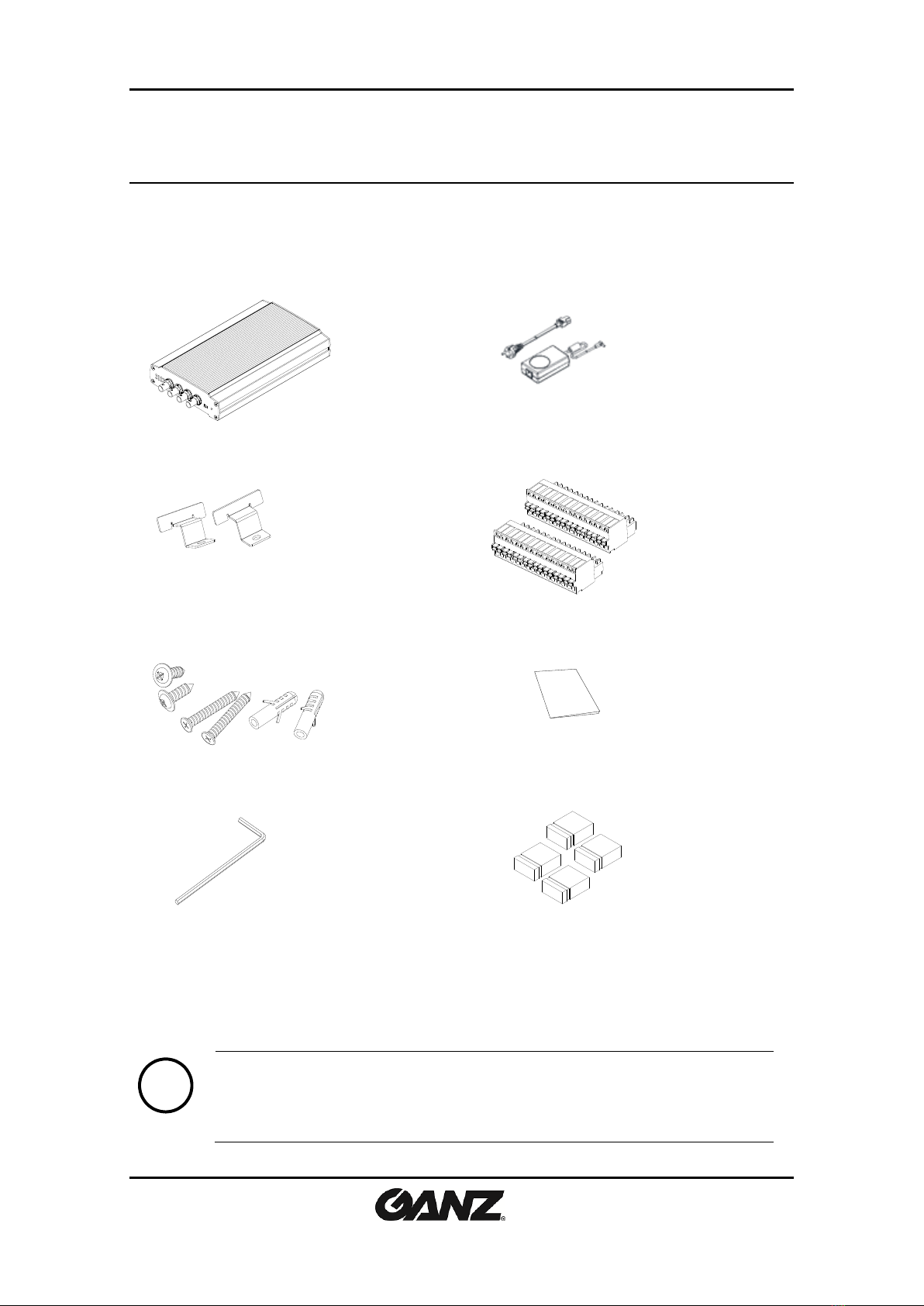

2. PACKAGE CONTENTS
Unpack carefully and handle the equipment with care. The packaging contains:
Encoder
DC power adaptor
Mounting brackets x 2ea
16 Pin terminal block x 2ea
Screws and anchor blocks
Quick Installation Guide
2.0mm hex ket wrench x 1ea
Jumper Cap x 4ea
The above contents are subject to change without prior notice.
Note
i

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 6
3. PART NAMES
3.1. Front Panel
①System Status LEDs
The LEDs, located on the left side of the front panel, indicate certain system status.
-Status: The LED turns on in orange when the encoder is powered on.
-Data: The LED turns on in green when the video signal comes in with a proper
connection.
②Video Input BNC connector
These are video input connectors for connection to a camera. 4 video input channels are
supported.
③Video input configuration Switch
This switch enables video input to be turned on or off. No video comes in or out with this
switch off and only some test patterns will be displayed on the Webpage. You can change the
video standard format of the device by moving the switch to NTSC side or PAL side as required.
The device needs to be rebooted after moving the switch in order to apply the change.
④Reset
Reboot the device system or reset the device to its Factory default settings. Refer to the
section “5.3 Reset”and “5.4 Factory default”for more specific information.
○
1
○
3
④
○
2

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 7

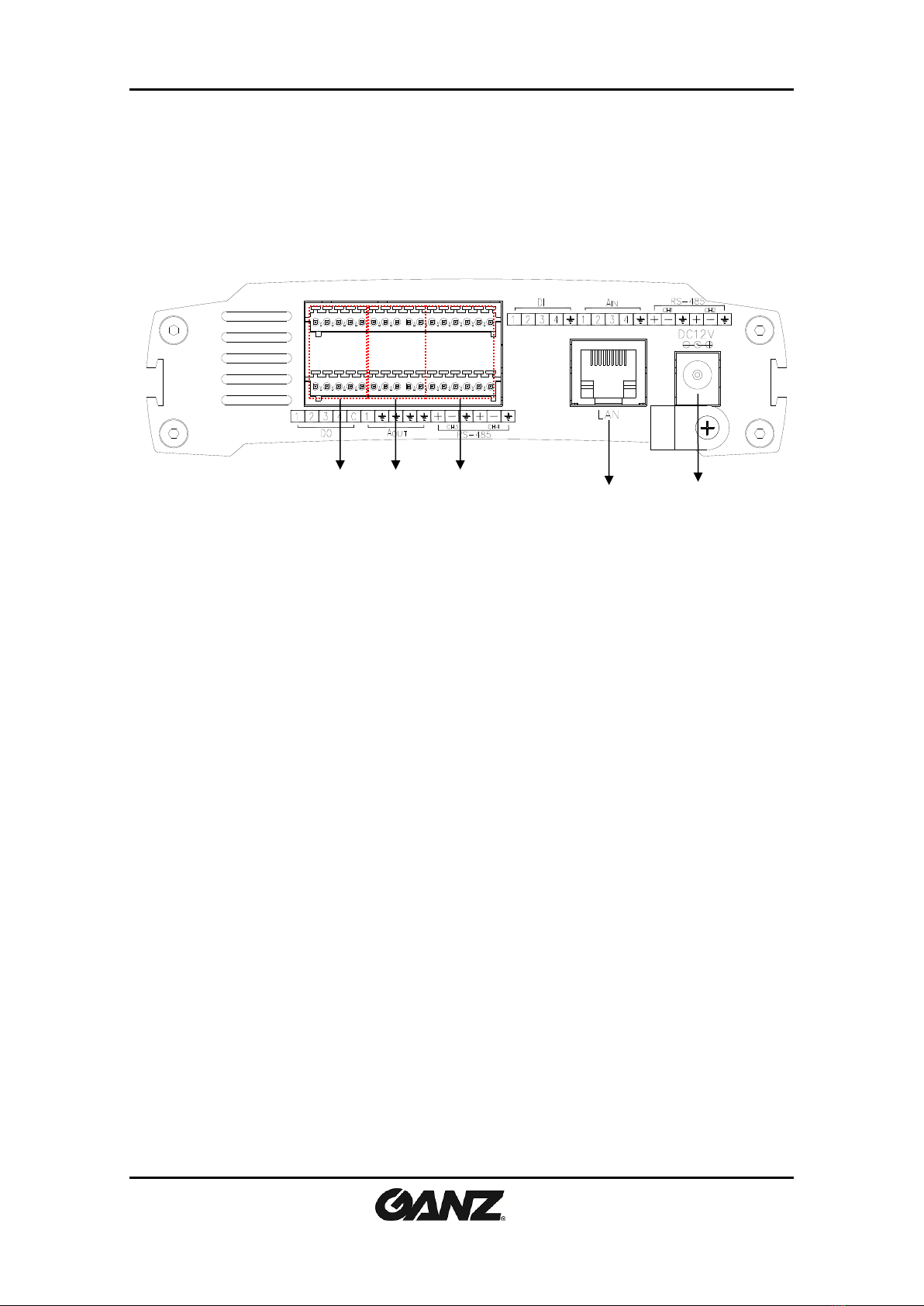

3.2. Back Panel
⑤DI/DO
The encoder supports four DI and four DO. Refer to the section “4.1.Connectors”for more
specific information.
⑥Audio In/Out
The encoder has four channels mono audio input and one mixed output. As the output power
for the audio is low, an amplifier speaker is needed.
⑦RS-485
RS-485 terminal block is used for PTZ controls.
⑧LAN connector
Use the RJ45 LAN connector for 10/100 Base-T Ethernet.
⑨Power connector
Connect the power adaptor for power supply.
○
5
○
6
○
9
○
7
○
8

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 8
4. CONNECTIONS
4.1.Connectors
Video connection
Connect the camera to the video input connectors on the back panel using 75 ohm video
coaxial cables with a BNC connector. Each of the connected video input channel can be looped
to other equipments (e.g. CRT monitor) through external video output connector.
Audio connection
Connect to the audio input device such as a microphone.
Sensor Input (D/I)
There are two sensor interface types –Voltage Type and Relay Type. The interface type can be
controlled by the software. Before connecting sensors, check driving voltage and output signal
type of the sensor. Since the connection is different according to sensor type, be careful to
connect the sensor.
Mic
Ain
Speaker
Aout

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 9
Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA
Signal
Description
COM
Connect (-) cable of electronic power source for sensors to this port as shown
in the circuit above.
D1~D4
Connect output of sensors for each port as shown in the circuit above.
Do not exceed the maximum input voltage or relay rate.
Do not use voltage and relay type sensor together.
Alarm Output (D/O)
Only the relay type is supported.
Relay Rating: Max 24VDC 50mA
Caution
!
Relay Type
Voltage Type
DI 1
DI 2
COM
+
-
+5VDC
+
-
+
-
Output of
Sensor 1
Output of
Sensor 2
Internal
+
-
+
-
DI 3
DI 4
Output of
Sensor 3
Output of
Sensor 4
DI 1
DI 2
COM
+
-
+
-
Output of
Sensor 1
Output of
Sensor 2
Internal
+
-
+
-
DI 3
DI 4
Output of
Sensor 3
Output of
Sensor 4
+3.3V
+3.3V
+3.3V
+3.3V
1
st
Module
2
ND
Module
3
rd
Module
4
st
Module
1
st
Module
2
ND
Module
3
rd
Module
4
st
Module

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 10

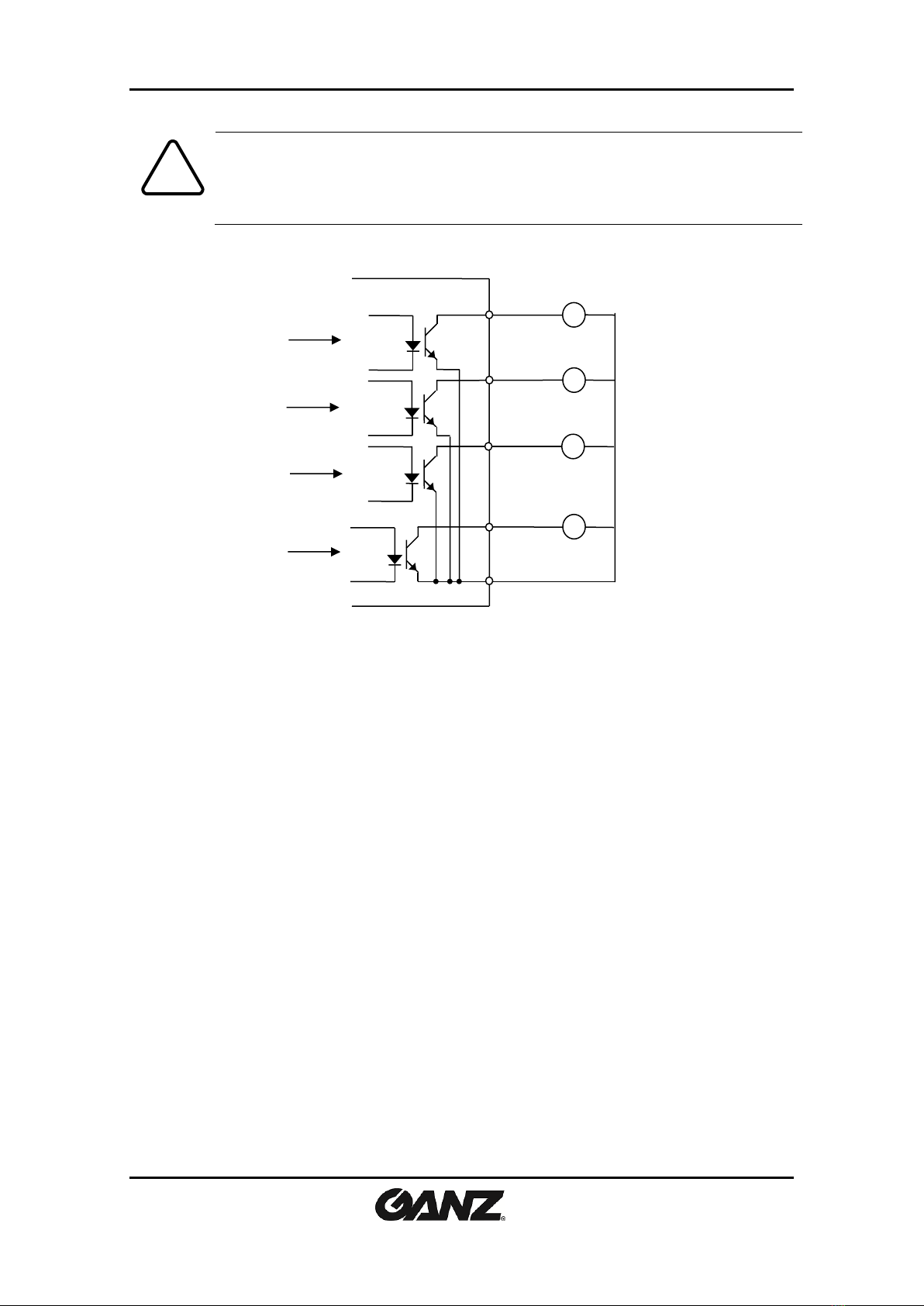

Do not exceed the maximum relay rating.
Caution
!
Relay Type
DO 1
DO 4
COM
Device
Device
Internal
DO 2
Device
Device
DO 3
1st
Module
2ND
Module
3rd
Module
4st
Module

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 11
RS-485
The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image.
RS-485 Connection
485 Device

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 12
5. CONFIGURATION
5.1. Set up network environment
The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the
device from converting the MAC address’s hexadecimal numbers, which is attached to the
device. Be sure that the device and PC are on a same area network before running the
installation.
IP address : 192.168.xxx.xxx
Subnet mask: 255.255.0.0

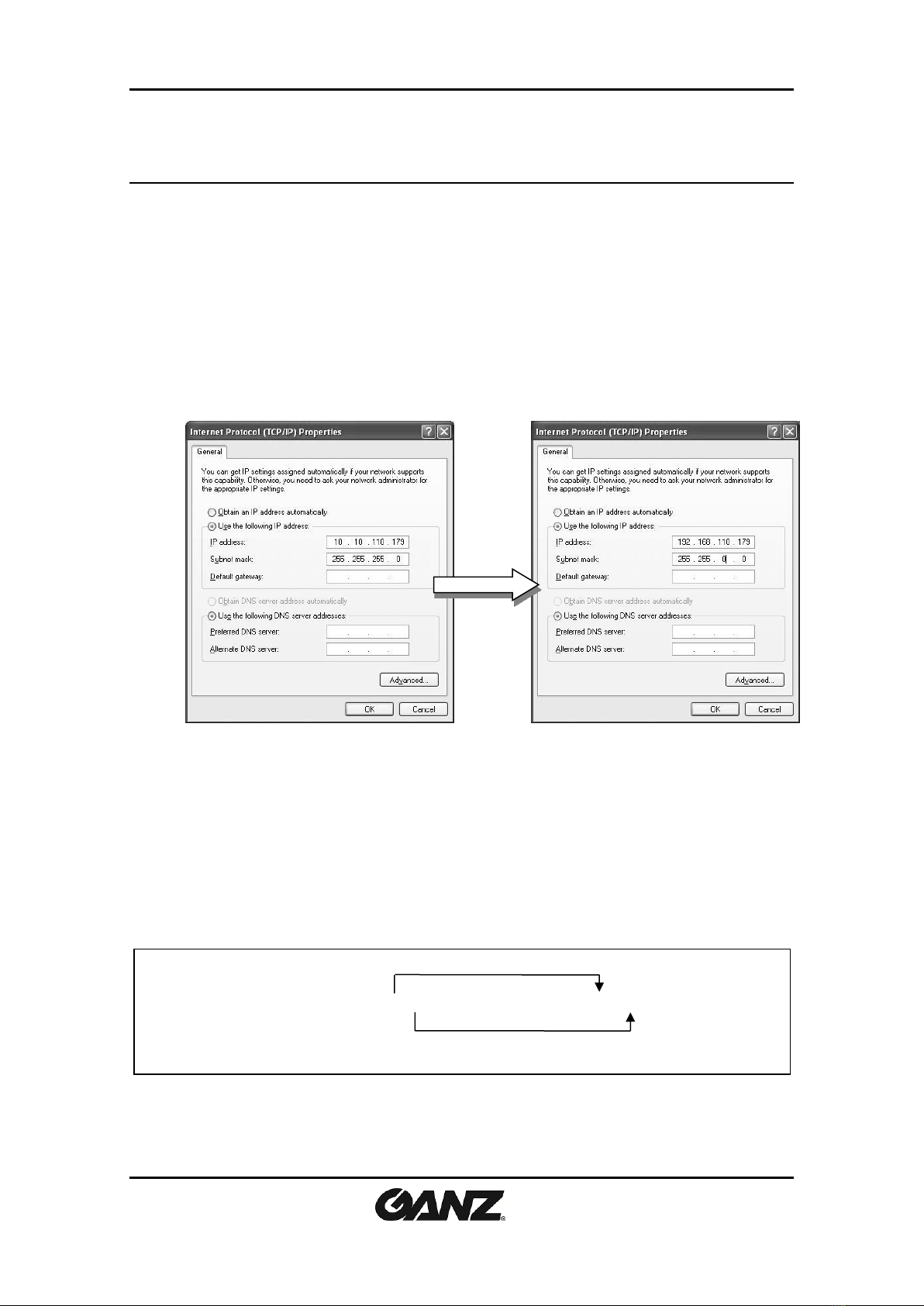

5.1.1. Generic IP Environment
In case of generic private network environment where IP address 192.168.XXX.XXX are used,
users may view the live streaming images on a web page using the device’s default IP address:
1. Convert the device’s MAC address to the IP address. Refer to the Hexadecimal-Decimal
Conversion Chart at the end of the manual.
(The MAC address of the device is attached on the side or bottom of the device.)
2. Start the Microsoft® Internet Explorer web browser and enter the address of the device.
3. Web streaming and device configurations are supported through ActiveX program. When the
ActiveX installation window appears, authorize and install the ActiveX.
MAC address = 00-1C-B8-01-23-45 →IP address = 192.168.35.69
Convert the last two sets of hexadecimal numbers to decimal numbers.

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 13

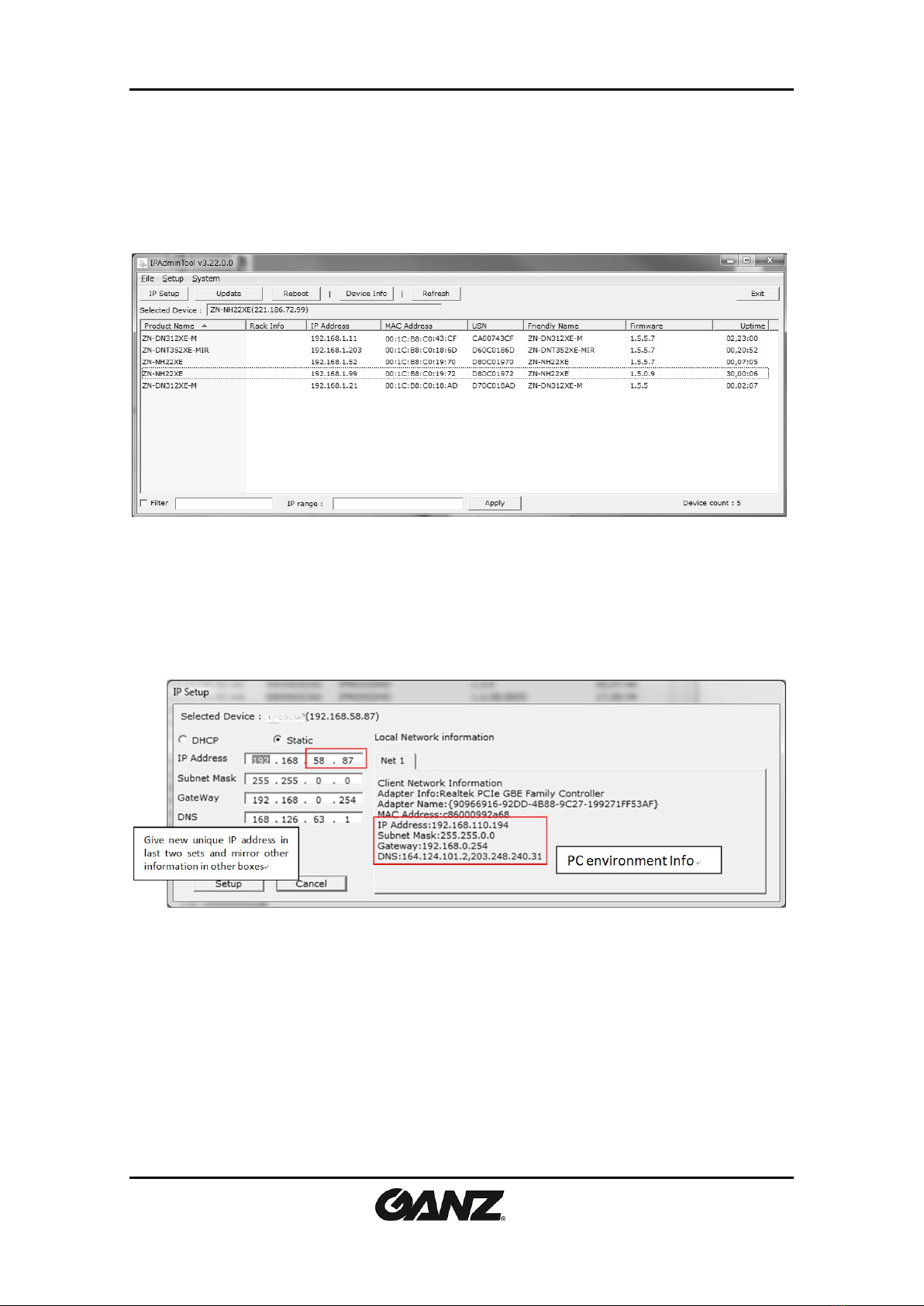

5.1.2. Custom IP Environment
IPAdminTool is a management tool, which automatically scans all of the network products for
users to perform administrative tasks, which includes network configurations, firmware update,
device reboot, and device organizations.
To modify the device’s default IP address for customized network area;
1. Find the device from the IPAdminTool’s list and highlight the device’s name.
2. Right-click the mouse and select “IP Address”; IP Setup window appears.
3. In the IP Setup’s window, information under ‘Local Network information’ displays the
user/PC’s network area information. Those information need to be incorporated to the IP
Address, Subnet Mask, Gateway, and DNS boxes, except the last 2 sets of IP Address, which
are to be the unique numbers for the device. Refer to the image above for the setting
4. Click ‘Setup’ to complete the modification.

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 14
5.2. View video on web page
Once the device’s proper IP address has been identified, type the URL in a web browser to
access the camera. At first time access, installation window may pop up.

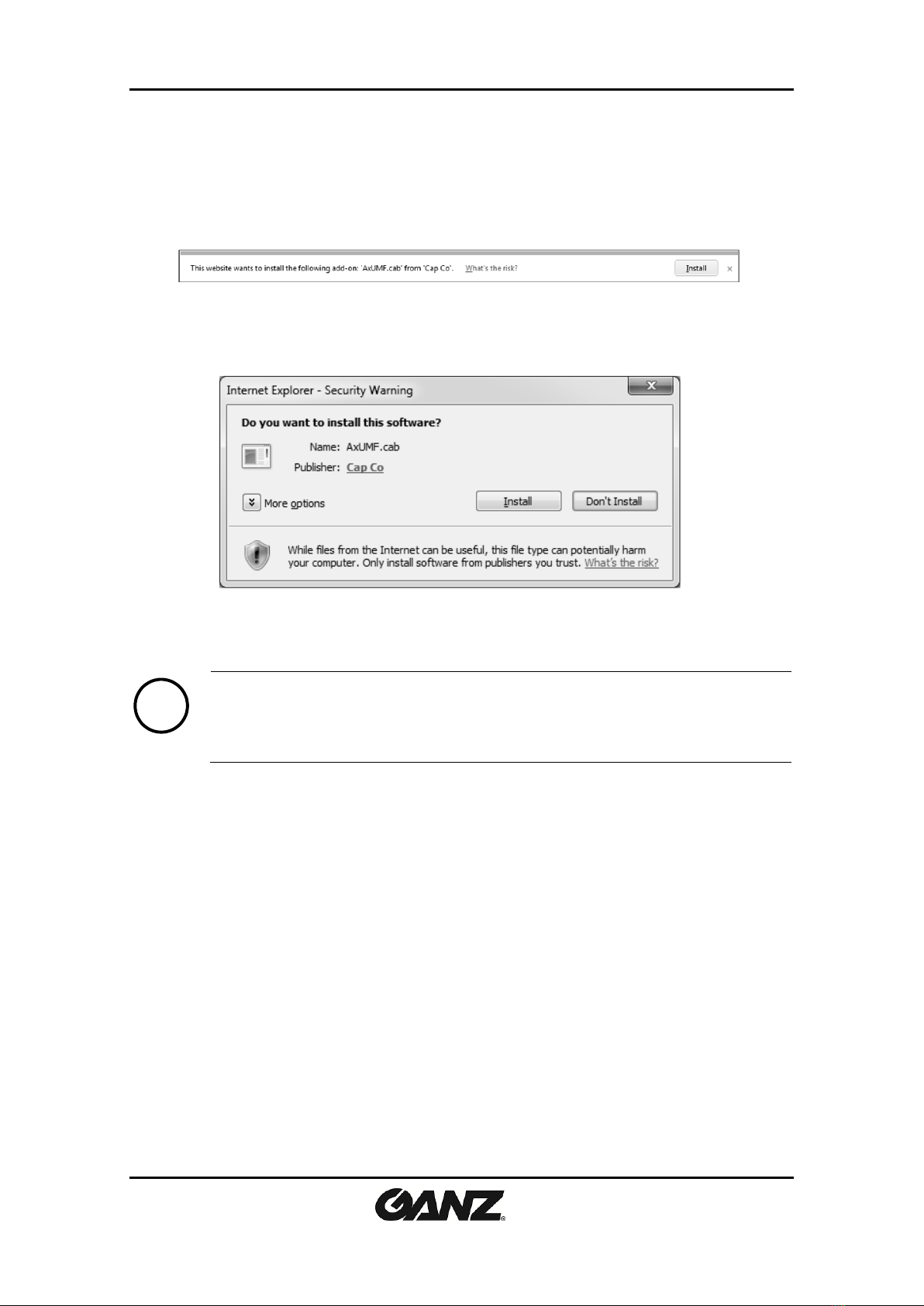

1. When the browser asks to install the AxUMF software, click Install to proceed.
2. When Setup installation pop-up window appears, click install to proceed with rest of
installations.
Depends on system OS and Internet Explorer version, Installation experience may
differ from one another. Figures described above are from Windows 7, Internet
Explorer 9 environment.
Note
i

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 15
Caution
!

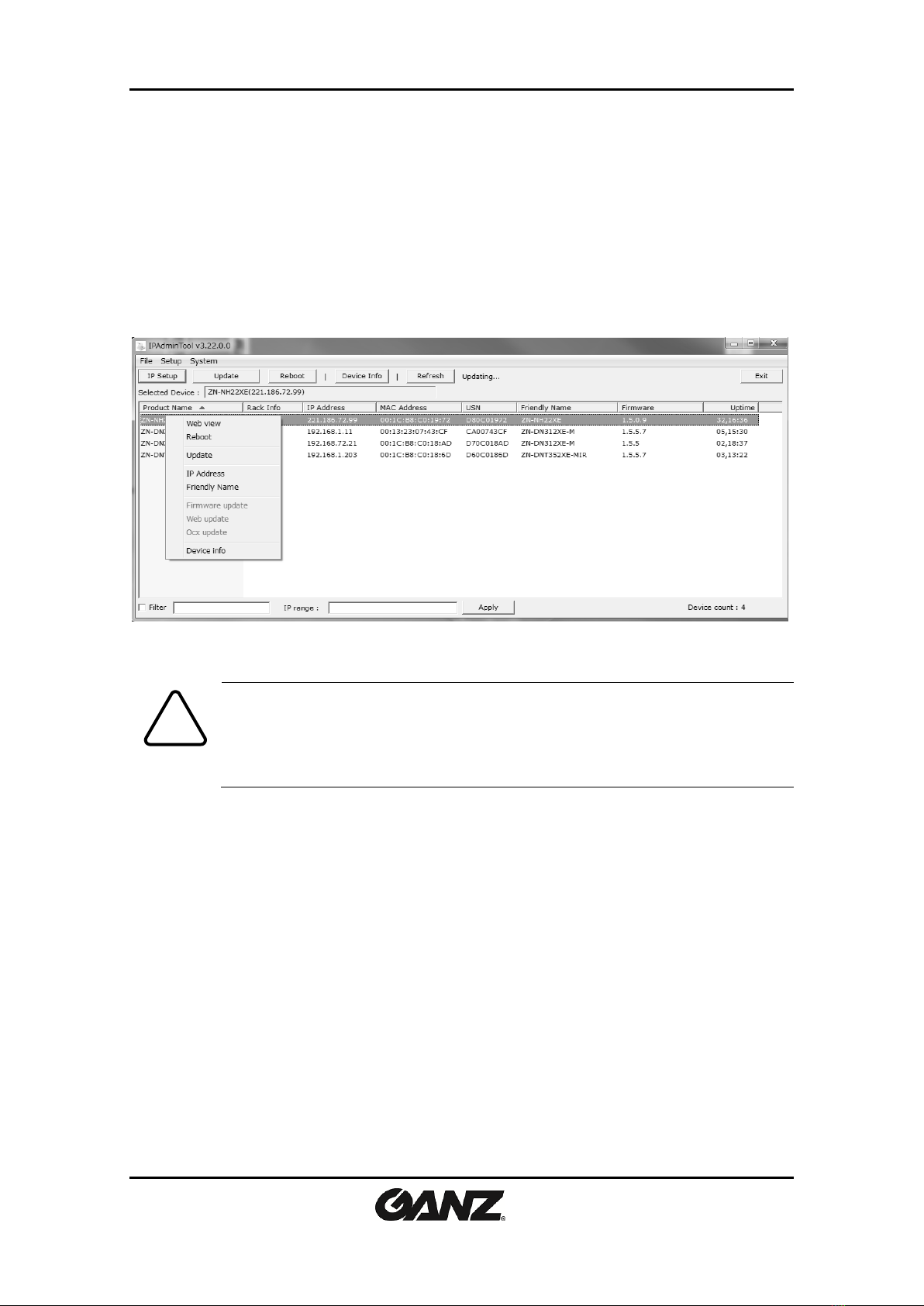

5.2.1. Access through IPAdmin Tool
IPAdminTool automatically searches all activated network encoders and IP cameras and shows
the product name, IP address, MAC address and etc.
1. From the IPAdminTool’s product list, select the device by highlighting it.
2. Right-click the mouse and select web-view
3. The system’s default web browser opens the device’s address.
Whether directly accessing the streaming video through typing IP address on a
web page or taking steps through IPAdminTool, the ActiveX is needed to be
installed for the Microsoft® Internet Explorer to have the complete
configuration privileges.

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 16
5.3. Reset
1. While the device is in use, press the Reset button.
2. Wait for the system to reboot.
5.4. Factory Default
1. Press reset button and hold.
2. Release the Reset button after 5 seconds until LED blinks.
3. Wait for the system to reboot.
The factory default settings can be inferred as follows:
IP address: 192.168.xx.yy
Network mask: 255.255.0.0
Gateway: 192.168.0.1
User ID: root
Password: pass

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 17
6. WALL-MOUNTING
To wall-mount the encoder, follow the instruction below:
1. Designate the position where to install the encoder.
2. Put the mounting brackets into a long groove on each side of the encoder.
3. Mount the encoder using the included screws and anchor blocks by referring to the
image below.

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 18
APPENDIX (A): SPECIFICATIONS
Summary
Video
Input
4 channel
Output
-
Compression Format
H.264, MJPEG Selectable per Stream
Number of Streams
Dual Stream for each channel, Configurable
Resolution
D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA
Compression FPS
25/30 fps@D1 (PAL/NTSC)
Deinterlacing
Support (DSP)
Motion Detection
Support (DSP)
Burnt-in Text (Digital)
Support (DSP)
Audio
Input/output
4 channel / 1 channel(Mixed out)
Compression Format
G.711
Function
Digital Input/output
4 channel / 4 channel
RS-485
4 channel
RS-232
-
Network
10/100 Base-T
Power Over Ethernet
-
Protocol
QoS Layer 3 DiffServ, TCP/IP, UDP/IP, HTTP, HTTPS, RTSP,
RTCP, RTP/UDP, RTP/TCP, mDNS, UPnP™, SMTP, DHCP, DNS,
DynDNS, NTP, SNMPv1/v2c/v3(MIB-II), IGMP, ICMP,
SSLv2/v3, TLSv1
SD slot
4 x MicroSD slot –On board (※SD Card is not included)
(Recommend Class 4 and higher for HD recordings)
Electrical Characteristics
Video Input
1Vp-p, 75Ω
Video Output
1Vp-p, 75Ω
Audio Input
Mic-in, 0.178Vp-p, 10KΩ
Audio Output
Lineout, 2.26Vp-p , 10KΩ
Sensor(D/I)
Max 50mA@5VDC,
Alarm(D/O)
Max 50mA@24VDC
On-state resistance: 50 Ω (max continuous)
Power Source
12VDC
Power Consumption
9W

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 19
Environment Condition
Operating Temperature
0 ºC ~ 50 ºC ( 32ºF ~ 122 ºF)
Operating Humidity
Up to 85% RH
Mechanical Condition
Dimension
137(W) x 38(H) x 243(D) mm
Weight (Approx)
920g

PixelPro GXi Series ZS1-4DS Installation Guide
09-2014-A 20
APPENDIX (B): DIMENSIONS
(Unit: mm)
