Introduction
WARNING
See the Important Safety and Product
Information guide in the product box for
product warnings and other important
information.
Always consult your physician before you
begin or modify any exercise program.

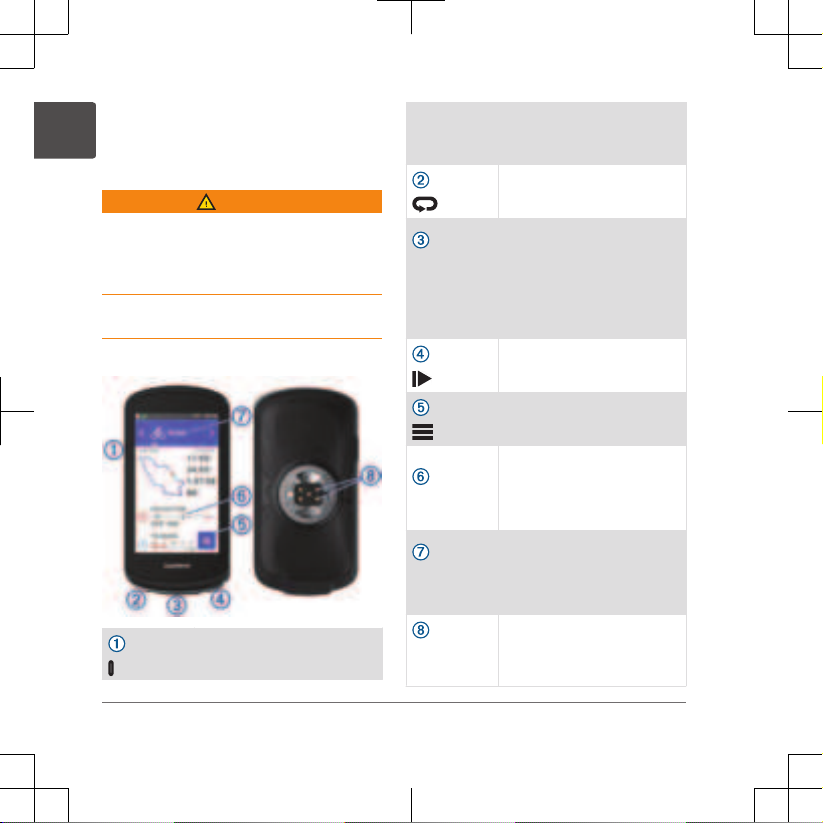

Device Overview
Press to enter sleep mode
and wake the device.
Hold to turn the device on
and off and lock the
touchscreen.
Press to mark a new lap.
USB port
(under
weather
cap)
Lift the weather cap to
charge the device or
connect it to a computer.
Replace the weather cap to
prevent damage to the USB
port.
Press to start and stop the
activity timer.
Select to open the main
menu.
Glances
Swipe up or down to view
the glances.
Select to open the glance
or menu.
Biking
profile
Swipe left or right to
change the biking profile.
Select to open the biking
profile.
Electrical
contacts
Charge using an Edge®
external battery pack
accessory.
2 Quick Start Manual
EN

NOTE: Go to www.buy.garmin.com to
purchase optional accessories.
Pairing Your Phone
To use the connected features of the
Edge device, it must be paired directly
through the Garmin Connect™ app, instead
of from the Bluetooth® settings on your
phone.
1From the app store on your phone,
install and open the Garmin Connect
app.
2Hold to turn on the device.
The first time you turn on the device,
you will select the device language.
The next screen prompts you to pair
with your phone.
3Follow the instructions in the app to
complete the pairing and setup
process.
NOTE: Based on your Garmin Connect
account and accessories, your device
suggests activity profiles and data
fields during setup. If you have
sensors paired with your previous
device, you can transfer them during
setup.
NOTE: Setting up Wi‑Fi® and sleep
mode usage on your device enables
the device to sync with all your data
such as training stats, course
downloads, and software updates.
After you pair successfully, a message
appears, and your device syncs
automatically with your phone.
Installing the Standard Mount
For the best GPS reception, position the
bike mount so the front of the device is
oriented toward the sky. You can install
the bike mount on the stem or the
handlebars.
1Select a secure location to mount the
device where it does not interfere with
the safe operation of your bike.
2Place the rubber disk on the back
of the bike mount.
Two rubber disks are included, and
you can select the disk that best fits
your bike. The rubber tabs align with
the back of the bike mount so it stays
in place.
Quick Start Manual 3
EN

3Place the bike mount on the bike
stem.
4Attach the bike mount securely using
the two bands .
5Align the tabs on the back of the
device with the bike mount notches
.
6Press down slightly and turn the
device clockwise until it locks into
place.
Installing the Out-Front Mount
1Select a secure location to mount the
Edge device where it does not
interfere with the safe operation of
your bike.
2Use the hex key to remove the screw
from the handlebar connector .
3Place the rubber pad around the
handlebar:
•If the handlebar diameter is
25.4 mm, use the thicker pad.
• If the handlebar diameter is
31.8 mm, use the thinner pad.
4Place the handlebar connector around
the rubber pad.
5Replace and tighten the screw.
NOTE: Garmin® recommends
tightening the screw so the mount is
secure, with a maximum torque
4 Quick Start Manual
EN

specification of 7 lbf-in. (0.8 N-m).
You should check the tightness of the
screw periodically.
6Align the tabs on the back of the Edge
device with the bike mount notches
.
7Press down slightly and turn the Edge
device clockwise until it locks into
place.
Going for a Ride
If you are using a wireless sensor or
accessory, it can be paired and activated
during initial setup. If your device was
packaged with a wireless sensor, they are
already paired and can be activated
during initial setup.
1Hold to turn on the device.
2Go outside, and wait while the device
locates satellites.
The satellite bars turn green when the
device is ready.
3From the home screen, select or
to view the biking profiles.
4Select a biking profile.
5Press to start the activity timer.
NOTE: History is recorded only while
the activity timer is running.
6Swipe left or right to view additional
data screens.
You can swipe down from the top of
the data screens to view the widgets.
Quick Start Manual 5
EN

7If necessary, tap the screen to view
status overlay data (including battery
life) or return to the home screen.
8Press to stop the activity timer.
TIP: Before you save this ride and
share it on your Garmin Connect
account, you can change the ride
type. Accurate ride type data is
important for creating bike friendly
courses.
9Select Save.
10 Select .
Viewing Widgets
Your device is preloaded with several
widgets, and more are available when you
pair your device with a phone or other
compatible device.

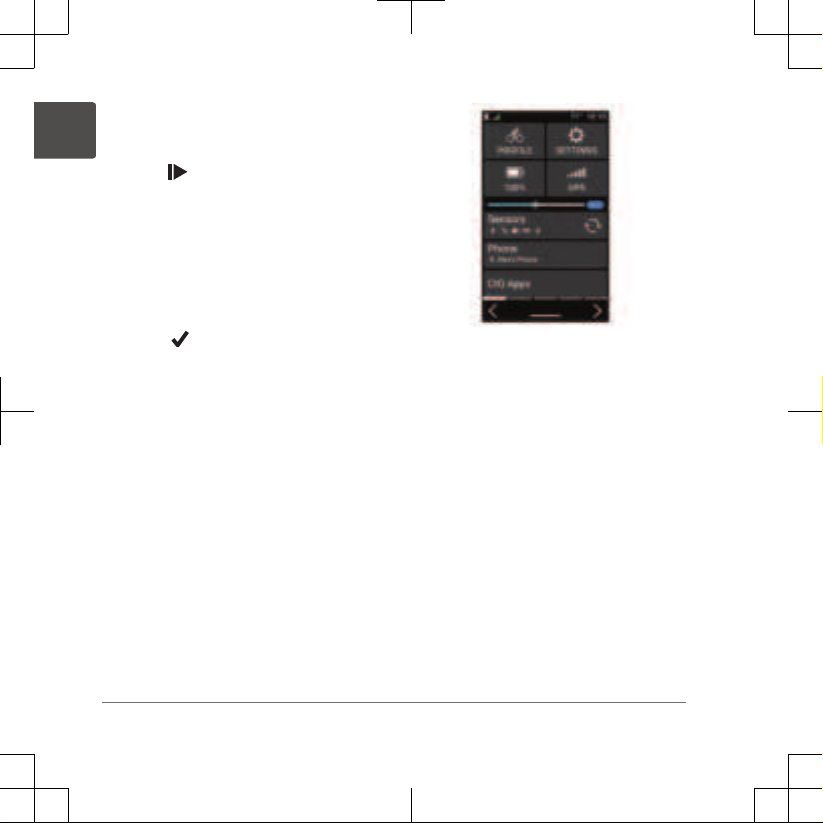

1From the home screen, swipe down
from the top of the screen.
The settings widget appears. A
flashing icon means the device is
searching for a signal. A solid icon
means the signal was found or the
sensor is connected. You can select
any icon to change the settings.
2Swipe left or right to view more
widgets.
Viewing Glances
Glances provide quick access to health
data, activity information, built-in
sensors, and more.
• From the home screen, swipe up or
down.
The device scrolls through the
glances (page 2).
6 Quick Start Manual
EN

• Select a glance to view additional
information.
• Select to customize the glances.
Bluetooth Connected Features
The Edge device has several Bluetooth
connected features for your compatible
phone using the Garmin Connect and
Connect IQ™ apps. Go to
www.garmin.com/apps for more
information.
Activity uploads to Garmin Connect:
Automatically sends your activity to
Garmin Connect as soon as you finish
recording the activity.
Audio prompts: Allows the Garmin
Connect app to play status
announcements on your phone during
a ride.
Connect IQ downloadable features:
Allows you to download Connect IQ
features from the Connect IQ app.
Course, segment, and workout
downloads from Garmin Connect:
Allows you to search for activities on
Garmin Connect using your phone and
send them to your device.
Find my Edge: Locates your lost Edge
device that is paired with your phone
and currently within range.
Messages: Allows you to reply to an
incoming call or text message with a
preset text message. This feature is
available with compatible Android™
phones.
Notifications: Displays phone
notifications and messages on your
device.
Safety and tracking features: (page 7)
Social media interactions: Allows you to
post an update to your favorite social
media website when you upload an
activity to Garmin Connect.
Weather updates: Sends real-time
weather conditions and alerts to your
device.
Safety and Tracking Features
CAUTION
The safety and tracking features are
supplemental features and should not be
relied on as a primary method to obtain
emergency assistance. The Garmin
Connect app does not contact emergency
services on your behalf.
The Edge 1040 device has safety and
tracking features that must be set up with
the Garmin Connect app.
Quick Start Manual 7
EN

NOTICE
To use these features, the Edge 1040
device must have GPS enabled and be
connected to the Garmin Connect app
using Bluetooth technology. You can
enter emergency contacts in your Garmin
Connect account.
For more information, see your owner's
manual.
Assistance: Allows you to send a
message with your name, LiveTrack
link, and GPS location (if available) to
your emergency contacts.
Incident detection: When the Edge 1040
device detects an incident during
certain outdoor activities, the device
sends an automated message,
LiveTrack link, and GPS location (if
available) to your emergency
contacts.
LiveTrack: Allows friends and family to
follow your races and training
activities in real time. You can invite
followers using email or social media,
allowing them to view your live data
on a web page.
Live Event Sharing: Allows you to send
messages to friends and family
during an event, providing real-time
updates.
NOTE: This feature is available only if
your device is connected to a
compatible Android phone.
GroupTrack: Allows you to keep track of
your connections using LiveTrack
directly on screen and in real time.
Wireless Sensors
Your device can be used with wireless
ANT+® or Bluetooth sensors. For more
information about compatibility and
purchasing optional sensors, go to
buy.garmin.com.
Putting On the Heart Rate Monitor
NOTE: If you do not have a heart rate
monitor, you can skip this task.
You should wear the heart rate monitor
directly on your skin, just below your
sternum. It should be snug enough to
stay in place during your activity.

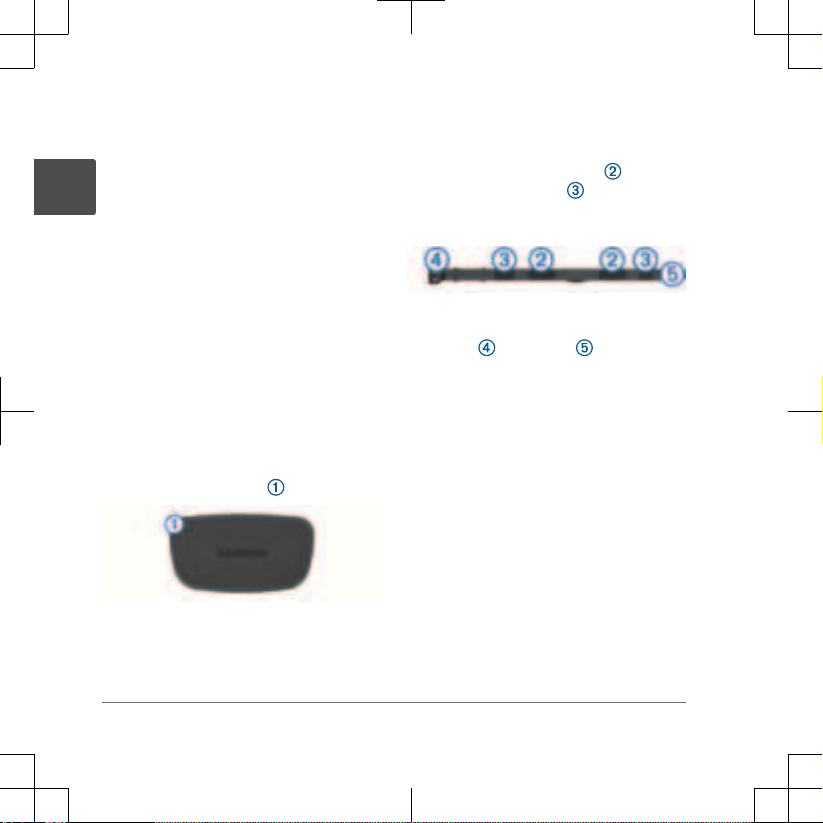

1Snap the heart rate monitor module
onto the strap.
8 Quick Start Manual
EN

The Garmin logos on the module and
the strap should be right-side up.
2Wet the electrodes and the contact
patches on the back of the strap to
create a strong connection between
your chest and the transmitter.
3Wrap the strap around your chest, and
connect the strap hook to the loop
.
NOTE: The care tag should not fold
over.
The Garmin logos should be right-side
up.
4Bring the device within 3 m (10 ft.) of
the heart rate monitor.
After you put on the heart rate monitor, it
is active and sending data.
Installing the Cadence Sensor
NOTE: If you do not have this sensor, you
can skip this task.
TIP: Garmin recommends you secure
your bike on a stand while installing the
sensor.
1Select the band size that fits your
crank arm securely.
The band you select should be the
smallest one that stretches across
the crank arm.

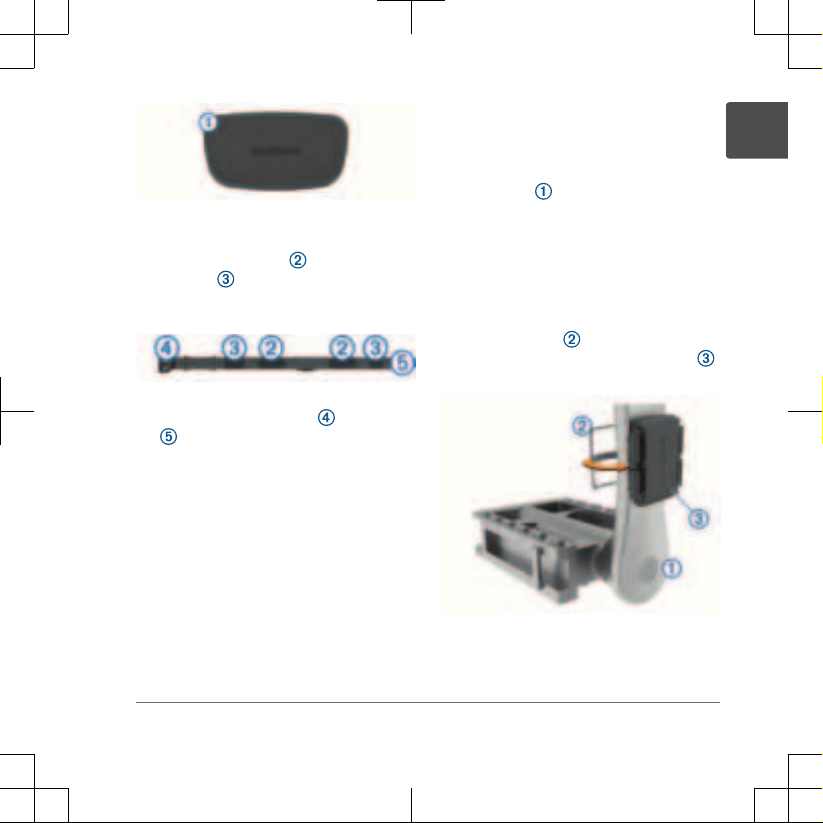

2On the non-drive side, place and hold
the flat side of the cadence sensor on
the inside of the crank arm.
3Pull the bands around the crank
arm, and attach them to the hooks
on the sensor.
4Rotate the crank arm to check for
clearance.
Quick Start Manual 9
EN

The sensor and bands should not
contact any part of your bike or shoe.
NOTE: The LED flashes green for five
seconds to indicate activity after two
revolutions.
5Take a 15 minute test ride and
inspect the sensor and bands to
ensure there is no evidence of
damage.
Installing the Speed Sensor
NOTE: If you do not have this sensor, you
can skip this task.
TIP: Garmin recommends you secure
your bike on a stand while installing the
sensor.
1Place and hold the speed sensor on
top of the wheel hub.
2Pull the strap around the wheel
hub, and attach it to the hook on
the sensor.
The sensor may be tilted when
installed on an asymmetrical hub.
This does not affect operation.
3Rotate the wheel to check for
clearance.
The sensor should not contact other
parts of your bike.
NOTE: The LED flashes green for five
seconds to indicate activity after two
revolutions.
Device Information
Charging the Device
NOTICE
To prevent corrosion, thoroughly dry the
USB port, the weather cap, and the
10 Quick Start Manual
EN
