Gastroback 42601 User manual

Operating Instructions
Design Coffee Grinder Basic
GASTROBACK®
Art.-Nr. 42601 Read all provided instructions before first usage!
Model and attachments are subject to change
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 14

15
Important Instructions
•WARNING: Never leave the appliance unattended when in operational mode.
•WARNING: To avoid injury to persons and damage, always unplug the appilance
and wait for the motor to stop completely, immediately after use and before
assembling /disassembling or cleaning. Never use force operating, assembling
or disassembling the appliance.
•WARNING: If the grinding bowl is locked on the motor housing, and the plug
is connected to the power outlet, do not insert your fingers, a wooden or plastic
spoon or similar cooking utensils or foreign substances.
•NOTE: The appliance has a circuit breaker. If the grinding bowl and the lid are
not in proper position you can not turn the appliance on. Never touch the grinding
gear when the plug is connected to the power outlet.
•WARNING: Do not overfill the grinding bowl. Pay attention to the max fill mark
(´12`) inside the grinding bowl.
•The coffee grinder will not grind food that is sticky or extremely hard i. e. chocolate,
cheese, whole nutmeg, candied fruits, etc.
•The coffee grinder will not make pastes of any fruits, seeds or herbs ie. curry
pastes, nut batters.
•Do not move the appliance while operating to avoid personal injury.
•Do not operate this appliance for longer than 1 minute at a time as this could
cause overheating. Allow to cool for a few minutes after each use. Allow appliance to
cool down for 10-15 minutes after extended continuous operation.
•CAUTION: DO NOT clean the motor housing with running water. Water will
damage the motor housing and units might rust.
•CAUTION: DO NOT place the appliance or any parts of it in an automatic
dishwasher.
• The appliance is for household only.
Carefully read all provided instructions before you start running the
appliance and pay regard to the warnings mentioned in these
instructions.
!
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 15

Important Safeguards
Carefully read all instructions before operating and save the instructions for further
reference. Do not attempt to use this appliance for any other than the intended
use, described in these instructions. Any other use, especially misuse, can cause severe
injury or damage by electric shock, fire or moving mechanical parts. These instruction is
an essential part of the appliance. When passing on the appliance to a third person,
ensure to include these instructions. Never leave the appliance unattended
when in operational mode.
Any operation, repair and technical maintenance of the appliance or any part of it
other than described in these instructions may only be performed at an authorised
service centre. Please contact your vendor.
Safeguards for Daily Operation
• The appliance is designed for normal household quantities. Do not operate or
store the appliance outdoors or in damp or wet areas.
•Do not attempt to operate the appliance using any parts or accessories
not recommended by the manufacturer (i.e. grinding bowl). Do not operate the
appliance, when the appliance or any part of it is likely to be damaged, to avoid
risk of fire, electric shock or any other damage or injury to persons. Do not attempt
to open the motor housing or to repair the power cord. Check the entire appliance
regularly for proper operation. The appliance is likely to be damaged if the appliance was
subject of strain (i.e. overheating, mechanical, or electric shock) or if there are any cracks,
excessively frayed parts, distortions or the motor stalls or stucks. In this case, immediately
unplug the appliance and return the entire appliance (including all parts and
accessories) to an authorised service centre for examination and repair.
•Close supervision is necessary when the appliance is used near young children.
Do not let young children play with any parts of the appliance or the packaging.
The appliance is NOT intended for use by children or infirm persons without supervision.
Take care that no one will pull the appliance by the power cord, especially when
young children are near.
• Always place the appliance on a clean, dry and stable surface where it is protected
from inadmissible strain (i.e. mechanical or electric shock, overheating, frost, moisture)
and where young children cannot reach it.
•Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
Do not place the appliance or any part of it on or near hot surfaces (heater, gas burner,
grill, or oven). Do not place the appliance near the edge of the surfaces on a slope
or wet surfaces or where it can fall. Keep the entire appliance away from direct sunlight
and sharp edges. Ensure the grinding bowl is locked securely onto the motor housing
16
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 16

and that you can not knock the appliance over during operation to avoid personal injury.
•Do not use the appliance on metal surface, for example, a sink drain board.
•Do not lift, pull or carry the appliance by the power cord. To move or operate
the appliance, always grasp the motor housing and ensure the appliance is turned off.
•The appliance has a circuit breaker. If the grinding bowl and the lid are not in
proper position you can not turn the appliance on.
•Do not operate this appliance for longer than 1 minute at a time as this could
cause overheating. Allow to cool for a few minutes after each use. Allow appliance to
cool down for 10-15 minutes after extended continuous operation.
•Never leave the appliance unattended when the plug is connected to the power
outlet. Always IMMEDIATELY unplug the appliance and wait for the motor to stop
completely, if the appliance is not in use (even for a short break) and before assembling
/disassembling or cleaning.
•Do not immerse the motor housing or power cord in water or any other liquid.
Do not pour or drip any liquids on the motor housing or power cord. When liquids
are spilled on the motor housing, immediately unplug the appliance and dry the
motor housing to avoid risk of electric shock or fire. Do not attempt to operate the
appliance, when liquids are on or in the motor housing.
•Do not place the motor housing in an automatic dishwasher!
•To avoid damage, do not use any abrasive cleaners, corrosive chemicals
(i.e. disinfectants, bleach) or cleaning pads for operation or cleaning. Do not use
any hard or sharp utensils for operation or cleaning. Always handle the entire
appliance and all parts of it with care and without violence.
•Do not use the appliance if it is damaged or units of the appliance are damaged.
Do not use the appliance if it does not function properly or if it was excessively
loaded. The appliance is likely damaged if the appliance or units of the appliance
show cracks, exorbitant wearing down, alterations or leaks. It is also likely damaged if the
grinding gear of the motor housing moves slowly. Take the appliance for technical
maintenance and repair to an authorised specialised reparation shop.
•WARNING: Do not overfill the grinding bowl to avoid overheating.
•Do not grind food that is sticky or extremely hard i. e. chocolate, cheese, whole
nutmeg, candied fruits, etc. to avoid that the motor stalls or stucks during operation. In
this case turn the appliance ´OFF` to avoid overheating.
•Keep the appliance clean. Follow cleaning instructions provided in this book.
17
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 17

Movable units – risk of injury
•Always unplug the appliance and wait for the motor to stop moving before taking
the grinding bowl off the motor housing or taking off the lid. Never leave the appliance
plugged in when not in use.
•Never put your hands, wooden spoons or other foreign substance (such as hair,
cloth, brush, towels) into the grinding bowl when the grinding bowl is assembled or the
appliance is connected to the power outlet.
•Only store the appliance completely assembled. This way all the parts of the
appliance are protected.
•NOTE: Ensure the appliance is properly assembled before putting the plug into the
power outlet. The appliance only operates with the lid in locked position. If any foreign
substance blocks the blade turn the appliance ´OFF` by pressing the start-/stop-button to
avoid overheating. Never touch the blade when the plug is connected to the power outlet.
Take the appliance to an authorised service centre for examination and repair.
Important Safeguards for all Electrical Appliances
•Always operate the appliance near a suitable wall power outlet and connect the appliance
directly to the power outlet. Do not use any extension cords or a multiple desk outlet.
•Ensure that the voltage rating of your mains power supply corresponds to the voltage
requirements of the appliance (220/230 V, 50 Hz, AC). Always connect the appliance
directly to a mains power supply wall socket with protective conductor (earth/ground)
connected properly. The installation of a residual current safety switch with a maximum
rated residual operating current of 30 mA in the supplying electrical circuit is strongly
recommended. If in doubt, contact your local electrician for further information.
•Do not leave the appliance unattended while connected to the
power supply. Always immediately unplug the appliance after operation and if
it is not in use (even for a short break) and before cleaning and/or assembling or
disassembling. Always grasp the plug to disconnect the appliance from the power outlet.
•Always handle the power cord with care. Do not pull or strain the power cord.
The power cord may never be knotted or squeezed. Always unwind the cord fully
before use. Do not let the power cord hang over the edge of the table or counter.
Take care not to entangle in the power cord. Do not touch the appliance, with wet
hands, to avoid risk of electric shock. Do not touch the appliance, if it is damp or
touching a wet surface, while connected to the mains power supply. In this case,
immediately unplug the appliance and dry the appliance (see ‘Care and Cleaning’).
•Do not immerse the motor or power cord in any liquids or spill any liquids on it or
place the motor on wet surfaces. Never let any liquids run into the motor housing or
18
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 18

underneath it to avoid electric shock. When liquids are spilled on the motor housing,
immediately unplug the appliance and dry the motor housing to avoid risk of electric
shock or fire. Do not attempt to operate the appliance, when liquids are on or in
the motor housing.
19
Get to know your Coffee Grinder
Transparent lid
grind selector
control with 5
fineness settings
Touch activated
on/off button
Advanced intelligent
timer
- set the timer
selecting your needed
amount of cups (min.
2 to max. 12 cups)
Stainless steel
motor housing
Removeable
easy clean bowl for
up to 90 g
coffee beans
Tidy cord storage on the
back of the appliance
Non-slip feet
Winding wheel for cord
storage
Stainless steel blade system
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 19

Operating
Before first use
After unpacking, remove all promotional and packing materials as well as any foreign objects.
Operate the appliance on a well accessible, stable, level, dry, and suitable large surface.
WARNING: Do not leave young children play with the appliance or any part of it or
the packing material.
Before first use and after a long period of storage, clean the appliance with a damp soft
cloth and warm soapy water (see ‘Care and Cleaning`). Dry all parts thoroughly.
Assembling the appliance
Before each use, ensure grinding bowl is empty and all parts are clean.

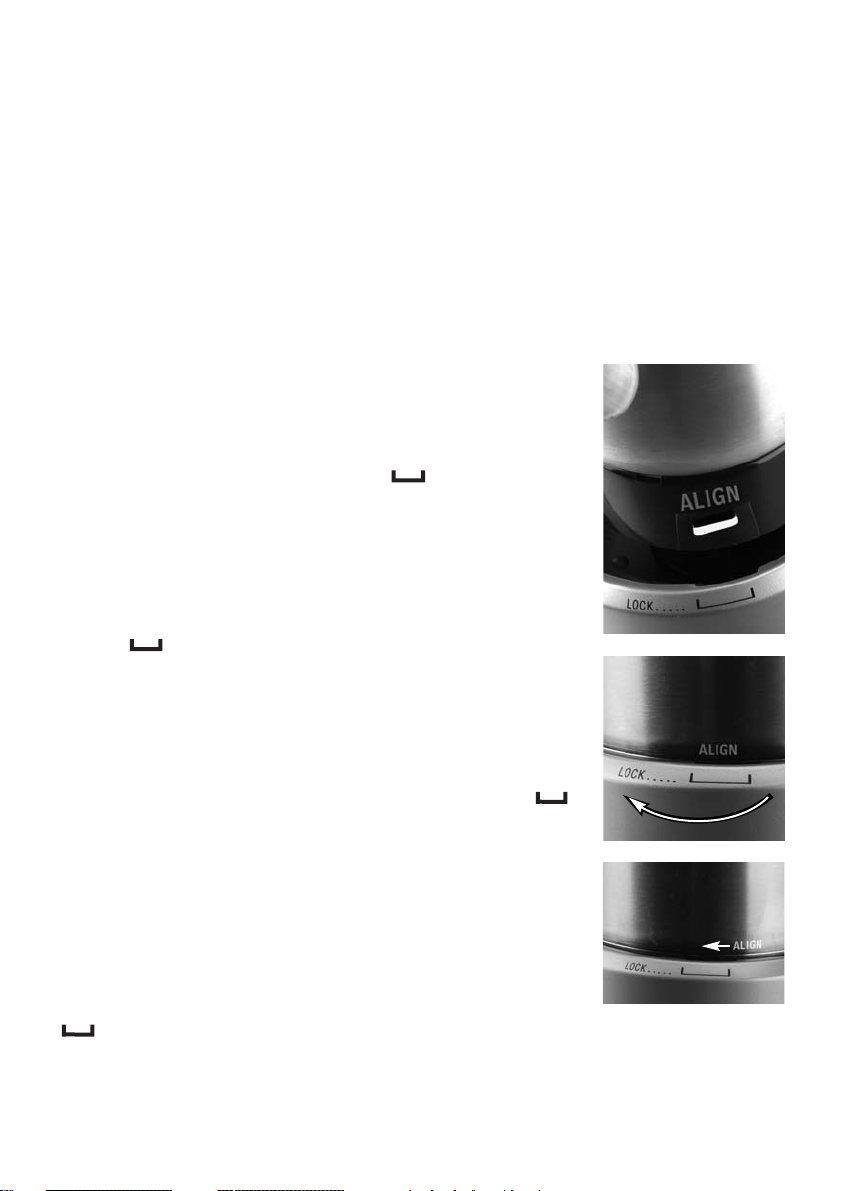

1. Assembling the grinding bowl look out for the align symbol
on the grinding bowl and the marking on top of the motor
housing (picture A). Underneath the align symbol of the
grinding bowl there is one of three guiding pins. On top of
the motor housing you will find the matching cannelure.
Attaching the grinding bowl ensure the guiding pin
underneath the align symbol fits into the cannelure above the
marking (picture A).
Turn the grinding bowl clockwise (direction LOCK) until it is
locked. You will hear a clicking sound when locked in posi-
tion.
2. Place the lid onto the grinding bowl. Attaching the lid pay
attention to the align symbol of the lid and the marking on
top of the motor housing. There is one of three guiding pins left
sided underneath the align symbol of the lid. You will find the
matching cannelure on top of the motor housing.
Attaching the lid ensure the guiding pin left sided underneath
the align symbol fits into the cannelure above the marking.
Turn the lid clockwise (direction LOCK) until the lid is locked
in position. The align symbol will be right above the marking
when the lid is locked in position (picture C).
NOTE: The coffee grinder will not operate without the lid and grinding bowl in
locked position.
20
C
A
B
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 20

Directions for use
Always keep the working area dry and clean.
WARNING: Do not pour or drip any liquids on the motor housing or power cord.
When liquids are spilled on the motor housing, immediately unplug the appliance
and dry the motor housing to avoid risk of electric shock or fire. Do not attempt to
operate the appliance, when liquids are on or in the motor housing. Take the appliance
to an authorised service centre for examination and repair.
1. Pour whole coffee beans directly into removable grinding bowl and fill to desired
level as indicated inside the bowl. (Min 2 cups – Max 12 cups).
WARNING: Do not overfill the grinding bowl to prevent overloading. Pay attention to the max
fill mark (´12`) inside the grinding bowl (picture D).
WARNING: If the grinding bowl is positioned on the motor housing, and the plug is
connected to the power outlet, do not insert your fingers, a wooden or plastic spoon or
similar cooking utensils or foreign substances in the grinding bowl.
2. Return the lid to locked position over the removable
grinding bowl. Make sure the align symbol on the lid is
aligned with the marking on top of the motor housing. Turn
the lid clockwise to lock in position. Refer to ´Assembling the
appliance` for precise instructions.
NOTE: The coffee grinder will not operate without the lid and
grinding bowl in locked position.
3. Rotate the grind selector control to select the desired fineness
of grind. Rotating from left to right, coarse to finer (picture E).
Refer to ´Grind Selector Control` for tips on grinding finenesse.
4. The appliance features an intelligent timer. Selecting the amount
of cups you need the precision timer will be set (picture F).
NOTE: The grinding time depends on the desired finenesse
selected and amount of cups needed.
Position the advanced intelligent timer to the total number of cups
to be ground. Slide up and down from 2 cups to 12 cups.
5. Slowly release the power plug from the storage position by
pulling outward until it stops. Insert the power plug into a
230/240v power outlet. The appliance is now ready to operate.
D
E
21
F
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 21

6. Press on/off button and release once grinding has begun. The grinder will stop
automatically when grinding is complete.
NOTE: To stop grinding cycle at any time, push on/off button. If on/off button is
pressed again, grinder will start from beginning of timed cycle.
NOTE: Only take the lid off when the blade stopped moving.
ATTENTION: Do not operate this appliance for longer than 1 minute at a time as
this could cause overheating. Allow to cool for at least a few minutes after each use.
Allow appliance to cool down for 10-15 minutes after extended continuous operation.
7. After grinding is completed remove the plug from the power
outlet.
8. Remove the lid by turning counterclockwise to unlock
position, lift straight up.
9. Twist the removable grinding bowl counterclockwise to
unlock position and lift straight up (picture G). You will hear a
clicking sound when the grinding bowl is unlocked. Empty
ground coffee into an airtight container for use and storage.
ATTENTION: Do not use force when the blade stocks or stalls. Foreign substance
might be wedged in the blade. Turn the appliance ´OFF`, unplug the appliance and
clean the appliance according to the instructions ´Care and Cleaning`. Try to put the
appliance back to operation. If the blade is still not running take the appliance for
technical maintenance and repair to an authorised specialised reparation shop.
10. Clean the coffee grinder and rewind the cord. To rewind cord: turn base clockwise,
using either the interior finger grips or the outside of the base.
Grind Selector Control
With the different settings on the grind selector control you have influence on the coffee
you will get. You can choose the desired fineness of grind on the grind selector control.
You will find the grind selection in the following chart:
• Coarse: coarse grained - for coffee in a percolator
• First mark: medium grained - for coffee in a plunger
• Second mark: fine grained- for filter coffee
• Third mark: extra fine grained- for espresso, latte machiato, cappuccino
• Fine: super fine grained- for turkish coffee
22
G
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 22

Tips for the preparation
Getting a great tasting delicious coffee is a process that is influenced by several
changeable components. For example: the sort of coffee that is used, the consistency
and fineness of the coffee powder and the amount of coffee powder that is used.
Using a manual espresso machine it also depends on the pressure (minimum 15 bar),
amount and temperature of the water and the pressure with which the powder is
pressed into the filter. In general you should pay attention to the following:
•For best flavour, store coffee beans in an airtight container.
•Grind coffee beans immediately before brewing.
•The strongness of the coffee depends on the grind fineness and the amount of
coffee powder. The finer the coffee powder and the more coffee powder is used
the stronger the taste and the more caffeine you will get.
• Coffee flavour and strength is a personal preference. Vary the type of coffee
beans, amount of coffee and fineness of grind to find the flavour you prefer.
Tips for making espresso
• The coffee must be finely ground, but not too fine (the correct grind should look
gritty, like salt or sand).
• If the grind is too fine, the water, when brewing, will not flow through the coffee
even under pressure (this grind looks like powder and feels like flour when
rubbed between fingers).
• If the grind is too coarse, the water, when brewing, will flow too fast through the
coffee, preventing a full flavoured extraction.
IMPORTANT: Do not overload the motor with food that is oversized or too hard. Turn
the appliance ´OFF` as soon as the motor stalls or stucks to avoid overheating of the motor.
Care and Cleaning
WARNING: To avoid injury to persons and damage, always unplug the appliance and
wait for the motor to stop completely, immediately after operation and before assembling
/disassembling or cleaning the appliance.
ATTENTION: Do not use abrasive cleaners, cleaning pads, corrosive chemicals (disinfectants,
bleach) or any sharp or hard objects (i.e. metal scouring pads) for cleaning, for this could
damage the surfaces. Always handle the entire appliance with care and without violence.
1. Unplug the appliance from the power outlet before cleaning and take the lid off the
grinding bowl turning it counterclockwise. Lift the lid straight up.
2. Remove grinding bowl by turning it counterclockwise, then lift straight up. You
will hear a clicking sound when the grinding bowl is unlocked.
23
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 23

3. The lid and removable grinding bowl should be washed in warm soapy water,
rinsed and dried thoroughly.
4. Polish with a soft, dry cloth. Do not use abrasives. When the units are dry assemble
the appliance for storage or usage.
ATTENTION: Do not place any parts of the appliance in an automatic dishwasher.
Cleaning the motor housing
WARNING: Do not place the appliance or any parts of it in an automatic dishwasher or
pour boiling water over it. Do not immerse the motor or power cord in any liquids or spill any
liquids on it or place the motor on wet surfaces. Always wipe off spilled liquids imme-
diately. When liquids are spilled on the motor housing, immediately unplug the
appliance and dry the motor housing to avoid risk of electric shock or fire. Do not
attempt to operate the appliance, when liquids are on or in the motor housing.
1. Always unplug the appliance from the power outlet before you start cleaning the
motor housing.
2. Wipe the motor housing and power cord with a damp soft cloth. Take care not
to spill or drip water or any other liquids on the motor housing.
ATTENTION: Ensure not to damage the Grinding Gear. Never poke with anything
into the motor housing. If necessary use a soft brush for cleaning. If any liquids run into
the motor housing clean and dry the motor housing very carefully.
3. Thoroughly dry the motor housing after each cleaning or leave it dry naturally where it is
out of reach of young children. Polish with a soft, dry cloth. Afterwards assemble the appliance.
WARNING: Return the entire appliance (including all parts and accessories) to an
authorised service centre for examination and repair.
Storage
Always clean the appliance before storing (see ‘Care and Cleaning’). Ensure to
store the appliance where it is clean, dry and safe from frost, direct sunlight and
inadmissible strain (mechanical or electric shock, heat, moisture) and where it is out
of reach of young children. Place the appliance on a clean and stable surface,
where it can not fall. Do not place any hard or heavy objects on the appliance.
Waste disposal
The appliance has to be deposed by the definition of the regional waste disposal of
electricalscrap. If necessary get information of the regional waste management enterprise.
24
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 24

Warranty
We guarantee that all our products are free of defects at the time of purchase. Any
demonstrable manufacturing or material defects will be to the exclusion of any further
claim and within 2 years after purchasing the appliance free of charge repaired or
substituted. There is no Warranty claim of the purchaser if the damage or
defect of the appliance is caused by inappropriate treatment, over loading or
installation mistakes. The Warranty claim expires if there is any technical interference of
a third party without an written agreement. The purchaser has to present the sales
slip in assertion-of-claims and has to bear all charges of costs and risk of the transport.
25
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 25

GASTROBACK GmbH
Gewerbestraße 20 • D-21279 Hollenstedt/Germany
http://www.gastroback.de • E-Mail: [email protected]
42601_Kaffee_Manual.qxd 01.11.2007 12:20 Uhr Seite 28
