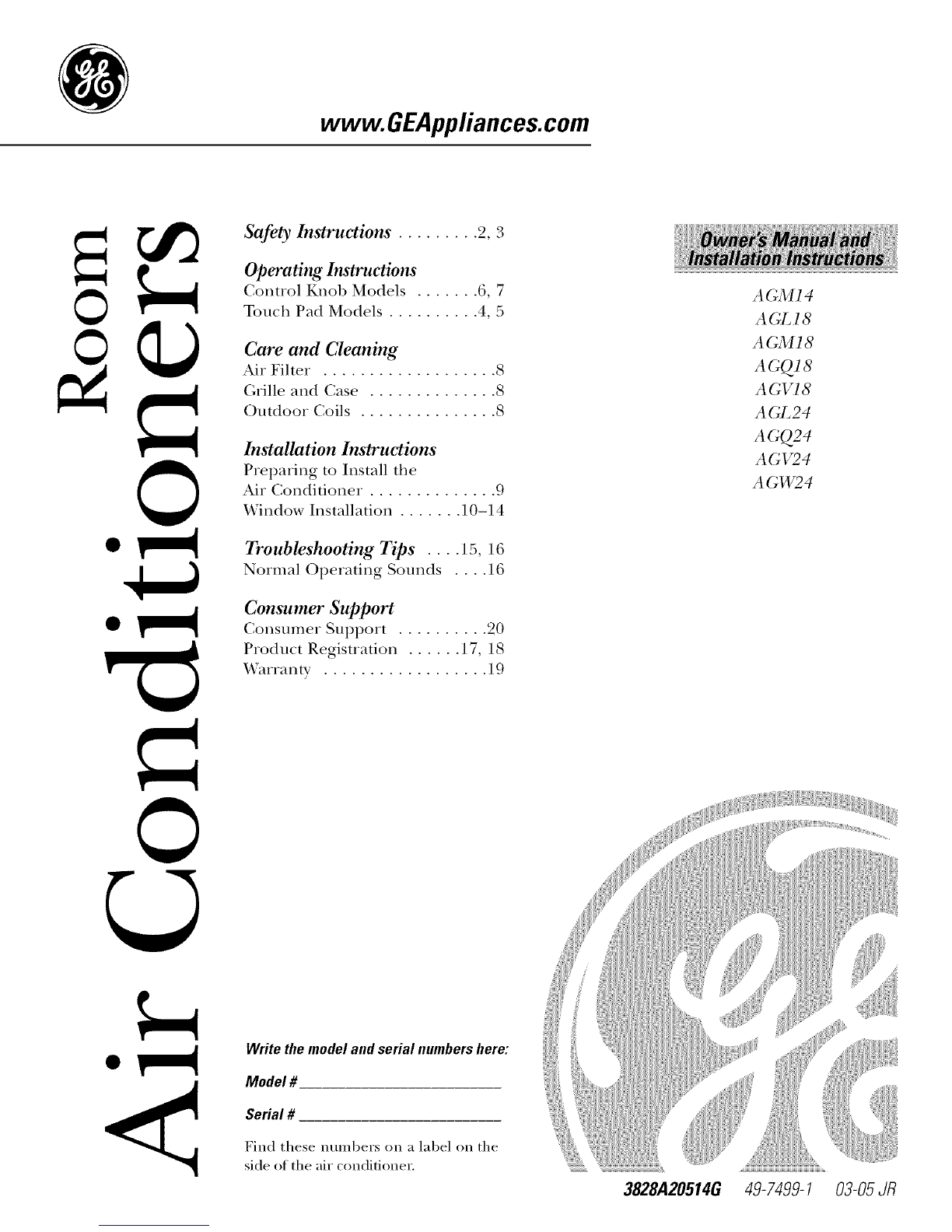

GE AGM14 Original instructions

www.GEAppfiances.com
©
©
Safety Instruc_tions ......... 2, 3
Operating Instructions
Control Knob Models ....... 6, 7
Touch Pad Models .......... 4, 5

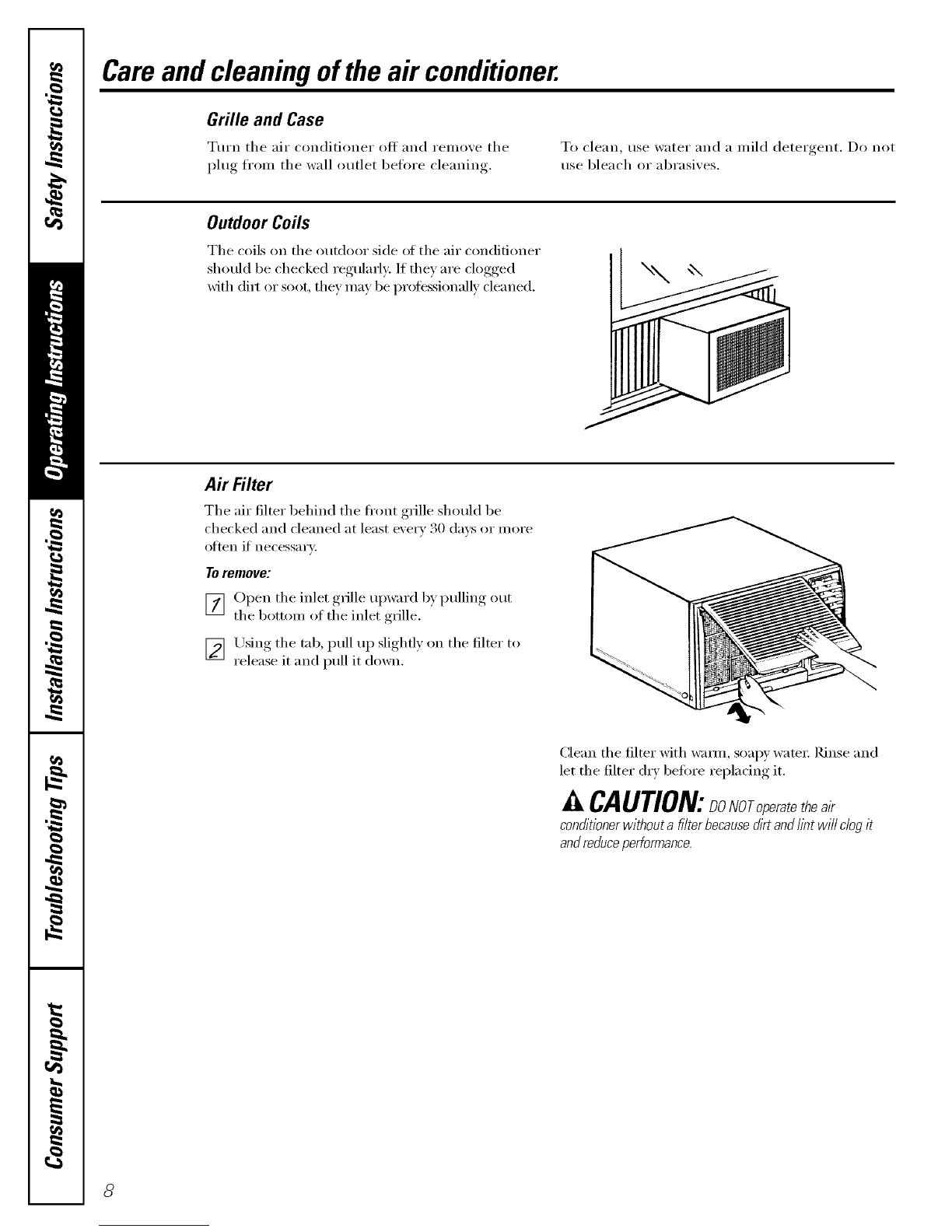

Care and Cleaning
Air Fiher . .................. 8
Grille and Case .............. 8
Outdoor Coils ............... 8
Installation Instruc_tions

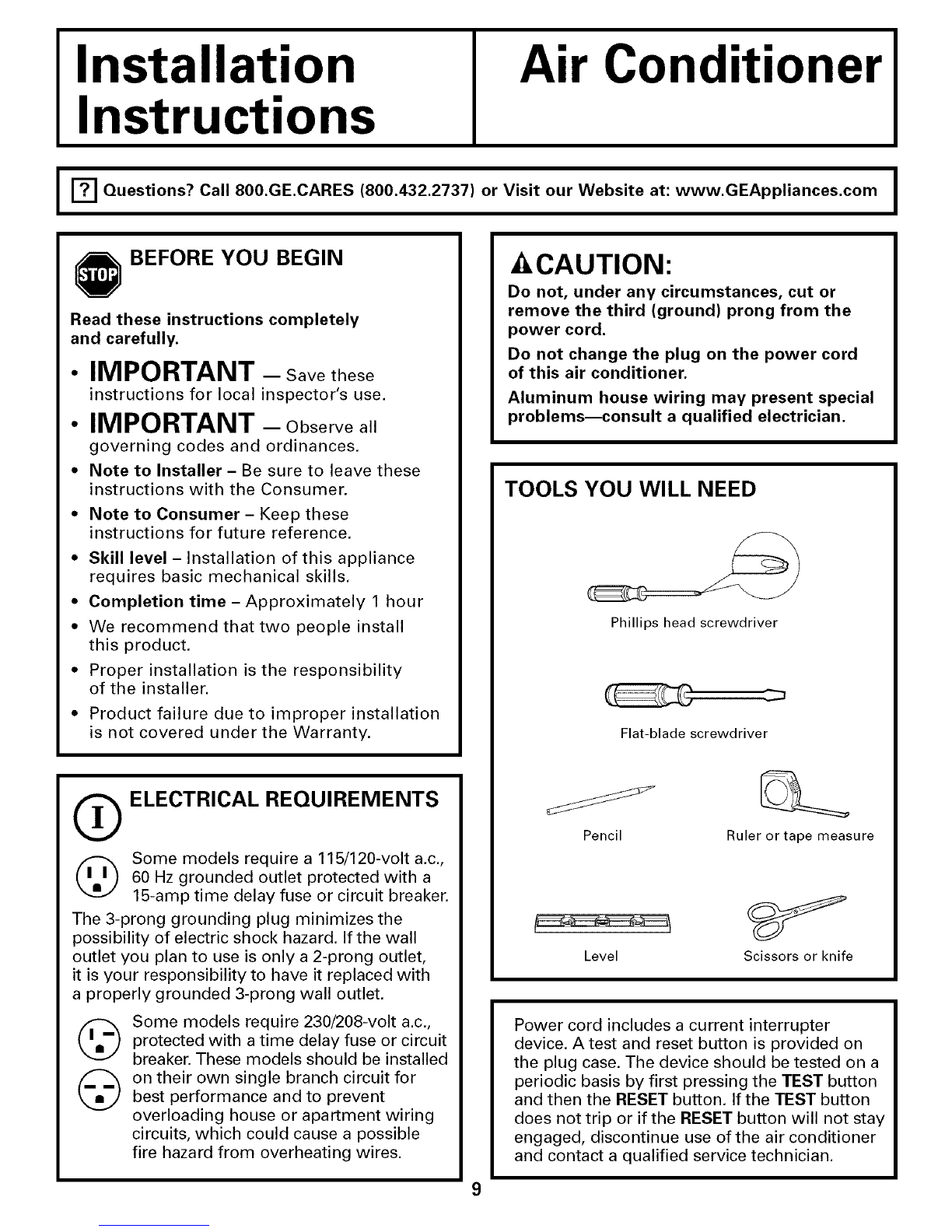

Preparing to Install the
Air Conditioner . ............. 9

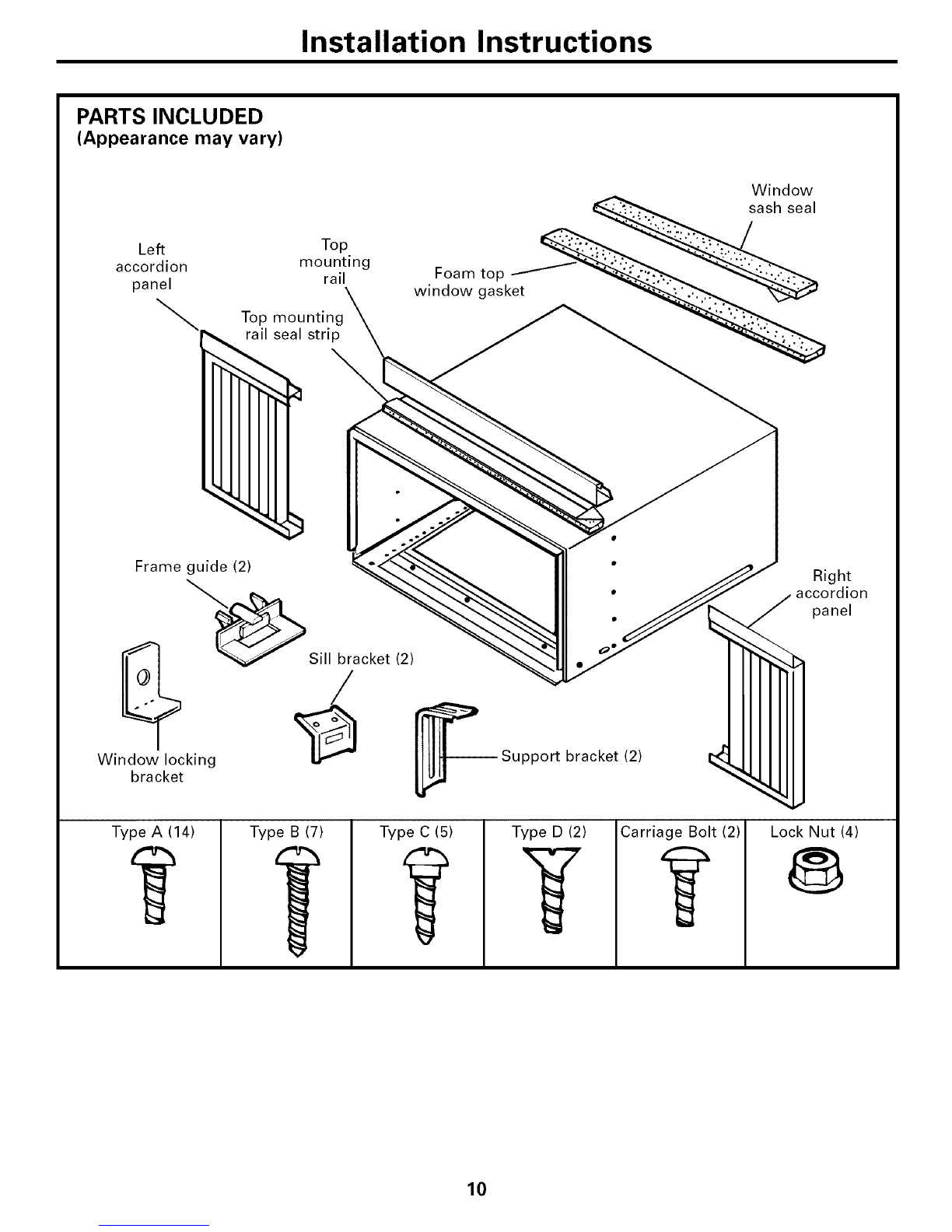

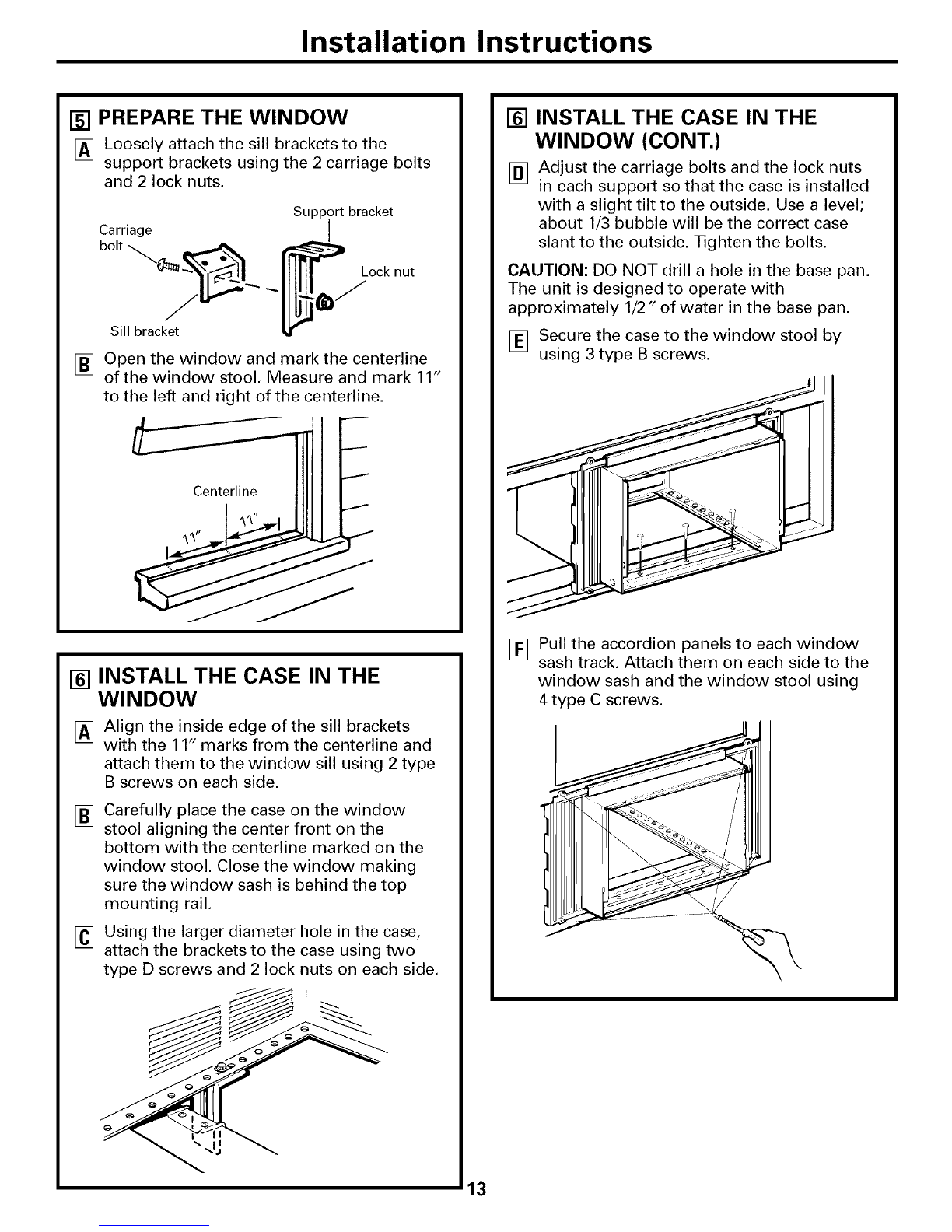

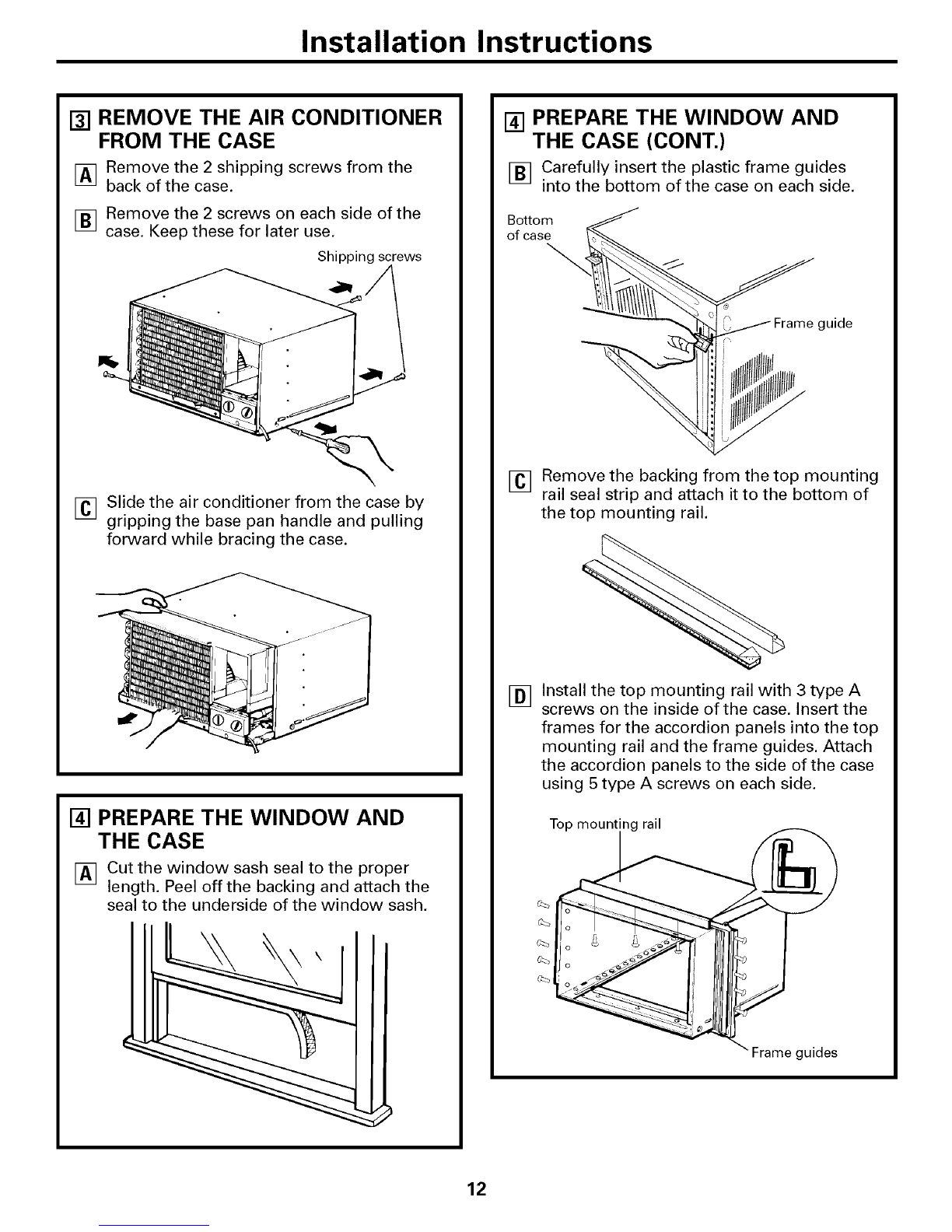

Window Installation ....... ] 0-14
Troubleshooting Tips .... 15, 16

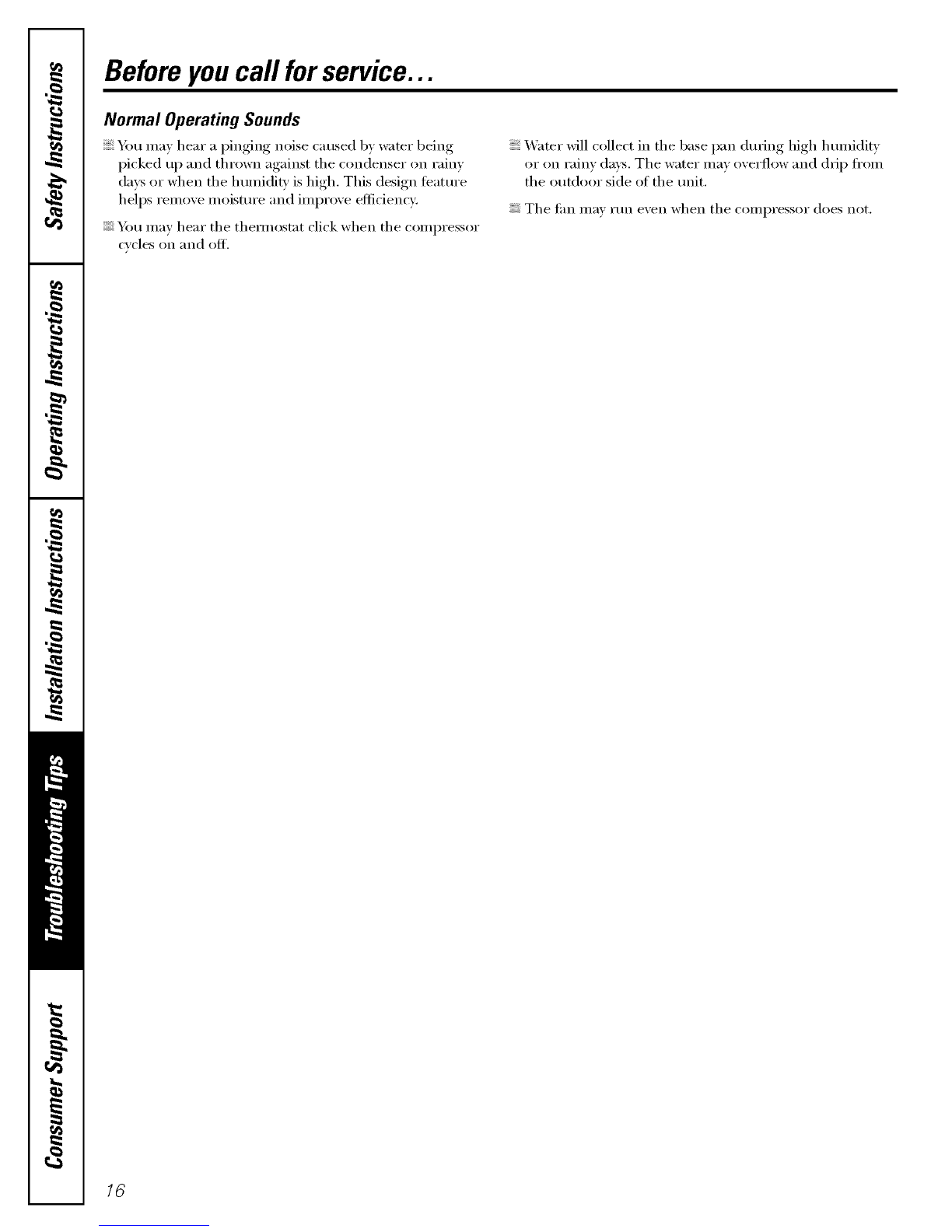

Normal Operating Sounds .... 16
Consumer Support

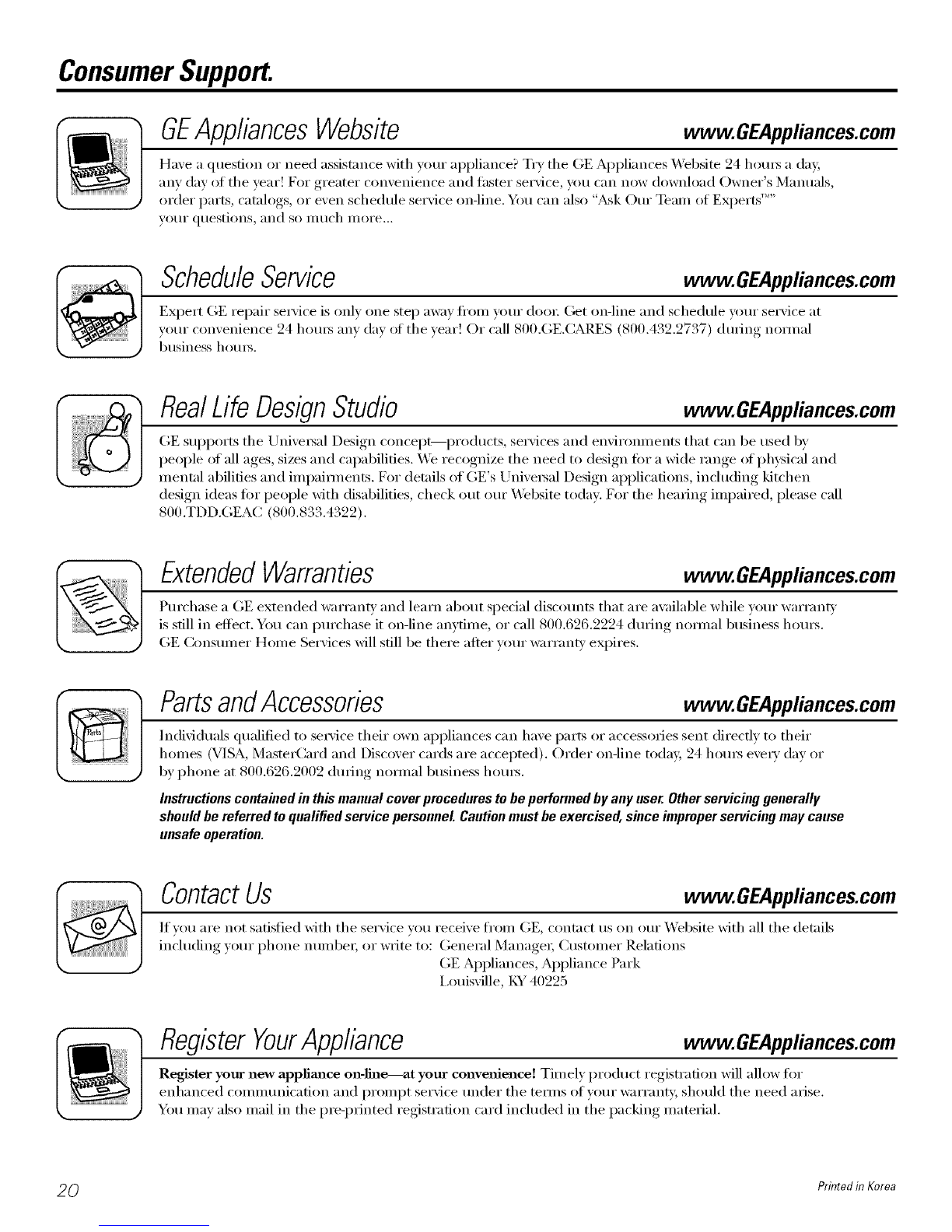

Consumer Support .......... 20

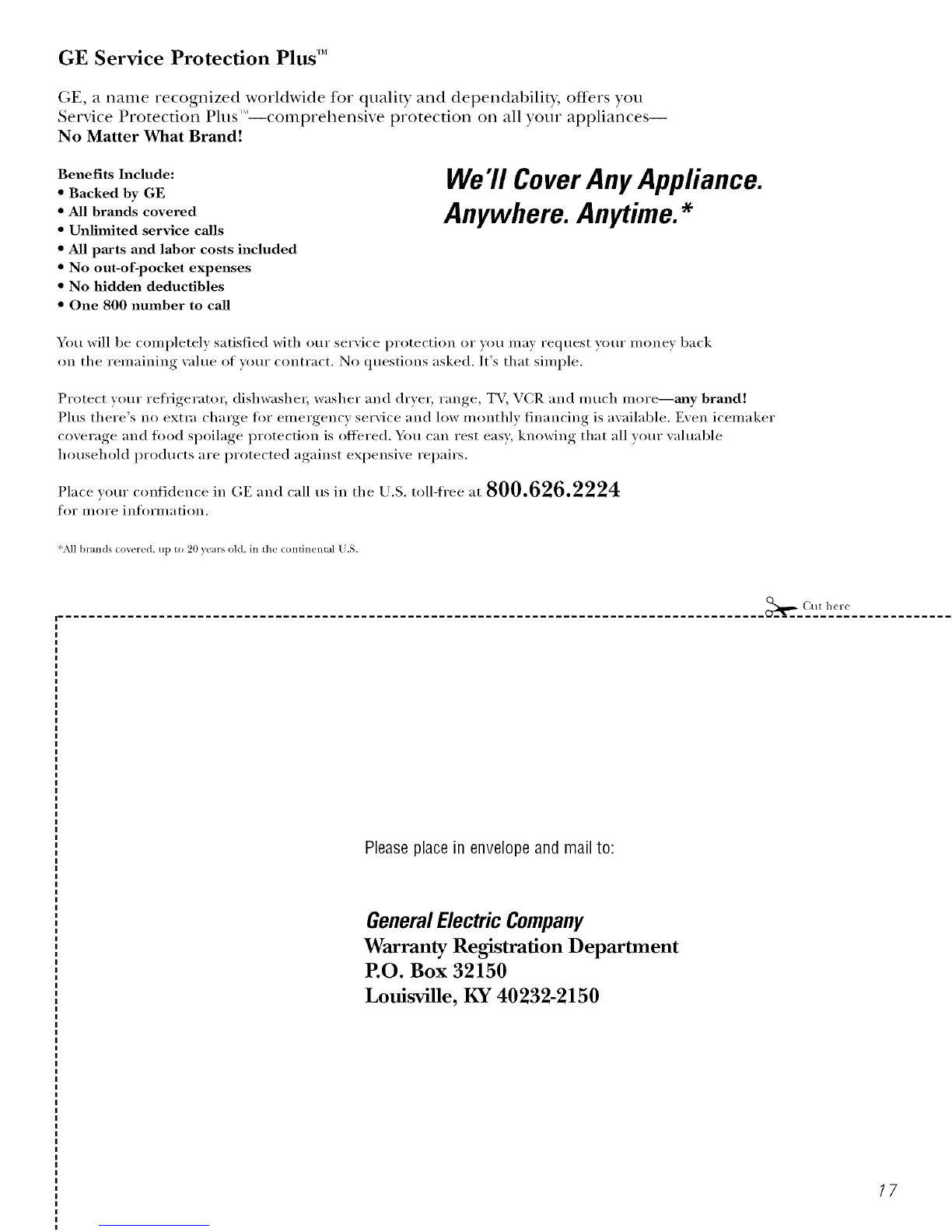

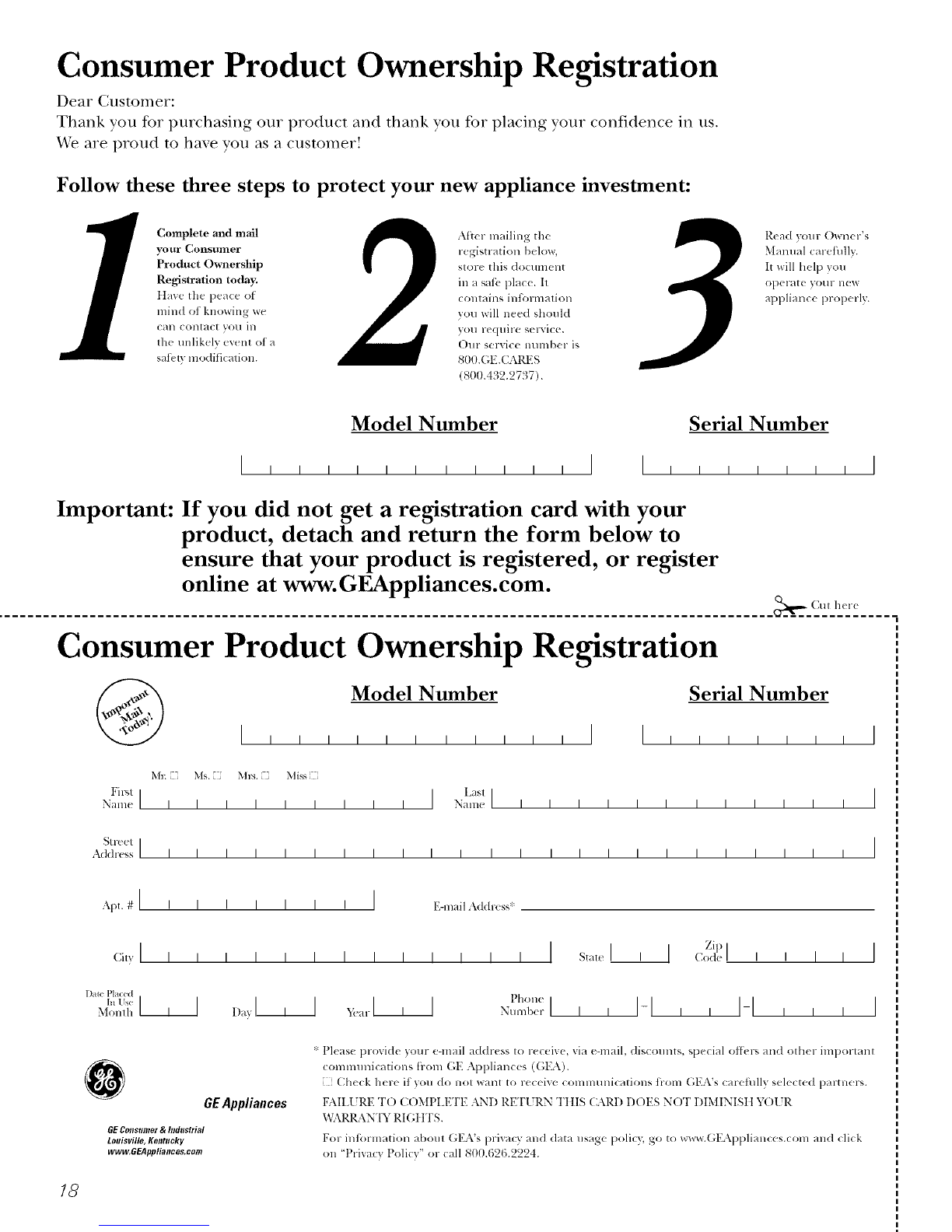

Product Registration ...... 17, 18
_A'arranty .................. 19
A GM l 4
AGLI8
A GM l8
A(;Q s
AGVI8
A GL24
AGQ24
AGV24
A GW24
©
Write the model and serial numbers here:
Model #
Serial #
Find these nmnbers on a label on the
side of the air conditione_:
3828A20514G 49-7499-7 03-05 JR

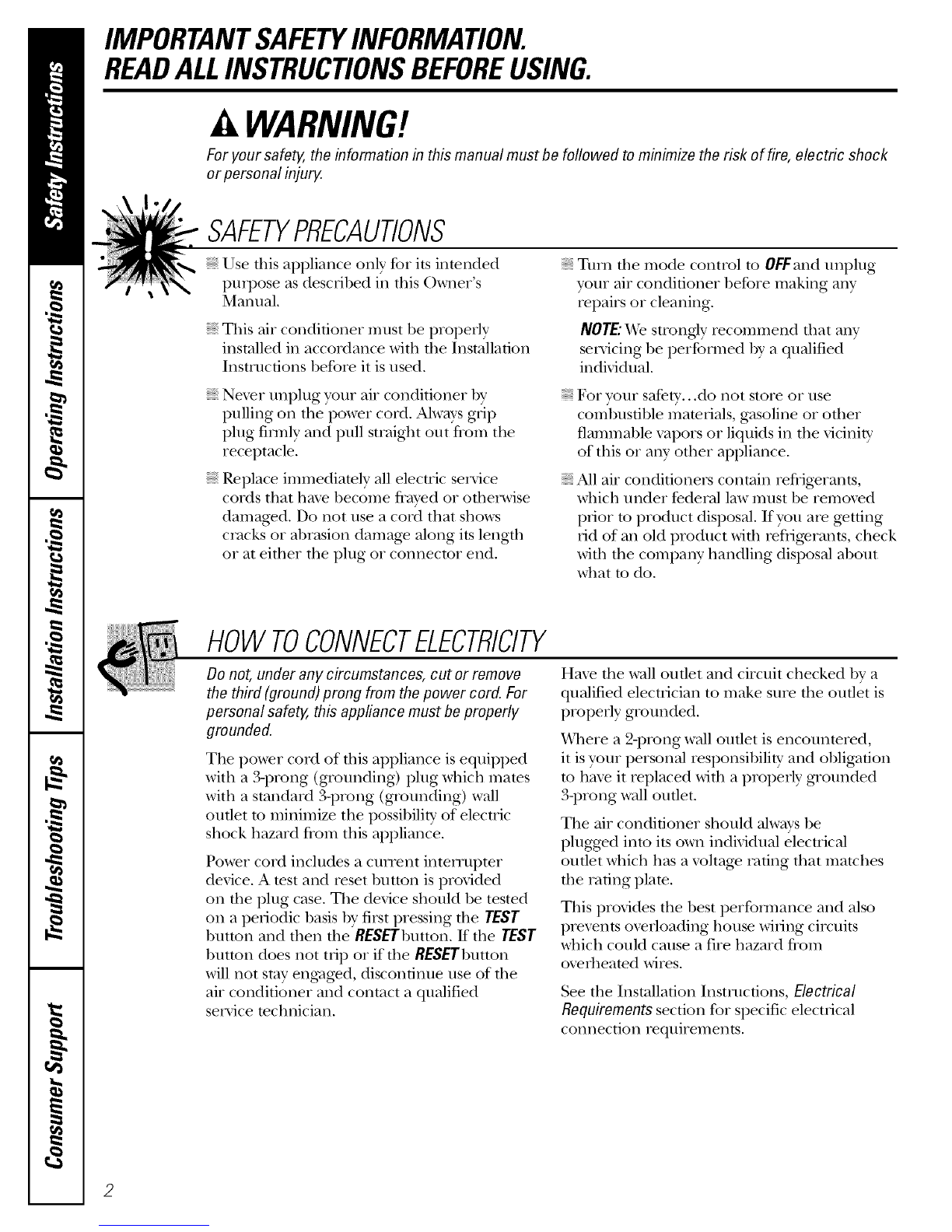

IMPORTANTSAFETYINFORMATION.
READALLINSTRUCTIONSBEFOREUSING.
a, WARNING!
For your safe_ the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
SAFETYPRECAUTIONS
iiiiiiiiiiii_iii
Use this appliance only %r its intended
pull)ose as described in this Owner's
Manual.
This air conditioner must be properly
installed in accordance with d_e Installation
h_structions before it is used.
Turn the mode control to 0ffand unplug
your air conditioner before making any
repairs or cleaning.
NOTE.'XA:estrongly recommend that any
servicing be perforated by a qualified
individual.
iiiiiiiiiiii_iii
Never unplug your air conditioner by
pulling on the power cord. Mwws grip
plug firefly and pull straight out from the
receptacle.
Replace immediamly all electric setMce
cords that haxe become flayed or ofl_erwise
damaged. Do not use a cord that shows
cracks or abrasion damag_ along its length
or at either the ping or connector end.
For your safety...do not store or use
combustible mamrials, gasoline or oilier
flammable vapors or liquids in the vicinity
of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be remoxed
plJor to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
HOWTOCONNECTELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safe_ this appliance must be properly
grounded.
The power cord of dais appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 31)iong (grounding) wall
outlet m minimize the possibility of electric
shock hazard flom this appliance.
Power coM includes a cnnent intemq)ter
device. A rest and reset button is provided
on the plug case. The device should be rested
on a periodic basis by first pressing the rEsr
bntton and then file RESt'button. [["the rest
button does not trip or if file RESETbutton
will not stay eng_aged, discontinue use of file
air condiuoner and contact a qualified
se_Mce mchnician.
Hme the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 9-prong wall outlet is encounmred,
it is your personal responsibility and obligation
to haxe it replaced with a properly grounded
31)iong wall outlet.
The air conditioner should always be
plugged into its own individual elecuical
outlet which has a x_ltag> rating flint matches
the rating plato.
This provides the best perfommnce and also
prexents oxerloading house wiring circuits
which could cause a fire hazard from
oxeflleated wires.
See the Installation Instructions, Electrical
Requirementssection for specific elecuqcal
connection requirements.
2

GEAppliances.com
WARNING!
USEOFEXTENSIONCORDS--115-Voltmodelsonly
Becauseofpotentialsafetyhazardsundercertain...^CAUTION:
conditions, we strongly recommend against the
use of an extension cord.
Howex>_; if you must/lse ail exmnsion cord,
it is absolumly necessm y that it be a UL-lismd,
14 gauge, 3-wi_e grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 195 volts.
DO NOT use an extension cord with any ofthe
230/208 volt models.
USEOFADAPTERPLUGS--115-Voltmodelsonly
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an adapter plug.
Howe_l; if you must rise an adapmi; where
local codes permit, a temporary connectionmay
be made to a properly grounded 9-prong wall
outlet by use of a UL-lismd adaptor available at
most local hardware stores.
The larger slot in the adapter must be aligned
with the larger slot in the wall outlet to proxqde
proper polarity in the connection of the power
cord.
_]:lei:l disconnecting the power cord flom the
adapmi, alwws hold the adaptor in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adaptor ground mrminal is ve_T likely' to break
with repeamd use.
If file adapter ground terminal breaks, DO NOT
USEthe air conditioner until a proper ground
has been established.
Attachingtheadaptergroundterminalto a waftoutlet
coverscrewdoesnot groundtheapplianceunlessthe
coverscrewis metal,andnot bsulated, andthe wall
outlet isgroundedthreughthe housewiring. Youshould
havethecircuitcheckedby a qualifiedelectricianto
makesuretheoutlet is properlygrounded.
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLY.
SAVETHESEINSTRUCTIONS

Aboutthe controlsontheair conditionermmodels with touchpads.
Features and appearance will vary.
Coolon
Fanon
Energy
Saveroi
Air ConditionerControls Remote Control
Controls
OON/OFF Pad
Turns air conditioner on and off.
oisplav
Shows the set temi)eramre or time remaining
on tilller.
OMODE
Use to set tile air conditioner to COOLor
FAN mode.
Increase •/Decrease •Pads
Use to set temperature when in COOLmode.
OFAN Pad
Use to set the _im speed to LOW(F1), MED (F2)
or HIGH (F3).
OENERGYSAVER(on some models)
Controls tile tim.
0]_-The tim and c()mi)ressor c)'cle on and
off. This results in wider \_riafions of room
temperature and humidiP,'. Nommllv used
when tile room is tmoccuI)ied. NOTE: Thefan
will continue to runfor ashort timeafter the
compressorcyclesoff
OFF Tile tim rtms all tile time, while tile
COIIII)I'eSSOI" cycles on [In(1 o]C{ ',
This t_'atm'e must be set at OFFin order to use
the tim settings (on the mode control).
NOTE:Onsomemodels, theENERGYSAVERfeature
cannotbe seton the air cond/tione_Itmust beset uslhg
the remotecontrol
O CIRCULAIRE(onsomemodels)
FOF (onfint/otls side-to-side air circulation
(cool settings only), set the Circulaire switch
to ON.
Dn" fixed side-to-side air direction, turn ON
until the desired air direction is obtained,
then turn it OFK
OTIMERPad
0/_-_ hen tile air conditioner is off, it can be
set to automatically come on in 1 to ] 2 ho/u_
or 1 to 24 hom_ (depending on model) at its
previous setting. Each touch of tile TIMER pad
or tile INCREASE•/DECREASE• pads
(del)ending on model) will set tile diner
in hom_.
OlaF _&l/en the air conditioner is on, it can be
set to automatically mm off in 1 to 12 hom_ or
1 to 24 hems (depending on model). Each
touch of tile TIMER pad or tile INCREASE• /
DECREASE•pads (depending on model) will
set tile timer in hom_.
Tocancel the tinier, press tile TIMERpad until
tile display time disappears.
Remote Control Signal Receiver
4
Remote Control
To ensure proper operation, aim tile remote
control at tile signal receiver on tile air
conditioner.
Tile remote control signal has a range of
up to 21 feet.
Make sm'e nothing is between tile air conditioner
and the remote control that could block the
signal.
Make sm'e batteries are fl'esh and installed
correctly as indicated on tile remote control.

Lights next to the touch pads on the air conditioner
control panel indicate the selected settings.
Power Outage Recovery Feature
In the case of a power outage or interruption, the
unit will maomafically re-start in the settings last
used alter the power is restored. The TIMERleatm'e
GEAppliances.com
will reset to the original setting. You may need to set
a new time if desired.
COOLMode
Use the COOLmode with HIGH(F3),MED(F2)or
LOW(F1)tim tor cooling. Lrse the INCREASEA/
DECREASEV pads to set the desired temperature
between 60°F and 86°F in l °F increments.
An electronic them/ostat is used to maintain the
room temperature. The c_m_pressor will cyde on
and offto kee I) the room at the set level of comfort.
Set fl_e thermostat at a lower number and fl_e indoor
air will becoille coole_: Set the theIIllostnt at a higher
number and the indoor air will become wam/e_;
NOTE"If the air conditioner isoff and/s then turnedon while
set to COOL,it will take approximately3 minutes forthe
compressorto start andcooling tobegin.
CoolingDescriptions
ForNormalCooling--Selectthe COOLmode and
HIGH(F3)or MED(F2)timwith a middle set
temperature.
ForMaximumCooliug--Select the COOL mode
and HIGH(F3)timwith a lower set temperature.
ForQuieter& NighttimeCooling--Select the
COOL mode and LOW(FI)tim with a middle set
temperature.
NOTE:/fyou switch from a COOLsettlbg to OFFor to
a fan settlbg, wait at least 3 mlbutes beforeswitching
back toa COOLsettlbg.
FAN Mode
Lrsethe FANat HIGH(F3),MEO(F2)or LOW(FI)to
provide air circulation and filtering without cooling.
Since tim only settings do not provide cooling,
atemperature setting will not be displayed.
Vent Control
The vent control is located on the inside of the air
louve_ on the lower right side.
When set at CLOSE, only the air inside the room will
be circulated and conditioned. X4q_en set at OPEN,
some inside air is exhausted outside.
To open the vent, pull the lever toward you.
To close it, push it in.
Air Direction--Up and Down
Fingertip pressm'e on the 1)ank of horizontal lou\'e_
a_)iusts the air direction up or down.
5

Aboutthecontrolsontheair conditionermmodelswith controlknobs.
Features and appearance will vary.
OFF
HIGHQHIGH
FAN COOL
LOW MED
FAN COOL
LOW
COOL
OFF
HI OIHI
FAN OOL
LOW .OW
FAN COOL
MODECONTROLS
Yourmodel will have one of the above type controls.
TEMPCONTROLS
Yourmodel will have one of the above type controls.
Controls
0Mode Controls
HIGHCOOL,MED COOLand LOWCOOLprovide
cooling with different tim speeds.
FANsettings provide air circulation and
filtering without cooling.
NOTE: If you move the mode control from a cool settlbg
to OFF or to a fan settlbg,wait at least 3 minutes
before switchingback to a cool setting.
CoolingDescriptions
ForNormalCooling--SelectHIGHCOOLor MED COOL
with the temp control at midpoint.
ForMaximumCoolino---Select HIGHCOOLwith the
temp control at the highest number a\_filable on
VOILE knob.
For Quieter &Nighttime Coolin#---Select LOW COOL
with the temp control at midpoint.
OTempControls
The temp control is used to maim;fin the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comtort. \_]_en you ttlI'n the knob to a
higher nmnber the indoor air will become
coole_: Tm'n the knob to a lower number and
the indoor air will become wam_e_:

GEAppliances.com
Additional controls and important information.
Energy Saver (on some models)
The energa, saver switch controls the tim.
O/_-The tim and compressor cycle on and off
together: This results in wider \m_iafions ot room
temperature and humidity. Nommllv used when
the room is tmoccul)ied.
OFF The tim runs all the time, while the
compressor cycles on and oil
This switch must be set at OFf in order to use
the tim settings (on the mode control).
Vent Control
The vent control is located al)ove the control
knobs.
_&]_en set at CLOSE, only the air inside the room will
be circulated and conditioned. X4q_en set at OPEN,
some inside air is exhausted outside.
To open the vent, pull the lever toward you.
To close it, push it in.
Air Direction--Side-to-Side
CIRCULAIRE (on some models)
For fixed side-t_)-side air direction, set the
Circulaire switch to ONuntil the desired air
direction is obtained, then move it to OFF.
FoI" contintlotls side-to-side air circulation (cool
settings only), set the Circulaire switch to ON.
OFF
CIRCULAIRE
Ill" ON
Air Direction--Up and Down
Fingertip pressure on the 1)ank of horizontal
lou\'e_5 at!justs the air direction up or down.
7

Careand cleaningoftheair conditioner.
Grille and Case
Turn the air conditioner off and remo_,e the To clean, use water and a mild deteroent Do not
plug, fl'om the wall outlet before cleaning, use bleach or abrasi;es.
OutdoorCoils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with cli_ or soot, they may be protessionally cleaned.
Air Filter
The air filter behind the fi'ont grille should be
checked and cleaned at least every 30 days or more
otten if necessary:
Toremove:
_] Open the inlet grille upward by pulling out
the bottom of the inlet grille,
] Using the tnb, pull up slightly on the filter to
release it and pull it down.
Clean the filter with _m_n, SOalU watet: Rinse and
let the filter dry betore replacing it.
CAUTION:DoNOro_ere_ethea,_
conditioner without a filter becausedirt and tint will clog it
andreduceperformance.
8

Installation
Instructions Air Conditioner
I I'_'1 Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: www.GEAppliances.com I
BEFORE YOU BEGIN
Read these instructions completely
and carefully.
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Observeall
governing codes and ordinances.
•Note to Installer - Be sure to leave these
instructions with the Consumer.
•Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance
requires basic mechanical skills,
•Completion time - Approximately 1 hour
• We recommend that two people install
this product.
•Proper installation is the responsibility
of the installer.
• Product failure due to improper installation
is not covered under the Warranty.
OELECTRICAL REQUIREMENTS
Some models require a 115/120-volt a.c.,
60 Hz grounded outlet protected with a
15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall
outlet you plan to use is only a 2-prong outlet,
it is your responsibility to have it replaced with
a properly grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for
best performance and to prevent
overloading house or apartment wiring
circuits, which could cause a possible
fire hazard from overheating wires.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present special
problems--consult a qualified electrician.
TOOLS YOU WILL NEED
Phillips head screwdriver
Flat-blade screwdriver
Pencil Ruler or tape measure
Level Scissors or knife
Power cord includes a current interrupter
device. A test and reset button is provided on
the plug case. The device should be tested on a
periodic basis by first pressing the TEST button
and then the RESET button, If the TEST button
does not trip or if the RESET button will not stay
engaged, discontinue use of the air conditioner
and contact a qualified service technician.

Installation Instructions
PARTS INCLUDED
(Appearance may vary)
Window
;ash seal
Left Top. ___
accordion mount,ng Foam top /___':.._-
panel rail\ window gasket __. "_.
To0_ount,n0\ _ __"
--, railsealstri _ _ _
Frame _d_. (2) "" i ac!!_dhei/n
"_ S b k 2 _llllllll
Window locking " IltlJl upport rac et( )
bracket [Jr,_
Type A (14)
@, Type B (7)
i
Type C (5) Type D (2) Carriage Bolt (2) Lock Nut (4)
@
10

Installation Instructions
[] WINDOW REQUIREMENTS
•These instructions are for a standard
double-hung window. You will need to
modify them for other types of windows.
• The air conditioner can be installed
without the accordion panels if needed
to fit in a narrow window. See the
window opening dimensions.
•All supporting parts must be secured
to firm wood, masonry or metal.
• The electrical outlet must be within
reach of the power cord.
B==43
18" min.
<29" to 41"
(With accordion panels)
,< 26¼" min.
(Without accordion panels)
I
I
[] STORM WINDOW REQUIREMENTS
A storm window frame will not allow the
air conditioner to tilt toward the outside,
and will keep it from draining properly.
To adjust for this, attach a piece of wood
to the stool.
WOOD PIECES-
WIDTH: 2"
LENGTH: Long enough to fit inside the
window frame.
THICKNESS: To determine the thickness,
place a piece of wood on the stool to
make it 1/2" higher than the top of the
storm window frame.
Attach securely with nails or screws
provided by the installer.
1/2" hi
than frame Stool
Storm
window
fra me
11

Installation Instructions
[] REMOVE THE AIR CONDITIONER
FROM THE CASE
IAq Remove the 2 shipping screws from the
back of the case.
F_ Remove the 2 screws on each side of the
case. Keep these for later use.
Shipping screws
[] Slide the air conditioner from the case by
gripping the base pan handle and pulling
forward while bracing the case.
[] PREPARE THE WINDOW AND
THE CASE
[] Cut the window sash seal to the proper
length. Peel off the backing and attach the
seal to the underside of the window sash.
[] PREPARE THE WINDOW AND
THE CASE (CONT.)
[] Carefully insert the plastic frame guides
into the bottom of the case on each side.
Bottom
of case
_lttf!!iil Iguide
F
[] Remove the backing from the top mounting
rail seal strip and attach it to the bottom of
the top mounting rail.
[] Install the top mounting rail with 3 type A
screws on the inside of the case. Insert the
frames for the accordion panels into the top
mounting rail and the frame guides. Attach
the accordion panels to the side of the case
using 5 type A screws on each side.
Top mounting rail
\ Frame guides
12

Installation Instructions
[] PREPARE THE WINDOW
[_ Loosely attach the sill brackets to the
support brackets using the 2 carriage bolts
and 2 lock nuts.
[]
Support bracket
Carriage I
bolt _ _ __l__j.ock nut
Sill bra_k_et__'_" _"
Open the window and mark the centerline
of the window stool. Measure and mark 11"
to the left and right of the centerline.
Centerline
[] INSTALL THE CASE IN THE
WINDOW
[] Align the inside edge of the sill brackets
with the 11" marks from the centerline and
attach them to the window sill using 2 type
B screws on each side.
[]
[]
Carefully place the case on the window
stool aligning the center front on the
bottom with the centerline marked on the
window stool. Close the window making
sure the window sash is behind the top
mounting rail.
Using the larger diameter hole in the case,
attach the brackets to the case using two
type D screws and 2 lock nuts on each side.
[] INSTALL THE CASE IN THE
WINDOW (CONT.)
[] Adjust the carriage bolts and the lock nuts
in each support so that the case is installed
with a slight tilt to the outside. Use a level;
about 1/3 bubble will be the correct case
slant to the outside. Tighten the bolts.
CAUTION: DO NOT drill a hole in the base pan.
The unit is designed to operate with
approximately 1/2" of water in the base pan.
[] Secure the case to the window stool by
using 3 type B screws.
[] Pull the accordion panels to each window
sash track. Attach them on each side to the
window sash and the window stool using
4 type C screws.
13

Installation Instructions
[] INSTALL ASUPPORT BRACKET
AND THE FOAM TOP WINDOW
GASKET
[] Attach a support bracket with a Type C
screw.
[] Cut the foam top window gasket to the
window width.
[] Stuff the foam between the glass and the
window to prevent air and insects from
getting into the room.
[] INSTALL THE AIR CONDITIONER
IN THE CASE
I_q Slide the air conditioner into the case.
Inl Reinstall the 2 screws removed earlier on
each side of the case.
[] Before installing the front grille, pull out the
vent control lever located above the unit
control knobs, as shown.
[] Attach the front grille to the case by inserting
the tabs on the grille into the slots on the
front of the case. Push the grille in until it
snaps into place.
[]
Guide the lever
carefully through
the grille as you
push it in.
Lift the inlet grille and secure the front
frame with a type A screw through the
front grille. Lower the inlet grille back into
place.
14

TroubleshootingTips. GEAppliances.com
Troubleshooting -tips
Save time and money/.Review the chart below first
and you may not need to call for service.
Possible Causes What ToDo
Air cond#ioner The air conditioner * Make sure tile air conditioner plug is pushed completely
does notstart is unplugged, into the outlet.
The fuse is blown/circuit • Check the house fi]se/circuit breaker box and replace
breaker is tripped, the fi/se or reset the breakeI:
Power failure. •/f power tifilure occtu_, turn the air coucliffouer OFF.
_]leu power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping oI the compressor
()verload.
The current interrupter • Press the RESKrbuttou located on the l)ower cord l)lug.
device is tripped. •/f the RESKrbuttou will not stay eu,_zwed discontinue
use of the air conditioner and contact a qualified service
technician.
Airconditionerdoesnot Airflow is restricted. • Make sure there are no curtains, blinds or flu'uiture
cool as it should bh)ckiug the fl'()ut of the air c()udiffonel:
The temp control may • On models with touch pads: hi COOL mode, press tile
not be set correctly. DECREASE Vpad.
• On models with control knobs, turn tile teml)erature
knob to a higher uunlbel:
The air f'flter is dirty. • Clean the filter at least evely 30 dm_s.
See the OperatingInstructionssecff(;u.
The room may have been hot. * _4]wu the air conditioner is filst turned on you need to
alh)w time fi)r the l'OOl// to COO1 dowu.
Cold air is escaping. • Check fi)r oI)eU flu'uace floor registels and cold air
I'ettWUS.
• Set the air conditioner's vent to the closed position.
Cooling coils have iced up. •See "Air conditionerfreezingup"beh)w.
Airconditioner Ice blocks the air flow • On models with control knobs, set the lnode control at
freezing up mad stops the air conditioner HIGH FAN or HIGH COOL with tile temp :at Ior 2.
from cooling the room. • On models with touch pads, set the controls at
HIGH(F3)FANor HIGH(1:3)COOLand setthe them, ostat
to a higher temperature.
The remote control The batteries are haserted °Check tile position of the batteries. Tile}' should be
is not working incorrectly, inserted ill the ol)posite (+) and (-) direction.
The batteries may be dead. °Replace the batteries.
Waterdrips outside I_Ncessively hot and •This is u(mual.
hmnid weather.
Water drips indoors The air conditioner is not • For l)r()per water disp()sal, make sure tile air c()udiff(mer
tilted to the outside, slants slightly ti'()m the case ti'out to the real:
Water collects in Moisture is removed from • This is u(mual fl)r a short l)eriod ill areas with little
base pan indoor air and drains into lmmidity; u(mnal fl)r a longer pefi()cl ill very humid
rear of acabinet where a fml areas.
blows it against the outdoor
condenser coil.
TIMER feature not A power outage or interruption • Ill the case of a power outage or interruption, the unit
workingproperly occurred. TIMER teature will reset to the original setting. Y)u may
need to set a uew ffIne if desired.
15

Beforeyoucall forservice...
Normal Operating Sounds
Ym may hear a pinging noise caused by water being
picked up and thrown against the condenser on rainy
days or when the humidi Vis high. This design feature
helps remove moisture and improve efficiency.
Y}m may hear the them/ostat click when the compressor
cycles on and off.
X_ter will collect in the base pan dm_Jng high humidity
or on rain) days. The water may oxerflow and drip fl'om
the outdoor side of the trait.
The tim ma_ run exert when the compressor does not.
16

GE Service Protection Plus 'M
GE, a name recognized worldwide for quality' and dependability, oflers y'ou
Service Protection Plus"--comprehensive protection on all y'our appliances--
No Matter What Brand!
Benefits Include:
• Backed by GE
•All brands covered
• Unlimited service calls
• All parts and labor costs included
• No out-of-pocket expenses
•No bidden deductibles
•One 800 number to call
We71CoverAnyAppliance.
Anywhere. Anytime.*
You will be coxnpletely satisfied with our service i)x'otection or )ou ma) request your inone) back
on the reuaailaing "_alue of your contract. No questions asked. It's that silnple.
Protect your refl'igeratoi; dishwashei; washer and dryei; range, TV, VCR and nmch more--aaay brand!
Plus there's no extra charge fi)r eu_ergency service and low molKhly fii_ai_cing is awfilable. Even icelnaker
coverage and tood spoilage protection is offered. You can rest easy; knowing that all your wduable
household products are protected against expensive repairs.
Place your confidence in (;E and call t,s in the U.S. toll-free at _(IU.OZO.ZZZ_
for UlOi'e ilatorlnatiola.
"*AllImmds cmered, up to 20 )¢ms old. in the contin¢ ntal [.S.
Please place in envelope and mail to:
General Electric Company
Warranty Registration Department
EO. Box 32150
Louisville, KY 40232-2150
17

Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to haxe you as a customer!
Follow these three steps to protect your new appliance investment:
Complete and mail
your Consunler
Product Ownership
Registration today.
tlaw' the peace of
mind of knowing we
Call COlltact VOll ill
tile unlikely (x(nt of a
satbly modification.
Atter lnailing tile
registration below,
store this document
ill a sati. place. It
contains inlormation
you will need should
you require service.
Our service number is
800.GE.CAI(ES
(800.432.2737).
Read your Owner's
Manual carethllv.
It will help you
o])el-_lte yOtlr llew
appliance properly.
Model Number Serial Number
I I I I I I
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
._ (_//I here
Consumer Product Ownership Registration
Model Number Serial Number
Ms. M*_. Mi_s
Fir'lIILasll
Nalne I I I I I I I I I Name I I I I I I I I I I I I
S[ r()(!l I
Addr(ss IIIIIIIIIIIIIIIIIIIIIIII
, I
I
I
Ap .#l, , , , , , , I l:.-inailA(l(lress,::
Zip
l)ale PIi( ed
Nunll)er I, i i i i i
.,,o.,l I-I I I , I
GEAppliances
GE Consomer & htdttstrial
Louisville, Ketttttck¥
www, GEAppliances, com
* Please provide your e-mail address to receive, via e-mail, discounts, special ottLr _,and other important
communications troln GE Appliances (GEA).
Check here if you do not want to receive communications ti-om GEA's carefidly selected partners.
FAII.I 7RE T() C()MPI.ETE AND RE'F[ RN Tt tIS CARD DOES NOT DIMINISII Y( )l JR
_,E\RRANTY RIGIITS.
For intbrmation about GEA's prixacy and data usage polio), go to _avw.GEAppliances.com and click
on 'Prixacv Policy" or call 800.626.2224.
18

Air ConditionerWarranty.
Aft warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. Toschedule service,
on-line, 24 hours a day, visit us at www.GEAppfiances.com, or
carl 800.GE.CARES(800.432.2737).
Staple your receipt here.
Proofof the orig&al purchase
date is needed to obtain service
under the warrantF
Fromthe dateof the
origina!purchase
Fromthedateof the
origina!purchase
We Will Replace:
Anypartof the air conditioner which fhils due to a defect in materials or workmanship,
During this full one-year warranty, we will also provide, free of charge, all labor and in-home
serxice to replace the defectixe part,
Any part ofthe sealed refrigerating system (the comi)ressot; condenset; evaporator and
all connecting tubing) which tifils due to a (leiect in materials or workmanship. During this
four-year additional warranty, we will also provide, free of charge,all labor and in-home service
to replace the (lefecti\'e part.
Service trips to your home to teach you how to
use the product.
hnproper h_staJlation, delivery or maintenance. If you
have ml installation problem, or if the air conditioner
is of improper cooling capacity for the intended use,
contact your dealer or installer. You axe responsible
for providing adequate electrical cmmecth_g facilities.
Failure of the product resulting from modifications to
the product or due to mlreasonable use including failure
to provide reasonable and necessary maJntenm_ce.
In commerciaJ locations labor necessary to move
the refit to a location where it is accessible for service
by m_ individual technician.
Replacement of house fuses or resetting of circuit
breakers.
Failure due to corrosion on models not corrosion-
protected.
Dmnage to the product caused by hnproper power supply
voltage, accident, fire, floods or acts of God.
Incidental or consequentiaJ dmnage caused by possible
defects with this air conditioner.
Dmnage caused after delivery.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. Toknow what your
legal rights are, consult your local or state consumer affairs office or your state's Attorney General
Warrantor: General Electric Company. Louisville, KY 40225
19

ConsumerSupport.
qlgEAppliancesWebsite www.GEAppliances.com
Hme a question or need assistance with your appliance? Try the (;E Appliances _,Vebsite 24 hom_ a (lax;
'any day of the year! For greater comenience and faster service, you can now download Owner s Manuals,
order parts, catalogs, or exert schedule serxice on-line. You can also "_sk Our Team of Experts ....
yo/II" questions, and so IIl/Ich iiloi'e...
ScheduleService www.GEAppliances.com
Expert (;E repair seiMce is onl) one step awa) from your (looi; Get on-line and schedule your service at
your, comenience 24 hom_ am dm of the _ear! Or call 800.GE.(:ARES (800.432.2737) during n(mnal
business hotu_.
RealLifeDesignStudio www.GEAppliances.com
GE supports the Univei_al Design concel_t--products, services and environments that can be used by
people of all ages, sizes and capabilities. _'e recognize the need to design fin" a wide range of physical and
mental abilities and impaim/ents. For details of GE's Univei_al Design applications, including kitchen
design ideas fin" people with disabilities, check out o/ii" _'ebsite today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are a_ailable while your, warrant_
is still in effect. You can purchase it on-line an) time, or call 800.626.2224 during nomml business hotu_.
(;E ()msuiner Home Serxices will still be there after your warrant} expires.
PartsandAccessories www.GEAppliances.com
Individuals qualified to seIMce their own appliances can have parts or accessories sent directly to their
homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hom_ every day or
by I_hone at 800.626.2002 duIJng noi_nlal business houI_.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Cautionmust be exercised, since improper servicing may cause
unsafe operation.
ContactUs www.GEAppliances.com
If'you are not satisfied with the service you receive from GE, contact us on our _'ebsite with all the details
including your phone numbei; or write to: General Managei; Customer Relations
GE Appliances, Appliance Park
i,ouisville, KY 40225
q"1 RegisterYourAppliance www.GEAppliances.com
Register your new applim_ce on-line---at your convenience! Timel) product registration will allow fin"
enhanced communication and prompt service under the terms of )our warranty, should the need arise.
jYou may also mail in the pre-printed registration card included in the packing material.
20 Printed in Korea
