GE AMD10 Training manual

Use and Care & Installation Guide
Room Air Conditioner
Contents
Adapter Plug
3
Air Direction
5
Appliance Registration
2
Care and Cleaninp
6
Air Filter
6
Grille & Cabinet
6
Outdoor Coil
6
Consumer Services 15
Control Settings 4,5
Electrical Requirements
3
Energy Saver Stitch
5
EnerW-Saving Tips
7
Extension Cords
3
Freezing U~ 4
Grounding
3
Installation Instructions 8-14
Model and Serial Numbers 2,6
Problem Solver
7
Safetv Instructions 2
User’Maintenance Instructions 6
Warranty Back Cover
GE Answer Center@
800.626.2000
Models AMD1O
AMD12
AMH12
GE Appliances

Help us help you...
Before using your air
conditioner, read this book
carefully.
It is intended to help you operate
and maintain your new air
conditioner properly. Keep it handy
for answers to your questions.
If you don’t understand something
or need more help, write (include
your phone number):
Consumer Affairs
GE Appliances
Appliance Park
Louisville, KY 40225
Write down the model and
serial numbers.
You’ll find them on a label on the
right hand side front of the cabinet
andor behind the front grille on
the front edge of the base pan (for
service use).
These numbers are also on the
Consumer Product Ownership
Registration Card that came with
your air conditioner. Before
sending in this card, please write
these numbers here:
Model Number
Serial Number
Use these numbers in any
correspondence or service calls
concerning your air conditioner.
If you received a damaged
air conditioner...
Immediately contact the dealer (or
builder) that sold you the air
conditioner.
Save time and money.
Before you request service...
Check the Problem Solver
section of this guide. It lists causes
of minor operating problems that
you can correct yourself.
2
WORTANT
SAFETY
~STRUCTIONS
Read all instructions before
using this appliance.
When using this appliance, always
exercise basic safety precautions,
including the following:
c Use this appliance only for its
intended purpose as described
in this Use and Care Guide.
● This air conditioner must be
properly instilled in accordance
with the Installation ktructions
before it is used. See grounding
instructions.
● Never unplug your air
conditioner by pulling on the
power cord. Always grip plug
firmly and pull straight out from
the receptacle.
● Repair or replace immediately
all electric service cords that
have become frayed or otherwise
damaged. Do not use a cord that
shows cracks or abrasion damage
along its length or at either the
plug or connector end.
● Unplug your air conditioner
before mating any repairs.
Note: We strongly recommend
that any servicing be performed
by a qualified individual.
● For your safety.. .do not store
or use combustible materials,
gasoline or other flammable
vapors or liquids in the vicinity of
this or any other appliance.
SAVE THESE
mSTRUCTIONS
M you need sertice
To obtain service, see the
Consumer Services page in the
back of this book.
We’re proud of our service and
want you to be pleased. If for some
reason you are not happy with the
service you receive, here are three
steps to follow for further help.
FIRST, contact the people who
serviced your appliance. Explain
why you are not pleased. In most
cases, this will solve the problem.
NEXT, if you are still not pleased,
write all the details—including
your phone number—to:
Manager, Consumer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
FINALLY, if your problem is still
not resolved, write:
Major Appliance Consumer
Action Panel
20 North
Wacker Drive
Chicago, IL 60606

Electrical Sdety—MPORTANT...pleaSe Read Carefully.
How to connect
electricity
For personal safety,
this appliance mu;t be
properly grounded.
Electrical requirements
115-volt models require a 115/120-
volt a.c., 60 hz grounded outlet
protected with a 15 amp time delay
fuse or circuit breaker.
The power cord on these models has
a three-prong (grounding) plug that
mates with a standard three-prong
(grounding) wall outlet (Fig. 1) to
minimize the possibility of electric
shock hazard from these appliances.
PREFERRED ,
METHOD
b
QQ
4’
<,
INSURE PROPER
Fig. 1 GROUND EXISTS
BEFORE USE
Where a standard two-prong wall
outlet is encountered, it is your
personal responsibility and
obligation to have it replaced with
a properly grounded three-prong
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG FROM
THE POWER CORD.
230/208-volt models require their
that mates respectively with a
230/208-volt perpendicular,
tandem or large tandem type wall
outlet. These types of outlets are
available at most hardware stores.
*UT 0
@,~
‘Q
1-
●
MATCHING
‘ERPENDICUWR TYPE WALL OUTLET
LINE CORD PLUG
REQUIRES 20 AMP TIME DELAY FUSE
OR CIRCUIT BREAKER PROTECTION
@e
230/208-VOLT
MATCHING
TANDEM TYPE WALL OUTLET
LINE CORD PLUG
REQUIRES 15 AMP TIME
DEWY FUSE
OR CIRCUIT BREAKER PROTECTION
go
D-o
@ --
●
230/208-VOLT
MATCHING
LARGE TANDEM TYPE WALL OUTLET
LINE CORD PLUG
REQUIRES 30 AMP TIME DELAY FUSE
OR CIRCUIT BREAKER PROTECTION
Whether your air conditioner is
a 115-volt or a 230/208-volt unit,
it is important to have the wall
outlet and circuit checked by a
qualified electrician if there is
any doubt as to whether a
proper ground exists.
Use of adapter plug
(115-volt models only)
~
own single branch circuit supplying
230/208-volt a.c., protected with a
time delay fuse or circuit breaker.
This is recommended for best
performance and to prevent
overloading house wiring circuits,
which could cause a possible fire
hazard from
overheating wires.
Because of potential safety hazards
under certain conditions, we
strongly recommend against use
of an adapter plug. However, if
you still elect to use an adapter,
where local codes permit, a
TEMPORARY CONNECTION
The power cord on these models
may be made to a properly grounded
has a 230/208-volt perpendicular, two-prong
wdl outlet by use of a UL
tandem or large tandem type plug
listed adapter (Fig. 2) available at
most local hardware stores.
The larger slot in the adapter must
be
aligned with the lm~er slot in the
wall
;utlet to provide ~roper polarity
in the connection of the power cord.
CAUTION: Attaching the adapter
ground terminal to wall outlet cover
screw does not ground the appliance
unless cover screw is metal, and not
insulated, and wall outlet is
grounded through house wiring.
You should have the circuit checked
by a qualified electrician to make
sure the outlet is properly grounded.
When disconnecting the power
cord from the adapter, always
hold the adapter with one hand. If
this is not done, the adapter ground
terminal is very likely to break
with repeated use.
Should the adapter ground
terminal break, DO NOT USE
the appliance until a proper
ground has again been
established.
Use of extension cords
Because of potential safety hazards
under certain conditions, we
strongly recommend against the
use of an extension cord.
However, if you still elect to use an
extension cord, it is absolutely
necessary that it be a UL listed
3-
wire grounding type appliance
exten~ion cord-and that-the current
carrying rating of the cord in
amperes be equal to or greater than
the branch circuit size shown on
the rating nameplate of the
appliance.
3

Operating Your Air Conditioner Controls
SELECTOR
LOW COOL
FAN \\\
MED
ONLY ●
\\ \\\\ ’’.’
’/////,,,,.+cooL
+\’
..’
=
OFF ,
a
~,
“,
‘=
o HIGH
COOL
Selector Switch
OFF turns air conditioner off.
FAN ONLY permits fan speed
operation without cooling.
For FAN ONLY operation,
Energy Saver Switch must be
in NORMAL position.
LOW COOL permits cooling with
low fan speed operation.
MED COOL permits cooling with
medium fan speed operation.
HIGH COOL permits cooling
with high fan speed operation.
THERMOSTAT
COOLER ~
1 2 3 4 5 6 7 8 9 10
Thermostat Control
When you move the Thermostat
Control to the desired setting, the
thermostat will automatically control
the temperature of the indoor air.
The higher the number selected, the
cooler the indoor air will become.
Freezing up
Outside air
temperature
dropping
If you notice that your air
conditioner is not cooling as it
should, it may be that ice has formed
on the cooling coils. The ice blocks
air flow and stops the unit from
cooling the room. This “freezing up”
is a temporary condition that most
often occurs at night when the
Thermostat is set at a higher number
and the Selector is set on LO COOL.
To correct the condition, set the
Selector at HI FAN or HI COOL
and move the Thermostat to the
warmest setting.
HOUR
-
MANUAL
Timer Control
When you turn the Timer Control
to the MANUAL setting, the air
conditioner starts immediately and
operates continuously if the
Selector Switch is at any setting
other than OFF.
When used with the Delay
SttiStop Switch, the Timer
Control turns the air conditioner on
or off at preset times.
To delay the start of the air
conditioner anywhere from 1 to
12 hours.
1. Set the Timer
Control for the
number of hours you
r
TIMER
MODE
want to delay the-start I DELAY
of the air co~ditioning
START
operation.
2. Set the Delay
SttiStop Switch at
DELAY START.
H
~
=
3. Turn the Selector
Switch to the desired
E
setting.
To stop the air conditioning from
1 to 12 hours later:
1. Set the Timer Control for the
number of hours you want the air
conditioner to operate before
shutting off automatically.
2. Set the Delay SttiStop Switch at
DELAY STOP.
3. Turn the Selector Switch to the
desired setting.
4

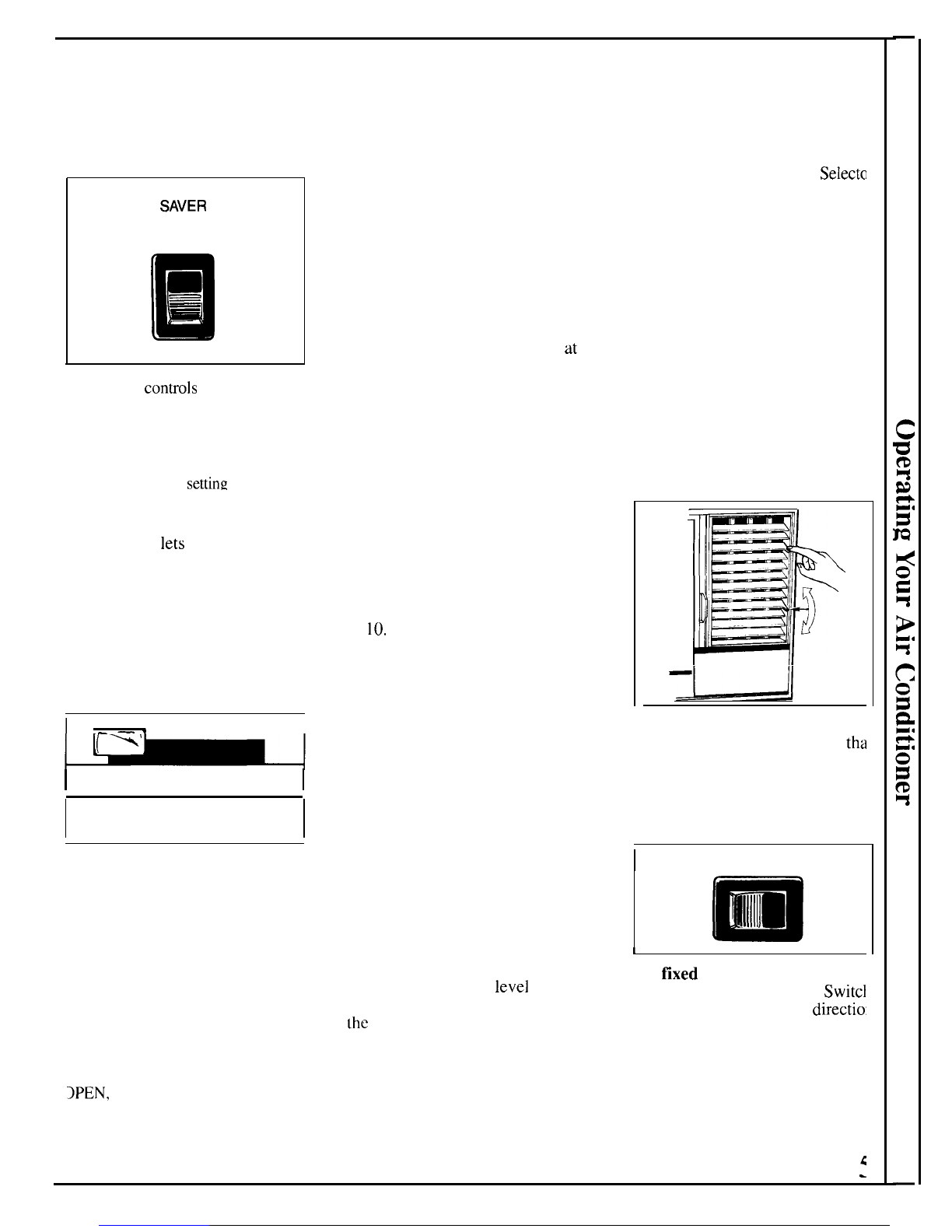

Energy Saver Fan
Cycle Switch
ENERGY
SAVER
NORMAL
H
~
=
SAVE
This switch conwols the fan
operation.
NORMAL setting allows continuous
fan function, circulating air even
when the compressor has cycled off
and the thermostat
setting has been
reached. This setting is recommended
for maximum comfort.
SAVE setting lets the fan cycle on
and off with the compressor during
cooling. The fan stops when the
thermostat setting is satisfied. This
setting results in longer off time
and wider variations of room
temperature and humidity. This
setting is normally used when the
room is unoccupied.
I 4
——
I CLOSE VENT OPEN I
(ON THE GRILLE FRAME
ABOVE THE CONTROL PANEL)
Ventilation Control
When you move the Ventilation
Control to CLOSE, the vent door is
closed and only the air inside the
room will be circulated and
conditioned. Moving the control to
OPEN opens the vent door,
allowing a small amount of indoor
air to be exhausted from the room.
However, cooling effectiveness is
reduced when this control is set at
3PEN, so we suggest you don’t
keep it there long+ specially in
hot, humid weather.
For normal cooling
1. Set the Selector Switch at HIGH
COOL.
2. Set the Thermostat Control at
the desired number (usually 5-7 is a
good starting position). If room
temperature is not satisfactory after
a reasonable time, set the
Thermostat Control at a higher
number for a cooler room or at a
lower number for a warmer room.
3. Set the Energy Saver Switch at
NORMAL position for continuous
fan operation or at SAVE position
to automatically cycle the fan on
and off with the compressor.
4. Set the Ventilation Control at
CLOSE except for brief periods
when you want to exhaust room air
to the outside.
For maximum cooling
1. Set the Selector Switch at
HIGH COOL.
2. Turn the Thermostat Control
to
10.
3. Set the Ventilation Control at
CLOSE.
4. Set the Energy Saver Switch at
the NORMAL position.
For quieter operation
1. Set the Selector Switch at LOW
COOL position.
2. Slide the Thermostat Control to
the desired number.
3. Set the Ventilation Control at
CLOSE.
4. Set the Energy Saver Switch at
NORMAL position.
Note: When the Energy Saver
Switch is at the SAVE position,
changes in the sound level may be
more noticeable than when it’s at
(he NORMAL position.
For nighttime operation
During the cooler evening hours, w
recommend that you set the
Selecto
Switch at LOW COOL for quieter
operation and the Thermostat
Control at mid-range (5 or 6). Set
the Ventilation Control at CLOSE
and the Energy Saver Switch at
NORMAL or SAVE position.
For extreme temperatures
For greatest economy and best
performance, we suggest that you
set the Selector Switch at HIGH
COOL in extremely hot weather.
To adjust air direction
Up and down
-U1
The up-and-down air direction
louvers are controlled by a tab
tha
lets you position the louvers to
discharge the air up, down or
straight out.
Side to side
I
CIRCULAIRE
OFF
m
1111111
ON
I
For fixed side-to-side air
direction, set the Circulaire Switcl
to ON until the desired air directiol
is obtained, then move it to OFF.
For continuous side-to-side air
circulation,
set the Circulaire
Switch to ON and leave it there.

Care and Cleating
USER MAINTENANCE
INSTRUCTIONS
Turn air conditioner off and
remove plug from wall outlet
before cleaning.
Grille & Cabinet
Wipe front grille with a clean cloth
lightly dampened with mild liquid
dishwashing detergent. Wash
cabinet with mild soap or detergent
and lukewarm water.
Outdoor Coil
This coil on the outdoor side
of the unit should be checked
periodically and cleaned if
clogged with dirt or soot from
the atmosphere. If extremely
soiled, it may need to be steam
cleaned, a service available
through your GE service outlet.
Front Grille
Remove the front grille if you
need to read the model and
serial numbers.
To remove the grille:
1. Remove air filter from the grille
by sliding it to the right.
2. Remove and save the screw that
holds the
grille to the chassis.
3. Press inward on the lower right
side of the cabinet until the tab is
clear of the slot and allow the
grille to come toward you slightly.
4. Repeat this process for the lower
left side.
Do not pull the bottom edge
toward you more than 3 inches or
damage to the top 2 tabs of the
grille may occur.
5. Grasp the grille’s lower right
and left corner and carefully lift
straight upward to disengage the
2 top tabs from their slots in the
cabinet front edge.
CABINET
&
To attach the grille:
The
grille is attached on the front of
the cabinet by four tabs and a screw.
1. Remove air filter from the grille
by sliding it to the right.
2. Engage two tabs on the grille’s
top inside edge with two
slots in
the cabinet front edge.
3. Press inward on the lower right
side of the metal cabinet at the
location of the slots and then
carefully push the grille in until the
tab engages with the slot.
Do not strike or forcibly hit the
plastic grille or damage to the
tabs will occur.
4. Repeat this process for the lower
left side.
5. Mount the grille on the front of
the cabinet with the screw attached
to the grille during shipping, and
slide the filter back into place.
Air Filter
The air filter behind the inlet grille
should be washed at least every
30
days or as often as it needs cleaning.
To remove the filter, grasp the tab
on the filter and
pull to the right.
Vacuum the filter on the dusty side
to remove light dust. Wash the
filter, cleaner side up, under gently
flowing water to wash out
accumulated dust and lint. If the
filter is very dirty, use a
mild
household detergent in the wash
water. Let the filter dry thoroughly
before replacing it.
When replacing the filter, be sure
the word FRONT is facing you as
you slide the filter back into place.
6

Energ-Saving Tips
● Keep the air filter clean.
● For most efficient cooling,
keep the ventilation control in
the CLOSE position except
when you want to exhaust air,
smoke or odors from the room.
● Don’ t let the room get too
hot. Whenever possible, turn the
unit on before the room heats up.
When heat is “stored up” in walls,
furniture, rugs and draperies, your
air conditioner takes longer to
produce the desired comfort
condition.
● Keep windows and doors
closed. Cool, dry air escapes
when they’re open.
● Keep furnace floor registers and
cold air returns closed. Cold air
can
easily escape through them.
● Don’t let drapes or furniture block
the top or front of unit and restrict
air flow when it is operating.
● It’s best to operate your air
conditioner at high speed during
extremely hot weather.
Q Keep the outdoor condenser
coil clean.
● Turn air conditioner off before
vacations or extended absences
from home.
m
Questions
-~. Use TMs Problem Solver ~
~
PROBLEM
AIR CONDITIONER
DOES NOT OPERATE
AIR CONDITIONER
“DOES NOT COOL
AS IT SHOULD”
OPERATING SOUNDS
WATER DRIPPING
OUTSIDE
WATER DRIPPING
INSIDE
WATER IN BASE PAN
(ON OUTDOOR SIDE)
POSSIBLE CAUSE
● Not plugged in. Plug may have been bumped
loose by vacuum cleaner or furniture.
● If plugged in, fuse could have blown or
circuit breaker may have tripped.
● Curtain, blinds or furniture blocking the top or
the front of the air conditioner will restrict airflow.
“ Thermostat Control may not be set high enough.
Move the knob to a higher number. Highest
setting should provide maximum cooling. When
Energy Saver Switch is set at SAVE, temperature
range in room will vary more.
● Air filter dirty, should be cleaned at least
every 30 days.
● Room may have been very hot when air
conditioner was first turned on. Allow time
for it to cool down.
● Cold air may be escaping through open
furnace floor registers and cold air returns.
● Ventilation control may be set at OPEN position,
allowing hot outside air to enter the room.
● Cooling coils have iced up. To melt ice, move
the Selector Switch to FAN ONLY and the
Thermostat Control to a lower number.
● Thermostat click, a metilic sound, may be heard
when compressor cycles on and off. This is normal.
● Fan runs continuously when Selector Switch
is in COOL or FAN position. This is norrnd.
When Energy Saver Switch is set at SAVE, fan
cycles on and off with compressor.
● Excess water may ovefflow in extremely hot
and humid weather. This is normal.
● Air conditioner must be installed level or tilted
slightly to the outside for proper water disposd.
● This is normrd for a short period in areas with
little humidity; normal for a longer period in
very humid areas. Moisture removed from
indoor air drains to rear of cabinet where it is
picked up by a fan and thrown against the
outdoor condenser coil.
If you need more help...call, toll free:
GE Answer
Center@
800.626.2000
consumer information service
7

INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
lMPORTANT–Observe all governing codes
and ordinances.
lNSTALLER—Be sure to leave these
instructions with the consumer.
CO
NSUMER–l(eep these instructions for
future reference.
ELECTRICAL REQUIREMENTS
FOR PERSONAL SAFETY:
● THIS APPLIANCE MUST BE PROPERLY
GROUNDED. See grounding instructions.
● DO NOT, UNDER ANY CIRCUMSTANCES,
CUT OR REMOVE THE THIRD GROUNDING
PRONG FROM THE POWER CORD.
● WE RECOMM END THAT YOU DO NOT USE
AN EXTENSION CORD OR AN ADAPTER
PLUG WITH THIS APPLIANCE.
● DO NOT CHANGE THE PLUG ON THE
POWER CORD OF THIS APPLIANCE.
● FOLLOW NATIONAL ELECTRICAL CODES
OR LOCAL CODES AND ORDINANCES.
115V 230V/208V 230 V/208V
230V/208V
15 AMP circuit
20 AMP circuit
15 AMP circuit 30 AMP circuit
“parallel” type “perpendicular” type “tandem” type “tandem” type
● If the electrical supply provided does not meet
the above specifications, call a licensed electrician.
● Aluminum house wiring may pose special
problems–consult a qualified electrician.
● This unit requires a separate circuit serving only
this appliance.
WINDOW REQUIREMENTS
● Standard double-hung window with actual
opening width of 26” to 42”.
● Clear vertical opening of 151/z” minimum from
bottom of sash to stool.
● Install the air conditioner in a window where
there will be enough clearance around the cabinet
to allow ample circulation of air through the unit.
r
!
Note: All supporting parts should be secured to
firm wood, masonry or metal.
8

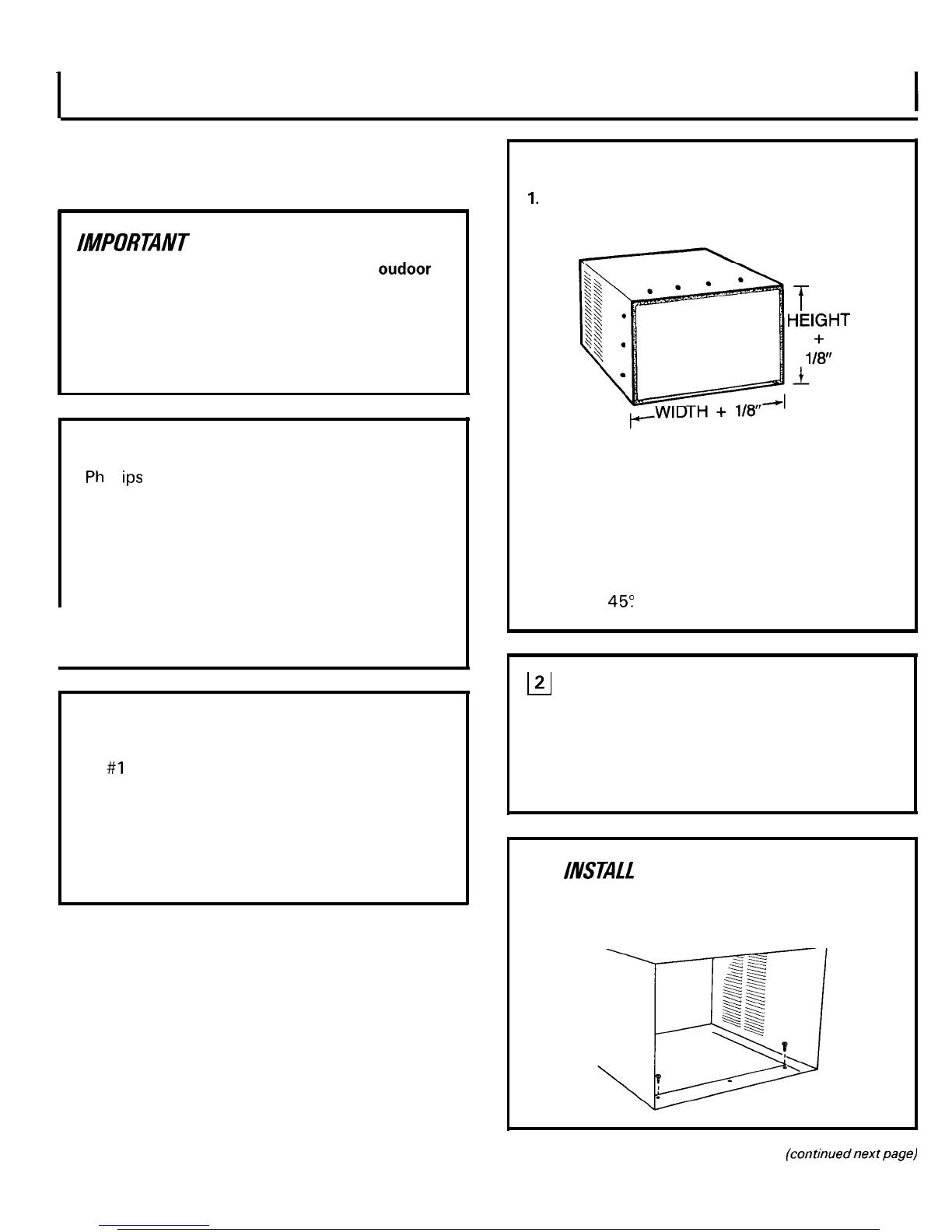

I WINDOW INSTALLATION
TOOLS NEEDED
● Phillips head screwdriver
● Blade-type screwdriver
● Sharp knife or razor blade
● Rule or tape measure
● Pencil ● Level ● Box wrench
SCREWS FURNISHED (see samples)
Type A
Qty-3
Type B
Qty-2
Type C
T
Qty-4
Type D
e
Qty-6
Typ
scr
iller
(continued next page)
9

I WINDOW INSTALLATION (...,,”.,,)
❑ REMOVEFRONTGRILLE
See Front Grille section.

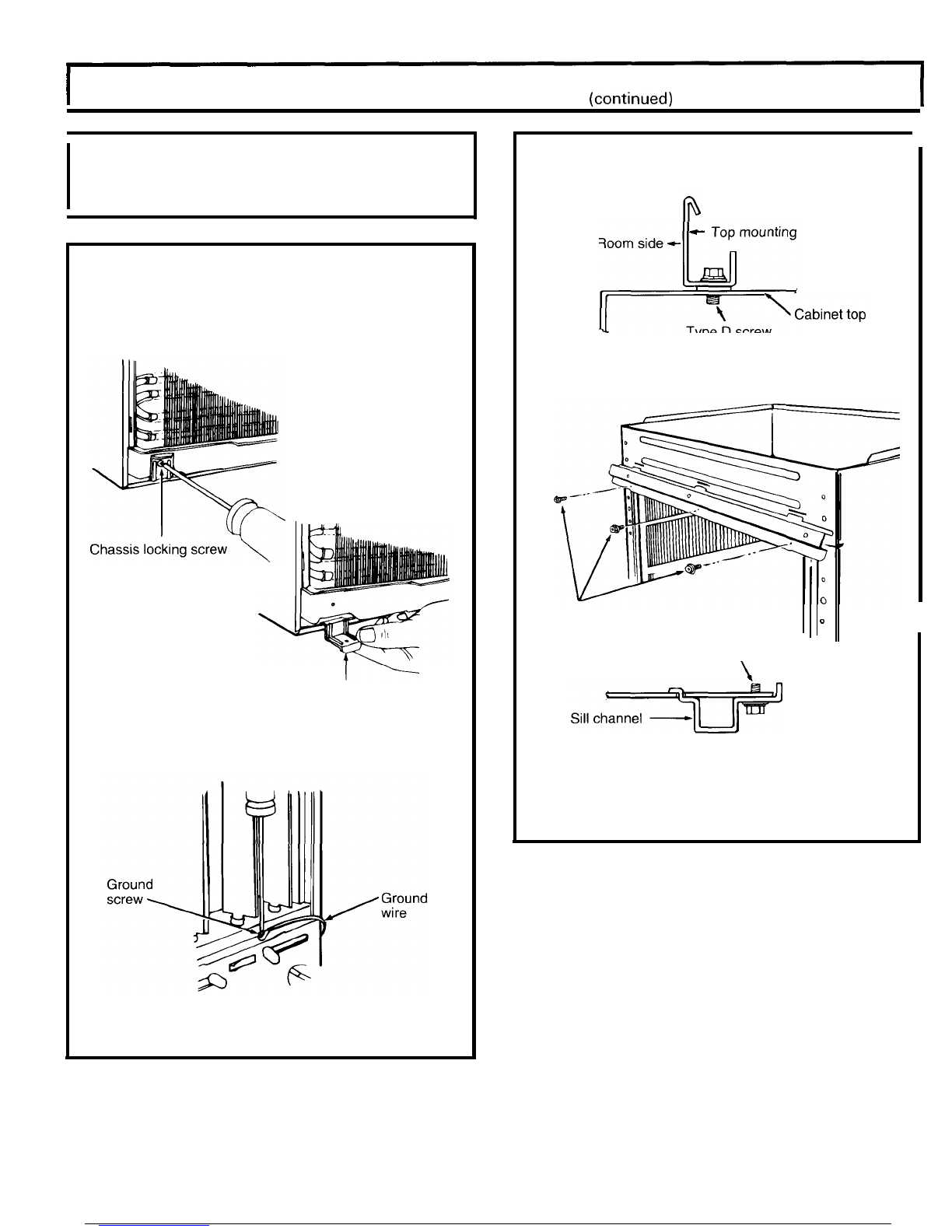

❑ PREPARE CHASSIS.
1. Remove chassis locking bracket and chassis
locking screw with a Phillips head screwdriver.
(Save for reuse.)
Chassis locking bracket
2. Remove ground screw and ground wire.
(Save for reuse.)
3. Remove chassis from cabinet using the base pan
as a handle.
❑ PREPARE CABINET
+
+ Top mounting rail
Room side +
~ \Ca~i~e~~op
Type D screw
1. Install top mounting rail onto top of cabinet
with 3 Type D screws.
Type D screw
o
Type D
screw
!
sl,ch-
2. Install bottom sill channel onto cabinet by
inserting notches on channel into slots located
on bottom of cabinet and securing with 3 Type D
screws.
10

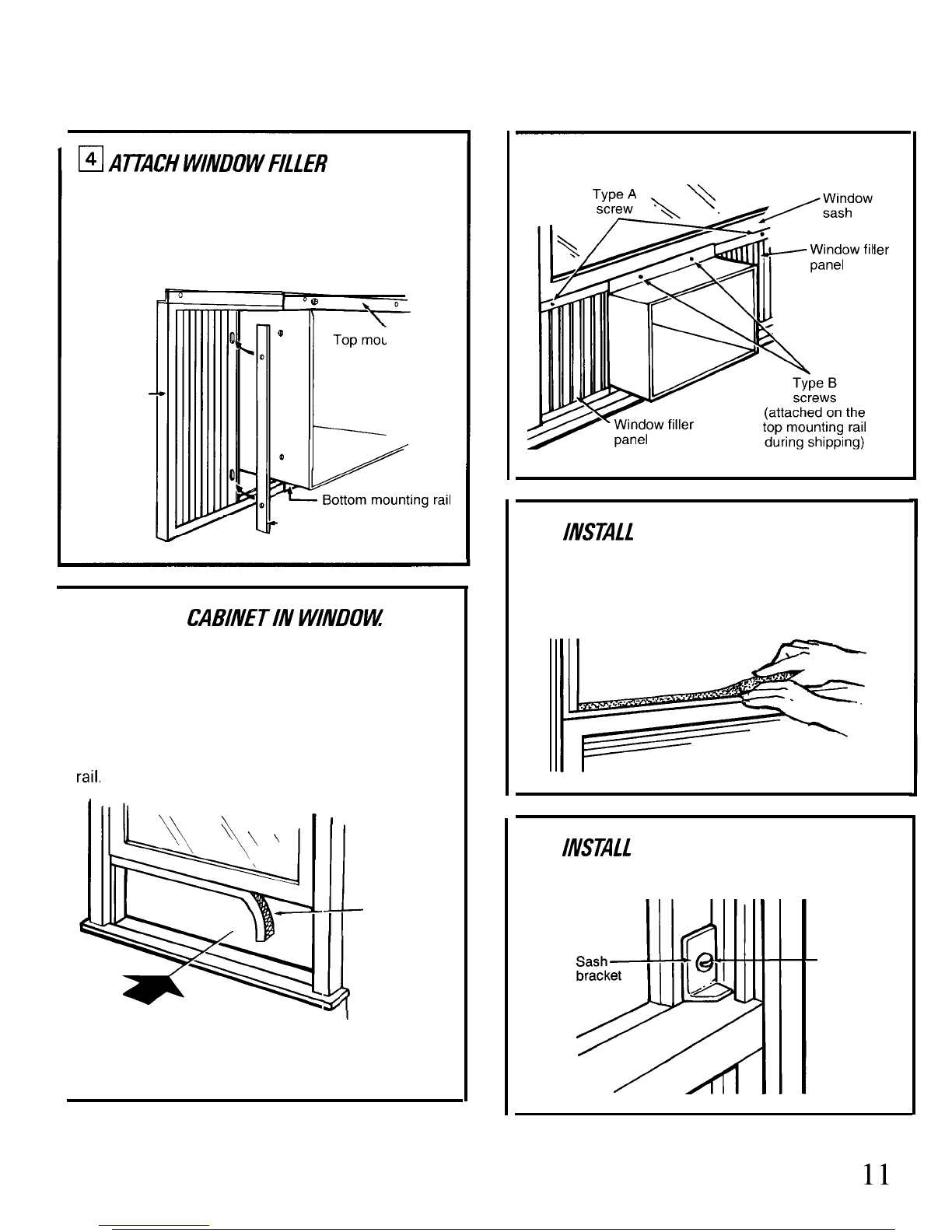

wAnACH WINDOWFILLER PANELS.
1. Slide left window filler panel into top and bottom
mounting rails.
2. Slide retainer panel into window filler panel and
attach to cabinet with 2 Type C screws.
3. Repeat for right side.
Window —
filler panel
gtingrail
— Retainer panel
@
L
Top mounting rail
‘ ❑ lNSmLL CABINETIN WINDOK
1. Cut sealing ribbon to window width and stick it
to bottom of the lower window sash.
2. Measure and mark center of window sill to
establish mounting position of cabinet.
3. Install cabinet into opening and center on line
marked on window sill. Put top of cabinet toward
you and lower window sash behind top mounting
rail,
.
●
Center line
Sealing
ribbon
(ADHESIVE
SIDE)
4. Extend and secure left and right window filler
panels to window sash with Type A screws, one on
each side.
5. Secure top mounting rail with two Type B screws.
Ier
❑ /NSMLL SASH GASKET
Cut foam sash gasket to window width and stuff
between top of lower sash and glass panes of
upper sash. Make sure foam gasket is flush with
top of lower sash.
❑ INSWLL SASH LOCK
Install sash locking bracket using Type A screws.
Type A
screw
(continued next page)
11

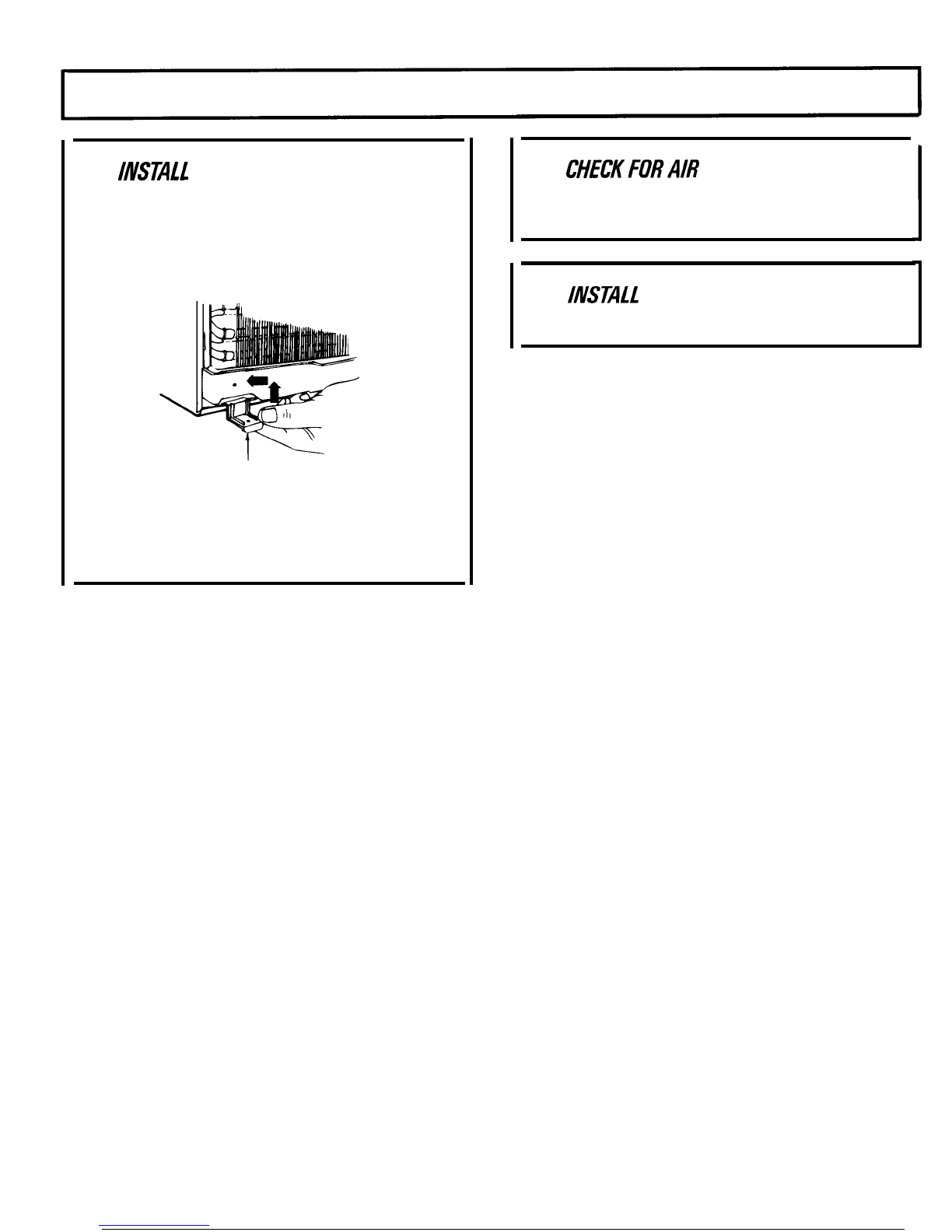

WINDOW INSTALLATION (Continued)
❑ INSMLL CHASSIS IN CABINED
1. Slide chassis into cabinet. (Make sure tubing on
unit is not touching wall case.)
2. Lock chassis into cabinet by reinstalling chassis
locking bracket and chassis locking screw removed
in Step 2.
Chassis locking bracket
3. Reconnect ground wire removed in Step 2 to
chassis.
4. Remove enough line cord to reach the wall
receptacle.
❑ CHECKFORAIR LEAKS.
Seal small openings around cabinet with gum-type
sealer, provided.
❑ lNS~LL FRONTGRILLE
See Front Grille section.
12

THROUGH-THE-WALL INSTALLATION
THE CABINET MAY BE INSTALLED
THROUGH THE WALL IN BOTH EXISTING
BUILDINGS AND NEW CONSTRUCTION.
IMPORMNT
● Any side louvers must project on the oudoor
side of the wall.
● The room side of the cabinet must project into
the room at least 1“ from the finished wall.
● The cabinet must be installed level from side to
side and with a 3/8” tilt from front to rear.
TOOLS REQUIRED
● Ph ill ips head screwdriver
● Blade-type screwdriver
● Magnetic stud finder (optional)
● Tin snips
● Handsaw ● Hammer
● Level ● Caulking gun
● Chisel ● Tape measure
I
● Concrete saw (if installing through a masonry wall)
ADDITIONAL MATERIALS NEEDED
(obtain locally)
● 12 #l O wood screws, 1“ long
● 1 tube high grade caulking compound
● Wooden framing studs
● Lintel, if required, to support bricks or blocks
above opening
● Flashing, aluminum or galvanized steel
❑ PREPARE WALL OPENING.
1. Determine size of opening. Measure width and
height of cabinet and add 1/8” to each dimension.
2. Choose the wall opening location. Be sure a
power receptacle is (or will be) installed nearby.
3. Make the opening. Frame it to support the
weight of the air conditioner.
Add metal flashing over bottom of frame opening
and 1“ up on sides to reduce the possibility of
moisture entering the area between the inner and
outer wall. The flashing lip should be 1“ wide and
bent down
45! See the illustration, page 14.
~ PREPARE THE CABINED
1. Remove chassis from cabinet. See Step 2 of
Window Installation.
2. With caulking compound or electrical tape,
seal all holes provided in the cabinet for window
installation hardware not used in this installation.
❑ INSMLL CABINETIN WALL.
1. Place cabinet in wall opening.
2. Secure cabinet bottom rail to wooden frame
with two 1“ long #1 O wood screws.
(cont;nuednextpage)
13

THROUGH-THE-WALL INSTALLATION (cont,n.e~,
❑ lNS~LL CABINETIN WALL (continued).
3. Secure cabinet sides to wooden frame with six
1“ long #1 O wood screws and secure cabinet top
to frame with four 1“ long #1 O wood screws.
Drill holes in cabinet sides and top, if necessary for
proper installation. If frame is oversize, use shims to
prevent cabinet distortion.
4. Caulk all four sides on the outdoor side of
cabinet to prevent moisture from getting
through to the interior wall. Use of flashing (a
piece of aluminum or galvanized steel available at
most hardware stores) will further prevent moisture
from getting into interior walls.
5. Install wood trim molding (obtained locally)
around roomside projection of cabinet, if desired.
❑ SLIDE CHASSIS INTO CABINET
Lift the chassis and carefully slide it into cabinet. Do
not push on controls or finned coils. Make sure
chassis is firmly seated toward rear of cabinet.
In
5 lNS~LL CHASSIS IN CABINED
I
See Step 8 of Window Installation.
In 6 lNS~LL FILTER AND GRILLE
I
See Care and Cleaning section.
ster Line
Trim
Molding
(if desired)
Holes for
#10 1“ Long
Wood Screws
Flashing =
.- - - -
~l~s~ing- --:-r” ‘“
F-”
-—.
—..
.
INSIDE
14

Wdll Be There
With the purchase of your new GE appliance, receive the
assurance that if you ever need information or assistance
from GE, wdll be there. All you have to do is call–toll-free!
GEAnswer Center@
80~62E2000
Whatevel your c]ues(ion about any (;E
major appliance,
GE Arrswel (;enter”’
In-Home Repair
Serv;ce
80WE4ARES
(80M32-2737)
AGE consumer service professional
will provide expert
repaiI service,
scheduled at
a time that’s convenien[
fk)r you. Marry (1E (Jousumel- Service
company-operated locations offer
you service today or tomorrow, or at
your convenience
(7:00 a.m. to 7:()() p.m.
weekdays,
9:()() a.m. to 2:()() p.m. Satur-
days). Our
fbcto~-trained technicians
know your appliance inside and out-
so most. repairs can be handled in just
one visit.
Servjce Contracts
80@626-2224
You can have the secure feeling that
(;E (I(msumel Service will still be
there af’ter your warranty expires. I’ur-
chase a GE
con[ract while your war-
ranty is
still in effect. and you’11 receive
a substantial discount. With
a rrrultiple-
year corrtr-ac(, you ’r-e assur-ed of-future
service at today’s prices.
Parts andAccessorjes
80@62&2002
Individu~ qurdified to service tieir
own appliances cart have needed
parts
or accessories sent directly to
their home, free of’shipping charge!
The
GE parts system provides access
to {)ver 47,000 parts... and all GE
Genuine Renewal ParLs are fully
warranted. VISA, Master(lard and
Discover cards
are accepted.
User maintenance instructions
contained in this
boo~et cover proce-
dures intended to be performed by
any user. Other servicing
gener~y
shodd be referred to qudfied ser-
vice personnel. Caution
mmt be
exercised, since improper servicing
may cause unsafe operation.
inforrnat;orr” sel~ice is available to
help.
YOLlr call-and yoLIr questiorr-
will be answered promptly and
courteously. And you c;in call any
tirnc. GE Answer” (;errler”’ service is
open 24 hours a day, 7 days a week.
Telecommunication Detice for the Deaf
kr Customers Wjth
SpecjalNeeds...
8b~6262000
Upon request, GE will provide Brain<
controls for
ii variety of GE appliances
arrcl a t>rochure to assist in planning a
barrier-free kitchen fi)r persons with
limited mobility. To obtain these item:
fi-ec of’charge, call 800.626.2000.
(;onsumers with impaired hearing
or speech
who have access [o a TDD
or a conventional teletypewriter may
call 80()-TDD-GEAC (800-8334322)
to request information or service.

YOUR GE ROOM AIR CONDITIONER
WARRANTY
Save proof of original purchase date such as your sales slip or cancelled check to establish warranty period.
WHAT IS COVERED
FULL ONE-YEAR WARRANTY
For one year from date of original
purchase, we will provide, free of
charge, patis and service labor in
your home to repair or replace
any part of the room air
conditioner that fails because
of a manufacturing defect.
FULL-FIVE YEAR WARRANTY
For five years from the date of
original purchase, we will provide,
free of charge, parts and service
labor in your home to repair or
replace any part of
the sealed
refrigerating system (the
compressor, condenser,
evaporator and all connecting
tubing) that fails because of a
manufacturing defect.
For each of the above warranties:
Transportation expense to and from
a service shop and shop service
labor if required will be free of
charge.
This warranty is extended to
the original purchaser and any
succeeding owner for products
purchased for use in the 48
mainland states, Hawaii and
Washington, D.C. In Alaska the
warranty is the same except that it
is LIMITED because you must pay
to ship the product to the service
shop or for the service technician’s
travel costs to your home.
All warranty service will be
provided by our Factory Service
Centers or by our authorized
Customer Care” servicers during
normal working hours.
Look in the White or Yellow Pages
of your telephone directory for
GENERAL ELECTRIC
COMPANY, GENERAL
ELECTRIC FACTORY SERVICE,
GENERAL
ELECTRIC-HOTPOINT
FACTORY SERVICE or GENERAL
ELECTRIC CUSTOMER CARE
@
SERVICE.
WHAT IS NOT COVERED
● Service trips to your home to
teach you how to use the product.
Read your Use and Care material.
If you then have any questions
about operating the product please
contact your dealer or our
Consumer Affairs office at the
address below, or call, toll free:
GE Answer
Center@
800.626.2000
consumer information service
● Improper installation.
If you have an installation
problem, or if the air conditioner is
of improper cooling capacity for the
intended use, contact your dealer
or installer. You are responsible for
providing adequate electrical
connecting facilities.
● Replacement of house fuses or
resetting of circuit breakers.
● I n commercial locations labor
necessa~ to move the unit to a
location where it is accessible for
● Failure of the product resulting
from modifications to the product or
due to unreasonable use including
failure to provide reasonable and
necessa~ maintenance.
. Failure due to corrosion on
models not corrosion-protected.
. Damage to product caused
by improper power supply voltage,
accident, fire, floods or acts of God.
WARRANTOR IS NOT
RESPONSIBLE FOR
CONSEQUENTIAL DAMAGES.
I
service by an individual technician.
I
f
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion
may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which
va~ from state to state.
To know what your legal rights are in your state, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor:GeneralElectricCompany
If further help is needed concerning this warranty, write:
Manager—Consumer Affairs, GE Appliances, Louisville, KY 40225
I
I
Pub No. 49-7264
11-91 CG
AMD1O
AMD
AMHIz
