GE AHR05 Operating instructions

GEPpp/iances.com
0_
"0
Safety Instructions ............. 2,3
Operating Instructions
Controls .............................. 4
Care and Cleaning
Air Filter .............................. 5
Outdoor Coils ......................... S
Installation Instructions ...... 6-i0
Troubleshooting Tips ............ ll
Normal Operating Sounds ............ 11
Consumer Support
Consumer Support ................... 14
Warrantg for Customers
in the U.S.A........................... 13
AHRO5
®Write the model and serial numbers here:
Model #
Serial #
Find these numbers on a label on the sideof
the air conditioner.
In Canada, contact us at:
www.GEAppliances.ca 49-7689 12-10 GE

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
B
For your safety, the information in this manual must be followed to minimize the risk of fire, electric
shock or personal injury.
SAFETYPRECAUTIONS
Use this appliance only for its intended
purpose as described in this Owner's
Hanual.
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_iiiii
iiiiiiiiiiii_i;i
This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
iiiiiiiiiiii_i;i
Replace immediately all electric service
cords that have become frayed or otherwise
damaged. A damaged power supply cord
must be replaced with a new power supply
cord obtained from the manufacturer and
not repaired. Do not use a cord that shows
cracks or abrasion damage along its length
or at either the plug or connector end.
Turn the unit OFFand unplug your air
conditioner before cleaning.
GEdoes not support any servicing of the
air conditioner. We strongly recommend
that you do not attempt to service the air
conditioner yourself.
For your safetg...do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
All air conditioners contain refrigerants,
which under federal law must be removed
prior to product disposal. If you are getting
rid of an old product with refrigerants, check
with the company handling disposal about
what to do.
If the receptacle does not match the plug,
the receptacle must be changed out by a
qualified electrician.
These R410A air conditioning systems
require contractors and technicians to
use tools, equipment and safety standards
approved for use with this refrigerant.
DO NOT use equipment certified for
R22 refrigerant only.
2
HOW TO CONNECT ELECTRICITY
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord.
For personal safety, this appliance must be
properly grounded.
DO NOT use an adapter plug with this
appliance.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall outlet
to minimize the possibility of electric shock
hazard from this appliance.
Power cord includes a current interrupter device.
A test and reset button is provided on the plug
case. The device should be tested on a periodic
basis by first pressing the TESTbutton and
then the IIESETbutton while plugged into the
outlet. If the TESTbutton does not trip or if the
Ill:SET button will not stay engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Have the wall outlet and circuit checked by
a qualified electrician to make sure the outlet
is properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be plugged
into its own individual electrical outlet which has
a voltage rating that matches the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits which
could cause a fire hazard from overheated wires.
See the Installation Instructions, Electrical
Requirements section for specific electrical
connection requirements.

USEOFEXTENSIONCORDS
RISK OF FIRE. Could cause serious injury or
death.
,, DO NOT use an extension cord with this
Window Air Conditioner.
,, DO NOT use surge protectors or multi-outlet
adaptors with this Window Air Conditioner.
GEAppliances.com
READANDFOLLOWTHISSAFETYINFORMATIONCAREFULLK
SAVETHESEINSTRUCTIONS

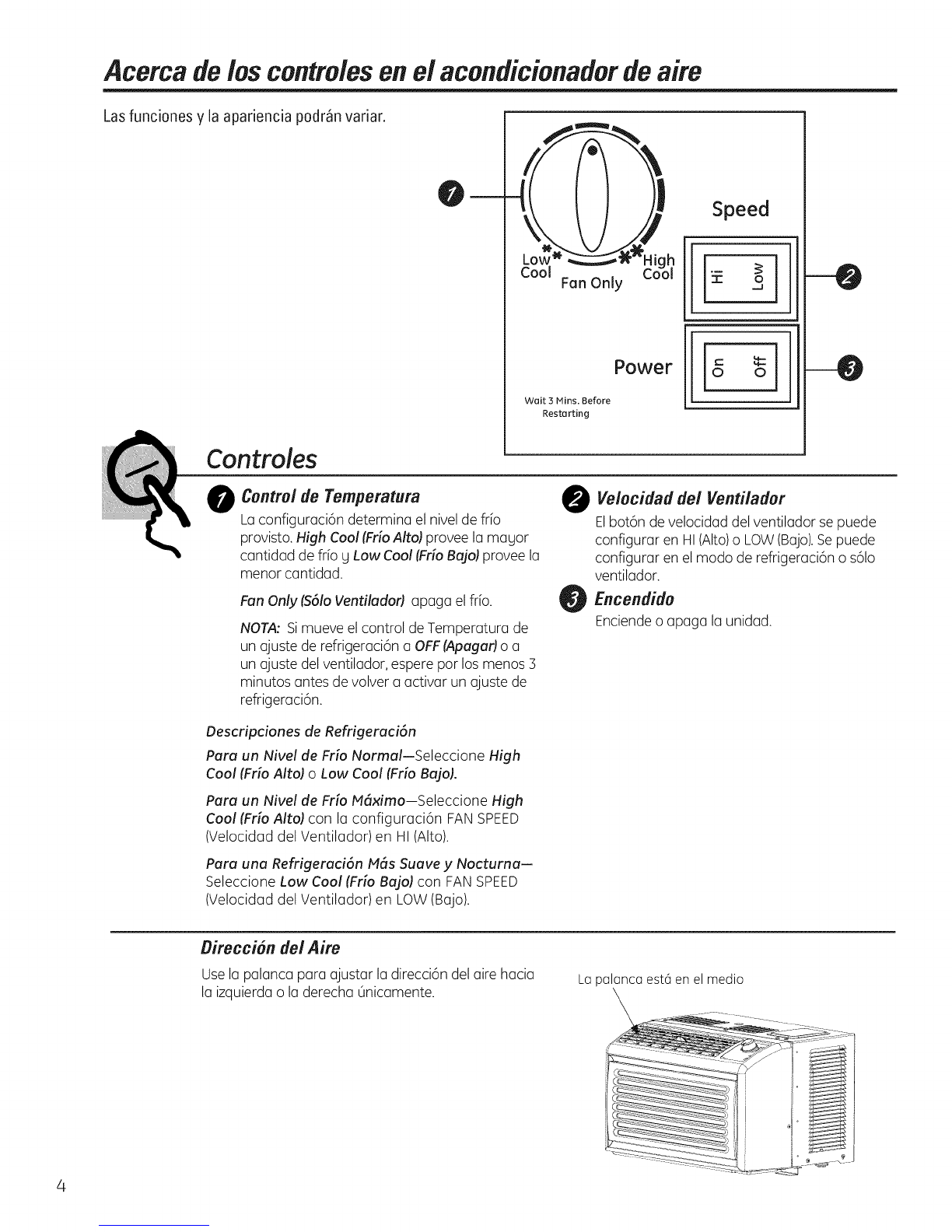

About the controls on the air conditioner
Features and appearance will vary.
CooE Fan Only
Wait 3 Mins, Before
Restarting
High
CooE
Power
Speed
"I" o
.J
o o
Controls
0Temperature Control
Setting determines how much cooling is
provided. High Cool provides the most cooling
and Low Cool provides the least
Fan Only turn off the cooling.
NOTE:If gou move the Temperature control
from (] cool setting to OFFor to a fan setting,
wait at least 3 minutes before switching back to
(] coolsetting.
0FanSpeed
Thefan speed button can be set on HIor LOW.
Inboth cooling mode and fan onlg mode.
Power
Turnsthe unit on or off.
Cooling Descriptions
For Normal Cooling-Select High Cool or Low
Cool
For Maximum Cooling-Select High Cool with the
FAN SPEEDset to HI.
For Quieter and Nighttime Cooling-Select Low
Cool with the FAN SPEED set to LOW.
Air Direction
Usethe leverto adjust the air direction left and right
onlg. lever is in middle

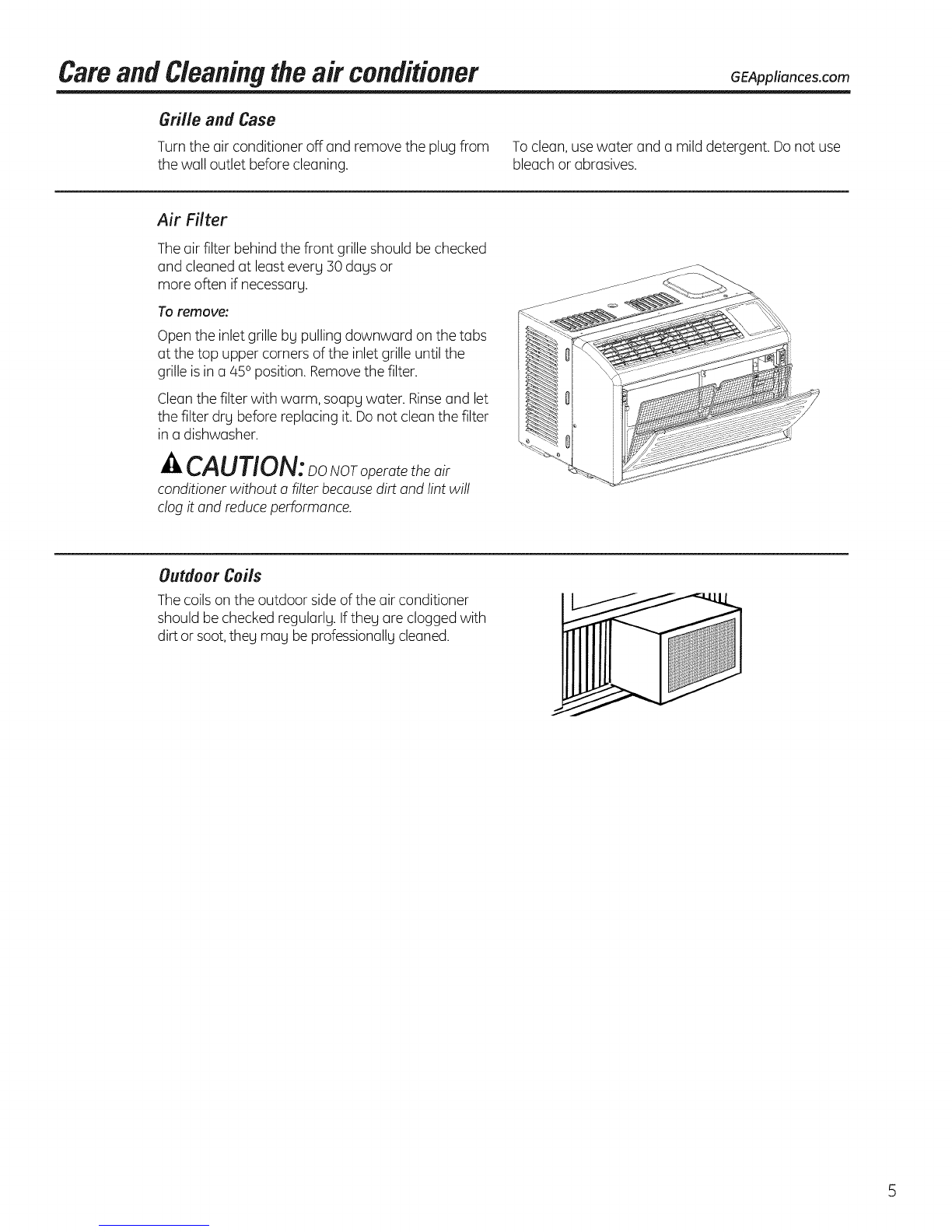

Careand Cleaningtheair conditioner
Grille and Case
Turnthe airconditioner off and remove the plug from
the wall outlet before cleaning.
GEAppliances.com
Toclean, usewater and a mild detergent. Donot use
bleach or abrasives.
Air Filter
Theair filter behind the front grille should be checked
and cleaned at least everg 30 dags or
more often if necessarg.
To remove:
Open the inlet grille by pulling downward on the tabs
at the top upper corners ofthe inlet grille until the
grille is in a/45oposition. Removethe filter.
Cleanthe filter with warm, soapg water. Rinseand let
the filter drg before replacing it. Donot clean the filter
in a dishwasher.
ACAUTION:DoNoroneratetheair
conditioner without afilter because dirt and lint will
clog it and reduce performance.
Outdoor Ceils
Thecoils on the outdoor sideof the air conditioner
should be checked regularlg.If theg are clogged with
dirt or soot,theg mag be professionallgcleaned.

II i
Istruct"
|Co i
BEFOREYOU BEGIN
Read these instructions completely
and carefully.
• iMPORTANT- Soretheseinstructions
for local inspector's use.
" iMPORTANT - Observe all governing
codes and ordinances.
•Note to Installer- Be sure to leave these
instructions with the Consumer.
,, Note to Consumer - Keep these instructions for
future reference.
,, Skill level- Installation of this appliance
requires basic mechanical skills.
,, Completion time - Approximatelg 1 hour
,, We recommend that two people install
this product.
,, Proper installation is the responsibilitg
of the installer.
,, Product failure due to improper installation is not
covered under the Worrontg.
,, You HUST use all supplied ports and use proper
installation procedures as described in these
instructions when installing this air conditioner.
ELECTRICALREQUIREMENTS
(_ ome models require a llS/120-volt AC,
60-Hz grounded outlet protected with a
15-amp time-delog fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibilitg of electric shock hazard. If the wall outlet gou
plan to use is onlg a 2-prong outlet,
it is gour responsibilitg to hove it replaced with
o properlg grounded 3-prong wall outlet.
Some models require 230/208-volt AC,
protected with o time-delag fuse or circuit
breaker. These models should be installed on
their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
CAUTION:
Do not, under any circumstances, cut or remove the
third (ground) prongfrom the power cord.
Do not change the plug on the power cord of this air
conditioner.
Aluminum house wiring may present special
problems--consult a qualified electrician.
TOOLSYOUWILL NEED
Drill and !/8" drill bit
Phillips head screwdriver
Pencil Ruler or tape measure
Level Scissors or knife
6
Power cord includes a current interrupter
device. A test and reset button is provided on the
plug case. The device should be tested on o periodic
basis bg first pressing the TESTbutton and then the
RESETbutton while plugged into the outlet. If the
TESTbutton does not trip or if the RESETbutton will not
stag engaged, discontinue use of the air conditioner
and contact o qualified service technician.

JnstaJlationinstructions

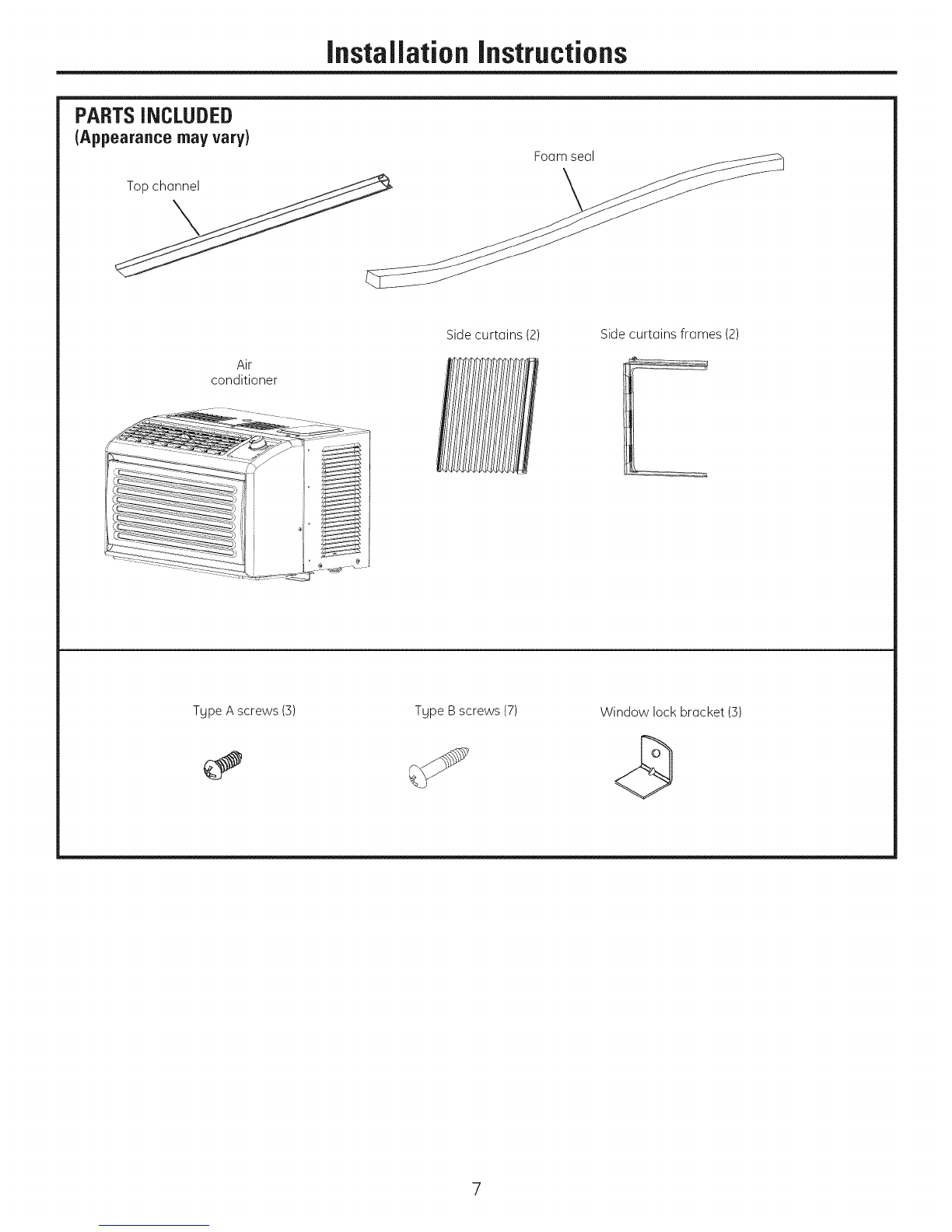

PARTSiNCLUDED
(Appearance may vary)
Foam seal
Air
conditioner
Side curtoins (2) Side curtoins fromes (2)
Tgpe Ascrews (3) Tgpe B screws (7) Window lock brocket (3)

JnstaJlationinstructions
[] WINDOW REQUIREMENTS
*These instructions (]refor a standard double-hung
window. You will need to modifg them for other tgpes
of windows.
oThe air conditioner can be installed without the
side curtain if needed to fit in (] narrow window.
Seethe window opening dimensions.
oAll supporting parts must be secured
to firm wood, m(]sonrg or metal.
oThe electrical outlet must be within reach of the
power cord.
o Follow the dimensions in the table and illustration
for our model.
B==4]
L !2" 3/8"
_23 1/4"- 36" --mL_
With side curtain |/
T ¢
j_ STORMWINDOW REQUIREMENTS
A storm window frame will not allow the air
conditioner to tilt toward the outside, and will keep it
from draining properlg.
To adjust for this, attach (] piece of wood to the sill.
WOODPIECES
WIDTH:2"
LENGTH:Long enough to fit inside the window
frame.
THICKNESS:To determine the thickness, place (]
piece of wood on the sill to make it 1/2" higher than
the top of the storm window frame or the vingl
frame.
Attach securelg with nails or screws provided bg the
installer.
1/2" higher
than storm
window
frame
Storm window
frame
1/2" higher
than vin91frame
_(onsomewindows)
_ Wood
171PREPARETHEAiR CONDITIONER
[] Install the top mounting rail with 3Tgpe A
screws from the outside of the case.
Top mounting rail
r_ Slide curtain panel into side rails.
r_ Slide left and right side curtain frames into top
and bottom mounting rail. Hake sure curtain
snaps into place.
Top mounting rail Top ight
Top left _ _/
Bottom mounting rail
8

JnstaJlationinstructions
[]PREPARING THEWINDOW FOR
iNSTALLATiON
r_ Measure the width of the window opening and
mark the center line on the inside windowsill.
Center line
@Install the window lock bracket behind the
inner windowsill, with the short side of window
lock. Use 2 tgpe B screws provided.
The window lock bracket helps hold unit
securelg in place. Be sure to place window
lock bracket edge flush against back or inner
sill.
Type Bscrews
Inner sill -_ Window lock
brackets
Outer sill. Center line
Short side
r_INSTALL THEAIR CONDITIONER
IN TIlE WINDOW
[] Set the air conditioner in the window so that
is centered. Place the air conditioner so that
front edge of the bottom mounting rail is
against the back edge of the sill.
Window frame---_
Top channel _
Bottom guide
/ About 1/4"
Window lock
bracket
rq Bring the window down so that the front
edge of the top mounting is in front of the
window. Make sure that that air conditioner
is level or tilting slightlg to the outside.
DTgpe B screws
Extend the curtain panels until theg fill the
window. Hark the location of the holes in
each corner. Use the drill and 1/8" drill bit to
drill pilot holes. Use 4 tgpe B screws to to
secure the side panels in place.
9

JnstaJlationinstructions
1=71iNSTALLSUPPORTBRACKETAND
FOAMTOPWINDOW GASKET
D
Use tgpe B screw to install the window lock
bracket on top of bottom window.
- CAUTION:
To prevent broken glass or
damage to windows, on
vingl or other similarlg
constructed windows,
attach the window locking
bracket to the window side
jamb with one Tgpe B
screw.
Vingl
Wood
Cut the foam top window gasket to the window
width.
Stuff the foam between
the glass and the
window to prevent
air and insects from
getting into the room.
NOTE: If the gasket supplied does not fit gour
window, obtain appropriate material Iocallg to
provide a proper installation seal.
10

TroubleshootingTips.
Possible Causes What To Do
Air conditioner The air conditioner *Hake surethe air conditioner plug ispushed
does not start is unplugged, completelg intothe outlet.
The fuse is blown/circuit *Check the housefuse/circuit breaker box and replace
breaker is tripped, the fuse or resetthe breaker.
Power failure. .The unit will automaticallg restart in the settings last
usedafter the power is restored.
•There is a protective time delag (approximatelg
3 minutes) to prevent tripping of the compressor
overload. Forthis reason, the unit mag not start
normal cooling for 3 minutes after it isturned
back on.
The current interrupter *Pressthe RESETbutton located on the power cord plug.
device is tripped. . If the RESETbutton will not stag engaged, discontinue
use of the air conditioner and contact a qualified
service technician.
Air conditioner does Airflow is restricted. *Hake surethere are no curtains, blindsor furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •Turnthe temperature knob to a higher number.
not be set correctly.
The air filter is dirty. *Clean the filter at least everg 30 dogs.
Seethe Care and Cleaningsection.
The room may have been hot. .When the air conditioner isfirst turned on,gou need
to allow time for the room to cool down.
Coldair is escaping. *Check for open furnace registers and cold air returns.
Cooling coils have iced up. *See "Air conditioner freezing up" below.
Air conditioner Ice blocks the air flow *On models with control knobs,set the mode control at
freezing up and stops the air conditioner High Fanor HighCoolwith the Temp at ! or 2.
from cooling the room.
Water drips outside Hot, humid weather. *This isnormal.
Water drips indoors The air conditioner is not *Forproper water disposal,make surethe air conditioner
tilted to the outside, slantsslightlg from the case front to the rear.
Water collects in
base pan Moisture removed from air and drains into base pan. *This isnormal for a short period in areas with little humiditg; normal for a longer period in verg humid areas.
Normal Operating Sounds
You mag hear a pinging noisecaused bg
water being picked up and thrown against the
condenser on raing dogs or when the humiditg
ishigh.Thisdesignfeature helps remove
moisture and improve efficiencg.
You mag hear the thermostat clickwhen the
compressor cgcles on and off.
iiiiiiiiiiii_iii
Water will collect in the base pan during
high humiditg or on raing dags.Thewater
mag overflow and drip from the outdoor side
of the unit.
Thefan mag run even when the compressor
does not. 11

NOTES:
12

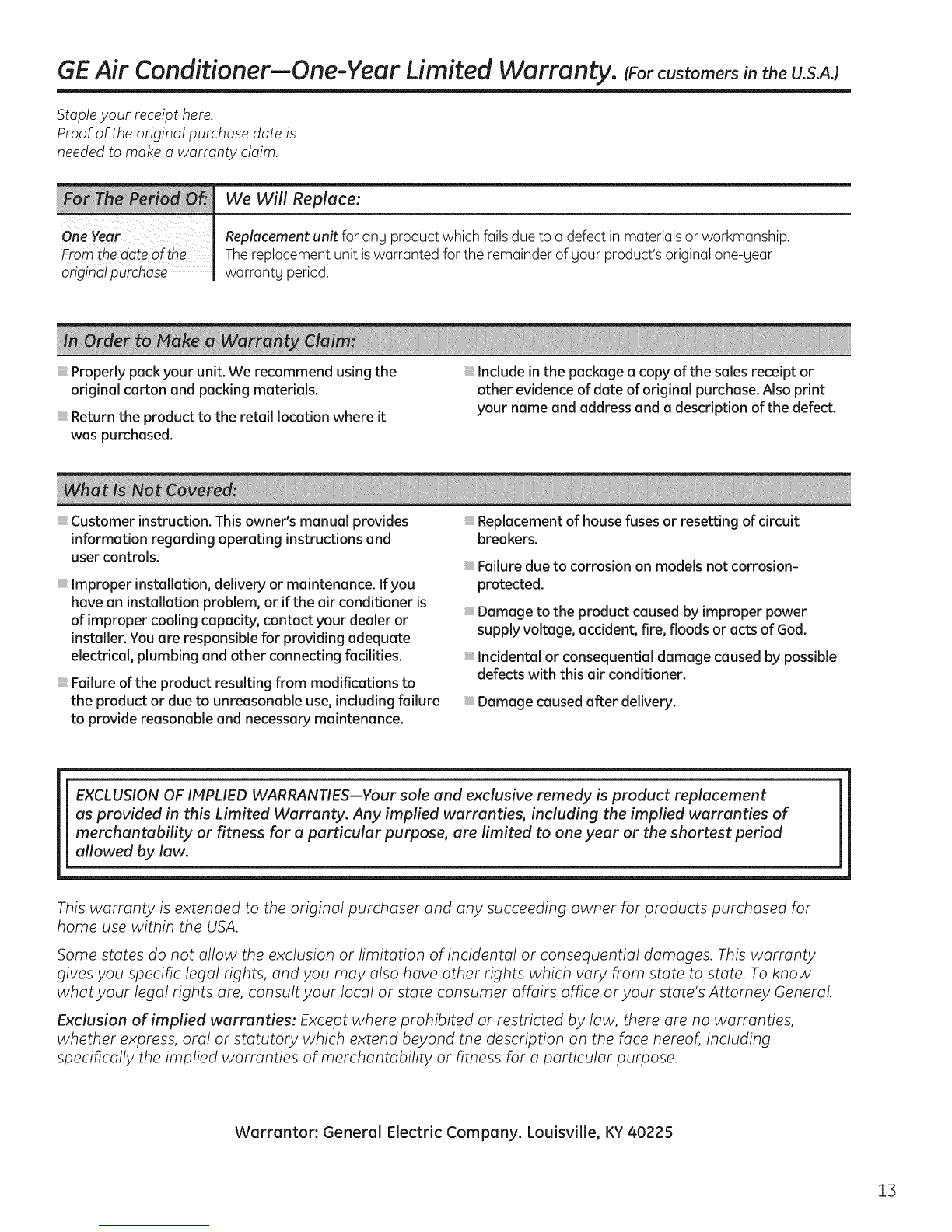

GE Air Conditioner--One-Year Limited Warranty. rorcustomers intheU.S.A.)
Staple your receipt here.
Proof of the original purchase date is
needed to make a warranty claim.
original purchase
We Will Replace:
Replacement unit for ang product which fails due to a defect in materials or workmGnship.
The replacement unit iswGrmnted for the remGinderof gout product's originGIone-geGr
wGrmntg period.
Properly pack your unit. We recommend using the
original carton and packing materials.
Return the product to the retail location where it
was purchased.
Include in the package a copy of the sales receipt or
other evidence of date of original purchase. Also print
your name and address and a description of the defect.
Customer instruction. This owner's manual provides
information regarding operating instructions and
user controls.
Improper installation, delivery or maintenance. If you
have an installation problem, or if the air conditioner is
of improper cooling capacity, contact your dealer or
installer. You are responsible for providing adequate
electrical, plumbing and other connecting facilities.
Failure of the product resulting from modifications to
the product or due to unreasonable use, including failure
to provide reasonable and necessary maintenance.
Replacement of house fuses or resetting of circuit
breakers.
Failure due to corrosion on models not corrosion-
protected.
Damage to the product caused by improper power
supply voltage, occident, fire, floods or acts of God.
Incidental or consequential damage caused by possible
defects with this air conditioner.
Damage caused after delivery.
EXCLUSION OF IMPLIED WARRANTIES--Your sole and exclusive remedy is product replacement
as provided in this Limited Warranty. Any implied warranties, including the implied warranties of
merchantability or fitness for a particular purpose, are limited to one year or the shortest period
allowed by law.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the USA.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state's Attorney General.
Exclusion of implied warranties: Except where prohibited or restricted by law, there are no warranties,
whether express, oral or statutory which extend beyond the description on the face hereof, including
specifically the implied warranties of merchantability or fitness for aparticular purpose.
Warrantor: General Electric Company. Louisville, KY40225
13

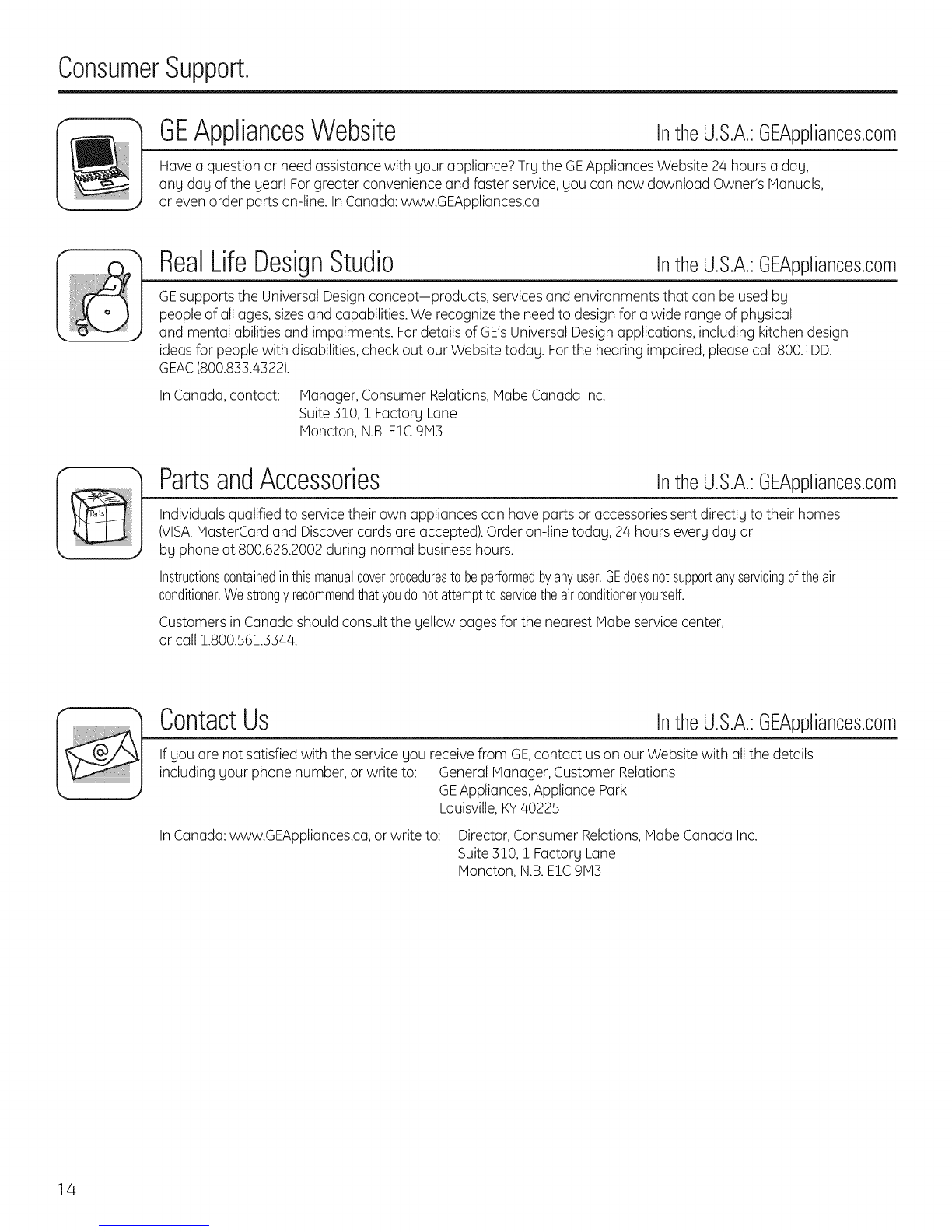

ConsumerSupport.
GEAppliancesWebsite IntheU.S.A.:GEAppliances.com
Have a question or need assistancewith gour appliance?Trg the GEAppliances Website 24 hours a dag,
ang dag of the gear! Forgreater convenience and faster service,gou can now download Owner's Manuals,
or evenorder parts on-line. InCanada:www.GEAppliances.ca
RealLifeDesignStudio IntheU.S.A.:GEAppliances.com
GEsupports the Universal Designconcept-products, servicesand environments that can be used bg
people of all ages,sizesand capabilities. We recognizethe need to designfor a wide range of phgsical
and mental abilities and impairments. Fordetails of GE'sUniversalDesignapplications, including kitchen design
ideasfor people with disabilities,check out our Website todag. Forthe hearing impaired, pleasecall 800.TDD.
GEAC(800.833.4322).
In Canada,contact: Manager, Consumer Relations,MabeCanada Inc.
Suite3!0, ! Factorg Lane
Moncton, N.B.ElC 9M3
PartsandAccessories IntheU.S.A.:GEAppliances.com
Individuals qualified to servicetheir own appliances can have parts or accessoriessent directlg to their homes
(VISA,MasterCard and Discovercards are accepted).Order on-line todag, 24 hourseverg dag or
bg phone at 800.626.2002during normal businesshours.
Instructionscontainedinthismanualcoverprocedurestobeperformedbyanyuser.GEdoesnotsupportanyservicingoftheair
conditioner.Westronglyrecommendthatyoudonotattempttoservicetheairconditioneryourself.
Customers in Canada should consult the gellow pagesfor the nearest Mabeservice center,
or call 1.800.561.334/4.
ContactUs IntheU.S.A.:GEAppliances.com
If gou are not satisfied with the servicegou receivefrom GE,contact uson our Websitewith all the details
including gour phone number, or write to: General Manager, Customer Relations
GEAppliances,Appliance Park
Louisville,KY40225
In Canada:www.GEAppliances.ca,or write to: Director, Consumer Relations,Mabe Canada Inc.
Suite3!0, ! Factorg Lane
P1oncton,N.B.E1C9P13
14

GEPpp/iances.com
Instrucciones de Seguridad... 2,3
Instrucciones de Funcionamiento
Controles ............................. 4
Cuidado y Limpieza
Bobinos Exteriores .................... 5
Filtro de Aire .......................... 5
Instrucciones de Instalaci6n 6-io
Consejos para Solucionar
Problemas ......................... 11
Sonidos Normales de
Funcionamiento ..................... ii
Soporte al Cliente
Garantia para Clientes en EE.UU...... 13
Soporte al Cliente .................... 14
AHR05
0_ 0
Escriba los nSmeros de modelo y de serie
aquh
N°de Modelo
N°de Serie
Estos n@meros se encuentran en una
etiqueta al costado del acondicionador de
aire
EnCanad& comuniquese con nosotros
en:www.GEAppliances.ca 49-7689 12-10GE

INFORMACION IMPORTANTE DE SEGURIDAD.LEA TODAS LAS
INSTRUCCIONES ANTES DE USAR.
iiiiii_iiiii_i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiiii_iiii
iiiiiiiiiiii_i;i
iADVERTENC/A!
Para su seguridad, siga las instrucciones de este manual a fin de minimizar riesgos de incendio,
descargas el6ctricas o heridas personales.
PRECAUCIONESDE SEGURIDAD
Use este electrodom6stico s61opara su
prop6sito original, como se describe en el
Manual del Propietario.
Este acondicionador de aire se debe instalar
de forma apropiada de acuerdo con las
Instrucciones de Instalaci6n antes de ser
usado.
Nunca desenchufe su acondicionador de aire
empujando el cable de corriente. Siempre tome
su enchufe de manera firme g empuje el mismo
hacia afuera del recept6culo.
Reemplacede inmediatotodos loscables del
serviciodeelectricidad peladoso con cualquier
tipo deda_o.Un cable delserviciodecorriente
que est6daBado deber6ser reemplazado
pot uno nuevoprovisto por el fabricante, g
nodeber6 ser reparado. Nouseun cable con
cortaduras o abrasi6nsobresu extensi6no en
cualquieradesus enchufeso extremos.
Coloquela unidad en OFF(Apagado)g
desenchufe el acondicionador deaire antes de
usar el mismo.
GE no suministra servicio t6cnico para el
acondicionador de aire. Recomendamos
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
iiiiiiiiiiii_i;i
enf@icamente que no intente reparar el
acondicionador de aire usted mismo.
Parasu seguridad..,no acumule ni use
materialescombustibles,gasolina u otros
vapores o liquidos inflamables cerca de6ste u
otto electrodom6stico.
Todos losacondicionadores de aire contienen
refrigerantes,los cuales deacuerdo con la leg
federal se deben quitar antes dedeshacerse
del producto.Sise deshar6de un producto
antiguo con refrigerantes,consulte a la
compaBia a cargo sobre c6mo deshacerse del
mismo.
Si el receptc_culo no coincide con el enchufe, el
cambio del mismo deberc_ser realizado por un
electricista calificado.
Estos sistemas de acondicionadores de
aire R4ZOArequieren que los contratistas g
t6cnicos utilicen herramientas, equipamiento
g est6ndares de seguridad aprobados
para su uso con este refrigerante. NO use
equipamiento certificado s61opara refrigerante
R22.
COMO CONECTARLA ELECTRICIDAD
Nunca, bajo ninguna circunstancia, corte o elimine Contrate a un electricista calificado para que
el tercer cable (tierra) del cable de corriente. Para controle el tomacorriente g el circuito el6ctrico
su seguridad personal, este electrodom6stico debe para asegurar que el enchufe est6 correctamente
estar adecuadamente conectado a tierra, conectado a tierra.
NO use un enchufe adaptador con este
e/ectrodom#stico.
Elcable de corriente de este electrodom6stico
contiene un enchufe de 3 cables (conexi6n a tierra)
que se conecta a un tomacorriente de pared
estc]ndar de 3 cables (conexi6n a tierra) para
minimizar la posibilidad de riesgos de descargas
el6ctricas por parle del mismo.
Elcable de corriente incluge un interruptor de
corriente. Se brinda un bot6n de evaluaci6n g
reinicio en la caja del enchufe. El dispositivo deberc]
ser evaluado en forma peri6dica, presionando
primero el bot6n TEST (Evaluar) g luego RESET
(Reinicio) mientras se encuentre enchufado al
tomacorriente. Siel bot6n TEST (Evaluar) no se
activa o el bot6n RESET(Reinicio) no permanece en
su posici6n, deje de usar el acondicionador de aireg
comuniquese con un t6cnico calificado del servicio.
En caso de contar con un tomacorriente de pared
de 2 cables, es su responsabilidad g obligaci6n
reemplazarlo por un tomacorriente de pared de 3
cables correctamente conectado a tierra.
Elacondicionador deaire deberia estar siempre
conectado a unenchufe especificocon un indicede
voltaje equivalente al que figura en su etiqueta de
caracteristicast6cnicas.
Esto garantiza el mejor funcionamiento g ademhs
previene la sobrecarga de los circuitos del hogar, Io
cual podrfa ocasionar riesgos de incendio debido al
recalentamiento de cables.
Para conocer los requisitos especificos de la
conexi6n el6ctrica, consulte las Instrucciones de
Instalaci6n, Requisitos El_ctricos.

GEAppliances.com
iADVERTENCIA!
USODEPROLONGADORES
RIESGO DE INCENDIO. Podrfa ocasionar
lesiones graves o la muerte.
, NO use un prolongador con este
Acondicionador de Aim de Ventana.
, NO useprotectores contra picos de corriente ni
adaptadores para mOltiples tomacorrientes con
este Acondicionador de Aim de Ventana.
LEAYSIGAESTAINFORMACIONDESEGURIDADCUIDADOSAMENTE.
INSTRUCCIONES

Pcerca deloscontrolesen el acondicionadorde aim
Las funciones Yla apariencia podr_n variar.
4 I
Fan Only
Power
Wait 3 Mins. Before
Restarting
Speed
Controles
0Control de Temperatura
Laconfiguraci6n determina el nivelde fr[o
provisto. High Cool (FrioAlto) provee la magor
cantidad de frio g Low Cool (FrioBajo) provee la
menor cantidad.
Fan Only ($61oVentilador) apaga el frio.
NOTA: Simueve el control de Temperatura de
un ajuste de refrigeraci6n a OFF(Apagad o a
un ajuste del ventilador, espere por los menos 3
minutos antes de volver a activar un ajuste de
refrigeraci6n.
OVelocidad del Ventilador
Elbot6n de velocidad del ventilador se puede
configurar en HI (Alto)o LOW(Bajo).Sepuede
configurar en el modo de refrigeraci6n o s61o
ventilador.
Encendido
Enciendeo apaga la unidad.
Descripciones de Refrigeraci6n
Para un Nivel de Frio NormaI--Seleccione High
Cool (FrioAlto) oLow Cool (Frio Bajo).
Para un Nivel de Frio N6ximo--Seleccione High
Cool (FrioAlto) con la configuraci6n FANSPEED
(Velocidad del Ventilador) en HI (Alto).
Para una Refrigeraci6n PlSsSuave y Nocturna--
Seleccione Low Cool (Frio Bajo) con FAN SPEED
(Velocidad del Ventilador) en LOW(Bajo).
Direcci6n del Aim
Usela palanca para ajustar la direcci6n del aire hacia
la izquierdao la derecha Onicamente. La palanca est_ en el medio

CuidadoyLimpiezade/acondicionadordeaim GEA,,,on: .:om
Parrilla y Caja
Apague el acondicionador de aire y retire el enchufe Paralimpiar, useagua y un detergente suave. Nouse
del tomacorriente antes de limpiar, blanqueadores ni abrasivos.
Filtro de Aire
Elfiltro de aire que seencuentra detr6s de la rejilla
frontal sedebe revisar g limpiar por Io menos cada 30
d[as o con una frecuencia magor, sifuera necesario.
Para retirar:
Abra la rejilla de entrada empujando hacia abajo
las lengQetasen lasesquinas superiores de la rejilla
de entrada, hasta que la rejilla seencuentre en una
posici6n de/45°. Retireelfiltro.
Limpieelfiltro con agua caliente gjab6n. Enjuagueg
deje secar el filtro antes de su reemplazo. Nolimpie el
filtro en un lavavajillas.
PRECAUCION: NO tili e l
acondicionador de aimsin un filtro,ya que la suciedad
y laspelusasproducirdn atascamientosy reducirdn su
funcionamiento.
Bobinas Exteriores
Lasbobinas del lado exterior del acondicionador
de aire sedeber6n controlar de forma regular.Sise
encuentran atascadas con tierra u holl[n,deber6n ser
limpiadas por un profesional.

Acondi i
m
I
r?-] _Preguntas? Llame al 800.GE.CARES(800.432.2737) o visite nuestro sitio web en: GEAppliances.com J
ANTESDECOMENZAR
Lea estas instrucciones en su totalidad y
atentamente.
IMPORTANTE- Conserveestas
instrucciones para usa del inspector local.
• IMPORTANTE- Cumplacontodoslos
c6digos g ordenanzas gubernamentales.
,, Nora para el Instalador- AsegQrese de que el
Comprador conserve estas instrucciones.
,, Nora para el Comprador- Conserve estas
instrucciones para referencia futura.
,, Nivel de habilidad - La instalaci6n de este
dispositivo requiere un nivel b6sico de
habilidades mec6nicas.
,, Tiempo de instalacion - Aproximadamente 1
hora.
,, Recomendamos que el producto sea instalado
par dos personas.
,, La correcta instalaci6n del producto es
responsabilidad del instalador.
,, Si se producen fallas en el producto debido
auna instalaci6n inadecuada, la Garantia no
cubrir6 las mismas.
,, AI instalar este acondicionador de aire, DEBER/_
usar todas las piezas suministradas g seguir los
procedimientos de instalaci6n adecuados, coma
se describe en estas instrucciones.
REQUISITOSELI CTRICOS
Algunos modelos requieren un tomacorriente
con conexi6n atierra de 115/120-volt AC,
60-Hz protegido con un fusible de retraso de
15 amperes o un disguntor
Elenchufe con conexi6n atierra de 3patas reduce
la posibilidad de una descarga el6ctrica. En caso de
contar con un tomacorriente de pared de 2 cables, es
su responsabilidad g obligaci6n reemplazarlo por un
tomacorriente de pared de 3 cables correctamente
conectado a tierra.
Algunos modelos requieren CA de 230/208
voltios, protegido con un fusible de retraso o
un disguntor. Estos modelos deber6n ser
instalados en sus propios circuitos
independientes para un mejor rendimiento g
para evitar sobrecargas en los circuitos de
cableado de la casa o departamento, los
cuales podrian ocasionar riesgos de incendio
por el sobrecalentamiento de cables.
- PRECAUCiON:
Nunca, bajo ninguna circunstancia, torte o elirnine el
tercer cable (tierra) del cable de corriente.
No cambie el enchufe del cable de corriente de este
acondicionador de aire.
Los cables de aluminio para casas pueden presentar
problemas especiales - consulte a un electricista
calificado.
HERRAMIENTASNECESARIAS
Taladro g broca de 1/8"
L6piz
Destornillador Phillips
Regla o cinta de medici6n
Nivel Tijeras o cuchillo
6
El cable de corriente incluge un interruptor de corriente.
Se brinda un bot6n de evaluaci6n g reinicio en la
caja del enchufe. El dispositivo deber6 ser evaluado
en forma peri6dica, presionando primero el bot6n
TESTIEvaluar) g luego RESETIReinicio) mientras
se encuentre enchufado al tomacorriente. Si el
bot6n TEST (Evaluar) no se activa o el bot6n RESET
(Reinicio) no permanece en su posici6n, deje de usar el
acondicionador de aire g comuniquese con un t6cnico
calificado del servicio.
