GE Appliances ASP05 Operating instructions

Safety Information
Adapter Plugs . . . . . . . . . . . . . . . . . . . .3
Connect Electricity . . . . . . . . . . . . . . .2
Extension Cords . . . . . . . . . . . . . . . . .3
Safety Precautions . . . . . . . . . . . . . . . .2
Operating Instructions
Controls . . . . . . . . . . . . . . . . . . . . . .4, 5
Care and Cleaning
Air Filter . . . . . . . . . . . . . . . . . . . . . . . .6
Grille and Case . . . . . . . . . . . . . . . . . . .6
Outdoor Coils . . . . . . . . . . . . . . . . . . .6
Installation Instructions
Preparing to Install the
Air Conditioner . . . . . . . . . . . . . . . . . .7
Through the Wall
Installation–Optional . . . . . . . . . . .12
Window Installation . . . . . . . . . . .8–11
Troubleshooting Tips . . . . . . . . . .13
Normal Operating
Sounds . . . . . . . . . . . . . . . . . . . . . . . . .13
Consumer Support
Consumer Support . . . . .Back Cover
Product Registration . . . . . . . . .17, 18
Warranty . . . . . . . . . . . . . . . . . . . . . . .19
49-7399 JR 10-00
ASP05
ASV05
AST05
AST06
Air Conditioners
Owner’s Manual &
Installation Instructions
www.GEAppliances.com
Write the model and serial
numbers here:
# ______________________________
# ______________________________
Find these numbers on a label on the
side of the air conditioner.

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ Use this appliance only for its intended
purpose as described in this Owner’s
Manual.
■This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■Never unplug your air conditioner by pulling
on the power cord. Always grip plug firmly
and pull straight out from the receptacle.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its
length or at either the plug or connector end.
■ Turn the mode control OFF and unplug
your air conditioner before making any
repairs or cleaning.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
■ For your safety…do not store or use
combustible materials, gasoline or other
flammable vapors or liquids in the vicinity
of this or any other appliance.
SAFETY PRECAUTIONS
Do not, under any circumstances, cut or remove
the third (ground) prong from the power cord. For
personal safety, this appliance must be properly
grounded.
The power cord of this appliance is equipped
with a 3-prong (grounding) plug which mates
with a standard 3-prong (grounding) wall
outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a 2-prong wall outlet is encountered,
it is your personal responsibility and obligation
to have it replaced with a properly grounded
3-prong wall outlet.
The air conditioner should always be
plugged into its own individual electrical
outlet which has a voltage rating that matches
the rating plate.
This provides the best performance and also
prevents overloading house wiring circuits
which could cause a fire hazard from
overheated wires.
See the Installation Instructions,
Electrical
Requirements
section for specific electrical
connection requirements.
HOW TO CONNECT ELECTRICITY
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
2

3
Consumer SupportTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
www.GEAppliances.com
WARNING!
Because of potential safety hazards under certain
conditions, we strongly recommend against the
use of an extension cord.
However, if you must use an extension cord,
it is absolutely necessary that it be a UL-listed,
14 gauge, 3-wire grounding type appliance
extension cord having a grounding type plug
and outlet and that the electrical rating of the
cord be 15 amperes (minimum) and 125 volts.
CAUTION:
DO NOT use an extension cord with any of the
230/208 volt models.
USE OF EXTENSION CORDS – 115-Volt models only
Because of potential safety hazards under certain
conditions, we strongly recommend against the use
of an adapter plug.
However, if you must use an adapter, where
local codes permit, a
temporary connection may
be made to a properly grounded 2-prong wall
outlet by use of a UL-listed adapter available at
most local hardware stores.
The larger slot in the adapter must be aligned
with the larger slot in the wall outlet to provide
proper polarity in the connection of the power
cord.
When disconnecting the power cord from the
adapter, always hold the adapter in place with
one hand while pulling the power cord plug
with the other hand. If this is not done, the
adapter ground terminal is very likely to break
with repeated use.
If the adapter ground terminal breaks,
DO NOT USE the air conditioner until a
proper ground has been established.
Attaching the adapter ground terminal to a wall outlet
cover screw does not ground the appliance unless the
cover screw is metal, and not insulated, and the wall
outlet is grounded through the house wiring. You should
have the circuit checked by a qualified electrician to
make sure the outlet is properly grounded.
USE OF ADAPTER PLUGS – 115-Volt models only
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS

Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
4
About the controls on the air conditioner.
Features and appearance will vary.
Controls
Mode Controls
HIGH COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
LOW FAN or HIGH FAN provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or to
a fan setting, wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
For Normal Cooling —Select HIGH COOL or MED
COOL with the temp control at midpoint.
For Maximum Cooling —Select HIGH COOL with the
temp control at the highest number available on
your knob.
For Quieter & Nighttime Cooling —Select LOW COOL
with the temp control at midpoint.
Temp Controls
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to a
higher number the indoor air will become
cooler. Turn the knob to a lower number and
the indoor air will become warmer.
MODE CONTROLS
Your model will have one of the above type controls.
TEMP CONTROLS
Your model will have one of the above type controls.
OFF
LOW
FAN
LOW
COOL
HIGH
FAN
HIGH
COOL
MED
COOL
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
1
2
3
4
56
7
8
9
10
1
2
3
45
6
7
81
2
34
5
6
OFF
LOW
FAN
LOW
COOL
HI
FAN
HI
COOL
MED COOL

The vent control is located on the inside of the air
louvers in the lower right corner.
When set at
CLOSE , only the air inside the room will
be circulated and conditioned. When set at OPEN ,
some inside air is exhausted outside.
Air Direction – Up and Down (on some models)
Fingertip pressure on the horizontal louvers adjusts
the air direction up or down.
OR
Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
5
www.GEAppliances.com
Additional controls and important information.
Vent Control (on some models)
To open the vent, push the lever to the right.
To close it, push it to the left.
Air Direction – Side-to-Side
On some models, the side-to-side air direction is
adjusted by the louver levers or by grasping and
moving the inner vertical louvers .
OR

Air Filter
The air filter behind the front grille should be
checked and cleaned at least every 30 days or more
often if necessary.
Clean the filter with warm, soapy water. Rinse and
let the filter dry before replacing it.
CAUTION: DO NOT operate the air conditioner without
a filter because dirt and lint will clog it and reduce
performance.
To remove (on some models):
Open the inlet grille upward by pulling out the
bottom of the inlet grille.
Using the tab, pull up slightly on the filter to
release it and pull it down.
To remove (on some models):
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally steam
cleaned, a service available through your GE
service outlet.
Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Care and cleaning of the air conditioner.
6
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Grab the tab on the filter
and pull it to the right.
Grab the tabs on
the filter and pull
it up and out.

Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
7
Preparing to install the air conditioner.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions with
the air conditioner after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must be
properly grounded.
It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
Follow National Electric Codes (NEC) and/or local
codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
Some models require 115/120-volt a.c.,
60 Hz grounded outlet protected with
a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
Some models require 230/208-volt a.c.,
protected with a time delay fuse or circuit
breaker. These models should be installed
on their own single branch circuit for best
performance and to prevent overloading
house or apartment wiring circuits, which
could cause a possible fire hazard from
overheating wires.
Electrical Requirements
■ Phillips-head screwdriver
■ Adjustable wrench
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
Tools You Will Need

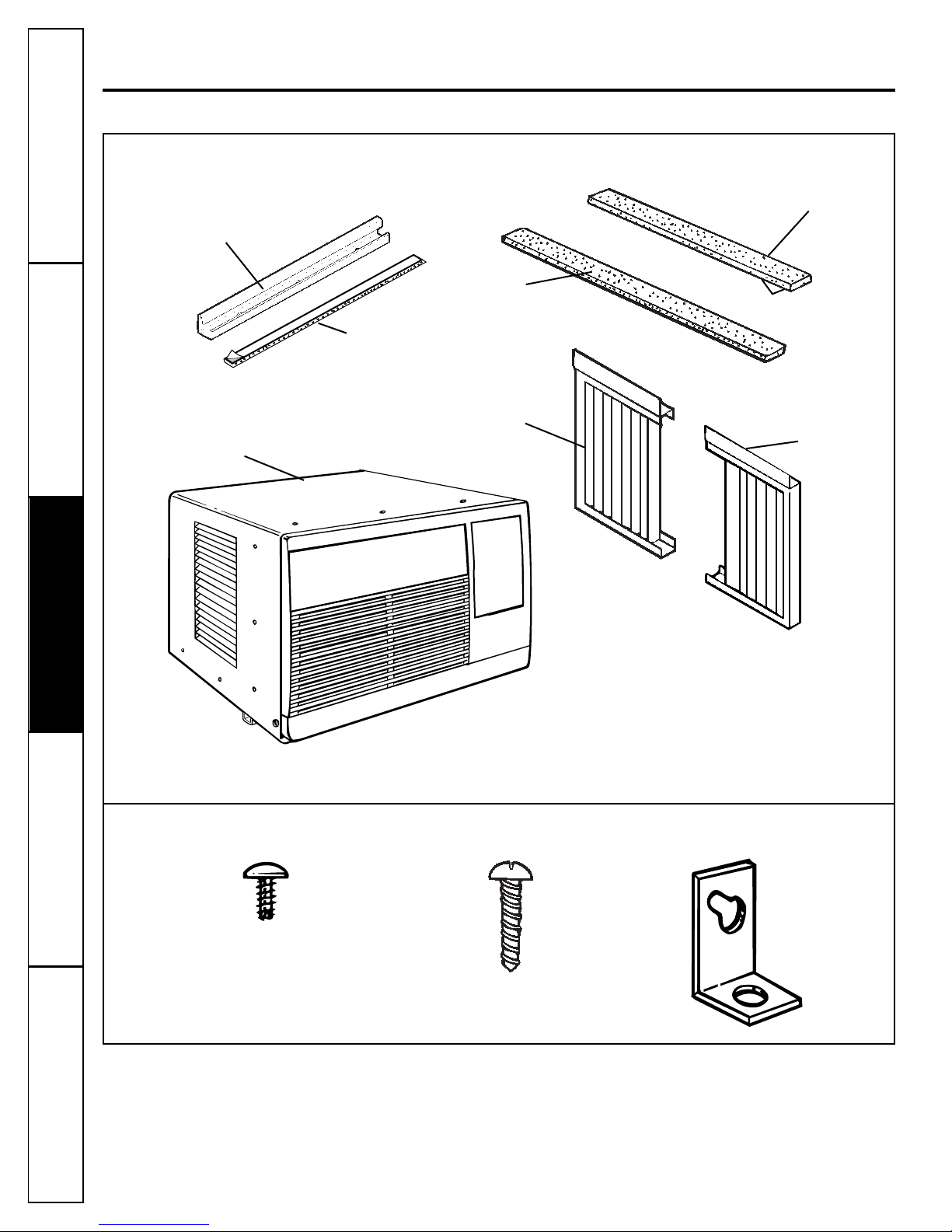

Parts Included
Type A (9) Security bracket (3)
Top mounting rail
Right
accordion
panel
Foam top
window gasket
Window
sash seal
Left
accordion
panel
Type B (8)
Window Installation Instructions.
8
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Air
conditioner
Top mounting rail
seal strip

Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
9
Storm Window Requirements
A storm window frame will not allow the air
conditioner to tilt towards the outside and will keep
it from draining properly. To adjust for this, attach a
piece of wood to the stool.
WOOD PIECES—
WIDTH: 2″
LENGTH: Long enough to fit inside the window
frame.
THICKNESS: To determine the thickness, place a
piece of wood on the stool to make it 1/2″higher
than the top of the storm window frame.
Attach securely with nails or screws provided by
the installer.
2
Read completely, then follow step-by-step.
Window Requirements
■These instructions are for a standard double-
hung window. You will need to modify them for
other types of windows.
■The air conditioner can be installed without
the accordion panels if needed to fit in a narrow
window. See the window opening dimensions
below.
■All supporting parts must be secured to firm
wood, masonry or metal.
■The electrical outlet must be within reach of the
power cord.
1/2″higher
than frame
Storm window
frame
Wood
Stool
1
127⁄8″min.
22″to 36″
(With accordion panels)
1713⁄16″ min.
(Without accordion panels)

Prepare the Air Conditioner
Remove the backing from the top mounting
rail seal strip and attach it to the bottom of the
top mounting rail.
Install the top mounting rail with 3 type A
screws from the outside of the case.
Loosen the lower screw on each side of the case
and hook a security bracket on each side.
Tighten the screws to secure the brackets
in place.
Insert the frames of the accordion panels into
the top and bottom mounting rails. Attach the
accordion panels to the side of the case using 6
type A screws.
B
A
3
10
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Window Installation Instructions.
C
Top mounting rail
Bottom mounting rail
D
Security bracket
Security bracket
Top mounting rail
Accordion panels

Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
11
Install the Air Conditioner in the Window
Cut the window sash seal to the window
width and stick the adhesive side to the
bottom of the sash.
Place the air conditioner on the stool with
the bottom mounting rail against its back
edge. Center it and close the window
securely behind the top mounting rail.
It should be level or slightly tilted to the
outside. Use a level; about a 1/3 bubble will
be the correct case slant to the outside.
Extend the left and right accordion panels
to the vertical window sashes and attach
with 4 type B screws. Attach the top
mounting rail to the sash with a type
B screw.
Attach the brackets to the stool on both
sides using two type B screws.
C
B
A
Install the Security Bracket and the Foam Top Window Gasket
Attach a security bracket with a type B screw. Cut the foam top window gasket to the
window width.
Stuff the foam between the glass and the
window to prevent air and insects from getting
into the room.
The installation is now complete.
C
BA
5
4
Window sash seal
Type B
screws
Type B
screw
Type B screw
Type B
screws

12
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions

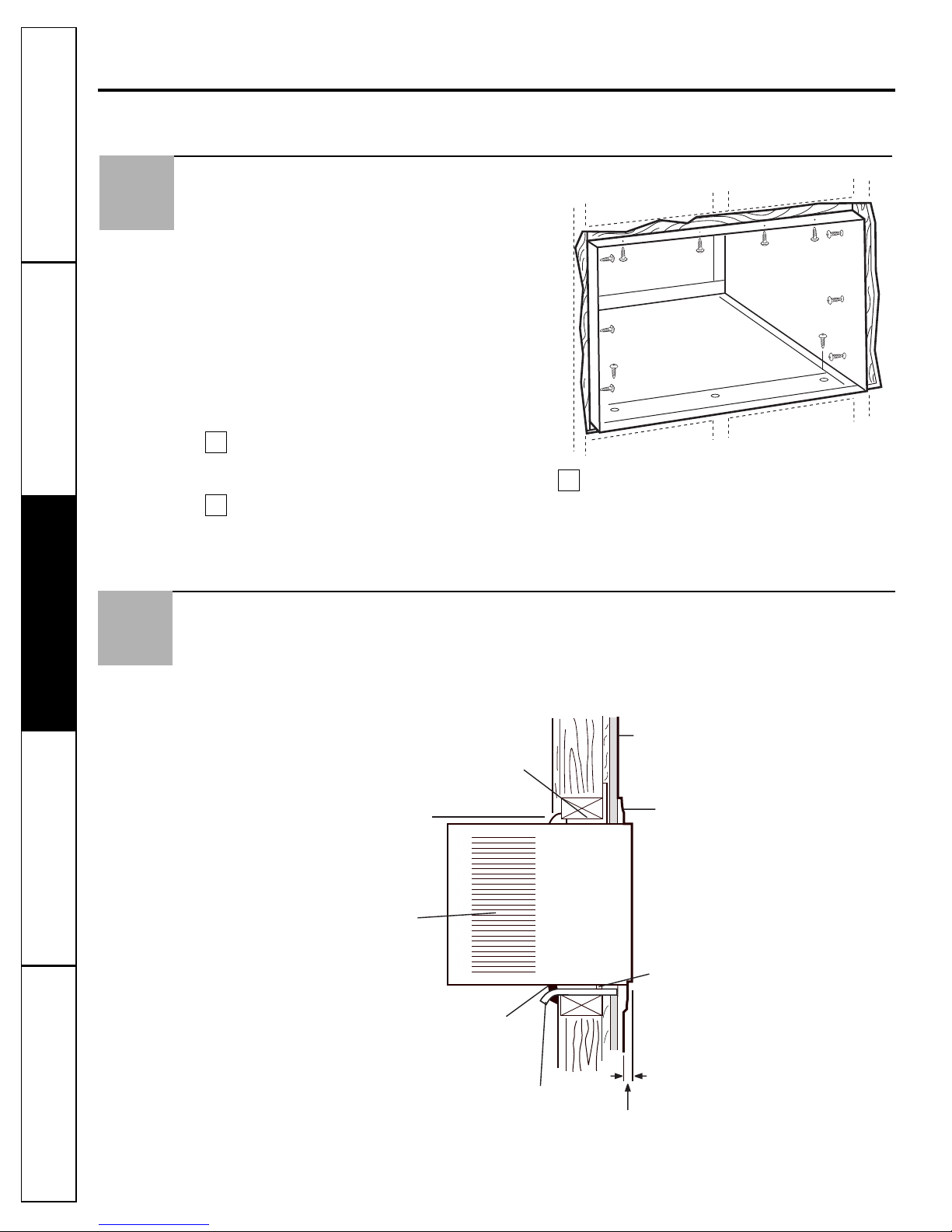

Through the Wall Installation Instructions–Optional.
IMPORTANT
Through the wall installation is not appropriate
if any of the side louvers in the case will be
obstructed by the wall.
All side louvers in the case must project on the
outdoor side of the wall.
The room side of the case must project into the
room at least 1
3
⁄ 4 ″ from the finished wall.
The case must be installed level from side-to-side
and with a slight tilt from front to rear. Use a level;
about a 1/2 bubble will be the correct case slant to
the outside.
Remove the air conditioner from the case.
For specific instruction, refer to the Window
Installation Instructions .
Make certain a wall receptacle is available
close to the hole location or make
arrangements to install a receptacle.
Place the case in the wall opening and secure
with 12 1″long #10 wood screws.
NOTE: Drill pilot holes, if necessary, for proper
installation. If the frame is oversized, use shims
to prevent case distortion.
C
B
A
1
The case may be installed through the wall in both existing and new construction.
Read completely, then follow step-by-step.
Caulk all four sides on the outdoor side of the case to prevent moisture from getting through to the
interior wall. Use of flashing (drip rail) will further prevent water from dripping inside the wall and
down the outside of the building.
2
Lintel angle (if required)
Caulking
Air louvers
(must project on
the outdoor side
of the wall.)
Wood Filler and Caulking
(above & below the flashing)
Flashing (Drip rail) 4.5 cm (13/4″) min.
Bottom rail
INSIDE
OUTSIDE
Trim molding (if desired)
Plaster line
Finish the Wall Opening

Consumer SupportTroubleshooting TipsOperating InstructionsSafety Instructions Installation Instructions
Before you call for service… www.GEAppliances.com
Troubleshooting Tips: Save time and money! Review the chart below first and you may not need to call for service.
Normal Operating Sounds
■ You may hear a pinging noise caused by water
being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
■ The fan may run even when the compressor
does not.
13
Problem Possible Causes What To Do
Air conditioner The air conditioner •Make sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the air conditioner OFF .
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does Airflow is restricted. •Make sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •Turn the temperature knob to a higher number.
not be set correctly.
The air filter is dirty. •Clean the filter at least every 30 days.
See the Operating Instructions section.
The room may have been hot. •When the air conditioner is first turned on you need to
allow time for the room to cool down.
Cold air is escaping. •Check for open furnace floor registers and cold
air returns.
•Set the air conditioner’s vent to the closed position.
Cooling coils have iced up. •See “ Air conditioner freezing up ” below.
Air conditioner Ice blocks the air flow •Set the mode control at HIGH FAN or HIGH COOL with
freezing up and stops the air conditioner the temp at 1 or 2 .
from cooling the room.
Water drips outside Excessively hot and •This is normal.
humid weather.
Water drips indoors The air conditioner is not •For proper water disposal, make sure the air conditioner
tilted to the outside. slants slightly from the case front to the rear.
Water collects in Moisture is removed from •This is normal for a short period in areas with little
base pan indoor air and drains into humidity; normal for a longer period in very humid areas.
rear of a cabinet where a fan
blows it against the outdoor
condenser coil.

14
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Notes.

15
Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
Notes.

16
Consumer Support Troubleshooting Tips Operating Instructions Safety InstructionsInstallation Instructions
Notes.

General Electric Company
Warranty Registration Department
P.O. Box 32150
Louisville, KY 40232-2150
GE Service Protection Plus™
GE, a name recognized worldwide for quality and dependability, offers you
Service Protection Plus™—comprehensive protection on all your appliances—
No Matter What Brand!
Benefits Include:
•Backed by GE
•All brands covered
•Unlimited service calls
•All parts and labor costs included
•No out-of-pocket expenses
•No hidden deductibles
•One 800 number to call
You will be completely satisfied with our service protection or you may request your money back
on the remaining value of your contract. No questions asked. It’s that simple.
Protect your refrigerator, dishwasher, washer and dryer, range, TV, VCR and much more—any brand!
Plus there’s no extra charge for emergency service and low monthly financing is available. Even icemaker
coverage and food spoilage protection is offered. You can rest easy, knowing that all your valuable
household products are protected against expensive repairs.
Place your confidence in GE and call us in the U.S. toll-free at 800-626-2224
for more information.
*All brands covered, up to 20 years old, in the continental U.S.
We’ll Cover Any Appliance.
Anywhere. Anytime.*
Please place in envelope and mail to:
✁Cut here
17

18
Consumer Product Ownership Registration
Important
Mail
Today!
General Electric Company
Louisville, Kentucky
www.GEAppliances.com
First
Name
Mr. ■■Ms. ■■Mrs. ■■Miss ■■
Street
Address
City State
Date Placed
In Use
Month Day Year
Zip
Code
Apt. #
Last
Name
Phone
Number __
Consumer Product Ownership Registration
Dear Customer:
Thank you for purchasing our product and thank you for placing your confidence in us.
We are proud to have you as a customer!
Follow these three steps to protect your new appliance investment:
Important: If you did not get a registration card with your
product, detach and return the form below to
ensure that your product is registered, or register
online at www.GEAppliances.com.
123
Model Number Serial Number
✁Cut here
Complete and mail
your Consumer
Product Ownership
Registration today.
Have the peace of
mind of knowing we
can contact you in the
unlikely event of a
safety modification.
After mailing the
registration below,
store this document
in a safe place. It
contains information
you will need should
you require service.
Our service number is
800 GE CARES
(800-432-2737).
Read your Owner’s
Manual carefully.
It will help you
operate your new
appliance properly.
Model Number Serial Number
E-mail Address
Occasionally, we may allow selected companies to send you information.
■■Check here if you do not want this information.

19
Consumer SupportTroubleshooting Tips
Operating InstructionsSafety Instructions Installation Instructions
Air Conditioner Warranty.
For The Period Of: We Will Replace:
One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, we will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator
From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase During this four-year additional warranty, we will also provide, free of charge, all labor
and in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation. If you have an installation problem,
or if the air conditioner is of improper cooling capacity
for the intended use, contact your dealer or installer.
You are responsible for providing adequate electrical
connecting facilities.
■Failure of the product resulting from modifications to the
product or due to unreasonable use including failure to
provide reasonable and necessary maintenance.
■In commercial locations labor necessary to move the
unit to a location where it is accessible for service
by an individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage caused by possible
defects with this air conditioner.
What Is Not Covered:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care®technician. To schedule service,
on-line, 24 hours a day, contact us at www.GEAppliances.com, or
call 800-GE-CARES.
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.

Consumer Support.
GE Appliances Website
www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at
your convenience 24 hours any day of the year! Or call 800-GE-CARES (800-432-2737) during normal
business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800-TDD-GEAC (800-833-4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800-626-2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800-626-2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally
should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause
unsafe operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the pre-printed registration card included in the packing material, or detach and
use the form in this Owner’s Manual.
Printed in Korea
