GE Zoneline®packaged
terminal air conditioners

2

3
ge.com
Zoneline® . Efficient. Quiet.
Reliable. Innovative.
Versatile Zoneline®Packaged Terminal Air Conditioners provide year-round comfort
with individual heating and cooling temperature controls. Designed for a wide range of
applications, these units are ideal for hotels and motels, office buildings, schools and
apartments. All Zoneline units feature the exclusive GE®“Superseal” system which
minimizes energy usage by reducing air infiltration. The result is maximum operating
efficiency and a more comfortable room. All Zoneline units are also very quiet thanks to a
lower sound level and lower sound transmission. The newest innovation in Zoneline units
is the Dry Air 25 Series. Similar to our Deluxe 2900 Series, the Dry Air 25 removes 25%
more moisture from the air than standard GE packaged terminal air conditioners.

4
Zoneline®features and benefits

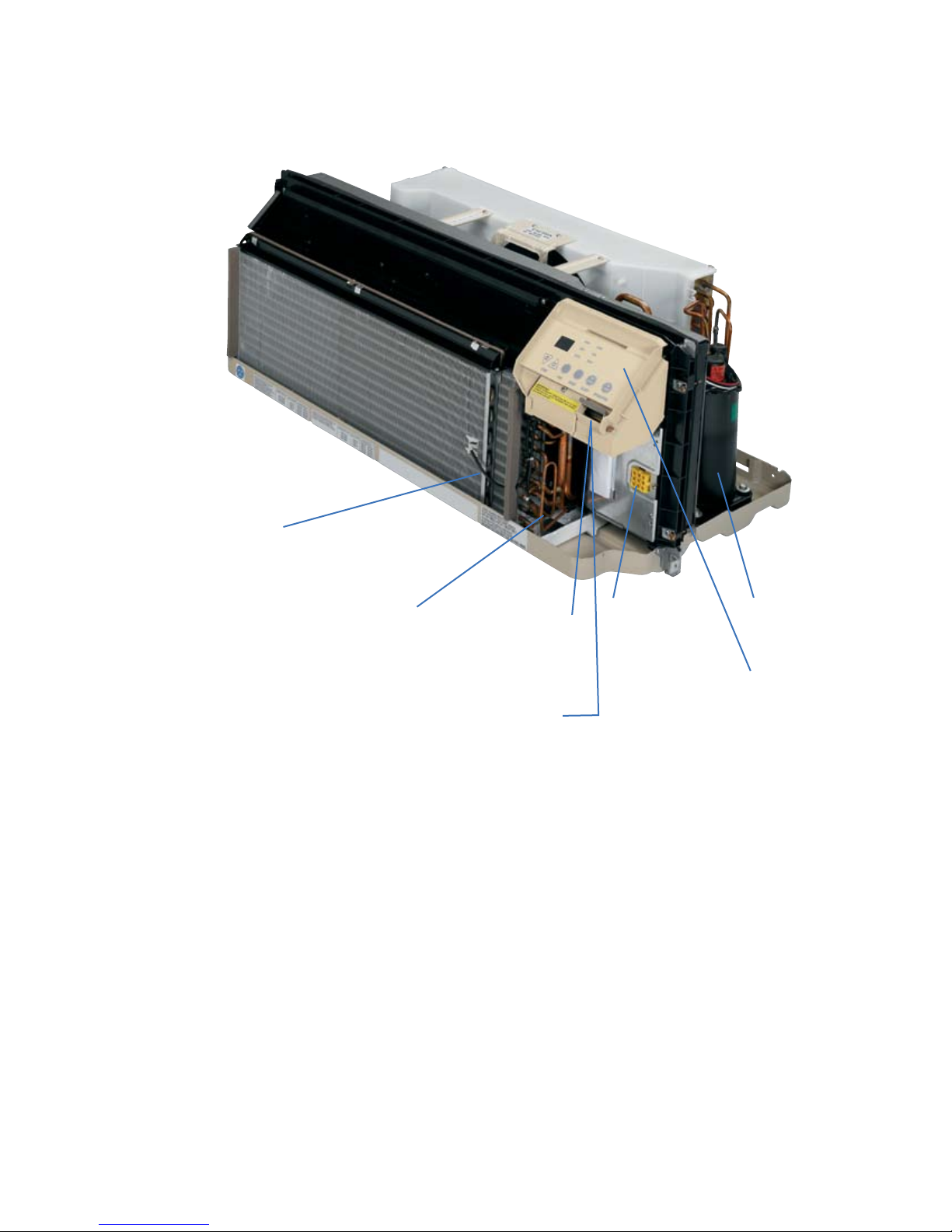

Model shown: PDW9880J
Central desk control
All Zoneline units are compatible with two-wire central
desk ON/OFF controls, including many computerized
control systems. They can also be wired directly to
infrared sensors and door switches to maximize efficiency.
Electronic touch controls
The 2900, 3900 and 5800 Series Zoneline®units are
equipped with microcomputer touch controls. This
feature gives the user better control over the temperature
with a touch pad and an LED readout.
Optional corrosion treatment
Deluxe Zoneline units can be ordered with special
treatment to reduce the effects of corrosive
environments. Special treatments are placed on
the outdoor coil and other components to extend
the life of the unit.
Remote installation capability
All Zoneline units are compatible with GE®wall-mounted
remote thermostats. Mechanical, digital and programmable
thermostats are available.

ge.com
5
Freeze Sentinel™
All Zoneline units are equipped with Freeze Sentinel to
provide protection against damage caused by freezing
temperatures in unoccupied rooms, regardless of unit
setting. In installations where freezing temperature is
not a concern, the owner has the option of disabling
the Freeze Sentinel.
The Dry Air 25
The Dry Air 25 Series centers around GE’s exclusive use of
the patented Dinh®Dehumidifier Heat Pipe from Heat Pipe
Technology, Inc. This innovative technology enables the
Dry Air 25 to remove 25% more moisture from the air than
standard GE packaged terminal air conditioners. The Dry Air
25 is perfect for high-humidity climates. Available on 7000,
9000 and 12000 BTU models.
Upfront filters
For ease of cleaning, all Zoneline units have interchangeable,
removable upfront filters made of long-lasting nylon mesh,
thus assuring high performance and long life.
Electronic temperature limiting
Heating and cooling temperatures may be electronically
limited on all series to prevent expensive overcooling or
overheating. Heating and cooling limits are independently
set so seasonal adjustment is unnecessary.
Heat Sentinel
Provides automatic protection against overheating by
switching on the unit to cool should the temperature
of an unoccupied room reach 85°F.

6
Zoneline®units are designed with innovative, universal
components, and offer even greater installation flexibility
than ever, whether in new construction, renovation or
for replacement of old units. Unless specified by code,
they require no sub-base and may be installed flush with
finished floor. All models are adaptable to remote and
central desk control. Zoneline units may even be placed
in unusual locations, such as transom or common-area
installations. The two lines, Deluxe and Premium, each
with its own special blend of features, offer flexibility to
meet each zone application. All units come with
microcomputer controls.

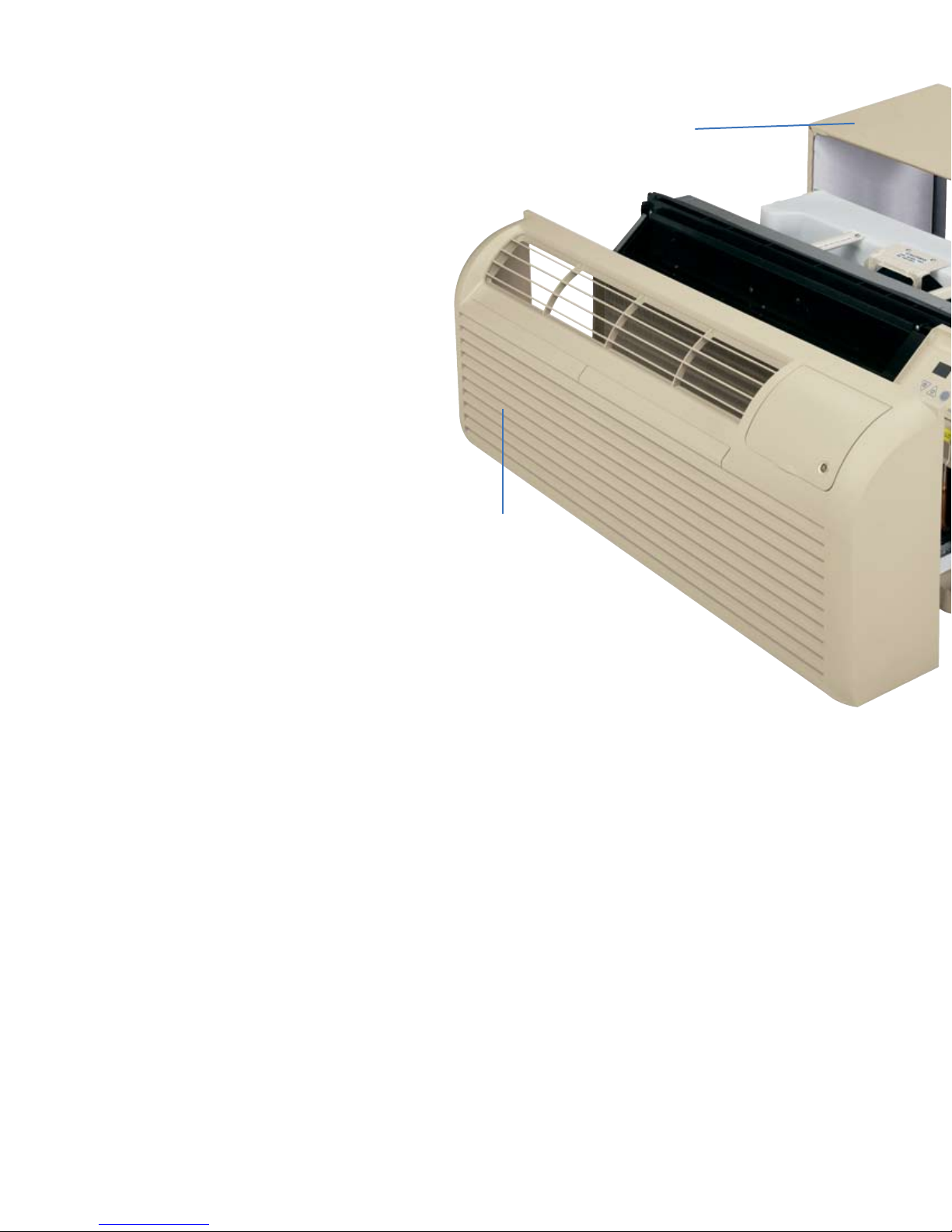

Easy installation and flexibility of design

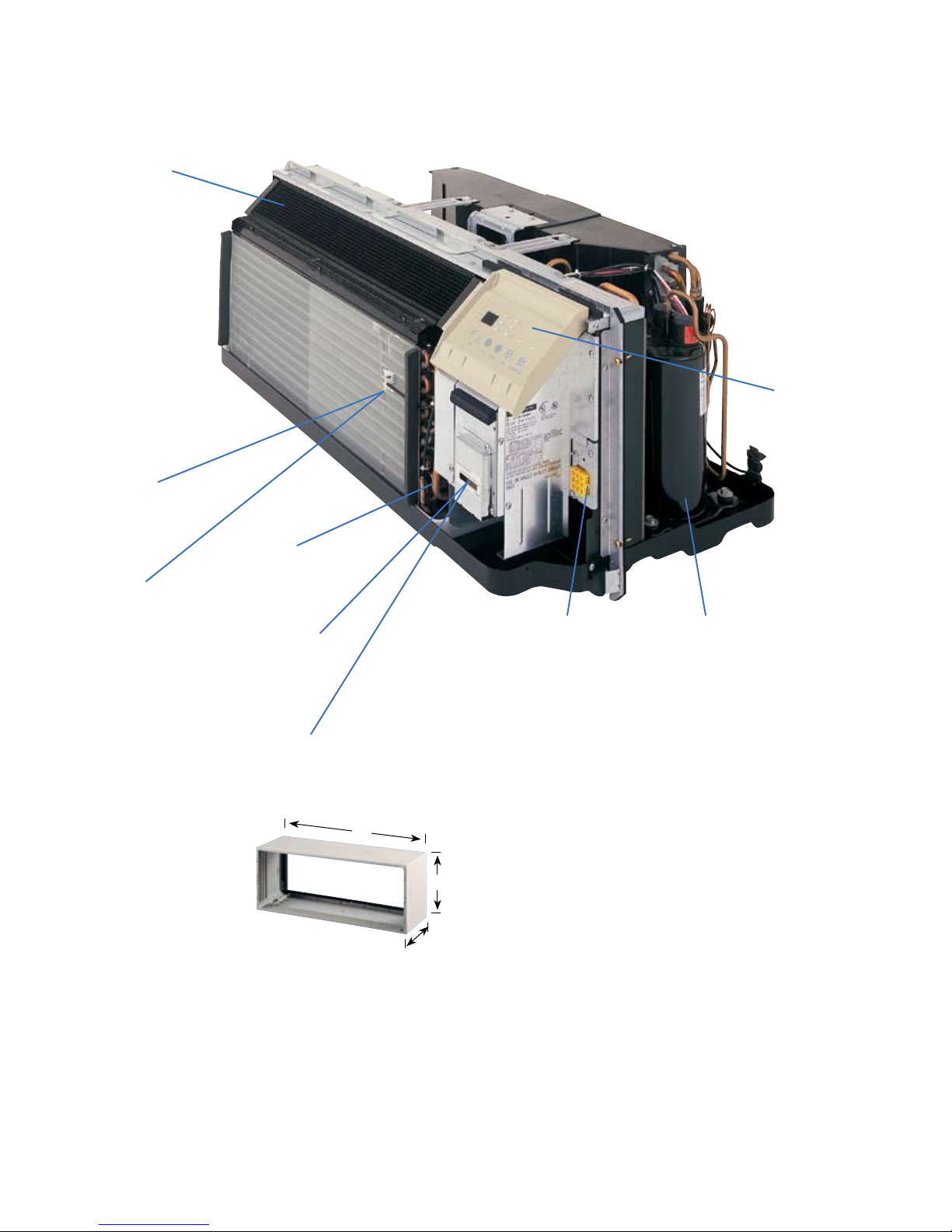

Wall sleeve (optional)
RAB71A (Shown)
RAB77A4 (SMC) (Not Shown)
Room cabinet
Deluxe 2900 series
cooling with resistance heat
• Digital controls
- LED temperature display
- Easy temperature selection
- Tactile touch pads
• Two fan motors
- Improved quiet sound levels
- Higher efficiency
• Electronic temperature limiting
- Helps reduce operating costs
• Optional corrosion treatment
- Reduces the effects of coastal
environments
• Freeze Sentinel™
- Protects unoccupied rooms from
damage by freezing temperatures
• Heat Sentinel
- Reduces excessive temperatures
in unoccupied room
• GE-exclusive Superseal
- Increased room comfort
- Energy savings
• Upfront filters
- Ease of cleaning
- Long-lasting nylon mesh
• Central desk control compatibility
• Remote thermostat capability
• Smartfan
- Fan cycle operation based on
heat/cool selection
Deluxe Dry Air 25 series
cooling with resistance heat
Includes all features of 2900 series, plus:
• Removes 25% more moisture from the
air than standard GE packaged terminal
air conditioners
• Cool and dry air in less time than standard
Zoneline models
• Maintains comfort at slightly higher room
temperatures
- Helps reduce operating costs
- Provides comfort without overcooling
• Corrosion treatment is standard
• Heat pipe is a separate sealed
refrigerant system
- No mechanical parts
- No special maintenance required
• Helps maintain lower relative humidity
in rooms
• Best suited for humid climates
Deluxe 3900 series
cooling with heat pump
and resistance heat
Includes all features of 2900 series, plus:
• Reverse cycle heating
- Energy savings over electric
resistance heat
- Significantly lower operating costs
• Heat pump operation down to 25°F
outdoor temperature
• Three-stage thermostat for quicker
heat recovery
• Optional factory-installed internal
condensate removal (ICR)
- Minimizes need for drain systems
• Heat pump and resistance heat can
operate together
- Better room comfort
- Helps reduce operating costs over
all standard heat pump systems
• Reverse cycle defrost
- Extends heat pump operation
- May help lower operating costs
• Electric resistance heat lockout
- Lowers operating costs by restricting
electric heat operation when outdoor
temperature is above 46°F.

7
ge.com
Grille options
Extruded aluminum:
RAG67 (Shown)
Stamped aluminum grille
RAG60
Exterior architectural louvers
Durable polycarbonate:
RAG61 (Warm Grey Beige)
RAG62 (Maple)
RAG63 (Bittersweet Chocolate)
Retrofit kits (not shown)
RAK901L - Wall Case Insulation for use
with Heat Pumps
RAK40 - Deflector Kit to adapt chassis for
use with existing exterior architectural
louvered grilles

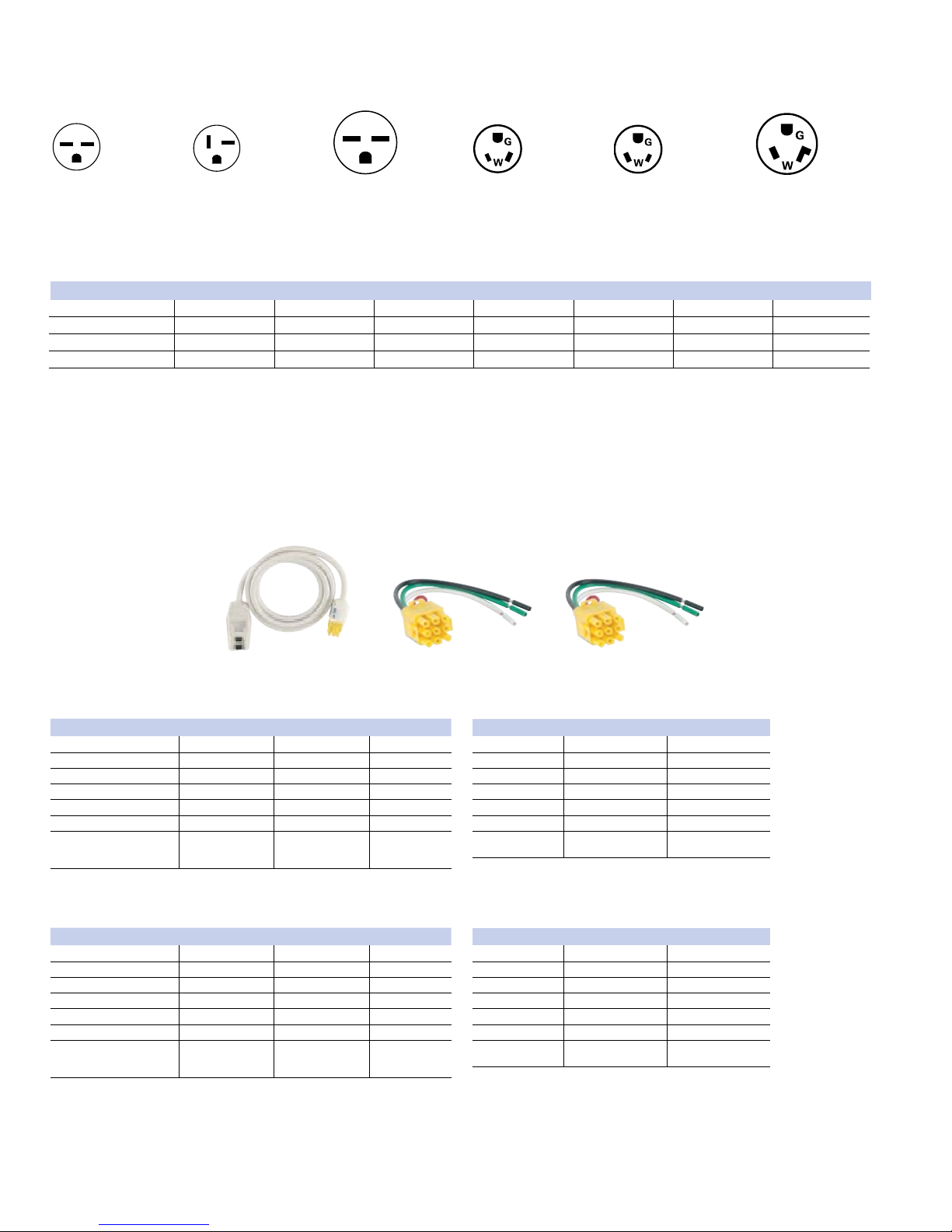

Requires power connection kit
Resistance heat Heat pump
Deluxe
2900 Series
Deluxe
Dry Air 25
Deluxe
3900 Series
Premium
5800 Series
Features
Highly featured
microcomputer controls Standard Standard Standard Standard
Tactile touch pad controls with LED Standard Standard Standard Standard
Universal heaters Standard Standard Standard Standard
Solid-state thermostat Standard Standard Standard Standard
3-position vent control Standard Standard Standard Standard
Upfront filter (interchangeable) Standard Standard Standard Standard
Automatic indoor frost control Standard Standard Standard Standard
Sleep function Standard Standard Standard Standard
Corrosion-treated chassis Optional Standard Optional Standard
2-position discharge grille Standard Standard Standard Standard
Fan motors 2 2 2 2
“SmartFan” Fan cycle control Standard Standard Standard Standard
Fan Only setting—2-speed Hi/Low Hi/Low Hi/Low Hi/Low
Indoor fan speed Hi/Low Hi/Low Hi/Low Hi/Low
Cool & heat only settings Hi/Low/Auto Hi/Low/Auto Hi/Low/Auto Hi/Low/Auto
Staged heating — — 3-stage 3-stage
Freeze Sentinel™ Standard Standard Standard Standard
Heat Sentinel Standard Standard Standard Standard
Temperature limiting Electronic 7-step Electronic 7-step Electronic 7-step Electronic 7-step
Remote control compatibility Standard Standard Standard Standard
Central desk control compatibility Standard Standard Standard Standard
Service indicator — — — Standard
Heat pump with resistance
heat back-up — — Standard Standard
Heat pump with supplemental
resistance heat — — Standard Standard
Automatic emergency heat Standard Standard Standard Standard
Electric resistance heat lock-out — — Standard Standard
Heat pump defrost system — — Reverse cycle Reverse cycle
Internal condensate removal (ICR)* — — Optional Optional
Quick heat recovery — — Standard Standard
Self-diagnostics — — — Standard
Auto power recovery Standard Standard Standard Standard
*Not for use in corrosive environments
Chassis
Grille
Premium 5800 series
cooling with heat pump
and resistance heat
Includes all features of 3900 series, plus:
• Two-fan-motor system with indoor
cross flow blower
- For quieter operation
• Corrosion treatment is standard
• Self-diagnostics
• Connections for infrared/door
switch sensors

8
Deluxe models
Special corrosion-protected units
To help extend the life of the Zoneline unit in seacoast areas, some
Deluxe Zoneline units may be ordered with a special corrosion
protection treatment on outdoor components and use stainless
steel hardware. Zoneline units with optional corrosion protection
have a ‘C’ in the 10th character of the model number.
Internal condensate removal
Available on the 3900 and 5800 heat pumps, this feature drips the
heat pump condensate over the warm indoor coil to help dissipate
water from heat pump operation and associated defrost cycles. The
installation of an internal or external drain system is recommended if
no dripping of condensate to the outdoors is desired. ICR must not be
installed in seacoast or corrosive applications.
The Dry Air 25
The Dry Air 25 features innovative technology from Heat Pipe
Technology, Inc., an addition which enables this unit to remove 25%
more moisture from the air than standard GE Zoneline®models. The
Dry Air 25 system, Heat Pipe, is a hermetically sealed heat transfer
surface that is saddlebagged around the indoor coil (evaporator) of
the Zoneline. This coil arrangement will transfer heat from one coil to
another without power consumption. This assembly uses R-22 as the
refrigerant and is isolated from the regular Zoneline refrigerant circuit.
As warm humid air is pulled through the pre-cool section of the Heat
Pipe, the heat removed from the air is absorbed by the refrigerant,
causing the refrigerant to boil. As the pre-cooled air passes through
the Zoneline evaporator, the air is further cooled (colder than it would
be normally), removing 25% more moisture from the air than standard
GE packaged terminal air conditioners.
As the cold air passes through the reheat section of the Heat Pipe, the
refrigerant condenses and the liquid flows back to the pre-cool section
to be reheated again. The air discharged into the room by this process
is much drier, creating a more comfortable room condition.
Electronic
temperature limiting
Preset cooling and heating
limits with 7 independent
cooling and 7 heating
limits—saves energy by
preventing over-cooling
or over-heating of rooms.
“Smartfan”
fan cycle selection
Select fan cycle or fan
continuous independently
for heating and cooling.
Solid-state
thermostat control
Provides better room
temperature control
vs. electromechanical
temperature control
device.
Freeze Sentinel™
Provides automatic
protection against
freezing by switching
the unit to heat should
the temperature of an
unoccupied room drop
to 41°F.
Heat Sentinel
Provides automatic
protection against
overheating by switching
on the unit to cool should
the temperature of
an unoccupied room
reach 85°F.
Auto frost control
A special sensor monitors
the roomside coil to
prevent efficiency-robbing
accumulation of frost
during cooling operation.
GE Dry Air 25
(not shown)
Innovative technology from
Heat Pipe Technology, Inc
enables the DryAir 25 to
remove 25% more moisture
from the air than standard
GE packaged terminal air
conditioners.
Universal power cord
Flexibility of heat
applications. All
Zonelines contain a
bank of 3 heaters.
2900 series and Dry Air 25 series – heat/cool units
3900 series – heat pump unit
Highly featured microcomputer controls
Central desk control
compatible
Ability to turn the unit
“on” or "off" from a
remote location.
Two fan motors
(not visible)
Separate motors for
indoor and outdoor fans
to assure quiet operation.
Reversible louver
(not shown)
May be reversed to
provide an air discharge
angle of 40 or 50 degrees
off vertical with the simple
removal of six screws.
3-Position vent control
(not shown)
Opens vent. Provides up
to 75 cfm of outdoor air.
The closed position saves
energy by recirculating
conditioned room air.
Reverse cycle defrost
(not shown)
Solid-state sensor
monitors frost build-up
on outdoor coil. When
frost is detected, the
refrigerant flow is reversed
to melt frost build-up.
When completed, the
refrigerant is reversed to
the normal energy-saving
heat pump operation for
additional heat pump
operating hours.
Easy-access filter
(not shown)
Two upfront interchangeable
filters are part of roomside
cabinet for easy access
and maintenance.
Remote control
compatible
Ability to be controlled
by a wall-mounted
thermostat with high
or low fan speed.
Rotary compressor
Fewer moving parts
than reciprocating models
for quiet, reliable operation
and longer life.
Touch pad controls
With electronic control
temperature display. Gives
the user finer control over
the temperature.

9
ge.com
Wall sleeve dimensions
Heavy-gauge galvanized
steel with a baked enamel
finish for outstanding
protection and appearance.
RAB71A wall sleeve
Heavy-gauge galvanized steel, with insulation.
A-42", B-13 3/4", C-16"
RAB77A4 wall sleeve (shown above)
Molded SMC fiberglass-reinforced polyester compound.
A-42 1/8", B-13 7/8", C-16 1/4"
Wall opening dimensions
Add 1/4" to A and C dimensions for all cutout sizes.
RAB71 16 1/4" min. H. x 42 1/4" min. W.
RAB71 available in 16", 24", 28" and 31" depths.
RAB77A4 16 1/2" min. H. x 42 3/8" min. W.
Premium models
5800 series
Highly featured microcomputer controls
B
C
A
Auto frost
control monitor
A special sensor monitors
the roomside coil to
prevent efficiency-robbing
accumulation of frost
during cooling cycle.
Electronic
temperature limiting
Preset cooling and heating
limits with 7 independent
cooling and 7 heating
limits—saves energy by
preventing over-cooling or
over-heating of rooms.
“Smartfan”
fan cycle selection
Select fan cycle or fan
continuous independently
for heating and cooling.
Universal power cord
Flexibility of heat
applications. Each
premium line Zoneline
contains a bank of
3 heaters.
Microcomputer controls
Electronic components
for fast response and
accuracy.
Rotary compressor
With fewer moving
parts than reciprocating
models for quiet,
reliable operation.
Easy-access filter
(not shown)
Two upfront filters
are part of roomside
cabinet for easy access
and maintenance.
Cross-flow blower
Quiet blower reduces
annoying “Air rush” noise.
Reversible louver
(not shown)
May be reversed to
provide an air discharge
angle of 40 or 50 degrees
off vertical with the
removal of six screws.
3 position vent control
(not shown)
Opens vent. Provides up
to 70 cfm of outdoor air.
The closed position saves
energy by recirculating
conditioned room air.
Solid state
thermostat control
Provides better room
temperature control
vs. electromechanical
temperature control
device.
Freeze Sentinel™
Provides automatic
protection against
freezing by switching
the unit to heat should
the temperature of an
unoccupied room drop
to 41°F.
Heat Sentinel
Provides automatic
protection against
overheating by switching
on the unit to cool should
the temperature of
an unoccupied room
reach 85°F.
Room occupancy
sensor compatible
Ready for connection
to room occupancy
sensor system.
Weather-protected
electrical components
On inside of barrier.
Two fan motors
(not visible)
Separate motors for
indoor and outdoor fans
to assure quiet operation.
Touch pad controls
With electronic control
temperature display.
Gives the user finer
control over the
temperature.
Reverse cycle defrost
(not shown)
Solid state sensor
monitors frost build-up
on outdoor coil. When
frost is detected, the
refrigerant flow is reversed
to melt frost build-up.
When completed, the
refrigerant is reversed
to the normal energy
saving heat pump
operation for additional
heat pump operating hours.
Central desk
control compatible
Ability to turn the unit
“on” or “off” from a
remote location.
Remote control
compatible
Ability to be controlled
by a wall-mounted
thermostat with high
or low fan speed.
Electrical connection
230/208 volt units may be plugged into
a receptacle. 265 volt units are provided
with a junction box and require direct
connection. (NEC Requires 265V Direct
Connection.) See Architects and Engineers
Design Data Manual for electrical
connection information including use of
sub-base for direct-connected units. Installation
must comply with local electrical codes and regulations.
Ducted applications
2900 and 3900 series can be used with ductwork to heat or cool more
than one room. RAK6052 Duct Adapter is applied to top of case over air
discharge. RAK601 Duct Extension is applied to right or left of adapter.
Locally fabricated ductwork may be added to extend to maximum
recommended distance of 15 feet.
For additional information on ducted applications, including special
adapters for replacement units, refer to Architects and Engineers Design
Data Manual.

10
Receptacles/Sub-bases
RAK204U RAK204D15P RAK204D20P RAK204D30P RAK204E15 RAK204E20 RAK204E30
Voltage N/A 230/208 230/208 230/208 265 265 265
Amps N/A 15 20 30 15 20 30
Receptacle N/A NEMA6-20R NEMA6-20R NEMA6-30R NEMA7-15R NEMA7-20R NEMA7-30R
230/208 Volt sub-bases include appropriate power cord kit.
265 Volt units are to be direct connected. Cordset through enclosed chaseway into interior sub-base receptacle meets the NEC requirements.
Sub-bases
Tandem
230/208V 15 Amp
NEMA6-15R
Perpendicular
230/208V 20 Amp
NEMA6-20R
Large tandem
230/208V 30 Amp
NEMA6-30R
265V 15 Amp
NEMA7-15R
265V 20 Amp
NEMA7-20R;
receptacle used
On 265V sub-base
GE0720-3
265V 30 Amp
NEMA7-30R;
receptacle used
On 265V sub-base
GE073
Power connection kits are required on all Zoneline®chassis (see chart below).
The correct kit for the installation is determined by the voltage and amperage of the electrical circuit and the means of connecting the unit to the
building wiring. If the unit is to be plugged into a receptacle, a line cord kit would be used; if the unit is to be permanently connected, a permanent
connection kit would be used. 265 volt cord set units must be installed in compliance with National Electrical Code®.
Power connection kits
Required on all models.
See specification sheet
for heater KW and branch
circuit ampacity.
RAK3153/3203
230/208 volt line cord
connection kit
RAK4157/4207/4307
230/208 volt universal
power supply kit
RAK5157/5207/5307
265 volt universal power
supply kit
230/208 volt Line cord connected units
LCDI Power Connection Kit RAK3153 RAK3203 RAK3303
Heater KW 2.55/2.09 3.45/2.82 5.00/4.09
Watts 2,550/2,090 3,450/2,820 5,000/4,090
BTUH 8,600/7,100 11,700/9,600 17,000/13,900
Amps 11.6/10.6 15.6/14.2 22.4/20.4
Min. circuit amps 15 20 30
Recommended
protective
device
15 amp
time delay
fuse or breaker
20 amp
time delay
fuse or breaker
30 amp
time delay
fuse or breaker
265 volt Permanent connected units* (Cord set)
RAK5172 RAK5202 RAK5302
2.55 3.45 5.0
2,550 3,450 5,000
8,600 11,700 17,000
10.3 13.8 19.6
15 20 30
15 amp
time delay fuse
20 amp
time delay fuse
30 amp
time delay fuse
*To be used with sub-base
230/208 volt Direct connection kit**
RAK4157 RAK4207 RAK4307
Heater KW 2.55/2.09 3.45/2.82 5.00/4.09
Watts 2,550/2,090 3,450/2,820 5,000/4,090
BTUH 8,600/7,100 11,700/9,600 17,000/13,900
Amps 11.6/10.6 15.6/14.2 22.4/20.4
Min. circuit amps 15 20 30
Recommended
protective
device
15 amp
time delay
fuse or breaker
20 amp
time delay
fuse or breaker
30 amp
time delay
fuse or breaker
**To be used with sub-base or connection to building wiring
265 volt Direct connection kit**
RAK5157 RAK5207 RAK5307
2.55 3.45 5.0
2,550 3,450 5,000
8,600 11,700 17,000
10.3 13.8 19.6
15 20 30
15 amp
time delay fuse
20 amp
time delay fuse
30 amp
time delay fuse
**To be used with sub-base or connection to building wiring

11
ge.com
Preliminary specifications
Deluxe series – cooling & electric heat Dry Air 25
2900 series units Dry Air 25
230/208V Models AZ29E07D AZ29E09D AZ29E12D AZ29E15D AZ29E07DAP AZ29E09DAP AZ29E12DAP
Capacity
Cooling BTUH 7,100/6,900 9,300/8,900 11,700/11,500 14,600/14,300 6,800/6,600 8,800/8,500 11,200/11,000
EER (BTU/Watt) 12.7/12.7 12.0/12.0 11.5/11.5 10.2/10.2 12.1/12.1 11.5/11.5 11.0/11.0
Dehumidification Pts/Hr 1.7 2.7 3.6 4.6 2.3 3.4 4.5
Features
CFM, indoor fan high 250 270 290 310 210 230 240
CFM, indoor fan low 215 235 240 280 175 200 210
Vent CFM (full open/partial open) 50/40 70/45 75/45 75/45 50/40 70/45 75/45
Power/Ratings
Power factor 86/87 86/87 91/91 89/90 87/87 86/86 91/91
Sensible heat ratio @ 230 volts 75% 68% 67% 67% 66% 58% 57%
Watts 560/545 775/745 1,020/1,000 1430/1405 560/545 765/740 1,020/1,000
Amperes, F.L. 2.8/3.0 3.8/4.1 4.9/5.3 7.0/7.5 2.8/3.0 3.8/4.1 4.9/5.3
Amperes, L.R. 19.0 21.0 31.0 38.0 19.0 21.0 31.0
Weight (Net/Ship) 100/115 101/116 105/120 115/130 100/115 101/116 105/120
Sound Transmission Class (STC) 29 29 29 29 29 29 29
Deluxe series – heat pump units** Premium series – heat pump units
3900 series units 5800 series units
230/208V Models AZ39H07D AZ39H09D AZ39H12D AZ39H15D AZ58H07D AZ58H09D AZ58H12D AZ58H15D
Capacity
Cooling BTUH 7,100/6,900 9,400/9,150 11,850/11,500 14,750/14,350 7,300/7,000 9,300/9,050 11,800/11,600 14,700/14,400
EER (BTU/Watt) 12.7/12.7 12.0/12.0 11.5/11.5 10.0/10.0 13.0/13.0 12.0/12.0 11.7/11.7 10.3/10.3
Dehumidification Pts/Hr 1.7 2.7 3.6 4.5 2.1 3.0 4.0 4.8
Features
CFM, indoor fan high 250 270 300 310 250 265 350 365
CFM, indoor fan low 215 235 260 260 230 245 330 345
Vent CFM (full open/partial open) 50/40 70/45 75/45 75/45 40/35 65/60 70/65 70/65
Power/Ratings
Power factor 87 88 91 92 95 96 94 95
Sensible heat ratio @ 230 volts 75% 68% 67% 67% 75% 67% 68% 65%
Watts 560/545 785/765 1030/1000 1480/1440 560/540 760/735 1010/990 1425/1400
Amperes, F.L. 2.8/3.0 3.8/4.1 4.9/5.3 7.0/7.5 2.7/2.8 3.6/3.8 4.6/5.0 6.5/7.0
Amperes, L.R. 19.0 21.0 31.0 38.0 19.0 21.0 33.0 38.0
Reverse cycle heat BTUH 6,400/6,200 8,500/8,250 10,900/10,700 13,750/13,400 6,400/6,200 8,400/8,200 10,900/10,700 13,800/13,800
COP 3.6/3.6 3.6/3.6 3.4/3.4 3.2/3.2 3.7/3.7 3.6/3.6 3.4/3.4 3.2/3.2
Watts 520/505 695/675 950/925 1,275/1,245 505/490 685/670 940/920 1,265/1,235
Amps 2.4/2.6 3.2/3.5 4.3/4.7 5.8/6.3 2.4/2.5 3.2/3.4 4.3/4.7 5.7/6.2
Weight (Net/Ship) 102/117 105/120 113/128 123/138 108/122 113/128 118/133 127/142
Sound Transmission Class (STC) 29 29 29 29 29 29 29 29
265V Models AZ29E07E AZ29E09E AZ29E12E AZ29E15E AZ29E07EAP AZ29E09EAP AZ29E12EAP
Capacity
Cooling BTUH 7,100 9,000 11,700 14,600 6,800 8,600 11,200
EER (BTU/Watt) 12.7 12.0 11.5 10.2 12.1 11.5 11.0
Dehumidification Pts/Hr 1.7 2.7 3.6 4.6 2.3 3.4 4.4
Features
CFM, indoor fan high 250 270 290 310 210 235 240
CFM, indoor fan low 215 235 240 280 175 200 210
Vent CFM (full open/partial open) 50/40 70/45 75/45 75/45 50/40 70/45 75/45
Power/Ratings
Power factor 87 86 87 90 88 86 87
Sensible heat ratio @ 265 volts 75% 68% 67% 67% 66% 58% 57%
Watts 560 750 1,020 1435 560 750 1,020
Amperes, F.L. 2.4 3.3 4.4 6.0 2.4 3.3 4.4
Amperes, L.R. 16.0 18.0 24.0 31.0 16.0 18.0 24.0
Weight (Net/Ship) 100/115 100/115 105/120 115/130 100/115 101/116 105/120
Sound Transmission Class (STC) 29 29 29 29 29 29 29
265V Models AZ39H07E AZ39H09E AZ39H12E AZ39H15E AZ58H07E AZ58H09E AZ58H12E AZ58H15E
Capacity
Cooling BTUH 7,100 9,400 11,700 14,750 7,300 9,300 11,800 14,700
EER (BTU/Watt) 12.7 12.0 11.5 10.0 13.0 12.0 11.7 10.3
Dehumidification Pts/Hr 1.7 2.7 3.6 4.5 2.1 3.0 4.0 4.8
Features
CFM, indoor fan high 250 270 300 310 250 265 350 365
CFM, indoor fan low 215 235 260 260 220 270 310 330
Vent CFM (full open/partial open) 50/40 70/45 75/45 75/45 40/35 65/60 70/65 70/65
Power/Ratings
Power factor 88 88 87 92 95 96 94 95
Sensible heat ratio @ 265 volts 75% 68% 67% 67% 75% 67% 68% 65%
Watts 560 785 1020 1480 560 760 1010 1425
Amperes, F.L. 2.4 3.3 4.4 6.0 2.2 3.2 4.4 5.8
Amperes, L.R. 16.0 18.0 24.0 31.0 16.0 18.0 24.0 31.0
Reverse cycle heat BTUH 6,400 8,550 10,900 13,750 6,400 8,400 10,900 13,800
COP 3.6 3.6 3.4 3.2 3.7 3.6 3.4 3.2
Watts 520 700 940 1,275 505 685 940 1,265
Amps 2.2 2.8 3.9 5.0 2.2 2.7 3.9 5.0
Weight (Net/Ship)* 102/117 109/124 113/128 123/138 108/122 113/128 118/133 127/142
Sound Transmission Class (STC) 29 29 29 29 29 29 29 29
**ICR adds 3 pounds to unit weight
**Corrosion model BTUH and watts may vary.

Zoneline®chassis nomenclature
For GE appliance service in the US, call
1-800-GE CARES. In Canada call 1-888-209-0999.
GE has a policy of continuous improvement of
its products and reserves the right to change
materials and specifications without notice.
© 2008 GE Company
Pub. No. 20-S097 PC51902
Listed by
Underwriters
Laboratories.
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
3
1
0
P
A
C
K
A
G
E
D
T
E
R
M
I
N
A
L
A
I
R
-
C
O
N
D
I
T
I
O
N
E
R
S
R
M
A
N
U
F
A
C
T
U
R
E
R
C
E
R
T
I
F
I
E
D
T
O
A
R
I
A
S
C
O
M
P
L
Y
I
N
G
W
I
T
H
A
R
I
S
T
A
N
D
A
R
D
3
8
0
P
A
C
K
A
G
E
D
T
E
R
M
I
N
A
L
H
E
A
T
P
U
M
P
S
R
Zoneline warranty*
What is covered
Limited one-year warranty
For one year from the date of the original purchase, GE will repair or
replace any part of the air conditioner which fails due to a defect in
materials or workmanship. During this limited one-year warranty, GE
will provide, free of charge, all labor and related service costs to repair
or replace the defective part.
Limited five-year warranty
For five years from the date of the original purchase, GE will repair
or replace the Sealed Refrigerating System if any part of the Sealed
Refrigerating System (the compressor, condenser, evaporator, and
all connecting tubing) should fail due to a defect in materials or
workmanship. During this limited five-year warranty, GE will provide, free
of charge, all labor and related service costs to repair or replace
the defective part.
Limited second through fifth year parts warranty
From the second through the fifth year from the date of the original
purchase, GE will replace the Fan Motors, Switches, Thermostat, Heater,
Heater Protectors, Compressor Overload, Solenoids, Circuit Boards,
Auxiliary Controls, Thermistors, Freeze Sentinel, Frost Controls, ICR Pump,
Capacitors, Varistors and Indoor Blower Bearing, if any of these parts
should fail due to a defect in materials or workmanship. During this
additional four-year limited warranty, you will be responsible for any
labor and related service costs.
*See written warranty for details
The Zoneline®chassis is identified by a model number defining the type
of unit, cooling capacity, electrical information and optional features
included on the unit. When specifying or ordering the Zoneline chassis,
use of this nomenclature will assure receiving the correct unit.
For detailed information on operating specifications, installation data and accessories,
see the GE Zoneline Architects and Engineers Design Data Manual.
AZ58H12DAD
Chassis series
29=deluxe line cool/
electric heat
39=deluxe line heat pump
58=premium line
heat pump
Unit type
E=cooling with electric
resistance heat
H=heat pump with electric
resistance heat
Zoneline
packaged
terminal
chassis
Nominal cooling capacity
07=7,000 BTUH cooling
09=9,000 BTUH cooling
12=12,000 BTUH cooling
15=15,000 BTUH cooling Special Features
B=base unit
C=corrosion treated
D=internal
condensate
removal (ICR)
system (heat
pump models
only) (not for
coastal areas)
P=Dry Air 25
Voltage/Phase/
Frequency
D=230/208 Volt, single
phase, 60 Hz
E=265 Volt, single phase,
60 Hz
Universal
power connection
GE Consumer & Industrial
Appliances
General Electric Company
Louisville, KY 40225
ge.com
zoneline.com
A century of quality and innovation
For more than a century, GE has been committed to producing innovative products
that change the way people live. The result of thorough research and rigorous testing,
GE appliances are designed for years of dependable performance.
Today, the GE tradition of quality and innovation continues.
