GE AVX10 Original instructions

GE Appliances
Room
Air
Conditioners
Part No. 23112111N001 Pub. No. 49-7372 CG 10-97
AVX07
AVX10
Owner’s Manual &
Installation Instructions

Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Congratulations!
You Are Now Part of the GE Family
Welcome to the GE family. We’re proud of our
quality products and we are committed to providing
dependable service. You’ll see it in this easy-to-use
Owner’s Manual and you’ll hear it in the friendly
voices of our customer service department.
Best of all, you’ll experience these values each time
you use your air conditioner. That’s important,
because your new air conditioner will be part of your
family for many years. And we hope you will be part
of ours for a long time to come.
We thank you for buying GE. We appreciate your
purchase, and hope you will continue to rely on us
whenever you need quality appliances for your home.
GE & You, A Service Partnership.
Safety Information
Safety Precautions . . . . . . . . . . . . .3
Use of Extension Cords . . . . . . . . .3
Use of Adapter Plugs . . . . . . . . . . .3
Operating Instructions
Controls . . . . . . . . . . . . . . . . . . .4, 5
Care and Cleaning . . . . . . . . . . . . .6
Installation Instructions
Preparing to Install the
Air Conditioner . . . . . . . . . . . . . . . .7
Horizontal Sliding
Window Installation . . . . . . . .8–11
Casement Window
Installation . . . . . . . . . . . . . . . . .12
Troubleshooting Tips
Before You
Call For Service . . . . . . . . . . . . . .13
Normal Operating Sounds . . . . . .13
Customer Service
Warranty . . . . . . . . . . . . . . . . . . .15
Service Telephone
Numbers . . . . . . . . . . . .Back Cover
FOR YOUR RECORDS
Write the model and serial numbers here:
##
You can find them on a label behind the front grille.
Staple sales slip or cancelled check here.
Proof of the original purchase date is needed to obtain service
under the warranty.
Inside you will find many helpful hints on how to use and maintain
your air conditioner properly. Just a little preventive care on your
part can save you a great deal of time and money over the life of
your air conditioner.
You’ll find many answers to common problems in the Before You
Call For Service section. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
READ THIS MANUAL
IF YOU NEED SERVICE
If you do need service, you can relax knowing help is only a phone
call away. A list of toll-free customer service numbers is included in
the back section. Or, you can always call the GE Answer Center® at
800.626.2000, 24 hours a day, 7 days a week.
IMPORTANT!
Fill out and return the Consumer Product Registration Card that is
packed with this product.
2

IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
WARNING!
For your safety, the information in this manual must be followed to minimize the risk of fire, electric shock
or personal injury.
■ This air conditioner must be properly
installed in accordance with the Installation
Instructions before it is used.
■ Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged.
■ Turn the mode control to OFF and unplug
your air conditioner before making any
repairs.
NOTE: We strongly recommend that any
servicing be performed by a qualified
individual.
SAFETY PRECAUTIONS
The use of an extension cord is not
recommended. However, if an extension cord
is required to reach the nearest wall receptacle,
use only a UL-listed, 3-wire, grounded, 14
gauge, 15A, 125V appliance extension cord.
USE OF EXTENSION CORDS
Because most 2-prong outlets are not
grounded, we strongly advise against using an
adapter plug. However, a temporary
connection may be made where local codes
permit and if the 2-prong wall outlet is properly
grounded. UL-listed adapters are available at
most hardware stores.
When you plug the adapter in, make sure the
larger prong goes into the larger slot to provide
the proper polarity for the power cord.
For Proper Grounding:
■ Screw the adapter to the outlet, using the
outlet cover screw.
■ Ground the outlet through the house wiring.
When disconnecting the power cord from the
adapter, hold the adapter close to the outlet
while pulling the plug out. If this is not done,
the grounding connector is likely to break with
repeated use.
If the grounding connector breaks,
DO NOT USE
the air conditioner until a proper ground has
again been made.
USE OF ADAPTER PLUGS
3
Read and follow this Safety Information carefully.
SAVE THESE INSTRUCTIONS
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions

4
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
About the controls on the air conditioner.
Controls
Mode Control
HI COOL, MED COOL and LOW COOL provide
cooling with different fan speeds.
LOWFAN or HI FAN provides air circulation
and filtering without cooling.
NOTE: If you move the switch from a cool setting to OFF or to
a fan setting, wait at least 3 minutes before switching back to
a cool setting.
Cooling Descriptions
For Normal Cooling —Select HI COOL or MED COOL
with the temp control at 5 or 6 .
For Maximum Cooling —Select HI COOL with the
temp control at 10 .
For Quieter & Nighttime Cooling —Select LOW COOL
with the temp control at 3 or 4 .
Temp Control
The temp control is used to maintain the
room temperature. The compressor will cycle
on and off to keep the room at the same level
of comfort. When you turn the knob to a
higher number the indoor air will become
cooler. Turn the knob to a lower number and
the indoor air will become warmer.

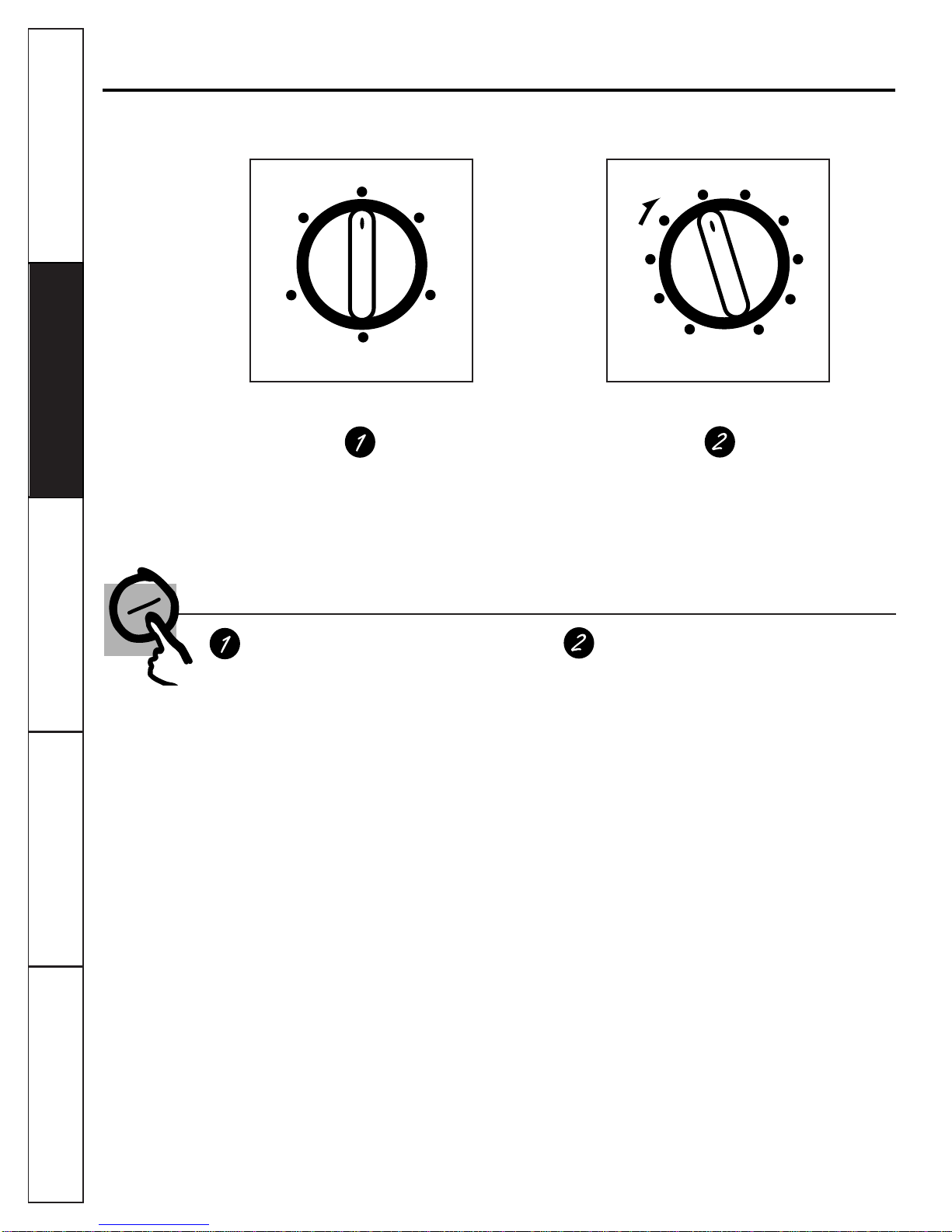

MODE CONTROL TEMP CONTROL
OFF
HI
FAN
LOW
COOL
MED
COOL
HI
COOL
LOW
FAN
1
2
3
4
56
7
8
9
10
C
O
O
L
E
R

Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Additional controls and important information.
5

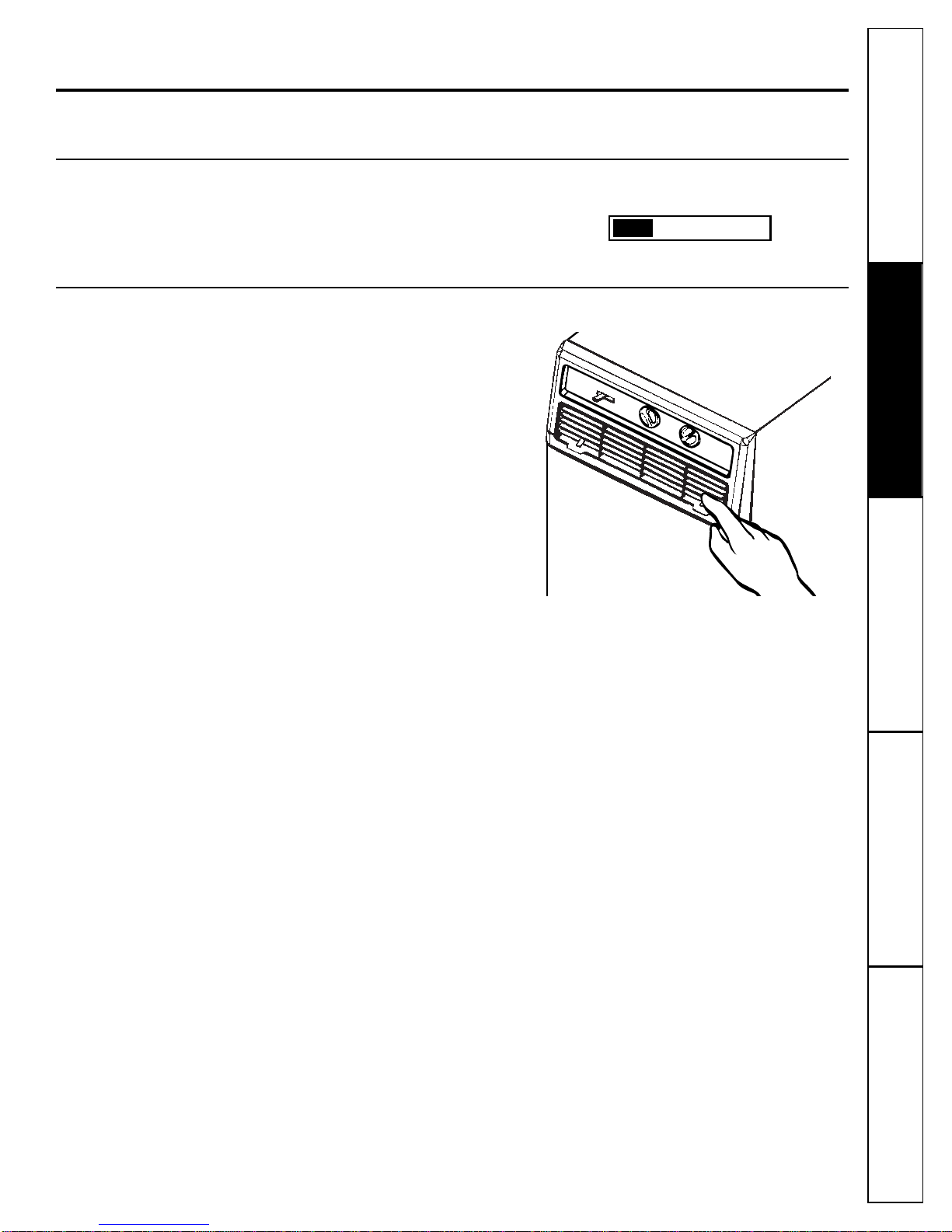

Exhaust Control
When set at CLOSED , only the air inside the room
will be circulated and conditioned. When set at
OPEN , some inside air is exhausted outside.
OPEN
CLOSED
Air Direction
The air direction tabs are located at the top on
either side of the front grille. The tabs let you
control the air to the left, right or straight ahead.
To adjust it up or down move the bank of louvers.

6
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Care and cleaning of the air conditioner.

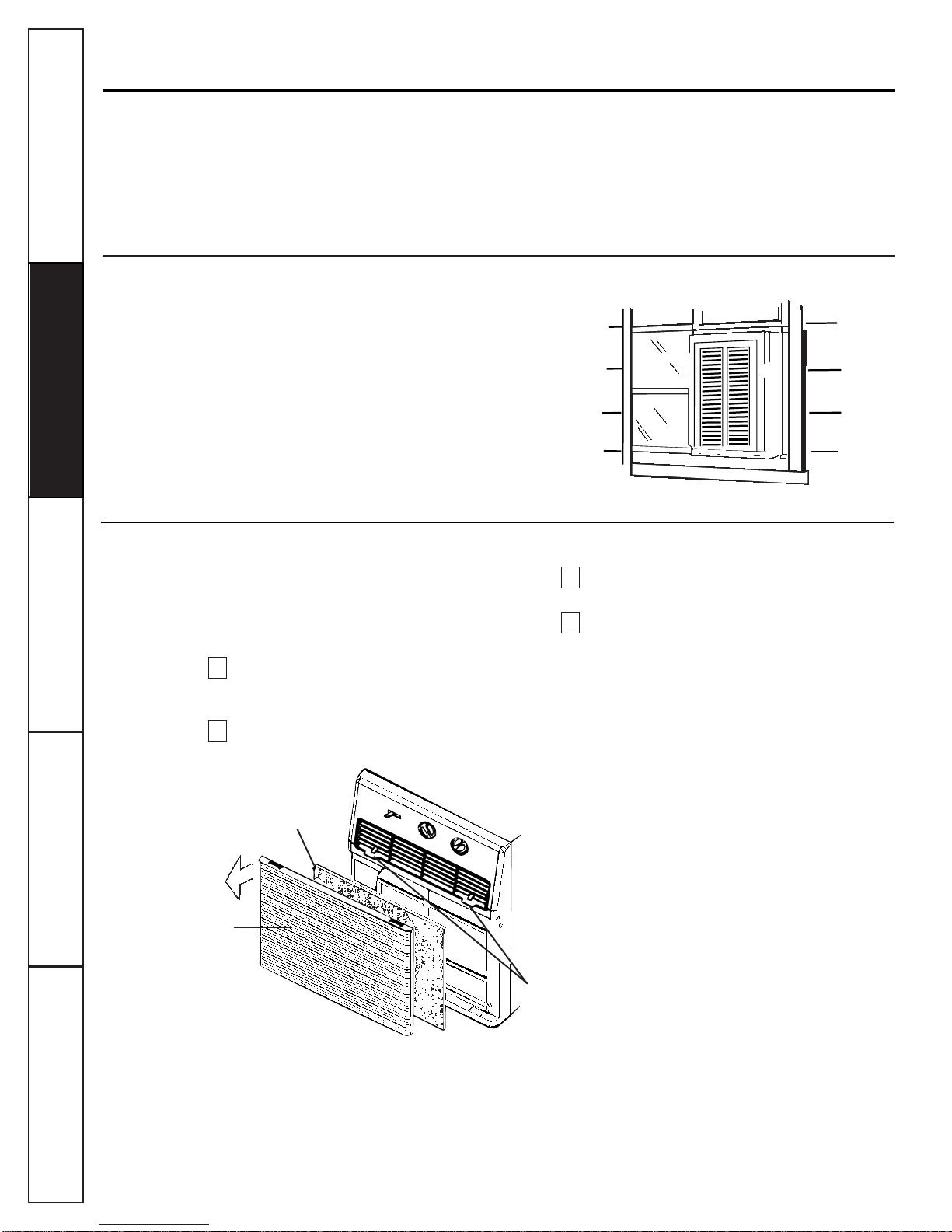

Air Filter
The air filter behind the inlet grille should be
checked and cleaned at least every 30 days or more
often if necessary.
To remove the inlet grille and the air filter:
Grasp both sides near the top of the inlet grille
and pull forward. The inlet grille will pivot
forward to reveal the air filter.
Unhook the filter from the tabs.
Clean the filter with warm, soapy water. Rinse
and let the filter dry before replacing it.
Replace the inlet grille.
CAUTION: DONOT operate the air conditioner without a
filter because dirt and lint will clog it and reduce performance.
4
3
2
1
Outdoor Coils
The coils on the outdoor side of the air conditioner
should be checked regularly. If they are clogged
with dirt or soot they may be professionally steam
cleaned, a service available through your GE
service outlet.
Grille and Case
Turn the air conditioner off and remove the plug
from the wall outlet before cleaning.
To clean, use water and a mild detergent. Do not
use bleach or abrasives.
Inlet grille
Air filter
Tabs

Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
7
Preparing to install the air conditioner.
Read these instructions completely and carefully.
NOTE TO INSTALLER: Leave these instructions with
the air conditioner after installation is completed.
NOTE TO CONSUMER: Keep this Owner’s Manual
and Installation Instructions for future use.
IMPORTANT NOTES:
For personal safety, this air conditioner must be
properly grounded.
It is important to have the wall outlet and circuit
checked by a qualified electrician if there is any
doubt as to whether a proper ground exists.
Follow National Electric Codes (NEC) and/or local
codes and ordinances.
CAUTION:
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.
Do not change the plug on the power cord
of this air conditioner.
Aluminum house wiring may present
special problems—consult a qualified
electrician.
Before You Begin
This model requires a 115/120-volt a.c.,
60 Hz grounded outlet protected with
a 15-amp time delay fuse or circuit breaker.
The 3-prong grounding plug minimizes the
possibility of electric shock hazard. If the wall outlet
you plan to use is only a 2-prong outlet, it is your
responsibility to have it replaced with a properly
grounded 3-prong wall outlet.
Electrical Requirements
■ Flat-blade screwdriver
■ Ruler or tape measure
■ Scissors or knife
■ Pencil
■ Level
■ Drill and 1/8²bit
Tools You Will Need

8
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions

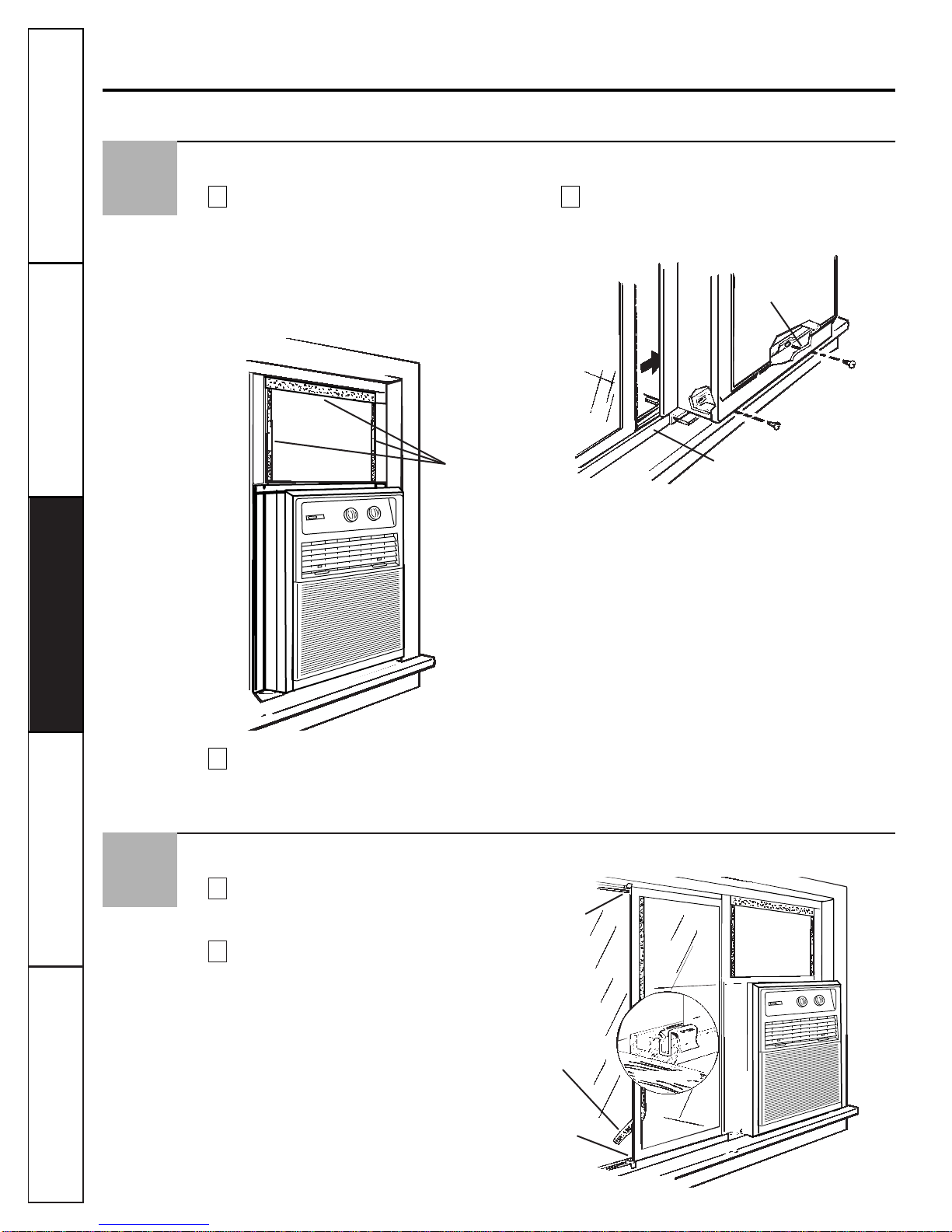

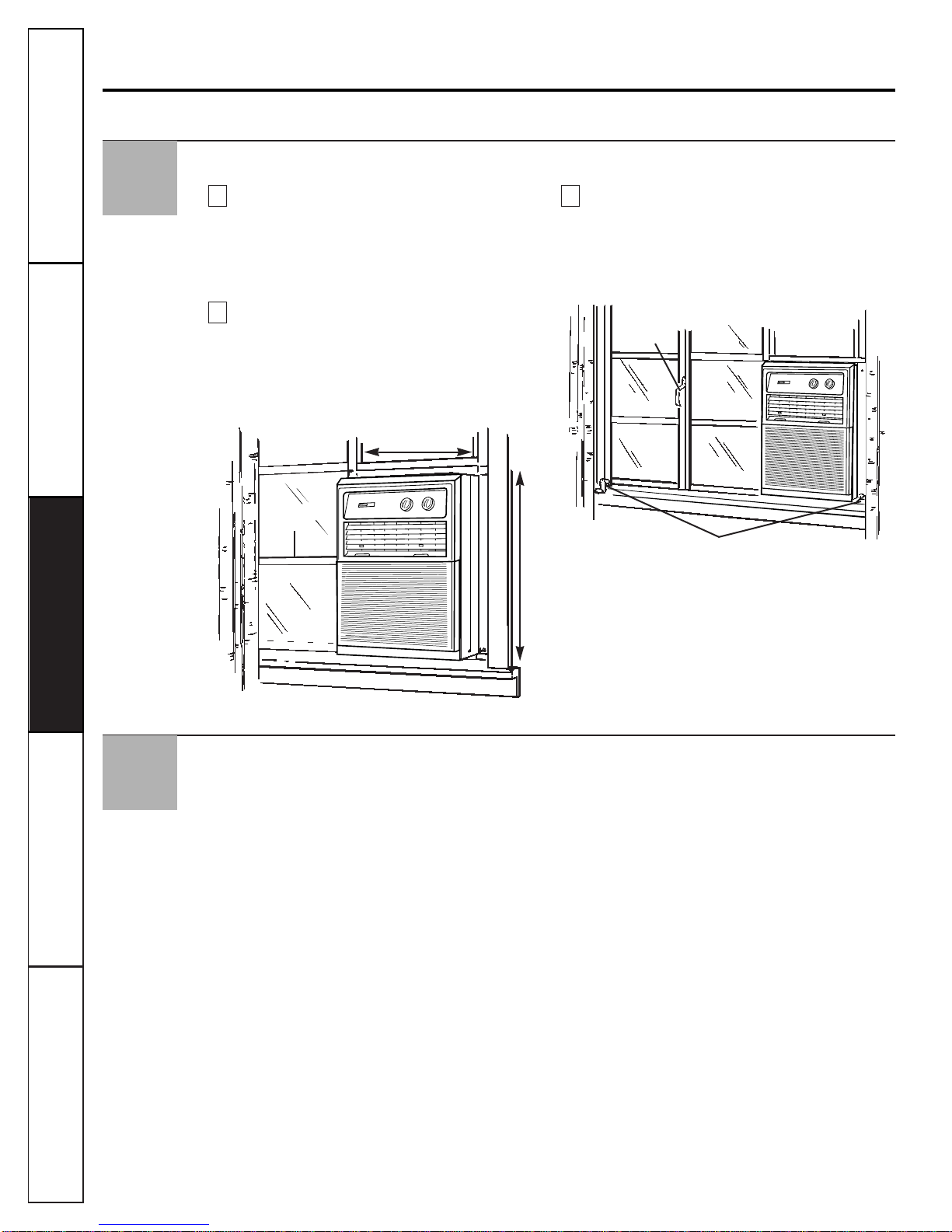

Horizontal Sliding Window Installation Instructions
Parts Included
1
2
3
4567
3
9
10
TEMPMODE
OFF
HI
COOL
HI
FAN
LOW
FAN
LOW
COOL MED
COOL
OPEN
CLOSED
Leveling bolt &nut
Sill plate
Window stopping
clips (2)
Filler panel
Foam window
side gasket
Support platform
Type A (2)
Washer
and nut
(2)
Type B (2) Package of puttyType C (7)
Air Conditioner
Support angle
Top retainer bar
Adhesive back foam seal (3)

Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Read completely, then follow step-by-step.
Window Requirements
■These instructions are for a horizontal sliding or
a casement window.
■The electrical outlet must be within reach of the
power cord.
■For installation in an extra high horizontal window
(up to 48²), order RAK162 kit from your dealer.
■For installation in a casement window, the
window frame assembly and the side of the
building must be adequate to support the weight
of the air conditioner.
Casement window
(See Casement Window Installation Instructions)
Horizontal sliding window
21²
min.
42²
max.
151/2²
min.
1
Prepare the Window and the Support Bracket
Attach the support platform to the sill plate
with 3 type C screws. Loosely attach the support
angle to the bottom of the support platform
using 2 type A screws with washers and nuts.
Attach the leveling bolt and nut.
Place the sill plate against the lower window
track and firmly against the vertical side edge of
the window frame. Attach the sill plate to the
window stool using 2 type B screws.
NOTE: To overcome interference of the support platform with
the window track or storm window, securely attach a 2²wide
shim strip to the window sill. This strip should be as long as
the width of the support platform and flush with the back
edge of the sill. The thickness of the strip should be controlled
by the amount of interference.
Pull the support angle against the outside wall
and tighten the screws on top of the support
platform. Adjust the leveling bolt so the
support platform is level. This will allow the air
conditioner to tilt slightly for proper drainage.
Tighten the nut.
NOTE: DO NOT drill a hole in the bottom of the pan.
The air conditioner is designed to operate with the
bottom of the pan approximately half-full of water.
D
C
B
A
2
9
211/2² min.
153/4²
min.
171/2²
max.
Sill plate
3 type C screws
Vertical side edge
Type A screws
with washers
& nuts
Support platform
Support angle
Leveling bolt and nut

10
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Horizontal Sliding Window Installation Instructions
Secure the Window and Install the Window Side Gasket
Attach the window stopping clips on the top
and the bottom of the window frame (sliding
windows only).
Cut the foam window side gasket to the proper
length and stuff it between the 2 windows.
LOW
FAN HI
FAN
LOW
COOL HI
COOL
MED
COOL
OFF
345678
9
10
TEMP
MODE
OPENED
2
1
B
A
Install the Air Conditioner in the Window
Cut two pieces of adhesive back foam seal to
the height of the window opening. Remove the
backing and apply to the vertical inside edges of
the window frame and the sliding window that
will rest against the air conditioner. Cut one
piece to the width of the window opening and
apply to the top inside edge of the window
frame.
Slide the air conditioner onto the support
platform. Be sure the side channel butts against
the vertical side edge of the window frame.
Drill two 1/8²holes in the window channel
frame through the existing holes in the bottom
bar. Screw 2 type C screws through these holes.
NOTES:
■ If the air conditioner does not fit securely, remove it and
readjust the leveling bolt.
■ Make sure the air conditioner is firmly anchored to the
window channel frame.
C
B
LOW
FAN HI
FAN
LOW
COOL HI
COOL
MED
COOL
OFF
345678
9
10
TEMP
MODE
OPENED
2
1
A
3
4
Window side gasket
Stopping clip
Stopping
clip
Bottom bar
Window channel frame
Adhesive back
foam seal

Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions

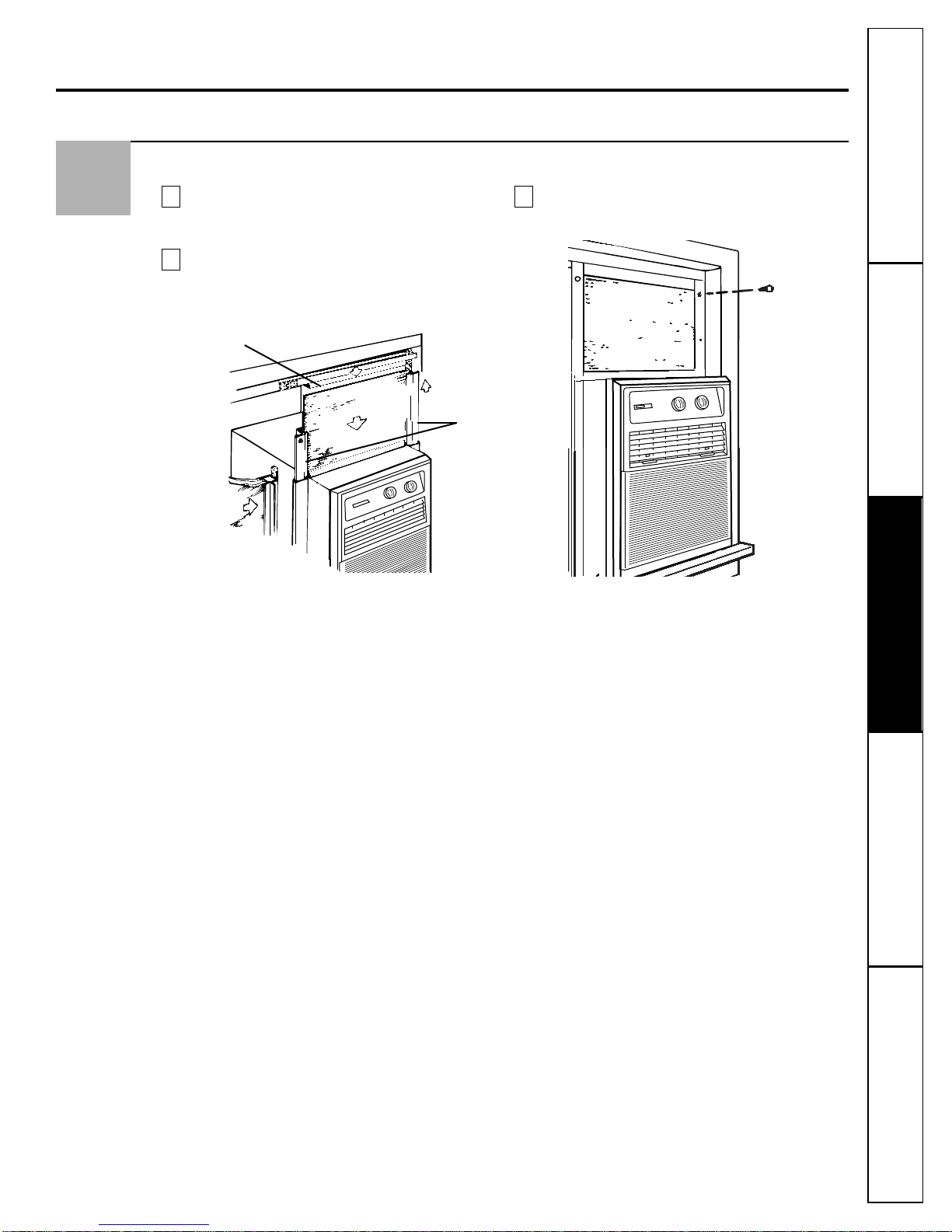

Install the Filler Panel
Trim the filler panel to fit the opening of the
height of the window. Attach the top retainer
bar to the top of the panel.
Put the filler panel into the bottom retainer
(attached to the air condtioner) and extend the
sliders upward making sure the panel stays in
the tracks of the sliders.
Drill 1/8²holes to align with the existing holes
in the sliders. Secure with 2 type C screws.
NOTE: Check all seals and plug any remaining air gaps with
the putty.
LOW
FAN HI
FAN
LOW
COOL HI
COOL
MED
COOL
OFF
345678
9
10
TEMP
MODE
OPENED
2
1
C
B
A
5
11
Sliders
Top retainer bar

12
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Casement Window Installation Instructions
Prepare the Window
Decide where the air conditioner will fit best.
If you want to install the air conditioner in a
window that does not open, you need to
remove the glass panes and window dividers
to provide an opening at least 153/4²wide ´
211/2²high.
If the window opening is wider than 153/4²,
you will need to install a filler panel. Make this
panel from 3/4²thick wood and run it the full
length of the window. Attach it securely to the
window frame and paint it to protect it from
the weather.
If you want to install the air conditioner in a
window that opens you must remove the catch
handle and the entire crank handle assembly.
Then either remove the window or fold it back
against the building and fasten it securely.
TEMP
MODE
OPEN
CLOSED
LOW
FAN
HI
FAN
LOW
COOL
HI
COOL
MED
COOL
OFF
3
45678
9
10
2
1
C
TEMP
MODE
OPEN
CLOSED
LOW
FAN
HI
FAN
LOW
COOL
HI
COOL
MED
COOL
OFF
3
45678
9
10
2
1
B
A
1
Install the Air Conditioner in the Window
Mounting procedure is similar to that described in
steps 1–5 of the Horizontal Sliding Window Installation
Instructions .
The installations are also typical. Since styles and
sizes of casement windows vary widely, it is advisable
to have the air conditioner installed by someone
skilled in this type of installation.
CAUTION: Do not block the air circulation to the outside
louvers.
2
Window
divider
153/4²wide
213/4²
high Crank handles
Catch
handle

13
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Before you call for service…
Troubleshooting Tips
Save time and money! Review the chart below first and
you may not need to call for service.
Problem Possible Causes What To Do
Air conditioner The air conditioner •Make sure the air conditioner plug is pushed
does not start is unplugged. completely into the outlet.
The fuse is blown/circuit •Check the house fuse/circuit breaker box and replace
breaker is tripped. the fuse or reset the breaker.
Power failure. •If power failure occurs, turn the mode control to OFF .
When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
Air conditioner does Airflow is restricted. •Make sure there are no curtains, blinds or furniture
not cool as it should blocking the front of the air conditioner.
The temp control may •Turn the knob to a higher number. The highest setting
not be set high enough. provides maximum cooling.
The air filter is dirty. •Clean the filter at least every 30 days.
See the Operating Instructions section.
The room may have been hot. •When the air conditioner is first turned on you need to
allow time for the room to cool down.
Cold air is escaping. •Check for open furnace floor registers and cold
air returns.
•Set the air conditioner’s vent to the closed position.
Cooling coils have iced up. •See “Air conditioner freezing up” below.
Air conditioner Ice blocks the air flow •Set the mode control at HI FAN or HI COOL
freezing up and stops the air conditioner with the temp at 1 or 2 .
from cooling the room.
Normal Operating Sounds
■ You may hear a pinging noise caused by water
being picked up and thrown against the
condenser on rainy days or when the humidity is
high. This design feature helps remove moisture
and improve efficiency.
■ You may hear the thermostat click when the
compressor cycles on and off.
■ Water will collect in the base pan during
high humidity or on rainy days. The water
may overflow and drip from the outdoor side
of the unit.
■ The fan may run even when the compressor
is not.

14
Customer Service Troubleshooting Tips Operating Instructions Safety Instructions
Installation Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Customer Service Troubleshooting Tips Installation Instructions Safety Instructions
Operating Instructions
Notes

15
Customer ServiceTroubleshooting Tips
Operating Instructions
Safety Instructions Installation Instructions
Air Conditioner Warranty
All warranty service provided by our Factory Service Centers,
or an authorized Customer Care® technician. For service,
call 800-GE-CARES.
For The Period Of: GE Will Replace, At No Charge To You:
One Year Any part of the air conditioner which fails due to a defect in materials or workmanship.
From the date of the During this full one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part.
Five Years Any part of the sealed refrigerating system (the compressor, condenser, evaporator
From the date of the and all connecting tubing) which fails due to a defect in materials or workmanship.
original purchase During this five-year warranty, GE will also provide, free of charge, all labor and
in-home service to replace the defective part.
■Service trips to your home to teach you how to use the
product.
■Improper installation. If you have an installation problem,
or if the air conditioner is of improper cooling capacity
for the intended use, contact your dealer or installer. You
are responsible for providing adequate electrical
connecting facilities.
■Failure of the product resulting from modifications to the
product or due to unreasonable use including failure to
provide reasonable and necessary maintenance.
■In commercial locations labor necessary to move the unit
to a location where it is accessible for service by an
individual technician.
■Replacement of house fuses or resetting of circuit
breakers.
■Failure due to corrosion on models not corrosion-
protected.
■Damage to the product caused by improper power supply
voltage, accident, fire, floods or acts of God.
■Incidental or consequential damage to personal property
caused by possible defects with this air conditioner.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225

Operating Instructions Safety Instructions
Installation Instructions
Troubleshooting TipsCustomer Service
Service Telephone Numbers.
GE Answer Center
®
800.626.2000
The GE Answer Center® is open 24 hours a day, 7 days a week.
In-Home Repair Service 800-GE-CARES (800-432-2737)
Expert GE repair service is only a phone call away.
Special Needs Service 800.626.2000
800-TDD-GEAC (800-833-4322)
GE offers, free of charge, a brochure to assist in planning a barrier-free kitchen for persons
with limited mobility.
Service Contracts 800-626-2224
Purchase a GE service contract while your warranty is still in effect and you’ll receive a
substantial discount. GE Consumer Service will still be there after your warranty expires.
Parts and Accessories 800-626-2002
Individuals qualified to service their own appliances can have parts or accessories sent directly
to their homes (VISA, MasterCard and Discover cards are accepted).
Instructions contained in this manual cover procedures to be performed by any user. Other servicing
generally should be referred to qualified service personnel. Caution must be exercised, since
improper servicing may cause unsafe operation.
Service Satisfaction
If you are not satisfied with the service you receive from GE:
First, contact the people who serviced your appliance.
Next, if you are still not pleased, write all the details—including your phone number—to:
Manager, Consumer Relations
GE Appliances
Appliance Park
Louisville, KY 40225
Finally, if your problem is still not resolved, write:
Major Appliance Consumer Action Program
20 North Wacker Drive
Chicago, IL 60606
Printed in United States
16
