GE PRO AIR 107 User manual

gGE Consumer & Industrial Appliances
Service Manual & Installation Manual
Split System Air Conditioner
Model numbers:
PRO AIR 107
PRO AIR 109
PRO AIR 112
PRO AIR I109
PRO AIR I112
PRO AIR 218
GE AIR 326
GE AIR 428

—1—
Summary and features
Model Remark
PRO AIR 107 IN / PRO AIR 107 OUT 1Ph 230V 50Hz R410A
1

—2—
Model Remark
PRO AIR 109 IN / PRO AIR 109 OUT PRO AIR 112 IN / PRO AIR 112 OUT
PRO AIR I109 IN / PRO AIR I109 OUT PRO AIR I112 IN / PRO AIR I112 OUT
1Ph 230V 50Hz R410A

—3—
Model Remark
PRO AIR 218 IN / PRO AIR 218 OUT 1Ph 230V 50Hz R410A

—4—

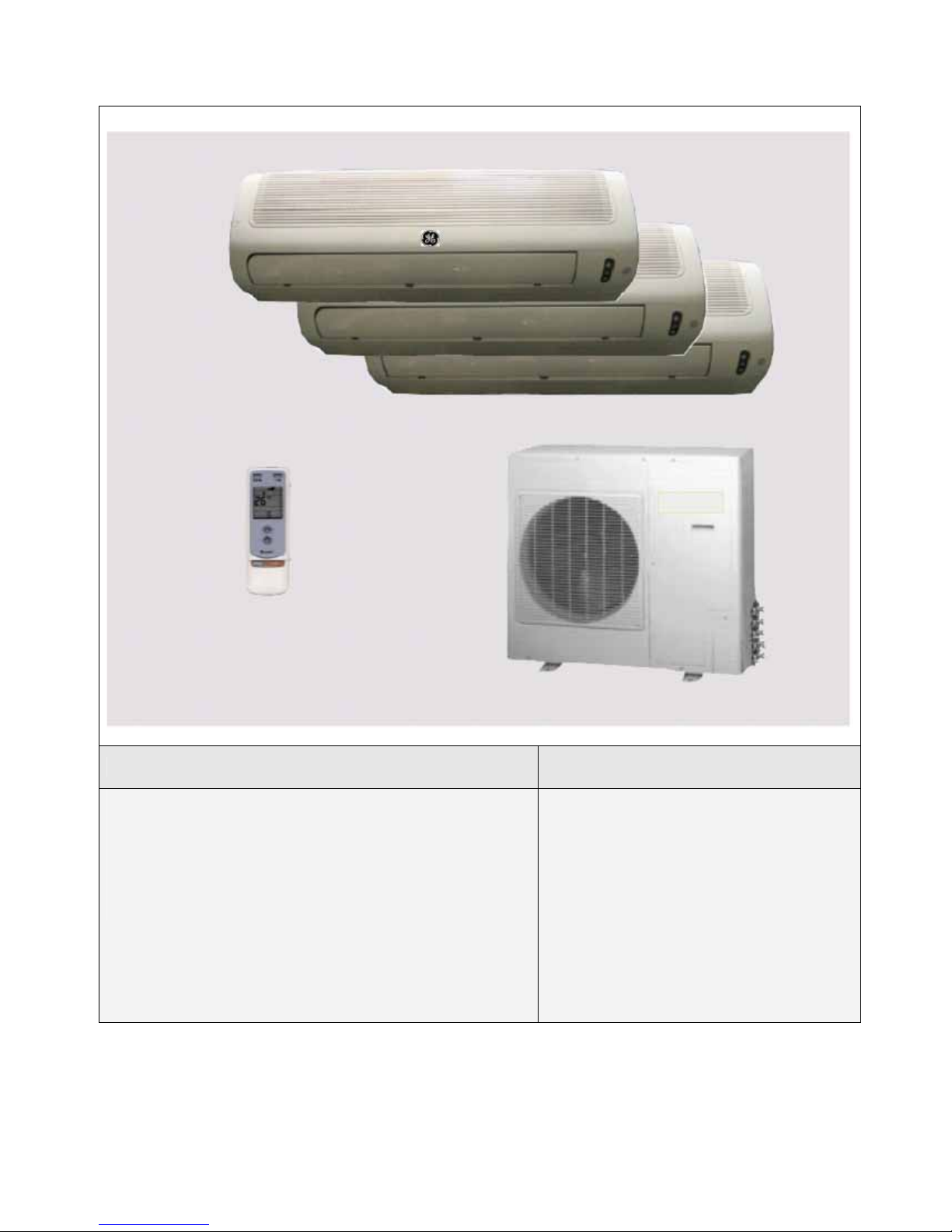

Model Remark
GE AIR 326 IN1 / GE AIR 326 IN2 / GE AIR 326 OUT
1Ph 230V 50Hz R407C

—5—
Model Remark
GE AIR 428 IN / GE AIR 428 OUT
1Ph 230V 50Hz R407C

—6—
Technical and specifications
Model PRO AIR 107 IN / PRO AIR 107 OUT PRO AIR 109 IN / PRO AIR 109 OUT
Function Cooling Heating Cooling Heating
Rated voltage 230V
Rated frequency 50Hz
Capacity (W) 2000 2200 2500 2600
Nominal power (W) 660 700 765 800
Max. power (W) 900 920 990 1050
Greatest currency (A) 4.1 4.3 4.8 5.5
Air flow (m3/h) 360 450
Dry capacity (L/h) 0.7 1.2
C.O.P/EER (W/W) 3.05 3.15 3.2 3.2
Model KFR-20G/NaA121-E KFR-25G/NaA121-E
Fan speed (r/min)(H/M/L) 1000/940/880 1160/1010/890
Output power (W) 8 14
Auxiliary electric heater power /
Fan capacitor 1
Fan motor running current 0.035 0.12
Fan type-piece Axial flow fan－1
Diameter-length (mm) Φ97×583
Evaporator Aluminum fin-copper tube
Pipe diameter Φ7
Row-fin distance (mm) 2-1.4
Developed area of heat
exchanger (I×H×L) 580mm ×228.6mm×25.4mm
Swing motor model MP24GA
Motor power (W) 2
Fuse (A) PCB3.15A Transformer 0.2A
Noise (sound pressure level)
dB(A) 41/38/35 42/39/36
Noise (sound pressure level)
dB(A) 51/49/45 52/49/46

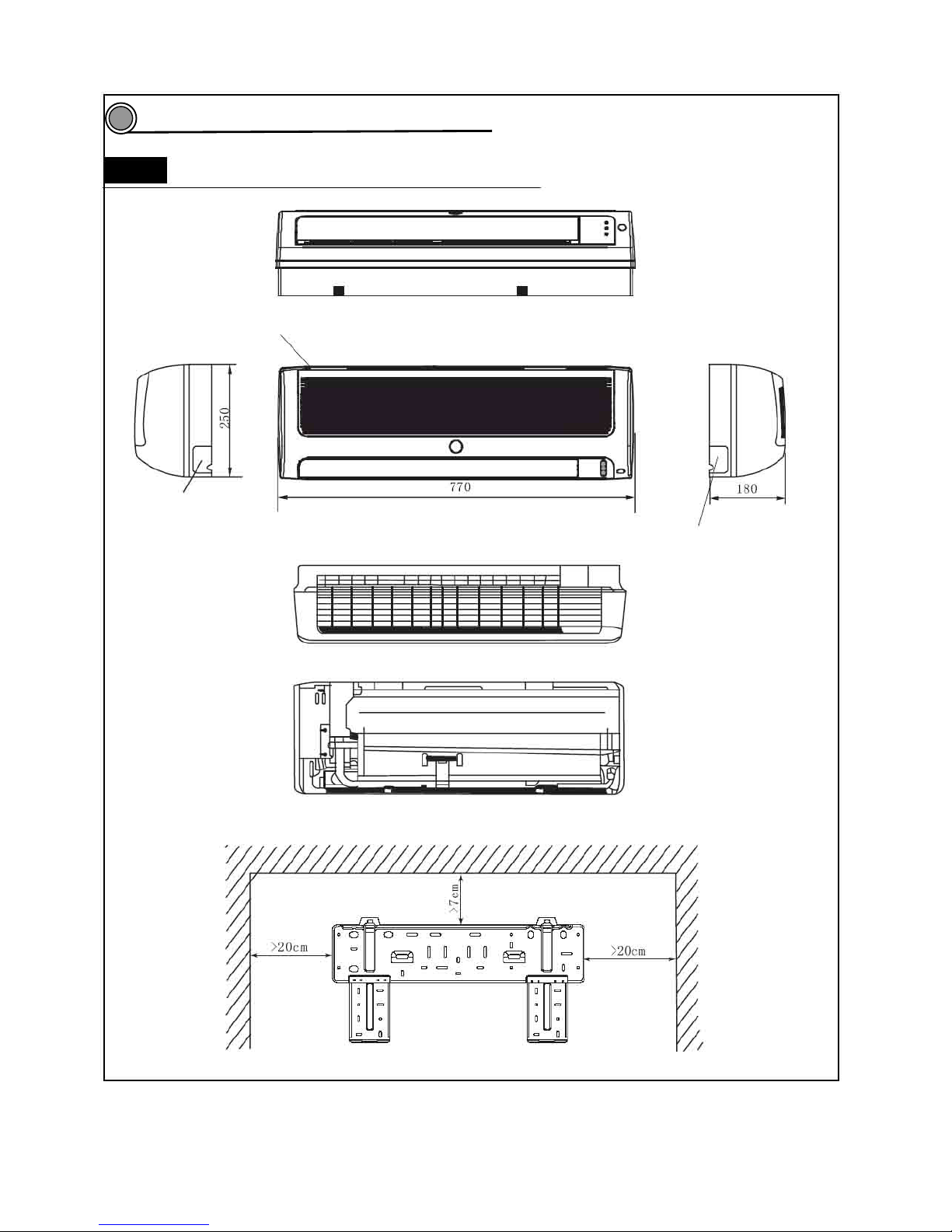

Outline dimension (W/D/H)
(mm) 770×180×250
Package dimension (W/D/H)
(mm) 855×270×336
Indoor
unit
Net weight/gross weight (kg) 8.5/12.5
2

—7—
Model PRO AIR 107 IN / PRO AIR 107 OUT PRO AIR 109 IN / PRO AIR 109 OUT
Compressor type GK080PAD C-1RV096H1A
Compressor type Rotary type
Locked rotor current 17 17
Compressor running current 3.2 3.8
Compressor input power 682 810
Compressor overload model M RA12009-12026 M RA98635-9201
Throttling method Capillary
Starting mode Capacitor CBB65 (22.5uF/450VAC)
Working temperature range －7～43℃
Condenser Aluminum fin-copper tube
Pipe diameter Φ9.52
Row-fin distance (mm) 2-1.6 2-1.4
Developed area of heat exchanger
(I×H×L) 673×406×44 791×508×44
Fan motor speed (rpm) 950 830
Motor rated power (W) 20 30
Fan motor running current (A) 0.42 0.26
Fan capacitor (μf) 1.5 2
Fan type-piece /
Fan type-piece Axial flow fan -1
Fan diameter (mm) Φ320 Φ400
Defrosting method Auto
Climate type T1
Insulation class I
Waterproof level IP24
Maximum working pressure of
exhaust side (Mpa)
3.8
Maximum working pressure of
exhaust side (Mpa)
1.2
Noise（sound pressure level）
dB(A) 52 56
Noise (sound pressure level)
dB(A) 62 66
Outline dimension (W/D/H)(mm) 660×260×430 848×320 ×540
Package dimension (W/D/H)(mm) 765×350×500 878×360 ×600
Net weight/gross weight (kg) 25/29 30/34
Outdoor
unit
Refrigerant/refrigerant charge (kg) R410A /0.88 R410A /1.1
Length 4
Liquid pipe (mm) Φ6Outer
diameter Gas pipe (mm) Φ9.52
Height (m) 5
Connection pipe
Maximu
m
distance Length (m) 10

—8—
Model PRO AIR 112 IN PRO AIR I109 IN
Function Cooling Heating Cooling Heating
Rated voltage 230V
Rated frequency 50Hz
Capacity (W) 3200 3400 2500 2700
Nominal power (W) 1060 1220 730 800
Max. power (W) 1390 1370 1246 1297
Greatest currency (A) 7.2 7.4 5.7 6
Air flow （m3/h）450 450
Dry capacity (L/h) 1.2 1.2
C.O.P/EER (W/W) 3 2.8 3.4 3.4
Model KFR-32G/NaA121-E KFR-25G/NaA12F-E
Fan speed (r/min)(H/M/L) 1160/1010/890 1190/1090/990
Output power (W) 14 14
Auxiliary electric heater power /
Fan capacitor 1
Fan motor running current 0.12 0.12
Fan type-piece Cross flow fan-1
Diameter-length (mm) Φ97×583
Evaporator Aluminum fin-copper tube
Pipe diameter Φ7
Row-fin distance (mm) 2-1.4
Developed area of heat exchanger
(I×H×L) 580mm ×228.6mm×25.4mm
Swing motor model MP24GA
Motor power (W) 2
Fuse (A) PCB3.15A Transformer 0.2A
Noise (sound pressure level)
dB(A) 42/39/36 42/39/36
Noise (sound pressure level)
dB(A) 52/49/46 52/49/46
Outline dimension (W/D/H) (mm) 770×180×250
Package dimension (W/D/H) (mm) 855×270×336
Indoor
unit
Net weight/gross weight (kg) 8.5/12.5

—9—
Model PRO AIR 112 OUT PRO AIR 109 OUT
Compressor type C-RV133H1A EU1011DV
Compressor type Rotary type
Locked rotor current 24 33.5
Compressor running current 5.25 4
Compressor input power 1125 628
Compressor overload model B210-145-241E 4CYC11233
Throttling method Capillary
Starting mode Capacitor
Working temperature range －7～43℃
Condenser Aluminum fin-copper tube
Pipe diameter Φ9.52
Row-fin distance (mm) 2-1.4 2-1.4
Developed area of heat exchanger
(I×H×L) 791×508×44 645×508×44
Fan motor speed (rpm) 830 830
Motor rated power (W) 30 30
Fan motor running current (A) 0.26 0.3
Fan capacitor (μf) 2.5 2.5
Fan type-piece /
Fan type-piece Axial flow fan-1
Fan diameter (mm) Φ400 Φ400
Defrosting method Auto
Climate type T1
Insulation class I
Waterproof level IP24
Maximum working pressure of
exhaust side (Mpa) 3.8
Maximum working pressure of
exhaust side (Mpa) 1.2
Noise (sound pressure level) dB(A) 56 54
Noise (sound pressure level) dB(A) 66 64
Outline dimension (W/D/H) (mm) 848×320 ×540 848×320 ×540
Package dimension (W/D/H) (mm) 878×360 ×600 878×360 ×600
Net weight/gross weight (kg) 30/34 41/43
Outdoo
r unit
Refrigerant/refrigerant charge (kg) R410A /1.3 R410A /1.2
Length 4
Liquid pipe (mm) Φ6Outer
diameter Gas pipe (mm) Φ9.52
Height (m) 5
Connection
pipe
Maximum
distance Length (m) 10

—10—
Model PRO AIR I112 IN PRO AIR 218 IN
Function Cooling Heating Cooling Heating
Rated voltage 230V
Rated frequency 50Hz
Capacity (W) 3200 3400 2500×2 2800×2
Nominal power (W) 1000 1100 830×2 900×2
Max. power (W) 1361 1383 1120×2 1100×2
Greatest currency (A) 5.9 6.1 5.9×2 5.4×2
Air flow (m3/h) 450 450
Dry capacity (L/h) 1.2 1.2×2
C.O.P/EER (W/W) 3.2 3.1 3 3.1
Model KFR-32G/NaA12F-E KFR-25X2G/NaA121-E
Fan speed (r/min)(H/M/L) 1190/1090/990 1160/1010/890
Output power (W) 14 14
Auxiliary electric heater power /
Fan capacitor 1
Fan motor running current 0.12 0.12
Fan type-piece Cross flow fan-1
Diameter-length (mm) Φ97×583
Evaporator Aluminum fin-copper tube
Pipe diameter Φ7
Row-fin distance (mm) 2-1.4
Developed area of heat
exchanger (I×H×L) 580mm ×228.6mm×25.4mm
Swing motor model MP24GA
Motor power (W) 2
Fuse (A) PCB3.15A Transformer 0.2A
Noise (sound pressure level)
dB(A) 42/39/36 42/39/36
Noise (sound pressure level)
dB(A) 52/49/46 52/49/46
Outline dimension (W/D/H)
(mm) 770×180×250
Package dimension (W/D/H)
(mm) 855×270×336
Indoor
unit
Net weight/gross weight (kg) 8.5/12.5

—11—
Model PRO AIR I112 OUT PRO AIR 218 OUT
Compressor type EU1011DV 5PS108EAA22
Compressor type Rotary type
Locked rotor current 33.5 18
Compressor running current 4 4.05
Compressor input power 628 880
Compressor overload model 4CYC11233 7100819 (KA-122-LPD021A)
Throttling method Capillary
Starting mode Capacitor
Working temperature range －7～43℃
Condenser Aluminum fin-copper tube
Pipe diameter Φ9.52
Row-fin distance (mm) 2-1.4 2-1.8
Developed area of heat exchanger (I×H
×L) 645×508×44 730×660×44
Fan motor speed (rpm) 830 815
Motor rated power (W) 30 60
Fan motor running current (A) 0.3 0.6
Fan capacitor (μf) 2.5 3
Fan type-piece /
Fan type-piece Axial flow fan-1
Fan diameter (mm) Φ400 Φ400
Defrosting method Auto
Climate type T1
Insulation class I
Waterproof level IP24
Maximum working pressure of exhaust
side (Mpa) 3.8
Maximum working pressure of exhaust
side (Mpa) 1.2
Noise (sound pressure level) dB(A) 54 60
Noise (sound pressure level) dB(A) 64 70
Outline dimension (W/D/H) (mm) 848×320 ×540 950×340×685
Package dimension (W/D/H) (mm) 878×360 ×600 1100×450×750
Net weight/gross weight (kg) 41/43 65/70
Outdoo
r unit
Refrigerant/refrigerant charge (kg) R410A /1.2 R410A /0.9×2
Length 4
Liquid pipe (mm) Φ6Outer
diameter Gas pipe (mm) Φ9.52
Height (m) 5
Connection
pipe
Maximum
distance Length (m) 10

—12—
Model GE AIR 326 IN1 / GE AIR 326 IN2 / GE
AIR 326 OUT GE AIR 428 IN / GE AIR 428 OUT
Function Cooling Cooling
Rated voltage 230V
Rated frequency 50Hz
Capacity (W) 6800 (3200+1800×2) 7200 （1800X4）
Nominal power (W) 6800 (3200+1800×2) 2900 （1450X2）
Max. power (W) 3400 (1700×2) 3400 （1700X2）
Greatest currency (A) 6.5+6.5 6.5+6.5
Air flow (m3/h) 450 450
Dry capacity (L/h) 1.2×2 1.2×2
C.O.P/EER (W/W) 2.4 2.5
Model KF-18X2G/NA12-E /
KF-32G/NA12-E
KF-18X4G/NA12-E
Fan speed (r/min) (H/M/L) 1160/1010/890 1160/1010/890
Output power (W) 14 14
Auxiliary electric heater power /
Fan capacitor 1
Fan motor running current 0.12 0.12
Fan type-piece Cross flow fan-1
Diameter-length (mm) Φ97×583
Evaporator Aluminum fin-copper tube
Pipe diameter Φ7
Row-fin distance (mm) 2-1.4
Developed area of heat
exchanger (I×H×L) 580mm ×228.6mm×25.4mm
Swing motor model MP24GA
Motor power (W) 2
Fuse (A) PCB3.15A Transformer 0.2A
Noise (sound pressure level)
dB(A) 42/39/36 42/39/36
Noise (sound pressure level)
dB(A) 52/49/46 52/49/46
Outline dimension (W/D/H) (mm) 770×180×250
Package dimension (W/D/H)
(mm) 855×270×336
Indoor
unit
Net weight/gross weight (kg) 8.5/12.5

—13—
Model GE AIR 326 IN1 / GE AIR 326 IN2 /
GE AIR 326 OUT GE AIR 428 IN / GE AIR 428 OUT
Compressor type C-RV237H01AA C-RV237H01AA
Compressor type Rotary type
Locked rotor current 31 31
Compressor running current 6.3 6.3
Compressor input power 1100 1100
Compressor overload model MRA98619-9200 MRA98619-9200
Throttling method Capillary
Starting mode Capacitor
Working temperature range －5～43℃
Condenser Aluminum fin-copper tube
Pipe diameter Φ9.52
Row-fin distance (mm) 2-1.8 2-1.8
Developed area of heat exchanger
(I×H×L) 791×508×44 791×508×44
Fan motor speed (rpm) 780 780
Motor rated power (W) 60 60
Fan motor running current (A) 0.56 0.56
Fan capacitor (μf) 3 3
Fan type-piece /
Fan type-piece Axial flow fan-1
Fan diameter (mm) Φ460 Φ460
Defrosting method Auto
Climate type T1
Insulation class I
Waterproof level IP24
Maximum working pressure of
exhaust side (Mpa) 2.5
Maximum working pressure of
exhaust side (Mpa) 0.6
Noise (sound pressure level) dB(A) 58 58
Noise (sound pressure level) dB(A) 68 68
Outline dimension (W/D/H) (mm) 950×412 ×840 950×412 ×840
Package dimension (W/D/H) (mm) 1100×450×920 1100×450×920
Net weight/gross weight (kg) 72/77 72/77
Outdoo
r unit
Refrigerant/refrigerant charge (kg) R407C /1.27×2 R407C /1.27×2
Length Length of connecting tube
Liquid
pipe (mm) Φ6Outer
diameter Gas pipe (mm) Φ9.52
Height (m) 5
Connection pipe
Maximum
distance Length (m) 10
The above data is subject to change without notice. Please refer to the nameplate of the unit.

—14—
Part name

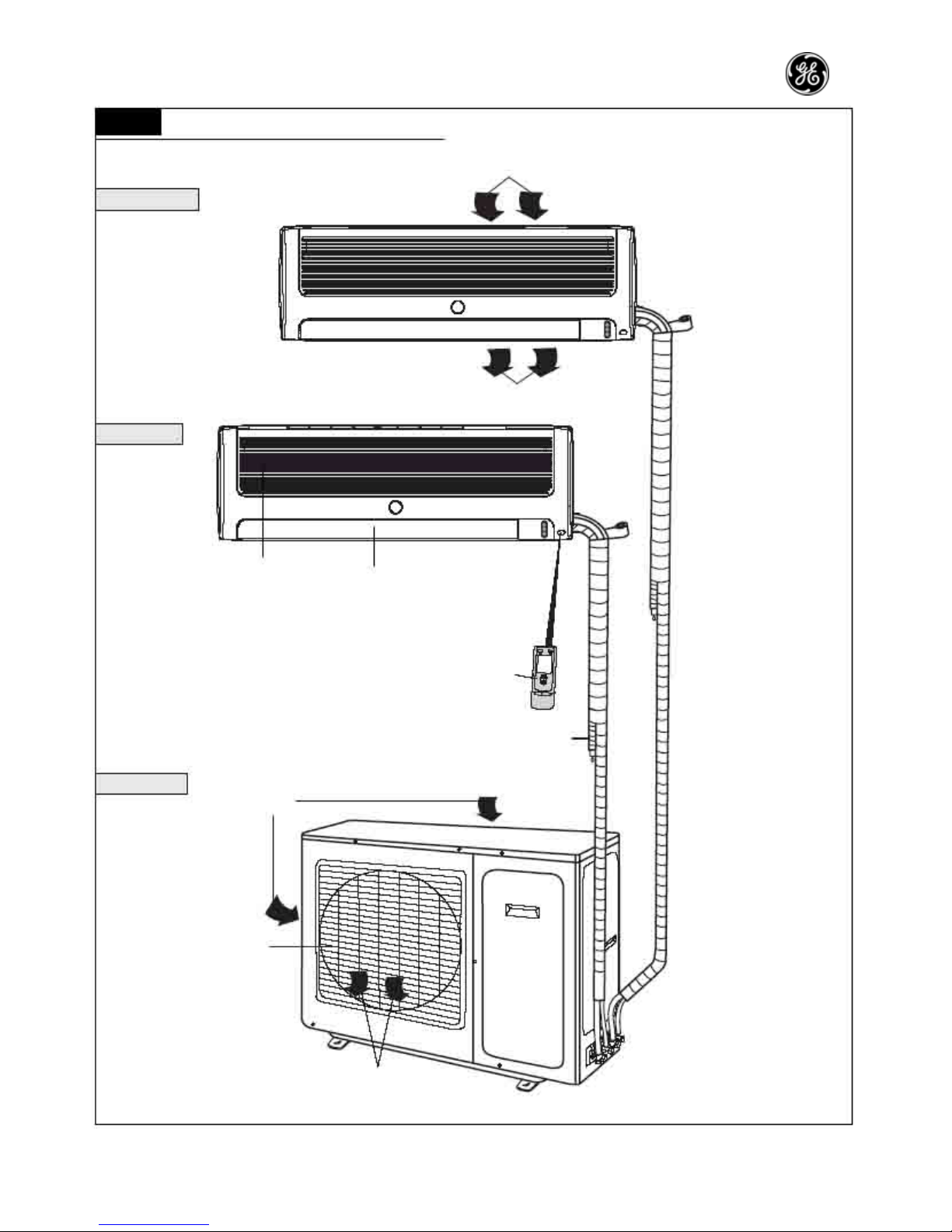

Part name of one driving one unit
Air in
Indoor unit
Panel
Air out Air guide board
Power plug
Remote controller
Drainage pipe
O
utdoor unit Airin
Connecting pipe and
connecting wire
Air outlet vent grill
Air out
3
3.1

—15—
3.2 Part name of one driving two unit
Air in
Indoor unit A
Wrapping tape
Air out
Indoor unit B
Panel
Air guide board
Remote controller
Drainage pipe
Outdoor unit
Air in
Air outlet vent grill
Air out

—16—
3.3 Part name of one driving three unit
Air in
Indoor unit
Panel
Air out Air guide board
Power plug
Remote controller
Drainage pipe
Air in
Outdoor unit
Air outlet vent grill
Air out
Connecting
pipe and
connecting
wire

—17—
P173.4
Part name of one driving four unit
Air in
Indoor unit
Panel
Air out Air guide board
Power plug
Remote controller
Drainage pipe
Air in
Outdoor unit
Air outlet vent grill
Air out
Connecting
pipe and
connecting
wire

—18—
Outline and installation dimensions
4.1 Outline and installation dimensions of indoor unit
Air inlet vent
Left pipe outlet
Right pipe outlet
Rear view
Ceiling
Left side Right side
Installation dimensions
4

—19—
4.2 Outline and installation dimensions of indoor unit 20
Handle
> 60cm
Bolt
Nut
Spanner
