Visual iQ VideoProbe
User’s Manual
MVIQAMANUAL Rev. B
Mentor

207/30/2014

3
07/30/2014
Table of Contents
Introduction 4
About this Manual 4
Getting Help 4
System Overview 4
Safety Information 6
Informations sur la sécurité 8
Start Up 10
 ComponentIdentication 10
Touchscreen and Keys – Dual Control Systems 11
Unpacking, Assembling, and Powering the Visual iQ 12
Unpacking and Putting Away the System (Small Case) 12
Unpacking and Putting Away the System (Large Case) 13
About the Battery 14
Supplying Power to the Visual iQ 15
 PoweringtheVisualiQOnandO 15
Changing Probes and Optical Tips 16
Setting Up the Visual iQ Operating System 17
 WorkingwithProles 18
System Setup 19
Screen & Display Setup 21
Connectivity Setup (WiFi, Bluetooth, PCs, and Networks) 22
Image & Video Setup 24
Measurement & Annotation Setup 25
Capturing and Adjusting Images 26
Steering the Probe 26
Freezing the Image 27
Selecting a View 28
Saving Image Files 29
Working with a Recalled Image 30
Zoom to Magnify 31
Image Transformation Settings 32
Working with Preset Image Transformation Settings 34
Working with a Split Screen 35
Annotating with Text and Arrows 36
Adding Audio Notes to an Image 37
Working with Video 38
Recording Live Video 38
Working with a Recalled Video 38
Measuring Features and Indications 39
3D Phase Measurements (3DPM) 41
Stereo Measurements 46
Comparison Measurements 52
Troubleshooting Measurements 53
Managing Files 54
Working with Removable Storage Devices 54
Editing Files and Folders/Creating Folders 55
MDI 56
Loading and Unloading Menu Directed Inspections 56
Starting a Menu Directed Inspection 57
Entering Study Level Information 57
Selecting an Inspection Point 58
Saving an Image or Video in an MDI Inspection 59
Viewing Reference Material 60
Stopping and Resuming an Inspection 60
Generating an MDI Report 61
Customizing an MDI Report 62
Maintenance and Troubleshooting 63
Inspecting and Cleaning the System 63
Troubleshooting Guide 65
Appendices 68
 AppendixA.TechnicalSpecications 68
Appendix B. Optical Tip Table 71
Appendix C. Chemical Compatibility 72
Appendix D. Warranty 72
Appendix E. Verifying Measurement Tips 73
Appendix F. Environmental Compliance 74
Appendix G. Regulatory Compliance 75
Appendix H. Creating a Personalized Logo File 79
Appendix I. Open Source Software Availability 80
Appendix J. Restoring Factory Settings 80
Index 81

407/30/2014
Introduction
About this Manual
This manual and the related equipment is intended for visual inspection technicians with a basic understanding of inspection principles and practices, and who are familiar with
basic computer operations, but who may not have experience with a video borescope system.
The manual contains safety, compliance, and basic operating and maintenance instructions for the Visual iQ VideoProbe™ system.
To ensure operator safety, please read and understand this manual prior to using the system.
Getting Help
For additional assistance, go to www.ge-mcs.com for a complete listing of contact information. Technical Support contact information follows:
Global Phone: [phone]
Email: IT[email protected]
Website: http://www.geittechsupport.com
System Overview
The rugged and dependable Mentor Visual iQ® system is an advanced exible video borescope used for remote visual inspection.
Working through access passages, the Visual iQ system delivers high-resolution images of internal details of turbine engines, airframes, automotive engines, piping, vessels, wind-
turbine gear boxes, underwater structures, etc.
The probe’s beroptic bundle illuminates the inspection area with light generated by an advanced Light Engine in the probe. At the end of the probe, a miniature camera assembly
converts the image into an electronic image, and sends it back through the probe. The system displays the image on the handset. No focusing is required, because the Visual iQ
system contains a xed-focus optical system with a large depth of eld.
Measurement capabilities allow your system to analyze and measure indications and features.
The Visual iQ system is compatible with USB thumb drives, USB keyboards, USB portable drives, and most other USB-based storage devices.
With our QuickChange™ interchangeable probes, you can quickly recongure the system for maximum productivity.

5
07/30/2014
Standard Equipment
Visual iQ
2-hour Li-Ion Battery
Visual iQ Storage Case
AC Adapter/Battery Charger
Optical Tip Storage Case
USB Thumbdrive Containing Documentation, including User's Manual
Safety and Essential Use Hard Copy
Quickstart Card
Optional Accessories
Display Port Video Cable
Insertion Tube Gripper
Insertion Tube Rigidizer
Handset Holder
Headset (wired or wireless)
Cables
Belt Clip
Keyboard (wired or wireless)
Optical Tips
Measuring Optical Tips
Mini-Magic Arm Clamp Kit
Magic Arm Kit
External Monitor
Large Visual iQ Case
Optional Software
Menu Directed Inspection (MDI)—Intelligent le naming, image management, and post-
inspection reporting.
Inspection Manager (Re-measurement PC Application)

607/30/2014
Safety Information
Note: Before using or servicing the system, read and understand the following safety information.
Symbols and Terms
The following symbols appear on the product: , .See accompanying documentation.
General Warnings
The following warning statements apply to use of the system in general. Warning statements that apply specically to particular procedures appear in the corresponding
sections of the manual.
Do not allow the conductive insertion tube, system or its working tools to come in direct contact with any voltage or current source. Prevent all contact with live electrical
conductors or terminals. Damage to the equipment and/or electrical shock to the operator may result.
Do not use this system in explosive environments.
USE PROPERLY. Using any piece of this equipment in a manner not specied by the manufacturer may impair the product’s ability to protect the user from harm.
General Cautions
The following caution statements apply to use of the Visual iQ device in general. Caution statements that apply specically to particular procedures appear in the corresponding
sections of the manual.
Before using the camera system, install an optical tip or the head guard, which prevents damage to the tip-attachment mechanism. Keep the head guard on whenever no
optical tip is in place.
Handle the Probe Carefully: Keep the insertion tube away from sharp objects that might penetrate its outer sheath. Keep the whole insertion tube as straight as possible during
operation; loops or bends anywhere in the tube decrease its ability to steer the probe tip. Avoid bending the insertion tube sharply.
Note: Always use the Home function to straighten the bending neck before withdrawing insertion tube from an inspection area or putting probe away. Never pull, twist, or
straighten the bending neck by hand; internal damage may result. At the rst sign of damage, return the probe for repair.
Certain substances may damage the probe. For a list of substances that are safe for the probe, see “Chemical Compatibility” in the Appendix.

7
07/30/2014
Battery Warnings
Only use the battery and power supply specied for use with the system. Before use, thoroughly review the instructions in this manual for the battery and battery charger to
fully understand the information contained in them, and observe the instructions during use.
WARNING
• Do not place the battery in re or exceed the battery operating temperature.
• Do not pierce the battery with nails, strike the battery with a hammer, step on the battery, or otherwise subject it to strong impacts or shocks.
• Do not expose the battery to water or salt water, or allow the battery to get wet (IP55 – Disassembled, IP67 – Assembled).
• Do not disassemble or modify the battery.
• The instrument contains a Lithium Ion battery and magnesium in its case. Should the instrument be involved in a re, use an extinguisher approved for use on electrical and
ammable metal res. Water must not be used.
Battery Communication Error: Exists when the Visual iQ shows this message on the display. If the problem persists, please contact your nearest customer support
center.
Using the battery outside its recommended operating range will result in degradation of the performance and service life. When storing the battery, be sure to remove it from
the handset.
Recommended ambient temperature range for Li-ion battery operation:
Discharge (when using the instrument): -20°C to 46°C
Recharging: 0°C to 40°C
Storage: -25°C to +60°C

807/30/2014
Informations sur la sécurité
Remarque: avant l’utilisation ou l’entretien du système, vous devez lire et comprendre les informations de sécurité qui suivent.
Symboles et termes employés
Les symboles suivants sont apposés sur le produit: , . Voir la documentation jointe.
Avertissements généraux
Les avertissements suivants s’appliquent à l’utilisation du système en général. Les avertissements qui s’appliquent spéci quement à des procédures particulières sont indiqués
dans les sections correspondantes de ce manuel.
Le système Visual iQ et les outils de travail qui l’accompagnent ne doivent jamais entrer en contact direct avec une source de tension ou de courant. Évitez tout contact
avec des conducteurs ou des bornes électriques sous tension. L’équipement risquerait d’être endommagé, ou l’opérateur de subir un choc électrique.
N’utilisez pas ce système dans un environnement à risque d’explosion.
UTILISER CORRECTEMENT. Si un élément de cet équipement est utilisé d’une manière non indiquée par le fabricant, l’utilisateur peut ne plus être protégé des risques de
blessure.
Mentions générales « Attention »
Les mentions « Attention » qui suivent s’appliquent à l’utilisation de l’appareil Visual iQ en général. Les mentions « Attention » qui s’appliquent spéci quement à des procédures
particulières sont indiquées dans les sections correspondantes du manuel.
MANIPULER LA SONDE AVEC PRÉCAUTION. Maintenez la gaine de la sonde à l’écart d’objets pointus ou tranchants qui risqueraient de traverser son fourreau. Maintenez toute
la gaine aussi droite que possible pendant l’utilisation : en cas de boucle ou de courbure, il est plus dif cile de piloter le bout de la sonde. Évitez de trop courber la gaine.
Remarque : utilisez toujours le bouton de rangement pour redresser le béquillage avant de rétracter la gaine de la zone d’inspection ou de ranger la sonde. Ne manipulez
jamais le béquillage à la main pour le tirer, le courber ou le redresser : vous risqueriez de l’endommager à l’intérieur. Envoyez la sonde en réparation au premier signe
d’endommagement.
Certaines substances risquent d’endommager la sonde. Pour consulterla liste des substances sans danger pour la sonde, voir Compatibilité Chimique en annexe.
L’appareil comporte une batterie lithium ion et du magnésium à l’intérieur de son boîtier. En cas d’incendie de l’appareil, servez-vous d’un extincteur agréé pour une utilisation
sur les incendies électriques et les métaux inammables. En aucun cas, n’utilisez de l’eau.

9
07/30/2014
Avertissements liés à la batterie
Utilisez uniquement la batterie et l’alimentation spéci ées pour être utilisées avec le système Visual iQ. Avant utilisation, lisez attentivement les instructions contenues dans ce
manuel relatives à la batterie et au chargeur de batterie pour bien les comprendre, et respectez ces instructions pendant l’utilisation de l’appareil.
AVERTISSEMENT
• Ne jetez pas la batterie au feu et ne dépassez pas sa temperature de fonctionnement.
• Ne percez pas la batterie avec des clous, ne la frappez pas avec un marteau, ne marchez pas dessus et ne la soumettez pas à des impacts ou des chocs violents.
• N’exposez pas la batterie à l’eau douce ou salée, et évitez de la mouiller.
• Ne désassemblez pas la batterie et ne la modi ez pas.
Erreur de communication de la batterie. Veuillez contacter le Service clientèle au numéro [phone].
L’utilisation de la batterie en dehors de la plage de fonctionnement recommandée entraînerait une dégradation de ses performances et de sa longévité. Lorsque vous stockez la
batterie, veillez à la retirer de sa base.
Plage de température recommandée pour le fonctionnement de la batterie Lithium-Ion.
Décharge (à l’utilisation de l’appareil) : -20°C à +46°C Recharge , 0°C à +40°C Stockage, -25°C à +60°C

10 07/30/2014
Start Up
ComponentIdentication
1– LCD Touchscreen
2– DisplayPort Output (2.1), USB 3.0 Client Micro B Port (2.2), Two USB 3.0 Host Type A
Ports (2.3), 3.5 mm Headset/Microphone Jack (2.4).
3– Two-hour Lithium Ion Battery
4– Battery Release Button
5– Battery Charge Indicator
6– AC Adaptor Input
7– Function (or Soft) Keys (four total)
8– Back Button: short press moves back one screen, long press moves to live screen. This also serves
as the POWER ON button.
9– Save Button: short press launches a Quick Save, long press opens or closes the Save Options Menu.
10– Joystick Controls Articulation and Menu Navigation (push the joystick left/right/up/down to navigate
menus and sub-menus).
11 – Enter Button: short press toggles between frozen and live frames and selects Done / Accept, a
long press performs a 3DPM Capture.
12 – Menu Button: short press opens or closes the Global Menu, long press toggles between rst and
second level soft button rows.
Note: Follow the selection sequence shown here to
navigate the Global Menu and select the Operating
Language.
13 – Trigger Button 1 (Upper): provides the same
function as the Enter Button. Trigger Button 2 (Lower):
short press toggles articulation mode between steer-
and-stay and steering modes. When in steer-and-
stay mode, a Lock icon appears. Long press returns
the articulation system to the neutral (home) position.
14 – Insertion Tube/Camera assembly
15 – Interchangeable VideoProbe (Note: Includes
Insertion Tube/Camera assembly)

11
07/30/2014
Touchscreen and Keys – Dual Control Systems
Most functions can be accomplished using the touchscreen or with a combination of
key presses and joystick movements. The following examples illustrate various control
techniques that can be used on most Visual iQ display screens.
1– Touch the lower left corner of the display screen (typically contains the GE Logo) or
short-press the Menu key to open the Global Menu.
2– The selected item in any menu or list is identied by this blue outline. Tap the display
screen to select another item or to launch the selected item. Alternatively, use the joystick
to select another item by moving the blue cursor, then short-press the Enter key to
launch. Note that a short press of the Enter key accepts or launches most selected
choices or actions.
3– Tap the display to toggle between the upper and lower softkey bar (double-tap to
hide or show the softkey and status bars). Alternatively, long-press the Menu key to
switch between the upper and lower softkey bars.
4– Tap anywhere on a displayed Live Image to freeze and unfreeze it. Alternatively, short-
press either the Enter key or the Upper Trigger key to freeze and unfreeze a live display.
Note that the Upper Trigger key performs the identical functions as the Enter key.
5– Position two ngers on the display screen and move them apart to zoom in on a
feature of the display (perform the opposite action to zoom out). Once zoomed (in a
frozen image), you can drag with your nger to change the displayed view.
6– Select the Zoom function using either soft keys or the touch screen (all displayed
soft-key bar items can be selected either with the corresponding soft key or by tapping

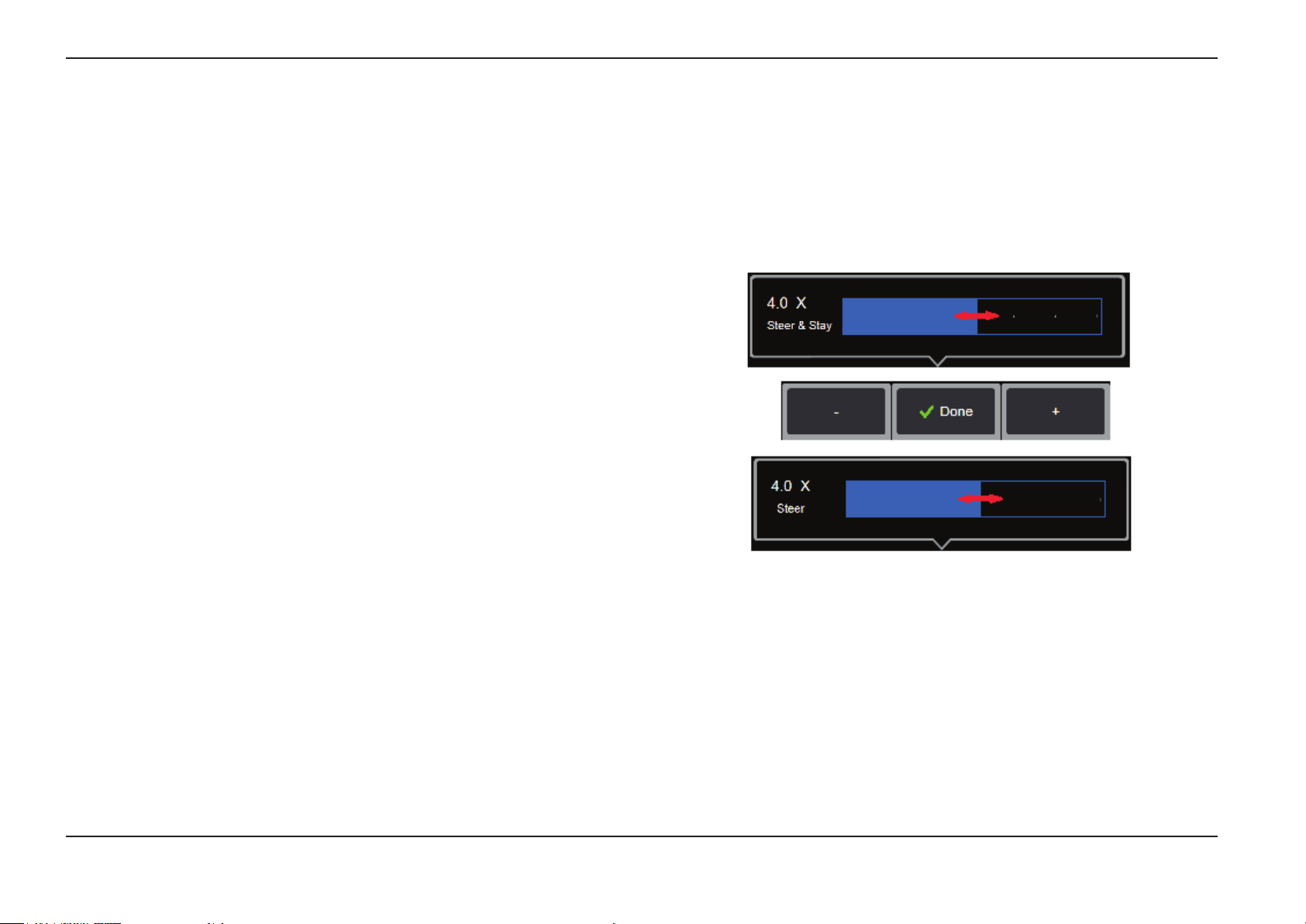

the touch screen). Use the joystick to change the zoommagnicationbar (this and other
blue bars can also be adjusted by dragging them using the touch screen), then select
Done. Once zoomed, you can use the joystick to move the displayed view.
7– When the File Manager screen appears, the selected le or folder is identied by this
blue outline. Tap the display screen to select another item or to launch the selected le
or open the selected folder. Note that you can also display additional items (or directly
access additional stored images) by simply swiping the display screen in any of the
directions shown. Alternatively, use the joystick to select another item by moving the
blue cursor, then short-press the Enter key to launch the le or open the folder.
8– Select any feature in the Soft Key Bar by either touching that feature on the display
screen (in this case, touching the box containing the words List View) or pressing the
corresponding soft key.

12 07/30/2014
Unpacking, Assembling, and Powering the Visual iQ
Unpacking and Putting Away
the System (Small Case)
Caution: If you do not pack the system carefully, as
described here, damage might occur.
1– The insertion tube (shown in red for clarity) is held in the
case’s internal storage reel, which is accessed through the
orange funnel shown here. Install the insertion tube before
installing the probe-and-handset assembly and remove it
after removing the probe-and-handset assembly. Be sure
to straighten any loops or twists in the insertion tube before
feeding it into the funnel. Note that the insertion tube’s rubber
Torsional Strain Relief base should be routed through the case’s
curved passage shown here.
Caution: Before using the camera system, install an
optical tip or the head guard, which prevents damage to
the tip-attachment mechanism. Keep the head guard on
whenever no optical tip is in place.
2– Install clamp in the orientation shown here (clamp and mounting bracket assembly appears at left)
3– Power supply / Battery Charger and Mounting Bracket are oriented and installed in this slot
4– Battery must be removed prior to installing the iQ in the case.
5– Rigidizer
6 – A case holding tips (or cleaning kit) ts in this slot.
7– Gripper may be used alone, or with Rigidizer, to aid in orienting camera.

13
07/30/2014
Unpacking and Putting Away the System (Large Case)
Caution: If you do not pack the system carefully, as described here, damage might occur.
1– Remove tray to access additional storage space.
2– The insertion tube (shown in red for clarity) is held in the case’s internal storage reel, which is accessed through the orange funnel shown here. Install the insertion tube before
installing the probe-and-handset assembly and remove it after removing the probe-and-handset assembly. Be sure to straighten any loops or twists in the insertion tube before
feeding it into the funnel.
Caution: Before storing the insertion
tube, rst remove the optical tip and install the
head guard, which prevents damage to the tip
attachment mechanism. Keep the head guard on
whenever no optical tip is in place.
3– Storage locations for two batteries. Battery must
be removed prior to installing the iQ in the case.
4– Rigidizer
5– Mounting bracket and post
6 – Mounting bracket post ts in this hole
7– Power supply / Battery Charger installed in this
slot
8– Extra Pod in case
9– Extra VideoProbe in case
10 – Two cases holding tips and a cleaning kit t
in these slots.
11 – Gripper may be used alone, or with Rigidizer,
to aid in orienting camera.

14 07/30/2014
About the Battery
The Visual iQ is powered by a 10.8 V (nominal), 73 Wh, 6.8 Ah Lithium Ion battery.
Installing the Battery
Insert the battery into the handset. The battery is installed properly when the latching
mechanism is engaged.
Caution—Do not force the battery (1) into the handset (2), as damage may occur.
The battery is keyed and may only be installed in the proper orientation.
Removing the Battery
Press battery release button (3) to release the battery.
Caution—Do not remove the battery while the system is operating.
Battery Charge Level
Check the battery charge by pressing the battery symbol (4) on the front of the battery.
Each light (5) represents approximately 20% of the battery charge capacity.
Charging the Battery
Connect the DC output of the battery charger into the Visual iQ battery (6) and then
plug the included AC to DC power adaptor into a suitable AC power source. The LED
battery lights will illuminate according to the amount of charge attained. The system
may operate while charging.
Note: The battery may be charged while connected to an operating Visual iQ or while
disconnected from the iQ.
Note: When the battery is fully charged, the LED battery lights will turn off.
Note: Battery run time approximately equals battery charge time; therefore, a two hour
battery will take approximately two hours to charge. Charging time will be longer if the
battery is connected to an operating Visual iQ system while charging.
Note: All batteries are shipped with a partial charge. Batteries should be fully charged
prior to use.

15
07/30/2014
Supplying Power to the Visual iQ
The Visual iQ is powered by a 10.8 V (nominal), 73 Wh, 6.8 Ah Lithium Ion battery.
The battery is charged by connecting the power adaptor to the battery, then connecting
the supplied AC-to-DC power adaptor to a suitable (100-240 VAC, 50-60 Hz, <1.5 A rms)
AC power source. The power adaptor delivers to the battery 18 Volts at 3.34 Amps.
Note: When powering a system with an AC power source, connect the power plug to a
properly grounded source for reliable touchscreen operation.
PoweringtheVisualiQOnandO
System Power On
Press and hold until the unit turns on. The buttons and Liquid Crystal Display (LCD)
will light and begin the power-up sequence. After approximately 35 seconds, the system
screen will display live video and on-screen controls. The system is now ready for use.
Note: All batteries are shipped with a partial charge. Batteries should be fully charged
prior to use.
System PowerO
Touch the lower left corner of the display screen (which typically contains the on-screen
GE Logo (1) or the hard key at any time to open or close the Global Menu, which
provides access to several features including Shut Down (2). Select Shut Down to power
off the Visual iQ.
Caution—Do not power off the Visual iQ by removing its battery. Only remove
battery after powering off as described above.

16 07/30/2014
Changing Probes and Optical Tips
Attaching and Removing the Probe
To attach the probe to the handset:
1– Insert the pin at the base of the handset into the mating groove at the bottom of the probe.
2– Rotate the probe towards the back of the handset, applying enough pressure for the latching
mechanism to “click.”
To remove the probe from the handset:
3– Press this latching-mechanic's release button to separate the probe and handset.
Changing the Optical Tip
Optical tips are threaded onto the probe with a double set of threads to prevent them from
falling into the inspection area. Each optical tip provides a unique depth of eld, eld of view,
and direction of view. For a list of available tips, see Appendix B – Optical Tip Table.
Caution—Use only nger pressure to remove or attach tips. Using force (including pliers
or other tools) might damage the bending neck. Take care not to cross the threads. To reduce
cross-threading risk: When installing a tip by hand (6.1mm & 8.4mm) or with an installation tool
(4mm), rotate the tip counter clockwise to level the threads before rotating clockwise to thread the
tip on the camera. Reverse the leveling process when removing tips.
To Remove an Optical Tip: Support the bending neck and head of
the probe with one hand, and with the other gently turn the optical
tip counterclockwise (be sure to use a tip tool when removing 4.0 mm
tips), Turn until the tip spins freely, indicating that it has cleared the
rst set of threads. Gently pull the tip away from probe and continue
turning counterclockwise, engaging the second set of threads. Turn
until you can remove it.
To Attach an Optical Tip: Verify that the optical tip and camera head threads are clean, then
grasp the head of the probe with one hand, and with the other gently turn the tip clockwise.
Turn until it spins freely, indicating that it has cleared the rst set of threads. Gently push the
tip in, then turn clockwise again, engaging the second set of threads. Turn until nger tight.
Caution—Do not over-tighten tips. Pull on the tip gently to verify that it is securely attached.
If the second set of threads does not engage, turn the tip slightly in a counterclockwise direction
to allow the threads to levelize.
Note: Measurement tips must be tightened rmly to ensure accuracy.

17
07/30/2014
Setting Up the Visual iQ
Operating System
1– Select the lower left corner of the display (which typically contains the on-screen
GE Logo) or the hard key at any time to open or close the Global Menu, which
provides access to several features including the Setup Menu.
2– Tap to open the Setup Menu.
3 – Lists the device’s serial number, software version and describes the conguration
of its available features.
4– Access to set a Password, Restore Defaults, adjust Date, Time, and operating
Language, and alter various other system settings. Click here to learn more about
the System Menu.
5– Allows the user to turn various on-screen indicators on and off as well as adjust
display brightness. Click here to learn more about Display Setup.
6– Allows the user to turn Wi-Fi and Bluetooth connections on and off as well as work
with networks and identify folders for le sharing. Click here to learn more about
Connectivity Settings.
7 – Allows the user to specify the default directories into which image les and videos
are stored. Also used to select image le type, video format, and sound-related settings.
Controls MDI Annotation and imports Distortion Correction Tables. Click here to learn
more about Image and Video Settings.
8– Allows the user to set their preferred measurement units (inches vs. mm), manage
and verify measurement tips, and import and export preset annotations.
9– Generates a Troubleshooting Log to be emailed to and evaluated by GE Technical
Support. If log generation is required, GE Technical Support will guide the user through
the process.

18 07/30/2014
WorkingwithProles
A Prole denes several parameter settings. As long as more than one prole is available,
(the Visual iQ is delivered with only a DefaultProle), the operator is asked to select a
Prole every time the system is powered on. Follow these instructions to create a new
prole or select an existing one.
1– To create a New Prole, touch the lower left corner of the display (or press the
hard key) to open the Global Menu, then select Proles.
2– In this case, the DefaultProle is active and it is the only one dened. Select New
to create a new prole.
3– The Virtual Keyboard opens. Enter a Name for the new prole.
4– After entering a name and clicking Done, the new prole is added to the list of available
proles. This prole includes the settings in place, at the time of its creation, for each of
the parameters listed below. Anytime the prole is reactivated, the system will apply the
settings associated with the activated prole. The parameters affected include:
System Settings Including:
Watermark Logo ON/OFF
Time Format
Date Format
Language
Power Management
USB Slave Mode
Steering Sensitivity
Screen & Display Settings – All Parameters
Connectivity Settings Including:
Wi-Fi on/off
Bluetooth on/off
Image & Video Settings – All parameters
except Distortion Correction Table
Measurement & Annotation Including:
Presets
Zoom Window
3DPM Mask
3DPM Save Format
Stereo Index
Stereo Index Minimum
Units
5– Each time the Visual iQ is powered on, you’ll be asked to select from the list of
available proles. Selecting the Default Prole returns the settings for all prole-controlled
parameters to those specied by the default prole.

19
07/30/2014
System Setup
1– Tap the on-screen GE Logo (or press the hard key) to open the
Global Menu, then open the Setup Menu.
2 – Select to alter the system-specic settings shown here.
3– Drag your nger up or down the screen. This bar will move to show the current
position among the list of system-specic settings.
4– Tap to open the virtual keyboard and create or change a System Password. Once
created, accessing the iQ’s operating sceens requires rst entering the password. This
password is for the entire system and is not associated with the active prole.
Note: Entering a password requires the DefaultProle be active.
5– Select and follow the on-screen prompts to restore the active Prole to the Factory
Default Settings.
Executing a White Balance
A white balance corrects the color so that white appears white despite any slight hues
that may exist under the lighting conditions present when performed.
6– Select New and follow the prompts to point probe at a white target or select Default
to restore factory color settings.
Loading a Logo
A logo can be loaded onto the display screen provided it is PNG le type (with dimensions
smaller than 140 x 140).
7– Select Load, then navigate the instrument or an external drive to select any PNG le
type as the on-screen logo. Click here for more information on creating and loading
apersonalizedlogole.
Setting Date and Time
8– Adjust Time and Date settings.
9– Select the Time Zone in which you are operating.

20 07/30/2014
10 – Turing Daylight Saving Time to ON causes the system to automatically adjust the
time setting.
11 – Specify 12 or 24 hour Time Format.
12 – Specify DMY, YMD, or MDY as the Date Format.
Loading and Selecting the Operating Language
13 – Choose from the operating Languages currently available for use. Selecting Load
allows you to upload a new version of any of the existing translations available in the iQ.
Once selected, the File Manager screen allows you to navigate to the modied translation
le.
Other System Settings
14– Setting Power Management to ON conserves battery power by putting the Visual iQ
into sleep mode after 10 minutes of inactivity. When in sleep mode, in which only the hard
keys remain lit, touching any key or the joystick returns the iQ to a fully powered state.
15 – Set the USB Slave Mode to Mass Storage or Disable. When set to Mass Storage,
a connected computer can work directly with les stored on the Visual iQ’s hard drive
for le management purposes. In this state, the iQ will not perform inspection functions.
When le management functions are complete, change setting to Disable to return
inspection functionality.
Steering Sensitivity Settings
16 – The user can select from two probe steering modes: Steer or Steer and Stay™.
In either mode, the bending neck articulates to follow the joystick motion. The modes
differ in how they behave after the bending neck is positioned (click here to learn about
thedierencesbetweenthesemodes).Select either button shown here then drag the
setting bar to set the sensitivity of either Steer or Steer and Stay mode. The higher the
setting, the more the bending neck will articulate with a change in joystick position. For
instance, increasing the setting from 2.0 to 4.0 means that a similar joystick movement
will produce a greater amount of bending neck articulation.
