GE PACSystems ICRXIDIXNE19LCTA User manual
GFK-2898B
PACSystems* 19" RXi Display
User Manual
Jan 2016
For public disclosure
These instructions do not purport to cover all details or variations in equipment, nor to provide for every possible
contingency to be met during installation, operation, and maintenance. The information is supplied for informational
purposes only, and GE makes no warranty as to the accuracy of the information included herein. Changes, modifications,
and/or improvements to equipment and specifications are made periodically and these changes may or may not be reflected
herein. It is understood that GE may make changes, modifications, or improvements to the equipment referenced herein or to
the document itself at any time. This document is intended for trained personnel familiar with the GE products referenced
herein.
This document is approved for public disclosure.
GE may have patents or pending patent applications covering subject matter in this document. The furnishing of this
document does not provide any license whatsoever to any of these patents.
GE provides the following document and the information included therein as is and without warranty of any kind, expressed
or implied, including but not limited to any implied statutory warranty of merchantability or fitness for particular purpose.
For further assistance or technical information, contact the nearest GE Sales or Service Office, or an authorized GE Sales
Representative.
Revised: Jan 2016
Issued: Apr 2014
Copyright © 2014 - 2016 General Electric Company, All rights reserved.
___________________________________
* Indicates a trademark of General Electric Company and/or its subsidiaries.
All other trademarks are the property of their respective owners.
Refer to the section, Contact Information for support on this product.
Please send documentation comments or suggestions to controls.doc@ge.com
Document Updates
Location Description
General Specifications Updates to the RXi Display general specifications table
Display Specifications Added Minimum Clearances around RTM specification to the table
Environmental Specifications Updates to the RXi Display environmental specifications table
Dimensions and Clearances Removed this section and placed clearances information (Minimum Clearances
around RTM) in the Display Specifications table
For public disclosure
Acronyms and Abbreviations
ATA AT Attachment
BIT Built-in Test
COM Computer on Module
CPU Central Processing Unit
DDR3 Double Data Rate (Type Three)
DHCP Dynamic Host Configuration Protocol
FG Frame Ground
GND Ground
HDD Hard Disk Drive
IPC Industrial PC
mPCIe Miniature PCI Express
RAM Random Access Memory
RTC Real Time Clock
SATA Serial ATA
SD Secure Digital
SELV Safety Extra Low Voltage
SSD Solid State Drive
SVGA Super Video Graphics Array
USB Universal Serial Bus
VGA Video Graphics Array
WWAN Wireless Wide Area Network
GFK-2898B 3
For public disclosure
Safety Symbol Legend
Warning
Indicates a procedure, condition, or statement that, if not strictly observed, could result in
personal injury or death.
Caution
Indicates a procedure, condition, or statement that, if not strictly observed, could result in
damage to or destruction of equipment.
Attention
Indicates a procedure, condition, or statement that should be strictly followed to improve
these applications.
For public disclosure
Contact Information
If you purchased this product through an Authorized Channel Partner, then contact the seller directly.
General Contact Information
Online technical support and GlobalCare http://support.ge-ip.com
Additional information http://www.ge-ip.com/
Technical Support
If you have technical problems that cannot be resolved with the information in this manual, please contact us by
telephone or email, or on the web at http://support.ge-ip.com
Americas
Online Technical Support http://support.ge-ip.com
Phone 1-800-433-2682
International Americas Direct Dial 1-780-420-2010 (if toll free 800 option is unavailable)
Primary language of support English
Europe, the Middle East, and Africa
Online Technical Support http://support.ge-ip.com
Phone + 800-1-433-2682
EMEA Direct Dial + 420-23-901-5850 (if toll free 800 option is unavailable or dialing from
a mobile telephone)
Primary languages of support English, French, German, Italian, Czech, Spanish
Asia Pacific
Online Technical Support http://support.ge-ip.com
Phone + 86-400-820-8208
+ 86-21-3217-4826 (India, Indonesia, and Pakistan)
Technical Support Email
Customer Care Email
GFK-2898B 5
For public disclosure
Notes
6 GFK-2898B PACSystems 19" RXi Display
For public disclosure
Contents
1 Overview ............................................................................................................................................. 9
1.1 Specifications ....................................................................................................................................... 11
1.1.1 General Specifications ..................................................................................................................... 11
1.1.2 Display Specifications...................................................................................................................... 12
1.1.3 Environmental Specifications ............................................................................................................ 13
1.2 User Features........................................................................................................................................ 14
1.2.1 Power On/Off and User-defined Buttons.............................................................................................. 16
1.2.2 Status Indicators ............................................................................................................................. 17
1.2.3 Ethernet Port LEDs ......................................................................................................................... 17
1.2.4 SD Card Slot.................................................................................................................................. 17
1.2.5 Backlight Control............................................................................................................................ 17
2 Pre-Installation Checks and Initial Startup .............................................................................. 19
2.1 Unpacking and Inspection ....................................................................................................................... 19
2.2 Initial Startup........................................................................................................................................ 20
2.3 Configuring Ethernet Network Communications.......................................................................................... 22
2.3.1 Pinging TCP/IP Ethernet Interfaces on the Network............................................................................... 22
2.3.2 Determining if an IP Address is Already In Use .................................................................................... 22
2.4 Shutting Down the Computer................................................................................................................... 23
2.4.1 Disabling Operating System Shutdown ............................................................................................... 24
3 Hardware Installation .................................................................................................................... 25
3.1 Mounting and Installation Guidelines ........................................................................................................ 25
3.2 Grounding............................................................................................................................................ 25
3.3 Mounting and Installation........................................................................................................................ 26
3.3.1 Removal........................................................................................................................................ 27
4 Service and Maintenance ............................................................................................................. 29
4.1 Real Time Clock Battery Replacement....................................................................................................... 29
4.2 Disabling the Off Button ......................................................................................................................... 32
5 Connectors and Cabling............................................................................................................... 33
5.1 Input Power.......................................................................................................................................... 33
5.2 Ethernet Communication Ports................................................................................................................. 34
5.2.1 Ethernet Media ............................................................................................................................... 34
5.3 Serial Communication Port...................................................................................................................... 35
5.4 USB Ports ............................................................................................................................................ 36
5.5 Video Output Port.................................................................................................................................. 37
5.6 Secure Digital Card Slot.......................................................................................................................... 37
5.7 Audio Jack ........................................................................................................................................... 37
6 System Recovery............................................................................................................................ 39
6.1 Drive Failure Recovery........................................................................................................................... 39
6.2 Overtemperature Shutdown Recovery (All Models)...................................................................................... 39
Appendix A Certifications and Installation Guidelines............................................................... 41
Agency Approvals and Standards.............................................................................................................. 41
Waste Disposal ............................................................................................................................... 41
EMC Standards .............................................................................................................................. 42
GFK-2898B 7
For public disclosure
Government Regulations......................................................................................................................... 43
Index......................................................................................................................................................... 45
8 GFK-2898B PACSystems 19" RXi Display
For public disclosure
1 Overview
The PACSystems* RXi product line of industrial computers provides an advanced,
high-performance control and computing platform. The PACSystems RXi Box Industrial
PC (IPC) delivers the flexibility of a computer with the industrial ruggedness of
traditional automation controllers. Built with an open and scalable architecture, the RXi
platform enables easy connectivity and allows you to maximize application reusability—
supporting your current and future needs for business growth. These small form factor
IPCs provide a number of features to support computing applications in demanding
environments, including:
•Dual core 1.0 GHz VIA processor
•Multiple Gigabit Ethernet interfaces provide network implementation flexibility.
•Built-in data storage – Internal disks provide highly reliable local long-term data
retention.
•USB and Secure Digital (SD) card interfaces enable program loading, serial
communications and removable data storage through standard devices.
The PACSystems 19” RXi Display with widescreen LCD display and projected capacitive
multi-touch touchscreen brings the latest in high-performance computing technology
capable of withstanding the requirements of industrial environments to the industrial HMI
space. The RXi Display incorporates RXi Box IPC processor hardware to create a system
that lowers total cost ownership with seamless replacement of either the processor or
display component, and provides for powerful upgrades to the underlying computing
technology. The RXi Display can be mounted directly into an industrial panel.
The RXi Display is a 1 GHz x86–64 based fanless computing platform with a 19” display
and a high quality touch-based operator interface enclosed in an aluminum enclosure,
combining both ruggedness and longevity. The 10.16 mm (0.4 in) depth to the panel
provides a sleek design. The touchscreen offers superior abrasion resistance, transmissive
clarity, and unsurpassed touch sensitivity. Display mounting and installation only requires
a single person. The RXi Display offers a 1 GHz Windows©7 64-bit-based platform with
two GigE ports, two USB 2.0 ports, one serial COM port, a Secure Digital (SD) card slot,
and an additional video graphics array (VGA) port.
Ordering Information
Part Number Description
ICRXIDIXNE19LCTA RXi 19” Display with Embedded 32 GB mSATA SSD and Windows 7 Professional, SP1
ICRXIDIXNM19LCTA RXi 19” Display with 250 GB Magnetic SATA Hard Drive and Windows 7 Professional, SP1
ICRXIDI0NE19LCTA 19” RXi Display with 32 GB mSATA SSD, No Operating System
ICRXIDI0NM19LCTA 19” RXi Display with 250 GB SATA HDD, No Operating System
IC690ACC001 Real Time Clock (RTC) battery, included with RXi Display
Overview GFK-2898B 9
For public disclosure

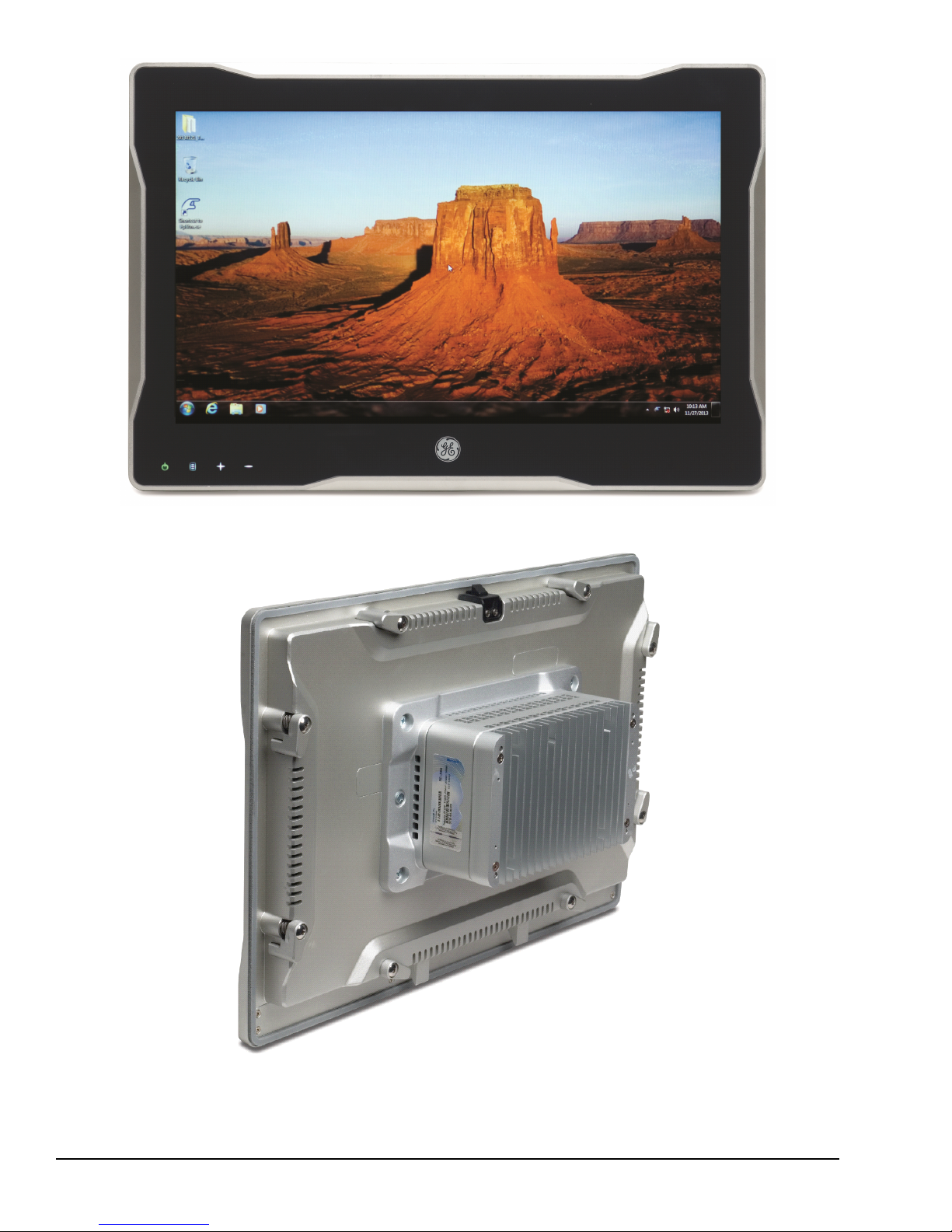

19" RXi Display (Front View)
19" RXi Display (Rear View)
10 GFK-2898B PACSystems 19" RXi Display
For public disclosure
1.1 Specifications
1.1.1 General Specifications
Item Specification
Dimensions 323 x 479.4 x 116.9 mm (12.7 x 18.9 x 4.60 in)
Weight 7 kg (15 lb)
Processor 1.0 GHz VIA Eden dual core processor
RAM 4 GB DDR3
Floating point 64–bit
Non-volatile storage 32 GB mSATA SSD or 250 GB SATA HDD
Non-volatile storage (NVS) can retain data indefinitely without loss of data integrity.
Time of day clock (RTC)
accuracy Maximum drift of ±2 seconds/day at 25°C (77 °F)
Video Standard 15-pin VGA connector
Maintenance ports
(Intended only for temporary
connection)
Two Type A USB 2.0
SD standard card slot
Dual function Audio OUT/Microphone IN jack (3.5 mm four-pin TRRS)
Power requirements 2.6 A at 24 V dc (18 to 32 V dc)
LPS or Class 2 power supply required
Serial Communications One RS-232 RJ-45 port
Ethernet Communications Two Ethernet (10, 100, 1000 Mbit/s) RJ-45 ports
479.4 mm
(18.9 in)
323mm
(12.7 in)
116.9 mm
(4.6 in)
41.8 mm
(1.7 in)
SD Card Slot
Overview GFK-2898B 11
For public disclosure
1.1.2 Display Specifications
Item Specification
Display
Type TFT-LCD
Screen Diagonal/Aspect Ratio 470.1 mm (18.5 in) / 16:9
Image Size 409.8 mm (16.1 in) horizontal (H) x 230.4 mm (9.1 in) vertical (V)
Native Resolution 1366 H x 768 V pixels WXGA
Pixel Pitch 0.300 mm (0.012 in)
Number of Colors 16.7 M (RGB 6-bits + Hi-FRC data)
Brightness ≥ 300 nits (cd/m2)
Viewing Angle H: 170° typical
V: 160° typical
Contrast Ratio 600 min/1000 typical
Backlight/Brightness Half-life LED/50,000 hours
Touchscreen Projected capacitive multi-touch (2-touch)
Cover Glass Hardness 9H
Cover Glass Compressive Strength ≥ 400 MPa
Electrical
Grounding Frame ground (FG) internally connected to signal ground
Physical
Material Aluminum bezel
Enclosure Rating UL/NEMA Type 1
Depth to Panel <10.16 mm (0.4 in)
Panel Cutout Dimensions 457 x 292 mm (18 x 11.5 in)
Panel Thickness 1.5875 to 4.7625 mm (0.0625 to 0.1875 in)
Minimum Clearances around RTM Each side: 51 mm (2 in)
Top and bottom: 127 mm (5 in)
Feature
LED Indicators Wi-Fi, Bluetooth, Wireless Wide Area Network (WWAN), disk activity,
over-temperature
ON/OFF Button Capacitive-touch and multi-color LED indicator
User-defined Buttons Capacitive-touch and LED indicators (Qty 3)
Backlight Enable Integrated with operating system
Backlight Dimming Integrated with operating system
12 GFK-2898B PACSystems 19" RXi Display
For public disclosure
1.1.3 Environmental Specifications
Caution
The RXi Display should be installed in a location
that is not exposed to corrosive gases or liquids,
rain, or direct sunlight, and that meets the
environmental specifications listed in the following
table.
Note For additional product standards and agency approvals, refer to Appendix A.
Item Standard Description
Cooling N/A Natural convection
Vibration Operating1IEC60068-2-6 (Sine): 10 - 57 Hz, 0.152 mm (0.006 in) displacement peak-peak
57 - 500 Hz, 1.0 g acceleration
Shock Operating1IEC60068-2-27 (Half-sine) 15 g pk, 11 ms
Ambient Operating
Temperature2N/A 0 to 60°C (32 to 140 °F) (SSD)
0 to 40°C (32 to 104 °F) (HDD)
Storage Temperature N/A -20 to 60°C (-4 to 140 °F)
Humidity N/A 10 to 85% non-condensing
Altitude UL 60950-1 0 to 2,000 m (0 to 6,562 ft)
Environment
UL 60950-1 Pollution Degree 2
This applies where there is only non-conductive pollution that might temporarily
become conductive due to occasional condensation.
1Applies only to 19” Displays with solid state hard drive.
2For ambient temperatures greater than 50°C (122 °F), the unit must be installed in a restricted access area as defined in this
document.
Warning
If the RXi Display is operating in ambient
temperatures greater than 50°C (122 °F), its exterior
temperatures may be too hot to touch safely. To
avoid burn hazards, the unit must be installed in a
restricted access area, as defined by:
•• Access can only be gained by service persons or by
users who have been instructed about the reasons
for the restrictions applied to the location and about
any precautions that shall be taken; and
•• Access is through the use of a tool or lock and key,
or other means of security, and is controlled by the
authority responsible for the location.
Caution
EMC Requirements:
When installing, operating, or maintaining the RXi
Box IPC, personnel must ensure that any
electrostatic charge is discharged using a grounded
Electrostatic Discharge (ESD) strap or other means.
Overview GFK-2898B 13
For public disclosure
1.2 User Features
The 9H hardness flat surface cover glass provides a gapless surface that is easy to clean,
with superior abrasion resistance, transmissive clarity, and unsurpassed touch sensitivity.
Mount the RXi Display on a flat surface in a UL/NEMA Type 1 enclosure that protects
against incidental contact and falling dirt. The following RXi display features are
accessible on the front of the panel:
• Multi-touch projected capacitive touchscreen
• 16:9 wide format TFT LCD display
• Power on/off and three user-defined capacitive touch buttons with LED indicators
• Status indicators for disk activity and over-temperature
• Status indicators for Wi-Fi, Bluetooth, and WWAN connectivity (from optional
mPCIe card)
• SD card slot
Note Status indicators are hidden on the display until they show activity.
Note When the SD card is not installed, a rubber cover is provided to keep out liquids.
The following features are internal or accessible from the rear of the panel:
• IPC connectors
• Internal SATA drive (2.5 in)
• External 3-pin modular 24 V dc power supply connector
14 GFK-2898B PACSystems 19" RXi Display
For public disclosure
SD Card Slot
User-defined
Menu
Plus
Minus
Power On/Off
Overtemp
SATA Drive
Activity
Bluetooth
Wi-Fi
WWAN
Input Power
Ethernet 1
Ethernet 2 VGA USB 1
USB 2 Serial RS-232
Connector Panel
RXi Display Features
Overview GFK-2898B 15
For public disclosure
1.2.1 Power On/Off and User-defined Buttons
Power On/Off Button Operation
Button†Action
Power on
Touch the button for at least ½ second.
If powering up after input power has been restored, the LED blinks blue
while the unit is booting and is solid green when the unit is up and running.
If the system has been shut down, and input power not removed, the LED
immediately turns solid green.
Power off
Touch the button briefly (between 100 ms and 4 seconds).
The LED remains green while the unit is shutting down and displays as
white when the unit is powered down.
Force
shutdown
Touch the button for at least 4 seconds. The LED turns white when the unit
is powered down.
Caution
Use this option only if the
operating system is
non-responsive.
†The LED displays solid red to indicate a fault, including over-temperature condition.
User-defined Button and LED Operation
Button Operation
Menu
User-defined button and white LED.
GE-IP FpBtn driver illuminates LED and allows user to select
Windows application to open or keycode to select when button
touched.
Plus
Minus
16 GFK-2898B PACSystems 19" RXi Display
For public disclosure
1.2.2 Status Indicators
Indicator State Description
SATA Drive Status
White, blinking Read/write access on SATA drive
Over-temperature
Red, solid
Internal temperature has exceeded the maximum
allowable value. The unit will shut down.
To recover, let the unit cool, then touch the Power
On/Off button.
Bluetooth
Blue, solid Bluetooth connected (optional mPCIe card)
Wi-Fi
White, solid Connected to wireless network
(optional mPCIe card)
WWAN
White, solid Connected to WWAN (optional mPCIe card)
1.2.3 Ethernet Port LEDs
Each Ethernet port has two LED indicators, ACTIVITY and LINK.
LED Status
Indicator State Description
Activity
Activity
LED Link
LED
Green,
blinking
Traffic is detected at the port
Link Green, on
solid Link is operational
1.2.4 SD Card Slot
The display accommodates a user-supplied SD card for auxiliary storage. The
front-mounted SD card slot can be accessed without opening the enclosure.
1.2.5 Backlight Control
The LCD display’s LED backlight can be enabled and backlight brightness controlled by
the operating system.
Overview GFK-2898B 17
For public disclosure
Notes
18 GFK-2898B PACSystems 19" RXi Display
For public disclosure
2 Pre-Installation Checks and Initial
Startup
Before installing and using the RXi Display, complete the following steps:
•Unpacking and inspection
•Initial startup
•Configuring Ethernet communications
2.1 Unpacking and Inspection
Caution
Do not apply power to the unit if it has visible
damage. Applying power to a unit with damaged
components may cause additional damage.
Upon receiving the RXi Display, carefully inspect all shipping containers for damage. If
any part of the system is damaged, notify the carrier immediately. The damaged shipping
container should be saved as evidence for inspection by the carrier.
As the consignee, it is your responsibility to register a claim with the carrier for damage
incurred during shipment. However, we will fully cooperate with you should action be
necessary.
After unpacking the RXi Display, record all serial numbers. Serial numbers are required
if you need to contact Customer Care during the warranty period. All shipping containers
and packing material should be saved should it be necessary to transport or ship any part
of the system.
For phone numbers and email
addresses, refer to the section
Contact Information.
Verify that all components of the system have been received and they agree with your
order. If not , contact Customer Care. For technical help, contact Technical Support.
Before attempting to power up the RXi Display for the first time, inspect the unit for
loose or damaged components. If damage is observed (such as bent component leads or
loose components), contact GE Intelligent Platforms. Depending on the severity of the
damage, it may be necessary to return the product to the factory for repair.
Pre-Installation Checks and Initial Startup GFK-2898B 19
For public disclosure
2.2 Initial Startup
The following equipment and tools are needed for initial startup:
• 24 V dc, 18 – 32 V range, 65 W power supply
Warning
The power supply used should be a UL listed
power source providing voltage isolation with a
SELV output, or a Class 2 power source. A
readily accessible disconnect device shall be
incorporated in the building installation wiring.
Note The product is supplied with a Phoenix Contact part number 1827716 power
terminal block plug. Phoenix Contact part number 1851245 (spring loaded/quick
release) power terminal block plug may also be used.
• Power cord with 24 –16 AWG wires; user calculates proper wire gauge according to
local regulations
• One small blade flat-head screwdriver for M2 and M2.5 machine screws
• USB-compatible keyboard (optional)
• USB-compatible mouse (optional)
20 GFK-2898B PACSystems 19" RXi Display
For public disclosure
Other manuals for PACSystems ICRXIDIXNE19LCTA
1
This manual suits for next models
6
Table of contents
Other GE Industrial PC manuals
