GE Profile PB975 How to use

GE Appliances
General Electric Company
Louisville, Kentucky 40225
31-9157

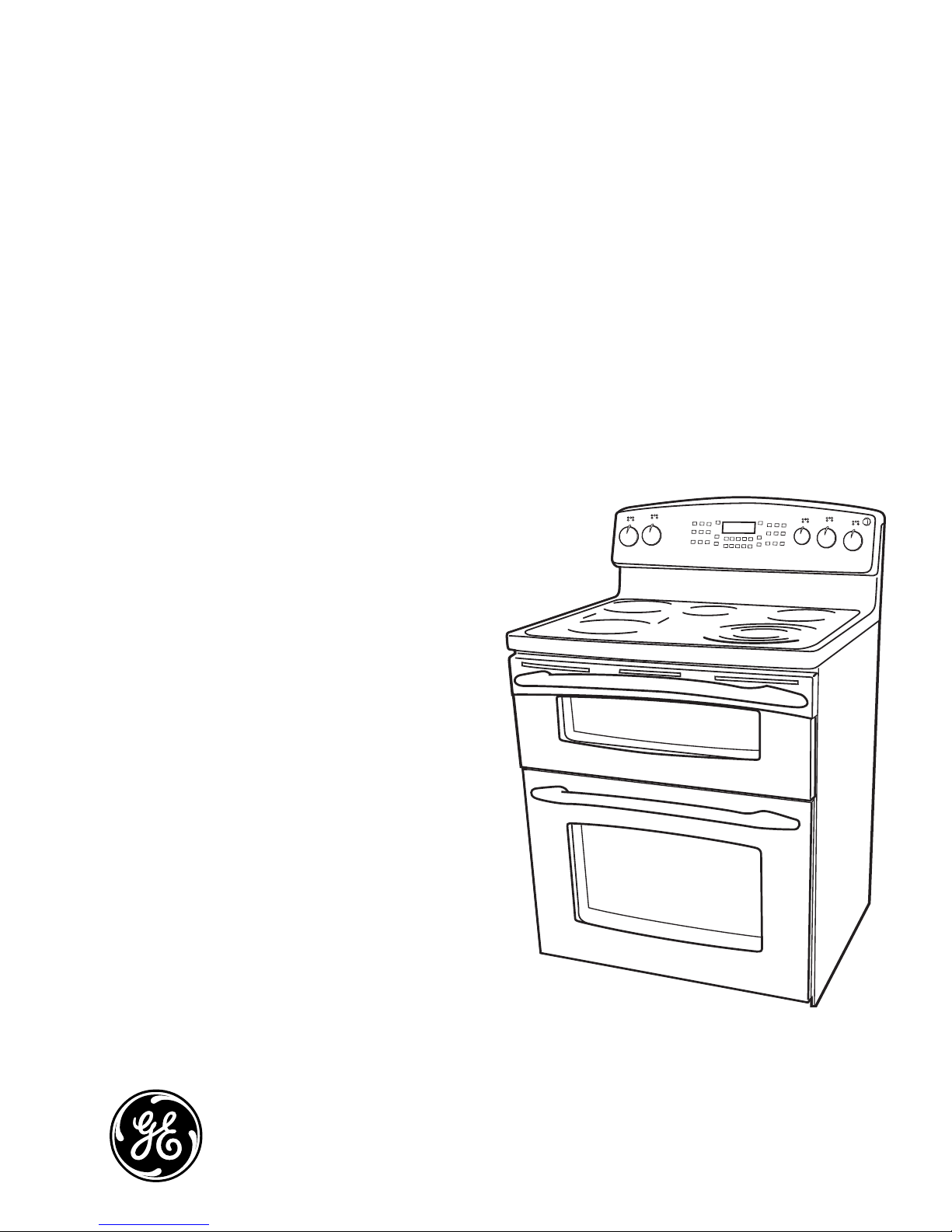

Profile 30-in.
Free Standing
Double Oven Range
PB975
PB970
Technical Service Guide
October 2007
GE Consumer & Industrial

– 2 –
IMPORTANT SAFETY NOTICE
The information in this service guide is intended for use by
individuals possessing adequate backgrounds of electrical,
electronic, and mechanical experience. Any attempt to repair a
major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible for the
interpretation of this information, nor can it assume any liability in
connection with its use.
WARNING
To avoid personal injury, disconnect power before servicing
this product. If electrical power is required for diagnosis or test
purposes, disconnect the power immediately after performing the
necessary checks.
RECONNECT ALL GROUNDING DEVICES
If grounding wires, screws, straps, clips, nuts, or washers used to
complete a path to ground are removed for service, they must be
returned to their original position and properly fastened.
!
GE Consumer & Industrial
Technical Service Guide
Copyright © 2007
All rights reserved. This service guide may not be reproduced in whole or in part
in any form without written permission from the General Electric Company.

– 3 –
Table of Contents
Anti-Tip Bracket.................................................................................................................................................................26
Broil Element.......................................................................................................................................................................47
Component Locator Views...........................................................................................................................................27
Control Boards Connector Locator Views.............................................................................................................31
Control Features................................................................................................................................................................ 6
Control Panel .....................................................................................................................................................................55
Control Panel Assembly.................................................................................................................................................55
Convection Element.........................................................................................................................................................48
Convection Fan Assembly............................................................................................................................................49
Cooktop Assembly ..........................................................................................................................................................39
Cooktop Lockout Relay..................................................................................................................................................45
Diagnostics and Service Information......................................................................................................................64
Door Switch ........................................................................................................................................................................44
Electrical Requirements.................................................................................................................................................26
Electronic Range Control (ERC) Assembly ............................................................................................................57
Element On Indicator Lights .......................................................................................................................................57
Glass Touch Panel ...........................................................................................................................................................55
Hot Surface Indicator Light Assembly....................................................................................................................60
Installation ...........................................................................................................................................................................26
Introduction......................................................................................................................................................................... 4
Lock Assembly ...................................................................................................................................................................61
Lower Oven Bake Element ...........................................................................................................................................50
Lower Oven Door Assembly ........................................................................................................................................36
Lower Oven Door Hinge Receiver .............................................................................................................................44
Meat Probe and Outlet (PB975)..................................................................................................................................51
Nomenclature .................................................................................................................................................................... 5
Operational Notes ............................................................................................................................................................25
Oven Components ..........................................................................................................................................................46
Oven Light Assemblies ...................................................................................................................................................42
Oven Sensor and Door Switch Test..........................................................................................................................70
Oven Temperature Sensor............................................................................................................................................46
Radiant Heating Elements............................................................................................................................................59
Range Component Access Chart .............................................................................................................................33
Range Components.........................................................................................................................................................34
Range Top Components ...............................................................................................................................................59
Rear Cover Removal .......................................................................................................................................................40
Schematics and Wiring Diagrams............................................................................................................................71
Side Panel Removal .........................................................................................................................................................41
Surface Unit Infinite Switches ....................................................................................................................................56
Tri-Ring Burner Size Switch (PB975)/Warmer Switch ......................................................................................57
Upper Oven Bake Element ...........................................................................................................................................50
Upper Oven Control Board ..........................................................................................................................................46
Upper Oven Door Assembly ........................................................................................................................................34
Upper Oven Door Hinge ...............................................................................................................................................45
Upper Oven Liner .............................................................................................................................................................53
Vent Tube/Smoke Eliminator.......................................................................................................................................52
Warranty ..............................................................................................................................................................................75

– 4 –
Introduction
GE introduced the new Profile 30-in. free standing double oven range. It is available in two design choices
- convection and non-convection lower ovens. These ranges feature electronic oven controls and surface
unit dial controls that combine the precision of modern digital technology with the simplicity of traditional
mechanical controls. Their superior style and performance parallel commercial ranges.
Electronically controlled oven heating elements•
-- provide precise cooking control with fast
preheating.
Convection models use reverse-air convection•
technology -- a bidirectional fan that works with
a dedicated third heating element to promote
even heat circulation.
Performance compensation for 208-volt•
installation boosts power as needed in multifamily
dwellings.
6.5 cu. ft. total capacity.•
Cooktop locked out during self clean.•
New motorized self-clean door latch.•
Recessed convection, low-profile broil elements,•
and hidden lower oven bake element.
Dual Halogen lights located in both oven interiors.•
Full-extension, self-cleaning porcelain-coated•
racks that can be left in the oven during the self-
clean cycle.
Hidden lower oven bake element, concealed beneath the oven floor, allows quick and easy ash removal•
following the self-clean cycle.
Broil Boost provides faster broil temperatures.•
Both range designs are available with slow cook, pizza, and warming features.•

– 5 –

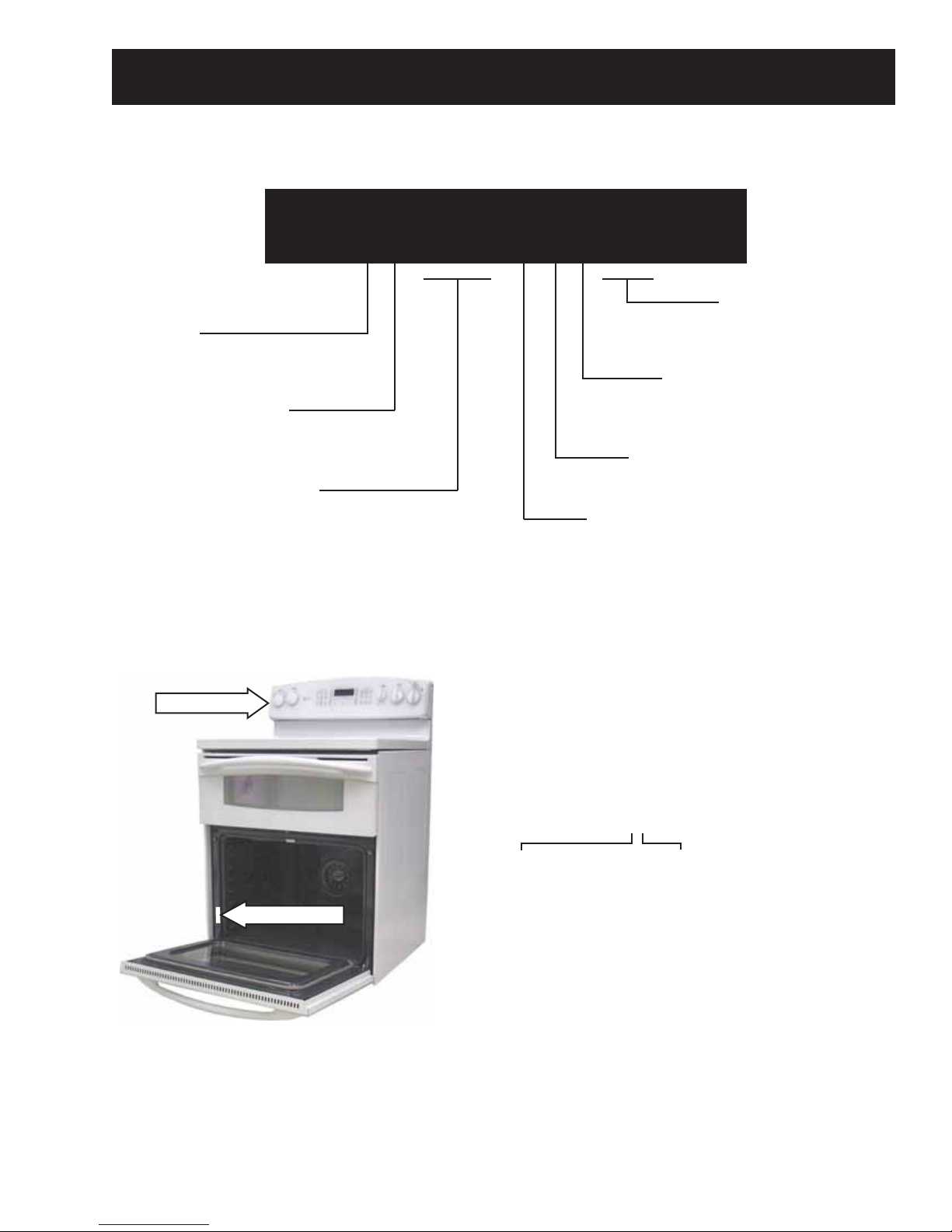

The nomenclature plate is located on the front
left behind the oven door.
The mini-manual is placed in an envelope
located inside the control panel.
Brand
P = Profile
P B 9 7 5 T M 1 WW
Nomenclature
Model Number
PB975 Model shown
Nomenclature
Mini-Manual
The letter designating
the year repeats every
12 years.
Example:
T - 1974
T - 1986
T - 1998
Serial Number
The first two numbers of the serial number
identify the month and year of manufacture.
Example: AM123456S = January, 2007
A- JAN 2007 - M
D - FEB 2006 - L
F - MAR 2005 - H
G - APR 2004 - G
H - MAY 2003 - F
L - JUN 2002 - D
M - JUL 2001 - A
R - AUG 2000 - Z
S - SEP 1999 - V
T - OCT 1998 - T
V - NOV 1997 - S
Z - DEC 1996 - R
Feature Pack
Designates features–the higher
the number, the more features
Product Color
WW = White
Indicator for Engineering and
Product Service Only
Model Year Designator
Glass Color
Color Match Cook-Top
Configuration
B = 30-in. Range

– 6 –
Control Features
Model PP975
10
BAKE Pad
Touch to select the bake function.
BROIL HI/LO Pad
Touch to select the broil function.
PIZZA Pad
Touch to select the Pizza function.
OVEN LIGHT Pad
Touch to turn the oven light on or off.
SELF CLEAN HI/LO Pad
Touch to select self-cleaning function. See
the Using the self-cleaning upper and lower
ovens section.
WARM Pad
Touch to keep cooked foods warm. See the
How to Set the Lower and Upper Ovens for
Warming section.
HELP Pad
Touch to get help on a specific function or
to change options.
TIMER /CLOCK Pad
Touch to select the timer feature or to set
the clock. Touch once for timer. Hold for
3 seconds to set clock.
CONTROL LOCK Pad
Hold this pad for 3 seconds to lock/unlock
the range touch pad controls and cooktop
controls.
START Pad
Must be touched to start any cooking or
cleaning function.
CLEAR/OFF Pad
Touch to cancel ALL oven operations
except the clock and timer.
DELAY START Pad
Use along with COOK TIME or
SELF CLEAN HI/LO pads to set the oven
to start and stop automatically at a time
you set.
COOK TIME Pad
Touch this pad and then touch the number
pads to set the amount of time you want
your food to cook. The oven will shut off
when the cooking time has run out.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there
has been a power outage.
CONVECTION BAKE Pad
Touch to select baking with the convection
function.
CONVECTION ROAST Pad
Touch to select roasting with the
convection function.
SLOW COOK Pad
Touch to select the Slow Cook function.
PROBE Pad
Touch when using the probe to cook food.
NOTE: When setting times, you are setting hours and
minutes only. The lowest time you can set is one minute.
Oven Control, Clock and Timer Features and Settings
Features and appearance
may vary.
Using the oven controls.
NOTE: Throughout this manual, features and appearance may vary from your model.

– 7 –
Model PP970
BAKE Pad
Touch to select the bake function.
BROIL HI/LO Pad
Touch to select the broil function.
PIZZA Pad
Touch to select the Pizza function.
OVEN LIGHT Pad
Touch to turn the oven light on or off.
SELF CLEAN HI/LO Pad
Touch to select self-cleaning function. See
the Using the self-cleaning upper and lower
ovens section.
WARM Pad
Touch to keep cooked foods warm. See the
How to Set the Lower and Upper Ovens for
Warming section.
HELP Pad
Touch to get help on a specific function or
to change options.
CONTROL LOCK Pad
Hold this pad for 3 seconds to lock/unlock
the range touch pad controls and cooktop
controls.
START Pad
Must be touched to start any cooking or
cleaning function.
CLEAR/OFF Pad
Touch to cancel ALL oven operations
except the clock and timer.
DELAY START Pad
Use along with COOK TIME or SELF CLEAN
HI/LO pads to set the oven to start and stop
automatically at a time you set.
COOK TIME Pad
Touch and then touch the number pads to
set the amount of time you want your food
to cook. The oven will shut off when the
cooking time has run out.
Display
Shows the time of day, oven temperature,
whether the oven is in the bake, broil or
self-cleaning mode and the times set for
the timer or automatic oven operations.
If your oven was set for a timed oven operation
and a power outage occurred, the clock and all
programmed functions must be reset.
The time of day will flash in the display when there
has been a power outage.
Number Pads
Use to set any function requiring numbers
such as the time of day on the clock, the
timer, the oven temperature, the internal
food temperature, the start time and
length of operation for timed baking
and self-cleaning.
SLOW COOK Pad
Touch to select the Slow Cook function.
TIMER Pad
Touch to select the timer feature.
CLOCK Pad
Touch before setting the clock.
NOTE: When setting times, you are setting hours and
minutes only. The lowest time you can set is one minute.
Oven Control, Clock and Timer Features and Settings
Features and appearance
may vary.
g
11

– 8 –
How to Set the Upper Oven for Baking
Touch the BAKE pad.
Touch the number pads to set
the desired temperature.
Touch the START pad.
Check food for doneness at
minimum time on recipe. Cook
longer if necessary.
Touch the CLEAR/OFF pad when
cooking is complete.
How to Set the Lower Oven for Baking or Roasting
Touch the BAKE pad.
Touch the number pads to set
the desired temperature.
Touch the START pad.
NOTE: On some models, you will
hear the convection fan while the oven is
preheating. The fan will stop after the oven
is preheated and the display shows your set
temperature. This is normal.
Check food for doneness at
minimum time on recipe. Cook
longer if necessary.
Touch the CLEAR/OFF pad when
cooking is complete.
How to Set the Upper and Lower Ovens for Broiling
Leave the door open to the broil stop position.
The door stays open by itself, yet the proper
temperature is maintained in the oven.
Place the meat or fish on a broiler
grid in a broiler pan.
Follow suggested rack positions in
the Broiling Guide.
Touch the BROIL HI/LO pad once for
HI Broil.
To change to LO Broil, touch the
BROIL HI/LO pad again.
Use LO Broil to cook foods such as
poultry or thick cuts of meat thoroughly
without over-browning them.
Touch the START pad.
When broiling is finished, touch the
CLEAR/OFF pad.
NOTE: Broil and self-clean settings will not work
if the temperature probe is plugged in.
If your range is connected to 208 volts,
rare steaks may be broiled by preheating
the broiler and positioning the oven rack
one position higher.
Using the upper and lower ovens.

– 9 –
How to Set an Immediate Start and Automatic Stop
The oven will turn on immediately and cook for
a selected length of time. At the end of the
cooking time the oven will turn off automatically.
Touch the BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute.
The oven temperature that you set
and the cooking time that you
entered will be in the display.
Touch the START pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad.
The oven will turn ON, and the display will
show the cooking time countdown and the
changing temperature starting at 100°F.
(The temperature display will start to
change once the oven temperature reaches
100°F.) When the oven reaches the
temperature you set, 3 beeps will sound.
The oven will continue to cook for
the set amount of time, then turn off
automatically, unless the WARM feature
was set. See the How to Set the Oven for
Warming section.
Touch the CLEAR/OFF pad to clear
the display if necessary. Remove the
food from the oven. Remember,
even though the oven turns off
automatically, food left in the oven
will continue cooking after the oven
turns off.
How to Set a Delayed Start and Automatic Stop
The oven will turn on at the time of day you set,
cook for a specific length of time and then turn off
automatically.
Make sure the clock shows the correct
time of day.
Touch the BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute.
The oven temperature that you set
and the cooking time that you
entered will be in the display.
Touch the DELAY START pad.
Touch the number pads to set the
time of day you want the oven to
turn on and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are using
timed baking and do not touch the START pad.
NOTE: If you would like to check the times you
have set, touch the DELAY START pad to check
the start time you have set or touch the COOK
TIME pad to check the length of cooking time
you have set.
When the oven turns ON at the time
of day you set, the display will show the
cooking time countdown and the
changing temperature starting at 100°F.
(The temperature display will start to
change once the oven temperature
reaches 100°F.) When the oven reaches
the temperature you set, beeps will sound.
The oven will continue to cook for
the set amount of time, then turn off
automatically, unless the WARM feature
was set. See the How to Set the Oven for
Warming section.
Touch the CLEAR/OFF pad to clear
the display if necessary. Remove the
food from the oven. Remember,
even though the oven turns off
automatically, food left in the oven
will continue cooking after the oven
turns off.
Using the timed baking and roasting features. (on some models) ge.com
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for
more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that
the oven light is off because heat from the bulb will speed harmful bacteria growth.
15

– 10 –
Insert the probe fully into the food.
Plug the probe into the outlet in the
oven. Make sure it’s pushed all the
way in. Close the oven door. Make
sure the probe cable is not touching
the broil element.
Touch the PROBE pad. Display will
show “Set Probe Temperature.”
Touch the number pads to set the
desired internal food or meat
temperature. The maximum
internal temperature for the food
that you can set is 200ºF.
Touch the BAKE pad.
Touch the number pads to set the
desired oven temperature.
Touch the START pad.
After the internal temperature of the
food reaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of
the food reaches the number you
have set, the probe and the oven
turn off and the oven control signals.
To stop the signal, touch the
CLEAR/OFF pad. Use hot pads to
remove the probe from the food.
Do not use tongs to pull on it—they
might damage it.
■If the probe is removed from the oven while
probe cooking, the oven will not automatically
turn off.
To change the oven temperature during
the Bake/Roast cycle, touch the BAKE
pad and then the number pads to set the
new temperature.
■You can use the Kitchen Timer even though
you cannot use timed oven operations
while using the probe.
How to Set the Lower Oven For Baking/Roasting When Using the Probe
(on some models)
16

– 11 –
Your control will allow you to lock out the touch
pads and the cooktop so they cannot be activated
when touched.
To lock/unlock the controls and cooktop:
Touch and hold the CONTROL LOCK
pad for 3 seconds.
The oven display will show “Oven
controls and burners locked” for
several seconds, then “Range
Locked.”
To unlock the control, touch and
hold CONTROL LOCK for 3 seconds.
■ The CONTROL LOCK mode affects all
touch pads. No touch pads will work when
this feature is activated.
17
To Set the Clock
The clock must be set to the correct time
of day for the automatic oven timing
functions to work properly. The time of
day cannot be changed during a timed
baking or self-cleaning cycle.
On some models, touch the
TIMER/CLOCK pad and hold for
3 seconds. On other models, touch the
CLOCK pad.
Touch the number pads.
Touch the START pad.
To Set the Kitchen Timer
Touch the TIMER/CLOCK or TIMER
pad (depending on model).
Touch the number pads until the
amount of time you want shows
in the display. For example, to set
2 hours and 45 minutes, touch 2, 4
and 5in that order. If you make a
mistake touch the TIMER/CLOCK or
TIMER pad (depending on model)
and begin again.
Touch the START pad.
After touching the START pad, SET disappears;
this tells you the time is counting down, although
the display does not change until one minute has
passed. Seconds will not be shown in the display
until the last minute is counting down.
When the Kitchen Timer reaches :00,
the control will beep 3 times followed
by one beep every 6 seconds until
the TIMER/CLOCK or TIMER pad
(depending on model) is touched.
The 6-second tone can be canceled by following
the steps in the Special features of your oven
control section under Tones at the End of a
Timed Cycle.
The Kitchen Timer is in hours and
minutes.
The Kitchen Timer does not control
oven operations. The maximum
setting on the Kitchen Timer is
9 hours and 59 minutes.
To Reset the Kitchen Timer
If the display is still showing the
time remaining, you may change it by
touching the TIMER/CLOCK or TIMER pad
(depending on model), then touch the
number pads until the time you want
appears in the display.
If the remaining time is not in the
display (clock, delay start or cooking
time are in the display), recall the
remaining time by touching the
TIMER/CLOCK or TIMER pad (depending
on model) and then touching the
number pads to enter the new
time you want.
To Cancel the Kitchen Timer
Touch the TIMER/CLOCK or TIMER pad
(depending on model) twice.
Control Lock (on some models)
Using the clock, kitchen timer and control lock. ge.com
(on some models)
(on some models)
Make sure the clock is set to the
correct time of day.
(on some models)
(on some models)

– 12 –
To Adjust the Thermostat
Touch the BROIL HI/LO and BAKE
pads at the same time until the
display shows SF.
Touch the BAKE pad. A two digit
number shows in the display.
Touch BAKE again to alternate
between increasing and decreasing
the oven temperature.
To adjust the upper oven
thermostat, touch the upper Oven
BAKE pad. To adjust the lower oven
thermostat, touch the lower Oven
BAKE pad.
The oven temperature can be
adjusted up to (+) 35ºF hotter or (-)
35ºF cooler. Touch the number pads
the same way you read them. For
example, to change the oven
temperature 15ºF, touch 1and 5.
When you have made the
adjustment, touch the START pad
to go back to the time of day display.
Use your oven as you would normally.
Adjust the upper or lower oven thermostat—Do it yourself!
You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to
become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat
yourself.
Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven.
These thermometers may vary 20–40 degrees.
NOTE: This adjustment will only affect baking and roasting temperatures; it will not affect broiling, convection or
self-cleaning temperatures. The adjustment will be retained in memory after a power failure.
+To Adjust the Thermostat
Touch the upper oven1. BROIL HI/LO and
BAKE pads at the same time until the
display shows SF.
NOTE
To adjust the upper oven thermostat, touch
the upper oven BAKE pad. To adjust the lower
oven thermostat, touch the lower oven BAKE
pad.
Touch the2. BAKE pad. A two digit number
shows in the display.
Touch3. BAKE again to alternate between
increasing and decreasing the oven
temperature.
The oven temperature can be adjusted up4.
to (+) 35ºF hotter or (-) 35ºF cooler. Touch
the number pads the same way you read
them. For example, to change the oven
temperature 15ºF, touch 1 and 5.
When you have made the adjustment,5.
touch the upper oven START pad until the
time of day appears in the display. Use
your oven as you would normally.
5
4
3
1
2

– 13 –
Because heated air is circulated evenly
throughout the oven, foods can be
baked with excellent results using
multiple racks.
Multi-rack baking may increase cook
times slightly for some foods but the
overall result is time saved. Cookies,
muffins, biscuits and other quickbreads
give very good results with multi-rack
baking.
To cook food on more than one rack in
convection bake, use CONVECTION BAKE
MULTI.
When baking on 3 racks, place one
rack in the second (A) position, another
rack in the fourth (C) position and the
third rack in the sixth (E) position.
For two-rack baking, place one rack in the
second (B) rack position. Place the other
rack in the fifth (E) rack position.
Multi-Rack Convection Baking
Multi-rack position.
When convection baking with only 1 rack, use
CONVECTION BAKE 1 RACK and follow the
rack positions recommended in the Using the
oven section.
■Ideal for baked foods cooked on 1 rack.
1-Rack Convection Baking
The convection oven comes with two
convection baking modes: Convection
Bake Multi and Convection Bake 1 Rack:
MULTI—for convection cooking on more
than one rack. Touch the CONVECTION
BAKE MULTI/1 RACK pad and then the 2
pad. See the Multi-Rack Convection Baking
section below.
1 RACK—for convection cooking on one
rack only. Touch the CONVECTION BAKE
MULTI/1 RACK and then the 1pad. See the
1-Rack Convection Baking section below.
Introduction
Convection Fan Operation
In a convection oven, a fan circulates hot air over,
under and around the food.
This circulating hot air is evenly distributed
throughout the oven cavity. As a result, foods are
evenly cooked and browned—often in less time
with convection heat.
NOTE: To maximize cooking evenness,
the fan is designed to rotate in both
directions, with a pause in between.
This is normal.
The convection fan shuts off when the
oven door is opened. DO NOT leave the
door open for long periods of time while
using convection cooking or you may
shorten the life of the convection heating
element.
Using the convection oven. (on some models) ge.com

– 14 –
Touch the CONVECTION BAKE MULTI/
1 RACK pad and then the 2pad for
multi-rack convection baking. This
mode is used for cooking food items
on more than one rack (i.e., 2, 3 or
more racks) at the same time in
convection bake. See the Multi-Rack
Convection Baking section for more
information.
Touch the CONVECTION BAKE MULTI/
1 RACK pad and then t
he 1pad for
one-rack convection baking. This
mode is used for cooking food items
on only one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set the
oven temperature.
Touch the START pad.
NOTE: If the Auto Recipe™Conversion Feature
is on, it will automatically reduce the set regular
baking temperature by 25°F to the appropriate
convection temperature in convection bake mode.
See Auto Recipe™Conversion in the Special
Features section.
To change the oven temperature, touch
the CONVECTION BAKE MULTI/1 RACK or
CONVECTION ROAST pad and then the
number pads to set the new temperature.
When the oven starts to heat, the
changing temperature, starting at 100°F,
will be displayed. When oven reaches the
temperature you set, 3 beeps will sound.
Touch CLEAR/OFF pad when finished.
■You will hear a fan while cooking with
convection. The fan will stop when the door
is opened, but the heat will not turn off.
■You may hear the oven clicking during
baking. This is normal.
■In convection bake modes, for maximum cooking
evenness, the fan is designed to rotate in
both directions, with a pause in between.
This is normal.
How to Set the Lower Oven for Convection Baking or Roasting
Using the convection oven. (on some models)
OR
Grid
Broiler pan
■Good for large tender cuts of meat, uncovered.
The convection fan circulates the heated
air evenly over and around the food.
Meat and poultry are browned on
all sides as if they were cooked on a
rotisserie. The heated air seals in juices
quickly for a moist and tender product
while, at the same time, creating a rich
golden brown exterior.
When you are convection roasting it is
important that you use a broiler pan and
grid for best convection roasting results.
The pan is used to catch grease spills
and the grid is used to prevent grease
spatters.
Convection Roast

– 15 –
How to Set an Immediate Start and Automatic Stop
The lower oven will turn on immediately and cook
for a selected length of time. At the end of the
cooking time, the oven will turn off automatically.
Make sure the clock shows the correct
time of day.
Touch the CONVECTION BAKE
MULTI/1 RACK pad and then the
2pad for multi-rack convection
baking. This mode is used for
cooking food items on more than
one rack (i.e., 2, 3 or more racks)
at the same time in convection bake.
See Multi-Rack Baking section for
more information.
Touch the CONVECTION BAKE MULTI/
1 RACK pad and then
the 1pad for
one-rack convection baking. This
mode is used for cooking food items
on only one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
T ouch the number pads to set the
oven temperature.
T
ouch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute. The oven temperature
that you set and the cooking time that
you entered will be in the display.
Touch the START pad.
The oven will turn ON, and the display will
show the cooking time countdown and the
changing temperature starting at 100°F.
(The temperature display will start to
change once the oven temprature reaches
100°F.) When the oven reaches the
temperature you set, 3 beeps will sound.
NOTE: If the Auto Recipe™Conversion Feature
is on, it will automatically reduce the set regular
baking temperature by 25°F to the appropriate
convection temperature in convection bake mode.
See Auto Recipe™Conversion in the Special
Features section.
The oven will continue to cook for the set
amount of time, then turn off automatically,
unless the WARM
feature was set. See the
How to Set the Oven for Warming section.
After the oven turns off, the end-of-cycle
tone will sound.
Touch the CLEAR/OFF pad to clear
the display if necessary. Remove
the food from the oven. Remember,
even though the oven turns off
automatically, food left in the oven
will continue cooking after the oven
turns off.
Using the timed features for convection cooking. (on some models) ge.com
You will hear a fan while cooking with these features. The fan will stop when the door is opened, but the heat
will not turn off.
NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit
for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure
that the oven light is off because heat from the bulb will speed harmful bacteria growth.
OR

– 16 –
How to Set a Delayed Start and Automatic Stop
The lower oven will turn on at the time of day you
set, cook for a specific length of time and then turn
off automatically.
Make sure the clock shows the correct
time of day.
Touch the CONVECTION BAKE
MULTI/1 RACK pad and then the
2pad for multi-rack convection
baking. This mode is used for
cooking food items on more than
one rack (i.e., 2, 3 or more racks)
at the same time in convection bake.
See Multi-Rack Baking section for
more information.
Touch the CONVECTION BAKE MULTI/
1 RACK pad and then
the 1pad for
one-rack convection baking. This
mode is used for cooking food items
on only one rack in convection bake.
Touch the CONVECTION ROAST pad
for convection roasting.
Touch the number pads to set the
oven temperature.
Touch the COOK TIME pad.
NOTE: If your recipe requires preheating, you may
need to add additional time to the length of the
cooking time.
Touch the number pads to set the
desired length of cooking time. The
minimum cooking time you can set
is 1 minute.
The oven temperature that you set
and the cooking time that you entered
will be in the display.
Touch the DELAY START pad.
Touch the number pads to set the
time of day you want the oven to turn
on and start cooking.
Touch the START pad.
NOTE: An attention tone will sound if you are
using timed baking or roasting and do not touch
the START pad.
NOTE: If you would like to check the times you have
set, touch the DELAY START pad to check the start
time you have set, or touch the COOK TIME pad to
check the length of cooking time you have set.
When the oven turns ON at the time of day
you set, the display will show the cooking
time countdown and the changing
temperature starting at 100°F. (The
temperature display will start to change
once the oven temperature reaches 100°F.)
When the oven reaches the temperature
you set, 3 beeps will sound.
NOTE: If the Auto Recipe™Conversion Feature
is on, it will automatically reduce the set regular
baking temperature by 25°F to the appropriate
convection temperature in convection bake mode.
See Auto Recipe™Conversion in the Special
Features section.
The oven will continue to cook for the
programmed amount of time, then shut
off automatically, unless the WARM
feature
was set. See the How to Set the Oven for
Warming section.
After the oven turns off, the end-of-cycle
tone will sound.
Touch the CLEAR/OFF pad to clear
the display if necessary. Remove
the food from the oven. Remember,
even though the oven shuts off
automatically, food left in the oven
will continue cooking after the oven
turns off.
Using the timed features for convection cooking. (on some models)
OR

– 17 –
How to Set the Lower Oven for Convection Roasting when Using the Probe
Place the oven rack in the position
that centers the food between the
top and bottom of the oven. Insert
the probe into the meat. Make sure
it is pushed all the way in.
Plug the probe into the outlet in the
oven. Make sure it is pushed all the
way in. Close the oven door.
Touch the PROBE pad.
Touch the number pads to set the
desired internal meat temperature.
NOTE: The maximum internal temperature
for the food that you can set is 200°F.
Touch the CONVECTION ROAST pad.
Touch the number pads to set the
desired oven temperature.
The display will flash PROBE and the oven
control will signal if the probe is inserted
into the outlet, and you have not set a probe
temperature and pressed the START pad.
Touch the START pad.
When the oven starts to heat, the word
LO will be in the display.
After the internal temperature of the meat
reaches 100°F, the changing internal
temperature will be shown in the display.
When the internal temperature of
the meat reaches the number you
have set, the probe and the oven
turn off and the oven control signals.
To stop the signal, touch the
CLEAR/OFF pad. Use hot pads to
remove the probe from the food.
Do not use tongs to pull on it—
they might damage it.
NOTE: If the probe is removed from the
oven while probe cooking, the oven will not
automatically turn off.
CAUTION: To prevent possible burns,
do not unplug the probe from the oven outlet until
the oven has cooled.
NOTE:
■You will hear a fan while cooking with this
feature. The fan will stop when the door is
opened, but the heat will not turn off.
■You can use the Kitchen Timer even though you
cannot use timed oven operations.
■ Never leave your probe inside the oven during
a self-cleaning cycle.
■ Do not store the probe in the oven.
■ Probe not for use in Broil or Self-Clean functions.
■ Fan only rotates in one direction.
For best results when roasting large
turkeys and roasts, we recommend
using the probe included in the
convection oven.
To change the oven temperature
during the Convection Roast cycle,
touch the CONVECTION ROAST pad
and then touch the number pads to
set the new desired temperature.
Using the convection oven. (on some models) ge.com

– 18 –
How to Set the Lower Oven For Slow Cook
Slow Cook is designed for long hours of
unattended cooking.
Touch the SLOW COOK pad once for
HI Slow Cook.
To change to LO Slow Cook, touch
the SLOW COOK pad again.
Touch the number pads to select the
desired setting – 1 for Beef, 2 for
Poultry, 3 for Pork or 4 for Stews.
Use 1–Beef if you are unsure which
setting to use.
Touch the number pads to set
the desired length of cooking time.
For the HI setting, the cooking time
must be between 3 and 8 hours. For
the LO setting, the cooking time
must be between 3 and 12 hours.
Touch the START pad.
When the Slow Cook function has
completed, the oven will go into the
Warm mode. Display will say “Cooking
Complete Keeping Warm.” The total time
the oven will be on (Slow Cook time plus
Warm time) is 12 hours. This is because
of the safety 12-Hour Shutdown feature
described on page 28.
NOTE: If a power outage occurs while the oven is
in Slow Cook, the range will shut off.
Using the slow cook, pizza and warming features.
.

– 19 –
How to Set the Lower and Upper Ovens For Warming
The WARM feature keeps cooked
foods hot.
This feature is not designed to reheat
cold food.
To use the WARM feature, touch the
WARM pad and then the START pad.
To use the WARM feature after Timed
Baking or Roasting, follow these steps:
Touch the mode of cooking that
you want to use (BAKE, CONVECTION
BAKE MULTI, CONVECTION BAKE
1 RACK or CONVECTION ROAST).
Touch the number pads to set the
oven temperature.
Touch the COOK TIME pad.
Touch the number pads to set the
desired length of cooking time.
Touch the WARM pad.
Touch the START pad.
To Crisp Stale Items
■Place food in low-sided dishes or pans.
■For best results, place the food items in
a single layer. Do not stack.
■Leave them uncovered.
■Check crispness after 20–30 minutes.
Add time as needed.
IMPORTANT NOTES:
■Food should be kept hot in its cooking container
or transferred to a heat-safe serving dish.
■For moist foods, cover them with an oven-safe
lid or aluminum foil.
■Fried or crisp foods do not need to be covered,
but can become too dry if warmed for too long.
■Repeated opening of the door allows the hot
air to escape and the food to cool.
■Allow extra time for the temperature inside the
oven to stabilize after adding items.
■With large loads it may be necessary to cover
some of the cooked food items.
■Remove serving spoons, etc., before placing
containers in the oven.
■Do not use plastic containers, lids or
plastic wrap.
CAUTION: Plastic containers, lids or
plastic wrap will melt if placed in the oven.
Melted plastic may not be removable and is not
covered under your warranty.
How to Set the Upper Oven For Pizza
Adjust rack position for type of pizza tray
being used (see chart).
Touch the PIZZA pad
Touch the number pads to select
1 for fresh or 2 for frozen pizza.
Touch the number pads to set the
baking temperature.
Touch the START pad.
Baking time is determined by package
directions.
Type of Pizza Tray Rack Position
Tray supplied with fresh pizza B
Pizza placed directly on rack B
Metal tray A

– 20 –
How to Set the Upper/Lower Oven for Cleaning
The oven doors must be closed and all
controls set correctly for the cycle to work
properly.
Touch the SELF CLEAN HI/LO pad
once for a 5-hour clean time or
twice for a 3-hour clean time.
A 3-hour self-clean time is
recommended for use when
cleaning small, contained spills.
A self-clean time of 5 hours is
recommended for a dirtier oven.
If a time other than 5 hours or
3 hours is needed, use the number
pads and enter the desired
clean time.
You can change the clean time to
any time between 3 hours and 5 hours,
depending on how dirty your oven is.
Touch the START pad.
The upper and lower oven doors
lock automatically. The cooktop elements
are also locked out during self-clean.
The display will show the clean time
remaining. It will not be possible to
open the oven doors or use the cooktop
until the temperature drops below the
lock temperature and LOCKED goes off
in the control display.
When LOCKED goes off, you will be able to
open the doors.
■The word LOCKED will flash and the
word door will display if you set the
clean cycle and forget to close the
oven doors.
■To stop a clean cycle, touch the
CLEAR/OFF pad. When LOCKED goes off,
indicating the ovens have cooled below
the locking temperature, you will be
able to open the doors.
You can set a clean cycle in both ovens
at the same time; however, they will not
self-clean at the same time. The last oven
set will automatically delay its start until
the end of the first oven’s clean cycle.
When an oven is set to self-clean, both
oven doors will lock and the cooktop
controls will lock out. The ovens and
cooktop cannot be used when an
oven is set to self-clean.
Wipe up heavy soil on the oven
bottom.
Before a Clean Cycle
We recommend venting your kitchen
with an open window or using a
ventilation fan or hood during the
first self-clean cycle.
Remove any broiler pan, broiler grid,
probe, all cookware and any aluminum
foil from the oven.
NOTE:
■If your oven is equipped with shiny,
silver-colored oven racks, remove them
before you begin the self-clean cycle.
■If your oven is equipped with gray
porcelain-coated oven racks, they
may be left in the oven during the
self-clean cycle.
Soil on the front frame of the range and
outside the gasket on the door will need
to be cleaned by hand. Clean these areas
with hot water, soap-filled steel-wool pads
or cleansers such as Soft Scrub®
. Rinse
well with clean water and dry.
Do not clean the gasket. The fiberglass
material of the oven door gasket cannot
withstand abrasion. It is essential for the
gasket to remain intact. If you notice it
becoming worn or frayed, replace it.
Wipe up any heavy spillovers on the
oven bottom.
Make sure the oven light bulb cover is
in place and the oven light is off.
IMPORTANT: The health of some birds
is extremely sensitive to the fumes given
off during the self-cleaning cycle of any
range. Move birds to another well-
ventilated room.
Using the self-cleaning upper and lower ovens.
