GE GN1S15CBL (REV. 2) Service manual

GNSL05CBL (rev. 2) and GN1S15CBL (rev. 2)
are Tested and Certified by NSF International
against ANSI/NSF Standard 42 for the reduction
of Particulate Class I, Chlorine,and Taste/Odor
and Standard 53 for the reduction of Lead, Cyst,
Turbidity, Asbestos, Mercury, Atrazine and
Lindane.
GNSV25CBL, GNSV30CWW and GNSV30CCC
are
Tested and Certified by NSF International
against ANSI/NSF Standard 42 for the reduction
of Particulate Class I, Chlorine,and Taste/Odor
and Standard 53 for the reduction of Lead, Cyst,
Mercury, Turbidity, Asbestos and VOC.
GEAppliances.com
GNSV25CBL
GNSV30CWW
GNSV30CCC
GNSL05CBL (rev. 2)
GN1S15CBL (rev. 2)
Owner’s Manual
and Installation
Instructions
Water Filtration
215C1001P019-3 49-50057-3 05-02 JR
7239707
Safety Instructions . . . . . . . . . . .2
Operating Instructions
Specification Guidelines . . . . . . .3
Using the System . . . . . . . . . . . .4
Installation Instructions . . .5–11

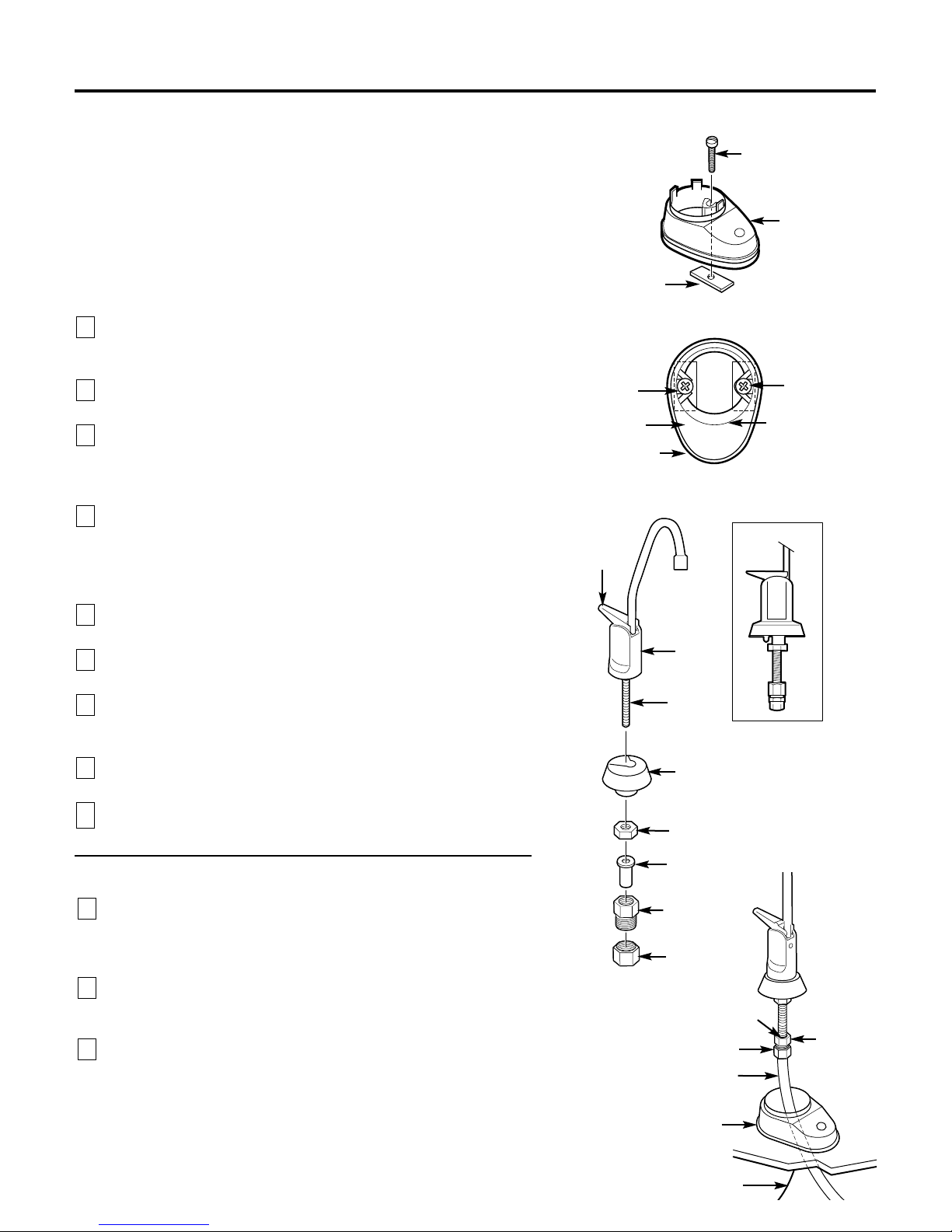

Battery Pack Installation . . . . . . .8

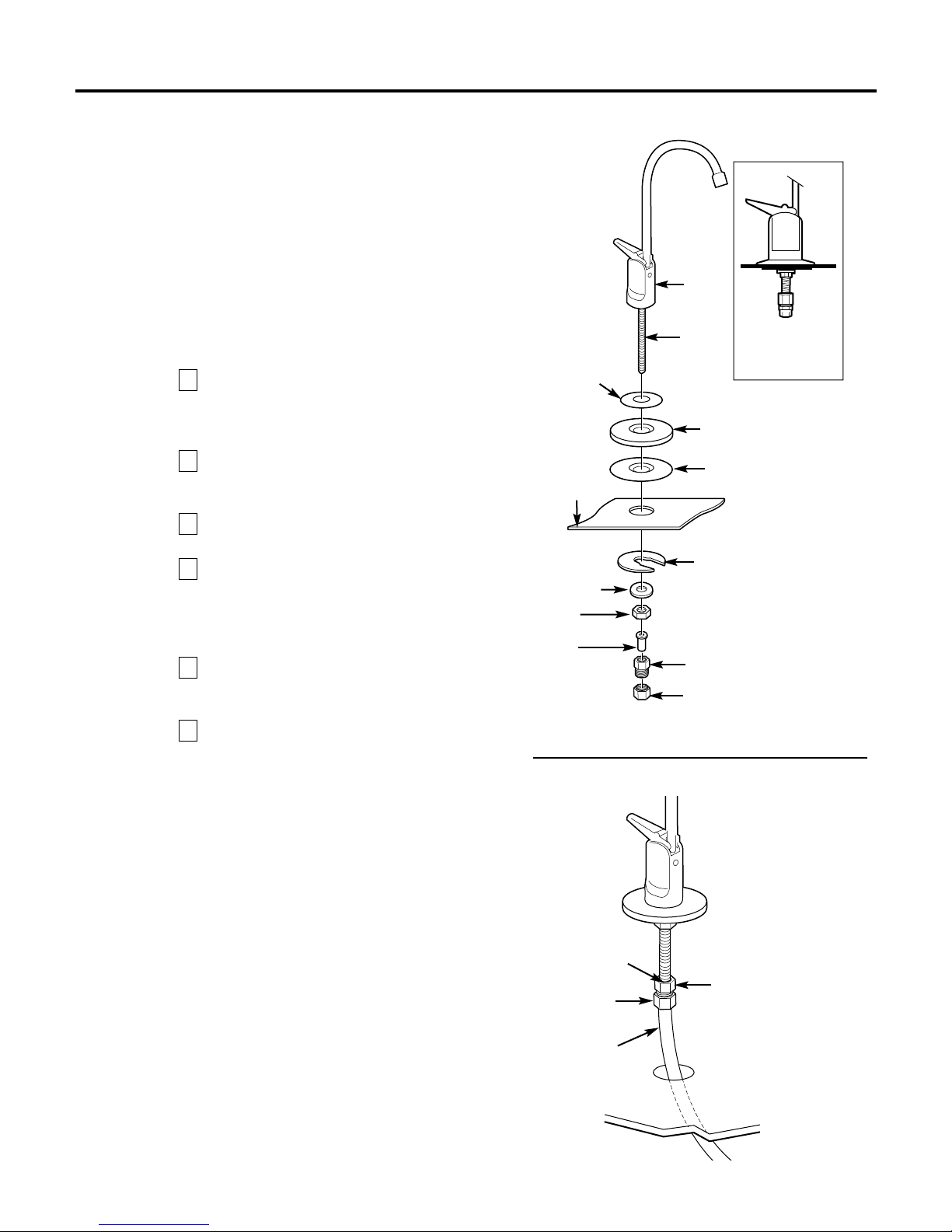

Faucet Installation . . . . . . . . . .7, 8
Feed Water Supply . . . . . . . . . . .6
Filter Cartridge Installation
or Flush Procedure . . . . . . .10, 11
Important Recommendations . . .5
Replacement . . . . . . . . . . . .10, 11
Step-by-Step Instructions . . . . .7–9
Tools/Materials Required . . . . . .5
Tubing Connections . . . . . . . . . .9
Wall Mounting . . . . . . . . . . . . . . .9
Troubleshooting Tips . . . . . . .12
Consumer Support
Consumer Support . . . . . . . . . .16
Parts List/Catalog . . . . . . . .13, 14
Warranty . . . . . . . . . . . . . . . . . .15
system
Write the model and serial numbers here:
Model # ______________________
Serial # ______________________
You can find them on the sump bracket.

SAVE THESE INSTRUCTIONS
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
■ Install or store where it will not be exposed to
temperatures below freezing or exposed to any
type of weather. Water freezing in the system
will damage it. Do not attempt to treat water
over 100°F.
WARNING: Discard all unused
and packaging material after installation.
Small parts remaining after installation
could be a choke hazard.
■ Your Water Filtration system will withstand up to
125 pounds per square inch (psi) water pressure.
If your house water supply pressure is higher than
100 psi, install a pressure reducing valve before
installing the Water Filtration system.
For your safety, the information in this manual must be followed to minimize the
risk of property damage or personal injury.
SAFETY PRECAUTIONS
■ Check with your local public works department
for plumbing codes. You must follow these
guidelines as you install the Water Filtration
system.
■Use the Water Filtration system on a potable,
safe-to-drink, home COLD water supply only.
The filter cartridges will not purify the water,
or make it safe to drink.
■Do not use on a hot water supply (100°F max.)
.
WARNING: Do not use with water that
is microbiologically unsafe or of unknown
quality without adequate disinfection before
or after the system. Systems certified for cyst
reduction may be used on disinfected water
that may contain filterable cysts.
PROPER INSTALLATION
This Water Filtration system must be properly installed and located in accordance with the
Installation Instructions before it is used.
2
WARNING!
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.

3
Many bad tastes and/or odors are removed from water using activated carbon filter cartridges. They are
most often used to remove a chlorine taste and odor. They can also reduce other undesirable elements from
drinking water supplies, such as organic chemical contaminants and lead.
NOTE: Small amounts of hydrogen sulfide (noticeable as “rotten egg” odor) may be reduced by taste and
odor filters for a short time, but the carbon media is quickly exhausted. Other water conditioning
equipment is usually required for the continuous treatment of hydrogen sulfide.
For Model GN1S15CBL
(rev. 2)
FXULC (rev. 2) Filter
(600-Gallon Capacity)
Filter – White with
yellow end caps
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine:
Taste and Odor
•Reduces Lead
•Reduces Asbestos
•Reduces filterable cysts
(such as
cryptosporidium
and giardia)
•Reduces Lindane
(a pesticide)
•Reduces Turbidity
•Reduces Mercury
•Reduces Atrazine
•0.5–1 micron nominal
particulate reduction
For Model GNSL05CBL
(rev. 2)
FXSLC (rev. 2) Filter Set
(600-Gallon Capacity)
Filter I – White with no
end caps
Filter II – White with
yellow end caps
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine:
Taste and Odor
•Reduces Lead
•Reduces Asbestos
•Reduces filterable cysts
(such as
cryptosporidium
and giardia)
•Reduces Lindane
(a pesticide)
•Reduces Turbidity
•Reduces Mercury
•Reduces Atrazine
•0.5–1 micron nominal
particulate reduction
For Models GNSV25CBL,
GNSV30CWW and
GNSV30CCC
FXSVC (rev. 2) Filter Set
(600-Gallon Capacity)
Filter I – White with
green end caps
Filter II – Gray
•Reduces dirt, rust and
sediment
•Reduces unpleasant
tastes and odors
•Reduces Chlorine:
Taste and Odor
•Reduces Lead
•Reduces Asbestos
•Reduces filterable cysts
(such as
cryptosporidium
and giardia)
•Reduces Volatile
Organic Chemicals
(VOCs)
•Reduces Mercury
•0.5–1 micron absolute
particulate reduction
Minimum - Maximum Supply Water Pressure – 40–125 pounds per square inch (psi)
Minimum - Maximum Supply Water Temperature – 40°–100°F
Inlet - Outlet – 3/8 ″ NPT, fittings and tubing included
Rated Service Flow – 0.6 gpm [GNSL05CBL (rev. 2) and GN1S15CBL (rev. 2)]
0.6 gpm (GNSV25CBL, GNSV30CWW and GNSV30CCC)
Depending on the treatment needed for a specific water supply, the water filtration system
can be customized using any combination of the preceding filter cartridge sets.
The Water Filtration system uses two filter cartridges.
Specifications guidelines. www.GEAppliances.com
This system conforms to ANSI/NSF 42 and 53 for the specific performance
claims as verified and sustained by test data.

Using the Water Filtration System and About the Filter Cartridge
The countertop faucet dispenses filtered drinking water when opened.
It has a hand-operated, spring-loaded closed lever to prevent waste.
You can keep the faucet open by pushing upward on the lever to lock it
against the faucet spout.
Filter Cartridge Life – Several variables determine how long the cartridges
will last in your Water Filtration system. These include:
How much water you use.
How much sediment, taste and/or odor, lead, or other unwanted substance
is in the water.
No matter which Water Filtration system you have, you should replace the
cartridges every six months, when indicated by the electronic indicator
light on the base. In extremely poor water supplies, you may notice the
return of the unwanted substance in your water before the six months
are up. In this case the cartridges should be replaced immediately.
If the system is also for lead or chemical contaminant removal, it is
MORE IMPORTANT to replace the cartridges at least every six months.
NOTE: If the water supply contains high amounts of sediments, the carbon
filters may plug prematurely, reducing filtered water flow to the system
faucet. Cartridge replacement is needed to restore flow.
Electronic Indicator Light (not available on all models) – The electronic
indicator light on the base of the faucet is a six-month timer that shows
you when to replace the filter cartridges. When the battery pack is first
installed, the indicator light will light briefly to show that the electronics
are operating. If this does not happen, the batteries may be installed
backwards or the lead wires are not connected.
After about six months, the indicator light begins to flash. It is time to
replace the filter cartridges. When replacing the filter cartridges, also
replace the batteries in the battery pack. Two AA batteries are required.
2
1
Filtered water faucet
Open
Indicator light
Lock
open
4
About the water filtration system.

5
Installation Overview
Important Installation Recommendations
■Check with your local public works department for
plumbing codes. You must follow their guides as
you install the Water Filtration system.
■ Use the Water Filtration system on a potable,
safe-to-drink, home COLD water supply only. The filter
cartridges will not purify water or make unsafe water
safe to drink. DO NOT use on HOT water (100° F max.).
■Protect the Water Filtration system and piping from
freezing. Water freezing in the system will damage it.
■Your Water Filtration system will withstand up to
125 psi water pressure. If your house water supply
pressure is higher than 100 psi during the day
(it may reach higher levels at night), install a
pressure-reducing valve before the system.
WARNING: Do not use with water that is
microbiologically unsafe or of unknown quality
without adequate disinfection before or after
the system. These systems are certified for cyst
reduction and may be used on disinfected
water that may contain filterable cysts. The
water should be tested periodically to verify that
the system is performing satisfactorily. Small
parts remaining after the installation could be
a choke hazard. Discard safely.
■Slotted and Phillips screwdrivers
■Pliers and adjustable jaw wrench
■Hand- or battery-powered drill and 1 ⁄ 4″bit
(saddle valve installation)
■Electric drill and drill bit to drill 1″– 1 1 ⁄ 4 ″hole
(type as required) if mounting hole is needed
for faucet
CAUTION: To avoid damaging the sink, consult
a qualified plumber or installer for drilling
procedures. Special drill bits may be needed
for porcelain or stainless steel.
Contents included with the product:
■Water filter assembly, including mounting bracket
and screws
■Product Literature (Owner’s Manual and
Installation Instructions, Product Data Sheet,
Owner Product Registration Card)
■Water supply/saddle valve
■Filtered water faucet for sink or countertop
mounting
■Electronic indicator faucet base and battery pack
(not available on all models)
■3 ⁄
8″tubing and fittings to make all needed
connections
■Sump wrench
Filtered
water faucet
Sink
Battery pack
Hot
Shutoff valve
NOTE: To change the filter
cartridge, you must turn off
the water. A nearby shutoff
valve is convenient. Most
sinks already have shutoff
valves on the supply pipes.
Cold Water supply valve
Tubing Insert
Tubing Adapter
Compression nut
Water in
Water out
Tubing
Mounting
screw (2)
Filter I
Filter II
Tubing
Tools and Materials Required for Installation
Read entire manual. Failure to follow all guides and rules could cause personal injury or property damage.
Single Stage
Water out
Mounting
screw (2)
Nut
Insert
Water in
Tubing
Nut
Insert
Dual Stage
Installation Instructions.
Locate the drinking water system on the cold water supply pipe, under
the kitchen and/or bathroom sink, to filter the cold drinking water.

6
Installation Instructions.

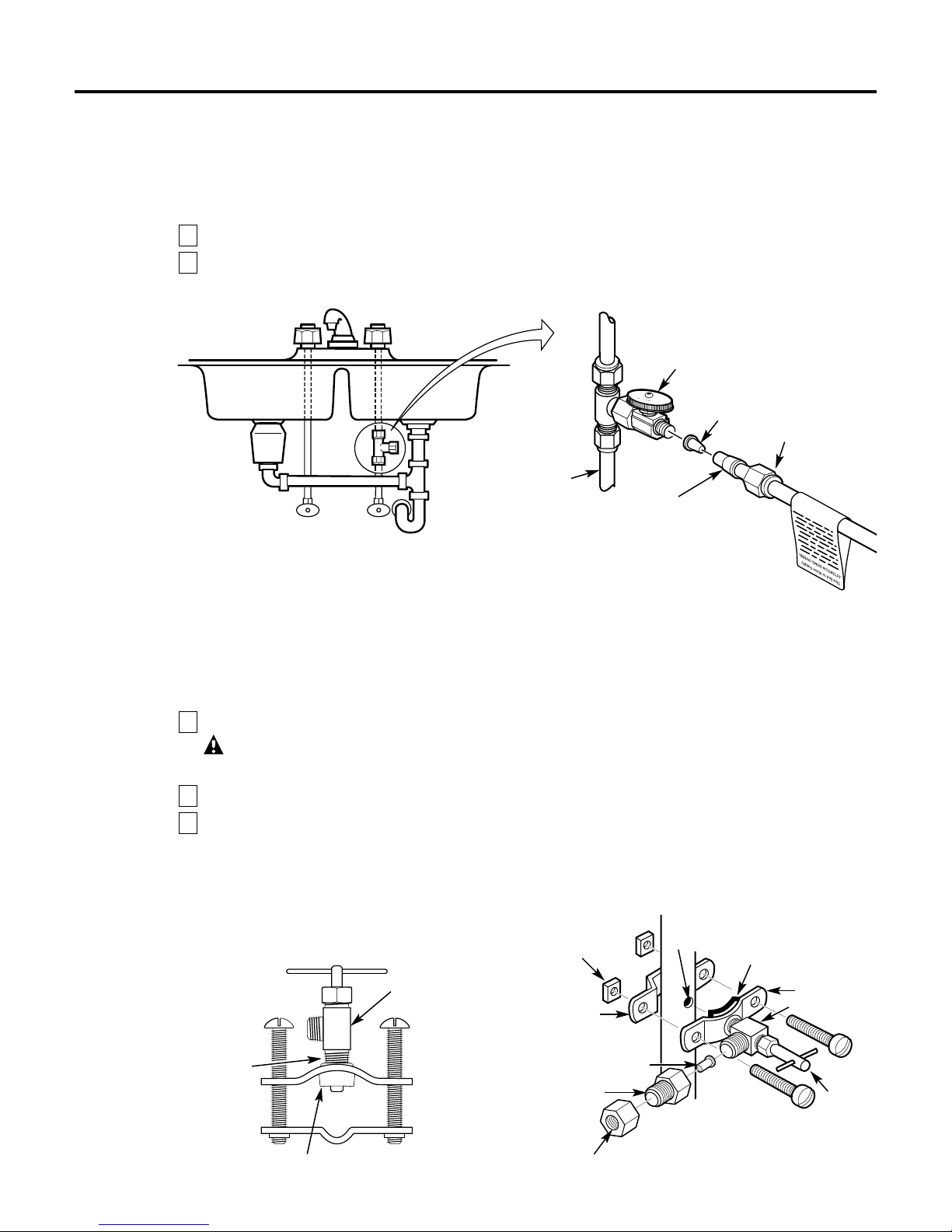

Feed Water Supply
Check and comply with local plumbing codes as you plan; then install a cold feed water supply fitting. For new
home installation using standard plumbing fittings, see first two illustrations below. A typical installation for
existing homes using the saddle valve is shown in third illustration below.
A. PREFERRED INSTALLATION
Turn off the cold water supply.
Complying with plumbing codes, install a fitting on the cold water pipe to adapt 3 ⁄ 8 ″OD tubing. A typical
connection is shown in illustrations at right (parts not included). Make sure a water supply valve is used.
2
1
B. OPTIONAL HOME INSTALLATION Where codes permit
*For 1/2" OD or larger metal tubing only.
NOTE: Codes in the state of Massachusetts require installation by a licensed plumber and do not permit the use of
the saddle valve. For installation, use plumbing code 248-CMR of the Commonwealth of Massachusetts.
Turn off the cold water supply and attach saddle valve as shown in illustration at right.
DANGER: To protect yourself from serious injury or fatal shock, use a battery-powered hand drill only
to make the hole. DO NOT USE AN ELECTRIC DRILL.
Close the water supply valve by turning the handle clockwise.
Open the main water supply valve and several house faucets to purge air from the system. Close faucets
when water runs smoothly.
3
2
1
Optional water supply connection (using saddle valve)*
*For 1/2" OD or larger metal tubing only.
Predrill
1⁄4″hole Seal – make sure the
seal is in place
Clamp X
Nut (2) – not
required if holes in
clamp are threaded
Valve
Handle
Tubing adapter
Tubing insert
Compression nut

Clamp Z
Preferred water supply connection
(using compression fitting)
Insert (not included)
Cold
water
pipe 3/8″tubing to inlet
Ferrule
Water supply valve
Typical location
Cold
water
Use to connect the tubing
Some threads
should be visible
Rubber gasket
Snug valve into
bracket. DO NOT
OVERTIGHTEN.

7
Step-by-step installation instructions.
Faucet Installation for Model GN1S15CBL (rev. 2) only
Be sure there is room underneath the sink to make
the needed connections. Select one of the following
places to install the faucet:
—IN an existing sink spray attachment or soap
dispenser hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next
to the sink.
NOTE: Looking at second illustration at right, be sure
the faucet base will fit flat against the surface at the
selected location so the gasket will seal.
If drilling is needed, make a 3⁄ 4 ″to 1″ dia. hole.
Be sure to use the proper procedure for drilling
porcelain or stainless steel. Special drill bits may
be needed.
Place small gasket, base and large gasket (in that
order) onto the faucet stem. Next, place lock
washer and hex nut onto faucet stud.
Insert washer into tubing adapter. Securely
tighten to faucet stud.
Feed the length of 3 ⁄ 8 ″OD tube from the
bottom up through the mounting hole.
Connect to the tubing adapter as shown in
second illustration, tightening the compression
nut securely.
Remove the short shipping tube and insert
the spout into the faucet body. Rotate spout
into place.
Lower the faucet assembly into place on the
underside of the mounting hole. Place the
mounting bracket above the lock washer.
While holding the mounting bracket in place,
securely tighten the hex nut.
6
5
4
3
2
1
Sink
Base
Lock washer
Faucet
Lever
Spout
Faucet
stud
Small gasket
Large gasket
Compression nut
Tubing adapter
Mounting bracket
Hex nut
Tubing
insert
3/8″tubing, (run
to Filter II outlet)
Compression nut
ASSEMBLED
Tubing adapter
Tubing
insert

8
Electronic Faucet Installation (not available on all models)
Be sure there is room underneath the sink to make the needed
connections. Select one of the following places to install the faucet:
—IN an existing sink spray attachment or soap dispenser hole.
—IN a hole to be drilled in the sink top.
—IN a hole to be drilled in the countertop, next to the sink.
NOTE: Looking at fourth illustration at right, be sure the faucet base
will fit flat against the surface at the selected location so the gasket will
seal. The base may have to be angled sideways or diagonally.
If drilling is needed, make a 1″– 1 1 ⁄ 4 ″dia. hole. Be sure to use the
proper procedure for drilling porcelain or stainless steel. Special drill
bits may be needed.
Looking at first illustration, insert a screw into the NON-SLOTTED
base mounting hole. Turn a flat nut a few turns onto the screw.
Position the base gasket over the mounting hole. Set the base on
the gasket, routing the leadwire through the mounting hole.
Holding the flat nut under the sink with one finger, tighten the
screw until just snug.
Turn the remaining flat nut a few turns onto the other screw.
Position the screw in the slotted base mounting hole and tighten
until snug. Make sure the gasket position is properly aligned and
carefully tighten both screws until the base is held firmly in place.
Do not overtighten and break the base.
Assemble the top faucet base and hex nut onto the faucet stud
(third illustration). Tighten the nut until snug.
Insert tubing insert into tubing adapter. Securely tighten to faucet
stud.
Feed the length of 3/8″ OD tubing from the bottom up through
the faucet base. Connect to the tubing adapter as shown in fourth
illustration, tightening the compression nut securely.
Remove the short shipping tube and screw the spout into the
faucet body.
Lower the faucet assembly and lock into place on the faucet base.
9
8
7
6
5
4
3
2
1
Faucet
base
Nut (2)
Screw (2)
1″– 1 1/4″dia.
mounting hole
in sink or
countertop
Gasket
Faucet base
TOP VIEW
Screw (2)
Nut (2)
Base lead wire connector
(to battery pack)
3/8″tubing, (run
to Filter 2 outlet)
Faucet base
Compression nut
Tubing insert
Hex nut
Top faucet
base
Faucet
Lever
Spout
Faucet stud
Compression nut
Tubing adapter
ASSEMBLED
Step-by-step installation instructions.
Battery Pack Installation and Connection
In a dry location, within reach of the electronic base 3′ lead wire,
select a place for the battery pack (see illustration on page 5).
The battery pack attaches to most surfaces, using the included
“sticky-back” Velcro™ strip.
The battery pack uses two size AA batteries. Check to be sure they
are installed correctly. Then, remove the paper backing
on the Velcro™ strip and secure the pack in place.
Fasten electronic base lead wire and battery pack connector
together.
3
2
1
Tubing insert
Tubing adapter

Mounting Bracket to Cabinet Wall
The bracket can be used as a template for marking the location of the mounting screws. When determining the location of
the bracket, make sure you leave 1 1/2 ″ to 2 ″ of free area under the sumps to allow for sump removal and enough space on
either side to make the tubing connections.
Filter I
Filter II
Sump
Mounting
screws
Tubing
connector
(outlet)
Tubing
connector
(inlet)
Mounting
bracket
Sump
7-9/1 6″
11/2″to 2″
Tubing Connections – Compression Style
Run the length of the 3⁄8″ tubing, connected to the bottom of the
faucet, to the filter system outlet (illustration above). Allow enough
slack in the tubing so that the unit can be easily removed.
Measure and cut the end of the tubing square using a sharp cutter
or knife. Remove any burrs (illustration A).
Inspect the end of the tubing, about 1 inch, to be sure there are no
imperfections. It may be necessary to cut the tubing again.
Slide plastic nut over the 3⁄8″ tubing.
Then slide plastic insert into 3⁄8″ tubing.
Insert the plastic tubing all the way to the bottom of the elbow.
Tubing must be fully inserted to avoid leaks.
Slide nut up to the elbow and thread on by hand until tight.
Repeat the procedure to connect the tubing between the filter system
inlet and the water supply/saddle valve (illustration in the Installation
Overview section).
IMPORTANT: Be sure to check for leaks at all connections. Tighten as
needed.
IMPORTANT: 24 hours after installation, check for any slow leaks that
may occur. Tighten connections as needed.
IMPORTANT: If unit is not going to be put into use immediately,
turn off the water supply valve.
NOTE: Avoid installing the unit where the tubing is pulled at a sharp angle.
This type of installation may cause the fittings to leak. If using tubing other
than what is supplied, be sure it is high quality, exact size and roundness,
and has a smooth surface.
11
10
9
8
7
6
5
4
3
2
1Cut tubing square
End of tubing round and smooth, with no cuts, nicks
or flat spots (approximately 1 inch)
A
B
Mounting
screws
Tubing connector
(outlet)
Tubing connector
(inlet)
Mounting
bracket
Sump
2-3/4 ″
11/2″to 2″
Single Stage
Dual Stage
Tubing
Nut
Insert
Elbow
Sump
Tubing
Insert
Nut
Elbow
Head
9

10
About the water filtration system.
Filter Cartridge Installation or Replacement
CAUTION: Never remove the sumps when water
pressure is in the Water Filtration system.
Close the water supply/saddle valve to the filter.
(See illustration in the Installation Overview
section for location of the water supply valve.)
Open the filtered water faucet.
Remove the sump, using the sump wrench tool
provided, from the filter head by rotating the
sump as shown in the below illustration.
Be careful, the sump may be full of water.
Be sure to keep the large o-ring seal.
If you are replacing a filter cartridge, remove
and discard the used filter cartridge.
Be sure the inside of the sump is clean.
Thoroughly wash the inside of the sump
with hot, soapy water and rinse.
Remove the wrapper from the new filter
cartridge and insert the filter cartridge in the
sump. Some cartridges fit either way, while
others fit only one way. Observe markings on
the cartridge.
NOTE: The Water Filtration system may use two
different types of filter cartridges. Be sure to
install them correctly. Filter I cartridge should
always be placed in the Filter I sump. Filter II
cartridge should always be placed in the Filter II
sump. See page 3 for a complete list of filter
performance characteristics.
5
4
3
2
1
Filter I
Filter II
O-ring seal
Cartridge
Sump II
Sump
Sump I
Label
TURN SUMP
TO INSTALL
TURN SUMP
TO REMOVE
Head
Bracket
Turn sump wrench tool
provided clockwise to
remove sump
OUTLET
INLET
For Model GN1S15CBL
(rev. 2)
FXULC (rev. 2) Filter
(600-Gallon Capacity)
Filter – White with
yellow end caps
For Model GNSL05CBL
(rev. 2)
FXSLC (rev. 2) Filter
Set
(600-Gallon Capacity)
Filter I – White with no
end caps
Filter II – White with
yellow end caps
For Models GNSV25CBL,
GNSV30CWW &
GNSV30CCC
FXSVC (rev. 2) Filter Set
(600-Gallon Capacity)
Filter I – White with
green end caps
Filter II – Gray

11
Flush Procedure
Whenever water of unknown quality is passed through the GE Water Filtration system, filter elements
should be discarded and the filtration system flushed.
Circumstances that may require flushing the system are:
■Boil-water advisory.
■Flooding of the GE Water Filtration system.
■Long-term non-use.
The procedure for flushing the GE Water Filtration system is:
See Filter Cartridge Replacement section and follow steps 1, 2, 3 and 4.
Next, reinstall the sumps (without the filter elements), turn water on and flush water through the
faucet for one minute.
Then, turn water off, remove sumps, empty water out of sumps and install new filter elements.
Follow steps 5–11 in the Filter Cartridge Replacement section to complete.
4
3
2
1
Lightly lubricate the o-ring seal in the sump with clean food-grade silicone grease (silicone grease is
available through GE Parts and Services: 1-800-626-2002, Part Number: WS60X10005). Be sure it is fully
seated in its groove.
Hold the sump up to the filter head, aligning the center hole in the cartridge with the protrusion on
the bottom of the head. Failure to obtain proper alignment may cause damage to the filter and/or
filtration system, which will degrade filter performance.
Being careful not to cross-thread, rotate the sump onto the filter head and tighten securely by hand.
NOTE: If the sump will not tighten up to the head or if you feel resistance, you may have the cartridge
in upside down or misaligned. Take the cartridge out and check for correct orientation or alignment
and reassemble.
Repeat steps 2 through 8 for the Filter II cartridge in the Filter II sump, if necessary.
Turn on the filtered water faucet. Then, slowly open the water supply/saddle valve and allow the
filter housing to fill.
Close the filtered water faucet. Then, check for leaks between the sump and the head.
NOTE: If leaking, turn off the water supply and turn on the filtered water faucet. Disassemble the filter
housing and check the o-ring for cuts, flat spots, etc., and sealing surfaces for foreign material. Clean
the o-ring and lightly lubricate with clean silicone grease. Carefully press into the groove in the sump.
Reassemble and check for leaks.
If you are replacing the batteries, remove, properly discard and install two new AA alkaline batteries in
the battery pack. Removing the batteries or momentarily disconnecting the lead wires resets the
six-month electronic timer. It is recommended that you change your batteries at least once a year.
The filter cartridges contain activated carbon. When new, turn on the filtered water faucet for ten
minutes to flush the system.
If your system does not have an electronic monitor, place filter change label on sump, inside cabinet
door, or in another convenient location. Write in date of filter change for future reference. Filters
should be changed every six months.
14
13
12
11
10
9
8
7
6

12
Before you call for service…
Problem Possible Causes What To Do
Water contains tiny New filter cartridges contain •Turn on the filtered water faucet and allow these
black particles activated carbon, which is a harmless carbon particles to purge from the cartridge.
harmless black powder. Turn off the faucet when the water is clear.
Water has air bubbles Air in system after installation. •Will go away after water runs for a while.
and is cloudy
Indicator light on the Six months usage has occurred. •Replace both filter cartridges and batteries in the
faucet base is flashing This is the maximum life of the battery pack.
(not available on all models) filter cartridges.
Indicator light on the The faucet base lead wire •Connect.
faucet base is not working is not connected to the battery
(not available on all models) pack lead wire.
Batteries may need to be •Observe orientation markings on the holder and install
replaced or they may have been correctly. Replace batteries if they are old.
installed incorrectly.
Lead wires damaged. •Inspect and repair as needed.
Chlorine taste and/or The filter cartridges are no • Replace both filter cartridges.
odor in the product water longer removing chlorine
from the water supply.
Water dispenses Filter may have an integral •A slower flow (approx. 0.6 g/min.) is normal with this
very slowly flow restrictor. style of filter. If flow rate is unacceptable, replace the
filters with ones that do not have integral flow restrictors
(Filter Number FXUTC).
The filters have been installed •A six-month change-out period is recommended.
for too long. Replace both filter cartridges.
The filter cartridges have •High sediment levels can cause premature clogging.
become clogged. Replace both filter cartridges.
Fittings are leaking Tubing may not be installed •Fully follow the installation instructions (page 9) and
properly. be sure the tubing is installed to the proper depth.
Troubleshooting Tips
Save time and money! Review the chart below
first and you may not need to call for service.

G
N
S
L
0 GGG
5 NNN
CSSS
BVVV
L233
R500
ECCC
VBWC
REF. NO. PART NO. PART DESCRIPTION 2 L W C
0001 WS02X10001 SCREW, #10-14 X 3/4″8888
0002 WS28X10010 MOUNTING BRACKET 1111
0003 WS22X10008 NUT, 3/8″TUBE 2222
0004 WS22X10007 INSERT, 3/8″TUBE 2222
0005 WS02X10003 SCREW, #10-14 X 1-1/4″2222
0006 WS22X10002 ELBOW, 3/8″NPT X 3/8″(compression) 2222
0007 WS19X10011 HEAD 2222
0008 WS03X10001 O-RING, 3-3/8″ X 3-5/8″2222
0009 WS30X10002 SUMP 2222
0010 WS22X10003 NIPPLE, 3/8″ NPT X 1-1/2″1111
0012 WS07X10008 TUBING, 3/8″ X 20 FT–WH 1111
0015 WS03X10044 TUBING ADAPTER ASM. 2222
0017 WS15X10008 SADDLE VALVE /SUPPLY 1111
0018 WS15X10002 FAUCET ASM. (monitored) (BLACK ON CHROME) 1 1 – –
WS10X10020 FAUCET ASM. (monitored) (WHITE ON WHITE) – – 1 –
WS10X10026 FAUCET ASM. (monitored) (BISQUE) –––1
0019 WS10X10008 TOP FAUCET BASE (BLACK) 1 1 – –
WS10X10010 TOP FAUCET BASE (WHITE) – – 1 –
WS10X10022 TOP FAUCET BASE (BISQUE) –––1
0020 WS02X10007 SCREW, #6-32 X 1-3/8″2222
0021 WS10X10002 BASE FAUCET KIT (BLACK) 1 1 – –
WS10X10221 BASE FAUCET KIT (WHITE) – – 1 –
WS10X10027 BASE FAUCET KIT (BISQUE) –––1
0022 WS02X10008 NUT 2222
0023 WS08X10003 GASKET FAUCET 1111
0024 WS06X10001 HOLDER BATTERY 1111
0025 FXSLC (rev. 2) FILTER SET – LEAD/CYST 1 – – –
FXSVC (rev. 2) FILTER SET – VOC – 1 1 1
0200 WX5X140 WRENCH SUMP 1111
0999 49-50057 PM MANUAL USE & CARE/
INSTALLATION 1111
13
Parts List. www.GEAppliances.com
*NOTE: Codes in the state of Massachusetts
require installation by a licensed plumber and
do not permit the use of the saddle valve.
For installation, use plumbing code 248-CMR
of the Commonwealth of Massachusetts.
*
Electronic
Monitor
Faucet
General Electric parts catalog.
To obtain replacement parts, call toll-free
800.626.2002 (U.S.), 800.663.6060 (Canada-English),
800.361.3869 (Canada-French)

G
N
1
S
1
5
C
B
L
R
E
V
2
REF. NO. PART NO. PART DESCRIPTION
0001 WS02X10001 SCREW, #10-14 X 3/4″4
0002 WS28X10010 MOUNTING BRACKET 1
0003 WS22X10008 NUT, 3/8″ ΤUΒΕ 2
0004 WS22X10007 INSERT, 3/8″ ΤUΒΕ 2
0005 WS02X10003 SCREW, #10-14 X 1-1/4″2
0006 WS22X10002 ELBOW, 3/8″ NPT X 3/8″ (compression) 2
0007 WS19X10011 HEAD 1
0008 WS03X10001 O-RING, 3-3/8″ X 3-5/8″1
0009 WS30X10002 SUMP 1
0012 WS07X10008 TUBING, 3/8″ X 20 FT – WH 1
0015 WS03X10044 TUBING ADAPTER ASM. 2
0017 WS15X10008 SADDLE VALVE/SUPPLY 1
0018 WS15X10022 FAUCET ASM. (nonmonitored)
(BLACK ON CHROME) 1
0025 FXULC (rev. 2) FILTER – LEAD/CYST 1
0200 WX5X140 WRENCH SUMP 1
0999 49-50057 PM MANUAL USE & CARE/
INSTALLATION 1
14
Saddle Valve*
General Electric parts catalog.
Parts List.
*NOTE: Codes in the state of Massachusetts
require installation by a licensed plumber
and do not permit the use of the saddle
valve. For installation, use plumbing code
248-CMR of the Commonwealth of
Massachusetts.
To obtain replacement parts, call toll-free
800.626.2002 (U.S.), 800.663.6060 (Canada-
English), 800.361.3869 (Canada-French)

15
GE Water Filtration System Warranty.
For The Period Of: GE Will Replace:
One Year Any part of the Water Filtration System (excluding filters) which fails due to a defect in materials
From the date of the or workmanship. During this full one-year warranty, GE will also provide, free of charge, all labor
original purchase and in-home service to replace the defective part. All warranty service will be provided by a GE
SmartWater™ Authorized Servicer.
All warranty service provided by our SmartWater™Authorized
Servicer Network. To schedule service, on-line, 24 hours a day,
visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737)
(U.S.), or 866.777.7627 (Canada).
■Service trips to your home to teach you how to use
the product.
■Improper installation.
■Failure of the product if it is abused, misused, or used
for other than the intended purpose .
■Defects that result from improper installation or damage
not caused by GE.
■Liability on the part of GE under this or any other
warranty for any indirect or consequential damage.
■Products that are used for commercial or industrial
applications.
■Use of this product where water is microbiologically
unsafe or of unknown quality, without adequate
disinfection before or after the system. Systems certified
for cyst reduction may be used on disinfected water that
may contain filterable cysts.
■Filter cartridges.
■Replacement of house fuses or resetting of circuit
breakers.
■Damage to the product caused by accident, fire, floods or
acts of God.
■Incidental or consequential damage caused by possible
defects with this appliance.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General. THIS
WARRANTY IS INTENDED TO BE IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Warrantor: General Electric Company. Louisville, KY 40225
Staple your receipt here.
Proof of the original purchase
date is needed to obtain service
under the warranty.

Printed in the United States
Consumer Support.
GE Appliances Website www.GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day,
any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals,
order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™”
your questions, and so much more...
Schedule Service www.GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service
at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) (U.S.) or
866.777.7627 (Canada) during normal business hours.
Real Life Design Studio www.GEAppliances.com
GE supports the Universal Design concept—products, services and environments that can be used by
people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and
mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen
design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call
800.TDD.GEAC (800.833.4322).
Extended Warranties www.GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty
is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours.
GE Consumer Home Services will still be there after your warranty expires.
Parts and Accessories www.GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone
at 800.626.2002 (U.S.), 800.663.6060 (Canada-English) or 800.361.3869 (Canada-French) during normal
business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should
be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe
operation.
Contact Us www.GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details
including your phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
Register Your Appliance www.GEAppliances.com
Register your new appliance on-line—at your convenience! Timely product registration will allow for
enhanced communication and prompt service under the terms of your warranty, should the need arise.
You may also mail in the preprinted registration card included in the packing material.
