GEA T.VIS M-15 User manual

Control and feedback systems
GEA T.VIS® M-15
Operating instruction (Translation from the original language)
430BAL010697EN_2

COPYRIGHT
These Operating Instructions are the English translation of the original operating
instructions in the sense of the EU Machinery Directive. This document is
protected by copyright. All rights reserved. The document may not, in whole or in
part, be copied, reproduced, translated or reduced to an electronic medium of
machine-readable form without the express permission of GEA Tuchenhagen
GmbH.
LEGAL NOTICE
Word marks
The designations T.VIS®, VARIVENT®, ECOVENT®, STERICOM®, VESTA® und
LEFF® are protected trademarks of GEA Tuchenhagen GmbH.
We kindly request that you answer a few short questions about these instruction
manual. Use the following QR code or link to access the questionnaire:
https://www.ntgt.de/ra/s.aspx?s=367112X57707125X58087
430BAL010697EN_2
2 15.04.2020

TABLE OF CONTENTS
1 General Information 7
1.1 Information on the Document 7
1.1.1 Binding Character of These Operating Instructions 7
1.1.2 Notes on the Illustrations 7
1.1.3 Symbols and Highlighting 7
1.2 Manufacturer address 8
1.3 Contact 8
2 Safety 9
2.1 Intended use 9
2.1.1 Requirements for operation 9
2.1.2 Improper operating conditions 9
2.2 Operator’s Duty of Care 10
2.3 Subsequent changes 10
2.4 IP Protection Classes 11
2.5 General safety instructions and dangers 11
2.5.1 Principles for safe operation 12
2.5.2 Environmental Protection 12
2.5.3 Electrical Equipment 12
2.6 Supplementary Regulations 13
2.7 Qualification of personnel 13
2.8 Safety equipment 14
2.8.1 Signs 14
2.9 Residual dangers 15
2.9.1 Electrostatically Endangered Components and Modules 15
2.10 Danger zones 16
3 Description 17
3.1 Design 17
3.2 Functional description 19
3.2.1 Operation Principle 19
3.2.2 Control Top without Solenoid Valves 19
3.2.3 Control Top with Solenoid Valves 20
3.2.4 Control Top with Cap 20
3.2.5 Safety Air Exhaust/Installation Position 20
4 Transport and storage 22
4.1 Storage conditions 22
4.2 Transport 22
4.2.1 Scope of supply 22
5 Technical data 23
5.1 Type plate 23
5.2 Technical data 26
5.3 Specifications interface module 24V DC Version 28
5.4 Specifications for AS-Interface Adapter Module 29
5.5 Specifications for DeviceNet Adapter Module 30
5.6 DIP Switch 31
5.7 Accessories 32
5.8 Tool 33
5.9 Lubricants 34
5.10 Equipment 34
6 Assembly and installation 36
6.1 Safety instructions 36
6.2 Establishing hose connections 36
6.3 Pneumatic connections 36
6.3.1 Control Top with 1 Solenoid Valve or Without Solenoid Valve 37
6.3.2 Control Top with 2 Solenoid Valves 38
6.3.3 Control Top with 3 Solenoid Valves 39
6.4 Electrical connections 40
6.4.1 Overview 40
6.4.2 ASI Connections 41
6.4.3 External Proximity Switch (170) 42
6.4.4 Electrical 24 V DC Wiring 42
430BAL010697EN_2
15.04.2020 3

Plug M12 / 5-pin (24.5) 43
Plug M12 / 8-pin (24.1) 43
Interface module with 2 sensors 44
6.4.5 Electrical Wiring of AS-Interface 46
Plug M12 / 2-pin (24.3) 46
6.4.6 Electrical DeviceNet Wiring 47
Plug M12 / 5-pin (24.2) 47
DeviceNet adapter module 48
6.4.7 Wiring Diagram for 24 V DC Control Systems with P Logic 49
6.4.8 Wiring Diagram for 24 V DC Control Systems with N Logic 51
6.4.9 Wiring Diagram for T.VIS M-15 with Adapter Module 52
6.4.10 Wiring Diagram for T.VIS M-15 24 V DC 54
6.5 Visual Display 56
6.5.1 Illuminated dome 56
6.6 Mounting the Control Top to Different Valves 56
6.6.1 Mounting to VARIVENT Valve or STERICOM Valve Types N_A/D, R 58
6.6.2 Mounting to a Butterfly Valve T-smart 8000 59
6.6.3 Mounting to a Butterfly Valve T-smart 7 and a Mixproof Butterfly Valve T-smart 9 61
6.6.4 Mounting to ECOVENT Valves N_ECO and W_ECO 62
6.6.5 Mounting to VESTA Valve H_A/M 64
6.6.6 Mounting to VESTA Valve H_A 66
6.6.7 Mounting to Valve N_/E or W_/E or STERICOM Valve 68
6.6.8 Mounting to a T-smart Single-Seat and Double-Seal Valve 70
6.6.9 Fitting to an ASEPTOMAG Valve 71
6.6.10 Replacing Control Tops 72
7 Start-up 73
7.1 Safety notes 73
7.2 73
7.3 Checking Valve Actuation 74
7.4 Service Function 74
7.5 Adjusting the Sensor in the Control Top 74
7.5.1 Seat Valves – Position of Sensor S1 Up 77
7.5.2 T-smart Butterfly Valves 79
7.6 Adjust the proximity switch in the lantern - for unbalanced double disks of the valves D, R, Y, B, T_R 82
7.7 Adjusting the Proximity Switch in the lantern of PMO Valve Type M/2.0 84
7.8 Test procedure for Tuchenhagen PMO valves type M / 2.0 86
7.8.1 Purpose 87
7.8.2 Process Overview 87
7.8.3 Hardware Description 87
7.8.4 Test Procedure 1 87
7.8.5 Test Procedure 2 88
8 Operation and control 90
8.1 Safety instructions 90
9 Cleaning 91
9.1 Cleaning 91
10 Maintenance 92
10.1 Safety instructions 92
10.2 Inspections 93
10.3 Removing the Control Top from the Valve 94
10.4 Dismantling the Control Top into its Components 95
10.4.1 Variants of the Control Top 95
10.4.2 Removing the Cap 95
10.4.3 Removing the Solenoid Valves and the Control Plate 96
10.4.4 Removing the logic element NOT (seal pack) 97
10.4.5 Fitting the Logic Element NOT (Sealing Package) 98
10.4.6 Removing the Adapter Module 99
10.4.7 Removing the Interface Module 99
10.4.8 Removing the pneumatic block 100
10.4.9 Fitting the Pneumatic Block 100
10.4.10 Install pneumatic connections 102
10.5 Maintenance 102
10.5.1 Replacing the Seals on the Base 102
430BAL010697EN_2
4 15.04.2020

11 Alarms 104
11.1 Malfunctions and remedies 104
12 Decommissioning 105
12.1 Safety instructions 105
12.2 Disposal 105
12.2.1 General notes 105
13 Spare parts list - control top type T.VIS M-15 106
14 Spare parts list - Switch bar T.VIS M-15 111
15 Dimension sheet - Control top type T.VIS M-15 113
16 Dimension sheet - Switch bar LFT-R T.VIS M-15 for lifted valves 114
17 Appendix 117
17.1 Lists 117
17.1.1 Abbreviations and terms 117
430BAL010697EN_2
15.04.2020 5

430BAL010697EN_2
6 15.04.2020

1 General Information
1.1 Information on the Document
The present Operating Instructions are part of the user information for the
product. The Operating Instructions contain all the information you need to
transport, install, commission, operate and carry out maintenance for the product.
1.1.1 Binding Character of These Operating Instructions
These Operating Instructions contain the manufacturer's instructions to the
operator of the product and to all persons who work on or use the product
regarding the procedures to follow.
Carefully read these Operating Instructions before starting any work on or using
the product. Your personal safety and the safety of the product can only be
ensured if you act as described in the Operating Instructions.
Store the Operating Instructions in such a way that they are accessible to the
operator and the operating staff during the entire life cycle of the product. When
the location is changed or the product is sold make sure you also provide the
Operating Instructions.
1.1.2 Notes on the Illustrations
The illustrations in these Operating Instructions show the product in a simplified
form. The actual design of the product can differ from the illustration. For detailed
views and dimensions of the product please refer to the design documents.
1.1.3 Symbols and Highlighting
In these Operating Instructions, important information is highlighted by symbols
or special formatting. The following examples illustrate the most important types
of highlighting.
Danger
Warning: Fatal Injuries
Failure to observe the warning can result in serious damage to health, or
even death.
► The arrow identifies a precautionary measure you have to take to avoid
the hazard.
Warning: Explosions
Failure to observe the warning can result in severe explosions.
► The arrow identifies a precautionary measure you have to take to avoid
the hazard.
General Information
Information on the Document
430BAL010697EN_2
15.04.2020 7

Warning!
Warning: Serious Injuries
Failure to observe the warning can result in serious damage to health.
► The arrow identifies a precautionary measure you have to take to avoid
the hazard.
Caution!
Warning: Injuries
Failure to observe the warning can result in minor or moderate damage to
health.
► The arrow identifies a precautionary measure you have to take to avoid
the hazard.
Notice
Warning: Damage to Property
Failure to observe the warning can result in serious damage to the
component or in the vicinity of the component.
► The arrow identifies a precautionary measure you have to take to avoid
the hazard.
Carry out the following steps: = Start of a set of instructions.
1. First step in a sequence of operations.
2. Second step in a sequence of operations.
®Result of the previous operation.
®The operation is complete, the goal has been achieved.
Hint!
Further useful information.
1.2 Manufacturer address
GEA Tuchenhagen GmbH
Am Industriepark 2-10
21514 Büchen
1.3 Contact
Tel.:[phone]
Fax:[phone]
[email protected]
www.gea.com
General Information
Manufacturer address
430BAL010697EN_2
8 15.04.2020

2 Safety
2.1 Intended use
The T.VIS M-15 control top can be used for the pneumatic and electrical
connection of all Tuchenhagen process valves with VARIVENT adaptation. Using
the device for any other purpose is considered contrary to its designated use.
The control top T.VIS M-15 is available as
•position indicator without solenoid valve
•with solenoid valve as control top
The control top T.VIS M-15 is completely installed on the dedicated actuator/
adapter of the process valve by means of a clamp connection. Due to the internal
air guiding system, the control air can pass directly from the control top into the
actuator on suitable process valves. For process valves which do not allow the air
to be guided internally, the control top has a connection option for supplying the
air externally via a hose.
With T.VIS M-15 the following can be carried out for all valves:
•monitoring the non-actuated position of the valve disk,
•monitoring the actuated position of the valve disk,
•provision of an PNP or NPN output for feedback signals,
•coloured visualization of the valve position and status via the illuminated
dome fitted on the control top.
In addition, with T.VIS M-15 you can monitor the non-actuated position of the
double-disk with an initiator in the lantern for all double-seat valves.
The control top T.VIS M-15 may not be used in areas where ATEX approval is
required.
Hint!
The manufacturer will not accept any liability for damage resulting
from any use of the valve which is not in accordance with the
designated use of the valve. The risk is borne solely by the operating
company.
2.1.1 Requirements for operation
The prerequisite for reliable and safe operation of the component is proper
transportation and storage as well as professional installation and assembly.
Operating the unit within the limits of its designated use also involves adhering to
the operating, inspection and maintenance instructions.
2.1.2 Improper operating conditions
The operational safety of the component can not be guaranteed under improper
operating conditions. Therefore avoid improper operating conditions.
The operation of the component is not permitted if:
•Persons or objects are in the danger zone.
Safety
Intended use
430BAL010697EN_2
15.04.2020 9

•Safety devices are not working or were removed.
•Malfunctions have been detected on the component.
•Damage to the component has been detected.
•Maintenance intervals have been exceeded.
2.2 Operator’s Duty of Care
The operating company of the component has a special responsibility for the
proper and safe handling of the component within their company. Only use the
component when it is in perfect operating condition in order to prevent danger to
persons and property.
This operating manual contains information that you and your employees need
for safe operation over the life of the component. Be sure to read these Operating
Instructions carefully and ensure that the measures described here are observed.
The operator's duty of care includes planning the necessary safety measures and
monitoring that these measures are observed. The following principles apply:
•Only qualified personnel may work on the component.
•The operating company must authorize personnel to carry out the relevant
tasks.
•Order and cleanliness must be maintained at the work stations and in the
entire area surrounding the component.
•Personnel must wear suitable work clothing and personal protective
equipment. As the operating company must ensure that work clothing and
personal protective equipment are used.
•Inform personnel regarding any properties of the product which might pose a
health risk and the preventative measures to be taken.
•Have a qualified first-aid representative on call during the operation. This
person must be able to initiate any necessary first-aid measures in case of an
emergency.
•Clearly define procedures, competences and responsibilities for those
working in the area of the component. Everybody must know what to do in
case of an emergency. Instruct the staff in this respect at regular intervals.
•The signs on the component must always be complete and easy to read.
Check, clean and replace the signs as necessary at regular intervals.
•Observe the Technical Data specified and the limits of use!
Hint!
Carry out regular checks. This way you can ensure that these
measures are actually observed.
2.3 Subsequent changes
Safety
Operator’s Duty of Care
430BAL010697EN_2
10 15.04.2020

No technical modifications should ever be made to this component. Otherwise
you will have to undergo a new conformity process in accordance with the EC
Machinery Directive on your own.
In general, only original spare parts supplied by GEA Tuchenhagen GmbH
should be fitted. This ensures that the component is always operating properly
and efficiently.
2.4 IP Protection Classes
The control top T.VIS M-15 in its standard version fulfils the requirements of
protection class IP66 (DIN EN 60529). Models in protection classes IP67 or
IP69k (both DIN EN 60529) are also available.
IP classes provide information about the degree of protection an electrical device
housing provides against the ingress of solids (first digit) or humidity (second
digit). They attempt to reproduce common kinds of failure and assign so-called IP
codes to the protected systems. The letters IP stand for 'International Protection'
and are prefixed to the code numbers.
Position of the digit Explanation
1. digit* Protection against solids
6 Dust tight
2. digit* Protection against humidity
6 Protected against powerful water jets
7Protected against temporary
immersion
9k Protected against high pressure spray
downs
*For additional digits and more detailed descriptions please refer to the
pertinent standard.
Digits not to be mentioned can be replaced by the letter x (e. g. IPx6).
Concerning the ingress of humidity, IPx6 includes all lower IP classes. This is,
however, not the case for the higher protection class IPx7!
If cleaning agents are used that significantly reduce the surface tension and/or if
high-pressure cleaners are used, we recommend using IP69k rated equipment as
an option.
Hint!
The specified IP classes only apply if the connectors are connected
correctly, if the cable gland is properly sealed and if the control top is
fitted on the valve, see Chapter 6, Page 36.
2.5 General safety instructions and dangers
The component is safe to operate. It was built according to state-of-the-art
science and technology.
Nevertheless, dangers can arise from the component, if:
Safety
IP Protection Classes
430BAL010697EN_2
15.04.2020 11

•the component is not used as intended
•the component is used improperly
•the component is operated under impermissible conditions
2.5.1 Principles for safe operation
Dangerous situations during operation can be avoided by safety-conscious and
proactive behaviour of the staff.
To ensure safe operation of the valve the following principles apply:
•The Operating Instructions must be kept ready to hand at the valve's place of
use. They must be complete and in clearly legible form.
•Only use the valve for its intended use.
•The valve must be functional and in good working order. Check the condition
of the valve before starting work and at regular intervals.
•Wear tight-fitting work clothing for all work on the valve.
•Ensure that nobody can get hurt on the parts of the valve.
•Immediately report any faults or noticeable changes on the valve to the
person responsible.
•Never touch the pipes and the valve when these components are hot! Avoid
opening the valve unless the process plants have been emptied and
depressurised.
•Observe the accident prevention regulations and all local regulations.
2.5.2 Environmental Protection
Harm to the environment can be avoided by safety-conscious and proactive
behaviour of the staff.
For environmental protection the following principles apply:
•Substances harmful to the environment must not be discharged into the
ground or the sewage system.
•Always observe the pertinent regulations relating to waste avoidance,
disposal and utilization.
•Substances harmful to the environment must be collected and stored in
suitable containers. Clearly mark the containers.
•Dispose of lubricants as hazardous waste.
2.5.3 Electrical Equipment
For all work on electrical equipment, the following principles apply:
•Access to electrical equipment should only be allowed to qualified
electricians. Always keep unattended switch cabinets locked.
•Modifications of the control system can affect the safe and reliable operation.
Modifications are only permitted with the express permission of the
manufacturer.
Safety
General safety instructions and dangers
430BAL010697EN_2
12 15.04.2020

•After completion of all work, check that the protective devices are fully
functional.
2.6 Supplementary Regulations
In addition to the instructions in this documentation the following also has to be
observed:
•pertinent accident prevention regulations,
•generally accepted safety rules,
•national regulations applicable in the country of use,
•work and safety instructions applicable in the facility,
•installation and operating regulations for use in potentially explosive areas.
2.7 Qualification of personnel
This section provides information on how the personnel working on the
component must be trained.
Operating and maintenance personnel must
•have the necessary qualification to carry out their tasks,
•be instructed with regard to possible dangers,
•know and observe the safety instructions given in the documentation.
Only allow qualified electricians to carry out work on the electrical equipment or
have a qualified electrician supervise the work.
Only allow specially trained personnel to carry out work on an explosion-
protected system. When working on explosion-protected equipment observe the
standards DIN EN 60079-14 for gases and DIN EN 50281-1-2 for dusts.
The following minimum qualifications are required:
•Training as a specialist for working independently on the component.
•Adequate instruction to work on the component under the supervision and
guidance of a trained specialist
Each employee must meet the following requirements to work on the component:
•Personal suitability for the respective task.
•Sufficient professional qualification for the respective task.
•Received instruction about the functionality of the component.
•Received instruction about operating sequences on the component.
•Familiar with the safety devices and their function.
•Familiar with these Operating Instructions, especially with the safety
instructions and the information which is relevant for the task on hand.
•Familiar with the basic regulations with regard to occupational health and
safety and accident prevention.
Safety
Supplementary Regulations
430BAL010697EN_2
15.04.2020 13

When working with the component, a distinction is made between the following
user groups:
User groups
Staff Qualifications
Operating personnel Adequate instruction and sound knowledge in the following areas:
•Functionality of the component
•Operating sequences on the pump
•What to do in case of an emergency
•Lines of authority and responsibilities with respect to the task
Maintenance personnel Appropriate training and a sound knowledge of the structure and
functionality of the component.
Sound knowledge in the following areas:
•Mechanical equipment
•Electrical equipment
•Pneumatic system
Authorization with regard to safety engineering standards to carry
out the following tasks:
•Setting devices into operation
•Earthing of devices
•Marking of devices
The relevant certificates of qualification must be submitted before
work can be carried out on ATEX certified machines.
2.8 Safety equipment
2.8.1 Signs
Dangerous points on the control top are indicated by warning signs, prohibition
signs and mandatory signs.
The signs and notes on the control top must always be legible. Any illegible signs
must be replaced immediately.
Safety
Safety equipment
430BAL010697EN_2
14 15.04.2020

Signs on the control top
Sign Meaning
Fig.1
General hazard warning
Fig.2
Warning Crushing
2.9 Residual dangers
Dangerous situations can be avoided by safety-conscious and proactive
behaviour of the personnel and by wearing personal protective equipment.
Residual dangers on the control top and measures
Danger Cause Measure
Danger to life Inadvertent switch-on of the
control top
Effectively disconnect all components, effectively prevent switch-
on.
Electric power Observe the following safety rules:
1. Isolate from the power supply.
2. Take appropriate measures to prevent switch on.
3. Test absence of voltage.
4. Earthing and short-circuiting.
5. Cover or safeguard any adjacent live parts.
Damage to property Welding can cause damage to
the electronics or result in data
loss.
Do not carry out any welding work in the vicinity of the control top
or make sure electronics are properly protected.
2.9.1 Electrostatically Endangered Components and Modules
The control top contains electronic components that are sensitive to electrostatic
discharge (ESD). Contact with electrostatically-charged persons or objects can
endanger these components. In the worst case they are destroyed immediately
or fail after being put into operation.
To minimize or prevent the possibility of damage resulting from sudden
electrostatic discharge,
•observe the requirements of DIN EN 61340-5-1 and 5-2,
•be careful not to touch the electronic components,
•also take care not to touch electronic components when supply voltage is
present.
Use ESD-compliant packaging when returning electronic components. (Contact
GEA Tuchenhagen if you have any questions.)
Safety
Residual dangers
430BAL010697EN_2
15.04.2020 15

2.10 Danger zones
Please observe the following notes:
•In the event of malfunctions, shut down the control top (disconnect from the
power and air supply) and secure it against being used.
•Before starting any service, maintenance or repair work, disconnect the
control top from the power supply and secure it against inadvertently being
switched back on again.
•Only allow a qualified electrician to carry out any work on the electrical power
supply.
•Check the electrical equipment of the control top at regular intervals.
Immediately remedy loose connections and molten cables.
•If work on live parts cannot be avoided, call in a second person, who can
operate the main switch in case of an emergency.
Safety
Danger zones
430BAL010697EN_2
16 15.04.2020

3 Description
3.1 Design
Fig.3
Fig.4
No. Designation No. Designation
1 Switch bar 24.4 Terminal box, AS interface
5 Attachment 26 Sound absorber
5.1 Filter 26.1 Non-return valve (cannot be
replaced)
5.2 Screw-in plug connection 43 Interface module (including 2
sensors)
7 Cap 47 Adapter module
8 Pneumatic block 50 Cable gland for external
proximity switch
15 Clamp connection 63 Solenoid valves
21 Sound absorber 64 Logic element NOT, optional
21.1 Throttle, optional 65 Control plate/blind plate
24 Cable gland 170 External proximity switch,
optional

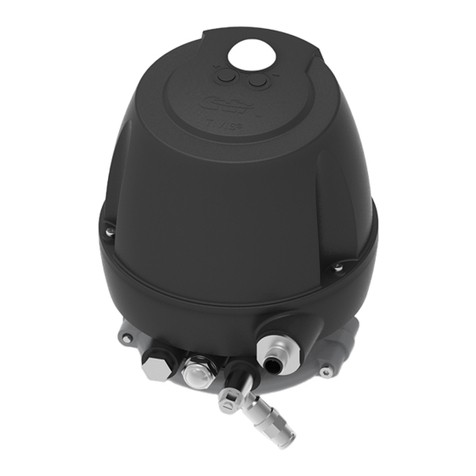

The T.VIS M-15 control top consists of:
•a 24 VDC interface module with 2 sensors for the detection of the two valve
end positions,
Description
Design
430BAL010697EN_2
15.04.2020 17

•an additional adapter module for the interface modules AS-Interface,
DeviceNet (optional),
•a maximum of three solenoid valves for the actuation of the main stroke and
the lift strokes,
•a logic element NOT (optional) for backup of the valve's main spring or for the
actuation of indifferent actuators (air/air),
•a connection for an external proximity switch for monitoring the non-actuated
position of the double-disk (optional),
•an exhaust air throttle (optional) for the infinitely adjustable setting of the
closing velocity of the main stroke,
•a supply air throttle (optional) for the infinitely adjustable setting of the
opening velocity of the main stroke.
The permanent magnet on the switch bar (1) is fragile and must therefore be
protected against mechanical impact.
Magnetic fields can delete data carriers and affect or destroy electronic or
mechanical components. Avoid any influence of external magnetic fields on the
sensor system!
Do not perform welding work in the vicinity of the control top, as this could cause
data losses.
Description
Design
430BAL010697EN_2
18 15.04.2020

3.2 Functional description
3.2.1 Operation Principle
The control top T.VIS M-15 works with a microprocessor that contains the
software for operation, visualization and intelligent position detection.
Pneumatic and electronic modules are located inside the control top. The
pneumatic modules in this case are solenoid valves, the number of which varies
between 0 and 3, depending on the intended purpose. A logic element NOT can
be used for pressure backup of the actuator spring. Control air is supplied to the
relevant control air chambers via air connections at the outside of the control top.
On VARIVENT valves and ECOVENT standard valves, the main control air is
guided through the switch bar. On process valves which do not allow the air to be
guided internally, the main control air is supplied to the actuator via a hose
connected to a separate air connection. The exhaust air of the main actuator is
discharged via an air connection with sound absorber or optionally via an
adjustable exhaust air throttle. Exhaust air from the optional lifting actuators is
discharged from the control top via a venting diaphragm and via a non-return
valve.
The main task of the 24 VDC interface module with its sensors is to determine
the valve position on the basis of the position of the valve stem and to generate
the corresponding feedback signals for this position in order to send them to a
higher-level control system.
Due to the illuminated dome integrated in the cap of the control top the light
emitting diodes (LED) arranged on the interface module can be seen even if the
cap is closed. The 2 differently coloured LEDs allow visualization of the main
functions of the valve.
Visualization:
•Valve in non-actuated position – green
•Valve in actuated position – yellow
•Valve deviating from its adjusted actuated positions – yellow flashing
•Valve idle – no indication
The basic 24 VDC equipment can be upgraded to the interface modules AS-
Interface or DeviveNet, simply by fitting an adapter module.
3.2.2 Control Top without Solenoid Valves
The control top T.VIS M-15 without solenoid valves works as a position indicator.
Once the two sensors have been adjusted, the control top indicates the status of
the process valve locally by coloured LEDs under the illuminated dome so that it
is visible over a long distance.
The position feedback signals are supplied to the user in one of the following
ways, depending on the communication method selected:
•24V DC switching output
•AS interface data bit
•DeviceNet data bit
Description
Functional description
430BAL010697EN_2
15.04.2020 19

To adjust the second sensor, the process valve must be moved once to its end
positions by an external solenoid valve.
3.2.3 Control Top with Solenoid Valves
The control top with solenoid valves acts as a control top. The signalling takes
place in the same way as with the control top without solenoid valves. with the
difference being that the solenoid valve integrated in the base is operated in
accordance with the control signals. Depending on the design of the process
valve, up to 3 solenoid valves can be installed in the control top.
To provide compressed air support to the actuator spring, a pneumatic NOT logic
element can be used.
The control signals are given by the user's process control system or by
operating the solenoid valves manually. To do this, use a screwdriver to turn the
screw (S) from 0 to 1, see figure.
Fig.5
3.2.4 Control Top with Cap
Fig.6: Control Top with Cap
According to protection class IP67 and/or 69k (EN 60529) the control top T.VIS
M-15 is suitable for use in this design and if the electrical and pneumatic
connections are installed correctly.
Observe the general instructions regarding ESD protection.
3.2.5 Safety Air Exhaust/Installation Position
To provide protection against excess pressure which can build up in the inside of
the control top, a vent plug (E2) is fitted in the base.
Description
Functional description
430BAL010697EN_2
20 15.04.2020
