Geberit KSS-160 User manual

Bedienungsanleitung
Mode d’emploi
Istruzioni per l’uso
Geberit KSS-160
Geberit KSS-200
Geberit KSS-315
User
Manual
User
Manual
www.inrusstrade.ru

EN
10 B773-003 © 02-2014
997.771.00.0 (09)
Translation of the original operating instructions
Safety
Basic safety notes
• Read through the operating instructions before commissioning the tool and follow the
instructions they contain to the letter
• Keep the operating instructions together with the tool for future reference
• Follow the country-specific safety regulations
• Provide mains fuse protection using a residual current protective device. Country-specific
safety regulations must be observed in this respect
• This device may be used by children aged 8 years and up as well as persons with
reduced physical, sensory or mental capabilities or lack of experience with and
knowledge about the device, provided that they are supervised or taught how to use
the device safely and that they understand the hazards that may result from this.
Children must not play with the device. Children must not carry out cleaning or user
maintenance without supervision (in accordance with EN 60335-1)
Workplace safety
• Only use the welding plate in well-ventilated areas
• Do not use the welding plate close to highly inflammable fluids or in explosive gas or
dust atmospheres
• Do not store combustible materials within 1 m of the welding plate
• Keep the working area clean and tidy
• Adequately illuminate the working area
• Keep children and unauthorized persons away from the workplace during operation of
the welding plate
• Avoid having suspended objects in the working area
Electrical safety
• Before using, always check the welding plate, mains connection cable and mains plug
for damage and proper operability
• Do not touch damaged mains connection cables or mains plugs. Have them replaced
immediately by an electrically skilled person
• Do not weld wet or water-filled pipes
• Protect the tool against moisture
• Disconnect the mains plug during any work that is not part of the welding process
• Avoid contact between the mains cable and the hot welding plate
• Have electrical equipment checked according to local regulations
www.inrusstrade.ru

EN
11
B773-003 © 02-2014
997.771.00.0 (09)
Personal safety
• Fix the welding plate to a flat, solid substructure
• Only use the welding plate in weather-proofed places
• Only use the welding plate if it is in perfect working order
• Store the welding plate in a locked room out of the reach of children
• Do not use the welding plate if tired or under the influence of alcohol, drugs or
medications
• Do not leave the welding plate unattended
• Only replace damaged parts with original Geberit spare parts
• Wear non-slip safety shoes
• Tie up baggy or loose clothing
• Keep long hair in place with a hair net
Maintenance of the electric tool
• Store the welding plate in a dry room
• Clean the welding plate regularly and check its operability
• Clean dirty welding plate when slightly warm, using a clean, dry cloth
• Do not use fluids for cleaning
• Do not use steel wool or other similar products when cleaning
• Have any malfunctions and damage to the welding plate repaired immediately by
Geberit or an authorized repair shop
www.inrusstrade.ru

EN
12 B773-003 © 02-2014
997.771.00.0 (09)
Intended use
The Geberit welding plates KSS-160, KSS-200 and
KSS-315 may be used for butt-welding
connections of Geberit PE and Geberit Silent-db20
pipes and fittings only:
• Geberit KSS-160 for Geberit PE and
Geberit Silent-db20 ø 32–160 mm
• Geberit KSS-200 for Geberit PE and
Geberit Silent-db20 ø 32–200 mm
• Geberit KSS-315 for Geberit PE ø 200–315 mm
Any other use or a use extending beyond this is
deemed to be improper. Geberit will not accept any
liability for any resulting damage.
Target group
This tool may only be used by skilled persons in
accordance with EN IEC 82079-1:2012.
Explanation of symbols
Table 1: Symbols in the instructions
Table 2: Symbols on the product
Product description
Technical data
Table 3: Geberit welding plate KSS-160
Table 4: Geberit welding plate KSS-200
Table 5: Geberit welding plate KSS-315
Symbol Meaning
WARNING Refers to a potentially dangerous
situation that may cause serious
injury or death
Refers to important information
Symbol Meaning
Danger of fatal electric shock
Risk of burns from hot welding plate
Designation Value
Nominal voltage 230 V / 120 V
Mains frequency 50 Hz
Power consumption 630 W
Protection degree IP20
Protection class I
Net weight 4 kg
Operating temperature -10 – +50 °C
Storage temperature -20 – +60 °C
Designation Value
Nominal voltage 230 V / 120 V
Mains frequency 50 Hz
Power consumption 800 W
Protection degree IP20
Protection class I
Net weight 5 kg
Operating temperature -10 – +50 °C
Storage temperature -20 – +60 °C
Designation Value
Nominal voltage 230 V
Mains frequency 50 Hz
Power consumption 1300 W
Protection degree IP20
Protection class I
Net weight 6 kg
Operating temperature -10 – +50 °C
Storage temperature -20 – +60 °C
www.inrusstrade.ru

EN
13
B773-003 © 02-2014
997.771.00.0 (09)

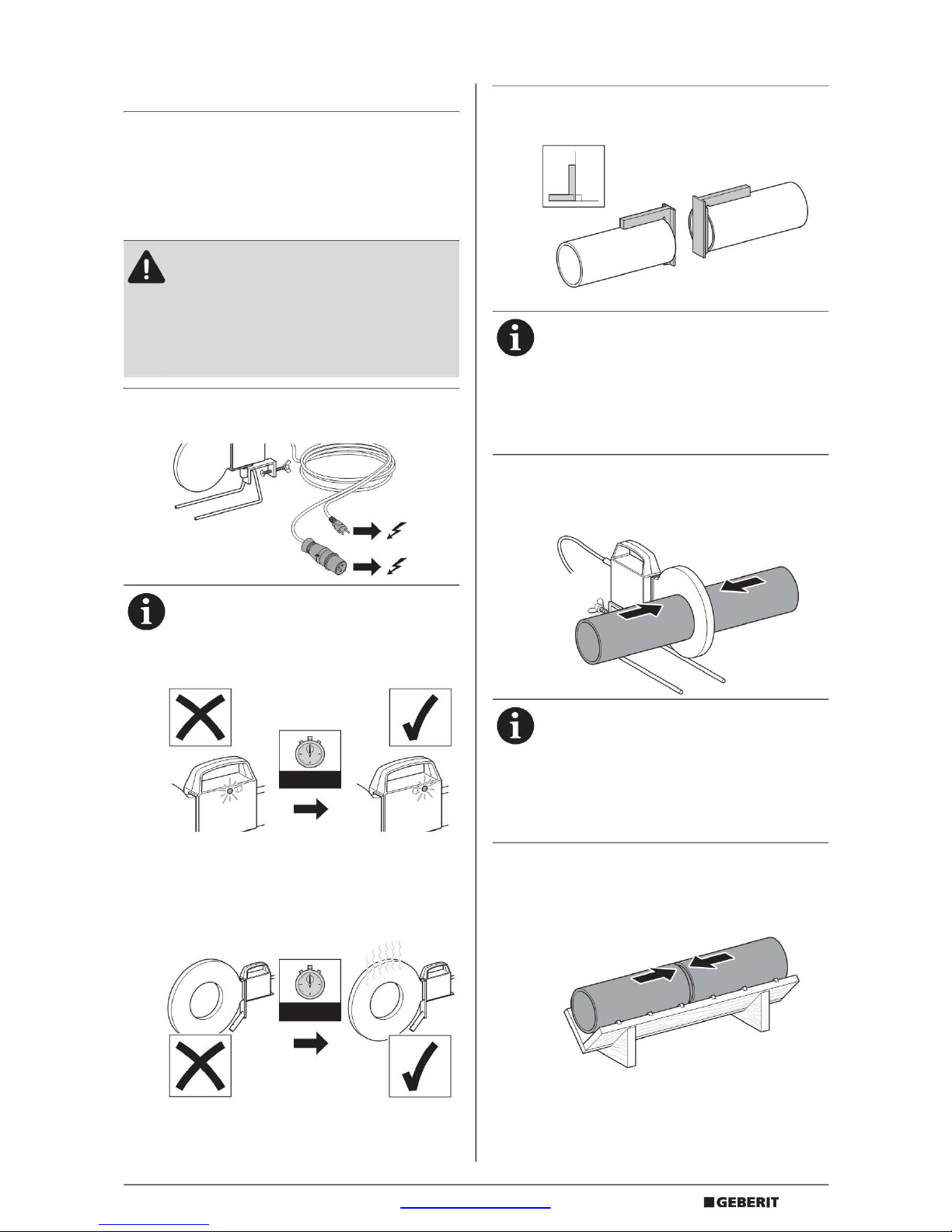

Operation
Welding Geberit PE and
Geberit Silent-db20 pipes and
fittings
1Connect the mains plug to the power supply
system.
2Cut the pipes or fittings to length at a right
angle.
3Heat pipes or fittings by pressing the side to
be welded against the welding plate with the
required contact pressure.
4To achieve a high-tensile joint between
pipes and fittings, apply even pressure to
bond the pipes or fittings together.
WARNING
Risk of injury from burns
`Do not touch the welding plate during
operation or during the cooling-down
phase.
`Insert the welding plate into the provided
stand during breaks in work.
Geberit welding plate KSS-160/KSS-200:
the red signal lamp lights up during the heat-
up phase. Once the welding temperature
has been reached (after approx. 8 minutes),
the green signal lamp lights up.
Geberit welding plate KSS-315:
the heat-up phase is monitored by the built-
in temperature regulator. The welding
temperature is reached after approx.
20 minutes of heating.
230 V
120 V
KSS-160
KSS-200
00:08:00
KSS-315
00:20:00
Heating the pipes or fittings:
• ø 32 mm only possible by manual
actuation
• ø 40–75 mm possible by manual actuation
or with the welding machine
• ø 90–315 mm only possible with the
welding machine
Connecting the pipes or fittings:
• ø 32 mm only possible on the jointing
guide
• ø 40–75 mm possible on the jointing guide
or with the welding machine
• ø 90–315 mm only possible with the
welding machine
90°
www.inrusstrade.ru

EN
14 B773-003 © 02-2014
997.771.00.0 (09)
Maintenance
Maintenance regulations
Disposal
Materials
This product meets the requirements of Directive 2002/95/EC RoHS (Restriction of Hazardous Substances
in electrical and electronic equipment).
Disposal of old electrical and electronic equipment
In accordance with Directive 2002/96/EC WEEE on waste electrical and electronic equipment,
manufacturers of electrical equipment are obliged to take back old equipment and to dispose of it correctly.
The symbol indicates that the product cannot be disposed of with non-recyclable waste. Old equipment
should be returned directly to Geberit, where it will be disposed of appropriately.
Please contact your responsible Geberit sales company or visit www.geberit.com for addresses to which
equipment can be returned.
Should repair be necessary, the complete welding plate must be sent for repair in a suitable transport
container. Repair work may only be performed by authorized repair shops. The addresses of
authorised repair shops can be requested from the Geberit sales companies or found on
www.geberit.com.
Interval Maintenance work
Regularly (before use, at the
start of the working day)
Examine the welding plate for externally visible defects and damage.
Clean the welding plate.
www.inrusstrade.ru

EN
15
B773-003 © 02-2014
997.771.00.0 (09)
EC declaration of conformity
We hereby declare that the Geberit welding plates meet the relevant basic health and safety requirements
as a result of their design and construction type as well as the version that we have put on the market.
If the welding plates are used improperly or are modified without the permission of Geberit, this declaration
becomes invalid.
Directives taken into account:
• Low Voltage Directive 2006/95/EC
• EMC Directive 2004/108/EC
Applied standards:
• EN 55014-1:06+A1:09+A2:11
• EN 55014-2:97+A1:01+A2:08
• EN 50366:03+A1:06
• EN 62233:08
• EN 61000-3-2:06+A1:09+A2:09
• EN 61000-3-3:08
• EN 60355:12
• EN 60355-2-45:02+A1:09+A2:12
Address
Geberit International AG, Schachenstrasse 77, CH-8645 Jona, Switzerland
Person in charge of documentation
Werner Trefzer, Produktkommunikation, Geberit International AG, CH-8645 Jona, Switzerland
21.08.2013, Dr. F. Klaiber, Managing Director 21.08.2013, G. Taubert,
Head of International Standardisation
