CAUTION: this telephone is specifically designed for the people
with hearing difficulties and is provided with a handset earpiece
volume control for individual requirements. Due care must be
taken by all users that the handset earpiece volume control is set
to the lowest level acceptable by each respective user. Care
should therefore be exercised to ensure that any naive users are
familiar with this requirement.
ATTENTION: Ce téléphone peut être destiné aux personnes ayant
des problèmes auditifs. il possède un écouteur a volume variable.
A la première utilisation, assurez vous que le volume soit réglé au
minimum. Les personnes malentendantes pourront par la suite
augmenter le volume pour l’adapter à leur besoin.
WARNUNG: Dieses Telefon wurde speziell für schwerhörige
Personen konzipiert und besitzt eine auf die individuellen
Bedürfnisse einstellbare Hörerlautstärke. In Folge dessen sollten
alle Nutzer darauf achten, dass der Lautstärkeregler des Hörers, in
Rücksicht auf andere Nutzer, auf das niedrigste Niveau gestellt
wird. Es ist darauf zu achten, dass unwissende Benutzer mit der
Handhabung dieser Apparatur vertraut gemacht werden.

2
Description .................................................................3
Setting up ....................................................................5
1- Connecting the telephone ........................................5
2- Ringer volume setting ..............................................5
3- Tone/Pulse switch ....................................................6
4- Time break recall setting ..........................................6
5- Wall mounting ..........................................................6
Volume and tone adjustment ....................................8
1- Receiving volume and tone adjustment ...................8
2- Sending volume adjustment .....................................9
Using the phone .........................................................10
1- Answer a call ............................................................10
2- Making a call ............................................................10
3- Last number redial ...................................................10
4- Recall, * & # buttons ................................................10
5- Mute button ..............................................................10
6- Storing telephone numbers ......................................11
7- Dialling stored number .............................................12
General informations .................................................13
Index

3
1. Line socket.
2. Volume and tone adjustment ON/OFF switch.
3. 3 emergency numbers.
4. Reception tone adjustment.
5. Clip for wall mounting.
6. Reception volumen adjustment.
7. Handset cord socket.

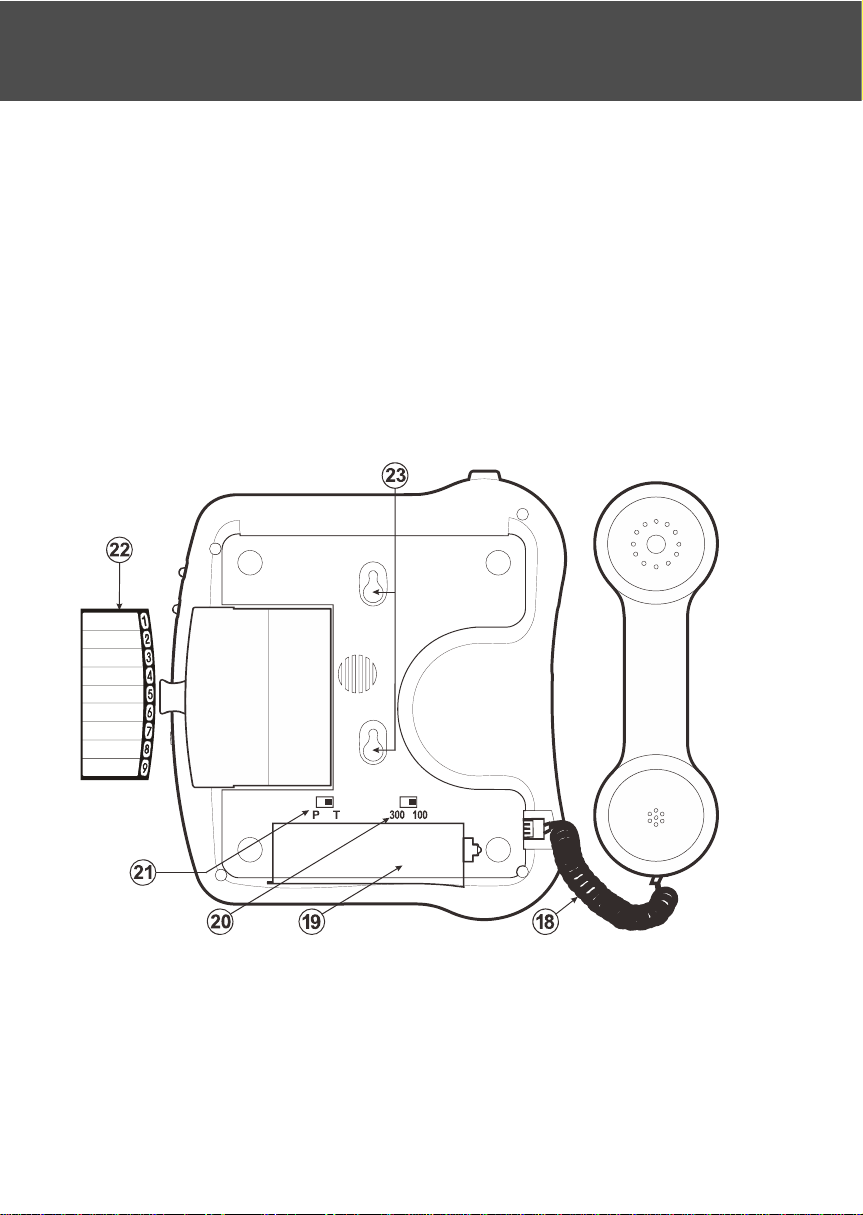

Description

4
8. Last number redial.
9. Time break recall.
10. Memory storing.
11. Flashing incoming ring indicator.
12. Mute.
13. Direct memories.
14. Ring volume setting.
15. Sending volume setting.
16. Extra volume and tone adjustment.
17. Red light of tone/volume activation.
18. Handset cord.
19. Battery compartment.
20. Time break recall.
21. Dialling mode Pulse/Tone.
22. Memo card.
23. Holes for wall mounting.
Description

5

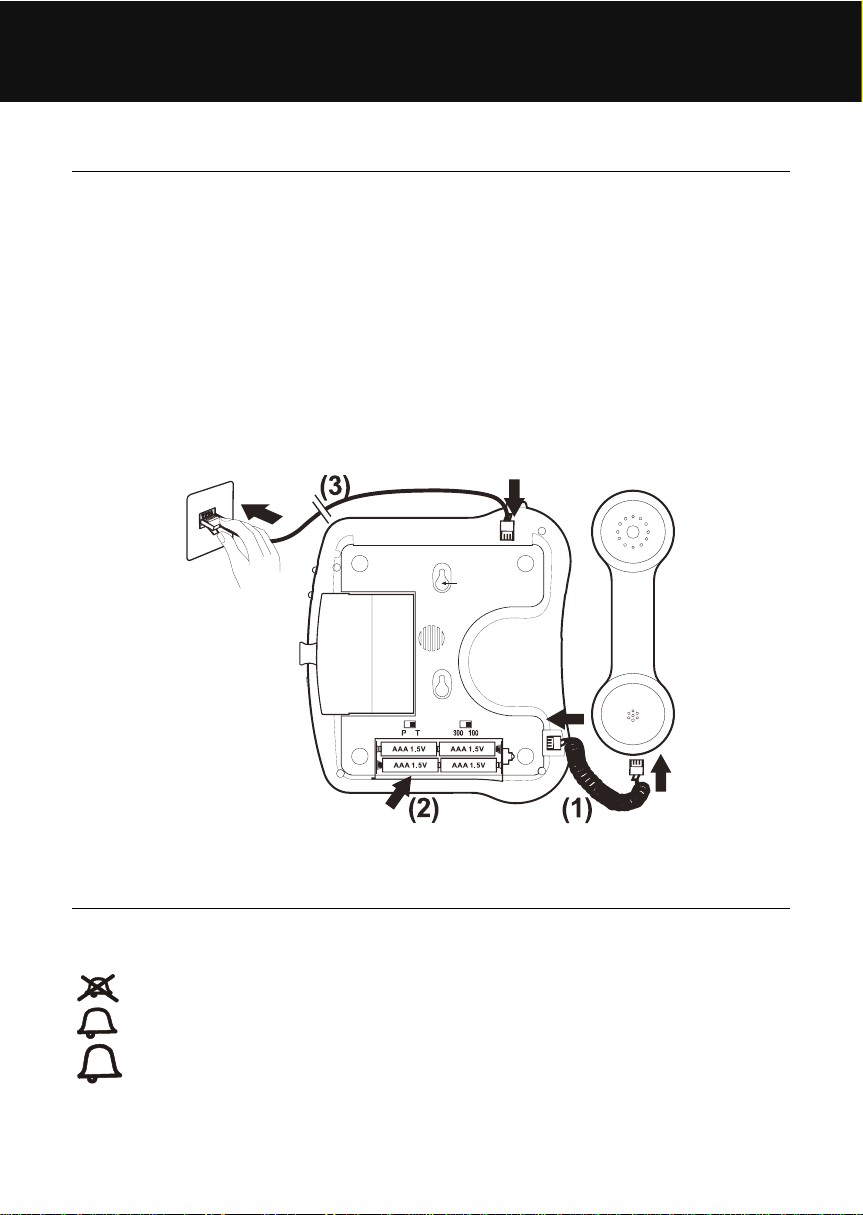

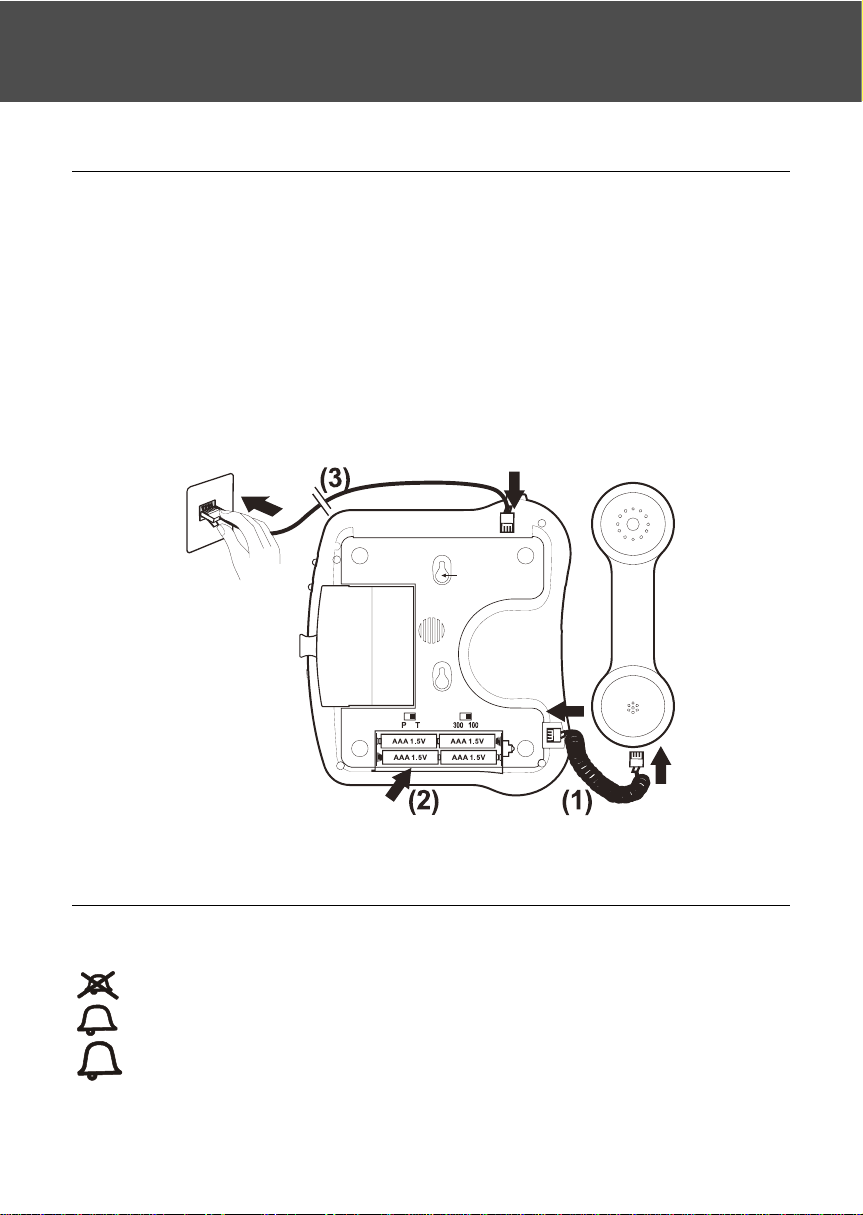

1 – Connecting the telephone
- Connect the handset cord (1).
- Open the battery compartment (2).
- Insert 4 alkaline batteries (type AAA 1.5V, not supplied) in
the comartment (*). Batteries are required if you wish to
increase the ringer level up to 10 dB (2).
- Snap the battery door back in place.
- Connect the line cord plug into the line socket on the rear of
the unit (*) (3).
- Connect the other end of the line cord into the wall PTT
socket (*) (3).
(*) Classified TNV-3 according to EN60950 standard.
2 – Ringer volume setting
A switch located on the right side allows the ringer to be
switched to Hi, Low or Off:
: Off,
: Low,
: Hi.
Note: The ring level will be increased of 10 dB if you insert
batteries.
Setting up

6
3 – Dialling mode (Tone/Pulse) settings
The Tone/Pulse switch is factory pre-set to Tone position. In
the UK, all telephone exchanges now use Tone (T) dialing. If
your phone does not dial out, it is probably being used from
an older private switch board (PBX). In this case, the
Tone/Pulse switch must be changed to Pulse (P).
4 – Time Break Recall setting (300/100)
Your phone works with a time break recall for United
Kingdom (R=100ms). It can be switched to 300ms for other
locations or PBX’s.
5 – Wall mounting
To wall-mount your telephone, turn the “clip” (located in the
base unit, just below the ear piece).
This will ensure that the handset stays firmly in position.
Setting up

7

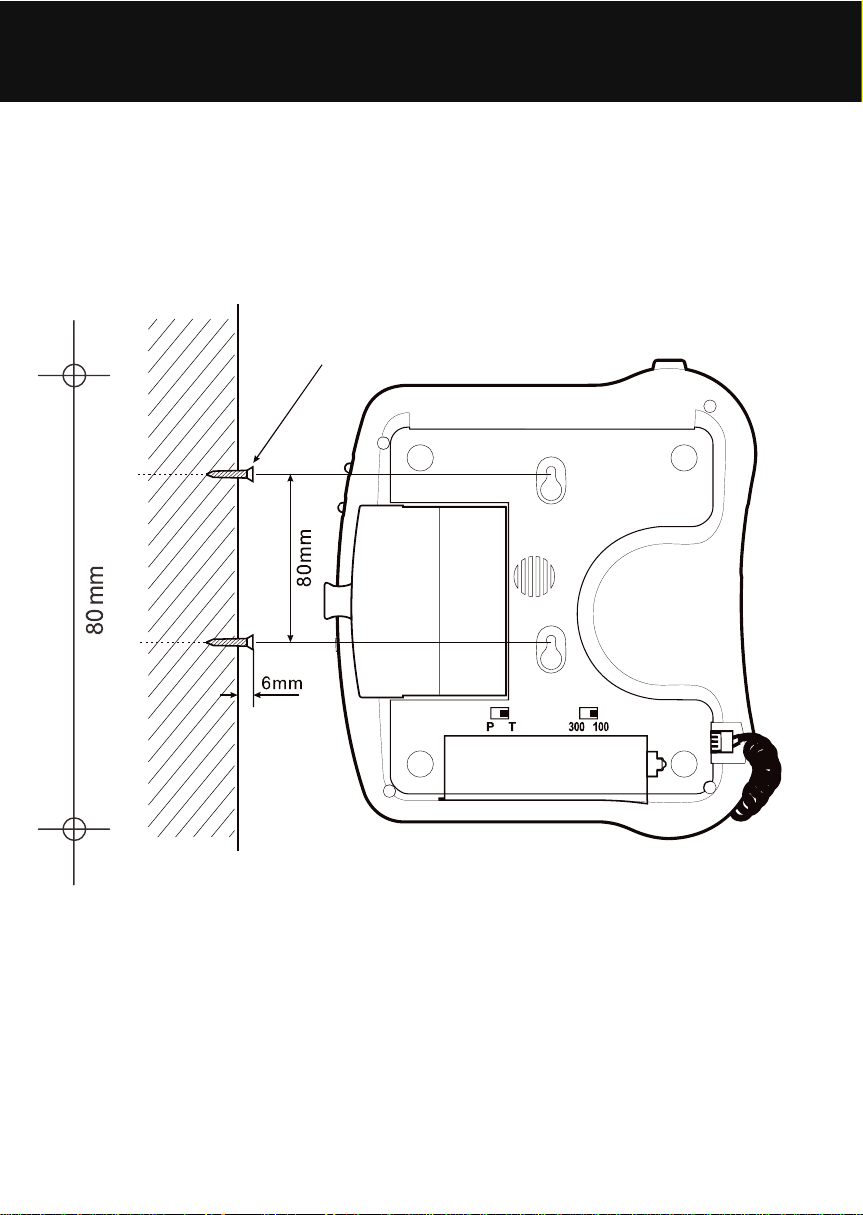

- Drill 2 holes in the wall (80mm apart).
- Insert the wall plugs and the screws leaving about 6 mm of
the screws projecting from the wall.
- Slide the telephone downwards to secure.
Setting up
Wall mount template
Screw

8
1 – Receiving volume and tone adjustment
You can increase the volume and adjust the receiving tone
according to your own hearing requirements.
The button allows extra receiving and tone functions to
be activated or not during the conversation.
When the function is activated, the red light of extra receiving
and tone function located near the button is lit.
Adjust the TONE and VOLUME buttons to fit the levels to
your own hearing requirements.
Volume and tone adjustment
VOLUME
TONE
Normal

9
Note: When the tone (treble), earpiece volume and sending
levels are set to the maximum, whistling may occur. Then the
sending level settings should be decreased with the switch
.
When the switch located behind the phone is ON, the
extra-receiving and tone functions are automatically activated
each time you use the phone.
When this switch is OFF, you will need to activate the
function by pressing the button .
Tone and volume (15dB to 30dB) adjustment is only activated
when the button is set to ON.
When this button is set to OFF only the volume can be
adjusted from 0dB to 15dB.

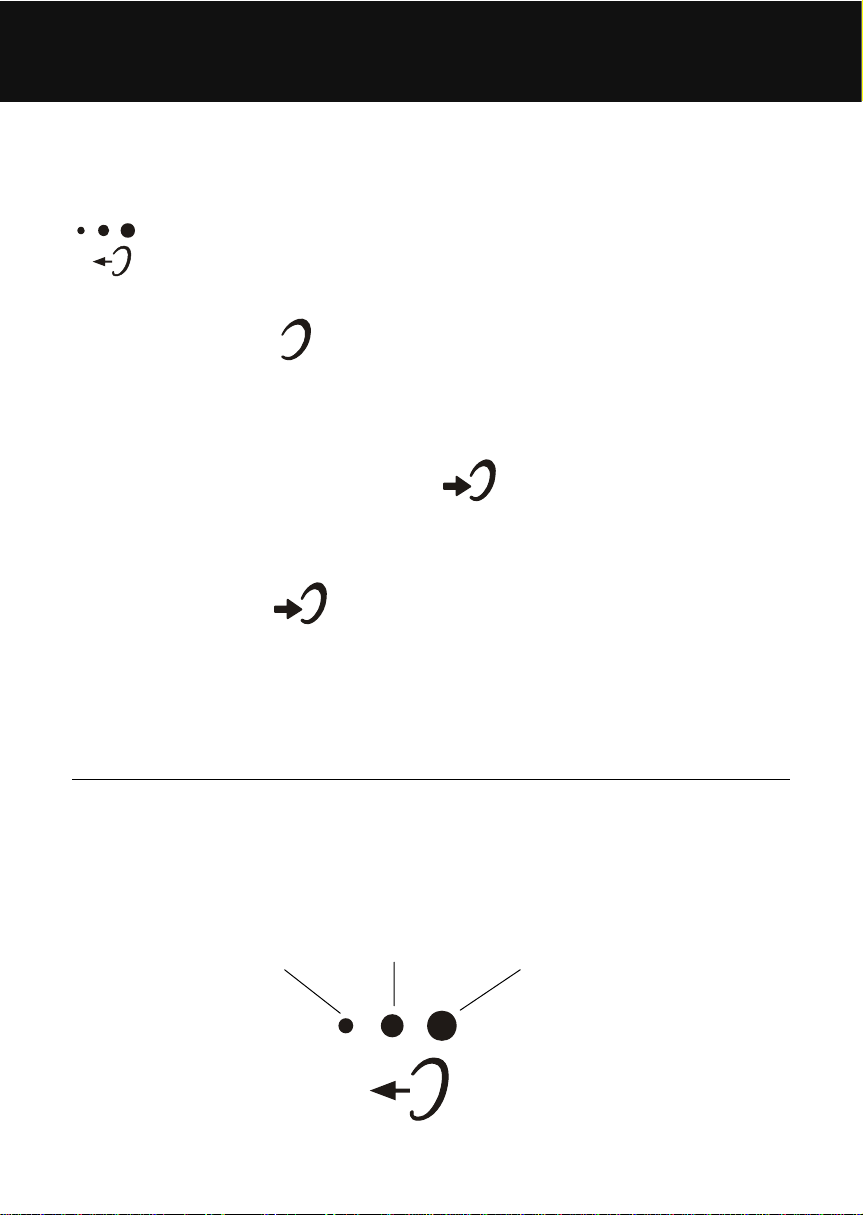

2 – Sending volume adjustment
If your voice is quiet or called parties have difficulty hearing
you, you can increase the sending level volume with the
switch located on the right side.
You can also decrease the sending volume if required.
Volume and tone adjustment
Min Normal Max

10
If you are using this telephone with a
hearing aid, set your hearing aid to
the “T” setting.
1 – Answer a call
- When an incoming call is received the phone will ring and
flash, to answer the call lift the handset and speak.
- On completion of the call, carefully replace the handset in
the cradle to release the line.
2 – Making a call
- Lift the handset.
- Await the dial tone and dial required number.
- On completion of the call,carefully replace the handset in
the cradle.
3 – Last number redial
- Lift the handset.
- Await the dial tone and press button.
-The previously dialled number will be automaticaly redialled
(not in use for memory numbers).
4 – Recall (R), * & # buttons
These are used with the new services provided on digital
exchanges. For details please contact your network operator.
5 – Mute button
If you wish to speak privately to someone else in the room
without your caller overhearing, press the button. You
will still be able to hear the callers but they cannot hear you
during the mute operation. Press button again to resume
normal conversation.
Using the phoneUsing the phoneUsing the phoneUsing the phone

11
6 – Storing telephone numbers
Your telephone can store12 direct memories including 3
priority numbers (24 digits maximum for priority memory and
32 digits for M1, M2...M9). For example, the 3 priority P1, P2,
P3 memories allow you to store the 3 numbers below:
= Fire
= Police
= Doctor
To store a number please follow instructions below:
- Lift the handset.
- Press and hold button, until hear “Di~” sound.
- Dial the number.
- Press button again.
- Press M1, M2, ..., or M9 or one of 3 priority memories to
store your number.
PLEASE NOTE:
If you hear a message advising “The number you are dialing
has not been recognized, please check and try again”. Please
ignore this and continue with the storing process and the
numbers will be stored.
Note:
Entering a new number in memory will automatically erase
the previous one.
P1
P3
P2
Using the phone

12
7 – Dialing stored numbers
- Lift the handset and await the dial tone.
- Press appropriate button M1, M2, ..., or M9 or one of 3
priority memories, the stored number will be dialled
automatically.
To register your stored phones numbers, use the index
located under the base.
Using the phone

13
Recycling directives:
The WEEE (Waste Electrical and Electronic Equipment) has
been put in place for the products in end of life are recycled in
the best way.
When this product is out of order, please do not put it in your
domestic waste bin.
Please use one of the following disposal options :
- Remove the batteries and deposit them in an appropriate
WEEE skip.
Deposit the product in a appropriate WEEE skip.
- Or hand the old product to the retailer. If you purchase a
new one, they should accept it.
Thus if you respect these instructions you ensure
human health and environmental protection.
Guarantee:
From the moment your Geemarc product is purchased,
Geemarc guarantee it for the period of two years. During this
time, all repairs or replacements (at our option) are free of
charge.Should you experience a problem then contact our
helpline or visit our website at www.geemarc.com. The
guarantee does not cover accidents, negligence or breakages
to any parts. The product must not be tampered with or taken
apart by anyone who is not an authorised Geemarc
representative. The Geemarc guarantee in no way limits your
legal rights.
Important: YOUR RECEIPT IS PART OF YOUR
GUARANTEE AND MUST BE RETAINED AND PRODUCED
IN THE EVENT OF A WARRANTY CLAIM.
General informations

14
Telephone connection: Voltages present on the
telecommunication network are classified TNV-3
(Telecommunication Network Voltage) according to the
EN60950 standard.
The telephone does not operate if the line current is lower
than 18 mA.
Declaration: Hereby Geemarc Telecom SA declares that this
product is in compliance with the essential requirements and
other relevant provisions of the Radio and
Telecommunications Terminal Equipment Directive
1999/5/EEC and in particular article 3 section 1a, 1b and
section 2.
The declaration of conformity may be consulted at
www.geemarc.com
For product support and help visit our website at
www.geemarc.com
telephone [phone]
or fax [phone]
General informations

15
Description .................................................................16
Installation ..................................................................16
1- Raccordements ........................................................16
2- Réglage de la sonnerie ............................................16
3- Numérotation multifréquences ou décimale .............19
4- Interrupteur 300/100ms ............................................19
5- Montage murale .......................................................19
Réglage du volume et de la tonalité .........................21
1- Réglage du volume et de la tonalité de réception ....21
2- Réglage du volume d’émission ................................22
Utilisation ....................................................................23
1- Recevoir un appel ....................................................23
2- Appeler ....................................................................23
3- Rappel du dernier numéro .......................................23
4- Touches R, * & # ......................................................23
5- Fonction secret ........................................................23
6- Mémoriser un numéro de téléphone ........................24
7- Appel d’un numéro en mémoire ...............................25
Informations générales ..............................................26
Index

16
1. Prise cordon de ligne.
2. Activation automatique de la correction d’écoute au
décroché.
3. 3 mémoires d’urgence.
4. Réglage de la tonalité de réception.
5. Ergot de position murale.
6. Réglage du volume de réception.
7. Prise de cordon combiné.
Description

17
8. Rappel du dernier numéro composé.
9. Touche R.
10. Mise en mémoire.
11. Flash lumineux de sonnerie.
12. Secret.
13. Mémoires directes.
14. Réglage du volume de sonnerie.
15. Réglage du volume d’émission.
16. Activation de la correction de tonalité et volume de
réception.
17. Voyant du correcteur de tonalité et volume.
18. Prise de cordon combiné.
19. Compartiment à piles.
20. Réglage du temps de coupure de la fonction R
(300/100ms).
21. Numérotation Décimale (P) ou Multifréquences (T).
22. Index mémoires.
23. Orifices de fixation murale.
Description

18
1 – Raccordements
- Branchez le cordon du combiné (1).
- Ouvrez le compartiment à piles (2).
- Insérez 4 piles (type AAA 1.5V alkalines), non fournies dans
le compartiment (*). Les piles sont necessaires si vous
désirez augmenter le niveau de sonnerie de 10 dB (2).
- Refermez le compartiment à piles.
- Branchez le cordon de ligne à l’arrière de la base (*) (3).
- Branchez le conjoncteur téléphonique PTT dans votre prise
téléphonique murale (*) (3).
(*)Classée TNT-3 selon la norme EN60950.
2 – Réglage de la sonnerie
Un commutateur situé sur le côté de l’appareil permet de
régler la sonnerie :
: désactivée,
: faible,
: forte.
Note: Si vous insérez des piles, le niveau de sonnerie sera
augmenté de 10 dB.
Installation

19
3 – Numérotation multifréquences (T) ou décimale (P)
Au moment de sa livraison, votre téléphone est en mode
multifréquences (T). Si le central téléphonique dont vous
dépendez fonctionne en mode décimale (P), vos appels
n’aboutiront pas.
Il vous suffira alors de commuter l’interrupteur T/Psitué en
dessous du téléphone sur la position Ppour remédier à ce
problème.
4 – Interrupteur 300/100ms
Cet interrupteur doit être positionné sur 300 pour la France. Il
peut être positionné sur 100 pour d’autres pays ou pour une
utilisation du téléphone derrière un PABX.
5 – Montage murale
Pour maintenir votre combiné en position verticale, tournez
l’ergot situé sur la base de 180°.
Installation
