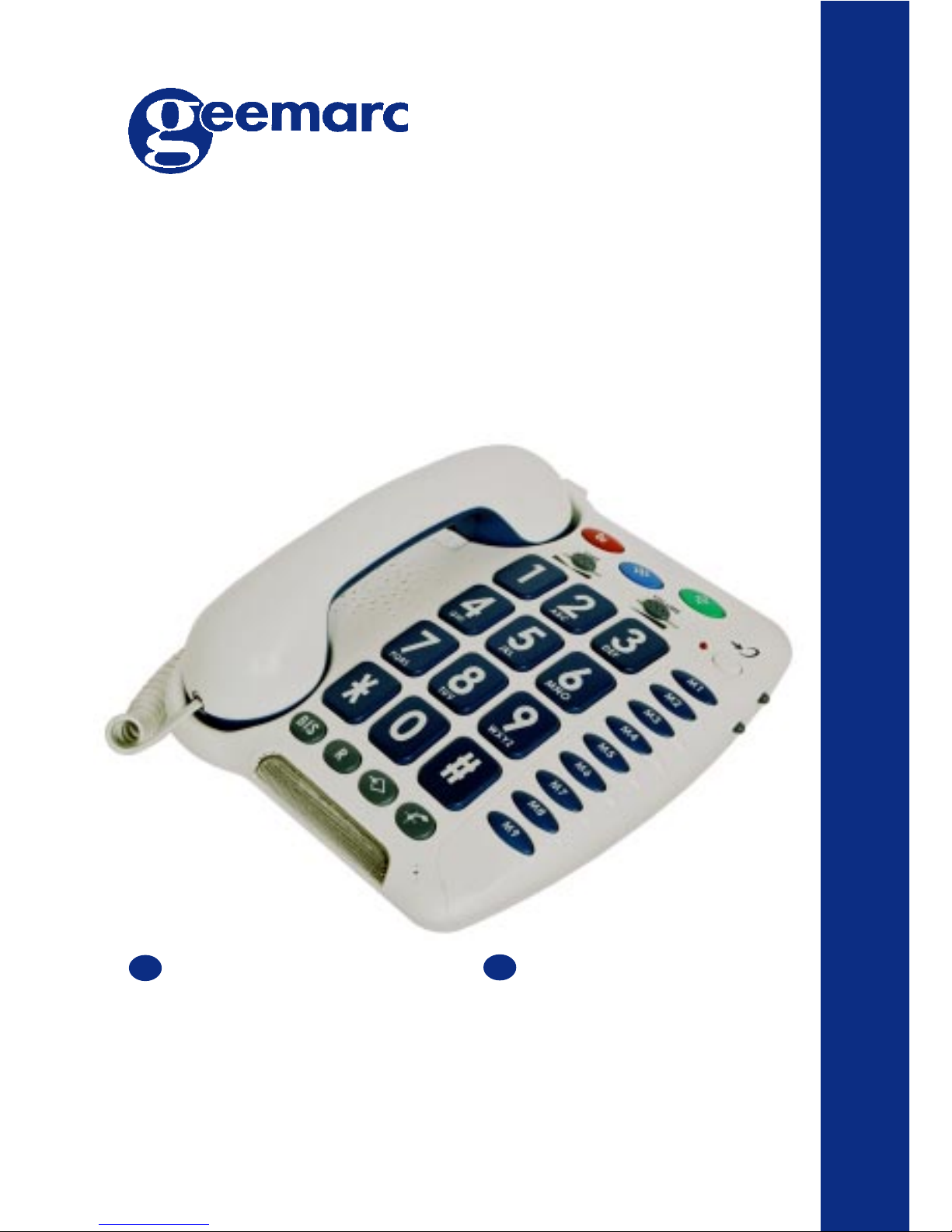

Geemarc CL100 User manual

Telephone
EASY-DIAL PHONE WITH VOLUMEAND TONEADJUSTMENT
TELEPHONE MULTIFONCTIONS A GRANDES TOUCHES
CL100
User guide / Notice d’utilisation
CAUTION:THIS TELEPHONEPRODUCTISSPECIFI-
CALLYDESIGNEDFORPEOPLE WITHHEARING DIFFI-
CULTIES AND IS PROVIDED WITH A HANDSET EAR-
PIECEVOLUMECONTROLFORINDIVIDUAL REQUIRE-
MENTS. DUE CARE MUST BE TAKEN BY ALL USERS
THATTHEHANDSET EARPIECEVOLUMECONTROL IS
SETTO THE LOWEST LEVEL ACCEPTABLE BY EACH
RESPECTIVE USER. CARE SHOULD THEREFORE BE
EXERCISEDTO ENSURETHATANYNAIVEUSERSARE
ARE FAMILIAR WITH THIS REQUIREMENT.
ATTENTION:CETELEPHONE PEUTETREDESTINE
AUXPERSONNESAYANTDESPROBLEMESD’AUDITION.
IL POSSEDE UN ECOUTEUR A VOLUME VARIABLE. A
LA PREMIERE UTILISATION, ASSUREZ VOUS QUE LE
BOUTONDEREGLAGEDU VOLUME SOITPOSITIONNE
SURLA POSITIONVOLUMEMINIMUM.LESPERSONNES
MALENTENDANTES POURRONT PAR LA SUITE
AUGMENTER LE VOLUME POUR L’ADAPTER A LEUR
AUDITION.
EF

INDEX
Description 4
Setting up
- Connecting the telephone 6
- Ringer settings 7
- Pulse/Tone switch 8
- Time breack recall switch 8
- Wall mounting 8
Using the phone
- Answering incoming call 9
- Volume and tone receiving
adjustment 9
- Making a call 11
- Sending volume adjustment 11
- Last number redial 12
- Recall, * & # buttons 12
- Mute button 12
- Storing telephone numbers 13
- Dialling stored number 14
Guarantee 15
E
2

FSOMMAIRE
Description 16
Installation
- Raccordements 18
- Sonnerie 19
- Fréquence décimale/vocale
(Interrupteur Pulse/Tone) 20
- Interrupteur 300ms / 100ms 20
- Position murale 20
Utilisation
- Recevoir un appel 21
- Réglage du volume et de la tonalité
de réception 21
-Appeler 23
- Réglage du volume d’émission 23
- Rappel du dernier numéro 24
- Touches R, * & # 24
- Fonction secret 24
- Mémoriser un numéro de téléphone 25
- Appel d’un numéro en mémoire 26
Garantie 27
3

DESCRIPTION
4
Tone reception
adjustment
Last number redial
Memory storing key
3 emergency
numbers
Tone and volume adjustment auto-
matically activated each time you
hang-up the phone
Volume reception
adjustment
Handset cord
socket
Clip for wall mounting
Time break recall button
OFF ON
TONE

5
Mute button
Flashing incoming ring indicator
Direct memory buttons
Sending volume
adjustment
Ring level adjust-
ment
Line socket
Key to activate tone and
volume adjustment
function
Red light for tone and
volume activation
VOLUME

Handset cord
PTT Plug (*)
Line cord Wall mounting
screw holes
index card
SETTING UP
1-CONNECTINGTELEPHONE
1 - Connect the handset cord.
2-Openthebatterycompartmentbyunscrewing
the retaining screw and pulling back the latch.
3 - Insert correctly 4 xAAA1.5V alkaline battery
(notsupplied)inthebatterycompartment(*).Bat-
teriesarerequiredifyouwishtoincreasethering
level of 10 dB.
4 - Snap the battery door back in place and re-
place the retaining screw.
5 - Connect the line cord.
1
2
3
Tone/Pulse
switch
Time break
recall switch
(E=100ms)
6
(*) Classified TNV-3 according
to EN60950 standard.
Battery
compartment (*)

SETTING UP
6 - Connect the PTT plug in the wall socket.
2- RINGERSETTINGS
A switch located on right side allows the ringer to
be switched HI,LOW,OFF:
: Off, : Low, : Hi
Your phone comes with the ringer switched to
«High» and the melody set to «6»:
Low Mid High
Melody 1 1 2 3
Melody 2 4 5 6(by default)
Melody 3 7 8 9
Ifyoudon’tliketheringermelody,youcanchoose
a new one by changing the settings as follow:
- Lift the handset.
- Press button.
- Press # button.
- Press any button 1 to 9.
Ringer will be activated on next call.
Note: The ring level will be increased of 10 dB if
youinsertbatteriesintothebatterycompartment.
7

SETTING UP
3 - TONE/PULSE SWITCH (T/P)
The Tone/Pulse switch is factory pre-set to Tone
position.In the UK,all telephone exchanges now
useTone dialing.If your phone does not dial out it
isprobablybeingusedfromanolderprivateswitch
board (PBX).In this case,the Tone/Pulse switch
must be moved to Pulse.
4 -TIME BREAK RECALL SWITCH (300/100)
ForUK,theTBRswitchisfactory pre-setto100ms.
It can be switched to 300ms for other locations or
PBX’s.
5 - WALLMOUNTING
Towall-mountyourtelephone,slideouttheclipturn
aroundandslidebackintothewallmountingposi-
tion (located in the base unit, just below the ear
piece).Thiswillensurethatthehandsetstaysfirmly
in position.Make 2 holes in the wall 80mm apart,
insertthewallplugsandthewallmountingscrews.
8

USING THE PHONE
Thescrewsshouldprotrudefrom wallby 6-7mm.
Place the phone onto the screw-heads and slide
down to secure.
If you are using this telephone with a
hearing aid, set your hearing aid to
the “T” setting.
1-ANSWERINGINCOMINGCALL
-Whenanincomingcallisreceivedthephonewill
ring and flash,to answer the call lift the handset
andspeak.
- On completion of the call, carefully replace the
handset in the cradle to release the line.
2-VOLUME AND TONE RECEIVING
ADJUSTMENT
You can increase the volume and adjust the
receiving tone according to your own hearing
requirements.
9

The button allows extra receiving and tone
functionstobeactivatedornotduringtheconver-
sation.Whenthefunctionisactivated,theredlight
of extra receiving and tone function located near
thebutton islit.AdjusttheTONEandVOLUME
buttonstoremovethelevelsaccordingtoyourown
hearingrequirements.
Note:Whenthetone(treble),earpiecevolumeand
sending levels are set to the maximum, whistling
may occur. If whistling occurs the sending level
USING THE PHONE
10
TONE
Bass
+10db max Treble
+10db max
Normal
VOLUME
0dB
15dB
+30db max
30dB ON
15dB OFF

USING THE PHONE
settingsshouldbedecreasedwiththeswitch .
When the switch located behind the phone is
ON, the extra-receiving and tone functions are
automatically activated each time you use the
phone.Whenthisswitch isswitched OFF,youwill
needtoactivatethefunctionbypressingthebutton
.Toneandvolumeadjustment(15dBto30dB)
isonlyactivatedwhenthebutton issettoON.
When this button is set to OFF only the volume
can be adjusted from 0dB to 15dB.
3 - MAKINGACALL
- Lift the handset.
-Awaitthe dialtone anddial requirednumber.
- On completion of the call,carefully replace the
handset in the cradle.
4-SENDINGVOLUMEADJUSTMENT
Ifyourvoiceisquietorcalledpartieshavedifficulty
hearing you, you can increase the sending level
volume with the switch located on the right
side.Youcanalsodecreasethesendingvolumeif
required.
11

USING THE PHONE
Min Normal Maxi
5- LAST NUMBER REDIAL
- Lift the handset.
-Await the dial tone and press button.
-Thepreviouslydiallednumberwillbeautomaticaly
redialled(notinuseformemorynumbers).
6 - RECALL, * & # BUTTONS
Theseareusedwiththenewservicesprovidedon
digitalexchanges.For detailspleasecontact your
network operator.
7- MUTE BUTTON
If you wish to speak privately to someone else in
theroomwithoutyourcalleroverhearing,pressand
12

USING THE PHONE
It is recommended to
store this numbers
during installation
holdthe button.Youwillstillbeabletohear the
callers but they cannot hear you during the mute
operation.Toresumenormalconversation,release
the button.
8-STORINGTELEPHONE NUMBERS
Yourphonecanstore12directmemoriesincluding
3emergencynumbers(21digitsmaximumforeach
memory).Forexample,the3specialmemoriesallow
you to store the 3 numbers below:
- Fire,Police,
Ambulance:999
- Your doctor
Tostoreanumberpleasefollowinstructionsbelow:
- Lift the handset.
- Press button.
- Press M1, M2, ..., or M9 or one of 3 emergency
numberstostoreyournumber.
-Dialthenumber.
- Press again Button.
Numberswillbelostafterfewhoursifyoudisconnect
13

1
2
3
4
5
6
7
8
9
yourphone.Enteringanewnumberinmemorywill
automaticallyerasethepreviousnumber.
9-DIALLING STOREDNUMBER
- Lift the handset and await the dial tone.
-PressappropriatebuttonM1, M2, ...,orM9 orone
ofthe 3specialnumbers,the storednumberwill be
dialled automatically. To register your stored pho-
nesnumbers,usetheindexlocatedunderthebase.
Use this table below to prepare the phone book:
Example:
USING THE PHONE
14
1
Bruce 01 64 57 .. ..

GUARANTEE
Fromthe momentyour Geemarcproduct ispurchased,Geemarc
guaranteeitfor theperiodofoneyear. During thistime,allrepairs
or replacements (at our option) are free of charge.Should you
experienceaproblemthencontactourhelplineorvisitourwebsite
at www.geemarc.com.The guarantee does not cover accidents,
negligence or breakages to any parts. The product must not be
tamperedwith or taken apartbyanyone who isnotan authorised
Geemarcrepresentative.TheGeemarcguarantee innowaylimits
yourlegalrights.
IMPORTANT:YOURRECEIPTISPARTOFYOURGUARANTEE
AND MUST BE RETAINED AND PRODUCED IN THE EVENT
OFAWARRANTYCLAIM
Please note:The guarantee appliestothe United Kingdomonly.
Declaration : Hereby Geemarc Telecom SA declares that this product is in
compliance with the essential requirements and other relevant provisions of
theRadio andTelecommunicationsTerminalEquipmentDirective1999/5/EEC
and in particular article 3 section 1a, 1b and section 3.
Telephone connection : Voltagespresenton thetelecommunicationnetwork
are classified TNV-3 (Telecommunication Network Voltage) according to the
EN60950standard.
The telephone does not operate if the line current is lower than 18 ma.
For product support and help visit our website
at www.geemarc.com
telephone [phone]
or fax [phone]
GUARANTEE
15

TONE
Rappel du dernier
numéro composé
Mise en mémoire
3 mémoires
d’urgence
Activation automatique de la
correction d’écoute au décroché
Réglage du volume
de réception
Connecteur
du cordon combiné
Ergot à retourner pour
maintenir le téléphone en
position murale
DESCRIPTION
16
Réglage de la tonalité
de réception
OFF ON

VOLUME
Secret d’appel
Flash lumineux de sonnerie
Mémoires directes
Réglage du volume
d’émission
Réglage du niveau
de sonnerie
Connecteur de ligne
Activation de la correction
de tonalité et de volume
de réception
Voyant du correcteur de
tonalité et volume
17

Cordon du
combiné
Prise téléphonique (*)
Cordon de ligne
Ouvertures
pour vis de
position murale
Répertoire
1
2
3
INSTALLATION
1- RACCORDEMENTS
1- Branchezle cordondu combiné.
2 - Dévissez la vis et ouvrez le compartiment à
piles situé en dessous de votre téléphone.
3 - Inserez correctement 4 x AAA 1.5V piles
alkalines(nonfournies)danslecompartiment(*).
Les piles sont necessaires si vous désirez aug-
menter de le niveau de sonnerie de 10 dB.
4-Replacez etrevissezlecouvercle ducompar-
timent à piles.
5 - Branchez le cordon de ligne.
Interrupteur
300/100ms
Interrupteur
Tone / Pulse
18
(*) Classée TRT-3 selon
la norme EN60950
Compartiment piles (*)

INSTALLATION
6-BranchezleconjoncteurtéléphoniquePTT
dansvotreprisetéléphoniquemurale.
2-SONNERIE
Uncommutateur situésur lecôté del’appareil
permet de régler la sonnerie:
: désactivée, : faible, : forte
Si la mélodie de sonnerie ne vous convient pas,
sélectionnezunnouveauréglageparmiles9propo-
sés ci-dessous:
Faible Moyen Fort
Mélodie 1 1 2 3
Mélodie 2 4 5 6 (par défaut)
Mélodie 3 7 8 9
Suivez la procédure décrite ci-dessous pour chan-
ger le réglage :
-Décrochez le combiné.
-Appuyez sur la touche .
-Appuyez sur la touche #.
-Appuyez sur un chiffre de 1 à 9.
Le réglage sera effectif au prochain appel.
Note: Sivousconnectezlespiles,leniveaudeson-
nerie sera augmenté de 10 dB.
19

INSTALLATION
3 - FREQUENCE VOCALE OU DECIMALE? (T/
P)
Aumomentdesalivraison,votretéléphoneesten
mode fréquence vocale (T). Si le central télépho-
niquedontvousdépendezfonctionneenmodefré-
quencedécimale(P),vosappelsn’aboutirontpas,
ilvoussuffiraalorsdecommuterl’interrupteurT/P
situé en dessous du téléphone sur la position P
pourremédieràceproblème.
4- INTERRUPTEUR 300/100ms
Cet interrupteur doit être positionné sur 300 pour
la France, il peut être positionné sur 100 pour
d’autres pays ou utilisation avec un PABX.
5-POSITION MURALE
Pour maintenir votre combiné en position verticale,
retirez l’ergot situé sur la base (voir descriptif page
précédente)letourneretleréinsérer.Percez2trous
verticaux distant de 80 mm dans votre mur pour y
20
