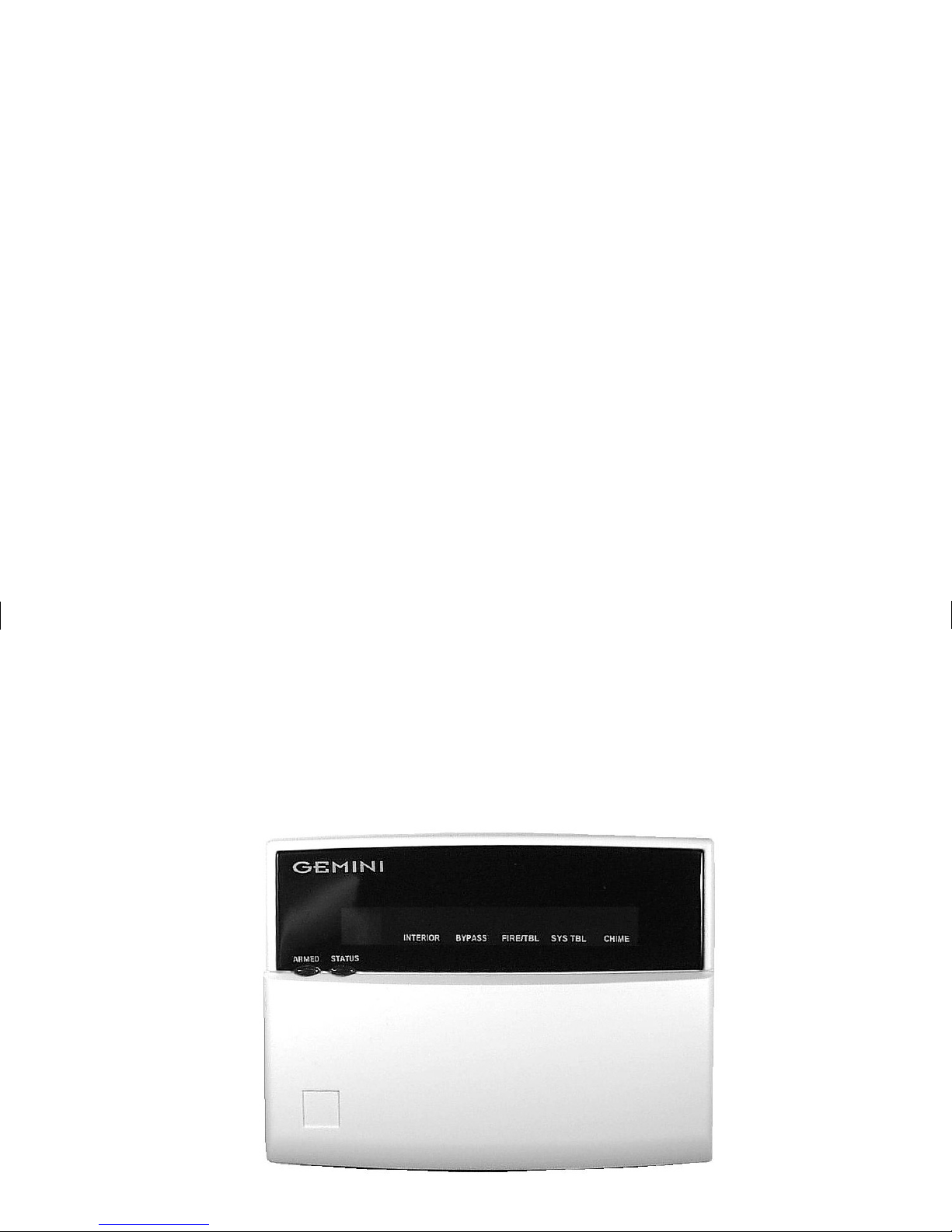

Gemini GEM-DXRP3 User manual

1
OPERATING GUIDE for your
GEM-DXRP3 KEYPAD
© NAPCO 2007 OI324A 1/07

2
The GEM-DXRP3 is a “smart”, interactive,
menu-driven keypad designed for your
Napco control panel. A digital display is
provided to show the status of your system.
This booklet contains important information
about the operation of your system with this
GEM-DXRP3 Keypad. Read it carefully
and keep it handy for future reference.
Check the Glossary for an explanation of
terms that may be unfamiliar to you.
You'll probably find subjects mentioned in
this booklet that do not apply to your
system. Napco control panels have such a
wide variety of features that few security
systems, if any, will ever need them all.
Your alarm professional has chosen
appropriate features for your particular
needs.
Regardless of how your system has been
configured, rest assured that it has been
carefully designed and engineered to the
highest industry standards. To assure
optimum safety and security, familiarize
yourself with this equipment. Periodically
check its condition and state of readiness by
testing it at least once a week in both the ac/
battery and battery-only modes (ask your
alarm professional how to make these
tests).
INTRODUCTION
Test your sounding device and backup battery
1. While disarmed, press w.
2. Answer "X" (press z) until “3” (Bell Test) appears in the
window.
3. Press "r" (p) to execute the test. The alarm will sound
for about two seconds.
•If the alarm does not sound, call for service.
•If the battery is low, a system trouble E02 will appear in
the display. Allow 24 hours for the battery to recharge. If
the trouble continues, call for service.
Test your central station communicator
1. While disarmed, press w.
2. Answer "X" (press z) until “15” (Telephone Test)
appears in the window.
3. Press "r" (p) to send a test code to the central station.
4. If the test is not successful, “E03” will display, indicating a
communication failure. Call for service.
IMPORTANT - TEST YOUR SYSTEM WEEKLY

3
TABLE OF CONTENTS
TABLE OF CONTENTS
Section Page
KEYPAD CONTROLS & INDICATORS............................................... 4
SETTING THE ALARM (ARMING) WHEN LEAVING .......................... 6
PROTECTING YOURSELF WHILE ON THE PREMISES ................... 8
TURNING OFF THE ALARM (DISARMING) WHEN RETURNING...... 10
FIRE PROTECTION............................................................................ 11
KEYPAD FUNCTIONS ........................................................................ 15
CENTRAL-STATION MONITORING ................................................... 20
ADVANCED FEATURES .................................................................... 21
PROGRAMMING USER CODES ........................................................ 22
GLOSSARY ........................................................................................ 24
SYSTEM TROUBLE ERROR CODES ................................................ 27
TROUBLESHOOTING ........................................................................ 31
TO SILENCE AN ALARM, ENTER YOUR
CODE, AND PRESS v.
FOR SERVICE, CALL: __________________
CENTRAL STATION: __________________
EXIT DELAY: _________________________
ENTRY DELAY: ______________________
FIRE ALARM SOUND*:
________________________________
BURGLAR ALARM SOUND*:
________________________________
KEYPAD FIRE ENABLED? YES NO
KEYPAD PANIC ENABLED? YES NO
KEYPAD AUX. ENABLED? YES NO
*FIRE HAS PRIORITY OVER BURGLARY.

4
KEYPAD CONTROLS & INDICATORS
w1 2 3
x4 5 6
y7 8 9 0
p
z
G
v
ARMED STATUS
2
3
4
5
6
7
8
9
10
11
12
r
x
INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
96 1
13

5
KEYPAD CONTROLS & INDICATORS
Window. Lights indicate system
status messages; digit display
indicates related zone, function or
error message numbers.
STATUS Light. Lights (green) to
indicate that the system is ready
for arming. If a zone is not
secured, the light will be off and
the zone will display in the window.
If a zone has been bypassed, the
STATUS light will blink while
armed.
ARMED Light. Lights (red) to
indicate that the system is armed.
If an alarm has occurred, the
ARMED LED will be flashing.
FUNCTION (
w) Button.
Selects available system functions
as displayed in the window. The
selected function is executed by
pressing v, or "r" (p).
BYPASS (
x) Button. (1)
Deactivates selected zones from
the system. (2) Unbypasses a
bypassed zone. (GEM-P3200/9600
panels only).
RESET (
y) Button. (1)
Resets various system troubles,
displays, etc. (see text). (2)
Resets residential smoke
detectors.
Numerical Keys (1-9, 0). Used to
enter codes, zone numbers, etc.
ON/OFF (
v) Button. Entry key.
Causes the entered code or
selected function to be executed.
INTERIOR (
p) Button. (1)
Bypasses all Interior Zones
simultaneously to allow free
movement within the premises. (2)
Scrolls the window display forward
(NEXT). (3) Answers “YES” to
questions in the window display.
INSTANT (
z) Button. (1)
Cancels entry delay on Exit/Entry
Zones, causing an instant alarm
upon violation. (2) Scrolls window
display backward (PRIOR). (3)
Answers “NO” to questions in the
window display.
AREA (
G) Button. Selects
other areas.
Emergency Buttons. (Optional)
Used with the Gbutton to
signal an emergency, as follows:
•Press the 7and the G
buttons for Fire Emergency.
•Press the 8and the G
buttons for Auxiliary Emergency.
•Press the 9and the G
buttons for Police Emergency.
AC Light. Indicates AC Power is
present.
1
2
3
4
5
6
7
8
9
10
11
12
13

6
SETTING THE ALARM (ARMING) WHEN LEAVING
Arming the System
1. Check the keypad. The green STATUS light must be on in order to arm.
If the green light is off, the number(s) of any unsecured zone(s) will display in
the window. Refer to the pull-up zone list for the location of each problem
zone and secure by closing windows, doors, etc. When all zones are secure,
the green STATUS light will come on.
2. Arm the system. Enter your User Code followed by v. The green STATUS
light will go off, the red ARMED light will come on. Note: If you enter an
invalid code, the keypad will beep 4 times, indicating an error. Re-enter your
code.
3. Leave the premises. Leave through the exit door before the exit time expires.
Priority Arming
If you attempt to arm the system with a faulted Zone, a 3-second tone will sound
at the keypad and “P” will display in the window, indicating that the zones must be
secured before the panel can be armed.
Selectively Bypassing Zones
If you cannot locate or repair a faulted zone, it can be removed from the system,
or bypassed. Bypass the zone(s) from the system by pressing x, followed by
the zone number (or vice versa). The yellow BYPASS light will turn on to indicate
that the zone has been bypassed.
Note: Bypassed zones are unprotected. If a faulted zone cannot be secured,
have the system checked as soon as possible.

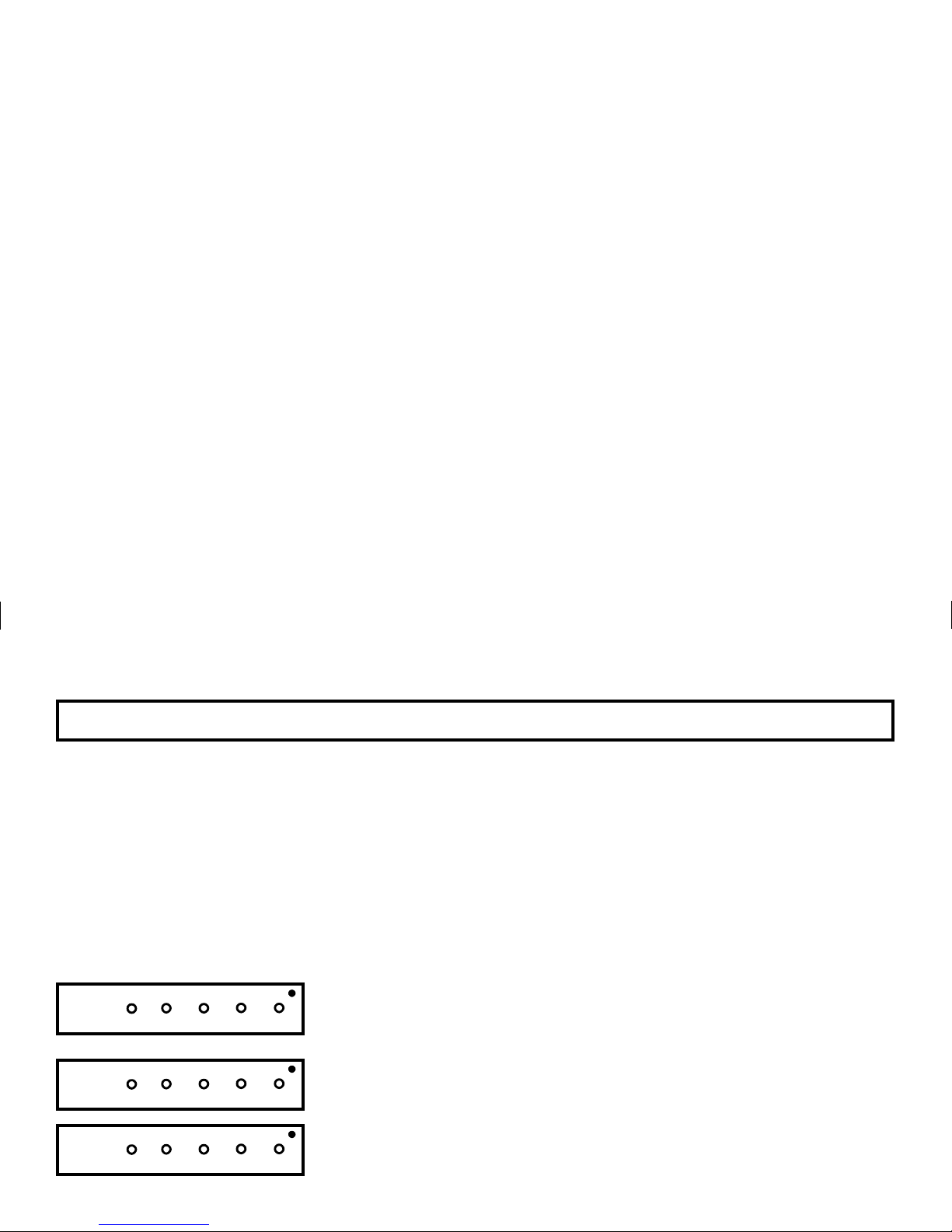

12 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

7
SETTING THE ALARM (ARMING) WHEN LEAVING
System Trouble If you attempt to arm with the SYS TBL light on, a 3-second tone will
sound and a “P” will display in the window. This indicates that the system has detected
a problem which may prevent it from operating properly. A number corresponding to the
trouble will then appear in the display. Refer to SYSTEM TROUBLE ERROR CODES
for descriptions of these troubles. If you cannot correct the problem immediately, press
yand you will then be able to arm the system in this condition. Note: If you
cannot clear the trouble, have the system checked as soon as possible.
Area Arming (Optional)
In a system that has been partitioned into multiple areas, one or more areas may be armed while others remain disarmed.
Manager's Mode.
The Manager's Mode allows the user to arm / disarm other areas in a partitioned system. To arm a different area:
1. Press the numerical key representing the other area number.
2. Press Gfollowed by v. The keypad will now provide status and control of that area.
3. Enter your code followed by vto arm.
4. Press Gfollowed by vto return to the home area.
Global Arming (Optional) (Available only with the GEM-P9600/3200 panels)
To arm all areas simultaneously (including the area you are in), press 9, Gand enter your code followed by v.
To disarm all areas simultaneously, press 0, Gand enter your code followed by v.
•The User Code must be valid in all area(s).
•If any zone is not secured, the keypad will display “P”. All faulted zones in the respective area(s) must be secured or
bypassed. Note: If a system trouble is indicated, the system cannot be armed using this method.
P INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

8
Bypassing Interior Zones
Interior Zones, when bypassed, allow free movement within the home while the
protection of armed perimeter zones is maintained. To bypass Interior Zones, press
pand enter your User Code followed by v. The red ARMED light will light and the
green STATUS light will blink, indicating zones bypassed. The INTERIOR and BYPASS lights will display in the window. Your
system may have provisions for two groups of Interior Zones. (Optional--Interior Groups programmed? YES NO)
•Press p, followed by vto Bypass Interior Group 1: [ ____________________________________ ]
•Press ptwice followed by vto Bypass Interior Group 2: [ ______________________________________ ]
•Press pthree times followed by vto Bypass both Interior Groups 1 & 2.
Automatic Interior Bypass (Optional - Automatic Interior Bypass programmed? YES NO)
Your system may have been programmed for Automatic Interior Bypass, which allows it to recognize that you have armed the
system and remained in the house, prompting it to automatically adjust the interior protection accordingly.
•If you arm the system and remain in the house, all Interior Zones are automatically bypassed. The INTERIOR and/or
BYPASS lights which will remain lit, indicating that it is safe to move about.
•If the system is armed and you leave, the Interior Zones will unbypass, providing complete interior protection.
Instant Protection
When retiring for the evening, after all family members are home, you can cancel the entry delay on the Entry Zone(s).
To arm with instant protection, press zjust prior to arming, or at any time after the system is armed. When armed with
Instant Protection opening the entry door will cause an immediate alarm.
•When arming with Instant Protection, the exit delay will remain in effect, allowing exit of the house just after arming.
While armed, the red ARMED light will flicker rapidly to indicate instant protection.
PROTECTING YOURSELF WHILE ON THE PREMISES
INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

9
PROTECTING YOURSELF WHILE ON THE PREMISES
Emergency Buttons (Only available if programmed)

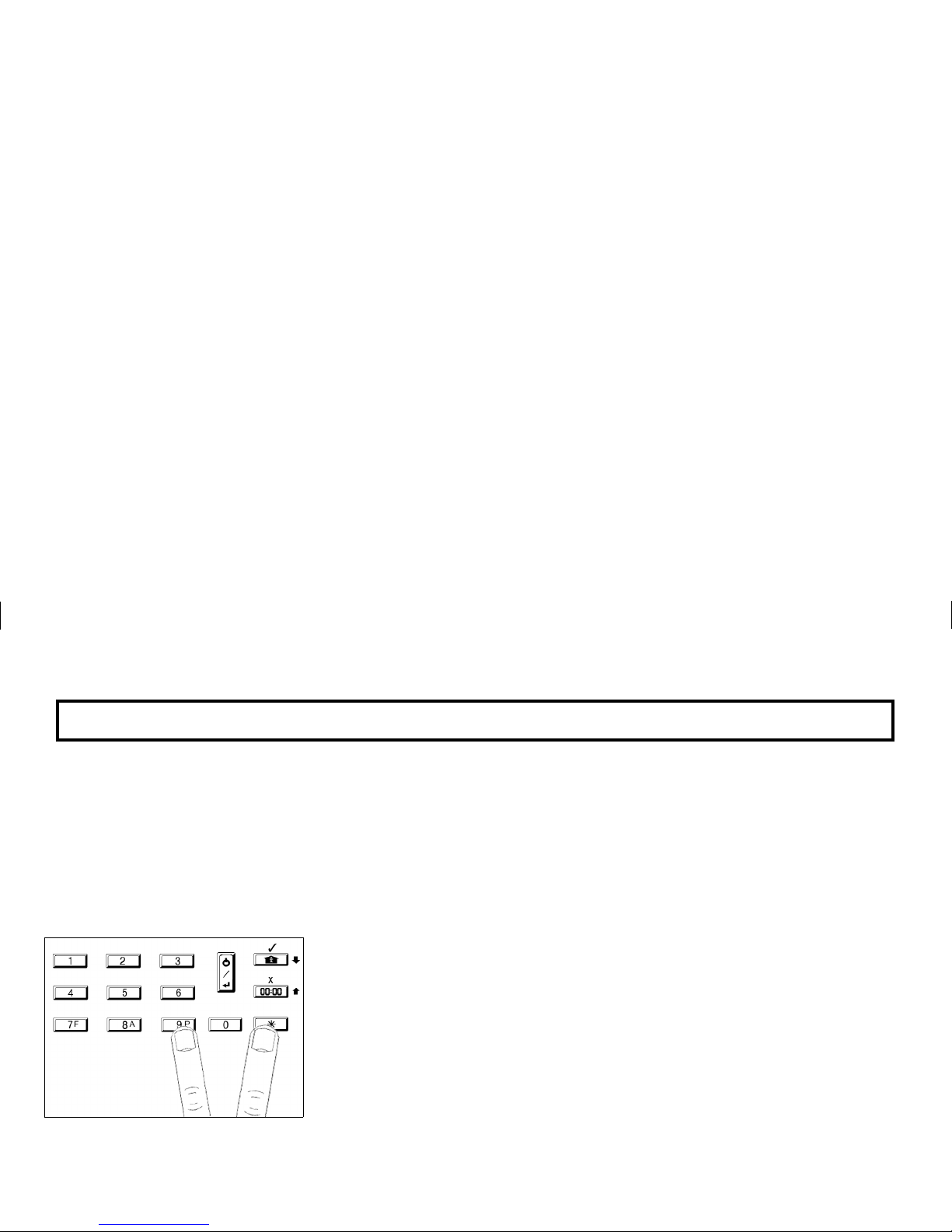

The Blue Emergency Buttons (7, 8& 9), if programmed, are always
active, whether the system is armed or disarmed. The emergency signal will only be
transmitted when an Emergency Button and Gare pressed at the same time.
•Fire Emergency Simultaneously press 7and Gto alert the central
station of a fire emergency.* (Fire Emergency programmed? YES NO)
•Auxiliary Emergency Simultaneously press 8and Gto alert the central
station of an Auxiliary emergency.* (Auxiliary Emergency programmed? YES NO)
•Police Emergency Simultaneously press 9and Gto alert the central
station of a police emergency.* (Police Emergency programmed? YES NO)
Easy Exit (Optional - Easy Exit programmed? YES NO)
Your system may have been programmed for Easy Exit, which allows a user to exit the premises while the system is
armed. By activating Easy Exit while the system is armed, the Exit Delay countdown will take place, during which time
you are permitted to leave through the exit door. The Easy Exit Delay time will be identical to the Exit Delay time the
system gives you each time it is armed. This will allow, for example, an early morning commuter to exit the house,
without having to disarm and rearm the system, awaking the family.
Press pto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V11D or less, GEM-P1632 V8G or less)
Press vto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V20 or greater, GEM-P816/P1632 V9A or greater)
*Note: Discuss your Emergency
Features with your Installation
Company.

10
TURNING OFF THE ALARM (DISARMING) WHEN RETURNING
Disarming the System
1. Enter your premises through the Entry/Exit door. The keypad will sound a steady tone to remind you to disarm the system
before your Entry Delay time expires.
2. Enter your User Code and press v. The red ARMED light will go out, indicating that the system has been disarmed.
•If you enter an invalid code, the keypad will beep 4 times, signifying an error. Re-enter your code immediately. 10 seconds
before Entry Delay expires, the keypad will emit a pulsing warning tone.
Alarm Indication / Silencing an Alarm
If the red ARMED light is flashing upon entry, an alarm occurred while you were out. (The display will scroll the number(s) of the
violated zone(s). Proceed with caution! If you suspect that an intruder may still be in the premises, leave immediately and call
authorities from a neighbor's phone.
To silence an audible alarm:
1. Enter your code and press v. After the system is disarmed, the window will continue to display the number(s) of the zone(s)
violated.
2. To reset the display, note the zones violated, then press y.
Ambush (Optional) Your Ambush Code Type is: TYPE 1 (Prefix) TYPE 2 (Unique) My Ambush Code is ___________________
If an intruder forces you to disarm your system, enter your Ambush Code and press v. There are two types of Ambush Codes: (1) A 2-
digit code (prefix) entered just prior to your normal User Code and (2) A separate and unique User Code.
Example Type 1 (Prefix): If your User Code is 1234 and your Ambush Code is 99, press 991234v.
Example Type 2 (Unique): If your User Code is 1234 and your Ambush Code is 8899, press 8899v
Using your Ambush Code will send a silent alarm to the central station. The red ARMED light will go out and the window will display
“SYSTEM READY” as if the system were normally disarmed. There will be no indication that a silent alarm has been sent.

11
FIRE PROTECTION
(Applicable only where local ordinance permits use of this alarm control panel for fire protection).
Fire-Zone Alarm
If a fire is detected, the FIRE/TBL light will display with the zone number and the
keypad sounder will pulse.
•If a fire is in progress, evacuate the premises immediately! If necessary, call
the Fire Department from an outside phone.
•If there is no evidence of a fire, enter your code and press vto silence the
alarm.
•Check the smoke detector(s). If a smoke detector tripped, its red alarm
indicator light will be on.
•After the alarm condition is corrected (thermostat cooled down; smoke cleared
from detector; etc.), pressing yagain will reset the keypad within about 10
seconds.
Fire-Zone Trouble
•The system is constantly monitoring the Fire Zone(s) to insure they are in good
working order.
•If a problem on a Fire Zone is detected, a system trouble E41 will display,
followed by the number of the Fire Zone in trouble. The sounder will activate, the
SYS TBL light will come on and the FIRE/TBL light will blink.
•Press the ybutton to silence the sounder. Call for service immediately!
NN INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
NN INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
41 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
E INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

12
FIRE PROTECTION
Preparing a Fire Escape Plan
Even with the most advanced fire alarm
system, adequate protection requires an
escape plan.
To prepare your plan, draw floor plans
of your building. (Space is provided on the
next page). Show two exits - a front or back
door and a window from each room. (Make
sure the window works. You may need a
special fire-escape ladder if the window is
high up). Write down your outside meeting
place.
Family Rehearsal.
Rehearse each of the following
activities:
1. Everyone in his room with the doors
closed.
2. One person sounds the alarm.
3. Each person tests his door.
4. Pretend the door is hot and use the
alternate escape exit.
5. Everyone meets outdoors at the
assigned location.
Important! - Read Carefully
Discuss these escape procedures with
all those who use the building:
1. In a residence, sleep with the
bedroom door closed. A closed door
will hold back deadly smoke while
you escape.
2. When the fire alarm signals, escape
quickly. Do not stop to pack.
3. Test the door. If it is hot, use your
alternate route through the window.
If the door is cool, brace your
shoulder against it and open it
cautiously. Be ready to slam the
door if smoke or heat rushes in.
Crawl through smoke, holding your
breath. Close the doors again on
leaving to help prevent the fire from
spreading.
4. Go to your specific outdoor meeting
place so you can see that everyone
is safe.
5. Assign someone to make sure
nobody returns to the burning
building.
6. Call the Fire Department from a
neighbor's telephone.
Would You Like More Safety Information?
For more information on home fire detection, burn safety, and home fire safety, write to the National Fire Protection Association,
Public Affairs Dept. 05A, Batterymarch Plaza, Quincy, MA 02269.

13
FIRE PROTECTION
Floorplan
Draw a plan of your premises in the space provided below.
Floorplan

14
FIRE PROTECTION
Although a fire alarm system may be of a
reliable and state-of- the-art design, neither it
nor its peripheral detection devices can offer
guaranteed protection against fire. Any such
equipment may fail to warn for a variety of
reasons:
Control panels, communicators, dialers,
smoke detectors, and many other sensing
devices will not work without power. Battery-
operated devices will not work without batteries,
with dead batteries, or with improperly-installed
batteries. Devices powered solely by AC will
not work if their power source is cut off for any
reason.
Fires often cause a failure of electrical
power. If the system does not contain a working
battery backup power supply, and if the
electrical circuit feeding the devices is cut or is
not providing power for any reason, the system
will not detect heat or smoke or provide any
warning of a possible fire.
Telephone lines needed to transmit alarm
signals to a central monitoring station may be
out of service.
Smoke detectors, though highly effective
in reducing fire deaths, may not activate or
provide early-enough warning for a variety of
reasons: (a) they may not sense fires that start
where smoke cannot reach them, such as in
chimneys, walls, roofs, behind closed doors,
etc.; (b) they may not sense a fire on a different
level of the residence or building; (c) they have
sensing limitations; no smoke detector can
sense every kind of fire every time.
Thermostatic heat detectors do not
always detect fires because the fire may be a
slow smoldering low-heat type (producing
smoke); because they may not be near the fire;
or because the heat of the fire may bypass
them. These detectors will not detect oxygen
levels, smoke, toxic gases, or flames.
Therefore, they may only be used as part of a
comprehensive fire-detection system in
conjunction with other devices. Under no
circumstances should thermostatic heat
detectors be relied upon as the sole measure to
ensure fire safety.
Alarm warning devices such as sirens,
bells, or horns may not alert someone behind a
closed or partially-opened door. Warning
devices located on one level are less likely to
alert those on a different level. Even those who
are awake may not hear the warning if the
alarm is obscured by noise from a stereo, radio,
air conditioner, or other appliance, or by
passing traffic, etc. Alarm warning devices,
however loud, may fail to warn the hearing
impaired.
Alarm products, as all electrical devices,
are subject to component failure. Even though
the equipment is designed for many years of
trouble-free performance, electronic
components could fail at any time.
Above are some of the reasons that fire
alarm equipment could fail. The most common
cause of an alarm system not functioning when
a fire occurs is inadequate testing and
maintenance. The system should be tested at
least weekly to ensure that all the equipment is
working properly.
While an alarm system may make one
eligible for lower insurance rates, it is not a
substitute for insurance. Homeowners, property
owners, and renters are therefore urged to
maintain adequate insurance coverage of life
and property.
LIMITATIONS OF FIRE ALARM WARNING SYSTEM

15
KEYPAD FUNCTIONS
The keypad can provide access to a wide assortment of utility functions. The functions are displayed in a prompting
“YES/NO” format.
1. To enter the Function Menu, press w.
•In all UL-listed or high-security installations, a valid User Code must first be entered followed by w.
2. To skip a function, answer "X" (press z) or w.
3. To select and execute a function, answer "r" (p) or v.
•Functions may be manually scrolled forward or backward using wand x, respectively.
•To return to normal keypad operation, press the ybutton. The keypad will automatically return to its normal
operating mode if no activity is detected for longer than one minute.
Display Zone Status? Displays the zone number of zones that are not secured.
Press the ª(
p) and ©(z) buttons (as displayed on-screen) to scroll
faulted zones.
Display Zones Bypassed? Displays bypassed zones. Press ª(p) and ©
(z) to scroll bypassed zones.
Activate Bell Test? Activates the alarm (while disarmed) for about 2 seconds and
performs a battery test. If the alarm does not sound, call for service. If the battery
is low, a system trouble E02 will appear in the display. Allow 24 hours for the
battery to recharge. If the trouble continues, call for service.
01 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
02 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
03 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

16
KEYPAD FUNCTIONS
4. Display System Troubles? Displays a 1- or 2-digit error code representing a
problem detected in the system. (See SYSTEM TROUBLE ERROR CODES for a
description of these codes). Use ª(
p) and ©(z) to scroll system
troubles. (For GEM-P9600/3200 panels only).
5. Display Fire Alarms? Displays alarms that have occurred on the Fire Zone(s).
Press the ª(p) and ©(z) buttons to scroll zones.
6. Display Fire Troubles? Displays trouble conditions that have been detected
on the Fire Zone(s). Use ª(p) and ©(z) to scroll zones.
7. Activate Chime? The Chime Mode will sound a tone at the keypad when the
programmed zone is opened while disarmed. To deactivate the Chime Mode,
execute Function 7 once again. Note: The Chime Mode is disabled while armed.
8. Activate Watch Mode? (Optional - Watch Mode programmed? YES NO)
This optional feature simultaneously turns on all zones designated as Day Zones,
which will cause an indication at the keypad if a zone is opened while the system
is disarmed. To deactivate the Watch Mode, arm, then disarm. All Day Zones will
revert to regular Burglary Zones. Note: The Watch Mode is disabled while
armed.
04 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
05 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
06 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
07 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
08 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

17
KEYPAD FUNCTIONS
9. Reset System Trouble? System troubles display and sound at the keypad.
Correcting the trouble will clear most indications, however the following error codes will
require manual reset: E11; E13; E19; E20 and E22. (See SYSTEM TROUBLE ERROR
CODES for a description of error codes).
10. Reset Sensor Watch Failure (Sensor Watch programmed? YES NO).
Your system may have been programmed for Sensor Watch, a feature which supervises
the motion sensors in the system. If a Sensor Watch failure occurs, a System Trouble
E22-NN will result, where NN represents the zone number of the sensor in question. To
reset, press yto clear the display, enter the Function Menu, scroll to Reset Sensor
Watch Failure and press v. If you cannot correct the problem, call for service.
11. Start Exit Time? (Optional) (Start Exit Time programmed? YES NO)
In Commercial Burglary systems, exit delay may have been programmed to start after a
central-station “ringback” (verification) signal has been received. If the ringback tone
has not been received within about 30 seconds after arming, a communication problem
may exist. Use this function to start exit delay manually, then exit the premises
immediately. Be sure to have your alarm specialist check communications with the
central station as soon as possible.
09 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
11 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
10 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

18
KEYPAD FUNCTIONS
15. Activate Telephone Test? (Telephone Test programmed? YES NO). Sends
a communicator test to the central station. A communication failure will be
indicated at the keypad by a system trouble “E03-00” display. Repeat the test to
attempt to correct a communication failure, as any successful communication will
clear this display.
16. Delay Arming 1-4 hours. (Not for UL-listed systems). Your system may be set
to arm automatically after a delay period of 1 to 4 hours.
To Delay Arm the system:
•With Function 16 in the window, enter the desired Delay Arming time in hours
(1,2,3or 4), followed by v.
At the end of this 1 - 4 hour Delay Arming period, the siren will sound a 2-second
warning and the keypad will begin a 15-minute arming countdown with the sounder
pulsing. The sounder may be silenced at this time by pressing y, but it will turn
back on with a steady warning tone 1 minute prior to arming, at which time the
building must be exited.
The same steps can be used to delay a scheduled Auto Arming, if your system has
been programmed as such.
15 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
16 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

19
KEYPAD FUNCTIONS
17. Activate Program? Activates the Program Mode from Keypad No. 1. Note:
This feature is disabled while armed. (See PROGRAMMING USER CODES).
18. Activate Download? For installer's use only. If accidentally enabled, press
yto exit.
Note: This feature is disabled while armed.
19. Relay Control? (Relay Control programmed? YES NO) (GEM-P3200/9600 panels only)
Turns ON or OFF one or more programmed Relay Group. Press vto turn the
displayed group on or off; press ª(
p) to proceed to the next group, or ©
(z) to scroll back to the previous group. Press ywhen done.
•Relay Group 01: [ ____________________________________ ]
•Relay Group 02: [ ____________________________________ ]
•Relay Group 03: [ ____________________________________ ]
•Relay Group 04: [ ____________________________________ ]
•Relay Group 05: [ ____________________________________ ]
•Relay Group 06: [ ____________________________________ ]
•Relay Group 07: [ ____________________________________ ]
•Relay Group 08: [ ____________________________________ ]
17 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
19 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME
18 INTERIOR BYPASS FIRE/TBL SYS TBL CHIME

20
Your alarm specialist may have
programmed your system to be monitored
by a central station. The built-in digital
communicator can transmit emergency
signals and status reports to the central
station 24 hours a day.
Communicator Features
Abort Delay. Ask your installer which of
your zones have Abort Delay, a delay
that enables you to reset the system
before it communicates to the central
station. Your system has a SIA CP-01
required Abort Delay of 30 seconds. It
may be removed or increased up to 45
seconds (at your option) by consulting
with your installer. Note: If an alarm
signal is cancelled during the Abort De-
lay or cancelled after the report is sent
(and an acknowledgement of the can-
cellation is received), a "C" will appear in
the keypad window.
Regular Burglary (Non-24-Hour) Zone
reports are aborted by disarming within
the delay period.
24-Hour Zones and zones
programmed to report restores must be
restored first, then the panel armed and
disarmed, all within the delay period.
Opening and/or Closing Reporting.
Your system can notify the central station
every time it is disarmed or armed. Any or
all of up to 96 different users can each be
identified. If your system reports on arming
(Closing Report), the central station will
acknowledge arming. This will signal at the
keypad as a “ringback” beep. Note: If the
ringback signal is not heard, call for service.
CENTRAL STATION MONITORING
