Gemmy PLC-012 User manual

UNIVERSAL CENTRIFUGE
PLC-012, PLC-012E, PLC-012H
PLC-012BP, PLC-024
! Safety Information
This manual contains important and safety information.
The user must carefully read and understand the contents of this
manual prior to using this equipment.
2013.0310.1000

UNIVERSAL CENTRIFUGE
PLC-012, PLC-012E, PLC-012H
PLC-012BP, PLC-024
CONTENT
Safety information ……………………………………………. 1
Standards, product briefing …………………………………1
Specifications, rotors ……………………………………… 2
WARNING, Intended use ……………………………….. 3
Installation ………………………………………………… 3
Definition ………………………………………………… 4
Operation …………………………………………………. 5
How to use Reading Scale for HCT ……………………. 6
How to change rotors ……………………………………… 7
How to calibrate speed indicator ………………………….. 8
Disassembly …………………………………………………. 9
Maintenance & servicing ……………………………….. 10
Troubleshooting …………………………………………… 11
Direction to clean, transportation, storage…………………. 12
Environmental conditions for operation …………………… 12
Diagram of components, PLC-012 series…………………. 13
Wiring diagram, PLC-012 ………………………………. 14
Wiring diagram, PLC-012E ………………………………. 15
Diagram of components, PLC-024 ………………………… 16
Wiring diagram, PLC-024 ………………………………. 17
One year Limited Warranty
GEMMY INDUSTRIAL CORP. Certified:
Taipei, Taiwan ISO9001, ISO13485
CE marking, USFDA
GM

Safety information
Your GEMMY Universal Centrifuge has been designed with functions,
reliability, and safety in mind. This manual contains important operation
and safety information. The users must carefully read and understand
the contents of this manual prior to installing your centrifuge in
conformance with your local electrical codes.
Classification: This Centrifuge is classified as “Class I” equipment.
CE marking：
：：
：The manufacturer also declares the conformity with the
actual required safety standards in accordance with
LVD 73/23 EEC.
Standards:
 This equipment complies with EC Electromagnetic Compatibility
requirement of EN60601-1-2. EMI filter is designed in conformity
with 89/336 EEC-EMC Directive.
 ISO9001+13485, GMP (Good Manufacturing Practice), USFDA
 This equipment complies with IEC801 series regulations.
 Accredited Foreign Medical Device Manufacturer, Japan
Products’ briefing：
：：
：
This equipment is a Class 1 tabletop centrifuge with timers, speed
control and brake control. The motor used is all the same except
PLC-012BP and PLC-024. The difference among 4 models is the
type and operation time of timer, the speed control and braking circuit
and the enclosure.
The motor has a max speed of 14000rpm for PLC-012, PLC-012E and
PLC-012H, and 3500rpm for PLC-024 and fitted with a thermostat to
regulate the operating temperature.
There is no heating element. No applied part for patients and not
suitable for the use in special environment.
1

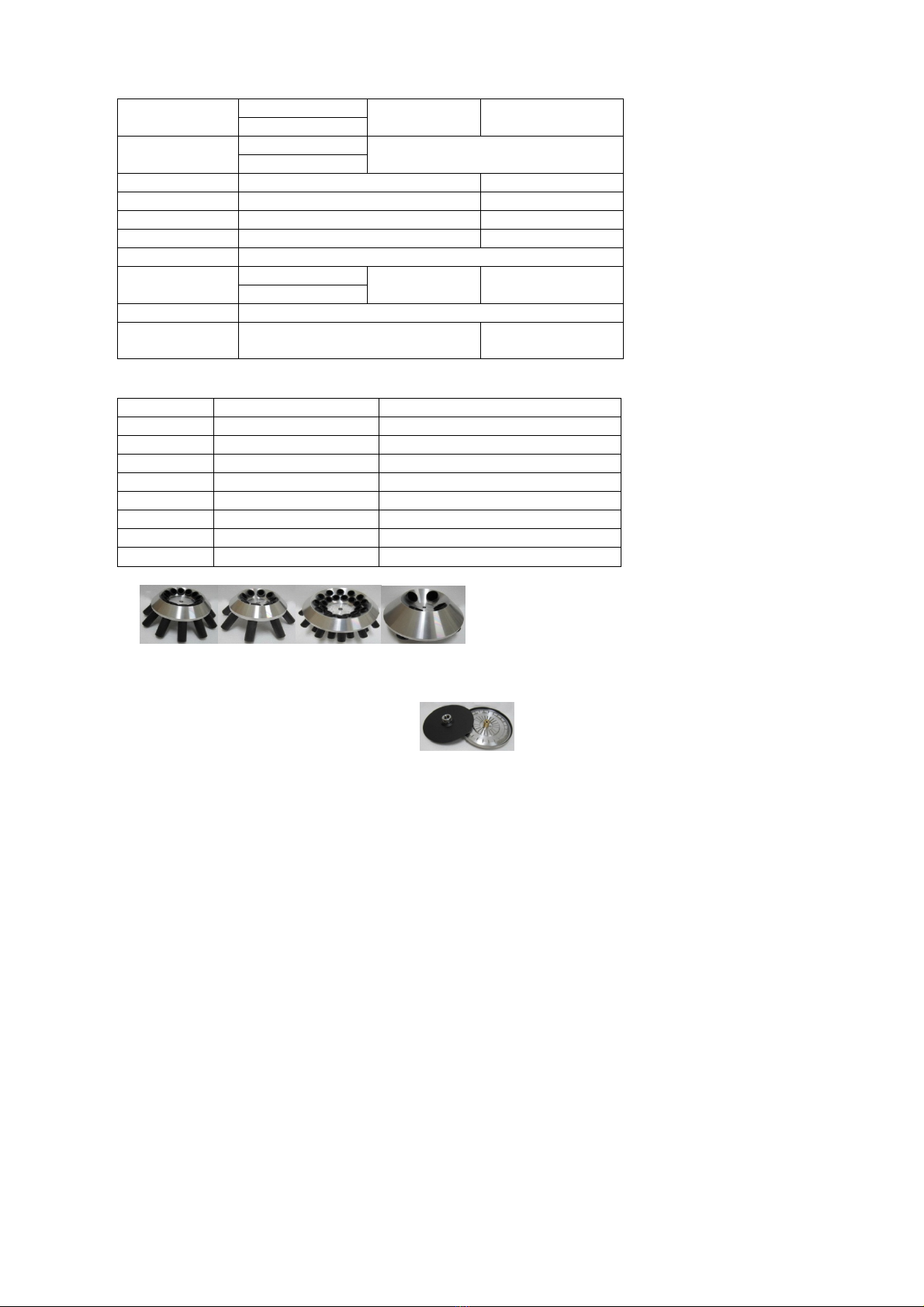

Specifications:
Model PLC-012 PLC-012H PLC-024
PLC-012E
Timer Mechanical LED digital 99 minutes
Digital 99 min
Dimension 35 x 35 x 29 cm 45 x 44 x 41cm
Net weight 15.6kg approx. 26.0 kg
Motor Brush AC 80W Brush AC 250W
Speed Adjustable max up to 12000rpm 0-3600rpm
Safety device Yes, shut out power when open the lid
Speed indicator
Gauge LED digital Gauge
LED digital
Brake Electrical switch, manual
Suggested
Rotors
A-0815, A-1215, A-2405, F-2415,
H-0450. (S-0815: for PLC-012H)
H-2415
Rotors Available:
A-1215 A-0815 A-2405 H-0450
NOTE:
1. F-2415: For HCT use. F-2415
Capillary tube: 1.1-12.mm (I.D.),
Wall 0.2mm+0.02mm, L: 75mm
2. H-2415 and H-1050: Solely for PLC-024.
3. S-0815: Solely for PLC-012H
4. RPM/RCF may vary a bit influenced by exterior environment
2
Code Capacity(ml) Max rpm/RCF
A-0815 8 x 15ml (or 10ml) 6400 rpm / 4900xg
A-1215 12 x 15ml 5700 rpm / 4180xg
A-2405 24 x 5ml 6400 rpm / 4715xg
F-2415 24 x 0.75ml capillary 12000rpm / 14490xg
H-0450 4 x 50ml 5000 rpm / 3500xg
S-0815 8 x 15ml swing-out 6170 rpm / 6256xg (PLC-012H)
H-2415 24 x 15ml 3600 rpm / 2890xg (PLC-024)
H-1050 10 x 50ml 3700 rpm / 2668xg (PLC-024)

IMPORTANT：
：：
：BIOHAZARD
This Centrifuge is intended for in-vitro diagnostic use, when the bio
specimen is loaded, such as Blood, Reagent, Urine etc., the user is
strongly requested to wear Gloves and Goggles for protection.
WARNING！
！！
！ (PLC-024)
Heavy, Risk of Injury
CAUTION：
：：
：
If the equipment is used in a manner not specified by the manufacturer,
the protection provider by the equipment may be impaired.
Intended use：
：：
：
This equipment is to provide a laboratory tests in field of biochemistry,
microbic immunity genetics, and also provide a general clinic test for
hematocrit valve (HCT) within the range of speed from 0 – 12000rpm
for test tubes containing in vitro diagnostic specimens for qualitative of
quantitative test procedures.
Refer to the clinic laboratory method specified by the reagent
manufacturer or established by medical technology for products
applications.
Installation:
1、Untie the packing band；
2、Open the cover of the carton box;
3、Carry the suction pump carefully from the carton box;
4、Remove the plastic bag from the centrifuge;
5、Keep the packing materials for purpose of the
transportation and storage.
6、Don’t drop the equipment and don’t place the equipment
upside down.
7、Check if the standard accessories are included or not.
3

Definition：
：：
：
 Micro Centrifuge
Means to use for volume up to 2.2ml micro-tubes of DNA
precipitations and purifications.
 Micro Haematocrit Centrifuge
Designed for use of 24 places of 1.2mm (or 1.5mm) x 75mm (Dep.)
capillary tubes for HCT test, which defines the percentage of Red
Blood Cells against the whole body reflecting the status of Red
blood Cells. The normal value of HCT for male is 40 – 54% and
38 – 47% for female.
 Universal Centrifuge
Accommodated with different sizes and types of Rotors for the
appropriate tests.
 g Force
The measurement for samples undergoing the stress of
acceleration in a centrifuge.
 RCF （
（（
（Relative Centrifugal Force）
））
）
RCF is the centrifugal force that the samples undergoes which
relies on the speed of rotation （N）in rpm and the rotating radius
（R）. The rotating radius is measured from the center axis of
rotor to the extreme end of the centrifuge tubes.
Formula：
：：
：RCF = 11.18 x r x ( N / 1000)²
Swing-out Rotors：
：：
：
Ideal for cell culturing applications because sediment forms on the
bottom of the tubes.
 Fixed-Angle Rotors：
：：
：
Ideal for pelleting applications because sediment collects
diagonally in the tube. Higher rotational speeds and higher
g-forces are achieved using fixed-angle rotors.
 Round bottom Tubes：
：：
：
Have a uniform wall thickness and provides a better fit in a rotor
than conical bottom tubes. Round tubes withstand higher g-forces.
 Conical bottom Tubes：
：：
：
Ideal for cell culturing and ammonium sulfate precipitations.
4

OPERATION：
：：
：
-Refer to the specification label located on back of this equipment.
-Plug cord in a properly grounded outlet.
-Place the test tubes into the tube holders. Be sure to place tubes
systemically and diagonally to keep the rotor balance.
-Close the lid completely and press the locking latch on side of this
equipment.
-Switch power to ON position, preset time to your desired setting.
-Regulate the speed by turning the control knob of speed to your
desired speed.
-PLC-012E and PLC-024 are equipped with a 3-digit LED digital
speed indicator with a step of 100 rpm. Once the desired time is
set, press “START” button to drive the motor, and regulate the
speed by turning the control knob of speed regulation to your
desired speed setting.
-The high torque motor accelerates to the maximum speed in 15-20
seconds both for power 110V/60Hz and 220V/50Hz.
-When the time has elapsed, the power will shout out automatically.
Press the toggle switch to brake to the complete stop within 15 –
20 seconds. Switch off power immediately in order to avoid the
reverse rotation.
-A power shutout safety device is mounted to shut out the power
automatically when open the lid during the spinning.
-Press the locking button located on the up-right hand of this
equipment to unlock the cover.
-Remove the testing specimens carefully from the rotor.
WARNING：（
：（：（
：（IMPORTANT）
））
）
-Do not open the lid only until the rotor is stopped completely.
There is possibility on person injury if you violate this regulation.
Gemmy will not ensure any responsibility if you violate this
regulation.
- A safety lid locking device is functioned to shut off power when
open the lid during operation.
5

How to use Reading Scale for HCT：
：：
：
When Rotor No. F-2415 is used for the Hematocrit test of HCT value,
the following direction is the way to read the scale:
1、Remove the capillary tubes from the rotor head carefully；
Warning: Do not let the blood drain out of the tubes.
2、Place the capillary tubes onto grooves (#1) of tubes holder
carefully；let the extreme end (red blood cells) of capillary tubes
reach the straight line (#3) on right hand of the platform；
3、Move the tubes holder (#2) to the position where the extreme
end of Leucocyte (#9) meets the diagonal line (#4) on platform；
4、Move the sliding bar (#5) to meet the demarcation (#7) place
where separates the Leucocyte and red blood cells；
5、The percentage of HCT is then read directly from the scale (#8)
at upper hand of the reading scale.
NOTE：
：：
：
-Use clay to block the end of capillary tube which has mark on it；
-Refer laboratory method of reading scale to licensed medical
personnel.
2458
99 9
7
Red Blood Cell
316 Red Blood Cells
6

How to change rotors for Universal Centrifuge
When change rotor to meet your application for Universal Centrifuge,
please refer to the following procedures:
1. Disconnect the power supply to prevent the electrical shock.
2. Find the “L” shape wrench (#1) and loosen counterclockwise the
bolt that connected rotor and motor to remove the rotor.
3. Be sure the brass connector and rotor are in good condition.
4. Mount the new rotor by the reverse way. Do not tilt the new rotor to
ensure the balance of rotor after replacement.
5. The direction of motor spinning and the thread of the bolt is
running at the reverse direction, there is no worry about the loosen
rotor during motor spinning.
6. User is required to wrench the bolt as tighter as possible prior to
the spinning in order to avoid the possible body injury.
CAUTION: The change of rotor is limited to the qualified engineers.
7

How to calibrate Speed Indicator PLC-012, PLC-024
This universal centrifuge was initially calibrated by adjusting the rpm in
house to match the practical rotation. If this adjustment becomes
failed after use by the span of time, recalibrate the speed indicator is
required as depicted below：
1、Turn the switch to ON position.
2、Set speed to 1000 rpm by turning the control knob and measure
the correct rpm of rotor spinning by an electronic digital
tachometer. Then see whether or not the setting variable could
match practical variable. Refer to operation established by the
tachometer manufacturer.
3、Adjust the rpm of speed indicator to match the measured rpm by
turning the screw under the speed indicator until they are
matched exactly. Clockwise turning indicates the increase of
scale of rpm, counterclockwise turning indicates the decrease of
scale of rpm
4、Repeat the above procedures until the practical speed matches
the value on tachometer.
WARNING：
：：
：
Take care of the HIGH SPEED when calibrate the speed which may
cause personal injury. GE Y recommend the 2 engineers for speed
calibration, one uses digital tachometer to measure the practical speed
and the other one adjust the speed indicator.
NOTE：
：：
：
1、The operation of AC motor is easily affected by its surrounding
power consumption, which will result in a fluctuation of speed.
To assure an accurate rpm and its corresponding RCF, do not
place this equipment in the draft, sunlight or near a piece of
equipment that emits heat as well as Electromagnetic
conduction emission.
2、Users are requested to use a digital tachometer to measure the
practical rpm and calibrate the speed any time when it is
required in order to attain the accurate testing result.
3、Always start the timer from ZERO
4、Always open lid only until the motor has stopped completely.
5、When the maximum speed is operated, remember to keep the
rotor balanced in order to avoid the possible broken tubes.
8

DISASSEMBLY：
：：
：
WARNING：
：：
：
For sake of safety, the disassembly to this equipment is strictly limited
to the qualified personnel or licensed engineers only.
GEMMY will not ensure the responsibility if user violates this
regulation.
 Remove screws from the sides of steel case to release the upper
and down case set.
 Loosen the 3 nuts from rubber supports attached to the bottom
mount to remove the rack of motor.
 Unscrew the motor from the rack;
 Disconnect wires from assembly prior to disassemble the
electronic parts;
 Loosen the screw to remove the Connector from motor;
 Loosen the bolt to remove the rotor.
 Use the hexagon wrench to remove the bolt and rotor from
connector fro the replacement of rotor.
 The power switch power cord outlet should be compressed on the
sides from removal.
 Loosen set screw and remove control knob of timers and speed
regulator;
 Use wrench or pliers to remove the nuts fro the removal of Brake
switch and speed regulator;
 Remove from control panel and loosen 2 screws from timer
removal (PLC-012, PLC-012BP);
 Rotor chamber is detachable;
 Loosen 2 plastic screws attached to the lower part of motor to
replace the carbon brushes.
WARNING：
：：
：
-Disconnect from power supply prior to disassembly of this
equipment.
-People other than the qualified personnel or licensed engineers
are strictly prohibited for disassembly.
9

MAINTENANCE & SERVICING：
：：
：
 To avoid electrical shock, always disconnect from power supply
prior to maintenance & Servicing.
 People other than the qualified personnel or licensed engineers
are strictly prohibited from maintenance and servicing.
 Always use a properly grounded electrical outlet of correct voltage
and current handling capacity.
 Always inspect the rubber supports, replace the new one when
required in order to keep the rotor balanced.
 The drive motor and linkage assembly do not require lubrication.
 Inspect and replace the carbon brushes yearly or according to the
operation frequency or whenever it needs.
 Use compressor to clean the dust inside the chamber that is
generated by the carbon brushes. Wearing the musk while
cleaning the dust to protect your respiratory system.
 Carbon brushes are limited to the origin of supplier. The nature of
carbon brushes, such as hardness and dimension, is closely in
connection with the motor design. The carbon brushes out of the
origin of supplier will damage the motor.
 Inspect micro-switch and see if the function of automatic shutout
safety device is working.
 A 10A fuse is equipped inside the circuit board to encounter the
abuse of voltage, so as to protect the electronic parts and motor
from burnout.
 When the rotor No. F-2415 (for capillary tubes use) is operated,
replace the rubber gasket periodically or whenever it is required.
 Inspect the speed indicator and see if its variable is accurate or not.
Otherwise, calibrate the speed indicator (See page 7).
10

Troubleshooting：
：：
：
Problem Possible cause Corrective action
Can’t connect
power
-Blown fuse
-Disconnected linkage
-Defective power switch
-Worn carbon brushes
-Burnout motor
-Defective PCB
-Replace new one
-Connect linkage
-Replace new one
-Replace new one
-Replace new one
-Replace new one
Erratic Speed -Worn carbon brushes
-Defective triac on PCB
-Defective resistance VR
-Replace new one
-Replace new one
-Replace VR
Vibration -Imbalance rotor
-
Loosen rubber supports
-Adjust rotor
-
Tighten them
Imbalance
-Place tubes improperly
-Rotor does not screw
tightly
-Loose rubber supports
-Motor does not position
-Place tube diagonally
-Screw rotor tightly
-Screw rubber
supports properly
-Position motor
Noise -Motor is tilted
-Loose Rubber supports
-Position motor
-Replace new ones
Fuse blew
always
-Loose SCR on PCB
-Short circuit in motor
-Over load
-Unstable power supply
-
Check and fix SCR or
replace the new SCR.
-Replace new motor
-
Properly operate
-
Use power stabilizer
Broken test tubes
-Tilt tubes
-Didn’t press tubes all way
down
-Didn’t place Lid of rotor
F-2415 properly.
-Corrosive silicon gasket
on rotor # F-2415
-Place tubes properly
-Place tubes all the
way down
-Cover the rotor lid
properly
-Replace the new
one
NOTE：
：：
：
 The drive motor and linkage assembly do not require lubrication
 Disassembly must be performed under the supervision of licensed
engineers
 Take care of the electrical shock for troubleshooting.
 Call your distributor for troubleshooting.
11

Direction to Clean：
：：
：
 Disconnect from power supply prior to clean.
 Clean the equipment after every use.
 Use a moist cleaning cloth to clean the case, rotor and tube
holders
 Dry the equipment thoroughly before operation.
 Do not immerse this equipment in water.
 Never use benzine or paint thinner for cleaning.
Transportation：
：：
：
 Fragile, Handle with Care
 Use no hook
 Do not drop this equipment
 Do not place this equipment upside down.
 Pack this equipment in carton box for transportation.
 Prevent this equipment from vibrating. Keep it balanced during
transportation.
Storage：
：：
：
 Do not place this equipment in the draft, sunlight or near a piece of
equipment that emits heat and electromagnetic conduction
emission.
 Disconnect power supply while store this equipment.
 This equipment shall be stored under the condition of room
temperature
 Do not place any heavy load on this equipment.
Environmental Conditions for Operation & Storage：
：：
：
 Temperature 10º C – 40ºC
 Humidity 40 % – 90 %
 Sea level altitude ≤4000 meters
 Atmospheric pressure range of 700hPa to 1060hPa.
Heavy, Risk of Injury
Model PLC-024 has a mass of 26 kg and more. There is possibility of
Risk of Personal Injury. When lifting and carrying this equipment,
stretch out your hands and lift the equipment from the space between
the ground and the bottom of the equipment as depicted figure.
Upright, do not crouch down, your body to protect your waist.
12

Diagram of Components
PLC-012 Series
13
Code Description
17 Chamber,
18 Brass connector
19 Rack, motor
20 otor, 80W, AC, brush
21 Rubber support,
22 Bearing, motor
23 Generator, motor
24 Coil resistance
25 Circuit board
26 Case, down
27 Suction feet
28 Lock
33 Bolt, rotor
43 Carbon brush
44 E C filter
45 Relay
Code Description
1 Cover
2 Lock
4 Toggle switch, brake
5 Speed indicator
6 VR, speed regulator
7 Timer
8 Control knob, VR
9 Control knob, timer
10 Rocker switch, power
11 Hinges, 2 required
12
icro switch, safety shutout
13 Inlet, power cord
14 Fuse, 5A, inlet
15 Rotor, aluminum alloyed
16 Rubber gasket, chamber

Wiring diagram
PLC-012
14

Wiring Diagram
PLC-012E, PLC-012H
15

Diagram of Components
PLC-024
16
Code Description
1 Cover
3 Lock
4 Connector, motor/rotor
5 Rack, motor
6 Rubber support, 3 required
7 otor
9 Generator, motor
10 Circuit board, PCB
11 Coil resistance
12 Toggle switch, brake
13 Speed indicator
14 VR, speed regulator
15 Timer, 99 minutes
16 Control knob, VR
15 Timer, 99 minutes
16 Control knob, VR
17 Rocker switch, power
18 Suction feet, 4 required
19 Rotor
20 Rubber gasket, chamber
21 Chamber
22 Hinges, 2 required
23 icro switch, safety shutout
24 Inlet, power cord
25 Fuse, 6.3A, inlet
28 Lock
29 Bolt, rotor
43 Carbon brush
44 E C filter

Wiring diagram
PLC-024
17

One Year Limited Warranty
Your GEMMY product is guaranteed to be free from defects in
materials and workmanship for one (1) year under normal use from the
date of purchase.
This WARRANTY does not apply to any product damaged by accident,
misuse, abuse, neglect, improper line voltage, drop, fire, flood or if the
products were altered or repaired by anyone other than the qualified
service personnel.
The liability of Gemmy Industrial Corp. is limited to repair or
replacement and under no circumstances shall GEMMY be liable for
any collateral consequential damages or losses. This guarantee
specifically excludes the expendables and consumables.
All warranty claims must be directed to the distributors or agents
authorized by Gemmy Industrial Corp. responsible for the sale of this
equipment. The users are responsible for shipping expenses.
Purchase Record
Company name：
Address ：
Phone No. ：
Fax No. ：
Email address ：
Date of purchase：
Product Model ：
Serial No. ：
Distributor ：
Manufacturer: EU Representative：
：：
：
Gemmy Industrial Corp. GEMMY Europe
Taipei, Taiwan 23 rue de Rotterdam
4000 Liege, Belgium
Tel: [phone]
