Parts and Service Manual -First Edition
Part No. 33953
Section 1 - Safety Rules
Safety Rules
Warning
Failure to obey the instructions and safety rules in
this manual and the Genie Superlift Contractor
Operator's Manualmay result in death or serious
injury.
Many of the hazards identified
in the operating
instruction manual are also safety hazards when
maintenance and repair procedures are
performed.
Do Not Perform Maintenance
Unless:
li2l You are trained and qualified to perform
maintenance on this machine.
li2l You read, understand and obey:
-manufacturer's instructions and safety rules
-employer's safety rules and worksite
regulations
-applicable governmental regulations
li2l You have the appropriate tools, lifting
equipment and a suitable workshop.
Genie Superlift Contractor iii
Go to Discount-Equipment.com to order your parts

Section 1- Safety Rules
SAFETY RULES
Personal Safety
Any person working on or around a machine must
be aware of all known safety hazards. Personal
safety and the continued safe operation of the
machine should be your top priority.
Read each procedure thoroughly. This
manual and the decals on the machine
use signal words to identify the following:
Pl''4
1j 11
~ [d 4·)Indicatesthe pr~sence of
-- -·-- --- '- a hazard that w111 cause
death or serious injury.
Indicates the presence of
a
hazard that may cause
death or serious injury.
Indicates the presence of
a
hazard that will or may
cause serious injury or
damage to the machine.
m ~ r1 't J r.l ::m Indicates special
1111 tl J Ill' fi operation or maintenance
information.
Be sure to wear protective eye wear and
other protective clothing if the situation
warrants it.
Be aware of potential crushing hazards
such as moving parts, free swinging or
unsecured
components, and lifting or
placing loads. Always wear approved steel-toed
shoes.
Parts and Service Manual -First Edition
Workplace Safety
Be sure to keep sparks, flames and
lighted tobacco away from flammable and
combustible materials like battery gases,
cleaning solvents and engine fuels. Always have
an approved fire extinguisher within easy reach.
Be sure that all tools and working areas
are properly maintained and ready for
use. Keep work surfaces clean and free
of debris that
could get into machine components
and cause damage.
Be sure that your workshop or work area
is properly ventilated and well lit.
Be sure any forklift, overhead crane or
other lifting or
supporting device is fully
capable of supporting and stabilizing the
weight
to be lifted. Use only chains or straps that
are in gc:>od condition and of ample capacity.
Be sure that fasteners intended for one
time use (i.e., cotter pins and self-locking
nuts) are not reused. These components
may fail ifthey are used a second time.
Be sure to properly dispose of old oil or
other fluids.
Use an approved container.
Please be environmentally safe.
iv
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Introduction
Section One
Section Two
SLC-6
SLC-12
SLC-18
SLC-24
Parts and Service Manual -First Edition

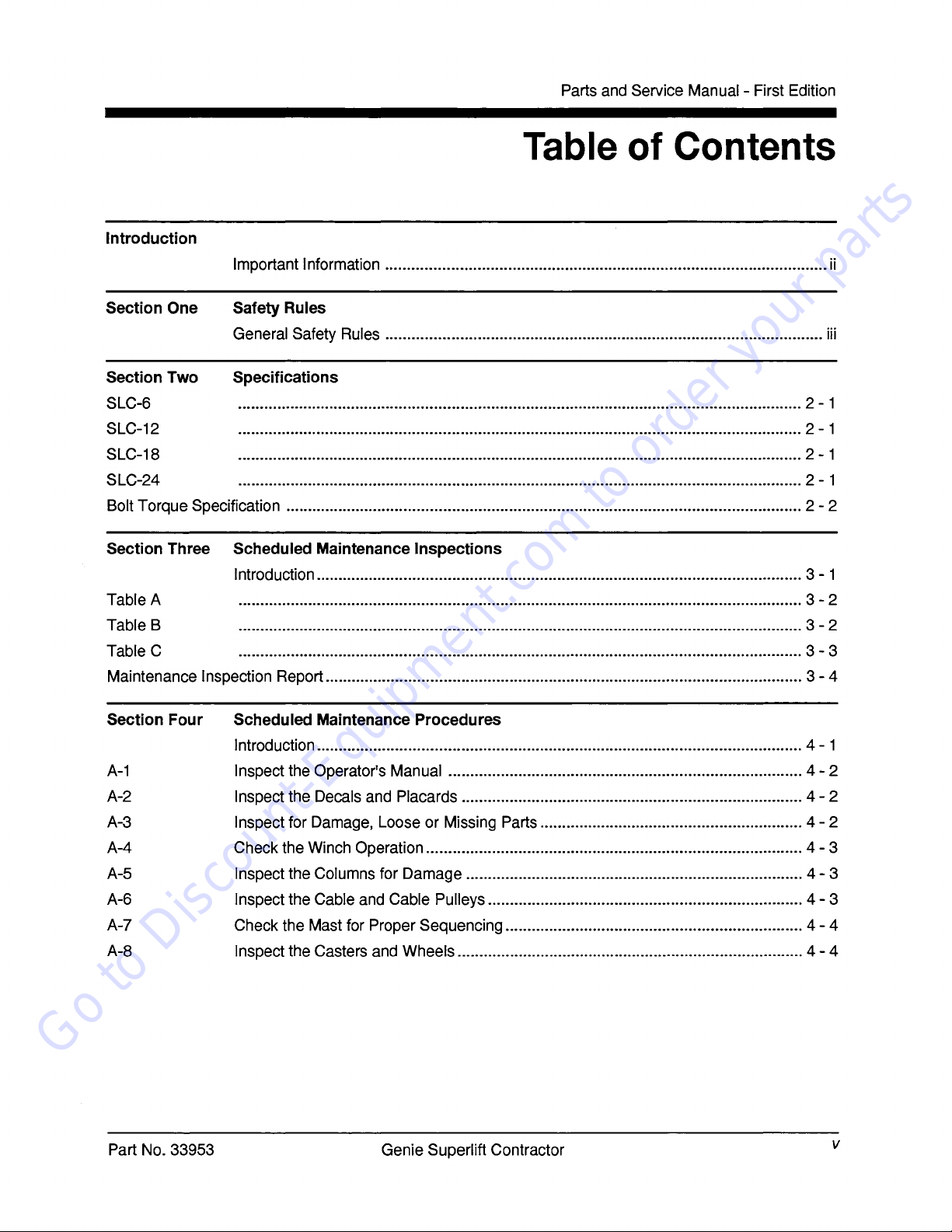

Table of Contents
Important Information ..................................................................................................... ii
Safety Rules
General Safety Rules .................................................................................................... iii
Specifications
································································································································· 2-1
································································································································· 2-1
................................................................................................................................. 2-1
································································································································· 2- 1

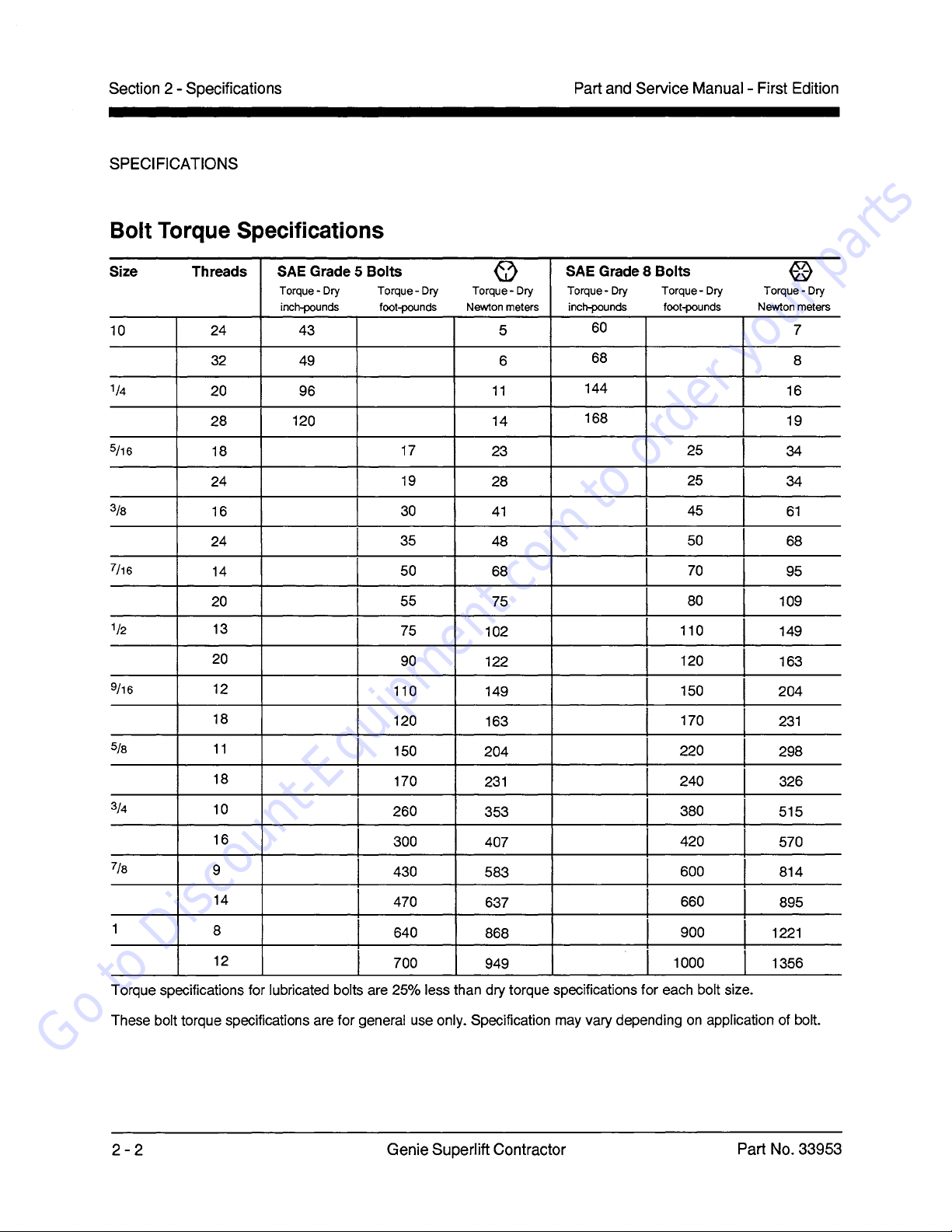

Bolt Torque Specification ......................................................................................................................2 - 2
Section Three Scheduled Maintenance Inspections
Table A
Table B
TableC
Introduction...............................................................................................................3 - 1
.................................................................................................................................
3-2
································································································································· 3-2
································································································································· 3-3
Maintenance Inspection Report.............................................................................................................3 - 4

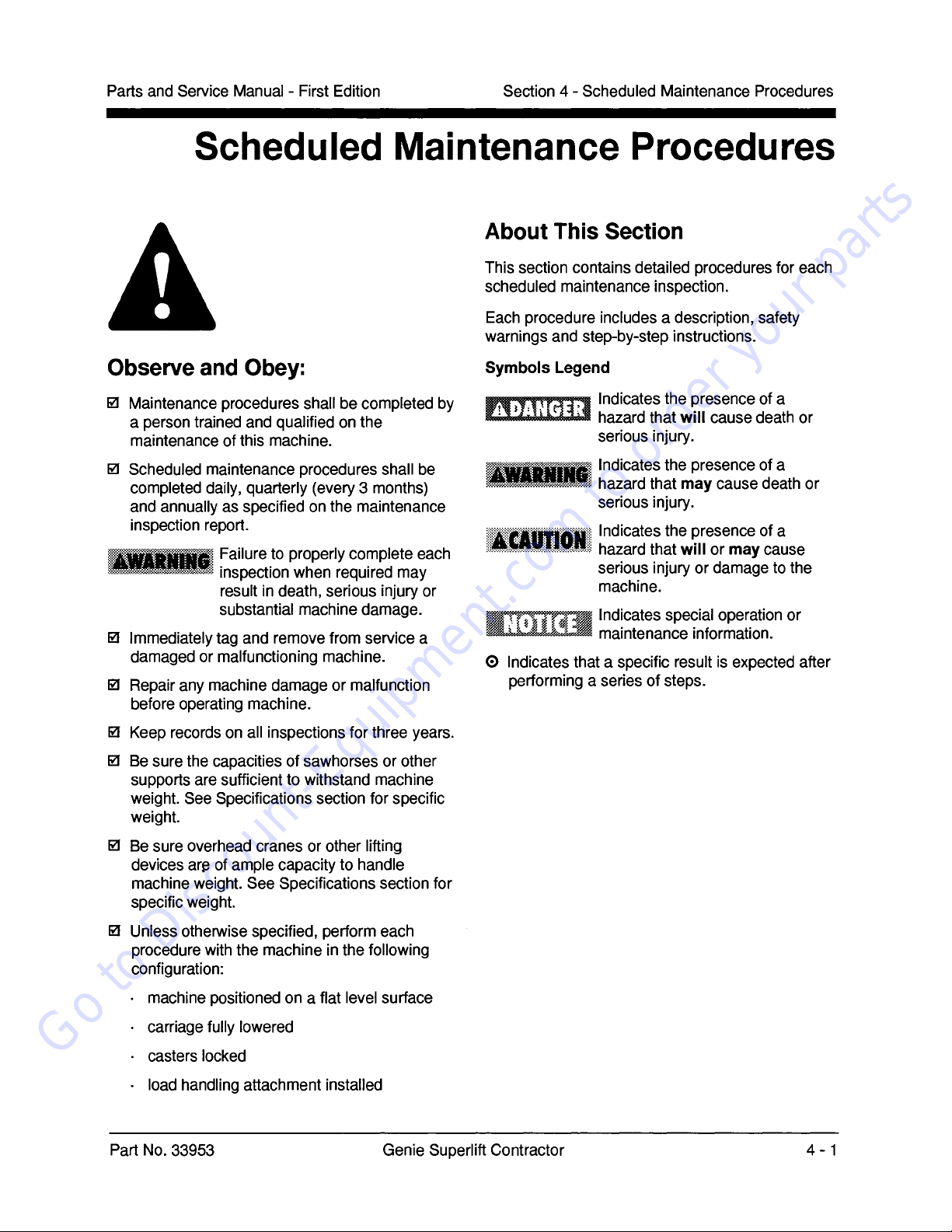

Section Four Scheduled Maintenance Procedures
A-1
A-2
A-3
A-4
A-5
A-6
A-7
A-8
Part
No. 33953
Introduction...............................................................................................................4 - 1
Inspect the Operator's Manual ................................................................................. 4 - 2
Inspect the Decals and Placards .............................................................................. 4-2
Inspect for Damage, Loose or Missing Parts ............................................................ 4 - 2
Check the Winch Operation...................................................................................... 4 - 3
Inspect the Columns for Damage ............................................................................. 4 - 3
Inspect the Cable and Cable Pulleys ........................................................................ 4 - 3
Check the Mast for Proper Sequencing.................................................................... 4 - 4
Inspect the Casters and Wheels ...............................................................................4 - 4
Genie Superlift Contractor v
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition
TABLE OF CONTENTS
Section Four Scheduled Maintenance Procedures, cont.
B-1 Inspect All Welds ...................................................................................................... 4-5
B-2 Clean the Columns ...................................................................................................4 - 5
B-3 Inspect and Lubricate the Winch .............................................................................. 4-5
C-1 Lubricate the Casters and Wheels ........................................................................... 4 - 6
C-2 Inspect the Mast Assembly for Wear ........................................................................ 4 - 6
C-3 Replace the Winch Friction Disks .............................................................................4 - 7
C-4 Inspect the Safety Brake System -If Equipped ........................................................ 4- 7
C-5 Inspect the Painted Surfaces, .................................................................................... 4- 8
Section Five Troubleshooting Flow Charts
Introduction...............................................................................................................5 - 1
1
Mast Will Not Sequence Properly ............................................................................. 5 - 2
2 Carriage
Will Not Raise, But Winch Will Operate ..................................................... 5 - 3
3
Winch Will Not Operate ............................................................................................ 5- 4
Section Six Repair Procedures
Introduction............................................................................................................... 6- 1
Base Assembly
1-1 How To Remove the Base ........................................................................................ 6-2
Mast Assembly
2-1 How to Disassemble the Mast Assembly.................................................................. 6- 3
2-2 How to Replace the Lifting Cable ............................................................................. 6- 4
2-3 How to Replace a Lifting Pulley- Mast Installed.........................:............................. 6- 5
Winches
3-1 How To Disassemble the Winch ............................................................................... 6- 6
vi Genie Superlift Contractor Part
No. 33953
Go to Discount-Equipment.com to order your parts

This manual is updated frequently. For the most up-
to-date parts information, visit www.discount-
equipment.com
How to ReadYour Serial Number..........................................3
Parts Stocking List.................................................................7
ElectronicVersion
Click on any page number to view the figure.
100 Decals
101.1 Decals with Words (to SLC04-28240)........................10
103.1 Decals with symbols..................................................12
200 Base Components
201.1 Base Components, View 1.........................................14
202.1 Base Components, View 2.........................................16
300 Mast andWinch Components
301.1 Mast Components, View 1.........................................18
302.1 Mast Components, View 2.........................................20
303.1 Mast Components, View 3.........................................22
304.1 Columns, Pulleys and Cables....................................26
305.1 Winch Components - Single Speed...........................28
400 Accessories
401.1 Forks..........................................................................30
402.1 Pipe Cradle, Load Platform and Boom Arm..............32
403.1 Rear Wheels..............................................................34
Indices
Part Number Index...............................................................36
Part Description Index.........................................................37
Cross References
4 Genie Superlift Contractor Part No. 33953
October 2014
Table of Contents
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition
This page intentionally left blank.
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Part and Service Manual - First Edition Section 2- Specifications
Specifications
Model SLC-6 SLC-12 SLC-18 SLC-24
Height-Stowed S6in S6in S6in S6in
21S em 21Scm 21Scm 21Scm
Width 31112 in 31112 in 31112 in
31112 in
SO em
SO em SO em
SO em
Width-stabilizers lowered (if equipped) 66in 66in
66in 66in
16Scm 16Scm 16Scm 16Scm
Length-Stowed 27 3f4 in 27 3/4 in 27 3/4 in 27 3f4 in
70 em 70 em 70 em
70 em
Length-Operating 54
in 5Sin 6Sin
76in
137cm 147cm 173cm 193cm
Ground
2in 2in
2in 2in
Clearance 50.Smm
50.S mm 50.S mm 50.S mm
Load Capacity 6501bs 6501bs 6501bs 6501bs
at 14" (36 em) load center 295
kg 295 kg 295 kg
295 kg
NetWeight 1661bs 2041bs 3071bs 3741bs
75 kg
93 kg 139 kg 170 kg
Airborne Noise Emissions by Machinery S5 dB S5dB
S5dB S5dB
Maximum sound level at normal operating workstations (A-weighted)
Load Handling Attachments Length Width Depth NetWeight
Standard Forks
2Sin 23in
2112 in
261f21bs
71 em 59 em 6.5cm
12 kg
Adjustable Forks
21112 in
11112 to 30 in
2112 in
521f21bs
70cm
29 to 76 em 6.5cm 23.S kg
Boom 44in 3in
6in
34112 lbs
112 em Scm 16cm
15.6 kg
Pipe Cradle
21112 in
241/2 in
6in 101bs
70cm 63cm 11.5 em 4.5 kg
Load Platform 26in
23in 6in 261bs
66cm 5Scm 15cm 12.0 kg
Fork Extensions (each) 30in
2in 3in
4112lbs
76cm 5cm
Scm 2 kg
Dimensions SLC-6 SLC-12 SLC-18 SLC-24
Standard Forks forks down 5 tt
Sin
11 ft 2 in 16ft 9 in 22ft 3 in
1.72 m 3.40m 5.11 m 6.7S m
forks
up 7ft 5 in
12ft11in 1S ft 6 in 24ft 0 in
2.26m 3.94m 5.64m 7.32m
Adjustable Forks forks down 5 ft Sin 11 ft 2 in
16ft 9 in 22ft 3 in
1.72 m 3.40m
5.11 m 6.7S m
forks up 7ft 5 in
12ft 11 in 1S ft 6 in 24ft 0 in
2.26m 3.94m 5.64m 7.32m
Boom
6ft Sin
12 ft2 in 17ft 9 in 23ft 3 in
2.03m 3.71m 5.41 m 7.09m
Part No. 33953
Genie Superlift Contractor
2- 1
Go to Discount-Equipment.com to order your parts

Section 2 - Specifications Part and Service Manual -First Edition
SPECIFICATIONS
Bolt Torque Specifications
Size Threads SAE Grade 5 Bolts
~
SAE Grade 8 Bolts ®
Torque-Dry Torque-Dry Torque- Dry Torque-Dry Torque- Dry Torque-Dry
inch-pounds foot-pounds Newton meters inch-pounds foot-pounds Newton meters
10 24 43 5
60
7
32
49
6
68
8
1/4
20 96
11
144
16
28 120 14
168
19
5f1s
18
17
23 25 34
24
19
28 25 34
3fs
16
30
41
45
61
24 35 48
50
68
7f1s
14
50
68 70
95
20 55
75
80
109
1f2
13
75
102 110
149
20
90
122
120 163
9f1s
12
110 149 150
204
18
120 163 170
231
5fa
11
150 204 220 298
18
170
231
240 326
3f4
10
260 353 380 515
16
300 407 420 570
?fa
9 430 583 600 814
14
470 637 660 895
1 8 640 868 900
1221
12
700
949
1000 1356
Torque specifications for lubricated bolts are 25% less than dry torque specifications for each bolt size.
These
bolt torque specifications are for general use only. Specification may vary depending on application of bolt.
2-2 GenieSuperlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition Section 3 - Scheduled Maintenance Inspections
Scheduled Maintenance Inspections
Observe and Obey:
1!!1 Maintenance inspections shall be completed by
a person trained and qualified on the
maintenance
of this machine.
1!!1 Scheduled maintenance inspections shall be
completed daily, quarterly and annually as
specified on the maintenance inspection report.
Failure to properly complete each
inspection when required may
result in death, serious injury or
substantial
machine damage.
1!!1 Immediately tag and remove from service a
damaged or malfunctioning machine.
1!!1 Repair any machine damage or malfunction
before
operating machine.
1!!1 Keep records on all inspections for three years.
1!!1 Machines that have been out of service for a
period longer than 3 months must complete the
quarterly inspection.
About This Section
Schedule
There are three types of maintenance inspections
that
must be performed according to a schedule-
daily, quarterly
and annually. To account for
repeated procedures, the Maintenance Tables and
the Maintenance Inspection Report have been
divided into three subsections-A, B, C. Use the
following chart to determine which group(s) of
procedures are required to perform a scheduled
inspection.
Inspection Table or Checklist
Daily A
Quarterly (every 150 hours or three months) A+ B
Annual A + B + C
Maintenance Tables
The maintenance tables contained in this section
provide summary information on the specific
physical requirements for each inspection.
Complete step-by-step instructions for each
scheduled maintenance procedure are provided in
section 4, ScheduledMaintenance Procedures.
Maintenance Inspection Report
The maintenance inspection report contains
checklists for each type of scheduled inspection.
Make copies of the Maintenance Inspection
Report to use for each inspection. Keep records
on all inspections for three years.
Part No. 33953 Genie Superlift Contractor
3-1
Go to Discount-Equipment.com to order your parts

Section 3 - Scheduled Maintenance Inspections Parts and Service Manual -First Edition
Maintenance Tables
Table A
Dealer
Tools are New parts
service
required required
suggested
A-1
Inspect the Operator's Manual
A-2 Inspect the Decals and Placards
A-3 Inspect for Damage, Loose
or Missing Parts
A-4 Check the Winch Operation
A-5 Inspect the Columns for Damage
A-6 Inspect the Cable and Cable Pulleys
A-7 Check the Mast for Proper Sequencing
A-8 Inspect the Casters and Wheels
TableB
B-1
Inspect All Welds
B-2 Clean
the Columns
.,
ftl
8-3 Inspect and Lubricate the Winch
.,
ftl
3-2
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition Section 3- Scheduled Maintenance Inspections
MAINTENANCE TABLES
TableC Dealer
Tools are New parts service
r~uired
required suggested
C-1 Lubricate the Casters and Wheels ~
C-2 Inspect the Mast Assembly for Wear
.,
C-3 Replace the Winch Friction Disks
.,
~
C-4 Inspect the Safety Brake System
-If Equipped
C-5 Inspect the Painted Surfaces
Part No. 33953 Genie Superlift Contractor
3-3
Go to Discount-Equipment.com to order your parts

Section 3 -Scheduled Maintenance Inspections Parts and Service Manual -First Edition
Maintenance Inspection Report
Model
Serial number
Date
Machine owner
Inspected by (print)
Inspectorsignature
Inspectortitle
Inspectorcompany
Instructions
· Make copies ofthis page to use for
each inspection.
· Selectthe appropriate checklist(s) for
the type
of inspection to be performed.
§
Daily Inspection: A
Quarterly Inspection: A+B
Annual Inspection: A+B+C
· Place acheck in the appropriate box
after each inspection procedure is
completed.
· If any inspection receives an "N",
remove the machine from use, repair
and re-inspect it. After repair, place a
check in the "R" box.
Legend
Y= yes, acceptable
N= no, unacceptable
R=repaired
Comments
3-4
ChecklistA Y N R
A-1 Operator's manual
A-2
Decals and placards
A-3
Damage, loose or
missing parts
A-4 Check winch
A-5
Columns
A-6 Inspect cable and
pulleys
A-7 Check mast forproper
sequencing
A-8 Inspect casters
and wheels
Genie Superlift Contractor
ChecklistS Y N R
8-1 Inspectwelds
B-2
Clean columns
8-3 Inspect and lubricate
winch
ChecklistC Y N R
C-1
Lubricate casters
and wheels
C-2 Mast assembly wear
C-3
Replace winch
friction disks
C-4 Safety
brake system
(ifequipped)
C-5 Inspectpainted
surfaces
Part No. 33953
Go to Discount-Equipment.com to order your parts

Parts and Service Manual- First Edition Section 4 - Scheduled Maintenance Procedures
Scheduled Maintenance Procedures
Observe and Obey:
ltl Maintenance procedures shall be completed by
a person trained and qualified on the
maintenance of this machine.
ltl Scheduled maintenance procedures shall be
completed daily, quarterly (every 3 months)
and annually as specified on the maintenance
inspection report.
Failure to properly complete each
inspection when required may
result
in death, serious injury or
substantial machine damage.
ltl Immediately tag and remove from service a
damaged or malfunctioning machine.
ltl Repair any machine damage or malfunction
before operating machine.
ltl Keep records on all inspections for three years.
ltl Be sure the capacities of sawhorses or other
supports are sufficient to withstand machine
weight. See Specifications section for specific
weight.
ltl Be sure overhead cranes or other lifting
devices
ar~ of ample capacity to handle
machine weight. See Specifications section for
specific weight.
ltl Unless otherwise specified, perform each
procedure with the machine in the following
configuration:
machine positioned on a flat level surface
carriage fully lowered
casters locked
load handling attachment installed
About This Section
This section contains detailed procedures for each
scheduled maintenance inspection.
Each procedure includes a description, safety
warnings and step-by-step instructions.
Symbols Legend
iiM%ihi M r!JH i1 Indicates the presence of a
!L::A L~J k t;::A J ;~ hazard that will cause death or
serious injury.
Indicates the presence of a
hazard that may cause death or
serious injury.
;v;;;v;;;········.··NN· ·· ·.·.··N·······. Indicates the presence of a
1·!1 .• 1111!,! hazard that will or may cause
serious injury or damage to the
machine.
Indicates special operation or
maintenance information.
0 Indicates that a specific result is expected after
performing a series
of steps.
Part No. 33953 Genie Superlift Contractor
4- 1
Go to Discount-Equipment.com to order your parts

Section 4 - Scheduled Maintenance Procedures
Table A Procedures
A-1
Inspect the Operator's Manual
Maintaining the operator's manual in good
condition is essential to safe machine operation.
The operator's manual is included with each
machine and should be stored in the box provided
on the mast. An illegible or missing manual will not
provide safety and operational information
necessary for a safe operating condition.
1 Check to make sure the operator's manual is
present and complete in the storage container
on the mast.
2 Examine the pages of the manual to be sure
that they are legible and in good condition.
3 Always return the manual to the storage
container after use.
• H';t H"l':JIII! Contact your authorized Genie
IIIII i l J ll'j • d1stnbutor or Geme lndustnes 1f a
replacement manual is needed.
A-2
Inspect the Decals and Placards
Maintaining all of the safety and instructional
decals and placards in good condition is essential
for safe machine operation. Decals alert operators
and personnel to the many possible hazards
associated with using this machine. They also
provide users with operation and maintenance
information. An illegible decal will fail to alert
personnel of a procedure or hazard and could
result in unsafe operating conditions.
1 Refer to the decals section in the operator's
manual and use the decal list and illustration to
determine that all decals and placards are in
place.
Parts and Service Manual -First Edition
2 Inspect all decals for legibility and damage.
Replace any damaged or illegible decal
immediately.
• ~ r;j'i pI Contact your authorized Genie
c!IJ distributor or Genie Industries if
replacement decals are needed.
A-3
Inspect for Damage , Loose or
Missing Parts
Daily machine condition inspections are essential
to safe machine operation and good machine
performance. Failure to locate and repair damage,
and discover loose or missing parts may result in
an unsafe operating condition.
1 Inspect the entire machine for damage and
improperly installed or missing parts including:
llll!lnf '\i fJ a Refer to Section Seven, Service
lllll!.~.t..
1
.i.l UD Parts, for component locations.
cable anchor
cable and pulleys
mast columns
nuts, bolts and other fasteners
load handling attachment
winch and related components
legs and casters
stabilizers, latch plates and casters
loading wheels and pull pin
manual storage container
dents or damage to machine
cracks in welds or structural components
corrosion to painted surfaces
corrosion or
oxidation to all other surfaces
4-2
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition
A-4
Check the Winch Operation
Detection of damage to the winch is essential to
safe machine operation.
An unsafe working
condition exists if the winch is damaged or not
operating correctly. A daily check
of the winch
operation allows the inspector to identify changes
in the operating condition ofthe winch that might
indicate damage.
1 Visually inspect all winch components for
damage.
2 Raise the carriage through a partial cycle and
release the winch handles.
0 Result: The winch should operate smoothly,
free of hesitation or binding. The carriage
should not lower when the handles are
released.
3 Fully lower the carriage.
0 Result: The winch should operate smoothly,
free of hesitation or binding.
A-5
Inspect the Columns for Damage
Detection of damage to columns is essential for
safe machine operation. An unsafe working
condition exists ifthe columns are damaged and
do not operate smoothly, free
of hesitation and
binding. A daily check of the columns allows the
inspector to identify changes
in the operating
condition
of the mast assembly that might indicate
damage.
Visually inspect the exterior of each column for
the following:
dents, gouges or abrasions
bends or warping
excessive wear
Section 4 - Scheduled Maintenance Procedures
TABLE A PROCEDURES
2 Raise and lower all columns through a
complete cycle.
0 Result: Columns should raise and lower
smoothly, free
of hesitation and binding.
A-6
Inspect the Cable and
Cable Pulleys
Detection of damage to cable or pulleys is
essential for safe machine operation. An unsafe
working condition exists ifthese components are
damaged and do not operate smoothly. A daily
check of this system allows the inspector to
identify changes
in the operating condition that
might indicate damage.
Visually inspect the cable and components for
the following:
frayed or broken wire strands
kinks in the cable
corrosion
paint
or foreign materials
split or cracked swagged end(s)
cable is properly secured to the winch
cable is properly secured to the mast
2 Using proper lifting techniques, lay the machine
back against a sawhorse or other suitable
support and check to be sure of the following:
cable is on the pulleys
upper and lower mounting brackets are
properly secured
no broken or damaged pulleys or pulley
guards
no unusual or excessive pulley wear
Part No. 33953 Genie Superlift Contractor
4-3
Go to Discount-Equipment.com to order your parts

Section 4 - Scheduled Maintenance Procedures
TABLE A PROCEDURES
A-7
Check the Mast for Proper
Sequencing
Detection of damage to the mast is essential for
safe machine operation. An unsafe working
condition exists ifthe mast is damaged and does
not sequence properly, free of hesitation and
binding. A daily check ofthe sequencing allows
the inspectorto identify changes in the operating
condition ofthe mast assembly that might indicate
damage.
1 Raise all columns to full height with no load
on
the load handling attachment.
0 Result: The carriage should rise to the top of
the front column section, followed in
consecutive order by each column.
2 Lower the columns to the stowed position.
0 Result: The columns should lower in reverse
order, followed by the carriage.
Parts and Service
Manual- First Edition
A-8
Inspect the Casters and Wheels
Extremely dirty conditions may require that the
casters and wheels be inspected and lubricated
more often.
1 Visually inspect each caster and wheel for cuts,
cracks or unusual wear.
2 Move the machine
on a flat smooth surface and
check that the casters and wheels roll
smoothly, free of hesitation and binding.
3 Lock the base swivel casters.
0 Result: The wheels should not roll.
4-4
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts

Parts and Service Manual -First Edition Section 4 - Scheduled Maintenance Procedures
Table B Procedures
B-1
Inspect All Welds
Weld inspections are essential to safe machine
operation and good machine performance. Failure
to locate and repair damage may result in an
unsafe operating condition.
Visually inspect the welds in the following
locations:
B-2
winch mounting plate
loading wheels/steer handle
base
legs and stabilizers
load handling attachment(s)
Clean the Columns
Clean columns are essential to good machine
performance and safe operation. Extremely dirty
conditions may require that the columns be
cleaned more often.
Raise all columns to the maximum height.
2 Visually inspect the inner and outer channels of
the columns for debris or foreign material. If
necessary, use a mild cleaning solvent to clean
the columns.
This procedure will require the use
of additional access equipment.
Do not place ladders or scaffold
on or against any part
of the
machine. Performing this
procedure without the proper skills
and tools may result in death or
serious injury. Dealer service is
strongly recommended.
\111111111~': ~~un~~~:ply any lubrication to the
B-3
Inspect and Lubricate the Winch
Maintaining the winch is essential to good machine
performance and safe operation. An unsafe
working condition exists if the winch has excessive
wear and/or does not operate smoothly, free of
hesitation and binding.
Carefully lubricate the following areas with
automotive grease:
· the cable drum gear
· the teeth on the pinion gearthat meshes with
the cable drum gear
· the threads on the pinion shaft, under the
pinion gear
m ~ r$~ 1. ~~ D Do not apply grease to brake
m •l 4 i l5 ft friction disks or rachet gear.
2 Carefully lubricate with 30W oil both pivot
points on each ratchet pawl.
3 Inspect the friction disks for excessive wear.
Replace if pad
is less than 1f1s inch (1.5 mm)
thick.
4 Inspect pinion shaft bushings for excessive
wear. Replace if wall thickness of bushing
is
less than 1Js inch (3.1 mm).
5 Lubricate the frame drum spacer. Tighten the
drum bolt to 20 ft-lbs (27 Nm). Do not
overtighten.
Part No. 33953 Genie Superlift Contractor
4-5
Go to Discount-Equipment.com to order your parts

Section 4 - Scheduled Maintenance Procedures Parts and Service Manual- First Edition
Table c Procedures
C-1
Lubricate the Casters and Wheels
Extremely dirty conditions may require thatthe
casters and wheels be inspected and lubricated
more often.
1 Visually inspect each caster and wheel for cuts,
cracks or unusual wear.
2 Move the machine on a flat smooth surface and
check that the casters and wheels roll
smoothly, free
of hesitation and binding.
3 Pump grease into the caster or wheel until it
can be seen coming out of the bearing gap.
Grease Type Lithium-based
C-2
Inspect the Mast Assembly
for Wear
Detection of excessive or unusual wear in the
mast assembly is essential for safe machine
operation. An unsafe working condition exists if
the mast assembly has excessive wear and/or
does not operate smoothly, free
of hesitation and
binding.
Attach an overhead crane or similar lifting
device to the lifting bracket on the mast. Rotate
the carriage hold down bar over the carriage.
2 Lift the machine slightly and then guide it over
onto an appropriate support. The mast
assembly should be level with the carriage up.
Crushing hazard. The machine
will fall unless it is properly
supported with the overhead
crane.
3 Visually inspect the top
of each column for
clearance between the roller wheel and the
adjacent column surface.
0 Result: There should be a maximum gap of
0.062 inches (1.57 mm) between the roller
wheel and the column.
• ~ r~ j i r~ II If mast inspection r~sults i~ a.
m-llllloi!oi- --~.,.-•~-....,.-~~~~ measurementthat 1s not w1th1n
specification, refer to Repair
procedure 2-1,
How to
Disassemble the Mast Assembly.
4-6
Genie Superlift Contractor Part No. 33953
Go to Discount-Equipment.com to order your parts
